Peugeot 508 Hybrid Dag (2012.5). Instruction - part 4

Access

Locking the vehicle
Normal locking

Using the key

)

Turn the key towards the rear of the vehicle
to lock the vehicle completely.

Using the remote control

)

Press the closed padlock to lock

the vehicle completely.

Using the electronic key

)

With the electronic key in the defined zone,

press with a finger on the door handle (at
the markings) to lock the vehicle.

)

From the boot (SW only), with the

electronic key in the defined zone, press a
button to lock the vehicle.

Maintaining the locking action
(remote control or manual
key) automatically closes the
windows and sunroof.
Contact a PEUGEOT for
deactivation of this function.

As a safety measure (children on
board), never leave the vehicle without
taking your key, even for a short period.
Guard against theft when the electronic
key is in the defined zone with the
vehicle unlocked.

Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.
It is not possible to lock the vehicle if an
electronic key is left inside the vehicle
or if the ignition is on.

If one of the doors or the boot is still
open or if an electronic key has been
left inside the vehicle, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after about thirty seconds
unless a door is opened.
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a PEUGEOT dealer.

Access

Deadlocking

Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

Using the key

)

Turn the key to the rear in the driver's door
lock to lock the vehicle completely.

)

Turn the key to the rear again within five
seconds to deadlock the vehicle.

Deadlocking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.

Using the remote control

)

Press the closed padlock to lock

the vehicle completely or press
the closed padlock for more
than two seconds to close the
windows automatically in addition
to locking.

Using the electronic key

By the doors:
)

With the electronic key in the defined zone,

press a finger on the door handle (at the
markings) to lock the vehicle.

)

Within

five seconds, press the door handle

again to deadlock the vehicle.

By the tailgate (SW only):
)

With the electronic key in the defined zone,
press the button to lock the vehicle.

)

Within five seconds, press the button to
deadlock the vehicle.

)

Press the closed padlock again within

five seconds to deadlock the vehicle.

Access

Locking/ unlocking from the inside

Automatic central locking of the

doors

The doors can lock automatically while driving
(speed above 6 mph (10 km/h)).
To activate or deactivate this function, press
and hold the button until a message appears in
the screen.

If the vehicle is deadlocked, the button
is not active. In this case, use the key or
the remote control to unlock.

Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.

)

Press the closed padlock to

locate your locked vehicle in a
car park.

Locating your vehicle

)

Press the button.

This allows the doors and the boot to be locked
or unlocked.

This is indicated by lighting of the courtesy
lamps and flashing of the direction indicators
for a few seconds.

When carrying large objects with the
boot open, you can press this button to
inhibit the boot open alert signal. When
locking from inside, the door mirrors do
not fold.

Access

Emergency procedure

Emergency unlocking/

locking using the electronic

key

The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
- cell

battery flat, vehicle battery discharged

or disconnected, ...

- vehicle located in an area with strong

electromagnetic emissions.

)

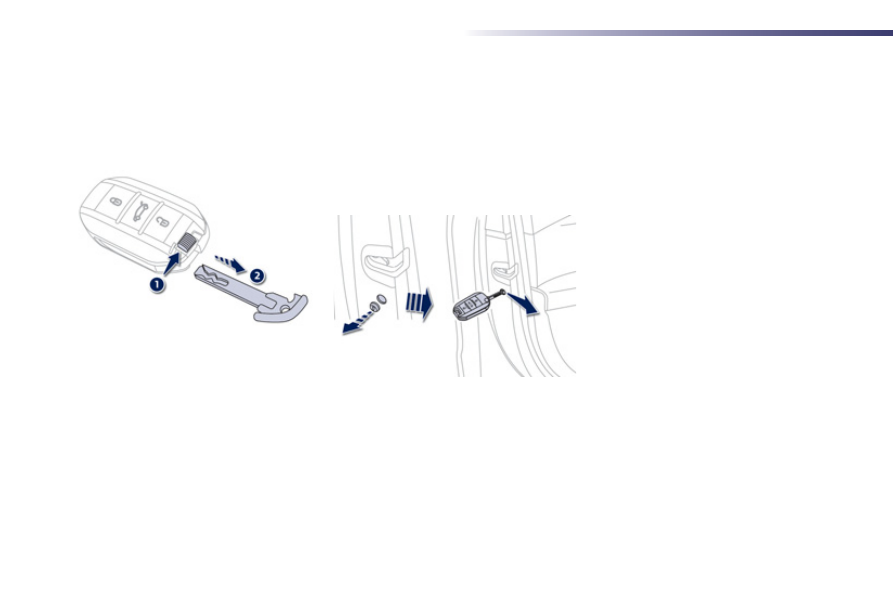

Pull on button 1, to extract the integral
key 2.

)

Unlock or lock the vehicle using the key.

Manual locking

Driver's door

Insert the key in the lock to lock or unlock the
door.

Passenger doors

)

On the rear doors, check that the child lock

is not on.

)

Remove the black cap located on the edge

of the door, using the key.

)

Insert the key into the aperture without

forcing, then without turning, move the
latch sideways towards the inside of the
door.

)

Remove the key and refit the cap.

Remote control problem

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
)

First of all, use the key in the lock to unlock
or lock your vehicle.

)

Then, reinitialise the remote control.

If the problem persists, contact a PEUGEOT
dealer or a qualified workshop as soon as
possible.

Reinitialisation with the remote

control

)

Switch on the ignition.

)

Immediately press one of the remote
control buttons for a few seconds.

)

Switch off the ignition.

The remote control is fully operational again.

Access

Changing the battery of the key

Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a
PEUGEOT dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
)

Unclip the cover using a small screwdriver

at the cutout.

)

Lift off the cover.

)

Remove

the

flat battery from its location.

)

Fit the new battery into its location

observing the original direction of fitment.

)

Clip the cover onto the casing.

Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

Reinitialisation with the

electronic key

)

Switch of the ignition.

)

Immediately press one of the remote
control buttons for a few seconds.

)

Switch on the ignition

The electronic key is fully operational again.

Changing the battery of the

electronic key

Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a
PEUGEOT dealer or a qualified workshop.
A message is displayed in the instrument panel
screen when replacement of the battery is
needed.
)

Unclip the cover using a pointed object at

the key ring.

)

Slide the flat battery out of its location.

)

Slide the new battery into its location

observing the original direction of fitment.

)

Clip the cover in place starting at the front.

)

Reinitialise the electronic key.

Access

Lost keys, remote control, electronic key

Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.

Locking the vehicle

Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a short time.

Electrical interference

The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong
magnetic fields, ...

Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.

When purchasing a second-hand vehicle

Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.

Access

System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:

Alarm

- Exterior perimeter

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...

- Interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.

- Tilt

The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.

Self-protection function

The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control unit or the wires of the
siren are put out of service or damaged.

For all work on the alarm system,
contact a PEUGEOT dealer or a
qualified workshop.

Locking the vehicle with full

alarm system

Activation

)

Switch off the ignition and get out of the vehicle.

)

Press the locking button on the

remote control or lock the vehicle
using the Keyless Entry and
Starting system.

The monitoring system is active: the indicator
lamp on the button flashes once per second.
After the locking button on the remote control
is pressed or the vehicle locked using the
Keyless Entry and Starting system, the exterior
perimeter monitoring is activated after a delay
of 5 seconds, the interior volumetric monitoring
after 45 seconds and anti-tilt monitoring after
90 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after a
delay of 45 seconds.

)

Press the unlocking button on

the remote control or unlock the
vehicle using the Keyless Entry
and Starting system.

Deactivation of the volumetric

monitoring

The volumetric protection system is
deactivated: the indicator lamp in the
button goes off.

Access

Locking the vehicle

with exterior perimeter

monitoring only

Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-  leaving a window partially open,
-  washing your vehicle,
-  changing a wheel,
-

having your vehicle towed,

- transportation by sea.

Deactivation of the interior

volumetric and anti-tilt monitoring

)

Switch of the ignition and within

ten seconds, press this button
until the indicator lamp is on
continuously.

)

Get out of the vehicle.

)

Press the locking button on

the remote control immediately
or lock the vehicle using the
Keyless Entry and Starting
system.

The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
To be effective, this deactivation must be carried
out each time the ignition is switched off.

Reactivation of the interior

volumetric and anti-tilt monitoring

Triggering of the alarm

This is indicated by sounding of the siren and
flashing of the direction indicators for thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.

)

Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.

)

Press the locking button on the

remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.

The indicator lamp in the button
again flashes once per second.

When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator

lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.

Failure of the remote control

To deactivate the monitoring functions:
)

Unlock the vehicle using the key in the
driver's door lock.

)

Open the door; the alarm is triggered.

)

Switch on the ignition; the alarm stops. The
indicator lamp in the button switches off.

Locking the vehicle without

activating the alarm

)

Lock or deadlock the vehicle using the key
in the driver's door lock.

Operating fault

When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.

* According to country.

Automatic activation *

2 minutes after the last door or the boot is
closed, the system is activated automatically.
)

To avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.

Access

Electric windows

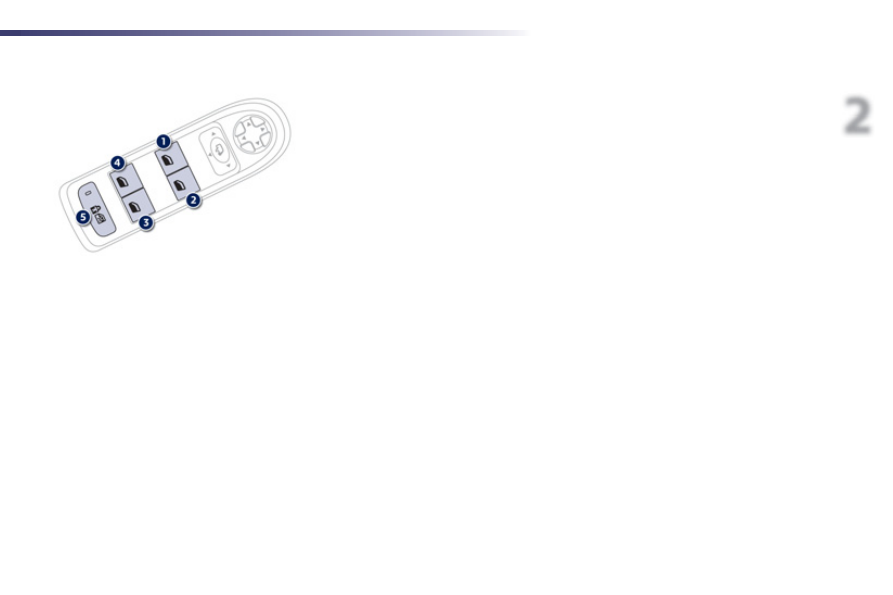

1. Left hand front electric window switch.
2. Right hand front electric window

switch.

3. Right hand rear electric window switch.
4. Left hand rear electric window switch.
5. Deactivating the rear electric window

switches,

locking the rear doors
(child lock).

Manual operation
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.

Automatic operation
(depending on version)
To open or close the window, press or pull
switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
The electric window switches remain
operational for approximately one minute after
the key has been removed from the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again.

Safety anti-pinch

When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.

Deactivating the rear window

controls

For the safety of your children, press switch 5
to prevent operation of the rear windows
irrespective of their position.
The interior controls for the rear doors are also
deactivated.
When the button is pressed down, the warning
lamp is on, the switches are deactivated. When
the button is raised, the switches are active, the
warning lamp is off.

Access

Reinitialisation of the

electric windows

Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.

Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:
-

lower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,

continue to press the switch for at least one
second after reaching this position, window
closed.

Access

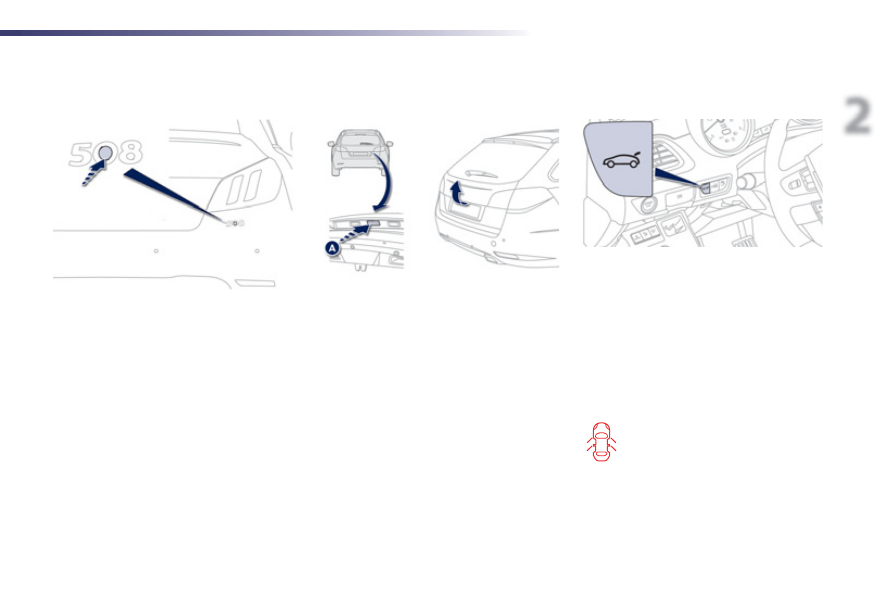

Boot

Saloon

)

After unlocking the vehicle completely
using the remote control or the key, press
this button.

)

After unlocking the vehicle completely

using the remote control or the key, press
at the top (on lever A), and raise the

tailgate.

From the inside

Hold this button down until unlocking of the
boot is heard.

Opening

Closing

)

Lower

the

tailgate using the interior grab

handle.

If the tailgate is not closed correctly:

when the engine is running ,
this warning lamp and a
message in the instrument panel
screen appear for a few seconds,

when the vehicle is moving (speed above
6 mph (10 km/h)), this warning lamp and
a message, accompanied by an audible
signal, appear in the instrument panel
screen for a few seconds.

Access

Motorised tailgate (SW)

Opening

Vehicle locked/deadlocked

)

Press this button A on the

remote control.

Vehicle unlocked

)

Press button A on the remote control, or

press the push button B on the tailgate.

From the inside

)

Press this button to unlock and open the
tailgate.

Check that here is no obstacle in the
way when opening the tailgate remotely.

Access

)

Press this button C to close the

tailgate electrically.

Do not hinder closing of the tailgate: any
obstacle to closing causes the tailgate to stop
and rise a few centimetres automatically.
To close the tailgate manually: move the
tailgate slightly up then down to disengage it
from its drive then lower it until closed.

To avoid the risk of injury, ensure
that no one is close to the rear of the
vehicle when opening or closing the
tailgate.

While electric opening or closing of the tailgate
is in progress, you can stop its movement at
any time:
)

press the interior button or button A on

the remote control or button B or C on the
tailgate.

Stopping the opening or

closing

Adjusting the opening

height

The maximum opening height of the tailgate
can be set and memorised (restricted overhead
clearance, ...).
This memorisation is done in two steps, by
successive presses on button C:
- during opening, a first press stops the

tailgate at the desired height,

a second maintained press memorises the
position of the tailgate; an audible signal
confirms the memorisation.

To delete this memorisation, make a new
maintained press until the audible signal is
heard.

"Boot open" warning

With the engine running or when the vehicle is
moving, if the tailgate is not properly closed,
a message accompanied by an audible signal
(from 6 mph (10 km/h)) is displayed in the
instrument panel screen.

Access

Emergency release (Saloon

and SW)

System for mechanical unlocking of the boot in
the event of a battery or central locking fault.

Unlocking

)

Fold back the rear seats to gain access to
the lock from inside the boot.

)

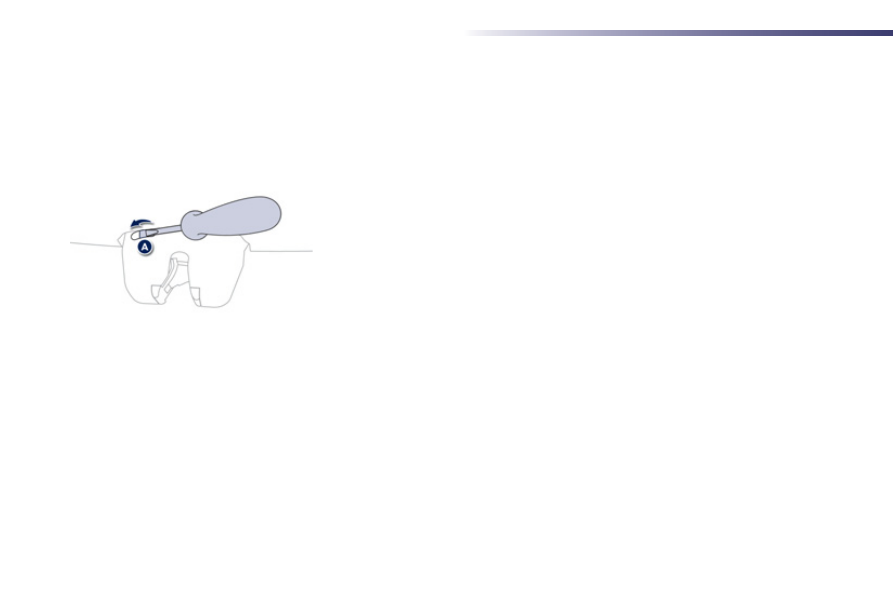

Insert a small screwdriver into hole A of
the lock, then move the lever to the left to
unlock the boot.

Access

Sunroof

Opening

Turn the dial to the left to slide the sunroof
(several possible opening settings).

Blind

The blind improves thermal and acoustic
comfort.
The blind is opened automatically when the
sunroof is opened. It must be closed manually
after closing the sunroof.

Raising the rear of of the sunroof

Your vehicle is fitted with an opening sunroof which increases the light and visibility in the passenger compartment.

Return the dial to the initial position.
If the position of the glass panel does not agree
with the position indicated by the dial, press
the ring of the dial to open the sunroof to this
position.

Closing

Turn the dial to the right to raise the rear of the
sunroof.

Access

Safety anti-pinch

Am anti-pinch system stops the closing of the
roof, whether sliding or from the raised at the
rear position. If the sunroof encounters an
obstacle it partially opens again.
If the sunroof fails to close at a second attempt,
it may be necessary to force the closing of the
sunroof using the reinitialisation procedure.

Reinitialising the system

Following reconnection of the battery, or in the
event of a malfunction in its operation, it may be
necessary to reinitialise the system:
)

turn the dial to the right to raise the sunroof

at the rear,

)

wait until the sunroof is fully up at the rear,

)

then

immediately press the dial for at least

3 seconds.

If the sunroof opens on its own when closing,
as soon as possible after the sunroof stops:
-

put the dial in the fully closed position,

press the dial,

maintain pressure on the dial until the
sunroof closes.

The anti-pinch function is inoperative
during these operations.

The driver should ensure that
passengers use the sunroof correctly.
Be aware of children when operating
the sunroof.

Content .. 2 3 4 5 ..
