Peugeot 508 Hybrid Dag (2012.5). Instruction

Familiarisation

I would like...

Heating or manual air conditioning

Air distribution

Air flow

Air recirculation /

Exterior air intake

Temperature

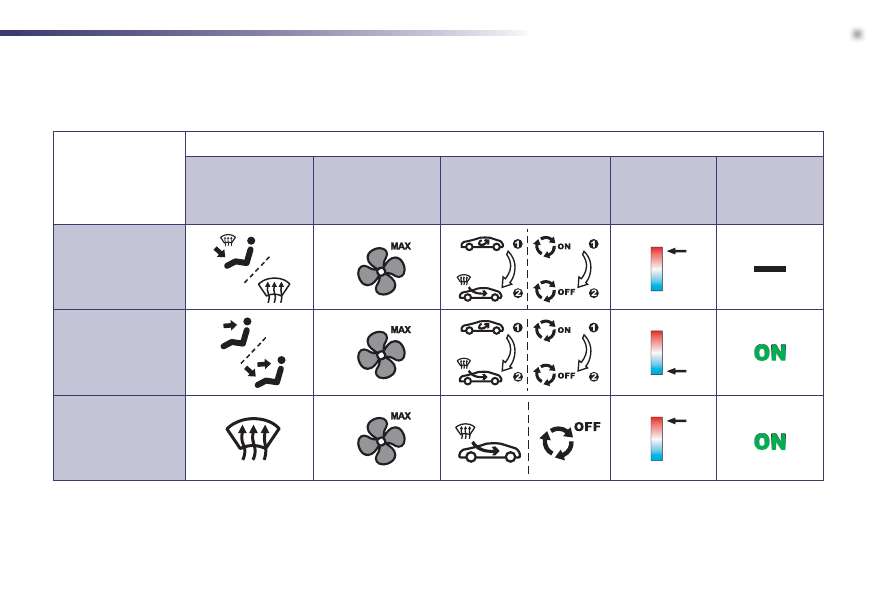

Manual A/C

HOT

COLD

DEMISTING

DEFROSTING

Ventilation

Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.

Advice on interior settings

Familiarisation

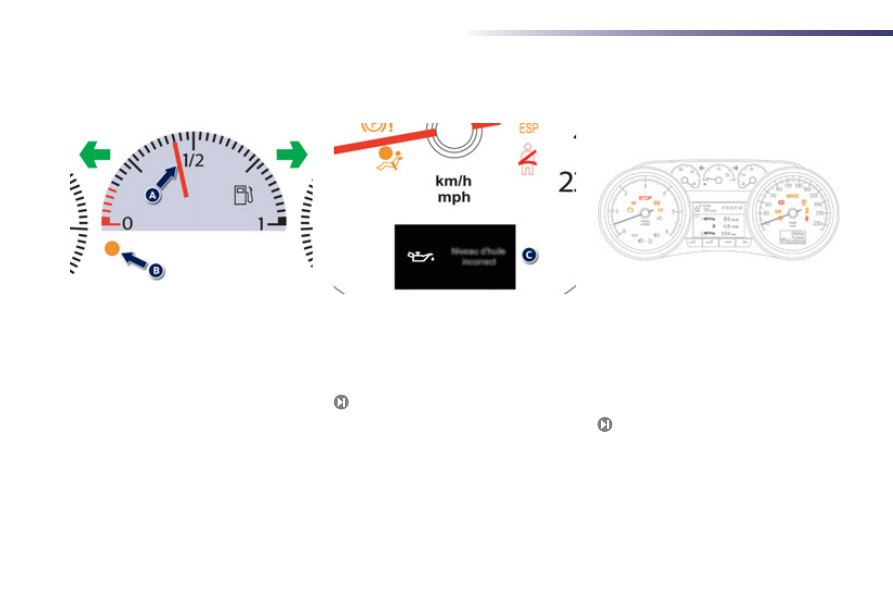

Monitoring

On switching on, the dial needles go to the
extent of their travel then return to 0.
A. With the ignition on, the needle should

indicate the fuel remaining.

B. With the engine running, the associated

low level warning lamp should go off.

Instrument panel

1. With the ignition on, the orange and red

warning lamps come on.

2. With the engine running, these warning

lamps should go off.

If a warning lamp remains on, refer to the page
concerned.

Warning lamps

C. With the ignition on, the instrument panel

screen should indicate the level of oil.

If the levels are not correct, top up the level
which is low.

Familiarisation

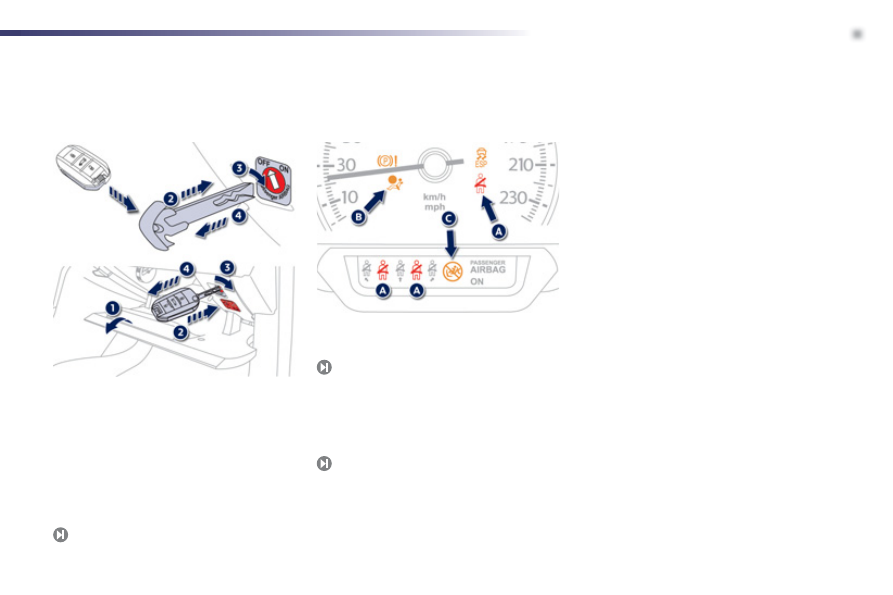

Passenger safety

1. Open the glove box.
2. Insert the key.
3. Select position:

"ON" (activation), with front passenger or
"forwards facing" child seat,
"OFF" (deactivation), with "rear facing" child seat.

4. Remove the key keeping the switch in the

new position.

Front passenger's airbag

175

A. Front seat belts not fastened or unfastened

warning lamp.

Front seat belts and

passenger's front airbag

175

B. Airbag fault warning lamp.
C. Front passenger's airbag activation

indicator lamp.

172

Familiarisation

Driving safely

Stop & Start

Going into engine STOP mode

121

The "ECO" warning lamp comes
on in the instrument panel and the
engine goes into standby; with an

electronic gear control gearbox and speeds
below 4 mph (6 km/h), press the brake pedal or
put the gear lever in position N.

Going into engine START mode

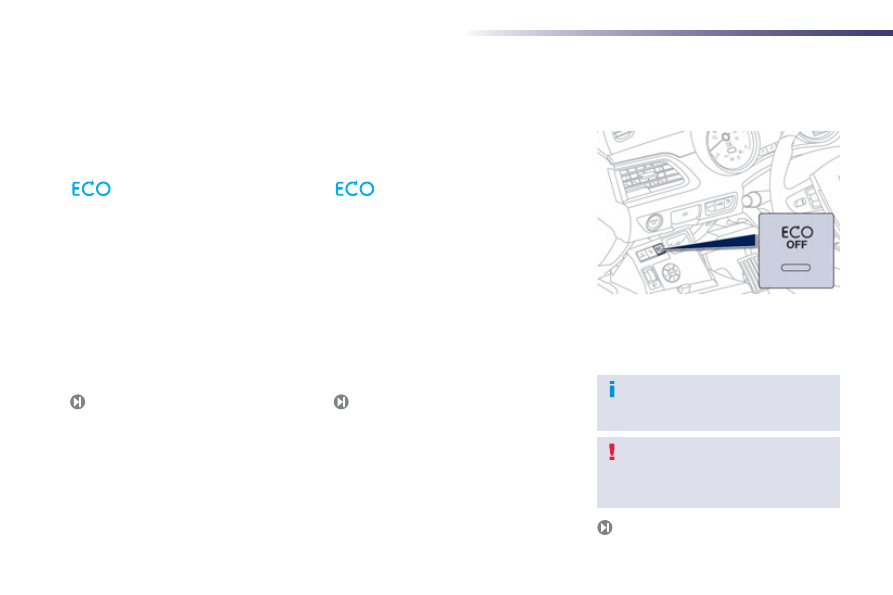

Deactivation / Reactivation

You can deactivate the system at any time by
pressing the "ECO OFF" button; the button's
warning lamp comes on.

122

The system is automatically reactivated
every time the engine is started with
the key.

Before refuelling or doing anything
under the bonnet, you must switch off
the ignition with the key.

The "ECO" warning lamp goes off
and the engine restarts with an
electronic gear control gearbox:

- with

the

gear lever in position A or M

release the brake pedal,

- or

with the gear lever in position N and

brake pedal released, move the gear lever
to position A or M ,

or engage reverse.

In certain circumstances, the STOP mode
may not be available; the "ECO" warning lamp
flashes for a few seconds, then goes off.

In certain circumstances, START mode may be
invoked automatically; the "ECO" warning lamp
flashes for a few seconds, then goes off.

Familiarisation

Driving safely

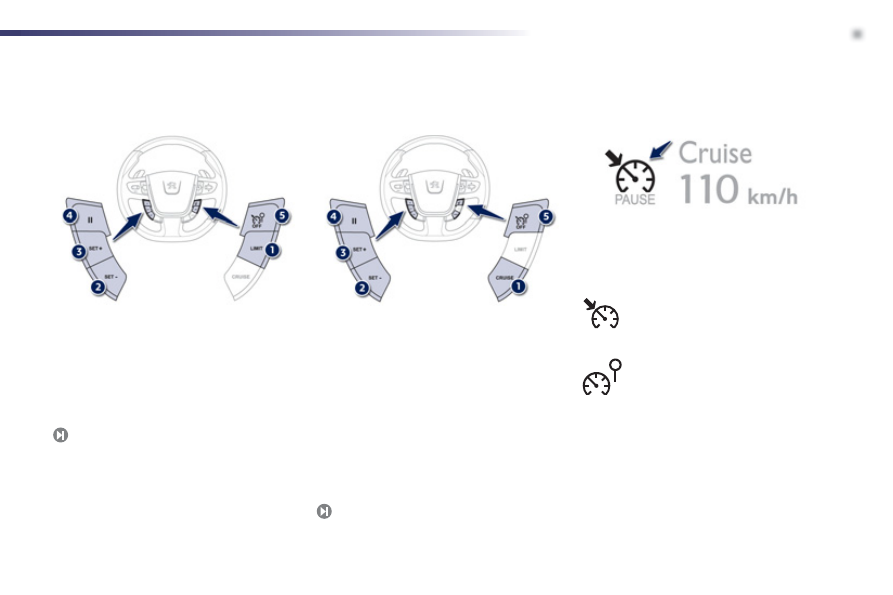

1.  Selecting speed limiter mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4.   Pause/resume speed limiter.
5.   Speed limiter off.

Speed limiter "LIMIT"

128

1. Selecting cruise control mode.
2. Decrease

the

programmed value.

3. Increase

the

programmed value.

4. Pause/resume cruise control.
5. Cruise control Off.

Cruise control "CRUISE"

130

The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.

Display in the instrument panel

Cruise control

Speed limiter

The values must be set with the engine running.

In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least 4th gear engaged on
a manual gearbox (2nd gear on an electronic
gear control or automatic gearbox).

Optimise the use of your

gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear efficiency indicator
invites you to change up; it is displayed in the
instrument panel, follow its instructions.

With an automatic or electronic gearbox,
stay in Drive "D" or Auto "A" , according to
the type of gearbox, without pressing the
accelerator pedal heavily or suddenly.

Drive smoothly

Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO

emissions and also helps reduce the

background traffic noise.

If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.

Control the use of your electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before using
the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Remember to make use of equipment that can
help keep the temperature in the passenger
compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has
automatic digital regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps
when the level of light does not require their use.

Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Limit the causes of excess

consumption

Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and
refit your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
- before a long journey,
-

at each change of season,

after a long period out of use.

Don't forget the spare wheel and the tyres on
any trailer or caravan.

Have your vehicle serviced regularly (engine
oil, oil filter, air filter...) and observe the
schedule of operations recommended by the
manufacturer.

When refuelling, do not continue after the 3

cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only
after the first 1 800 miles (3 000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.

Instruments and controls

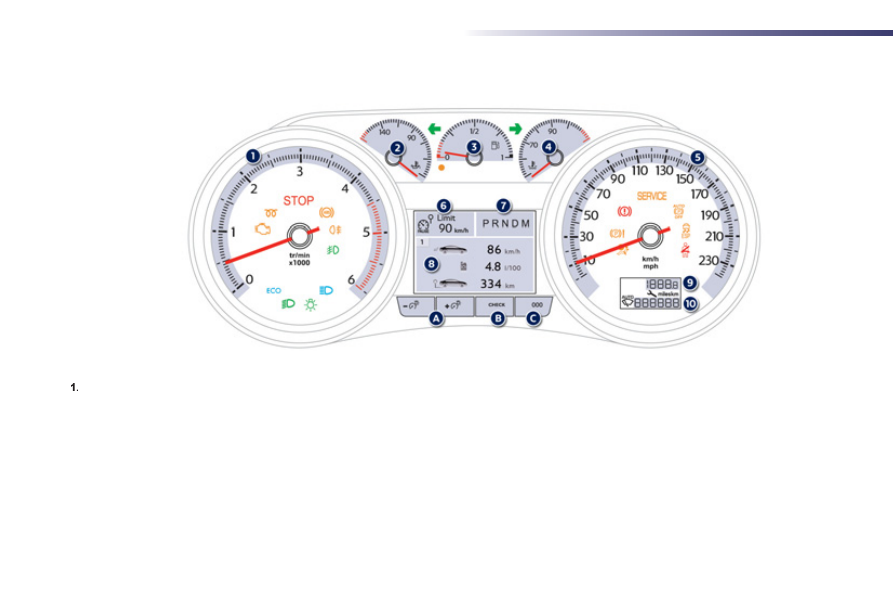

Petrol-Diesel instrument panel

Rev

counter

(x 1 000 tr/min or rpm),

graduation according to engine (petrol or
Diesel).

2.  Engine oil temperature gauge.
3. Fuel gauge.
4.   Engine coolant temperature gauge.
5.   Speedometer (mph or km/h).
6. Cruise control or speed limiter settings.
7.   Gear shift indicator for a manual gearbox

or gear lever position and gear for an

A. Main lighting dimmer.
B. Display of alert log.

Recall of the service information.

C. Reset the trip distance recorder.

electronic gear control or automatic
gearbox.

8. Display zone: alert messages or state of

functions, trip computer.

9. Trip distance recorder (miles or km).
10. Automatic wipers

Service indicator

(miles or km) then,

total distance recorder.

These

two

functions are displayed

successively when switching on the
ignition.

Dials and screens

Control buttons

Instruments and controls

Indicator and warning

lamps

Visual indicators informing the driver that a
system is in operation, switched off or has a
fault.

When the ignition is switched on

Certain warning lamps come on for a few
seconds in the instrument panel and/or
instrument panel screen when the vehicle's
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.

Associated warnings

The switching on of certain warning lamps may
be accompanied by an audible signal and a
message in the instrument panel screen.
The warning lamps may come on continuously
(fixed) or flash.

Certain warning lamps may come on in
one of two modes. Only by relating the
type of lighting to the operating status
of the vehicle can it be ascertained
whether the situation is normal or
whether a fault has occurred.

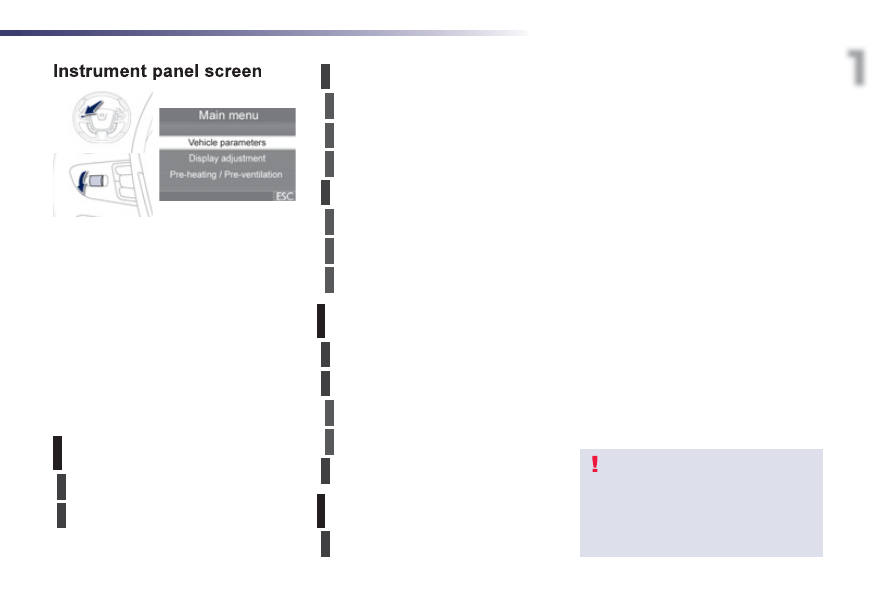

With the vehicle stationary, use the left hand

thumb wheel to move through the menus, so
as to configure the vehicle settings (driving and
comfort systems, ...).
- Rotation

(other than menu): scroll through

the list of active functions available,

Press: main menu, confirm the selection,

- Rotation

(in a menu): move up or down in

the menu.

Main menu

Vehicle parameters

Screen settings

Preheating / Preventilation

Driving position setting

Unlocking boot only

Driving assistance

Speeds memorised

Rear wipe in reverse gear

Automatic parking brake

Lighting

Welcome lighting

Guide-me-home headlamps

Directional headlamps

Parameters

Language

Units

Fuel consumption

Temperature

Colours

Instruments and controls

Operation indicator lamps

If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.

Warning / indicator lamp

State

Cause

Action / Observations

Left-hand

direction

indicator

flashing with buzzer. The

lighting stalk is pushed down.

Right-hand

direction

indicator

flashing with buzzer.

The lighting stalk is pushed up.

Sidelamps

fixed.

The lighting stalk is in the
"Sidelamps" position.

Dipped beam
headlamps

fixed.

The lighting stalk is in the "Dipped
beam headlamps" position.

Main beam
headlamps

fixed.

The lighting stalk is pulled towards
you.

Pull the stalk to return to dipped beam headlamps.

Front foglamps

fixed.

The front foglamps are switched on.

Turn the ring on the stalk rearwards twice to switch off
the front foglamps.

Rear foglamps

fixed.

The rear foglamps are switched on.

Turn the ring on the stalk rearwards to switch off the
rear foglamps.

For more information on the lighting controls, refer to the corresponding section.

Instruments and controls

Warning / indicator lamp

State

Cause

Action / Observations

Diesel engine
pre-heating

fixed.

The START/STOP switch has been
pressed (ignition on).

Wait until the warning lamp goes off before starting.
Once it goes off, starting is immediate, on condition
that the brake pedal remains pressed for automatic or
electronic gearboxes, or the clutch pedal is pressed
fully down for manual gearboxes.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

Parking brake

fixed.

The parking brake is applied or not
properly released.

Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refer to
the "Parking brake" section.

Deactivation of
the automatic
functions of the
electric parking
brake

fixed.

The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty.

Activate the function (according to country) via the
vehicle configuration menu or contact a PEUGEOT
dealer or a qualified workshop if automatic application /
release is not possible.
The parking brake can be released manually using the
emergency release procedure.
For more information on the electric parking brake,
refer to the corresponding section.

Instruments and controls

Warning / indicator lamp

State

Cause

Action / Observations

Automatic
wiping

fixed.

The wiper control is pushed
downwards.

Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.

Passenger's
airbag system

fixed in the seat belt
and passenger's front
airbag warning lamps
display.

The control switch, located in the
glove box, has been placed in the
"ON" position.
The passenger's front airbag is
activated.
In this case, do not install a "rear
facing" child seat.

Move the control switch to the "OFF" position to
deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.

Stop & Start

fixed.

When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start
system has put the engine into STOP
mode.

The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes
off.

STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically.

For more information on special cases with STOP
mode and START mode, refer to the "Stop & Start"
section.

Instruments and controls

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the instrument panel screen.

Warning / indicator lamp

State

Cause

Action / Observations

Passenger's
airbag system

fixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display.

The control switch, located in the
glove box, is set to the OFF position.
The passenger's front airbag is
deactivated.

Set the control to the "ON" position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rear-facing
position.

DSC/ASR
(ESP)

fixed. The

button

(located on the folding

panel at the bottom left of the
dashboard) has been pressed. Its
indicator lamp is on.
The DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation.

Press the button to activate the DSC/ASR. Its indicator
lamp switches off.
The DSC/ASR system is activated automatically when
the vehicle is started.
After deactivation, the system is reactivated
automatically from approximately 30 mph (50 km/h).

Instruments and controls

Warning lamps

When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.

Warning / indicator lamp

State

Cause

Action / Observations

STOP

fixed, associated
with another warning
lamp, accompanied
by an audible signal
and a message in the
screen.

It is associated with a punctured
wheel, the braking system, the power
steering, the engine oil pressure,
the engine coolant temperature or a
major electrical fault.

Stop as soon as it is safe to do so as the engine may
cut out.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.

Service

on temporarily.

Minor faults have occurred for which
there is no specific warning lamp.

Identify the fault by reading the message shown in the
screen, such as, for example:
-

the engine oil level,

- saturation

of the particle emissions filter (Diesel).

the power steering,

a minor electrical fault.

- ...

For any other faults, contact a PEUGEOT dealer or a
qualified workshop.

fixed.

Major faults have occurred for which
there is no specific warning lamp.

Identify the fault by reading the message shown in
the screen and then contact a PEUGEOT dealer or
qualified workshop.

Instruments and controls

Warning / indicator lamp

State

Cause

Action / Observations

Electric parking
brake

flashing.

The electric parking brake is not
applied automatically.
The application/release is faulty.

You must stop as soon as it is safe to do so.
Park on flat level ground, switch off the ignition and
contact a PEUGEOT dealer or a qualified workshop.

Electric parking
brake fault

fixed.

The electric parking brake has a fault. Contact a PEUGEOT dealer or a qualified workshop

without delay.
The parking brake can be released manually.
For more information on the electric parking brake,
refer to the corresponding section.

Braking

fixed. The

braking system fluid level has

dropped significantly.

You must stop as soon as it is safe to do so.
Top up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.

fixed, associated
with the ABS warning
lamp.

The electronic brake force distribution
(EBFD) system has a fault.

You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

Deactivation of
the automatic
functions of the
electric parking
brake

fixed.

The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty.

Instruments and controls

Warning / indicator lamp

State

Cause

Action / Observations

Dynamic
stability control
(DSC/ASR)

flashing.

The DSC/ASR regulation is
operating.

The system optimises traction and improves the
directional stability of the vehicle.

fixed.

Unless it has been deactivated
(button pressed and its indicator lamp
on) the DSC/ASR system has a fault.

Have it checked by a PEUGEOT or a qualified
workshop.

Engine
autodiagnosis
system

flashing.

The engine management system has
a fault.

Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

fixed.

The emission control system has a
fault.

The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.

Low fuel level

fixed with the needle
in the red zone.

When it first comes on there remains
approximately 7 litres of fuel in the
tank.
At this point, you begin to use the fuel
reserve.

Refuel as soon as possible to avoid running out of
fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injection
systems.

Anti-lock
Braking System
(ABS)

fixed.

The anti-lock braking system has a
fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
delay.

Peugeot 508 Hybrid Dag (2012.5). Instruction - part 2
