Peugeot 508 Hybrid Dag (2012.5). Instruction - part 1

You can find your user guide on the PEUGEOT website, under the
heading "Personal space".

Referring to the user guide on-line also gives you access to the
latest information available, easily identified by the bookmarks,
associated with this pictogram:

If the heading "Personal space" is not available on the public website
for your country, you can find your user guide at the following
address:
http://public.servicebox.peugeot.com

the link in "Private customer access",

the language,

the model,

the edition date appropriate for the date of registration of your vehicle.

Please note the following point:
The fitting of electrical equipment or accessories which are
not recommended by PEUGEOT may result in a failure of your
vehicle's electronic system. Please note this specific warning.
It is advisable to contact a PEUGEOT dealer to be shown the
recommended equipment and accessories.

Select:

You will find your user guide, presented in the same way as the paper version.

WELCOME

Warning:

this symbol marks warnings which it
is essential to observe for your own
safety, for the safety of others or to
avoid any risk of damaging your vehicle.

Information:

this symbol draws your attention to
additional information for better use of
your vehicle.

Protection of

the environment:

this symbol accompanies advice
relating to protection of the environment.

Page reference:

this symbol invites you to refer to the
pages which provide details of the
function.

Thank you for choosing a 508.
This handbook has been designed to enable
you to make the most of your vehicle in all
situations.
Therefore, on the first few pages, you will find a
detailed summary followed by a quick reference
guide intended to make it easier for you to
become familiar with your vehicle.
All of the details specific to your vehicle, comfort,
safety, practical information, are then presented
in this handbook, to increase your appreciation of
the vehicle and to help you make the most of it.

Each model may only be fitted with some
of the equipment shown in this handbook,
depending on the trim level, model, version and
specification for the country in which it is sold.

Contents

Instrument panel

Indicator and warning lamps

Gauges and indicators

Trip computer

Setting the date and time

Instruments and controls

Familiarisation

Remote control key

Alarm

Electric windows

Boot 57
Motorised tailgate (SW)

Sunroof

Panoramic sunroof (SW)

Fuel tank

Diesel misfuel prevention

Access

Front seats

Rear seats

Mirrors

Steering wheel adjustment

Interior fi ttings

Boot fi ttings (Saloon)

Boot fi ttings (SW)

Heating and Ventilation

Manual air conditioning

Dual-zone digital air conditioning

Quad-zone digital air conditioning

Rear screen demist - defrost

Programmable Heating / Ventilation

Comfort

Starting-switching off the engine 101
Electric parking brake

103

Manual parking brake

110

Manual gearbox 111
Gear effi ciency indicator

112

Automatic gearbox 113
6-speed electronic gear control gearbox 117
Stop & Start

121

Hill start assist

124

Head-up display

125

Speed limiter

128

Cruise control 130
Parking sensors

132

Parking space sensors

134

Driving

Lighting controls

136

Automatic illumination of headlamps

141

Headlamp adjustment 144
Directional lighting 145
Wiper controls

147

Automatic rain sensitive wipers

149

Courtesy lamps

151

Interior mood lighting

152

Visibility

Eco-driving

Contents

Child seats

153

ISOFIX child seats

160

Child lock

164

Child safety

Direction indicators

165

Emergency or assistance call

166

Horn 166
Tyre under-infl ation detection

167

ESC system 168
Seat belts

171

Airbags 174

Safety

Temporary puncture repair kit

178

Changing a wheel

184

Changing a bulb

191

Changing a fuse 200
12 V battery

204

Energy economy mode

207

Changing a wiper blade

208

Towing the vehicle

209

Towing a trailer

211

Fitting roof bars

213

Accessories 214

Practical information

Opening the bonnet

217

Running out of fuel (Diesel) 218
Petrol engines 219
Diesel engines 220
Checking levels

222

Checks 225

Checks

Petrol engines 227
Petrol weights

228

Diesel engines

230

Diesel weights 233
Dimensions

236

Identifi cation markings 237

Technical data

Emergency or assistance

239

JBL equipment

241

Peugeot Connect Navigation (RT6)

243

Audio system 297

Audio equipment and telematics

Alphabetical index

Visual search

Familiarisation

Electronic key: Keyless

Entry and Starting

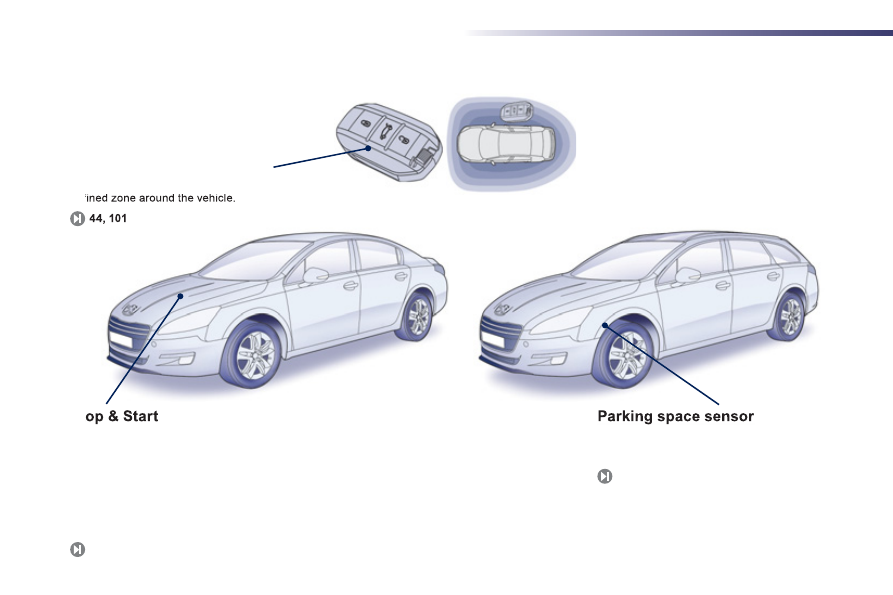

This system allows you to unlock, lock
and start your vehicle while keeping
the key on your person and in the
defined zone around the vehicle.

This system measures the size of a space and
advises whether parking is possible.

134

Exterior

This system puts the engine temporarily into
standby during stops in the traffic (red lights, traffic
jams, etc...). The engine restarts automatically as
soon as you want to move off. The Stop & Start
system reduces fuel consumption and exhaust
emissions, and offers the comfort of complete
silence when stationary.

121

Familiarisation

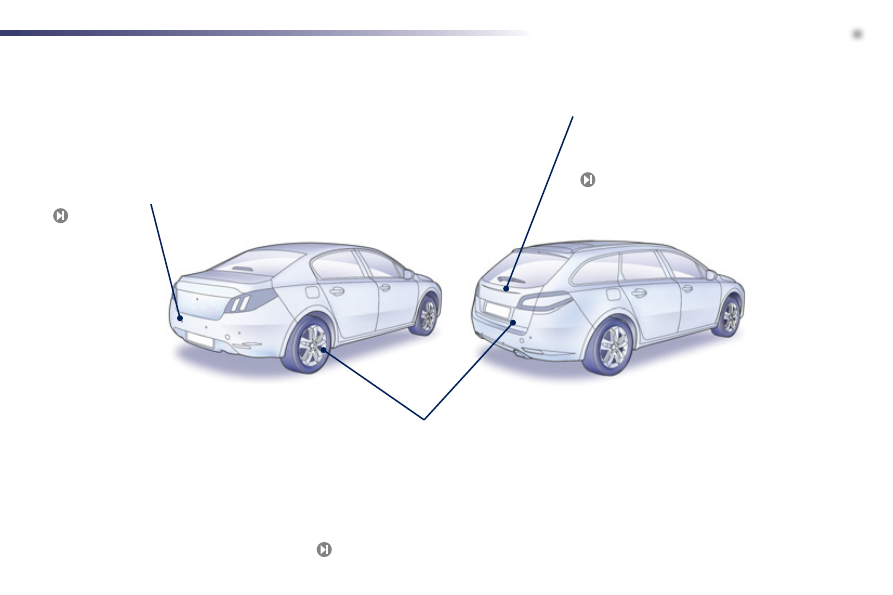

Front and rear parking sensors

This system provides a warning when
manoeuvring forwards and backwards by
detecting obstacles located in front of or behind
the vehicle.

132

Motorised tailgate (SW)

This system provides motorised opening and
closing of the tailgate, by pressing a button.

Temporary puncture repair kit

This kit is a complete system consisting of a
compressor and a sealant cartridge, to allow
the temporary repair of a tyre.

178

Exterior

Familiarisation

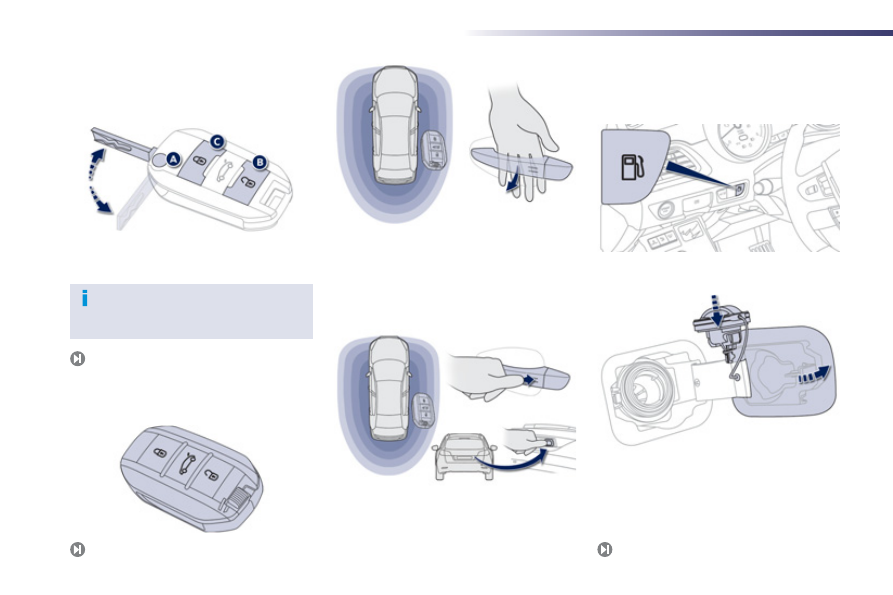

Open

A. Unfolding / Folding the key.
B. Unlocking the vehicle.

Remote control key

1. Opening the fuel filler flap.

Fuel tank

Unlocking

With the electronic key on your person and in the
defined zone around the vehicle, pass your hand
behind the door handle to unlock the vehicle,
then pull on the handle to open the door.

Locking

With the electronic key in the defined zone
around the vehicle, press with a finger on
the door handle (at the markings) to lock the
vehicle.

Keyless Entry and Starting

system

2. Opening and hooking the fuel filler cap.
Tank capacity: approximately 72 litres (or
55 litres according to version).

Other functions ...
C. Normal locking of the vehicle

Vehicle location.

Familiarisation

Interior

Interior mood lighting

This subdued passenger compartment lighting
improves visibility inside the vehicle in low
lighting conditions.

Head-up display

This system projects speed and cruise control/
speed limiter information onto a smoked strip
in the driver's field of vision, so that they do not
need to take their eyes off the road.

Digital air conditioning

After setting the desired level
of comfort, the system then automatically
controls this level according to the ambient
conditions.
Manual

Audio and communication

systems

These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...
Peugeot Connect Navigation (RT6)

152

125

297

243

Audio system

Dual-zone

Quad-zone

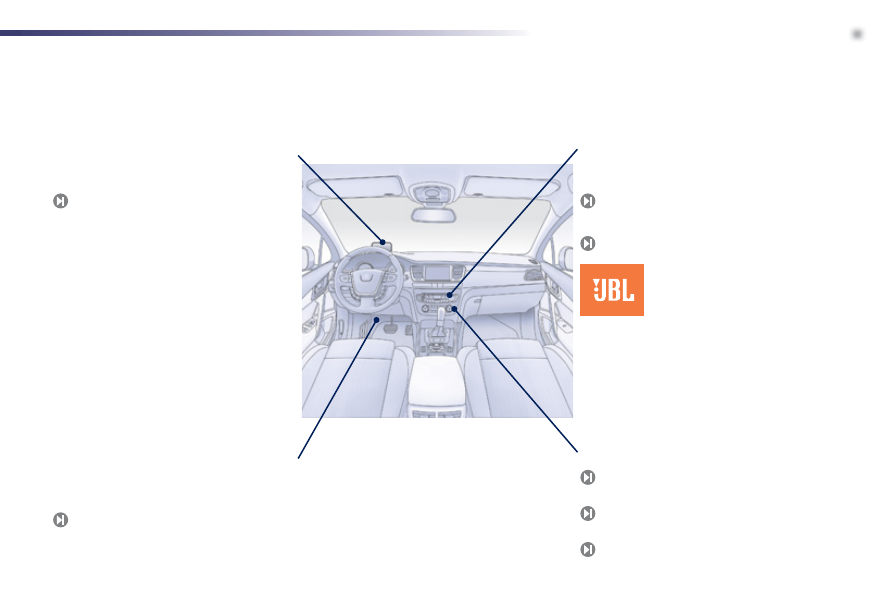

If your vehicle is fitted with a
JBL Hi-Fi audio system, this
is designed specifically for the
passenger compartment of your
vehicle.

Refer to the "Audio and telematics" section.

Familiarisation

Lighting of the indicator lamp indicates the state
of the corresponding function.

Switch panels

Opening the boot.

Opening the fuel filler flap.

57, 58

Massage.

Alarm.

Programmable heating warning lamp.

Electric parking brake.

103

Starting/stopping using the electronic
key.

101

Deactivation of Stop & Start.

122

Head-up display
(on/off, settings).

125

Deactivation of parking sensors.

133

Parking space sensor.

134

Electric child lock.

164

Deactivation of the DSC/ASR system.

170

Adaptive lighting.

142

Familiarisation

Sitting comfortably

Front seats

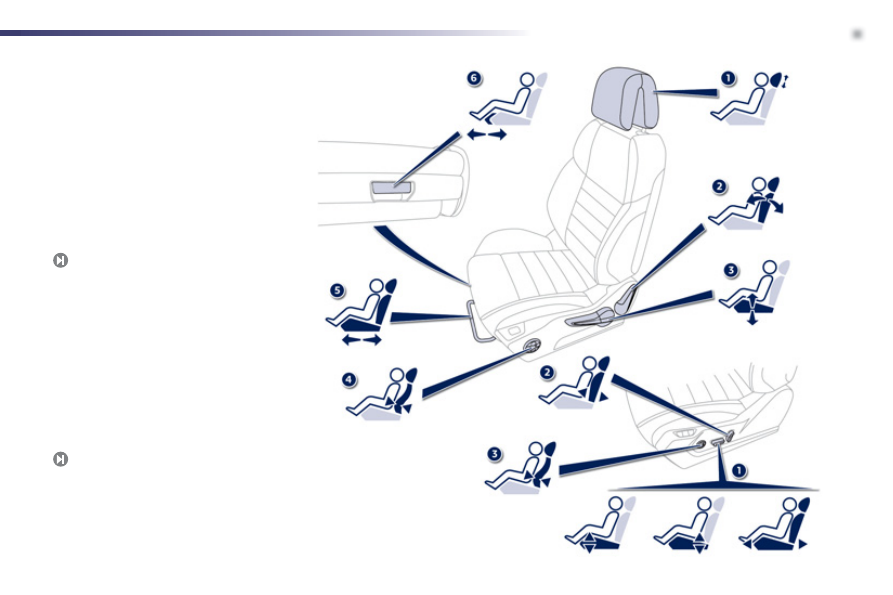

Manual adjustments

1.  Height adjustment.
2. Backrest angle adjustment.
3. Seat cushion height adjustment.
4.   Lumbar support adjustment.
5.   Seat forwards-backwards adjustment.

Electrical adjustment

1. Angle, seat height and seat forwards-

backwards adjustment.

2. Backrest angle adjustment.
3. Lumbar support adjustment.

6. Adjusting the cushion.

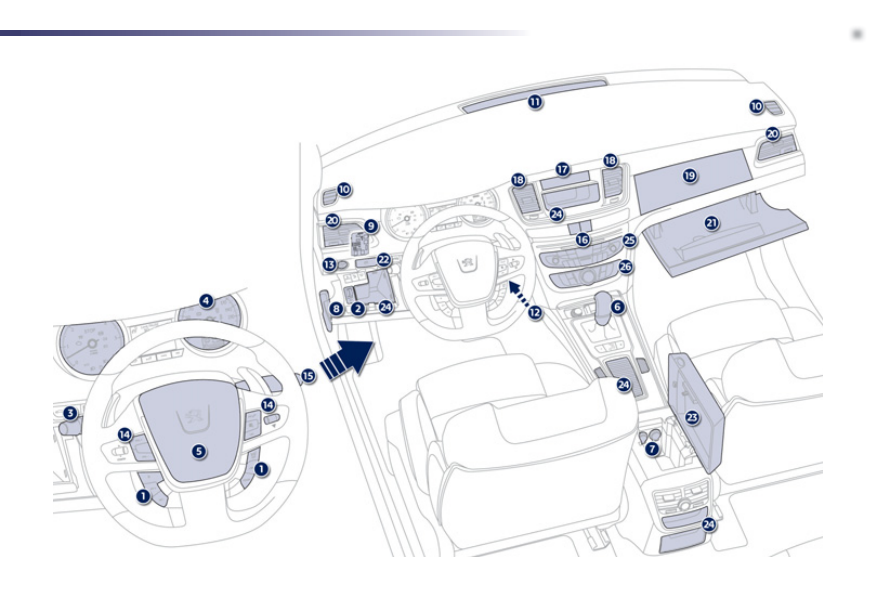

Familiarisation

9. Fusebox.
10. Front door window demisting/defrosting

vent.

11. Windscreen demisting/defrosting vent.
12. Steering lock and starting with the key.
13.   Starting using the electronic key.
14.   Audio equipment steering wheel controls.
15.  Wiper / screenwash / trip computer stalk.
16. Central locking and hazard warning

buttons.

17. Multifunction screen.

Instruments and controls

1. Cruise control / speed limiter controls.
2. Headlamp

height adjustment.

3. Lighting and direction indicator stalk
4. Instrument

panel.

5. Driver's airbag.

Horn.

6. Gear lever.
7. 12 V accessory socket

USB port / auxiliary socket.

8. Bonnet release lever.

18. Central adjustable air vents.
19. Passenger's airbag.
20. Side adjustable air vents.
21. Glove box / Passenger's airbag

deactivation.

22.   Electric parking brake.
23.   Central armrest with storage.
24.   Storage (according to version).
25. Audio system.
26. Heating / air conditioning controls.

Familiarisation

Familiarisation

Sitting comfortably

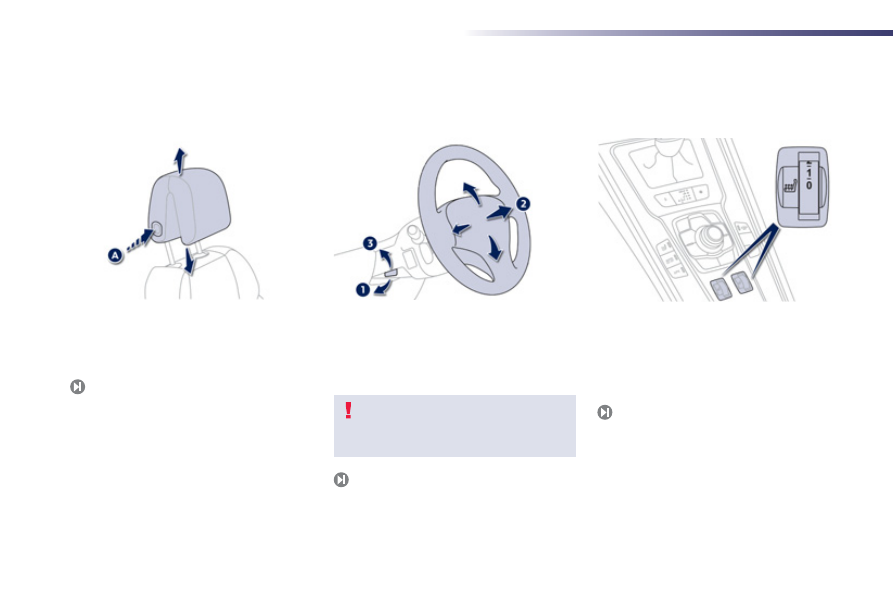

Head restraint adjustment

1. Release the adjustment mechanism.
2. Adjust for height and reach.
3. Lock the adjustment mechanism.

Steering wheel adjustment

For reasons of safety, these operations
must only be carried out with the
vehicle stationary.

Heated seats control

0 : off.
1: low.
2 : medium.
3 : high.

To lower it, press button A.
To raise it, guide the head restraint upwards to
the desired position.

Familiarisation

Sitting comfortably

Door mirrors

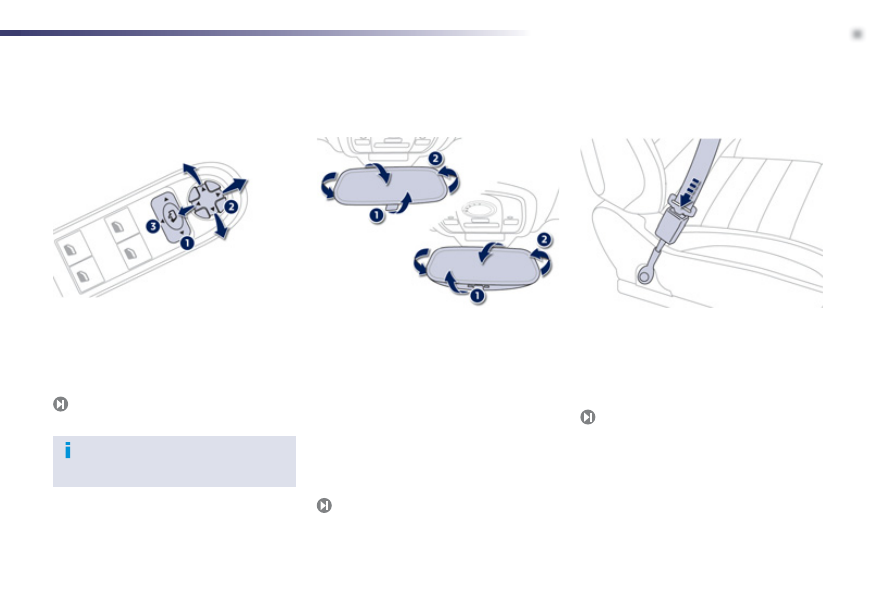

Adjustment

1. Selection of the mirror.
2. Adjusting the position of the mirror glass.
3. Deselection of the mirror.

Other functions...
Folding / Unfolding.

Rear view mirror

Manual day/night type

1. Selecting the "day" position of the rear view mirror.
2. Rear view mirror adjustment.

Automatic day/night type

1. Automatic detection of day/night mode.
2. Rear view mirror adjustment.

1. Fitting the belt.
2. Fastening.
3. Check that the belt is correctly fastened by

pulling on the belt webbing.

Front seat belts

171

Familiarisation

Seeing clearly

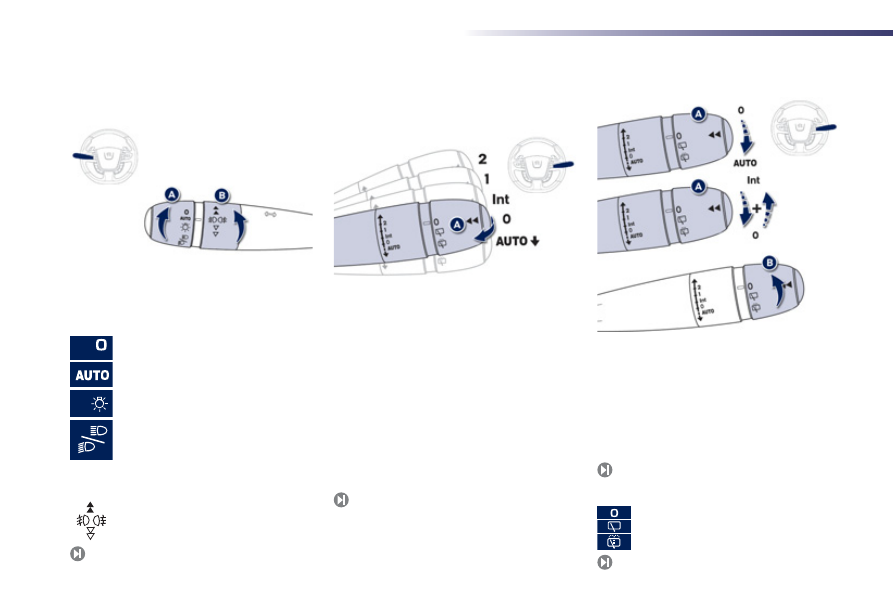

Lighting

Ring A

Ring B

Wipers

136

Control stalk A: windscreen

wipers

Fast wipe.

Normal wipe.

Int.

Intermittent wipe.

Park.

AUTO Automatic wiping.
È

Single wipe: Brief pull on the stalk

towards.

Screenwash: Long pull on stalk towards you.

147

Switching on "AUTO" mode

)

Briefly push the stalk downwards.

Switching off "AUTO" mode

)

Briefly push the stalk downwards or place
the stalk in another position: Int, 1 or 2.

Ring B: rear wiper

149

148

Lighting off.

Automatic illumination of headlamps.

Sidelamps.

Dipped / main beam headlamps.

Front and rear foglamps.

Park.
Intermittent wipe.
Screenwash.

Content .. 1 2 3 ..
