Access

Your vehicle is fitted with a tinted glass
panoramic sunroof which increases the light
and visibility in the passenger compartment. Its
electric blind helps control the temperature and
noise level in the passenger compartment.

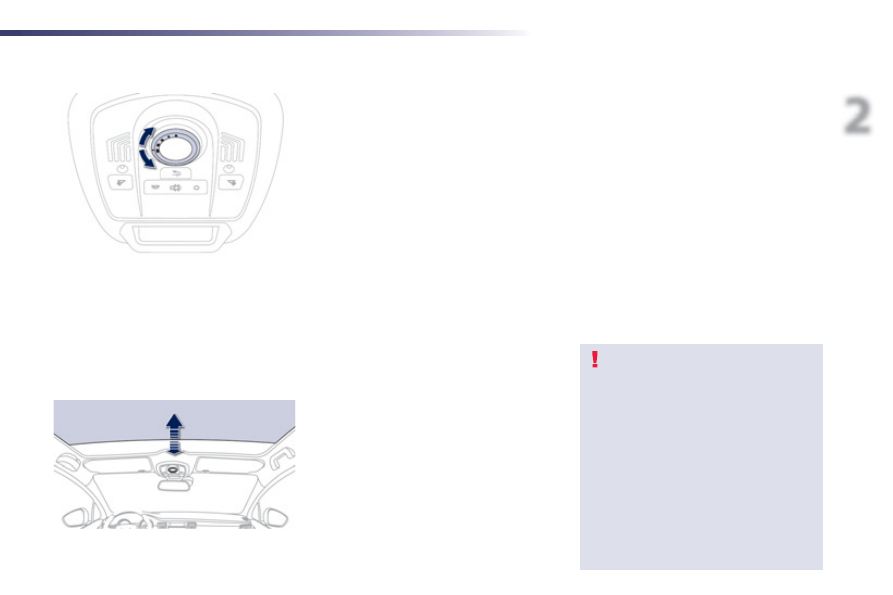

The blind is controlled electrically by a rotary
opening dial.

Opening

Turn the dial to the left (several possible
opening settings).

Safety anti-pinch

If the blind encounters an obstacle during
closing, it stops and partially opens again to the
2nd position.
If the blind fails to close at a second attempt,
it may be necessary to force the closing of the
blind using the reinitialisation procedure.

Closing

Return the dial to the initial position.
If the position of the blind does not agree with
the position indicated by the dial, press the dial
to open the blind to this position.

Electric blind

In the event of contact during operation
of the blind, you must reverse its
movement. To do this, turn the dial.
When the driver operates the dial, they
must ensure that nothing prevents the
blind from closing correctly.
The driver must ensure that the
passengers use the blind correctly.
Be aware of children during operation
of the blind.

Reinitialising the system

Following reconnection of the battery, or in the
event of a malfunction in its operation, it may be
necessary to reinitialise the system:
)

turn the dial to the fully open position,

)

wait until the blind is fully open,

)

then

immediately press the dial for at least

3 seconds,

If the blind opens on its own when closing, as
soon as possible after the blind stops:
-

put the dial in the fully closed position,

press the dial,

maintain pressure on the dial until the blind
closes.

The anti-pinch function is inoperative
during these operations.

Panoramic sunroof (SW)

Access

Fuel tank

Capacity of the tank: approximately 72 litres (or 55 litres according to version).

Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
Opening the filler cap may result in an inrush of
air. This vacuum is entirely normal and results
from the sealing of the fuel system.
)

Take care to select the pump that delivers

the correct fuel type for your vehicle's
engine (reminder on a label on the inside of
the filler flap).

)

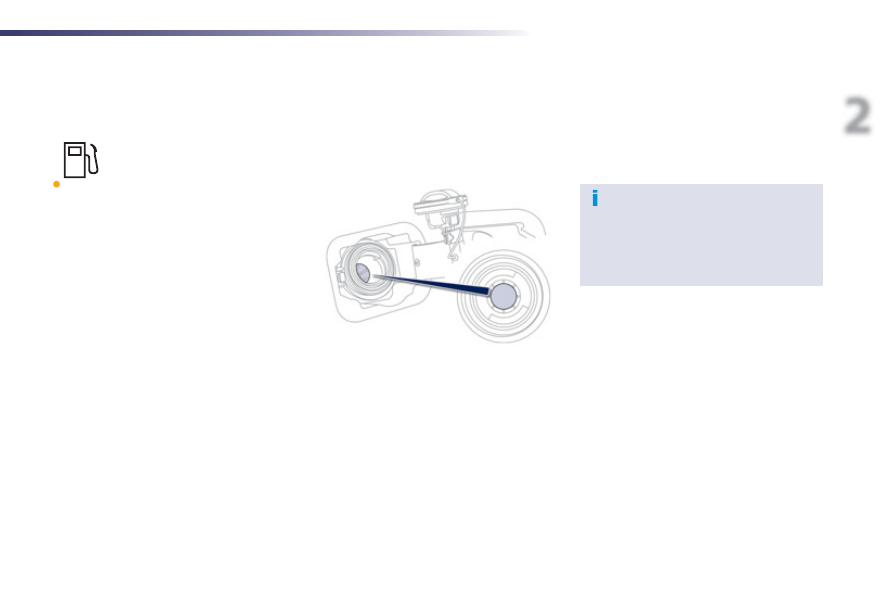

Open the filler cap by turning it a 1/4 turn to

the left.

)

Remove

the

filler cap and hang it on its

carrier (on the filler flap).

Opening

If you have put in the wrong fuel for
your vehicle, you must have have
the tank drained and refilled with
the correct fuel before you start the
engine.

With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.

- Press the switch.

This control remains active for a few
minutes after switching off the ignition. If
necessary, switch the ignition on again to
reactivate it.

Refuelling

)

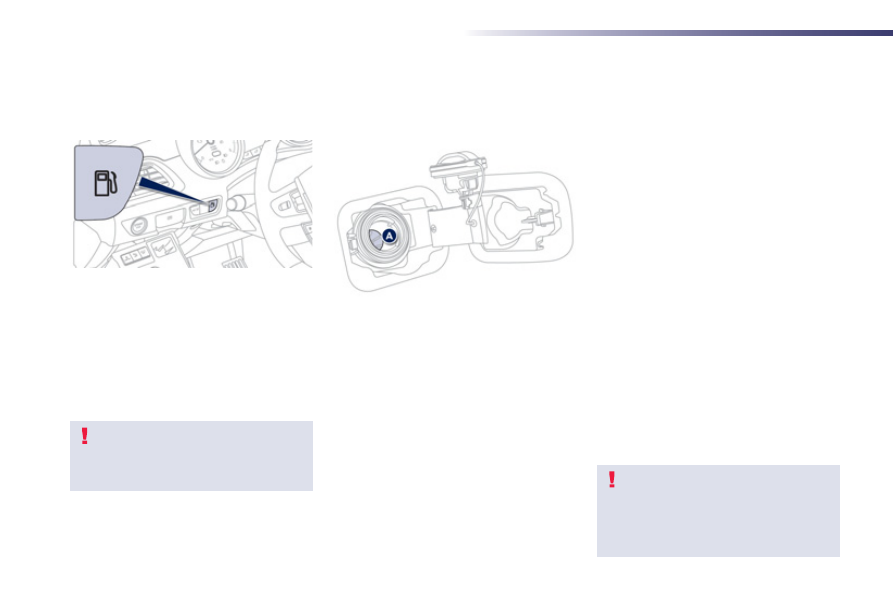

Introduce the nozzle and push it in fully
(pushing on the the metal non-return valve A ).

)

Fill the tank. Do not continue past the third
cut-off of the nozzle, as this may cause
malfunctions.

)

Refit the filler cap turning it a 1/4 turn to the
right.

)

Push the filler flap to close it.

Your vehicle is fitted with a catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
For petrol engines, you must use unleaded
fuel only.
The filler neck is narrower, admitting petrol
nozzles only.

Access

Low fuel level

When the low fuel level in the
tank is reached, this warning lamp
comes on in the instrument panel,
accompanied by an audible warning
and a message in the instrument

panel screen.
When it first comes on, around 7 litres of fuel
remain in the tank.
You must refuel as soon as possible to avoid
running out.

Fuel supply cut-off

Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a
collision.

  It is still possible to use a fuel can to fill
the tank but this must be done slowly.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device.

Diesel misfuel prevention

Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.

When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel filler
nozzle.

Operation

Travelling abroad

As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel
prevention device may make refuelling
impossible.
Before travelling abroad, we recommend that
you check with the PEUGEOT dealer network,
whether your vehicle is suitable for the fuel
pumps in the country in which you want to
travel.

DIESEL

Access

Quality of the fuel used for

petrol engines

The petrol engines are perfectly compatible
with E10 or E24 type petrol biofuels (containing
10 % or 24 % ethanol), conforming to European
standards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
For Brazil only, special vehicles are marketed
to run on fuels containing up to 100 % ethanol
(E100 type).
For Russia only, the use of RON 92 unleaded
petrol is possible.

Quality of the fuel used for

Diesel engines

The Diesel engines are perfectly compatible
with biofuels which conform to current and
future European standards (Diesel fuel which
complies with standard EN 590 mixed with a
biofuel which complies with standard EN 14214)
available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel
engines; however, this use is subject to strict
application of the special servicing conditions.
Contact a PEUGEOT dealer or a qualified
workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

Comfort

Front seats

Manual adjustments

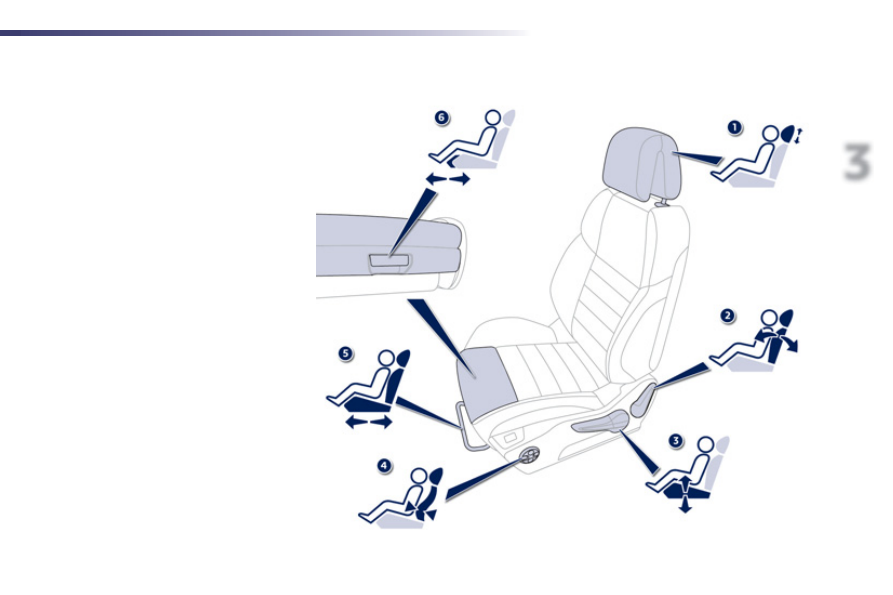

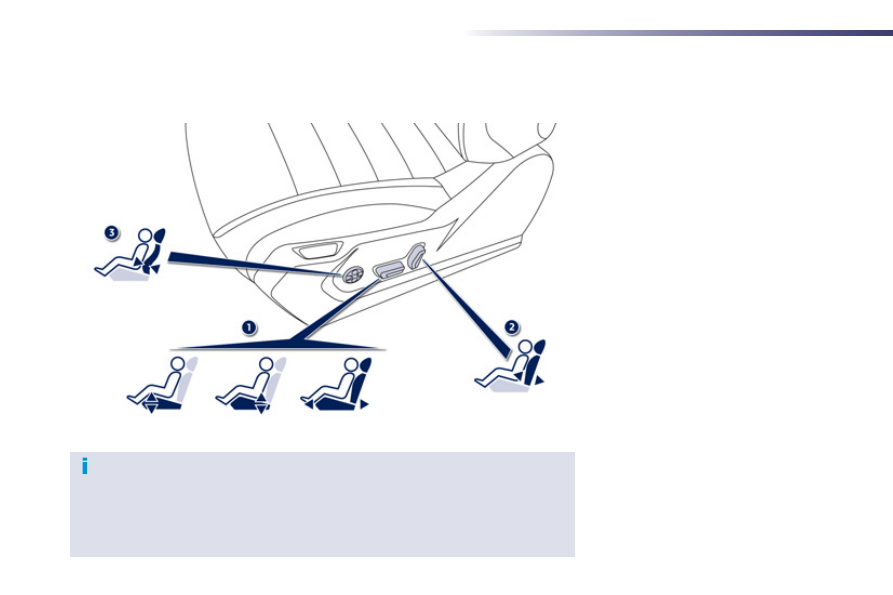

1. Adjustments to the height and angle of

the head restraint

To raise it, pull upwards.

To lower it, hold the button in and press on
the head restraint (pushing to go past the
stiff point of the button).

2. Adjustment of the backrest angle

Operate the control lever and adjust the
position of the backrest to the front or to the
rear.

3. Adjustment of the seat height

Raise or lower the control lever the number
of times required to obtain the desired
position.

4. Adjustment of the lumbar support

This system allows the height and depth
of the lumbar support to be adjusted
separately.
)

Forwards or backwards to increase or
decrease the lumbar support.

)

Upwards or downwards to raise or lower
the lumbar contact zone.

5. Forwards-backwards adjustment of the

seat position

Lift the control bar and slide the seat

forwards or backwards.

6. Adjusting the cushion

Pull the handle to adjust the length of the
cushion.

Comfort

Electric adjustments

Switch on the ignition or start the engine if the vehicle has gone into economy mode.

1. Adjustment of the seat cushion angle

and height, and forwards-backwards
adjustment
)

Raise or lower the front of the control to
adjust the seat cushion angle.

)

Raise or lower the rear of the control to
raise or lower the seat.

)

Simultaneously raise or lower the front
and rear of the control in order to raise or
lower the entire seat.

2. Adjustment of the backrest angle

Move the control forwards or backwards to
adjust the backrest angle.

3. Adjustment of lumbar support

This function allows you to independently
adjust the height and level of lumbar
support.

The electric functions of the driver's seat are active for about a minute after opening the
front door. They are deactivated about a minute after switching off the ignition and in
economy mode.
To reactivate them, switch on the ignition.

Move the control:
)

Forwards or backwards to increase or
reduce the lumbar support.

)

Upwards or downwards to raise or lower
the lumbar support zone.

Comfort

Storing driving positions

System which stores the electrical settings of
the driver's seat and door mirrors as well as
the head-up display settings. It enables you to
store up to two positions using the buttons on
the side of the driver's seat.

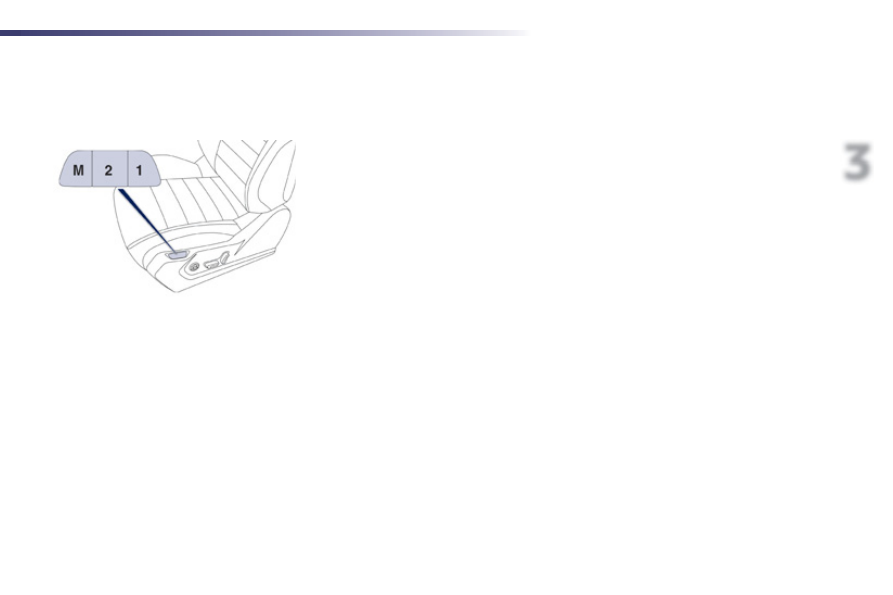

Storing a position

using buttons M / 1 / 2

)

Switch on the ignition.

)

Adjust your seat, the door mirrors and the

head-up display.

)

Press button M , then press button 1 or 2

within four seconds.
An audible signal indicates that the position
has been stored.

Storing a new position cancels the previous
position.

Recalling a stored position

Ignition on or engine running

)

Briefly press button 1 or 2 to recall the

corresponding position.

An audible signal indicates the end of the
adjustment.
You can interrupt the current movement by
pressing button M , 1 or 2 or by using one of the
seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45 seconds after switching off the ignition.

Welcome function

The welcome function assists entry and leaving
the vehicle.
After switching off the ignition and opening
the driver’s door, the seat moves back
automatically and then stays in this position,
ready for the next entry to the vehicle.
When switching on the ignition, the seat moves
forward to the stored driving position.
When moving the seat, take care that no
person or object hinders the automatic
movement of the seat.
To activate or deactivate this function, contact a
PEUGEOT dealer or a qualified workshop.

Comfort

Head restraint height and angle

adjustment

)

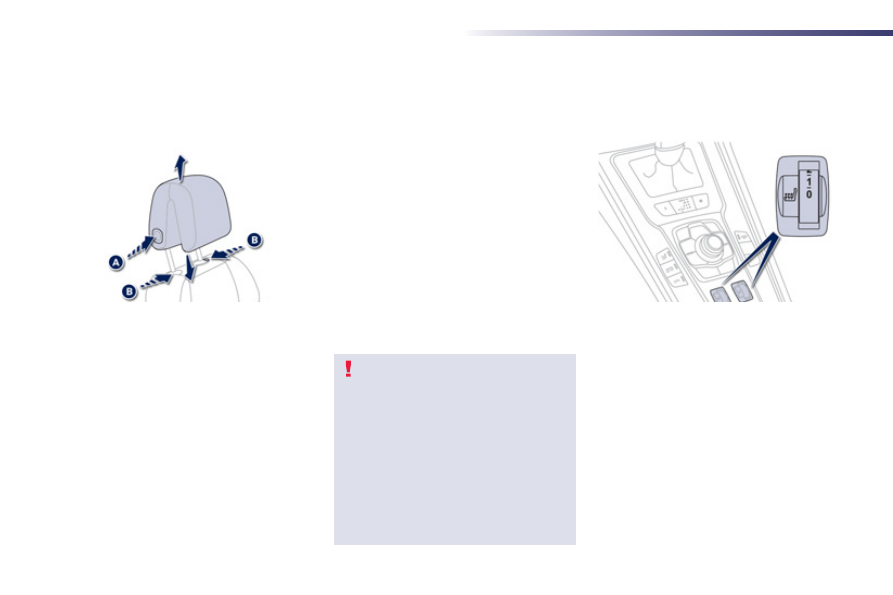

To lower the head restraint, press the lug A
and, going beyond the stiff point, guide the
head restraint downwards, then release the
button at the desired position.

)

To raise the head restraint, guide it
upwards to the desired position.

)

To remove the head restraint, press the two
lugs B and pull the head restraint upwards.

)

To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
back. Check that it has engaged by pulling
it upwards.

The head restraint is fitted with a
locking mechanism which prevents it
from lowering; this is a safety device in
case of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.

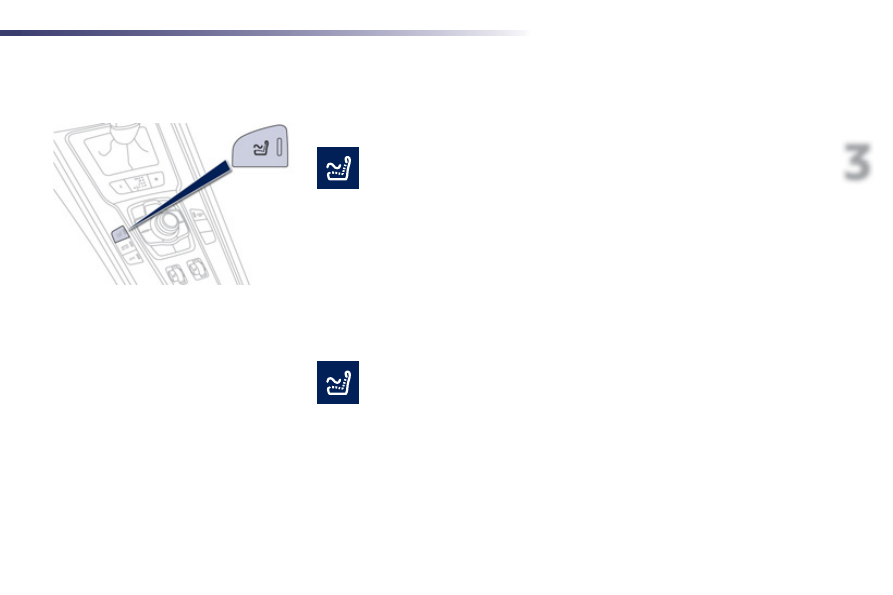

Heated seats control

)

Use the adjustment wheel to switch on and
select the level of heating required:

With the engine running, the front seats can be
heated separately.

0: Off.
1: Low.
2: Medium.
3: High.

Comfort

Massage function

This function provides the driver with a back
massage. It only operates when the engine is
running as well as in STOP mode of the Stop &
Start system.

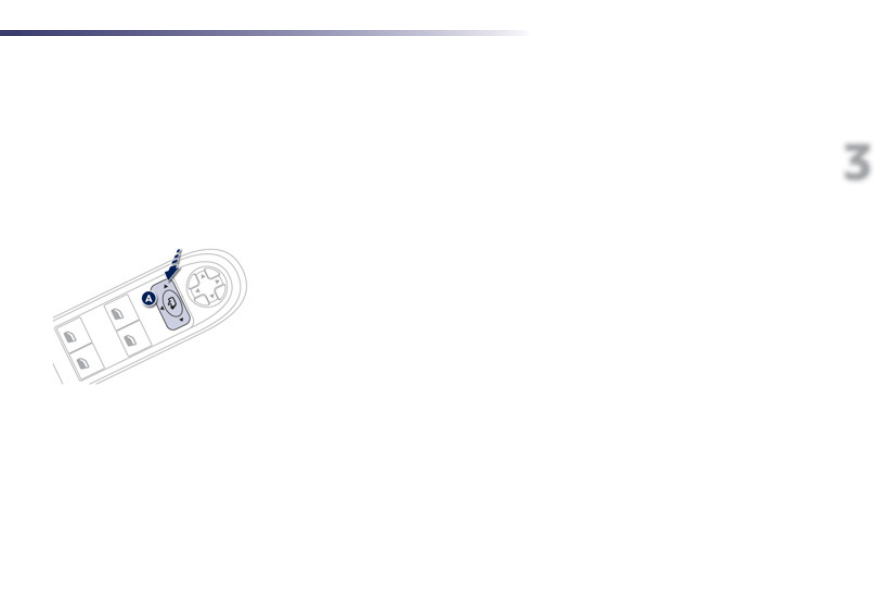

Activation

)

Press this button.

The warning lamp comes on and the massage
function is activated for a period of 1 hour.
During this time, massage is performed in
cycles of 6 minutes (4 minutes of massage
followed by 2 minutes break). In total, the
system will perform 10 cycles.
After one hour, the function is deactivated, the
warning lamp goes off.

Deactivation

You can deactivate the massage
function at any time by pressing this
button.

Comfort

Rear seats

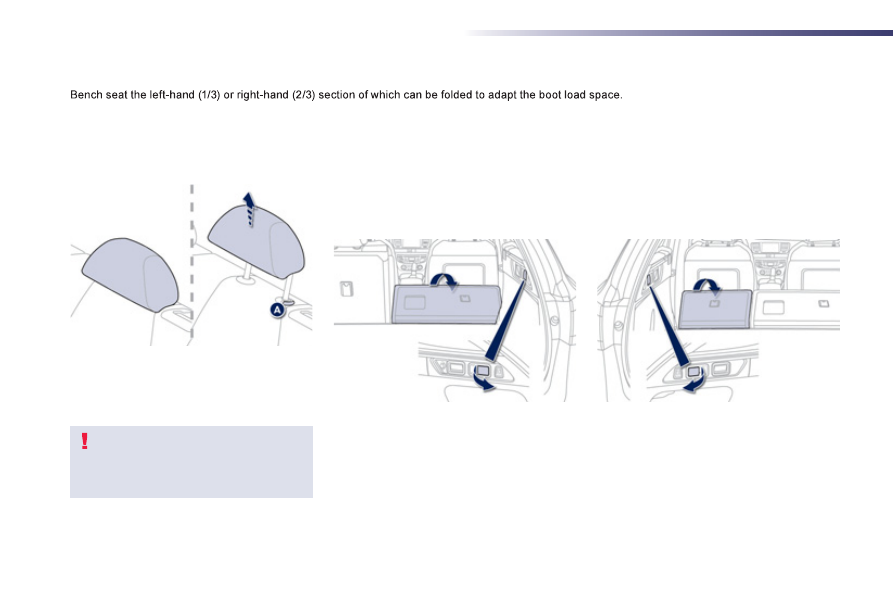

Outer rear seat head restraints

These have a high position (comfort and
safety), a low position (rear visibility) and can
also be removed.

To remove a head restraint:
)

pull the head restraint fully upwards,

)

then, press the lug A .

Never drive with rear passengers when
the head restraints are removed; the
head restraints must be in place and in
the high position.

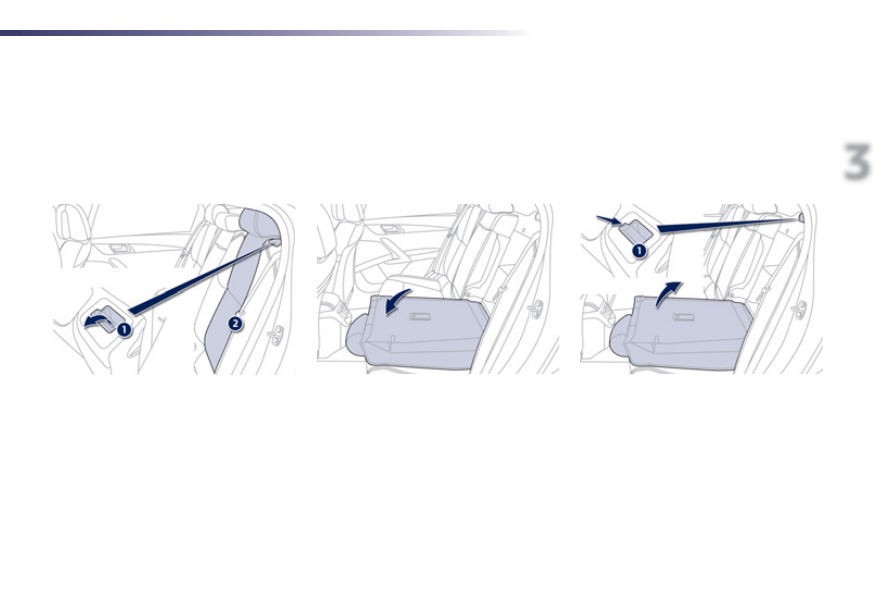

Folding the seat from the

boot

)

Check that nothing is preventing the seat

back from folding (head restraint, seat
belts, ...),

)

check also that no object on or under the

seat could hinder its movement,

)

pull the control from the boot and push the
seat backrest.

(SW)

Each section of the bench seat (1/3 or 2/3) has
its own control to release the seat back and its
seat cushion from the boot.

Comfort

Folding the seat from the

rear

Check that no object, either on or underneath
the seat, could hinder its movement.

Returning the seat back to its original position

)

Put the seat back in the upright position

and secure it, the seat cushion also returns
to its original position,

)

check that the red indicator, located at the

control 1 , is no longer visible,

)

refit the head restraints or put them back in

place.

)

Move the corresponding front seat
forwards if necessary,

)

check that the seat belt is positioned
correctly on the side of the seat back,

)

place the head restraints in the low position
or remove them if necessary,

)

pull the control 1 forwards to release the

seat backrest 2 then fold it forwards.

When returning the rear seat back to its original
position, take care not to trap the seat belts
and ensure that their buckles are positioned
correctly.

Comfort

Mirrors

Each fitted with an adjustable mirror glass
providing the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.

Door mirrors

If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A.

The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.

The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.

Demisting - Defrosting

Demisting-defrosting of the door mirrors
operates with the engine running, by switching
on the heated rear screen (refer to the "Rear
screen demist-defrost" page).

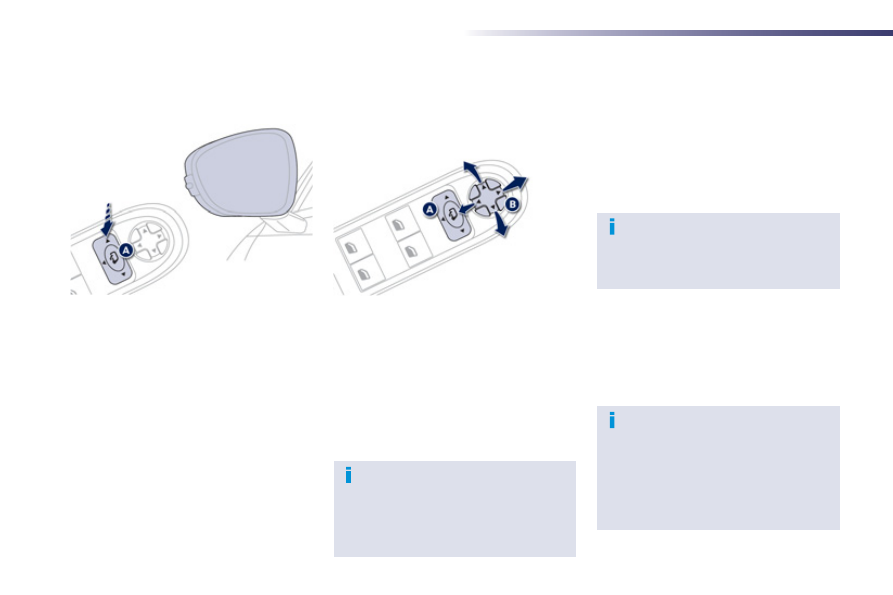

Adjustment

)

Move control A to the right or to the left to

select the corresponding mirror.

)

Move control B in all four directions to

adjust.

)

Return control A to the central position.

Folding

Automatic: lock the vehicle using the
remote control or the key.

Manual: with the ignition on, pull control A
rearwards.

Unfolding

Automatic: unlock the vehicle using the
remote control or the key.

Manual: with the ignition on, pull control A
rearwards.

Comfort

Automatic tilting in reverse gear

System which provides a view of the ground
during parking manoeuvres in reverse gear.

Programming

)

With the engine running, engage reverse
gear.

)

Select and adjust the left-hand and right-
hand mirrors in succession.

The adjustment is stored immediately.

Switching on

)

With the engine running, engage reverse

gear.

)

Move control A to the right or to the left to

select the corresponding mirror.

The glass of the mirror selected tilts
downwards, in accordance with its
programming.

Switching off

)

Exit reverse gear and wait ten seconds.

or
)

Return control A to the central position.

The mirror glass returns to its initial position.
The mirror glass also returns to its initial
position:
-

if the speed exceeds 6 mph (10 km/h),

if the engine is switched off.

Comfort

Automatic day/night model

By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.

Adjustable mirror providing a central rearward
view.
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles...

Rear view mirror

Manual day/night model

Adjustment

)

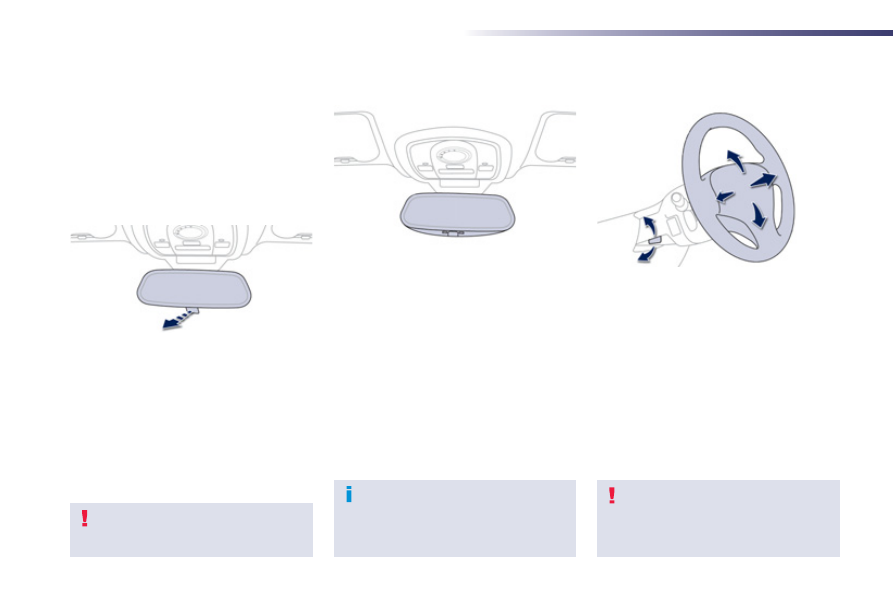

Adjust the mirror so that the glass is
directed correctly in the "day" position.

Day / night position

)

Pull the lever to change to the "night" anti-
dazzle position.

)

Push the lever to change to the normal
"day" position.

In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.

Steering wheel adjustment

)

When stationary, lower the control lever

to release the steering wheel adjustment
mechanism.

)

Adjust the height and reach to suit your
driving position.

)

Pull the control lever to lock the steering
wheel adjustment mechanism.

As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.

As a safety measure, the mirrors should
be adjusted to reduce the "blind spot".

Comfort

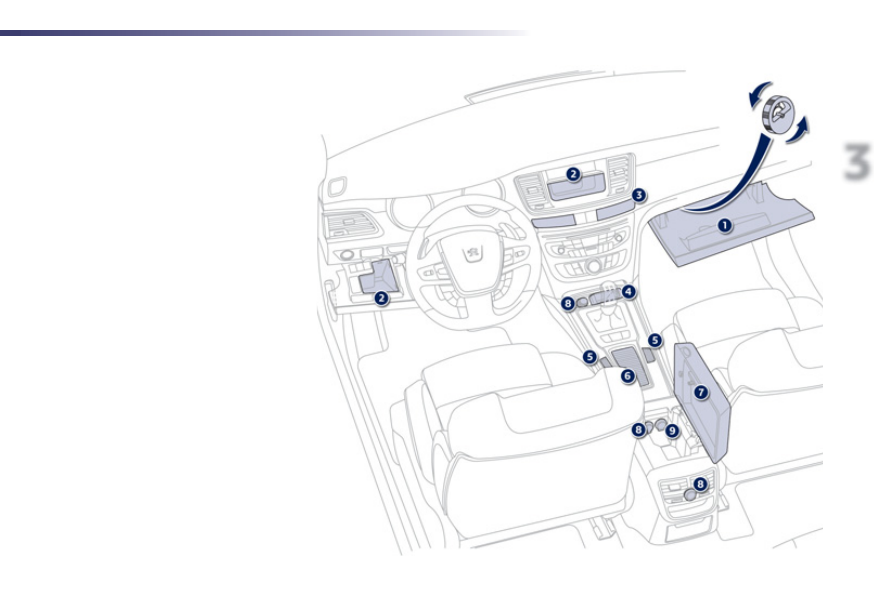

Interior fi ttings

1. Cooled glove box
It

has a ventilation nozzle which can be

closed using a thumb wheel. It delivers
cooled air.

2. Storage (according to version)
3. Retractable cup holderr

Press the cover to open the cup holder

4. Removable ashtray

Press the lid to open the ashtray.

To empty it, pull it out by pulling it upwards.

5. Coin holder
6. Storage with sliding cover
7.

Front armrest

8. 12 V accessory socket (120 W)

Observe the maximum power rating to
avoid damaging your accessory

9. Peugeot Connect USB

Comfort

Mats

Removable carpet protection.

When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.

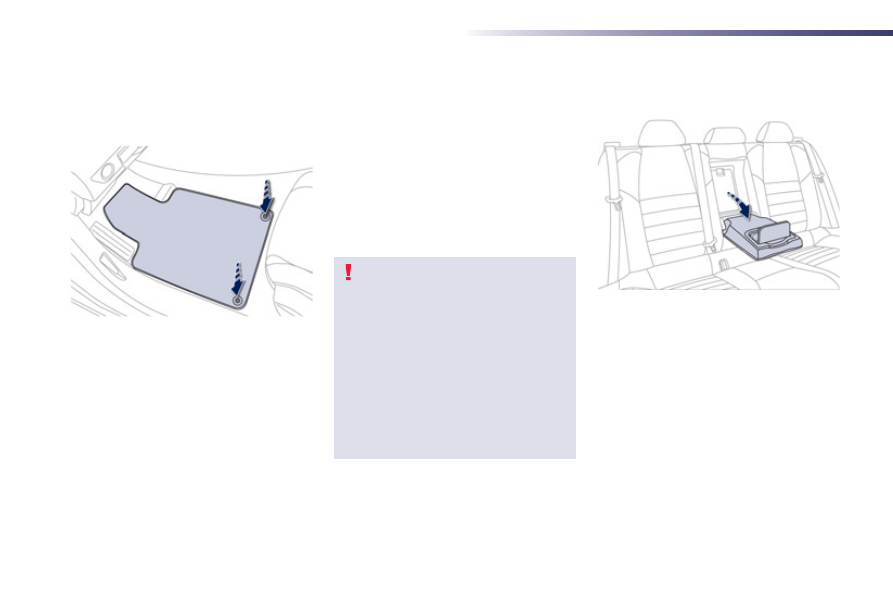

Fitting

Removal

To remove the mat on the driver's side:
)

move the seat as far back as possible,

)

unclip the fixings,

)

remove the mat.

Refitting

To refit the mat on the driver's side:
)

position the mat correctly,

)

refit the fixings by pressing,

)

check that the mat is secured correctly.

To avoid any risk of jamming of the
pedals:
- only use mats which are suited to

the fixings already present in the
vehicle; these fixings must be used,

never fit one mat on top of another.

The use of mats not approved by
PEUGEOT may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.

)

Lower the rear armrest for a more
comfortable position.

It may be fitted with cup holders and also gives
access to the ski flap.

Rear armrest

Peugeot 508 Hybrid Dag (2012.5). Instruction - part 5
