Peugeot 508 Hybrid Dag (2012.5). Instruction - part 7

Comfort

)

Press this "full fan" button to

increase the air flow.

)

Press the corresponding button for:

Windscreen and side windows.

Centre and side vents.

Footwells.

To suit your requirements, you can
combine two distribution buttons or
select the three distribution modes
simultaneously.

)

Press "empty fan" button to

reduce the air flow.

)

Press this "empty fan" air

flow button until the fan symbol
disappears and "- -" appears.

Automatic air intake mode
It is activated by default with
automatic comfort regulation.

9. Air fl ow adjustment

The symbol for air flow, the fan, fills
progressively according to the value requested.

Switching the system off

This action switches off all of the functions of
the air conditioning system.
Temperature related comfort is no longer assured
but a slight flow of air, due to the forward movement
of the vehicle, can still be felt.
Avoid driving for long periods with the system
off (risk of condensation and deterioration of
the air quality). Pressing the "full fan" button
reactivates the system with the values in use at
the time it was switched off.

10. Air intake / Air recirculation

Air recirculation enables the passenger
compartment to be isolated from exterior
odours and smoke. It is activated automatically
when operating the screenwash. It is inactive
when the ambient temperature is below 5°C to
guard against the risk of misting in the vehicle.
)

As soon as possible, press this button

again to permit the intake of outside air and
prevent the formation of condensation. The
indicator lamp in the button goes off.

Comfort

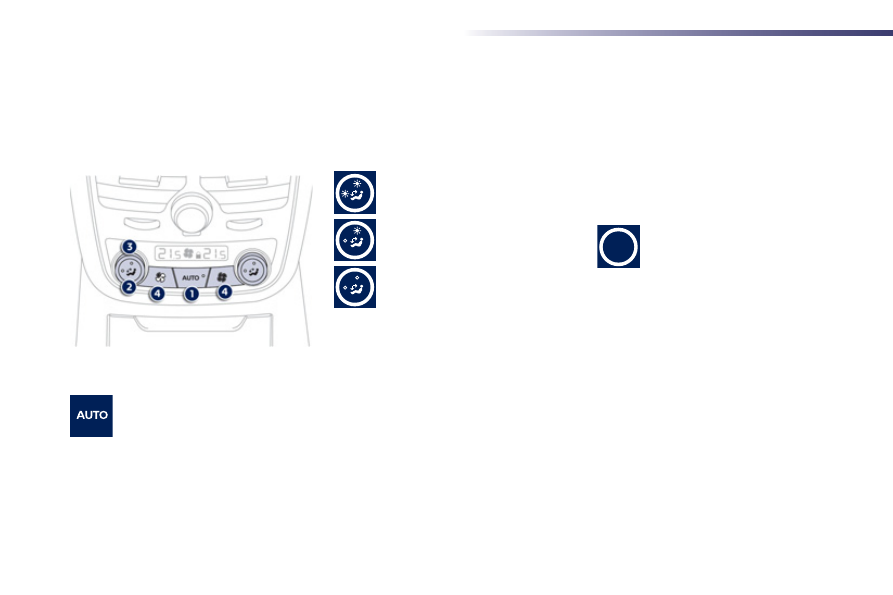

Adjusting the rear passenger comfort level

1. Automatic comfort programme

)

Press the "AUTO" button. The

lamp in the button comes on.

We recommend that you use this mode. It
automatically adjusts all settings to provide
optimum operation for the comfort level chosen:
passenger compartment temperature, air flow
and air distribution.
This system is designed to operate effectively
in all seasons, with the windows closed.

2. Air distribution adjustment

3. Temperature adjustment, left

and right

Press the corresponding button successively
for:

The left and rear passengers can each adjust
their temperature setting independently.
The value indicated in the screen is a level
of comfort and not a temperature in degrees
Celsius or Fahrenheit.

)

Turn the dial to the left to lower the

value and to the right to raise it.

- Footwell and centre vent.

- Centre vent.

- Automatic control of air

distribution.

The rear air conditioning controls only operate
if, from the front:
- the REAR button is activated,
-

the automatic visibility programme is not
activated.

A setting around 21 provides an optimum
level of comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
It is recommended that the difference between
left and right should not be greater 3.
Ensure that the air grilles and vents on the floor
are not obstructed.

Comfort

4. Air fl ow adjustment

)

Press this "full fan" button to

increase the air flow.

)

Press

this

"empty

fan" button to

reduce the air flow.

The air flow symbol, the fan, fills progressively
as the fan speed increases.

Deactivating the system

)

Press the "empty fan" air flow

button until the fan disappears
and "- -" appears.

This action stops all of the functions of the air
conditioning system.
Thermal comfort is no longer controlled.
However, a slight air flow may still be felt,
resulting from the forward movement of the
vehicle.

Comfort

)

Switch off the demist/defrost of the

rear screen and door mirrors as
soon as it is no longer needed as
lower current consumption results
in reduced fuel consumption.

Front Demist -

Defrost

Rear screen demist -

defrost

The control button is located on the
air conditioning system control panel.

With manual air

conditioning

)

Select this programme to demist

or defrost the windscreen and
side windows as quickly as
possible.

With dual-zone and quad-

zone digital air conditioning

Automatic visibility programme

Switching on

)

Press this button to demist/defrost the rear
screen and, depending on version, the door
mirrors. The indicator lamp associated with
the button comes on.

With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

Switching off

The demist/defrost switches off automatically to
prevent an excessive consumption of current.
)

It is possible to stop the demist/defrost
operation before it is switched off
automatically by pressing the button again.
The indicator lamp associated with the
button goes off.

The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
Adjust the temperature control to quickly
demist /defrost the windows.
To switch it off, press the "visibility" button
again, the warning lamp in the button goes off
and the system reverts to the previous settings.

)

Select this programme to demist
or defrost the windscreen and
side windows as quickly as
possible.

The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
With the quad-zone digital air conditioning,
pressing this button deactivates and locks the
rear air conditioning.
)

To stop the programme, press either the

"visibility" button again or "AUTO" , the
warning lamp on the button goes off and
the warning lamp in the "AUTO" button
comes on.

The system reverts to the previous settings.

The rear screen demist - defrost can only
operate when the engine is running.

Comfort

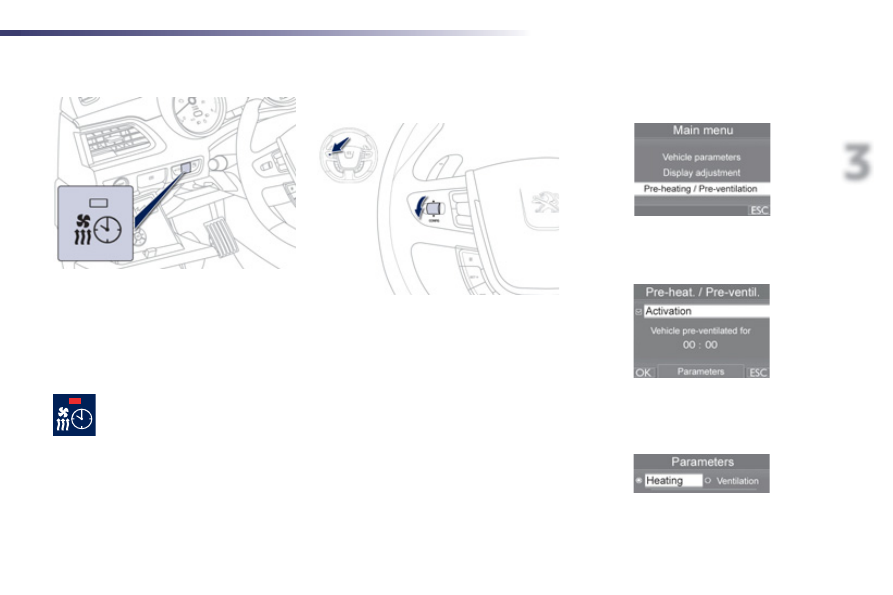

Programmable heating

mode

This is an additional and separate system
which heats the engine hot water circuit
to improve defrosting and to preheat the
passenger compartment.

This indicator lamp comes on only
when if the system is programmed in
programmable heating mode.

With the ignition on, press the left hand
steering mounted thumb wheel for access to
the main menu.

Programming

)

In the "Main menu", select "Pre-heating /

Pre-ventilation",

)

Select "Activation" and if necessary for

programming, "Parameters",

)

Select "Heating" to preheat the engine or

passenger compartment or "Ventilation" to
ventilate the passenger compartment,

Programmable Heating / Ventilation

Programmable Ventilation

mode

This mode allows ventilation of the passenger
compartment with exterior air to improve the
temperature experienced on entering the
vehicle in summer.

100

Comfort

)

Select:
- immediate to start the heating or

ventilation (once confirmed "OK"),

- the first clock to programme/store your

departure time,

- the second clock to programme/store a

second departure time.

Depending on the departure time chosen, the
system calculates automatically the optimum
time to start operating.

The immediate or programmed
activation of Ventilation mode depends
on the temperatures inside and outside
the vehicle.

Always switch off the programmable
heating while refuelling to avoid any risk
of fire or explosion.
To avoid the risk of intoxication and
asphyxiation, the programmable
heating must not be used, even for
short periods, in an enclosed area such
as a garage or workshop not equipped
with exhaust gas extraction.
Do not park the vehicle on an
inflammable surface (dry grass, dead
leaves, paper…), there is a risk of fire.

Using these two clocks and according
to season you can, for example, select
one or the other departure time.
A message in the instrument panel
screen confirms your choice.

Only one programmed or immediate
preheating/preventilation can be
activated between two starts of the
vehicle.

The heating and the ventilation in
immediate or programmable mode is
not activated when:
- the

fuel level is too low,

- the

battery is not sufficiently

charged.

To programme the heating and the
ventilation, it is necessary to first
deactivate the alarm volumetric and tilt
monitoring (see the "Alarm" section).

101

Driving

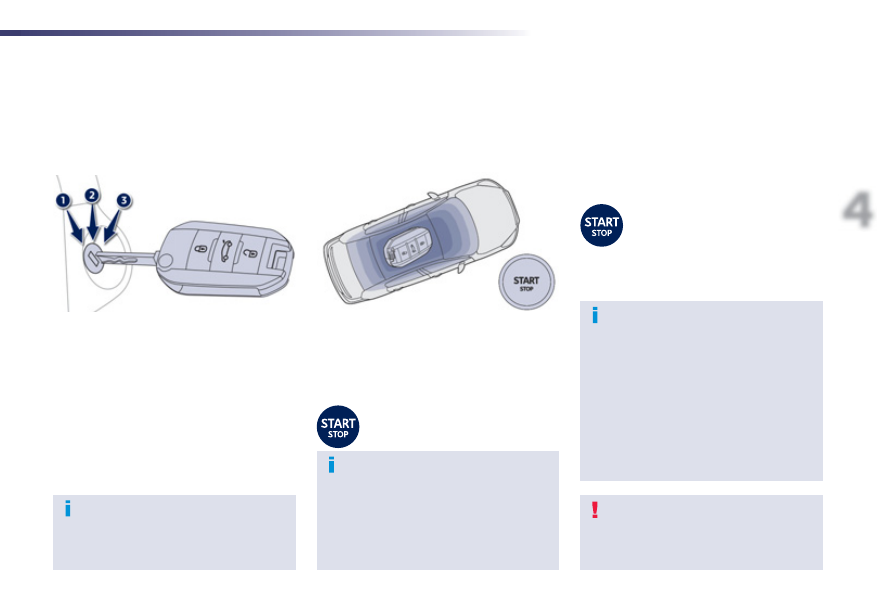

Starting-switching off the engine

With a manual gearbox , put the gear lever in neutral.
With an electronic gear control gearbox, put the gear lever in N.
With an automatic gearbox , put the gear lever in P or N .

)

Insert the key in the ignition switch.

)

Turn the key fully towards the dashboard to
position 3 (Starting).

)

When the engine starts, release the key.

Starting using the key

Switching off using the key

)

Immobilise the vehicle.

)

Turn the key fully towards you to position 1
(Stop) .

)

Remove the key from the ignition switch.

For Diesel vehicles, in very cold
weather the engine will not start until
the pre-heater warning lamp has
gone off.

Key left in the ignition

If the key is left in the ignition switch,
there is an audible signal on opening
the driver's door.

If one of the starting conditions is not
met, a reminder message appears in
the instrument panel screen. In some
circumstances, it is necessary to turn
the steering wheel slightly while pressing
the "START/STOP" button to assist
unlocking of the steering; a message
warns you when this is needed.

If the vehicle is not immobilised, the
engine will not stop.

)

With the electronic key inside the vehicle,

press the brake pedal on vehicles with
automatic or electronic gear control
gearbox, or depress the clutch pedal fully
on vehicles with a manual gearbox and
maintain pressure until the engine starts.

Starting using the electronic key

)

Press the " START/STOP"
button.

Switching off using

the electronic key

)

Immobilise the vehicle.

)

With the electronic key inside

the vehicle, press the "START/
STOP" button.

The engine stops and the steering column is
locked.

Accessory position

With the electronic key inside the
vehicle, press the "START/STOP"
button, with no action on the pedals,
to switch the ignition on or off and so
activate accessories.

102

Driving

Anti-theft protection

Electronic engine immobiliser

The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.

In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a PEUGEOT dealer as soon as possible.

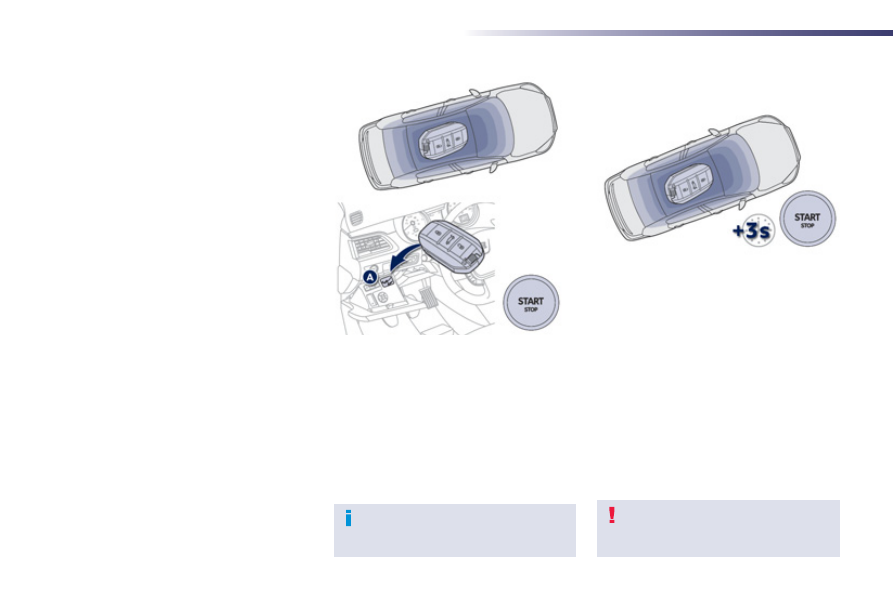

Emergency starting with the

electronic key

When the electronic key is in the defined zone
and your vehicle does not start after pressing
the "START/STOP" button:
)

Open the housing below the "START/

STOP" button.

)

Insert the electronic key in the location A.

)

Press the "START/STOP" button.

Once the engine has started, you can
remove the electronic key and close the
housing.

Emergency switch-off using

the electronic key

In the event of an emergency only, the engine
can be switched of without conditions. To do
this, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
if the electronic key is no longer in the defined
zone when you request switching off the engine,
a message appears in the instrument panel.
)

Press and hold the "START/STOP" button
for about 3 seconds if you want to force
switching off the engine (note that restarting
will not be possible without the key).

The electronic key must always remain
inside the vehicle while in use.

103

Driving

It is recommended that you do not
apply the parking brake in very cold
conditions (ice) and during towing
(breakdown, caravan...). Deactivate the
automatic functions and release the
parking brake manually.

Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and the control lever A
are on, not flashing.

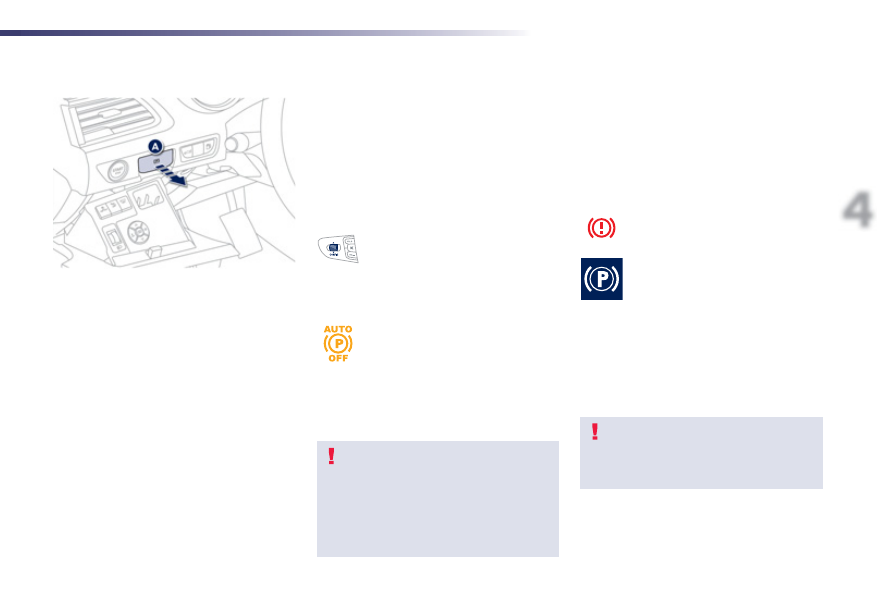

The electric parking brake combines
2 operating modes:
-

Automatic Application/Release

Application is automatic when the engine
stops, release is automatic on use of the
accelerator (this mode is activated by
default),

Manual Application/Release

Manual application of the parking brake is
done by pulling control lever A.

manual release is done by pushing and

releasing the control lever, while pressing
the brake pedal

When the driver's door is opened, there is an
audible signal and a message is displayed if the
brake is not applied.

Programming the mode

Depending on the country of sale of the vehicle,
the automatic application when the engine is
switched off and the automatic release when
you press the accelerator can be deactivated.

With the vehicle stationary, to apply the parking
brake whether the engine is running or off, pull
control lever A .

Manual application

Activation / deactivation is done via
the menu in the instrument panel
screen.

The parking brake is then applied and released
manually.

The application of the parking brake is
confirmed by:

- lighting of the braking warning

lamp and of the P warning lamp
in the control lever A,

- display of the message "Parking

brake on".

When the driver’s door is opened with the
engine running, there is an audible signal and
a message is displayed if the parking brake
has not been applied, unless the gear lever is
in position P (Park) in the case of an automatic
gearbox.

Electric parking brake

If this warning lamp comes on in the
instrument panel, the automatic mode
is deactivated.

104

Driving

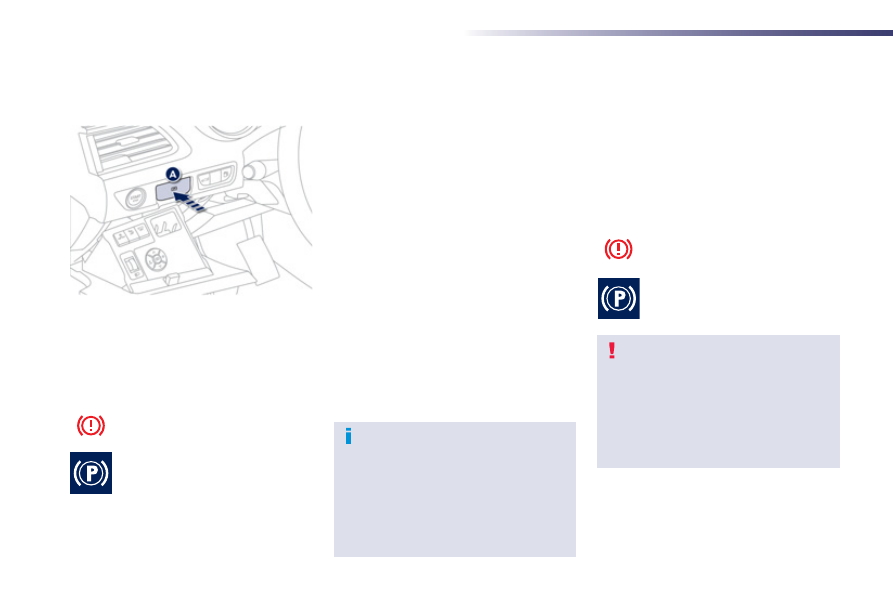

With the ignition on or the engine running,
to release the parking brake, press
the brake pedal , pull then release
control lever A .
The full release of the parking brake
is confirmed by:

Manual release

- the

braking warning lamp and

the P warning lamp in the control
lever A going off,

- display of the message "Parking

brake off".

If you pull the control lever A without pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel.

If necessary, you can make a maximum
application of the parking brake. It is obtained
by means of a long pull on control lever A,
until you see the message "Parking brake
applied fully" and an audible signal is heard.
Maximum application is essential:
-

in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are
activated but you are applying the parking
brake manually,

when the slope you are parked on may
vary (e.g. on a ferry, on a lorry, during
towing).

Maximum application

  Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and in the control
lever   A  are on fixed (not flashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.

Automatic application,
engine off

illumination of the braking warning
lamp and of the P warning lamp in
the control lever A ,

- display of the message "Parking

brake on".

With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.
The application of the parking brake is
confirmed by:

In the case of towing, a loaded vehicle
or parking on a gradient, make a
maximum application of the parking
brake then turn the front wheels towards
the pavement and engage a gear when
you park.
After a maximum application, the
release time will be longer.

105

Driving

Automatic release

The electric parking brake releases
automatically and progressively
when you press the accelerator:
)

Manual gearbox: press down fully on
the clutch pedal, engage first gear or
reverse, press on the accelerator pedal
and move off.

)

Electronic gear control gearbox :
select position A , M or R then press on the
accelerator pedal.

)

Automatic gearbox: select position  D ,
M or R  then press on the accelerator
pedal.

Full release of the parking brake is
confirmed by:

the braking warning lamp and
the P warning lamp in the control
lever A going off,

- display of the message "Parking

brake off".

When stationary, with the engine

running, do not press the accelerator

pedal unnecessarily, as you may

release the parking brake.

Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and the control lever A
are on fixed, not flashing.

Immobilising the vehicle,
engine running

With the engine running and the vehicle
stationary, in order to immobilise the vehicle
it is essential to manually apply the parking
brake by pulling control lever A.
The application of the parking brake is
confirmed by:

- illumination

of the braking warning

lamp and of the P warning lamp in
the control lever A ,

- display of the message "Parking

brake on".

When the driver’s door is opened, a loud beep
is heard and a message is displayed if the
parking brake has not been applied, unless the
gear lever is in position P (Park) in the case of
an automatic gearbox.

Particular situations

In certain situations (e.g. starting the engine),
the parking brake can automatically alter its
force. This is normal operation.
To advance your vehicle a few centimetres
without starting the engine, but with the ignition
on, press on the brake pedal and release the
parking brake by pushing then releasing
control lever A . The full release of the parking
brake is confirmed by the warning lamps
in the control lever A and in the instrument
panel going off and display of the message
"Handbrake off".
If a parking brake fault occurs while applied or
if the battery runs flat, an emergency release is
always possible.
In order to ensure correct operation and
so your safety, the number of successive
application/release operations of the parking
brake is limited to eight.
In the event of abuse, you are alerted by a
message "Parking brake faulty" and a warning
lamp flashes.

106

Driving

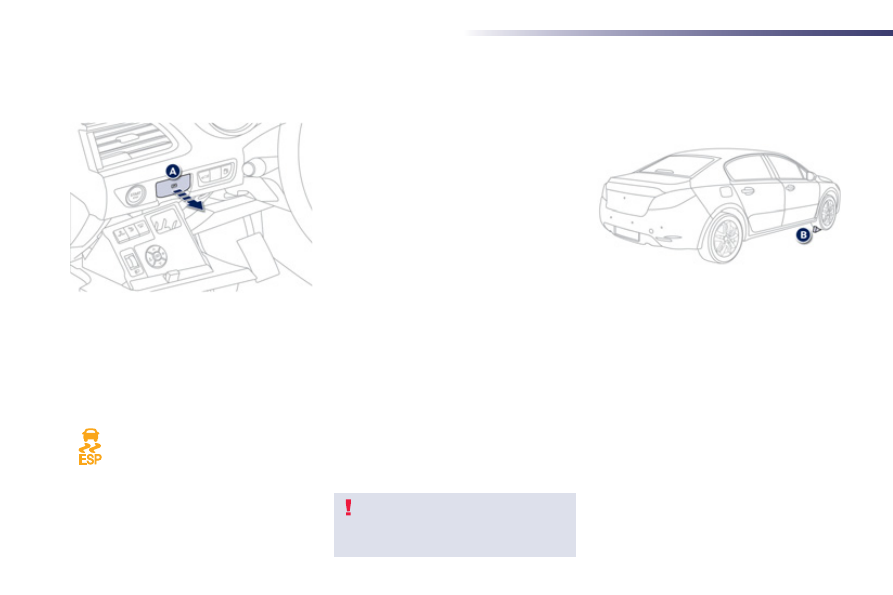

Emergency braking

In the event of a failure of the main service
brake, a continuous pull on the control lever A
will stop the vehicle.
The dynamic stability control provides stability
during emergency braking.
If the emergency braking malfunctions, the
message "Parking brake control faulty" will be
displayed.

If a failure of the DSC system is
signalled by the lighting of this
warning lamp, then braking stability is
not guaranteed.

In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever A.

Emergency parking brake release

)

if your vehicle has one, take out the vehicle
chock B , located under the boot floor.

)

On a slope, immobilise the vehicle by
placing a chock in front or behind one of
the front wheels, opposing the slope.
On level ground, immobilise the vehicle by
placing a chock in front or behind one of
the front wheels.

In the event of fault with the electric parking
brake or a battery failure, an emergency
mechanical control can be used to manually
release the parking brake.
)

Immobilise the vehicle (or chock it if the

brake pedal has not been released), with
the engine running, by engaging first gear
(manual gearbox, position P (automatic
gearbox) or M or R (electronic gear control
gearbox).

)

Switch of the engine, but leave the ignition

on. If you are unable to immobilise the
vehicle, do not operate this control and
contact a PEUGEOT dealer or a qualified
workshop as soon as possible.

The emergency braking must only be
used in exceptional circumstances.

107

Driving

)

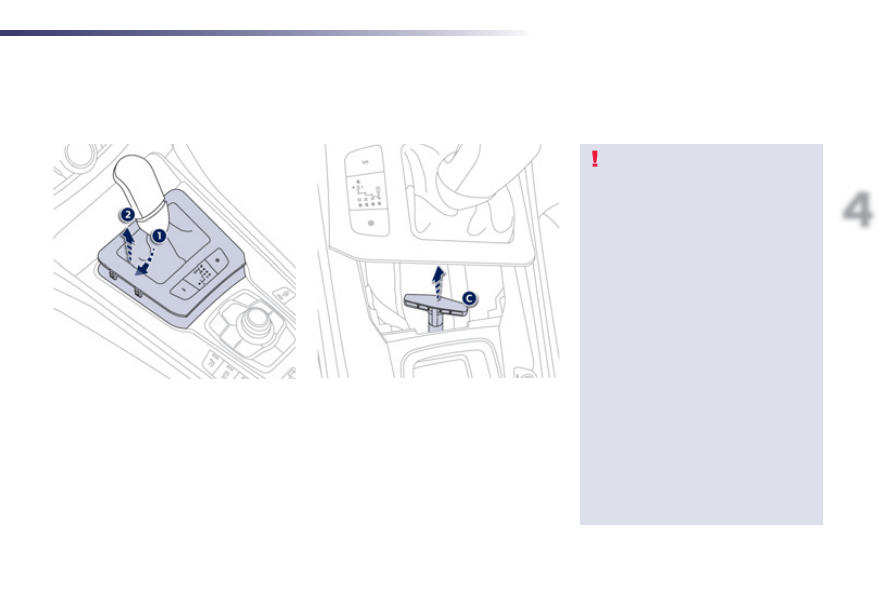

Pass your fingers under the edge of the
gaiter (below the gear lever surround).

)

Unclip the surround by spreading the
tongues (located below) then pull away the
assembly of surround and gaiter.

  With an emergency release,
immobilisation of the vehicle is no
longer be assured once the mechanical
release has started and the mechanical
control cannot be used to apply the
parking brake again.
Do not carry out any action on lever A ,
or stop / start the engine while the
release control is engaged.
Have it checked by a PEUGEOT dealer
or a qualified workshop.
The control C  cannot be used to apply
the parking brake.
To re-engage the electric parking brake
(after correction of the fault or battery
failure), make a long pull on the control
lever A  until the parking brake warning
lamp (!) flashes in the instrument panel,
then make a second long pull until
this warning lamp comes on fixed (not
flashing).

)

Turn the surround/gaiter assembly for

access to the lever.

)

Pull hard on the control C to release the

parking brake. A loud knock confirms the
release of the brake.

)

Take care to refit the control in its housing.

)

Replace the surround/gaiter assembly.

108

Driving

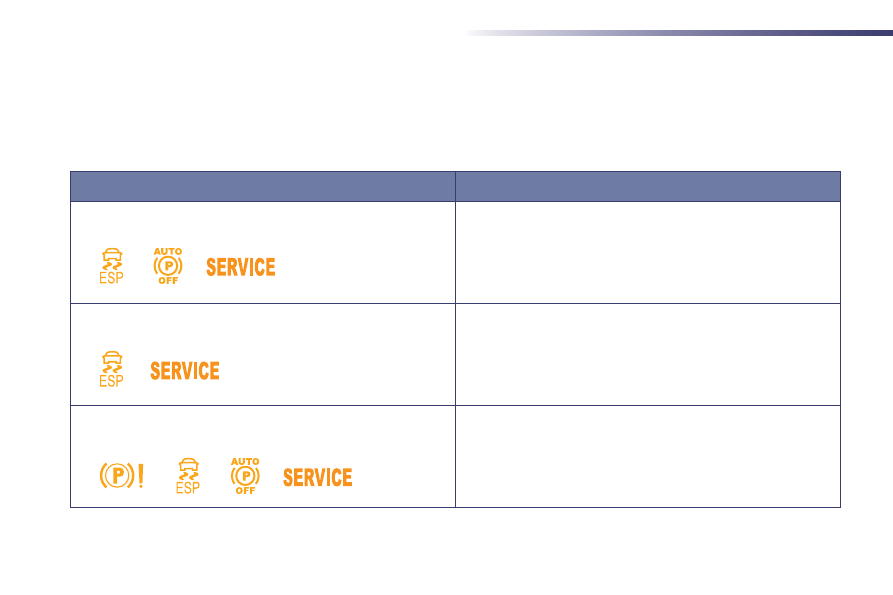

Operating faults

If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these tables, place the vehicle in
a safe condition (on level ground, gear engaged) and contact a PEUGEOT dealer or a qualified workshop without delay.

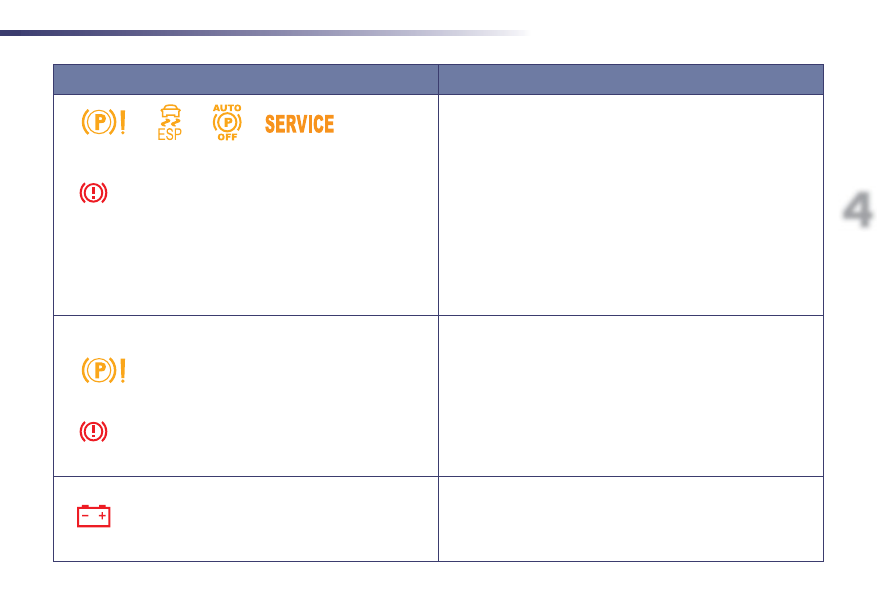

Situations

Consequences

Display of the message "Parking brake fault" and of the following
warning lamps:

- The automatic functions are deactivated.
-

Hill start assist is not available.

The electric parking brake can only be used manually.

Display of the message "Parking brake fault" and of the following
warning lamps:

- Manual

release

of the electric parking brake is only available by

pressing the accelerator pedal and releasing the control lever.

- Hill

start assist is not available.

- The

automatic

functions and the manual application are still

available.

Display of the message "Parking brake fault" and of the following
warning lamps:

- The automatic functions are deactivated.
- Hill

start assist is not available.

109

Driving

Situations

Consequences

To apply the electric parking brake:
)

immobilise the vehicle and switch off the ignition.

)

pull the control for at least 5 seconds or until application is complete.

)

switch on the ignition and check that the electric parking brake

warning lamps come on.

The application is slower than during normal operation.
To release the electric parking brake:
)

switch on the ignition.

)

push the control lever and hold it for approximately 3 seconds then

release it.

If the braking warning lamp is flashing or if the warning lamps do not
come on with the ignition on, these procedures will not work. Place the
vehicle on level ground and have it checked by a PEUGEOT dealer or a
qualified workshop.

and possibly

flashing

Display of the message "Parking brake fault" and of the following
warning lamps:

Only the automatic application on switching off the engine and
automatic release on acceleration functions are available.

The manual application/release of the electric parking brake and the
emergency braking are not available.

and possibly

flashing

Display of the message "Battery charge fault".

You must stop as soon as it is safe to do so. Switch off and
immobilise your vehicle (if necessary, place the a chock under a
wheel).

- Apply the electric parking brake before switching off the engine.

110

Driving

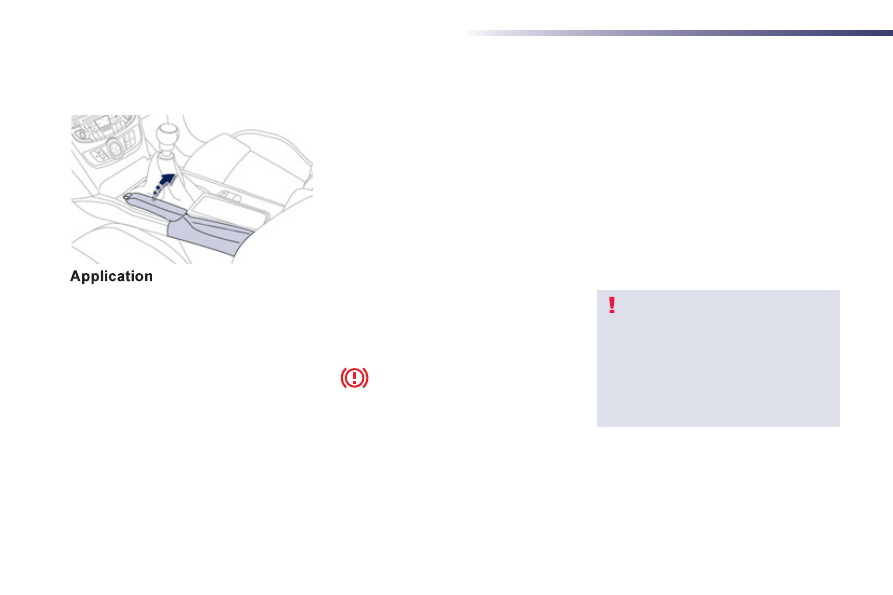

Manual parking brake

)

Pull the parking brake lever up to
immobilise your vehicle.

Release

)

Pull the parking brake lever up gently,

press the release button then lower the
lever fully.

When parking on a slope, direct your
wheels against the kerb, apply the
parking brake, engage a gear with a
manual gearbox or position P with an
automatic gearbox and switch off the
ignition.

When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accompanied

by an audible signal and a message in the
instrument panel screen, indicating that the
parking brake is still on or has not been fully
released.

Content .. 5 6 7 8 ..
