Peugeot 406 C (2004 year). Instruction

YOUR 406 COUPE IN DETAIL

VENTILATION

1 - Windscreen de-icing or demisting vents.

2 - Front window de-icing or demisting vents.

3 - Side vents.

4 - Central vents.

5 - Air outlet to the front passengers' feet.

6 - Air outlet to the rear passengers' feet.

Recommendations for use

☞ Position the air flow control at a level which allows adequate air circulation inside your vehicle.

☞ Select the air distribution which best suits your requirements and the climatic conditions.

☞ Select a temperature setting and only alter it gradually for your comfort.

For an even air distribution, make sure that you do not block the air inlet grille at the base of the windscreen, the vents, the

air passages under the front seats and the air extractor in the boot.

02-02-2004

YOUR 406 COUPE IN DETAIL

AUTOMATIC AIR CONDITIONING

2 - Automatic

comfort

programme

Press the "AUTO" button. The sys-

tem automatically adjusts the tem-

perature to that selected, by starting

the air conditioning if necessary.

It also manages the air flow and

intake, to ensure sufficient air circu-

lation inside the vehicle.

Adjustment of the air distribution

must be carried out manually when

you require it.

3 - Automatic

visibility

programme

In certain cases, the automatic com-

fort programme can prove inade-

quate to de-ice or demist the win-

dows (humidity, many passengers,

ice). In such cases, select the auto-

matic visibility programme

Automatic operation

rapidly clear the windows.

The system automatically manages

1 - Temperature adjustment

the air conditioning, the air flow and

the air intake, distributing the air to

The value requested is displayed (from 15 to 30: comfortable tempera-

the windscreen and side windows.

ture = 22).

Press the up and down arrows to adjust.

02-02-2004

YOUR 406 COUPE IN DETAIL

4 - Setting the

Manual operation

7 - Air intake

air distribution

You may, if you wish, make a differ-

This

button

Successive presses on the

ent choice from that offered by the

pressed for recircula-

top or bottom part of this

system, by changing one of the set-

tion of the interior air.

button allow the air to be

tings.

Recirculation, shown on the display,

directed to:

prevents the entry of unpleasant

Press the "AUTO" button to return to

odours or fumes into the passenger

automatic operation.

compartment from outside.

- the windscreen (de-icing or demist-

Avoid prolonged operation of the

ing),

recirculation of interior air. A second

- the windscreen and footwells,

press returns the system to automat-

- the central and side vents,

ic intake of air.

- the central and side vents and

Used in humid conditions, recircula-

footwells,

5 - Air

tion risks misting up the windows.

- the footwells.

conditioning

Press the top or bottom part of the

Pressing this button

button to select the previous or next

stops the air condi-

8 - Demisting the

setting from the above list.

tioning. Pressing again returns the

rear screen

air conditioning to automatic opera-

tion. The symbol "A/C" is displayed.

With the engine run-

ning, pressing the

switch demists the rear screen and

the mirrors.

It switches off automatically after

approximately fifteen minutes.

Press again to resume demisting. It

is possible to stop the demisting

operation before it goes off auto-

6 - Air flow

matically, by pressing the switch

again.

The air flow may be

increased or reduced

Note: The condensation created by

by pressing the ''+''

air conditioning causes a normal flow

or ''-'' button respectively.

of water under the vehicle when sta-

tionary.

02-02-2004

YOUR 406 COUPE IN DETAIL

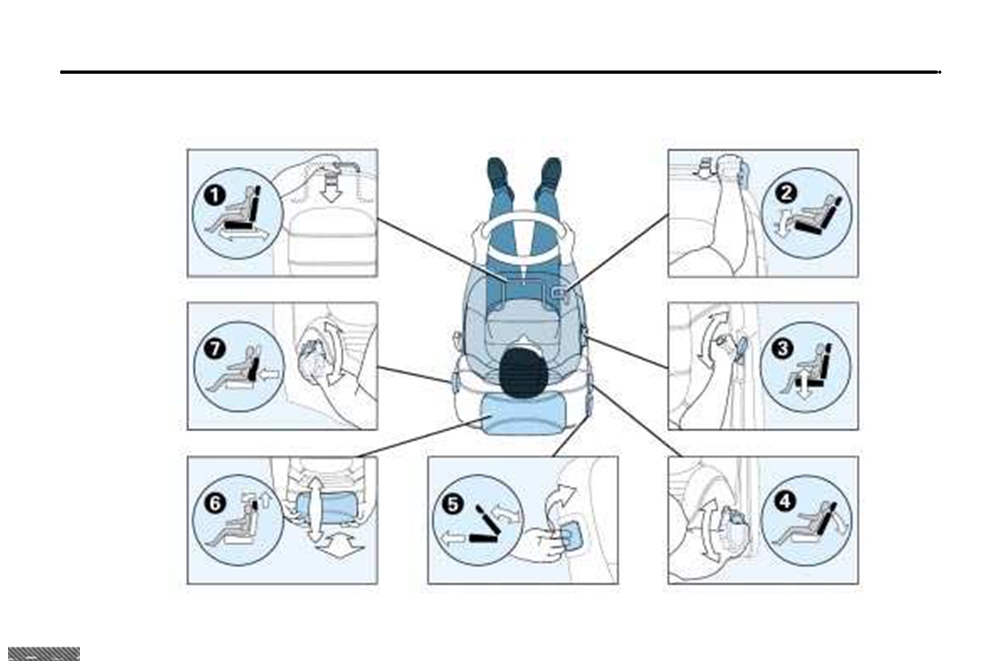

SEATS

6 - Head restraint height and

7 - Lumbar adjustment

angle adjustment

Manual adjustment

To obtain better back support,

turn the knob.

of the front seats

Adjustment is correct when the

top of the head restraint is level

Passenger seat

1 - Forwards-backwards adjust-

with the top of the head.

To gain access to the rear seats,

ment

there are two ways to tilt the seat

Lift the lever and slide the seat

back:

forwards or backwards.

To raise the head restraint, pull it

- pull the handle at the top right of

upwards.

the seat, or

2 - Adjusting the seat cushion

To lower the head restraint, it is

- lift the handle at the bottom left of

angle

necessary to push simultaneously:

the seat.

Lift the lever to set the best angle.

- the button located on the left

guide on top of the seat back,

3 - Adjusting the driver's seat

- the head restraint downwards.

height

The head restraint has a frame

Pull the telescopic handle for-

with notches which prevent it

wards and pivot it up or down.

from dropping down

(safety

device in case of impact).

4 - Adjusting the seat back angle

To remove the head restraint,

press the tab.

Turn the knob to obtain the best

angle.

5 - Tilting the seat back

To gain access to the rear seats,

pull the handle, tilt the seat back

as much as possible, and move

the seat forwards. On reposition-

ing, the seat will resume its origi-

nal settings.

Note: never reposition the seat

using

the

forwards-backwards

Never drive with the head

adjustment control.

restraints removed; they

must be in place and cor-

rectly adjusted.

02-02-2004

YOUR 406 COUPE IN DETAIL

Electrical adjustment of the front seats

A - Forwards-backwards adjustment

Push the switch forwards or backwards to slide the

seat.

B - Adjusting the seat cushion angle

Tilt the front part of the switch up or down.

C - Adjusting the driver's seat height

Push the switch up or down.

D - Seat back angle adjustment

Tilt the switch forwards or backwards

E - Tilting the seat back

Pull the lever and tilt the seat back forwards.

As long as you hold the seat back in the tilted position,

the seat moves forward automatically (when the door

is closed, the ignition must be switched on in order to

move the seat forwards).

On repositioning, the seat resumes its original settings.

02-02-2004

YOUR 406 COUPE IN DETAIL

Recalling a memorised

position

• Door open and ignition off

Within ten minutes of switching off

the ignition and opening the door, a

short press on button 1 or 2 recalls

the memorised position of the seat,

then of the exterior mirrors.

• Door closed or ignition on:

-keeping the button pressed

adjusts the seat and the exterior

mirrors.

When adjustment is completed a

bleep will sound.

Memorising the seat

Heated seat controls

and mirror positions

Press the switch.

The temperature is controlled auto-

Two driving positions can be memo-

matically.

rised.

Pressing a second time stops opera-

To memorise:

tion.

- place the ignition key in the acces-

sories position;

- adjust your seat and mirrors;

- simultaneously press button "M"

and button "1" for the first driving

position or button "2" for the

second driving position.

When the position has been

memorised, you will hear two

bleeps.

Memorising a new position cancels

the previous one.

02-02-2004

YOUR 406 COUPE IN DETAIL

REAR SEATS

To fold down the seat back

Ski flap

Rear seat with fold-down

The release controls are situated in

Lower the arm rest to access the ski

backs

the boot.

flap.

Pull the control corresponding to the

Before carrying out any operation,

part of the seat back that you wish to

in order to prevent damage to

fold down.

the seat belts, hook them in

the locations under the front

When returning the seat back to its

seatbelts.

original position, ensure that it is

locked correctly to guarantee your

The rear seat back folds down in two

safety.

sections.

02-02-2004

YOUR 406 COUPE IN DETAIL

GENERAL POINTS RELATING TO CHILD SEATS

Special points relating to the

transportation of children on the

Although one of PEUGEOT's main criteria when designing your vehicle, the safe-

front passenger seat*

ty of your children also depends on you.

For maximum safety, please follow these precautions:

Children under the age of 10 must

not travel in the forwards facing

- Since 1992, all children under the age of 10 must travel in approved child

position, unless the rear seats are

seats* suited to their weight

, on seats fitted with a seat belt or ISOFIX

already occupied by other children

mountings.

or the rear seats cannot be used

(absent or folded). In this case,

- A child weighing less than 9 kg must travel in the rearwards facing posi-

adjust the front passenger seat to

tion both in the front and in the rear. PEUGEOT recommends that chil-

the intermediate longitudinal posi-

dren should travel in the "rearwards facing" position up to the age of two.

tion and leave the passenger air bag

armed.

- Statistically, the safest seats in your vehicle for the transportation of chil-

The transportation of children in the

dren are the rear seats. PEUGEOT recommends that children travel in the

rearwards facing position is permit-

rear even when a "rearwards facing" child seat is used.

ted. In this position, it is essential to

disarm the passenger air bag.

Otherwise, the child would risk being

- If a child is travelling on a booster seat, check that the lap section of the seat

killed or seriously injured if the air

belt passes over the child's thighs correctly. The chest section of the seat belt

bag were to inflate.

must be positioned on the child's shoulder without touching the neck. PEU-

GEOT recommends that you use a booster seat with a back, fitted with a seat

belt guide at shoulder level.

- Remember to fasten the seat belt or the child seat harness keeping the slack

in relation to the child's body to a minimum

, even for short journeys.

* According to current legislation in the country.

02-02-2004

YOUR 406 COUPE IN DETAIL

CHILD SEATS RECOMMENDED BY PEUGEOT

In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat

belt :

Group 0+: from birth to 13 kg

L1 - "Britax Babysure": installed in the rear-facing position using a three-point seat belt.

L2 - "Römer Baby-Safe": installed in the rear-facing position using a three-point seat belt. The deep and strengthened shell

is designed to guarantee the child optimum protection in the event of a side collision.

When one of these seats is installed in the front, it is compulsory to disarm the passenger air bag and the vehicle's seat

must be adjusted to the intermediate longitudinal position.

Group 1: from 9 to 18 kg

L3 - "Römer Prince": installed using a two or three-point seat belt.

For the safety of your child, it is imperative that the restraining cushion is used.

Group 2: from 15 to 25 kg

L4 - "Römer Vario'': installed using a two or three-point seat belt.

02-02-2004

YOUR 406 COUPE IN DETAIL

Never leave one or more

children alone and unsu-

pervised in a vehicle.

Never leave a child or an

animal in a vehicle which is

exposed to the sun and has the

windows closed.

To protect your young children

from the sun, fit blinds on the rear

windows.

Groups 2 and 3: from 15 to 36 kg

L5 - "Recaro Start'': installed using a three-point seat belt.

The height and width at the shoulders and length of the seat cushion must

be adjusted according to the age and build of your child.

L6- "Klippan Optima": installed in the rear using a three-point seat belt.

From the age of 6 years (approximately 22 kg), the booster is used on its own

Groups 1, 2 and 3: from 9 to 36 kg

L7 - "Kiddy Life": installed in the rear using a three-point seat belt.

Never leave the keys within reach

The height and width at the shoulders and the length of the seat cushion

of children inside the vehicle.

must be adjusted according to the age and build of your child.

Observe strictly the recommenda-

For the safety of young children (from 9 to 18 kg), PEUGEOT recommends

tions for assembling and securing

use of the restraining cushion.

the child seat as shown in the

Recommendations

child seat instructions.

For optimum installation of a forwards facing child seat, check that the back of

To prevent the doors from opening

the child seat is resting against the back of the vehicle's seat correctly and that

accidentally, use the child lock*.

the head restraint does not cause any discomfort.

Also, do not open the rear win-

dows more than a third*.

If it is necessary to remove the head restraint, as in the case of the "RECARO

Start", "KLIPPAN Optima" and "KIDDY Life" child seats (over 6 years of age),

ensure that the head restraint is securely stored or attached so that it cannot act

as a projectile in the event of sharp braking.

Disarm the passenger air bag when installing a "rearwards facing" child

seat on the front passenger seat. Otherwise, the child would risk being

* According to model.

seriously injured or killed were the air bag to inflate.

02-02-2004

100

YOUR 406 COUPE IN DETAIL

THE INSTALLATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with European regulations (Directive 2000/3), the table below indicates the options for the installation of child

seats secured using the seat belt and universally approved (child seats which can be installed in all vehicles using the seat

belt), in relation to the weight of the child and the seat in the vehicle:

Weight of the child / indicative age

Seat

< 13 kg

9 to 18 kg

15 to 25 kg

22 to 36 kg

Group 0(a) and 0+

Group 1

Group 2

Group 3

Up to 1 year

From 1 to 3 years

From 3 to 6 years

From 6 to 10 years

approx.

approx

Front passenger seat (b)

with and without height adjustment

L4, L5, L6

L5, L6

Rear side

seat

U: U: seat suitable for the installation of a child seat secured using the seat belt and universally approved. "Rearwards

facing" and "forwards facing" child seats.

L: only the child seats indicated may be installed on the seat concerned (according to destination).

Make

Model

Approval No°

L1 : BRITAX

Babysure

E11 0344117

L3 : ROMER

Prince

E1 03301058

L4 : ROMER

Vario

E1 03301120

L5 : RECARO

Start

E1 03301108

L6 : KLIPPAN

Optima

E17 030007

(a) Group 0: from birth to 10 kg.

(b) The rules for transporting children on the front passenger seat are specific to each country. Consult the current

legislation in your country.

02-02-2004

101

YOUR 406 COUPE IN DETAIL

Pre-tensioning and force-limiting

To be effective, a seat

front seat belts

belt must be tightened as

Safety in the event of a frontal impact

close to the body as pos-

has been improved by the introduc-

sible.

tion of pre-tensioning and force-limit-

Depending on the nature and the

ing front seat belts. Depending on

seriousness of the impact, the

the seriousness of the impact, the

pre-tensioners may be triggered

pre-tensioning system instantly tight-

before and independently of the

ens the seat belt firmly against the

air bags.

body of the occupant.

In all cases, the air bag warning

The pre-tensioning seat belts are

light comes on.

active when the ignition is on.

Following a collision, have the

system checked by a PEUGEOT

The force-limiting device reduces the

dealer.

pressure of the seat belt against the

occupant's body in the event of an

accident.

Rear seat belts

The rear seats are fitted with two

three-point inertia reel belts.

SEAT BELTS

To adjust the height of the front

seat belts

Pinch control 1 and slide it.

To lock the seat belts

Pull the strap, then insert the buckle

into the stalk.

02-02-2004

YOUR 406 COUPE IN DETAIL

THE KEYS

Note: avoid handling the button of

your remote control when out of

The keys allow you to switch on the

range of your vehicle. You run the

ignition and to independently operate

risk of stopping it from working. It

the locks on the doors, the fuel filler

would then be necessary to reini-

cap, the glove box and the passen-

tialise the remote control.

ger air bag disarming switch.

Central locking

Locating your vehicle

From the doors the keys allow you to

lock, deadlock, close the windows

The remote control

To locate your vehicle, if you have

keeping the key in the lock, in the

locked it, in a car park:

locking position, for a few seconds

Deadlocking

and unlock the doors and the boot.

Deadlocking renders the internal and

☞ press button A, the courtesy lights

come on and the direction indica-

If one of the front doors or the boot is

external door controls inoperative.

tors flash for a few seconds.

open, central locking is not possible.

Press button A to deadlock the vehicle.

An audible signal indicates this when

This is confirmed by fixed lighting of

locking by remote control.

the direction indicators for approxi-

The remote control performs the

mately two seconds.

same functions at a distance,

Another press on button A, within five

except automatic closing of the

seconds of deadlocking, changes this

windows.

to normal locking

Key in ignition

This is confirmed by fixed lighting of

A buzzer sounds on opening the dri-

the direction indicators for approxi-

ver's door, if the key has been left in

mately two seconds.

the ignition.

Unlocking

Press button B to unlock the vehicle.

This is confirmed by rapid flashing of

the direction indicators.

02-02-2004

YOUR 406 COUPE IN DETAIL

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine management

system as soon as the ignition has

been switched off and therefore pre-

vents starting of the vehicle by any-

one who does not have the key.

The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the

code is recognised and starting is

possible.

If the system does not function

Confidential card

Changing the battery of the

correctly

, contact a PEUGEOT

remote control

The confidential card contains the

dealer as soon as possible.

identification code necessary for any

The information "battery flat" is

work carried out by a PEUGEOT

given by an audible signal accompa-

dealer on the electronic immobiliser

nied by a message on the multi-func-

system. This code is hidden by a

tion display.

film, which should be removed only if

necessary.

To replace the battery, unclip the

casing using a coin at the ring

Keep your card in a safe place,

(CR 2016/3 volt battery).

never inside the vehicle.

If the remote control does not work

after the battery has been changed,

reprogramme the remote control.

Programming the remote con-

trol

☞ Switch off the ignition.

☞ Switch the ignition on again.

☞ Press button A immediately for a

few seconds.

☞ Switch off the ignition and remove

the remote control key from the

ignition lock. The remote control

is now working again.

02-02-2004

YOUR 406 COUPE IN DETAIL

Make a careful note of the number on each key. The key number is coded on the label attached to the key.

If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a

possibility that it may unlock your vehicle, without you being aware of it.

The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except for

reprogramming.

Do not operate the deadlocking function if there is anyone inside the vehicle.

Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult

in an emergency.

As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time.

Do not repeatedly press the button of your remote control out of range of your vehicle. You run the risk of stopping it from

working and the remote control would have to be reprogrammed.

When purchasing a second-hand vehicle:

- ensure that you are given the confidential card;

- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones

which can start the vehicle.

Do not make any modifications to the electronic engine immobiliser system.

02-02-2004

YOUR 406 COUPE IN DETAIL

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine management

system as soon as the ignition has

been switched off and therefore pre-

vents starting of the vehicle by any-

one who does not have the key.

The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the

code is recognised and starting is

possible.

If the system does not function

Confidential card

Changing the battery of the

correctly

, contact a PEUGEOT

remote control

The confidential card contains the

dealer as soon as possible.

identification code necessary for any

The information "battery flat" is

work carried out by a PEUGEOT

given by an audible signal accompa-

dealer on the electronic immobiliser

nied by a message on the multi-func-

system. This code is hidden by a

tion display.

film, which should be removed only if

necessary.

To replace the battery, unclip the

casing using a coin at the ring

Keep your card in a safe place,

(CR 2016/3 volt battery).

never inside the vehicle.

If the remote control does not work

after the battery has been changed,

reprogramme the remote control.

Programming the remote con-

trol

☞ Switch off the ignition.

☞ Switch the ignition on again.

☞ Press button A immediately for a

few seconds.

☞ Switch off the ignition and remove

the remote control key from the

ignition lock. The remote control

is now working again.

02-02-2004

Peugeot 406 C (2004 year). Instruction - part 5
