Peugeot 406 C (2004 year). Instruction

115

YOUR 406 COUPE IN DETAIL

Display C

This enables the following information to be displayed:

- the time,

- the date,

- the outside temperature (the °C symbol flashes when there is a risk of ice),

- the radio displays,

- the status of the doors. The display shows you whether a door, the boot or the

bonnet is open,

- the warning messages are displayed temporarily (e.g. "top up fuel tank'') and

can be cleared using the remote control,

- the trip computer (see following page),

- the satellite navigation system (see corresponding section),

- the name of the road along which the vehicle is travelling (permanent locat-

ing).

Setting the parameters

The remote control allows you to access the settings. Accessing the different

menus is described in the section on the Satellite Navigation System.

Permanent locating

This function makes it possible to display the name of the road along which the

vehicle is travelling when guidance is not activated.

Press the "MODE" button on the remote control to display the name of the road

along which you are travelling.

To "zoom" in order to display the information more clearly, press the right arrow

on the remote control.

WARNING: the CD ROM containing the map data must be in the drive.

02-02-2004

YOUR 406 COUPE IN DETAIL

AUDIO RM2

Stalk movement

Function

1- Press (behind)

Increase volume.

2- Press (behind)

Decrease volume.

1 + 2 - Simultaneous press

Cutting off of the sound (mute); restoring of the sound

by pressing any button.

3- Press

Automatic search of upper frequencies (radio) -

Selection of the following track (CD).

4- Press

Automatic search of lower frequencies (radio) -

Selection of the previous track (CD).

5- Press the end

Change of source (radio/cassette/CD changer).

6- Rotation

Selection of next memorised station (radio) -

(clockwise)

Selection of following CD.

7-Rotation

Selection of previous memorised station (radio) -

(anti-clockwise)

Selection of previous CD.

02-02-2004

YOUR 406 COUPE IN DETAIL

Button

Function

ON/VOL

Radio On/Off. Volume adjustment.

Radio selection. Selection of FM1, FM2, FMast and AM wavebands.

Press for more than 2 seconds: automatic storing of stations in the memory (autostore).

Cassette selection. Reversal of the direction of play of the cassette.

Press for more than 2 seconds: noise reduction.

CD changer selection.

Press for more than 2 seconds: shuffle.

▲

Ejection of the cassette.

Traffic information priority on/off.

Press for more than 2 seconds: PTY function on/off.

RDS

RDS function on/off.

Press for more than 2 seconds: regional following mode on/off.

▲

Increase bass/treble setting.

▼

Decrease bass/treble setting.

AUDIO

Adjustment of bass, treble, loudness, sound distribution and automatic

volume correction.

Automatic search of higher frequency.

Selection of following track - cassette and CD.

MAN

Manual/automatic operation of buttons K and M in radio mode.

Automatic search of lower frequency.

Selection of previous track - cassette and CD.

1 to 6

1 2 3 4 5 6

Selection of station stored in the memory.

Press for more than 2 seconds: storing of a station in the memory.

Selection of a disc in the CD changer.

02-02-2004

YOUR 406 COUPE IN DETAIL

GENERAL FUNCTIONS

On/off

With the ignition key in the ACCESSORIES or IGNITION position, press button A to switch the set on or off.

The set can operate for 30 minutes without the vehicle ignition being switched on.

Anti-theft system

The audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another

vehicle.

The anti-theft system is automatic and requires no action on your part.

ADJUSTING THE VOLUME

Turn button A to increase or decrease the volume.

AUDIO SETTINGS

Press the "AUDIO" button several times in succession to access the bass (BASS), treble (TREB), loudness

(LOUD), fader (FAD), balance (BAL) and the automatic volume correction.

Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing the

"AUDIO" button after configuration of the automatic volume correction.

Note: bass and treble settings are specific to each source. It is possible to set them differently for radio,

cassette and CD changer.

02-02-2004

YOUR 406 COUPE IN DETAIL

Adjusting the bass

When "BASS" is displayed, press button H or I to vary the setting.

- "BASS -9" for a minimum bass setting,

- "BASS 0" for a normal setting,

- "BASS +9" for a maximum bass setting.

Adjusting the treble

When "TREB" is displayed, press button H or I to vary the setting.

- "TREB -9" for a minimum treble setting,

- "TREB 0" for a normal setting,

- "TREB +9" for a maximum treble setting.

Adjusting the loudness

This function automatically emphasises bass and treble tones when the volume is low.

Press button H or I to switch the function on or off.

Adjusting the front/rear sound distribution (Fader)

When "FAD" is displayed, press button H or I.

Button H increases the volume in the front.

Button I increases the volume in the rear.

Adjusting the right/left sound distribution (Balance)

When "BAL" is displayed, press button H or I.

Button H increases the volume on the right-hand side.

Button I increases the volume on the left-hand side.

Automatic Volume Correction (CAV)

This function enables the volume to be adjusted automatically according to the level of noise produced by the speed of the vehicle.

Press buttons H or I to switch the function on or off.

02-02-2004

YOUR 406 COUPE IN DETAIL

RADIO

Notes on radio reception

Your radio is subject to phenomena which do not affect domestic radio sets. Both MW/LW and FM reception are subject to

various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the signals and

the way in which they are transmitted.

On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.

On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles

(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter.

Selecting radio mode

Press button B.

Selecting a waveband

Briefly press button B to select the FM1, FM2, FMast and AM wavebands.

Automatic station search

Briefly press button K or M to search for the station immediately above or below.

By continuing to press the button in the direction selected, you will obtain contin-

uous scrolling of the frequency.

The scrolling stops at the first station found as soon as the button is released.

If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.

Searching for a station occurs first in "LO" sensitivity (selection of the most powerful transmitters) during scanning of the

waveband, then in "DX" sensitivity (selection of the weakest and most distant transmitters).

To make a direct search in "DX" sensitivity, press button K or M twice.

02-02-2004

YOUR 406 COUPE IN DETAIL

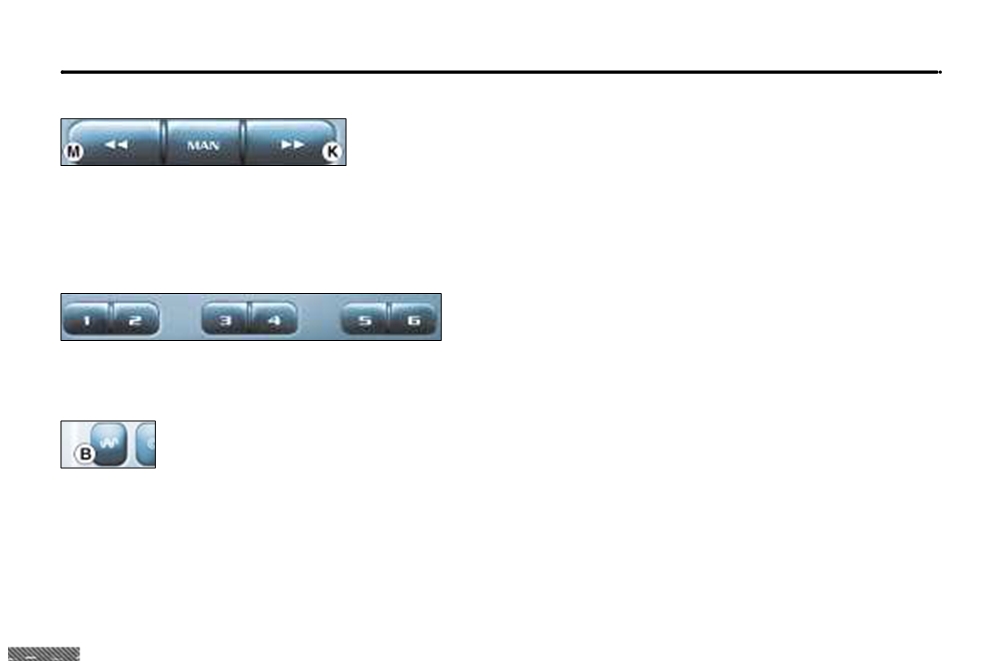

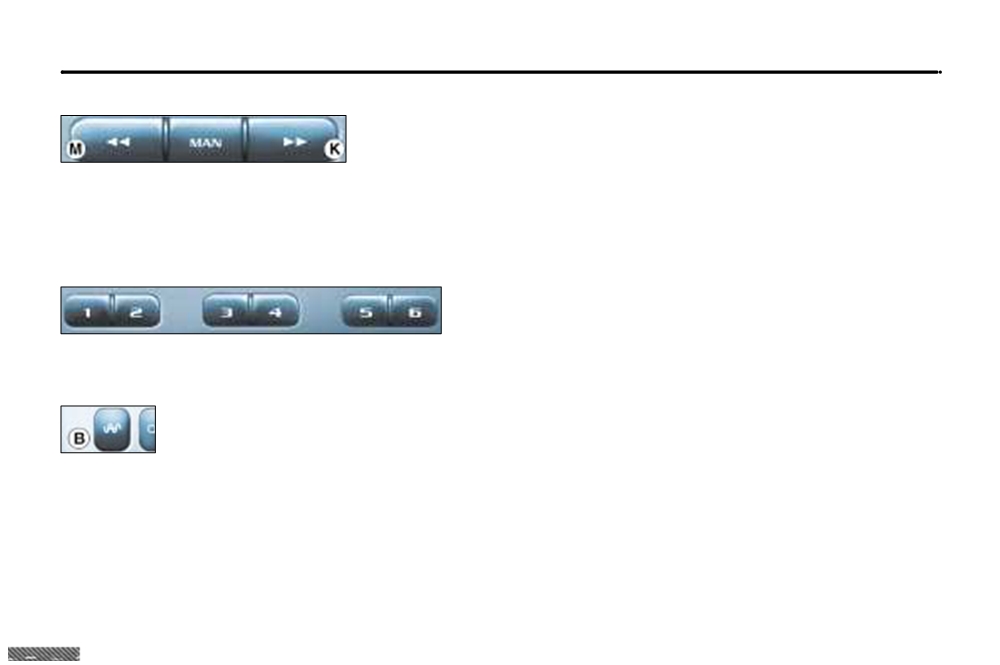

Manual station search

Press the "MAN" button.

Briefly press button K or M to increase or decrease the frequency displayed.

By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.

The scrolling stops at the first station found as soon as the button is released.

Pressing the "MAN" button again returns you to automatic station search.

Manual storing of stations in the memory

Select the station required.

Press one of the buttons 1 to 6 for more than two seconds.

The sound stops then becomes audible again, confirming that the station has been stored in the memory.

Automatic storing of FM stations in the memory (autostore)

Press button B for more than two seconds, to automatically store the 6 stations with the strongest signal in

FM. These stations are stored in the FMast waveband.

- If it is not possible to find 6 stations, the remaining memories are empty.

Recalling stations stored in the memory

For each waveband, briefly press buttons 1 to 6 to recall the corresponding stored station.

The list of the 6 stations stored in the memory on the waveband is displayed each time one of the buttons 1 to 6 is pressed.

02-02-2004

YOUR 406 COUPE IN DETAIL

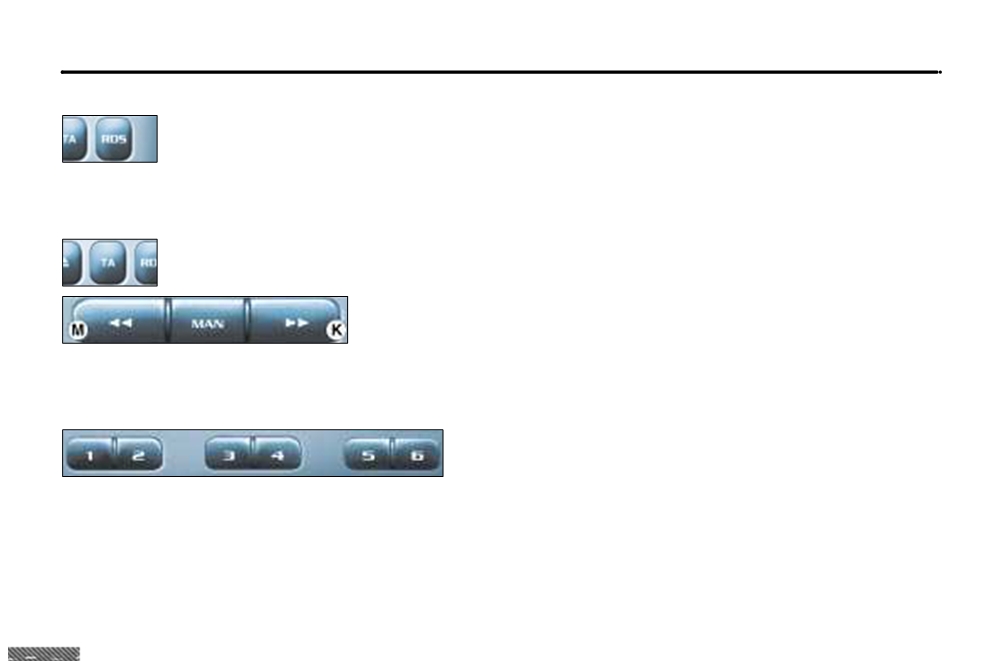

RDS

Using the RDS (Radio Data System) function on FM

Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the

region you are going through.

Briefly press the "RDS" button to switch the function on or off.

The display will show:

- "RDS" if the function is selected.

- "(RDS)" if the function is selected but not available.

RDS station following

The display indicates the name of the station selected. The radio is continually searching for the station which has the best

reception and which is transmitting the same programme.

Traffic information programme

Press the "TA" button to switch the function on or off.

The display will show:

- "TA" if the function is selected,

- "(TA)" if the function is selected but not available.

Any traffic information flash will be given priority, whatever source is in use (radio, cassette or CD changer).

If you wish to interrupt a message, press the "TA" button; this switches the function off.

Note: the volume of traffic information announcements is independent of the volume of normal radio listening. You

can adjust it using the volume button. The setting will be stored and will be used when the next messages are broad-

cast.

02-02-2004

YOUR 406 COUPE IN DETAIL

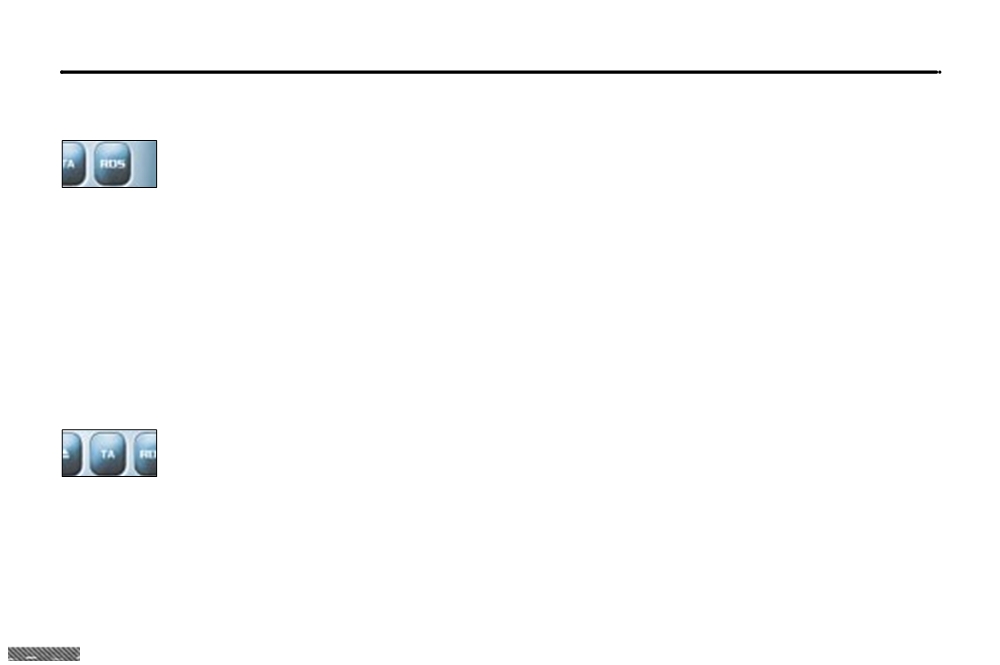

Regional following mode

When they are part of a network, certain stations broadcast regional programmes in the various areas they

serve. With regional following mode you can keep listening to the same programme.

Press the "RDS" button for more than two seconds to switch the function on or off.

PTY function

This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock

etc.).

With FM selected, press the "TA" button for two seconds to switch this function on or off.

To search for a PTY programme:

- select the PTY function,

- briefly press button K or M to scroll down the list of the various types of pro-

grammes offered.

- when the programme of your choice is displayed, keep one of the buttons K or M pressed for two seconds to carry out an

automatic search (after an automatic search the PTY function is switched off).

In PTY mode, the different types of programmes can be stored in the

memory. To do this, press the preselection buttons 1 to 6 for more

than two seconds. To recall the type of programme stored in the

memory, briefly press the corresponding button.

EON system

This connects stations which are part of the same network. It allows the broadcast of traffic information, by a station that is

part of the same network as the station to which you are listening.

This service is available when you have selected the TA traffic information programme or the PTY function.

02-02-2004

YOUR 406 COUPE IN DETAIL

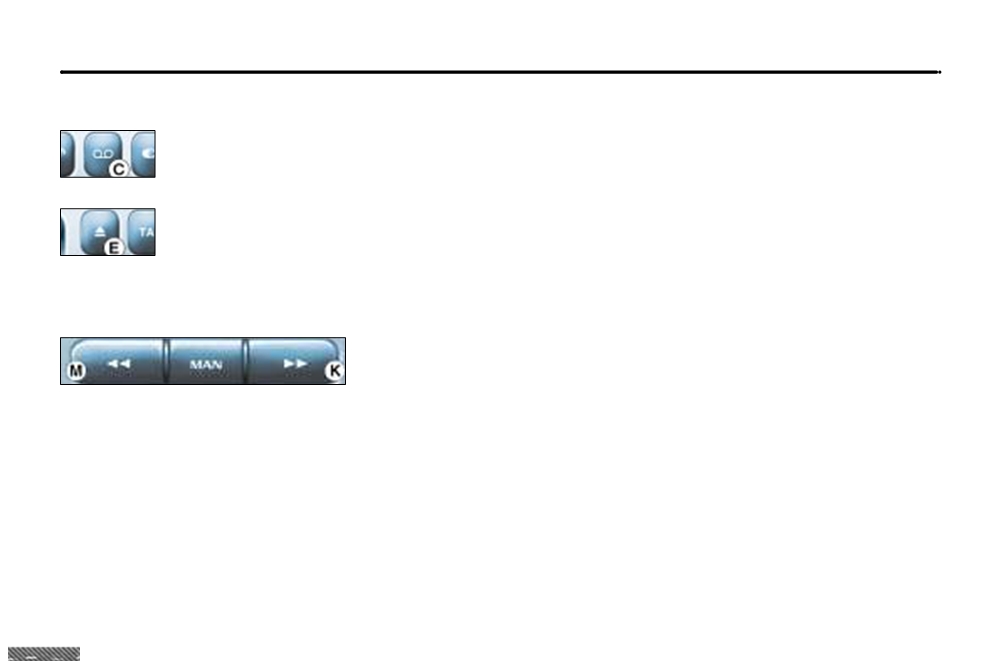

CASSETTE

Selecting cassette mode

When a cassette is inserted, the cassette player will start automatically.

If a cassette is already inserted, press button C.

Ejecting the cassette

Press button E to eject the cassette from the player.

Direction of play

The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a

side. To manually reverse the direction of play, press button C.

Selecting a track on a cassette (blank search)

Press button K to select the following track.

Press button M to return to the start of the current track or to select the previous

track.

Fast forward/rewind

Press and hold button K or M to fast forward or rewind the cassette. At the end of the fast forward/rewind, the set plays the

current side.

Noise reduction (Dolby B NR system)

Press button C for more than two seconds to switch the function on or off.

Dolby noise reduction manufactured under licence from Dolby Laboratories Licensing Corporation.

"Dolby" and the double D symbol are trade marks of Dolby Laboratories Licensing Corporation.

Recommendations for the use of cassettes

- Use good quality cassettes.

- Avoid using cassettes of a duration of more than 90 minutes.

- Never expose the cassettes to heat or direct sunlight.

- If necessary, tighten the tape before inserting the cassette into the player.

- Clean the play heads regularly using a damp-type cleaning cassette.

02-02-2004

YOUR 406 COUPE IN DETAIL

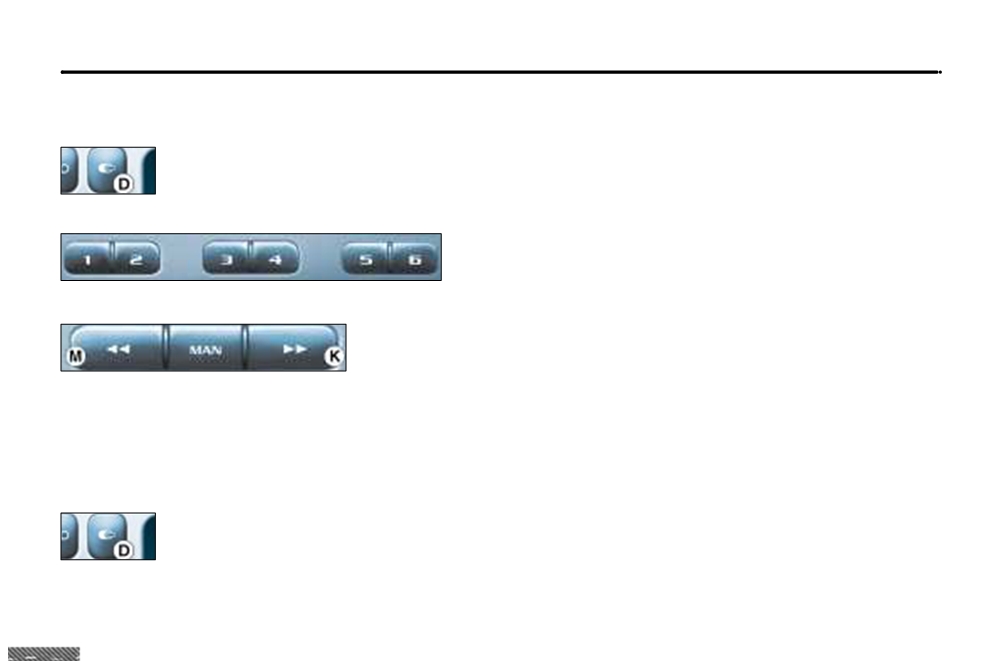

CD CHANGER

Selecting CD changer mode

Press button D.

Selecting a disc

Press one of the buttons 1 to 6 to select the corresponding disc.

Selecting a track

Press button K to select the following track.

Press button M to return to the start of the current track or to select the previous

track.

Accelerated play

Press and hold button K or M for forwards or backwards accelerated play.

Accelerated play stops as soon as the button is released.

Shuffle

When the CD changer is selected, keep button D pressed for two seconds. The tracks will be played in ran-

dom sequence. Pressing button D again for two seconds returns you to normal play.

02-02-2004

YOUR 406 COUPE IN DETAIL

AUDIO RD3

Stalk movement

Function

1- Press (behind)

Increase volume.

2- Press (behind)

Decrease volume.

1 + 2 - Simultaneous press

Cutting off of the sound (mute); restoring of the

sound by pressing any button.

3- Press

Automatic search of upper frequencies (radio) -

Selection of the following track (CD).

4- Press

Automatic search of lower frequencies (radio) -

Selection of the previous track (CD).

5- Press the end

Change of source (radio/CD changer).

6- Rotation

Selection of next memorised station (radio) -

(clockwise)

Selection of following CD.

7- Rotation

Selection of previous memorised station (radio) -

(anti-clockwise)

Selection of previous CD.

02-02-2004

YOUR 406 COUPE IN DETAIL

Button

Function

ON/VOL

Radio On/Off . Volume adjustment.

Radio selection. Selection of FM1, FM2, FMast and AM wavebands.

Press for more than 2 seconds: automatic storing of stations in the memory (autostore).

CD selection.

Press for more than 2 seconds: shuffle.

CD changer selection.

Press for more than 2 seconds: shuffle.

▲

Ejection of the CD.

Traffic information priority on/off.

Press for more than 2 seconds: PTY function on/off.

RDS

RDS function on/off.

Press for more than 2 seconds: regional following mode on/off.

▲

Increase bass/treble setting.

▼

Decrease bass/treble setting.

AUDIO

Selection of bass, treble, loudness, sound distribution and

automatic volume correction.

Automatic search of higher frequency.

Selection of following CD track.

MAN

Manual/automatic operation of buttons K and M in radio mode.

Automatic search of lower frequency.

Selection of previous CD track.

1 to 6

1 2 3 4 5 6

Selection of station stored in the memory.

Press for more than 2 seconds: storing of a station in the memory.

Selection of a disc in the CD changer.

02-02-2004

YOUR 406 COUPE IN DETAIL

GENERAL FUNCTIONS

On/off

With the ignition key in the ACCESSORIES or IGNITION position, press button A to switch the set on or

off.

The set can operate for 30 minutes without the vehicle ignition being switched on.

ANTI-THEFT SYSTEM

The audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another

vehicle.

The anti-theft system is automatic and requires no action on your part.

ADJUSTING THE VOLUME

Turn button A to increase or decrease the volume of the set.

Note:

If you have a telephone fitted with a "mute" signal output connected to the set, the set will automatically

change to "mute" when the telephone is used.

AUDIO SETTINGS

Press the "AUDIO" button several times in succession to access the bass (BASS), treble (TREB), loudness

(LOUD), fader (FAD), balance (BAL) and the automatic volume correction.

Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing the

"AUDIO" button after configuration of the automatic volume correction.

Note: the bass and treble settings are specific to each source. It is possible to set them differently for radio,

CD, or CD changer.

02-02-2004

YOUR 406 COUPE IN DETAIL

Adjusting the bass

When "BASS" is displayed, press button H or I to vary the setting.

- "BASS -9" for a minimum bass setting,

- "BASS 0" for a normal setting,

- "BASS +9" for a maximum bass setting.

Adjusting the treble

When "TREB" is displayed, press button H or I to vary the setting.

- "TREB -9" for a minimum treble setting,

- "TREB 0" for a normal setting,

- "TREB +9" for a maximum treble setting.

Adjusting the loudness

This function automatically emphasises bass and treble tones when the volume is low.

Press button H or I to switch the function on or off.

Adjusting the front/rear sound distribution (Fader)

When "FAD" is displayed, press button H or I to vary the setting

Button H increases the volume in the front.

Button I increases the volume in the rear.

Adjusting the right/left sound distribution (Balance)

When "BAL" is displayed, press button H or I to vary the setting.

Button H increases the volume on the right-hand side.

Button I increases the volume on the left-hand side.

Automatic Volume Correction

This function enables the volume to be adjusted automatically according to the level of noise produced by the speed of the vehicle.

Press buttons H or I to switch the function on or off.

02-02-2004

YOUR 406 COUPE IN DETAIL

RADIO

Notes on radio reception

Your radio is subject to phenomena which do not affect domestic radio sets. Both MW/LW and FM reception are subject to

various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the signals and

the way in which they are transmitted.

On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.

On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles

(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter.

Selecting radio mode

Press button B.

Selecting a waveband

Briefly press button B to select the FM1, FM2, FMast and AM wavebands.

Automatic station search

Briefly press button K or M to search for the station immediately above or below.

By continuing to press the button in the direction selected, you will obtain contin-

uous scrolling of the frequency.

The scrolling stops at the first station found as soon as the button is released.

If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.

Searching for a station occurs first in "LO" sensitivity (selection of the most powerful transmitters) during scanning of the

waveband, then in "DX" sensitivity (selection of the weakest and most distant transmitters).

To make a direct search in "DX" sensitivity, press button K or M twice.

02-02-2004

YOUR 406 COUPE IN DETAIL

Manual station search

Press the "MAN" button.

Briefly press button K or M to increase or decrease the frequency displayed.

By continuing to press the button in the direction selected, you will obtain continu-

ous scrolling of the frequency.

The scrolling stops at the first station found as soon as the button is released.

Pressing the "MAN" button again returns you to automatic station search.

Manual storing of stations in the memory

Select the station required.

Press one of the buttons 1 to 6 for more than two seconds.

The sound stops then becomes audible again, confirming that the station has been stored in the memory.

Automatic storing of FM stations in the memory (autostore)

Press button B for more than two seconds, to automatically store the 6 stations with the strongest signal in

FM. These stations are stored in the FMAST waveband.

- If it is not possible to find 6 stations, the remaining memories are empty.

Recalling stations stored in the memory

For each waveband, briefly press the buttons 1 to 6 to recall the corresponding stored station.

02-02-2004

Peugeot 406 C (2004 year). Instruction - part 3
