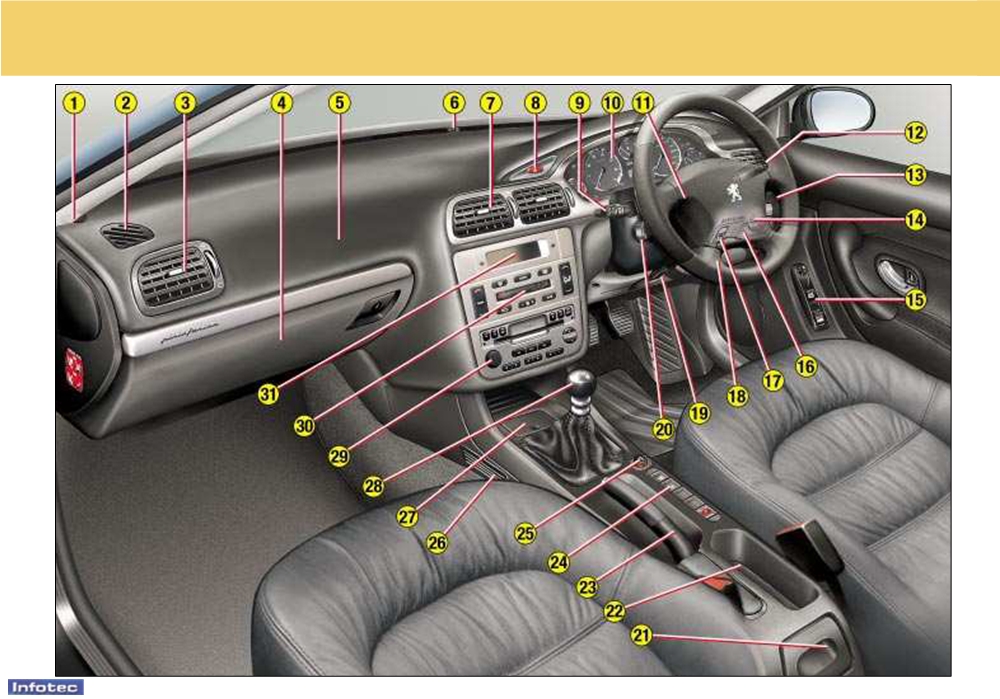

YOUR 406 COUPE AT A GLANCE
02-02-2004
3
YOUR 406 COUPE AT A GLANCE
1 - Speaker (tweeter) location.
12 - Windscreen wash-wipe
23 - Handbrake.
stalk.
Trip computer stalk.
2 - Window demisting vent.
24 - Heated seat switches.
Coin storage.
3 - Side adjustable heating/
13 - Radio remote control stalk.
ventilation vents and air
Passenger air bag disarming
flow regulation.
switch.
14 - Steering lock and ignition.
Alarm button.
4 - Glove box.
15 - Electric mirror controls.
5 - Passenger air bag.
Window controls.
25 - Lighter.
6 - Windscreen demisting
16 -Electronic stability control
vents.
26 - Rear footwell heating vent.
switch (ASR/ESP).
7 - Central adjustable
heating/ventilation vents
17 - Headlamp height adjustment.
27 - Front ashtray.
and air flow regulation.
18 - Fuse box.
8 - Hazard warning lights
28 - Gear lever.
switch.
19 - Steering wheel adjustment.
29 - Radio.
9 - Lights and direction
indicators stalk.
20 - Cruise control.
30 - Heating/air conditioning
10 - Instrument dials.
controls.
21 - Rear ashtray.
11 - Driver's air bag.
Horn.
22 - Cup holder.
31 - Multifunction display.
02-02-2004
4
YOUR 406 COUPE AT A GLANCE
The remote control key
Unlocking
Press button B to unlock the vehi-
Deadlocking
cle.
Deadlocking renders the internal
This is confirmed by rapid flashing
and external door locking
of the direction indicators.
controls inoperative.
Press button A to deadlock the
vehicle.
Normal key
Remote
This is confirmed by fixed lighting
control key
of the direction indicators for
approximately two seconds.
THE KEYS
A second press on button A in
The keys allow you to switch on
the five seconds following dead-
ELECTRONIC ENGINE
the ignition and to independently
locking, changes deadlocking to
IMMOBILISER
operate the locks on the front
normal locking
doors, the fuel filler cap, the glove
This locks the engine control sys-
box and the passenger air bag
tem a few moments after the igni-
This is confirmed by fixed lighting
disarming switch.
tion has been switched off and
of the direction indicators for
approximately two seconds.
therefore prevents starting of the
Central locking
vehicle by anyone who does not
have the key.
From the doors, the keys allow
you to lock, deadlock and unlock
Operation
the doors and boot and close the
windows by holding the key in the
Each key has an electronic chip
lock in the locking position for a
which has a special code.
few seconds.
When the ignition is switched on,
the key code is recognised and
If one of the front doors or the
starting is possible.
boot is open, it is impossible to
If the key does not have a code or
operate the central locking; an
has a different code from that
audible signal indicates this when
stored in the system memory, the
locking by remote control.
vehicle will not start.
The remote control performs
the same functions at a
distance, except automatic
closing of the windows.
84
02-02-2004
5
YOUR 406 COUPE AT A GLANCE
Steering lock
Never race a cold
engine.
Before starting, unlock the steer-
Never run the engine in
ing if necessary, by gently turning
a confined space.
the steering wheel at the same
time as you turn the key.
Do not make any modifications to
the steering lock.
It is advisable to press the clutch
pedal while operating the starter
to make starting easier.
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without
STARTING
releasing the key, until the engine
turns.
STOP position:
The ignition is off.
1st notch, Accessories position:
The ignition is off but the acces-
sories can be used.
Starting a diesel engine
2nd notch, Running position:
The ignition is on.
Do not press the accelerator.
Starting position:
Operates the starter.
Turn the key to the second notch.
If the engine is warm enough, the
pre-heat light does not come on
and you can start immediately.
If the pre-heat light comes on,
wait for it to go out before operat-
ing the starter.
If the engine stalls, it is necessary
to return the key to the STOP
position before restarting.
02-02-2004
6
YOUR 406 COUPE AT A GLANCE
STEERING WHEEL STALKS
Front fog lamps and rear fog
lamp (ring B)
LIGHTS
WINDSCREEN WIPERS
Turn the ring to the front to switch
Front and rear lights (ring A)
on and to the rear to switch off.
The status is shown by the indi-
2
Rapid wipe
cator light on the instrument
(heavy rain).
panel.
1
Normal wipe
(moderate rain).
Lights off.
AUTO Automatic wipe.
0
Off.
Single wipe
Windscreen wash: pull the stalk
Side lights.
towards you.
Front fog lamps on (first
rotation of the ring for-
wards)
Automatic wipe
In the AUTO position, the wipers
Dipped/Main beam
operate automatically and adjust
headlamps.
their speed to the intensity of
Front and rear fog
the rainfall
lamps on (2nd rota-
tion of the ring for-
wards).
Automatic
switching on
of lights.
102
104
02-02-2004
7
YOUR 406 COUPE AT A GLANCE
THE SEATS
Electric front seats
A - Forwards-backwards
adjustment.
B - Seat cushion angle
adjustment.
C - Seat height adjustment
D - Seat back angle adjustment.
M - Memorises the settings.
Switch on the ignition and
adjust the seat and the mirrors.
Press simultaneously on but-
ton "M" and "1" for the first
Manual front seats
position or "M" and "2" for the
second position.
1 - Forwards-backwards adjustment.
1 -
Recalls the first position.
2 - Seat cushion angle adjustment.
2 -
Recalls the second position.
3 - Seat height adjustment
4 - Seat back angle adjustment.
5 - Lumbar adjustment.
6 - Seat back tilt.
92
94
02-02-2004
8
YOUR 406 COUPE AT A GLANCE
Passenger air bag
SIDE AIR BAGS
precautions
These are incorporated into the
For a vehicle fitted with a disarm-
front seat back, on the door side.
ing switch:
They are triggered independently,
on the side on which the collision
occurs.
- disarm the air
bag if you
install a rear-
FRONT AIR BAGS
facing child
Disarming the passenger
seat.
Operating
air bag *
- arm the air
check
bag for an
☞ Insert the ignition key in switch
adult
1 and turn it to:
passenger.
- the "ON" position, the passen-
This is by means of the warning
ger air bag is armed.
light on the instrument panel.
It comes on for six seconds when
- the "OFF" position, the passenger
the ignition is switched on.
air bag is disarmed.
For a vehicle not fitted with a
disarming switch:
If the warning light:
Operating check
- do not install rear-
- does not come on when the
facing child seats on
ignition is switched on or,
the front passenger
With
the
igntition
seat.
- does not switch off after six
switched on
(2nd notch) this
seconds or,
warning light, accompanied by an
audible signal and the message
- flashes for five minutes then
"Passenger air bag deactivat-
Never place your feet or any
remains on,
ed" on the multi-function display,
object on the fascia.
indicates that the passenger air
Consult your PEUGEOT dealer.
bag is disarmed
(switch in the
"OFF" position).
The warning light remains
on throughout the disarming
process.
129
* According to destination.
02-02-2004
9
YOUR 406 COUPE AT A GLANCE
COURTESY LIGHT
Permanently lit, with the
key in the accessories
position or with the igni-
tion on.
Permanently off.
STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
☞ Pull handle A to unlock the
steering wheel.
SUNROOF
Lights when the ignition
key is removed or when
Adjust the height and depth of
• To tilt
the steering wheel then lock it
one of the doors is
Press part A of the switch. To
opened.
by pushing handle A in fully.
close, press part B of the switch
until the roof is completely
closed.
• To open
MAP READING LIGHTS
Press part B of the switch. To
close, press part A of the switch
With the ignition switched on or
until the roof is completely
the key in the accessories position,
closed.
turn the knob on the correspond-
ing side.
90
122
121
02-02-2004
10
YOUR 406 COUPE AT A GLANCE
ELECTRIC WINDOWS
1 - Driver's electric window.
2 - Passenger's electric window.
Manual operation: Press or pull the switch lightly. The window stops as
soon as the switch is released.
Automatic operation* (driver):
Press or pull the switch firmly. One touch
completely opens or closes the window.
118
ELECTRIC EXTERIOR MIRRORS
Turn knob 6 to the right or to the left to select the corresponding mirror.
Move the knob in all four directions to adjust.
Electric folding mirrors
With the ignition on, turn knob 6 to position A.
119
* According to country.
02-02-2004
11
YOUR 406 COUPE AT A GLANCE
AUTOMATIC AIR CONDITIONING
N°
Symbol
Function
1
Temperature
adjustment.
2
Automatic
visibility programme.
3
Automatic comfort
programme.
4
Rear screen
demisting.
5
Air distribution
adjustment.
6
Air conditioning
control.
7
Air flow
adjustment.
8
Air inlet
control.
50
02-02-2004
12
YOUR 406 COUPE AT A GLANCE
AUTOMATIC AUTOADAPTIVE GEARBOX
Moving Off
With the engine running, to move off from position P:
☞ press the brake pedal to change out of position P
(shift lock),
☞ select the required position (R, D, 3, 2 or 1) then gradually release the brake pedal; the vehicle moves off
immediately.
You can also move off from position N:
☞ release the handbrake, keeping your foot on the brake pedal,
☞ select the required position (R, D, 3, 2 or 1) then gradually release the brake pedal; the vehicle moves off
immediately.
The four speed automatic gearbox offers a choice between the comfort of integral operation, enhanced by a
sport programme (switch A) and a snow programme (switch B).
Gear selection gate
☞ Move the lever in the gate to select a position.
Once the position is selected, the indicator light for that position illuminates on the instrument panel display.
Park: for immobilising the vehicle and starting the engine
, with the handbrake on or off.
Reverse: for reversing
(select this position with the vehicle stationary, engine at idle).
Neutral: for starting the engine and for parking, with the handbrake on.
Drive: for driving in autoadaptive mode
(automatic changing of the four gears).
3 : for driving in town or on winding roads
(automatic changing of the first 3 gears only).
2 : for driving in the mountains or for towing a trailer
(automatic changing of the first 2 gears only).
1 : for tackling steep gradients
(selection of first gear only).
Special feature of the gearbox
(2 litre petrol engine)
Selection of first gear is by pressing
switch C with the selector lever in
position 2.
To change out of first gear, press
switch C again or move
the gear lever.
124
V6 engine
2 litre engine
02-02-2004
13
YOUR 406 COUPE AT A GLANCE
CRUISE CONTROL
The cruise control makes it possible to maintain a constant vehicle speed
programmed by the driver, whatever the condition of the road and without
action on the accelerator or brake pedal.
To be memorised, the vehicle speed must be above 25 mph (40 km/h) or
37 mph (60 km/h), depending on the engine, with at least
4th gear
engaged (2nd gear for the automatic gearbox).
Modifying a memorised
Operation
speed
☞ Place knob 1 in the ON position.
To memorise a speed greater
A speed can be memorised.
than the previous speed:
☞ Place knob 1 in the OFF position to deactivate the system.
☞ press button 3;
☞ release it when you have
reached the required speed.
Memorising a speed
To memorise a speed lower than
When you reach the required speed, press button 2 or 3. The speed is
the previous speed:
memorised and will be maintained automatically.
☞ press button 2;
Note: it is possible to accelerate temporarily without deactivating the
cruise control.
☞ release it when you reach the
required speed.
Deactivation of the memorised speed
Cancelling the memorised
speed
If you wish to deactivate the memorised speed:
☞ Place knob 1 in the OFF posi-
☞ press button 4 or the clutch or brake pedal.
tion or switch off the ignition.
Recalling the memorised speed
Following deactivation, press button 4. Your vehicle resumes
Do not use the cruise
the last speed memorised.
control on slippery roads
or in heavy traffic.
127
02-02-2004
14
YOUR 406 COUPE AT A GLANCE
FUEL FILLER FLAP
To open: firmly pull the handle on
the floor to the outside of the driver's
seat.
To close: from outside the vehi-
cle, push back the flap and check
that it is secured correctly.
OPENING THE BONNET
Inside the vehicle: Pull the handle.
Filling with fuel
Switch off the engine.
A filler cap hook is provided.
A label on the inside of the flap shows which fuels are permitted and which
are not.
The capacity of the tank is approximately 15.4 gallons (70 litres).
Low fuel level warning light
From the time this light comes on, the range remaining is
approximately 30 miles (50 km).
Outside the vehicle:
Raise the catch and
open the bonnet.
91
91
02-02-2004
18
MAINTENANCE OF YOUR 406 COUPE
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
• For petrol engines: every 20,000 miles (30 000 km) or every two years.
• For direct injection diesel engines: every 12,000 miles (20 000 km) or every two years.
The service indicator informs you when each service is due; the point at which it is due is calculated from the last indicator
zero reset (see corresponding section).
This point is determined by two parameters:
- the distance travelled,
- the time elapsed since the last service.
Note: the distance remaining may be weighted by the time factor, in accordance with the driver's style of driving.
The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the
oil between oil changes is normal.
It is for this reason that the PEUGEOT network invites you to an intermediate visit between regular services.
The date of this service is not shown by the service indicator. It is to be carried out at least every 10,000 miles
(15 000 km) for petrol engines and every 6,000 miles (10 000 km) for direct injection diesel engines.
A PEUGEOT dealer will carry out a quick check, and will top up the levels if necessary (oil, coolant, screenwash up
to 2 litres).
If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every
2,000 miles (3 000 km) or 3,000 miles (5 000 km), depending on the conditions of use
The extended service intervals have been made possible by technical modifications to the vehicles and lubricants:
THUS IT IS ESSENTIAL TO ONLY USE LUBRICANTS WHICH ARE SUITED TO YOUR ENGINE AND RECOMMENDED BY
THE MANUFACTURER (see pages on "Lubricants").
02-02-2004
19
MAINTENANCE OF YOUR 406 COUPE
SPECIAL FEATURES
Some of your vehicle's vital components have specific servicing schedules.
The brake fluid must be replaced every 36,000/40,000 miles (60,000 km) or every 2 years.
The passenger compartment filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).
Replacement of the timing belt: consult your PEUGEOT dealer.
Arduous conditions of use
If the vehicle is used in certain particularly arduous conditions:
• Continuous door-to-door use.
• Town use (e.g. taxi).
• Repeated short journeys, with the engine cold in low temperatures.
Or for long stays in the following conditions:
• Hot countries with temperatures often above 30 degrees Celsius.
• Cold countries with temperatures often below minus 15 degrees Celsius.
• Countries with a dusty atmosphere.
• Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous conditions" servicing schedule, which includes special operations and shorter ser-
vice intervals:
• Every 12,000 miles (20,000 km) or every year for petrol engine vehicles.
• Every 9,000 miles (15,000 km) or every year for Direct Injection Diesel engine vehicles.
02-02-2004
19
MAINTENANCE OF YOUR 406 COUPE
SPECIAL FEATURES
Some of your vehicle's vital components have specific servicing schedules.
The brake fluid must be replaced every 36,000/40,000 miles (60,000 km) or every 2 years.
The passenger compartment filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).
Replacement of the timing belt: consult your PEUGEOT dealer.
Arduous conditions of use
If the vehicle is used in certain particularly arduous conditions:
• Continuous door-to-door use.
• Town use (e.g. taxi).
• Repeated short journeys, with the engine cold in low temperatures.
Or for long stays in the following conditions:
• Hot countries with temperatures often above 30 degrees Celsius.
• Cold countries with temperatures often below minus 15 degrees Celsius.
• Countries with a dusty atmosphere.
• Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous conditions" servicing schedule, which includes special operations and shorter ser-
vice intervals:
• Every 12,000 miles (20,000 km) or every year for petrol engine vehicles.
• Every 9,000 miles (15,000 km) or every year for Direct Injection Diesel engine vehicles.
02-02-2004
|
|
|
