YOUR 406 COUPE IN DETAIL

RDS

Using the RDS (Radio Data System) function on FM

Radio Data System allows you to continue listening to the same station, whatever frequency it is using for

the region you are going through.

Briefly press the "RDS" button to switch the function on or off.

The display will show:

- "RDS" if the function is selected.

- "(RDS)" if the function is selected but not available.

RDS station following

The display indicates the name of the station selected. The radio is continually searching for the station which has the best

reception and which is transmitting the same programme.

Traffic information programme

Press the "TA" button to switch the function on or off.

The display will show:

- "TA" if the function is selected,

- "(TA)" if the function is selected but not available.

Any traffic information flash will be given priority, whatever source is in use (radio, CD or CD changer).

If you wish to interrupt a message, press the "TA" button; this switches the function off.

Note: the volume of traffic information announcements is independent of the volume of normal radio listening. You

can adjust it using the volume button. The setting will be stored and will be used when the next messages are broad-

cast.

Regional following mode

When they are part of a network, certain stations broadcast regional programmes in the various areas they

serve.

With regional following mode you can keep listening to the same programme.

Press the "RDS" button for more than two seconds to switch the function on or off.

02-02-2004

YOUR 406 COUPE IN DETAIL

PTY function

This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock

etc.).

With FM selected, press the "TA" button for two seconds to switch this function on or off.

To search for a PTY programme:

- select the PTY function,

- briefly press button K or M to scroll down the list of the various types of pro-

grammes offered.

- when the programme of your choice is displayed, keep button K or M pressed for two seconds to carry out an automatic

search (after an automatic search the PTY function is switched off).

In PTY mode the different types of programmes can be stored in the

memory. To do this, press the preselection buttons 1 to 6 for more

than two seconds. To recall the type of programme stored in the

memory, briefly press the corresponding button.

EON system

This connects stations which are part of the same network. It allows the broadcast of traffic information, by a station that is

part of the same network as the station to which you are listening.

This service is available when you have selected the TA traffic information programme or the PTY function.

02-02-2004

YOUR 406 COUPE IN DETAIL

COMPACT DISC

Selecting CD mode

After inserting a disc, with the printed surface upwards, the player starts automatically.

If a disc is already inserted, press button C.

Ejecting a disc

Press button E to eject the disc from the player.

Selecting a track

Press button K to select the following track.

Press button M to return to the start of the current track or to select the previous

track.

Accelerated play

Press the "MAN" button.

Press and hold button K or M for forwards or backwards accelerated play.

Accelerated play stops as soon as the button is released.

Buttons K or M resume the "track selection" function when the "MAN" button is pressed again.

Shuffle

When the CD is selected, keep button C pressed for two seconds. The tracks will be played in random

sequence. Pressing button C again for two seconds returns you to normal play.

02-02-2004

YOUR 406 COUPE IN DETAIL

CD CHANGER

Selecting CD changer mode

Press button D.

Selecting a disc

Press buttons 1 to 6 to select the corresponding disc.

Selecting a track

Press button K to select the following track.

Press button M to return to the start of the current track or to select the previous

track.

Accelerated play

Press the "MAN" button.

Press and hold button K or M for forwards or backwards accelerated play.

Accelerated play stops as soon as the button is released.

Buttons K or M resume the "track selection" function when the "MAN" button is pressed again.

Shuffle

When the CD changer is selected, keep button D pressed for two seconds. The tracks will be played in random

sequence. Pressing button D again for two seconds returns you to normal play.

02-02-2004

YOUR 406 COUPE IN DETAIL

CD CHANGER (RM2 and RD3)

This is located inside the boot on the left hand side. It holds up to 6 discs.

To insert a disc into the changer:

- open sliding panel A,

- press button B to eject the cartridge C,

- open one of the six compartments of the cartridge by pulling tab D,

- insert the disc with the printed face upwards and close the compartment,

- insert the cartridge into the changer,

- close the sliding panel A.

The use of copied compact discs can cause malfunctions.

Insert circular compact discs only.

02-02-2004

YOUR 406 COUPE IN DETAIL

AUDIO SYSTEM

(RM2 and RD3)

Presentation

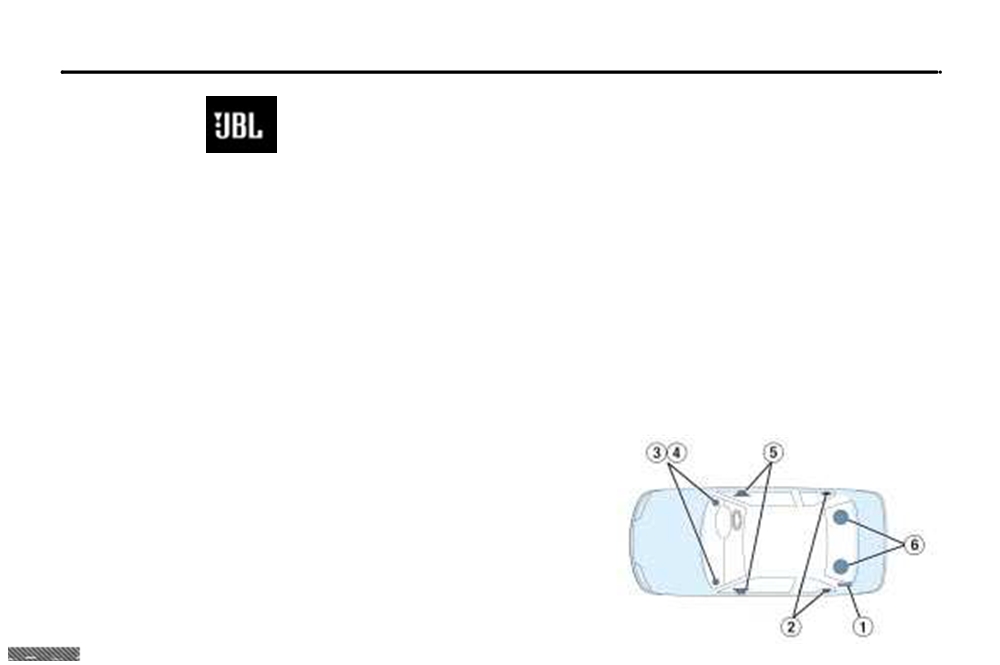

Your 406 Coupé is fitted with a JBL Audio Hi-Fi system, designed specifically for the vehicle's passenger compartment.

At the heart of the system, a 320 Watt multifunction amplifier (1), located in the boot, independently controls 10 high

acoustic definition speakers.

These speakers make it possible to obtain optimum reproduction and distribution of the sound in the vehicle, in the

front and in the rear.

The speakers are located:

- in the fascia: two Micro Tweeters (3) fitted in two Medium Range Speakers (4) for clear and head-on reproduction of the

sound, favouring listening in the front.

- in the front doors: two Woofers (5) for reproduction of the bass (low frequencies) in the front.

- in the passenger pillars: two Tweeters (2) for reproduction of the treble (high frequencies) in the rear.

- on the rear shelf: two Subwoofers (6) for reproduction of the extreme bass sounds (low and very low frequencies) through-

out the passenger compartment; you will appreciate the impact and depth, noticing that the sound fills the vehicle

perfectly .

Adjustment in CD mode

The basic functions remain those of the audio equipment.

No additional adjustment is required. However, to benefit fully from your

JBL audio system, you are advised to adjust the AUDIO functions (BASS,

TREB, FAD, BAL) to position "0" (zero) and the Loudness (LOUD) to the

"ON" position.

02-02-2004

YOUR 406 COUPE IN DETAIL

THE SATELLITE NAVIGATION

The remote control

SYSTEM

There is a storage compartment for the remote control in front of the ashtray.

Introduction

Pointing the remote control at the screen enables the information contained in

The satellite navigation system

the various menus to be selected.

guides you to the destination of your

choice by means of vocal and visual

instructions.

Direction arrows:

The heart of the system lies in the

These enable you to move around the screen and

use of a map database and GPS

thus select a function.

(Global Positioning System). This

On the welcome screen only, the Up and Down buttons

enables your position to be located

enable the brightness of the screen to be adjusted.

by means of several satellites.

The satellite navigation system

menu :

this button allows access to the main menu. It can

consists of the following components:

be used at any time.

- the remote control,

esc

escape button

- the display,

"Short press": cancels the current operation and

returns to the previous screen.

- the control unit,

"Press for more than 2 seconds": returns to the

- the last voice message recall

welcome screen.

control,

This button can be used in any menu. It is inactive

- the CD ROM.

during guidance.

mod :

mode button

"Short press": changes between date, navigation,

radio and permanent locating.

val

validation button

Confirms the function selected.

Some functions or services

described in this guide may

vary depending on the

CD ROM version or the country

02-02-2004

YOUR 406 COUPE IN DETAIL

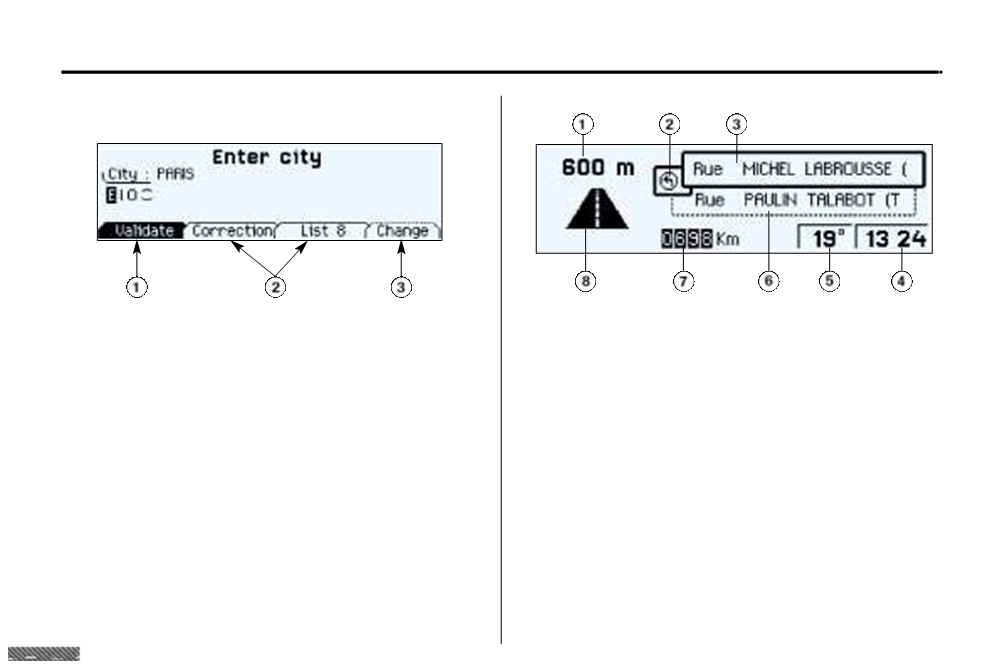

The display

When the menus are used, the functions which appear at

During guidance, the screen displays different information

the bottom of the screen are presented in various ways:

depending on the manoeuvres to be carried out:

1. Function selected.

1. Distance to next manoeuvre.

2. Function inaccessible in this situation.

2. Next manoeuvre to be carried out.

3. Function accessible.

3. Next road to take.

Note: The "List" function can hold a maximum of

4. Time.

addresses.

5. Exterior temperature.

6. Current road.

7. Distance to final destination.

8. Manoeuvre to be carried out.

02-02-2004

YOUR 406 COUPE IN DETAIL

The control unit

The last voice message recall control

Pressing the button briefly on

the end of the lights stalk

repeats the last voice message.

The CD ROM

This contains all the mapping

data.

It must be inserted with the

printed face upwards.

Only use CD ROMs approved by PEUGEOT.

This is located in the boot on the right hand side.

The use of copied CDs can cause mal-

1. CD ROM eject button.

functions.

2. CD ROM compartment.

3. The ON indicator light indicates that the control unit is

supplied with power.

4. The CD indicator light indicates that there is a CD

ROM in the control unit.

The satellite navigation system is active once the globe

appears in bold.

02-02-2004

YOUR 406 COUPE IN DETAIL

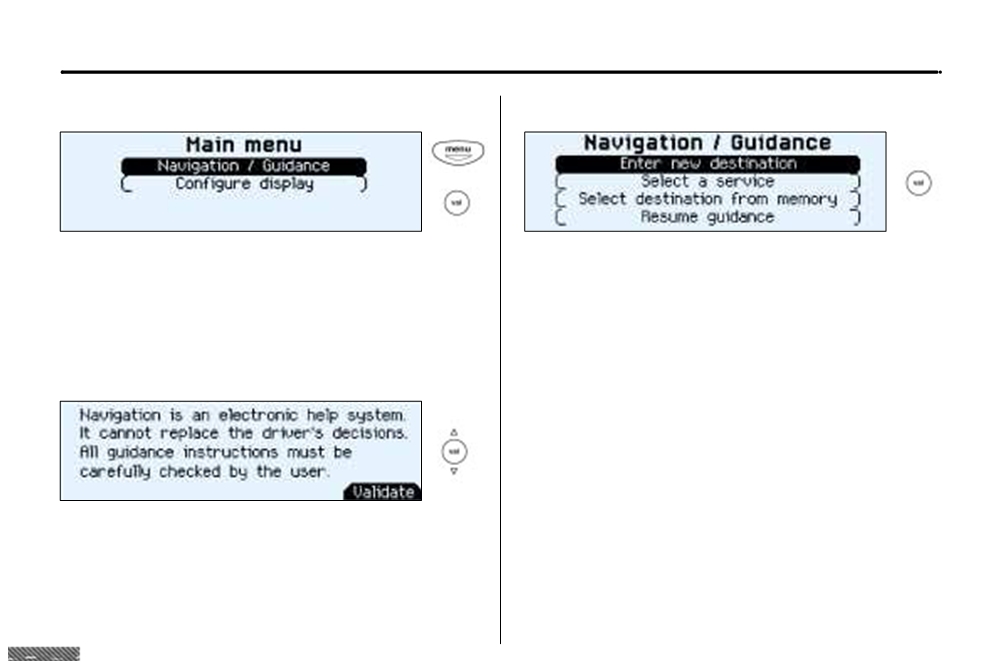

Main menu

The "Navigation/guidance" menu offers the following options:

Switch on the ignition.

- entering of the address of a new destination,

Press the "Menu" button to access the main menu.

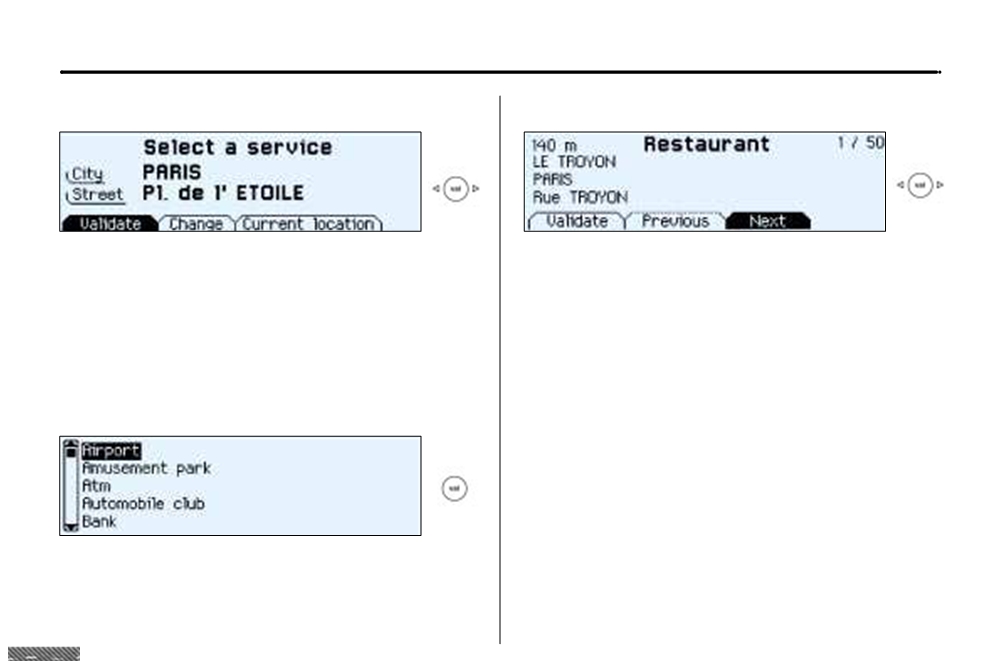

- selection of a service (Hotel, station, airport...) available

in a town,

Select a function using the direction arrows, then confirm

("VAL" button).

- selection of an address stored in one of the two directories,

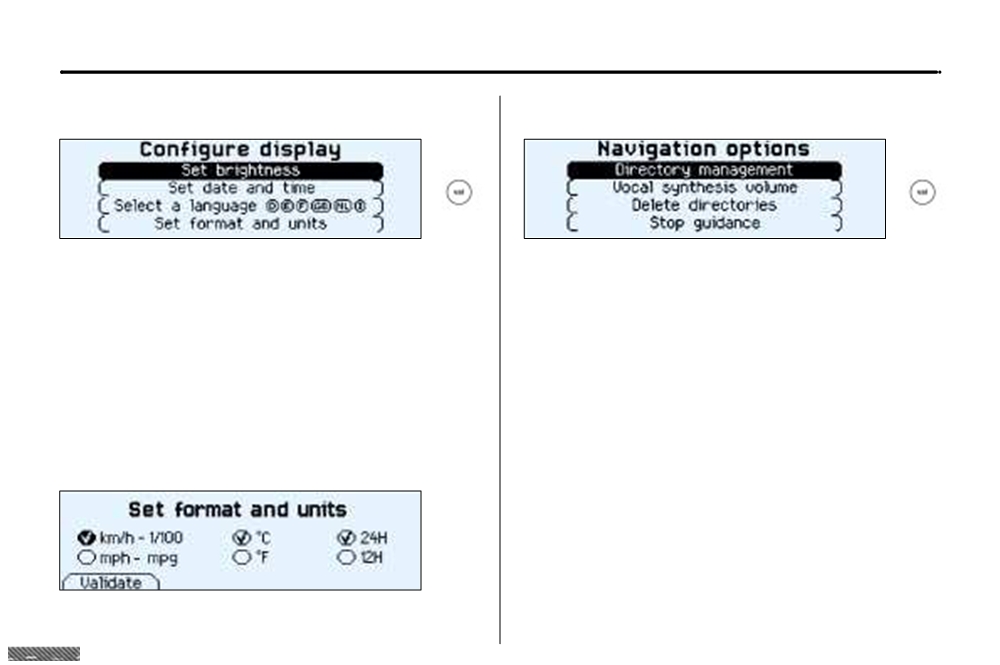

- access to the "Navigation options" menu.

- radio functions are suspended when the system is in

Navigation/Guidance

guidance mode.

Following selection of the "Navigation/guidance" menu,

a screen warns you about the use of the navigation sys-

tem. Follow the regulations in force and do not use the

remote control while driving.

Press the "VAL" button to access the next screen.

02-02-2004

YOUR 406 COUPE IN DETAIL

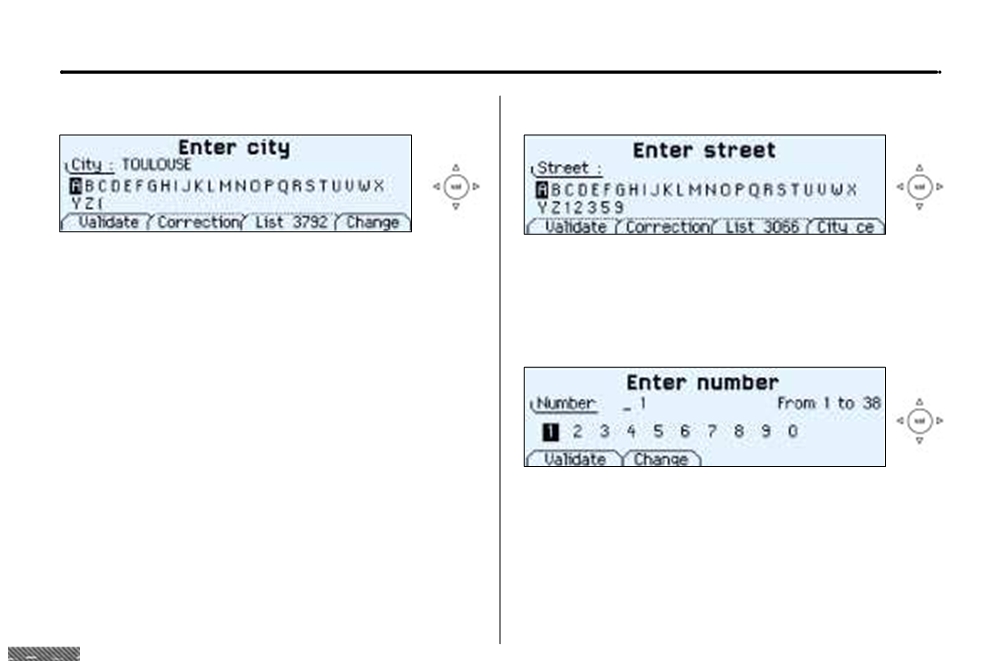

Entering a new destination

The last town entered is displayed.

Enter the name of the street. Select the "Validate" function

then press the "VAL" button.

To enter the name of another town, select each letter using

the direction arrows then confirm ("VAL" button) for each

Note: the guidance can be activated from the time the town

letter.

is entered, without the name of a street or a number. To do

this, select the "Town centre" function.

If an error is made, the "Correct" function enables the last

letter entered to be deleted.

As the name is entered, the "List" function indicates the

number of towns beginning with the same letters. If the list

contains less than 5 names, these are displayed automat-

ically. Select a town then confirm ("VAL" button).

The "Change" function enables the town entered to be

completely cleared.

When the complete name of the town is displayed, select

the "Validate" function then press the "VAL" button.

Enter the street number. Select the "Validate" function

Note: following confirmation of a letter, only those letters

then press the "VAL" button.

which could make up an existing name appear.

Note: the guidance can be activated as soon as the town

and street are entered, without a number. To do this, select

the "Validate" function.

02-02-2004

YOUR 406 COUPE IN DETAIL

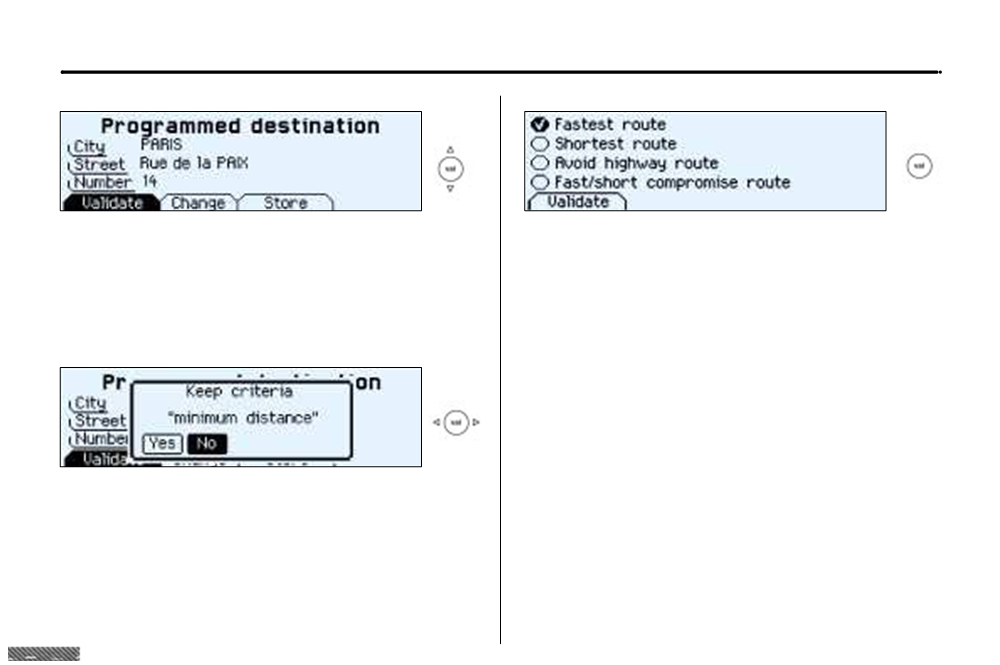

The complete destination is displayed. Select the "Validate"

Select a criterion from the list offered then confirm ("VAL"

function then press the "VAL" button.

button). When the criterion of your choice is selected,

select the "Validate" function then press the "VAL" button.

Note: you can also change the destination or store it in one

Guidance begins, follow the instructions.

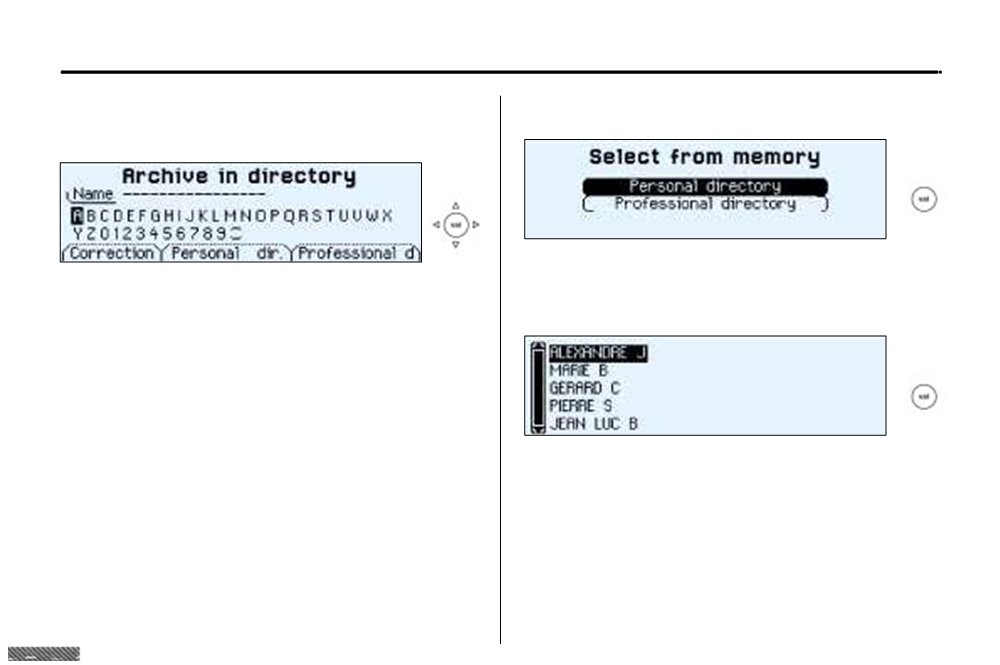

of the two directories

(see the section on storing an

address in a directory).

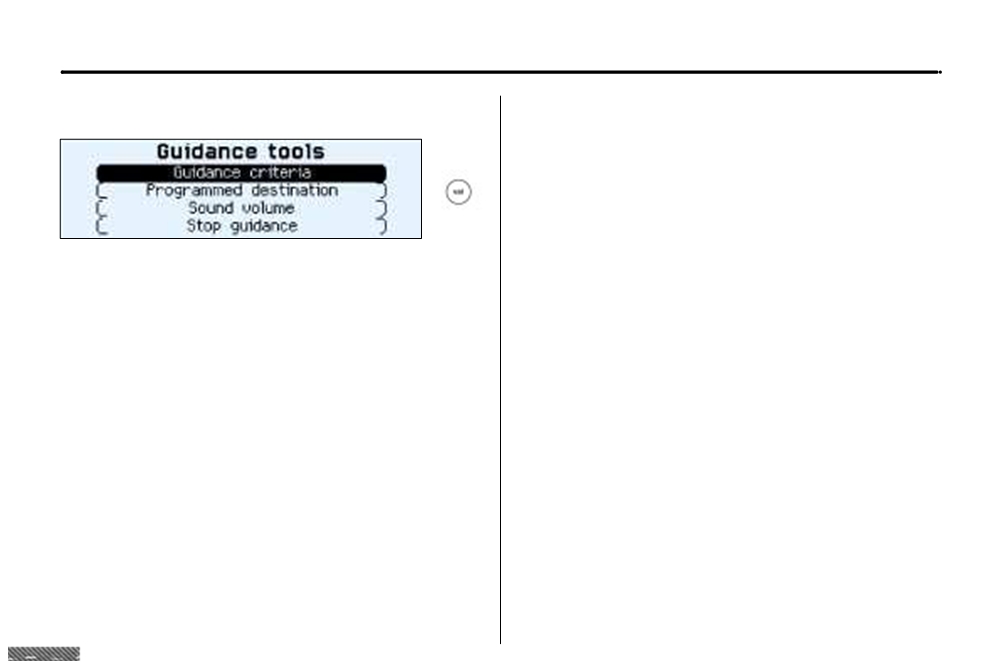

The last guidance criterion used is displayed.

Guidance begins automatically, retaining this criterion if

there is no action within 5 seconds or following confirmation

of the "NO" function.

Follow the instructions.

If you wish to change the guidance criterion, select the

"YES" function then press the "VAL" button.

02-02-2004

YOUR 406 COUPE IN DETAIL

Selecting a service

The address of the required service is displayed.

The last address entered is displayed.

An indication on the right-hand side of the screen (e.g.

There are 3 options for defining the location in which you

1/50) indicates whether there are any other establishments

wish to obtain this service:

(50 maximum), which offer the same service within a

- repeat the last address entered by means of the "Validate"

radius of approximately 30 miles (50 km), as the crow flies.

function.

Use the "Next" or "Previous" functions to consult the list

- enter the name of a new town then enter the street (or use the

offered.

"Town centre" function) by means of the "Change" function.

- automatically enter your current location by using the

When the establishment of your choice is displayed, select

"Current location" function.

the "Validate" function then press the "VAL" button.

Select a guidance criterion. Guidance begins, follow the

instructions.

After confirming the address, select a service by scrolling

through the list using the direction arrows then press the

"VAL" button.

A cursor on the left-hand side of the screen indicates your

position in the list.

02-02-2004

YOUR 406 COUPE IN DETAIL

Storing an address in a directory

Selecting a stored destination

When a new address is entered, you can store it by selecting

the "Store" function.

Using the direction arrows, select the directory in which the

address you are looking for is stored, then press the "VAL"

Enter the name for the address. If the name already exists

button.

for a different address, you can replace the old address

with a new one.

Select the Personal directory or the Professional directory

then press the "VAL" button. The address is then stored in

the directory of your choice

(storage capacity is

100 addresses).

The stored addresses are displayed.

A cursor on the left-hand side of the screen indicates your

position in the list. Select a name by scrolling through the

list using the direction arrows, then press the "VAL" but-

ton. The complete address is displayed. Select the "Vali-

date" function then press the "VAL" button. Select a guid-

ance criterion. Guidance begins, follow the instructions.

02-02-2004

YOUR 406 COUPE IN DETAIL

Display configuration

Navigation options

From the general menu, the "Configure display" menu

From the "Navigation/guidance" menu, the "Navigation

gives access to the following parameters:

options" menu offers the following options:

- Adjustment of the brightness and the video display.

- Management of the directories. It enables an address

stored under a name to be renamed or deleted. To do

- Adjustment of the date and time.

this, select the directory and the name to be changed.

- Selection of the language of the display and voice infor-

mation

(English, German, Spanish, French, Italian,

- Voice synthesis volume adjustment.

Dutch).

- Deletion of all data stored in the two directories.

- Adjustment of the mode and units. This allows selection

- Stopping or resuming of guidance. Two messages may

of the display in km/h or mph, in degrees Celsius or

be displayed depending on the previous status:

Fahrenheit and selection of the time format (12 or 24

"Resume guidance" or "Stop guidance"

hour mode).

02-02-2004

YOUR 406 COUPE IN DETAIL

Guidance tools

Access to the "Guidance tools" menu is by pressing the

"VAL" button during guidance.

It enables:

- the current guidance criterion to be changed,

- the programmed destination to be displayed or changed,

- the voice synthesis volume to be adjusted,

- the current guidance to be stopped.

02-02-2004

Peugeot 406 C (2004 year). Instruction - part 4
