Peugeot 308 SW BL (2013 year). Instruction

MULTIFUNCTION SCREENS

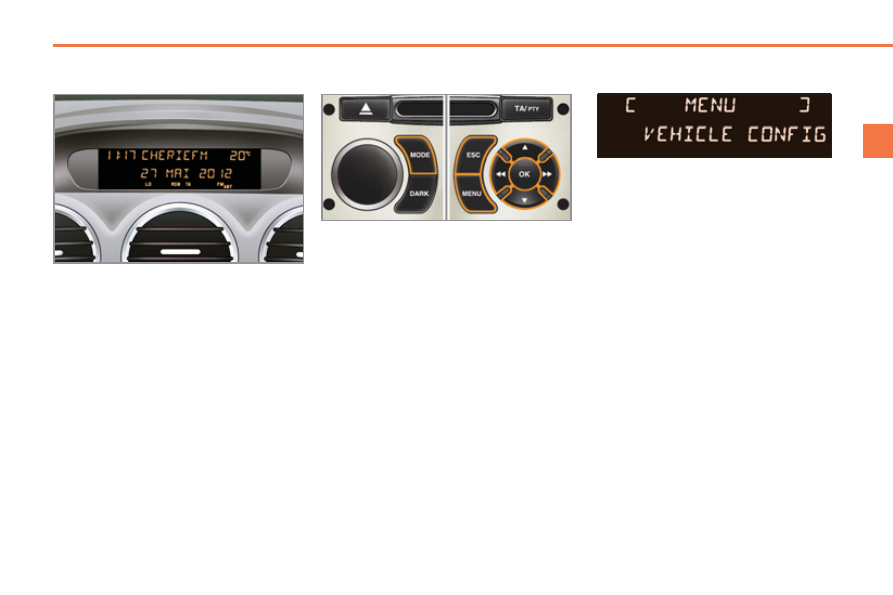

MONOCHROME SCREEN A

Controls

Displays in the screen

Displays according to context:
   -  time,
  -  date,
  -   ambient temperature with air condi-

tioning (the value displayed fl ashes

if there is a risk of ice),

- audio

functions,

- trip

computer,

- alert

messages,

- screen display and vehicle equip-

ment parameter settings menus.

Main menu

) Press the "MENU" button for access

to the main menu , then press the

" " or " " buttons to scroll through

the various menus:

   -  radio-CD,
  -  vehicle confi guration,
  -  options,
  -  display settings,
  -  languages,
  -  units.

) Press the "OK" button to select the

menu required.

From the control panel of your Peugeot

Connect Sound (RD5), you can:
) press the "MENU" button for access

to the main menu ,

) press the " " or " " buttons to scroll

through the items on the screen,

) press the "MODE" button to change

the permanent application (trip com-

puter, audio source...),

) press the "

" or "

" buttons to

change a setting value,

) press the "OK" button to confi rm,
or
) press the "ESC" button to abandon

the operation in progress.

Radio-CD
With the Peugeot Connect Sound (RD5)

switched on, once the "Radio-CD" menu

has been selected you can activate or

deactivate the functions linked with use

of the radio (RDS, REG), or CD (CD in-

troscan, shuffl e, repeat).
For more information on the "Radio-CD"

application, refer to the Peugeot Connect

Sound (RD5) section.

MULTIFUNCTION SCREENS

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when sta-

tionary.

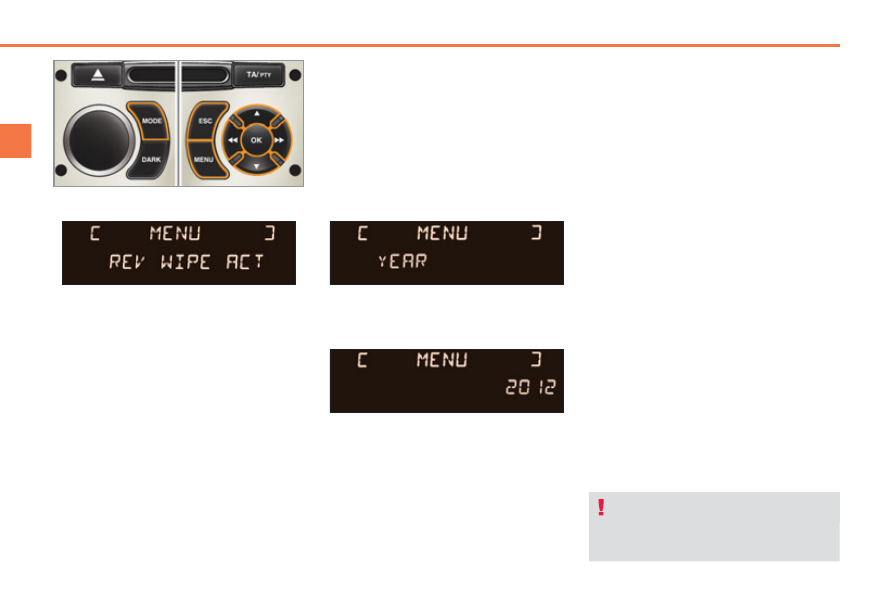

Screen display settings
Once the "Display settings" menu has

been selected, you can gain access to

the following settings:
   -  year,
  -  month,
  -  day,
  -  hour,
  -  minutes,
  -

12 or 24 hour mode.

Languages
Once the "Languages" menu has been

selected, you can change the language

used by the display (Français, Italiano,

Nederlands, Portugues, Portugues-Brasil,

Deutsch, English, Espanol).

Units
Once the "Units" menu has been se-

lected, you can change the units of the

following parameters:
-

temperature (°C or °F),

- fuel consumption (l/100 km, mpg or

km/l).

) Once you have selected a setting,

press the "

" or "

" buttons to

change its value.

) Press the "

" or "

" buttons to

switch respectively to the previous

or next setting.

) Press the

"OK" button to record

the change and return to the normal

display or press the "ESC" button to

cancel.

Vehicle confi guration

Options
Once the "Options" menu has been se-

lected, you can start diagnostics of the

status of the equipment (active, not ac-

tive, faulty).

Once the "Vehicle Confi guration" menu

has been selected, you can activate or

deactivate the following equipment:
- wiper linked with reverse gear (see

"Visibility"),

daytime running lamps (see "Visibility"),

rear parking sensors (see "Driving").

MULTIFUNCTION SCREENS

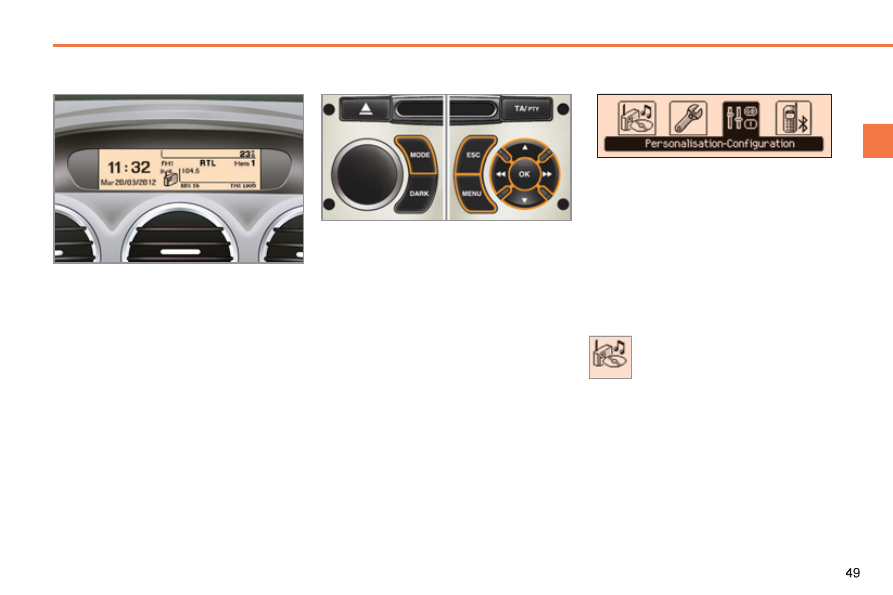

MONOCHROME SCREEN C

Main menu

Displays in the screen

Displays according to context:
   -  time,
  -  date,
  -   ambient temperature with air condi-

tioning (the value displayed fl ashes

if there is a risk of ice),

parking sensor information,

- audio

functions,

contacts and telephone information,

trip computer (with type 1 instrument

panel),

- alert

messages,

- screen display and vehicle equip-

ment parameter setting menus.

"Audio functions" menu

Controls

From the control panel of your Peugeot

Connect Sound (RD5), you can:
) press the "MENU" button for access

to the main menu ,

) press the " " or " " buttons to scroll

through the items on the screen,

) press the "MODE" button to change

the permanent application (trip com-

puter, audio source...),

) press the "

" or "

" buttons to

change a setting value,

) press the "OK" button to confi rm,
or
) press the "ESC" button to abandon

the operation in progress.

) Press the

"MENU" button for ac-

cess to the main menu :

   -  audio functions,
  -  diagnosis vehicle,
  -  personalisation-confi guration,
  -   telephone (Bleutooth system).

) Press the " " or " " buttons to se-

lect the menu required, then confi rm

by pressing the "OK" button.

With the Peugeot Connect Sound (RD5)

switched on, once this menu has been

selected you can activate or deactivate

the functions linked with use of the ra-

dio (RDS, REG, RadioText), or CD (CD

introscan, shuffl e, repeat).
For more information on the "Audio func-

tions" application, refer to the Peugeot

Connect Sound (RD5) section.

MULTIFUNCTION SCREENS

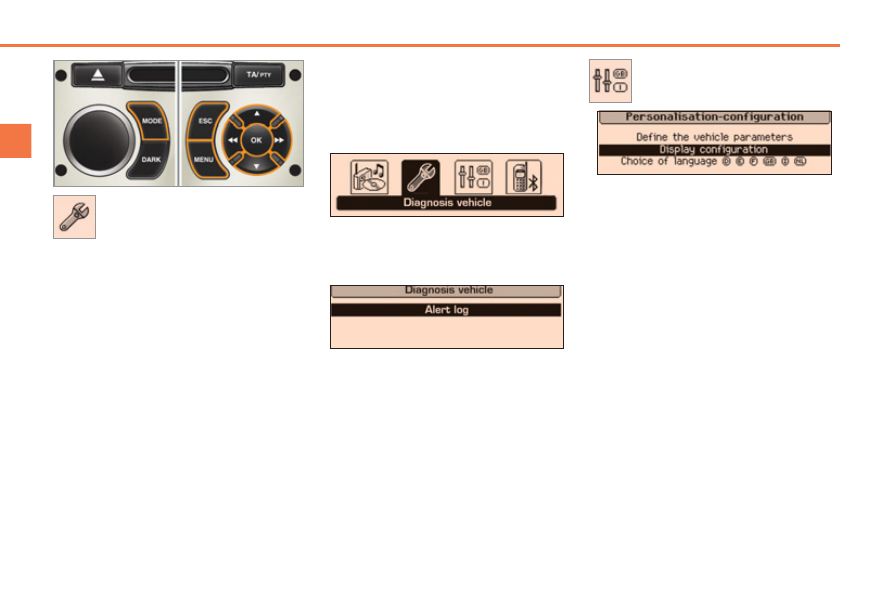

"Diagnosis vehicle"

menu

) Press the

"MENU" button for ac-

cess to the main menu.

) Press the arrows, then the

"OK"

button to select the " Diagnosis ve-

hicle " menu.

) On the " Diagnosis vehicle " menu,

select the following application:

Alert log
This summarises the active warning

messages, displaying them in succes-

sion on the multifunction screen.

Once this menu has been selected, you

can consult information concerning the

status of the vehicle, such as the alert log.

Defi ne the vehicle parameters
Once this menu has been selected, you

can activate or deactivate the following

equipment:
- wiper linked with reverse gear (see

"Visibility"),

- "guide-me-home" lighting (see "Vis-

ibility"),

interior mood lighting (see "Visibility"),

daytime running lamps (see "Visibility"),

rear parking sensors (see "Driving").

"Personalisation-

Configuration" menu

Once this menu has been selected, you

can gain access to the following func-

tions:
- defi ne the vehicle parameters,
- display

confi guration,

choice of language.

MULTIFUNCTION SCREENS

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when sta-

tionary.

"Telephone" menu

Display confi guration
Once this menu has been selected, you

can gain access to the following set-

tings:
- brightness-video

setting,

date and time setting,

choice of units.

Choice of language
Once this menu has been selected,

you can change the language used by

the display (Deutsch, English, Espanol,

Français, Italiano, Nederlands, Portugues,

Portugues-Brasil, Russe, Türkçe * ).

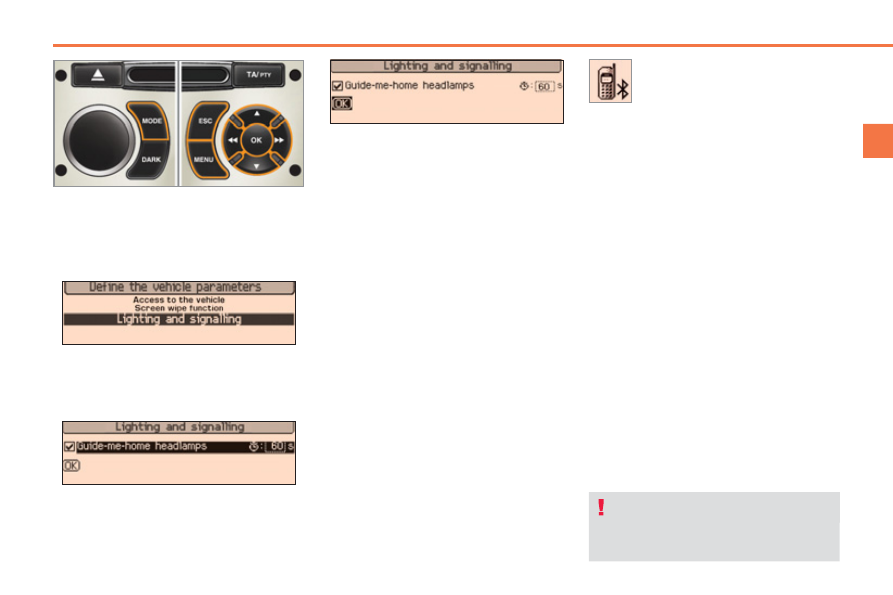

Example: setting of the duration of the

"guide-me-home" lighting

) Press the " " or " " buttons, then

the "OK" button to select the menu

required.

) Press the "

" or "

" buttons,

then the "OK" button to select the

"Guide-me-home headlamps" line.

) Press the "

the value required (15, 30 or 60 sec-

onds), then press the "OK" button

to confi rm.

) Press the " " or " " buttons, then

the "OK" button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.

With the Peugeot Connect Sound

(RD5) switched on, once this menu has

been selected you can confi gure your

Bluetooth system (pairing), consult the

various telephone directories (calls log,

services...) and manage your communi-

cations (pick up, hang up, call waiting,

secret mode...).
For more information on the "Tele-

phone" application, refer to the Peugeot

Connect Sound (RD5) section.

* According to country.

MULTIFUNCTION SCREENS

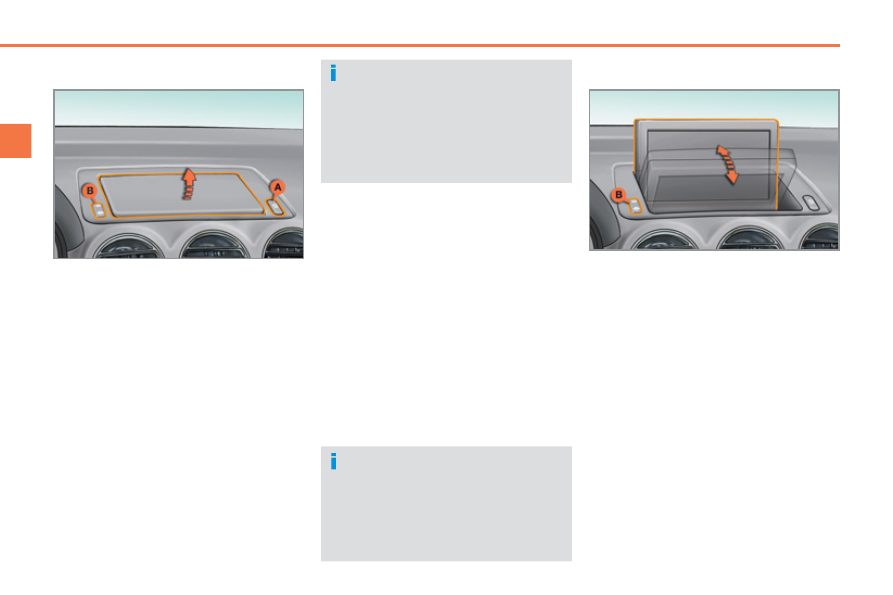

For operation of the retractable

screen (opening, closing, adjust-

ment of the position, etc.), refer

to the "Access to the retractable

screen" section.

Displays in the screen

Displays according to context:
   -  time,
  -  date,
  -  altitude,
  -

ambient temperature (the value dis-

played fl ashes if there is a risk of

ice),

parking sensor information,

- audio

functions,

telephone and contacts information,

- satellite navigation system informa-

tion,

- alert

messages,

- menus for settings of the screen,

navigation system and vehicle

equipment.

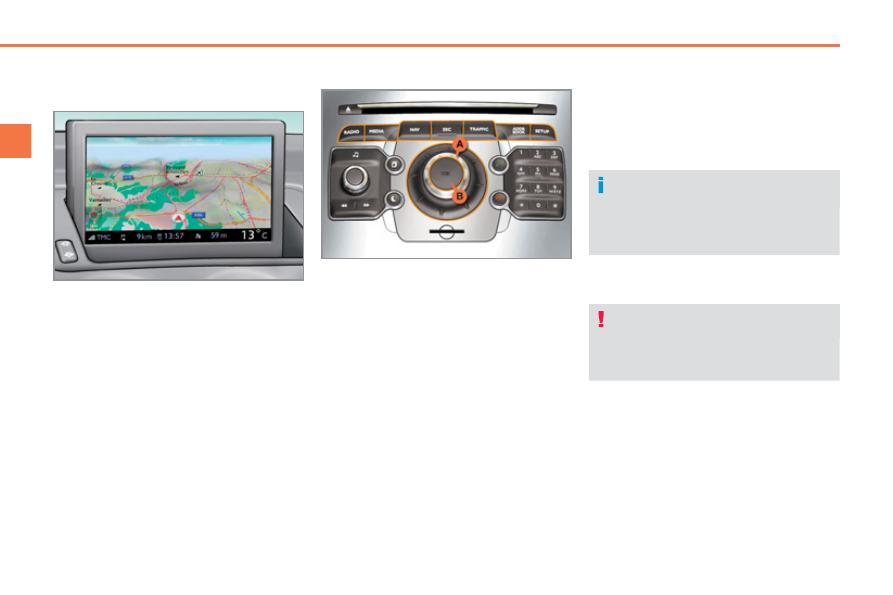

From the navigation system control

panel, to select one of the applications:
) press the dedicated

"RADIO" ,

"MUSIC" ,

"NAV" ,

"TRAFFIC" ,

"PHONE" or

"SETUP" button for

access to the corresponding menu,

) turn dial A to select a function, an

item in a list,

) press button

B to confi rm the selec-

tion,

or
) press the "ESC" button to abandon

the current operation and return to

the previous display.

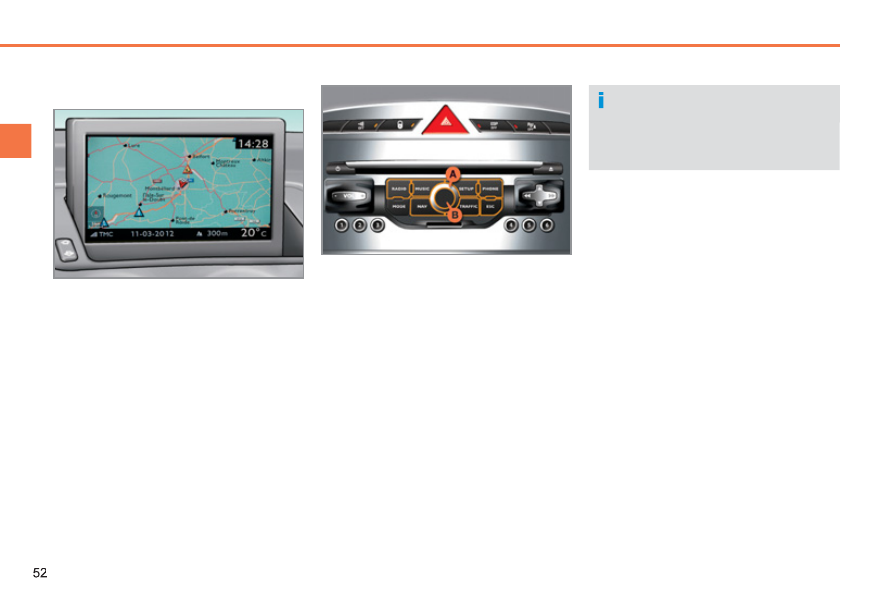

RETRACTABLE COLOUR

SCREEN (WITH PEUGEOT

CONNECT NAVIGATION (RT6))

Controls

For more information on these applica-

tions, refer to the "Audio and Telematics"

section.

MULTIFUNCTION SCREENS

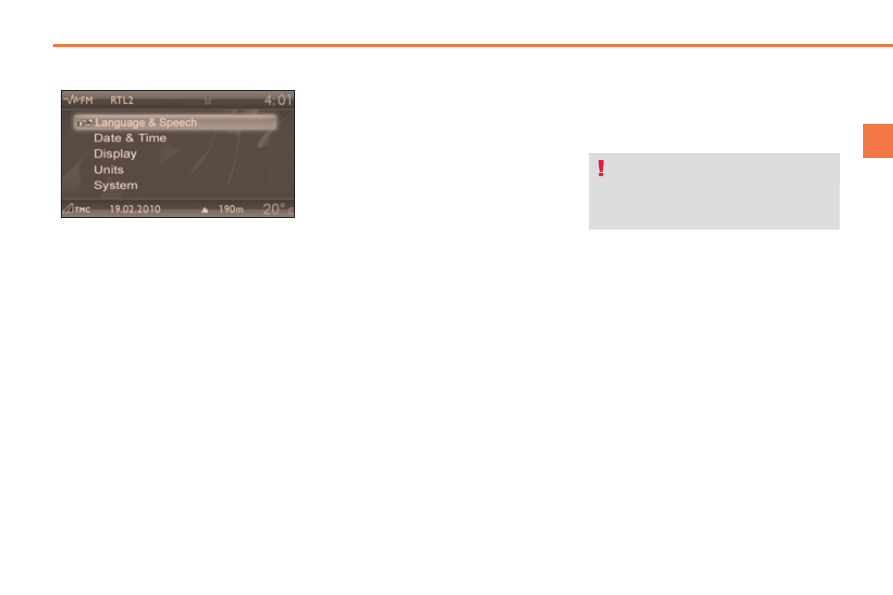

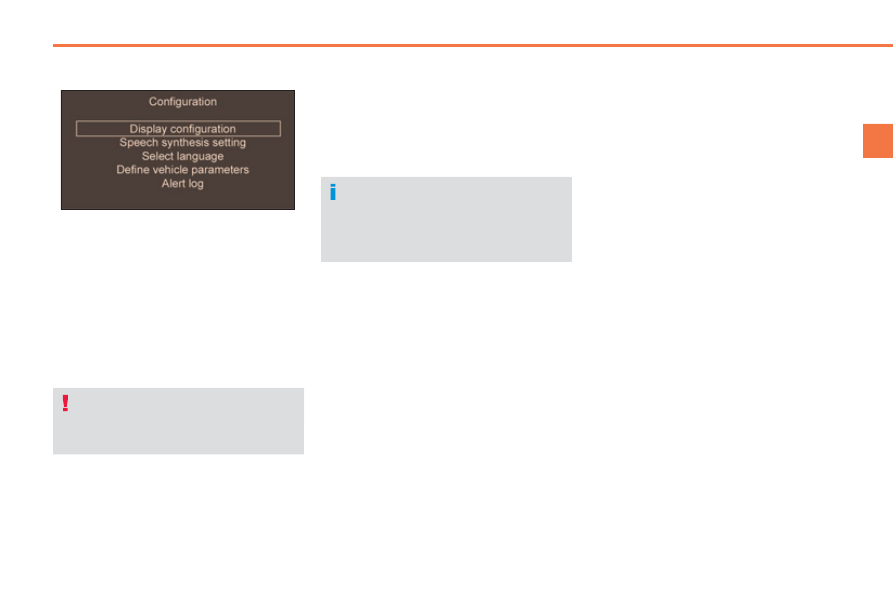

) Press the "SETUP" button to gain

access to the confi guration menu:

   -  "Display confi guration",
  -  "Voice synthesis",
  -   "Choice of language",
  -  "Vehicle parameters",
  -  "Alert log".

Display confi guration
This menu allows you to choose a co-

lour scheme for the screen, to adjust

the brightness, set the date and time

and choose the units for distance (km or

miles), fuel consumption (l/100 km, mpg

or km/l) and temperature (°Centigrade

or °Fahrenheit).

When setting the time, you can

select "

Synchronise minutes

with GPS ", so that the minutes

are set automatically by satellite

reception.

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when sta-

tionary.

Alert log
It lists the active alerts by displaying

their associated messages in turn.

Choice of language
This menu allows you to choose the

language used by the screen (French,

English, Italian, Portuguese, Spanish,

German, Dutch, Turkish, Polish, Russian).

Voice synthesis
This men allows you to adjust the vol-

ume for navigation instructions and to

choose the type of voice (male or fe-

male).

Vehicle parameters *
This menu allows you to activate or

deactivate certain driving and comfort

equipment, arranged by category:
- Parking

assistance

Operation of wipers

● Enagages rear wiper linked to

reverse (Rear wiper operates in

reverse gear; refer to "Visibility"),

- Lighting

confi guration (see "Vis-

ibility"):

● Duration of the guide-me-home

lighting,

●

Directional headlamps (main/

additional directional lighting),

●

Mood lighting (Interior mood

lighting),

● Daytime running lamps function ** .

"SETUP" menu

* Depending on version.
** According to country of sale.

MULTIFUNCTION SCREENS

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when sta-

tionary.

RETRACTABLE COLOUR SCREEN

(WITH PEUGEOT CONNECT

MEDIA NAVIGATION (NG4 3D))

Displays in the screen

Displays according to context:
   -  time,
  -  date,
  -  altitude,
  -

ambient temperature (the value dis-

played fl ashes if there is a risk of

ice),

parking sensor information,

- audio

functions,

- telephone and address book infor-

mation,

- satellite navigation system informa-

tion,

display screen or navigation system

parameter settings menus.

From the Peugeot Connect Media Navi-

gation (NG4 3D) control panel, to select

one of the applications:
) press the dedicated "RADIO" , "ME-

DIA" , "NAV" , "TRAFFIC" , "ADDR

BOOK" or "SETUP" button for ac-

cess to the corresponding menu,

) turn dial A to select a function, an

item in a list,

) press button

B to confi rm the selec-

tion,

or
) press the "ESC" button to abandon

the current operation and return to

the previous display.

For operation of the retractable

screen (opening, closing, adjust-

ment of the position, etc.), refer

to the "Access to the retractable

screen" section.

For more information on these applica-

tions, refer to the Peugeot Connect Media

Navigation (NG4 3D) section.

Controls

MULTIFUNCTION SCREENS

"SETUP" menu

Language and speech
This menu allows you to:
- select the language used by the

display (Deutsch, English, Espanol,

Français, Italiano, Nederlands,

Polski, Portugues, Portugues-Brasil,

Türkçe * ),

select the voice recognition parame-

ters (activation/deactivation, advice

on use, personal voice program-

ming, etc.),

- set the volume of the voice synthe-

siser.

Date and time
This menu allows you to set the date

and time, the format of the date and the

format of the time.

Principle of GPS (GMT) synchronisation:
1. Confi

rm the selection "Synchronise

with GPS", the time is then aligned

with GMT universal time, the date is

updated as well.

2. Using the 4-direction navigator, move

the cursor onto the hours fi eld and

press on OK .

3. Using the rotating ring, you can then

adjust the time to the time zone of your

choice.

Note that in the case of a summer/win-

ter time change, the time zone must be

set again manually.

Display
This menu allows you to set the bright-

ness of the screen, the screen colour

scheme and the colour of the map (day/

night or auto mode).

Units
This menu allows you to select the

units: temperature (°C or °F) and dis-

tance (miles or km).

) Press the "SETUP" button to gain

access to the "SETUP" menu. This

allows you to select from the follow-

ing functions:

   -   "Language and speech",
  -   "Date and time",
  -  "Display",
  -  "Units",
  -  "System".

System
This menu allows you to restore the fac-

tory confi guration, display the software

version and activate scrolling text.

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when

stationary.

* According to country.

MULTIFUNCTION SCREENS

This screen is opened and stored auto-

matically.
However, you can also open it, store it

and adjust it using the various manual

controls:
-

opening or storing by means of con-

trol A ,

angle adjustments by means of con-

trol B .

It is also fi tted with safety auto-reverse

protection.

Opening the screen
) With the screen stored, press con-

trol A to open it.

The screen opens automatically when

the ignition is switched on, when the au-

dio and telematics system is switched

on, when an outgoing telephone call is

made, when a voice command is given

and when a warning message linked with

the STOP warning lamp is received.

Closing the screen
) With the screen open, press con-

trol A to store it.

The screen is stored automatically

when the ignition is switched off, after

approximately three seconds, if the au-

dio and telematics system is off.

If you wish the screen to open or

close automatically when the audio

and telematics system is switched

on or off, the screen must not be

closed when the audio and tele-

matics system is operating.

When the screen is open, you can ad-

just it precisely in different ways:
) press the corresponding part of con-

trol B to move the screen towards

you or towards the windscreen,

or
) push or pull the screen gently by

hand.

Adjusting the position of the screen

Safety auto-reverse
If the screen meets an obstacle as it

opens or closes, the movement stops

immediately and is reversed by a few

millimetres.
After clearing the obstacle, issue the

command required again.

Storing the position of the screen
The system has four pre-set positions

in its memory.
Each time the screen is closed, the

system stores the last position of the

screen.
Each time the screen is re-opened, the

system returns the screen to the pre-set

position closest to that stored.

If you close the screen during op-

eration of the audio and telematics

system, it will re-open automatically

when an outgoing telephone call is

made, when a voice command is

given or when a warning message

linked with the STOP warning lamp

is received.

Access to the retractable screen

MULTIFUNCTION SCREENS

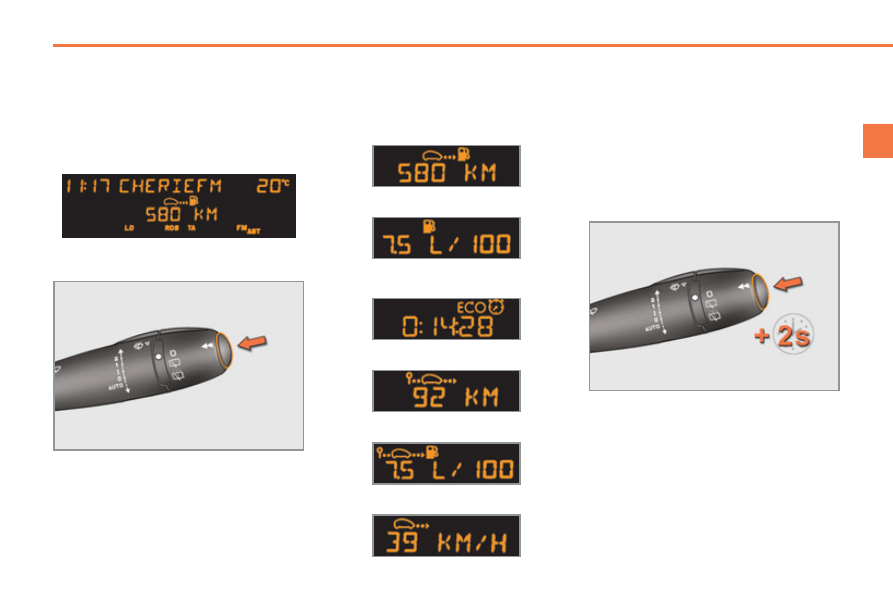

Monochrome screen A

) Press the button, located at the end

of the

wiper stalk , to display the

various items of trip computer infor-

mation in succession.

The trip computer provides the follow-

ing information:

Information displays

- range,

current fuel consumption,

Stop & Start time counter,

- distance

travelled,

average fuel consumption,

) The next press then returns you to

the normal display.

- average

speed.

Zero reset

) Press the control for more than two

seconds to reset to zero the distance

travelled, the average fuel consump-

tion and the average speed.

TRIP COMPUTER

System that gives you information on

the journey in progress (range, fuel con-

sumption…).

MULTIFUNCTION SCREENS

Display of information

) Press the up and down arrows on

the instrument panel navigator , as-

sociated with Peugeot Connect Me-

dia Navigation (NG4 3D), to cycle

through the information.

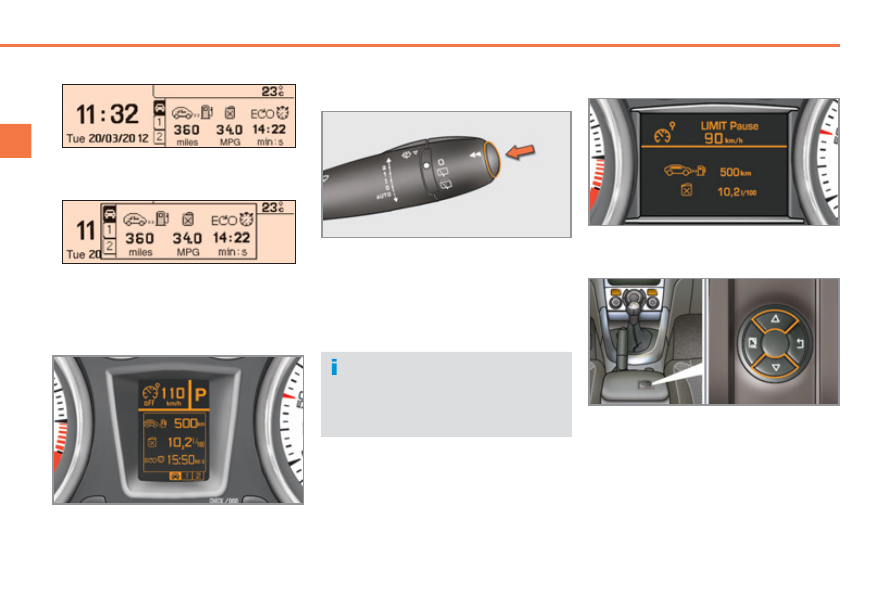

Monochrome screen C

Display of information with the

screen C or the small central screen

in the instrument panel

Large central screen with

type 3 instrument panel

Small central screen with

type 2 instrument panel

Depending on your vehicle's equip-

ment, the trip computer information

appears in the multifunction screen

or on the central screen in the in-

strument panel.

) Cycle through the information with

successive short presses on this

button.

Permanent display (

"MODE" button on the

Peugeot Connect Sound (RD5) control panel)

Temporary display in a new window.

MULTIFUNCTION SCREENS

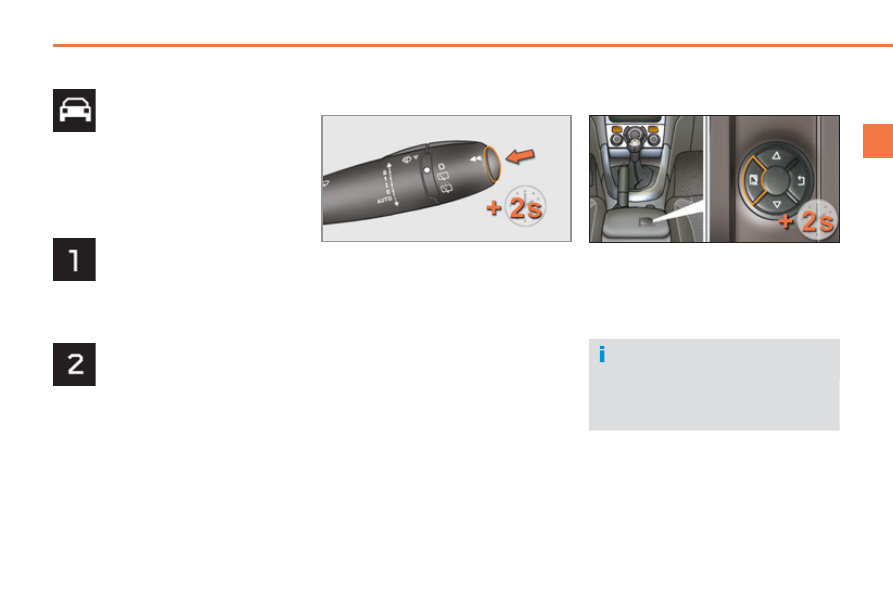

The trip "2" tab with:

   ●   the distance travelled,
  ●   the average fuel consumption,
  ●   the average speed.

) Pressing the button again takes you

to a black screen.

A further press returns you to the

normal display.

The current information tab,

for the trip in use, with:

   ●  the range,
  ●   the current fuel consumption,
  ●  the distance remaining to

be travelled or the Stop &

Start counter.

The trip "1" tab with:

   ●   the distance travelled,
  ●   the average fuel consumption,
  ●   the average speed.

Trip zero reset

) When the trip required is displayed,

press the button on the end of the

wiper stalk for more than two sec-

onds.

) When the required trip is displayed,

press the "OK" button on the instru-

ment panel navigator , associated with

Peugeot Connect Media Navigation

NG4 3D), for more than two seconds.

With the instrument panel large central

screen

Trips "1" and "2" are independent

but their use is identical.
For example, trip "1" can be used

for daily fi gures, and trip

"2" for

monthly fi gures.

The trip computer can display:

With the monochrome screen C or

the instrument panel small screen

MULTIFUNCTION SCREENS

A few definitions

(trip computer)

When the range falls below 20 miles

(30 km), dashes are displayed. After fi ll-

ing with at least 5 litres of fuel, the range

is recalculated and is displayed when it

exceeds 60 miles (100 km).

If dashes are displayed continu-

ously while driving in place of the

digits, contact a PEUGEOT dealer

or a qualifi ed workshop.

This function is only displayed from

20 mph (30 km/h).

This value may vary following a

change in the style of driving or

the relief, resulting in a signifi cant

change in the current fuel con-

sumption.

Range
(miles or km)
This indicates the distance

which can still be travelled

with the fuel remaining in the tank in

relation to the average fuel consump-

tion over the last few miles (kilometres)

travelled.

Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-

sumption during the last few

seconds.

Average fuel

consumption
(mpg or l/100 km or km/l)
This is the average fuel con-

sumption since the last trip

computer zero reset.

Distance travelled
(miles or km)
This indicates the distance

travelled since the last trip

computer zero reset.

Average speed
(mph or km/h)
This is the average speed cal-

culated since the last trip com-

puter zero reset (ignition on).

Distance remaining to

destination
(miles or km)
This is the distance remaining

to be travelled to the fi nal destination. It

is either calculated instantly by the navi-

gation system, if guidance is activated,

or entered by the user.
If the distance is not entered, dashes

are displayed in place of the digits.

Stop & Start time counter
(minutes / seconds or hours /

minutes)
If your vehicle is fi tted with

Stop & Start, a time counter calculates

the time spent in STOP mode during a

journey.
It resets to zero every time the ignition

is switched on with the key.

COMFORT

VENTILATION

Air treatment

The incoming air follows various routes

depending on the controls selected by

the driver:
-

direct arrival in the passenger compart-

ment (air intake),

- passage through a heating circuit

(heating),

- passage through a cooling circuit

(air conditioning).

The temperature control enables you to

obtain the level of comfort required by

mixing the air of the various circuits.

The air distribution control enables you to

diffuse the air in the passenger compart-

ment combining several air vents.
The air fl ow control enables you to increase

or reduce the speed of the ventilation blower.

Air intake

The air circulating in the passenger com-

partment is fi ltered and originates either

from the outside via the grille located at

the base of the windscreen or from the

inside in air recirculation mode.

Control panel

The controls of this system are grouped

together on control panel A on the centre

console. Depending on the model, the

functions offered are:
-

level of comfort required,

- air

fl ow,

- air

distribution,

demisting and defrosting,

- manual or digital air conditioning

controls.

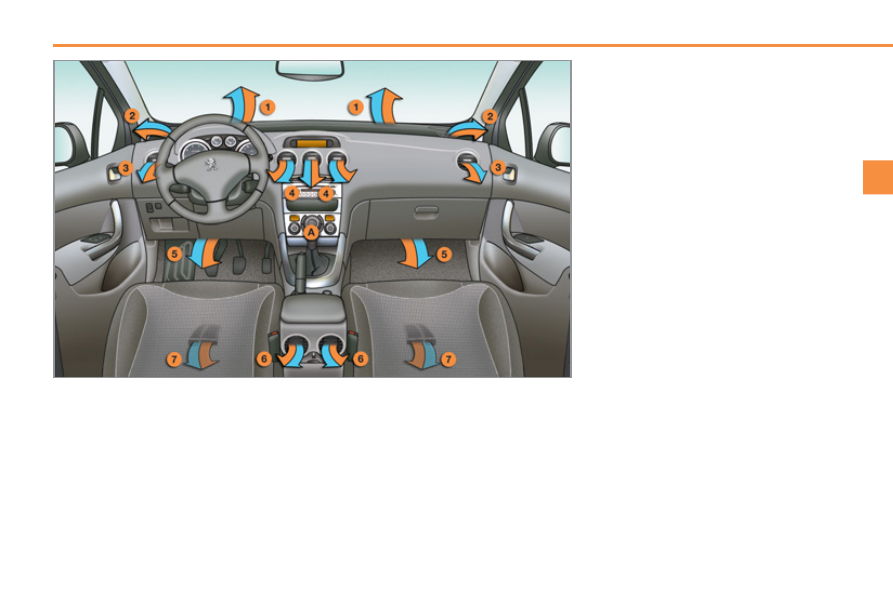

Air diffusion

1. Windscreen demisting vents.
2. Front side window demisting/defrosting

vents.

  3.   Side adjustable air vents.
  4.   Central adjustable air vents.
  5.   Air outlets to the front footwells.
  6.   Adjustable air vents for the rear passengers.
  7.   Air outlets to the rear footwells.

COMFORT

If after an extended stop in sunshine,

the interior temperature is very high,

fi rst ventilate the passenger com-

partment for a few moments.
Put the air fl ow control at a setting

high enough to quickly change the

air in the passenger compartment.
The air conditioning system does

not contain chlorine and does not

present any danger to the ozone

layer.

RECOMMENDATIONS FOR VENTILATION AND

AIR CONDITIONING

In order for these systems to be fully effective, follow the operation and main-

tenance guidelines below:
) To obtain an even air distribution, take care not to obstruct the exterior air

intake grilles located at the base of the windscreen, the nozzles, the vents

and the air outlets, as well as the air extractor located in the boot.

) Do not cover the sunshine sensor, located on the dashboard; this is used

for regulation of the digital air conditioning system.

) Operate the air conditioning system for at least 5 to 10 minutes, once or

twice a month to keep it in perfect working order.

) Ensure that the passenger compartment fi lter is in good condition and

have the fi lter elements replaced regularly (refer to the "Checks" section).

We recommend the use of a combined passenger compartment fi lter.

Thanks to its special active additive, it contributes to the purifi cation of

the air breathed by the occupants and the cleanliness of the passenger

compartment (reduction of allergic symptoms, bad odours and greasy de-

posits).

) To ensure correct operation of the air conditioning system, you are also

advised to have it checked regularly as recommended in the servicing

booklet.

) If the system does not produce cold air, switch it off and contact a PEUGEOT

dealer or a qualifi ed workshop.

When towing the maximum load on a steep gradient in high temperatures,

switching off the air conditioning increases the available engine power and so

improves the towing ability.

The condensation created by the

air conditioning results in a dis-

charge of water under the vehicle

which is perfectly normal.

Stop & Start
The heating and air conditioning systems only work when the engine is run-

ning. To maintain a comfortable temperature in the passenger compartment,

you can temporarily deactivate the Stop & Start system (see "Driving").

Peugeot 308 SW BL (2013 year). Instruction - part 4
