Peugeot 308 SW BL (2013 year). Instruction - part 2

–

FAMILIARISATION

VENTILATION

Digital air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.

I require...

Heating or Manual Air Conditioning

Air distribution

Air fl ow

Air recirculation /

Intake of outside air

Temperature

Manual A/C

HOT

COLD

DEMISTING

DEFROSTING

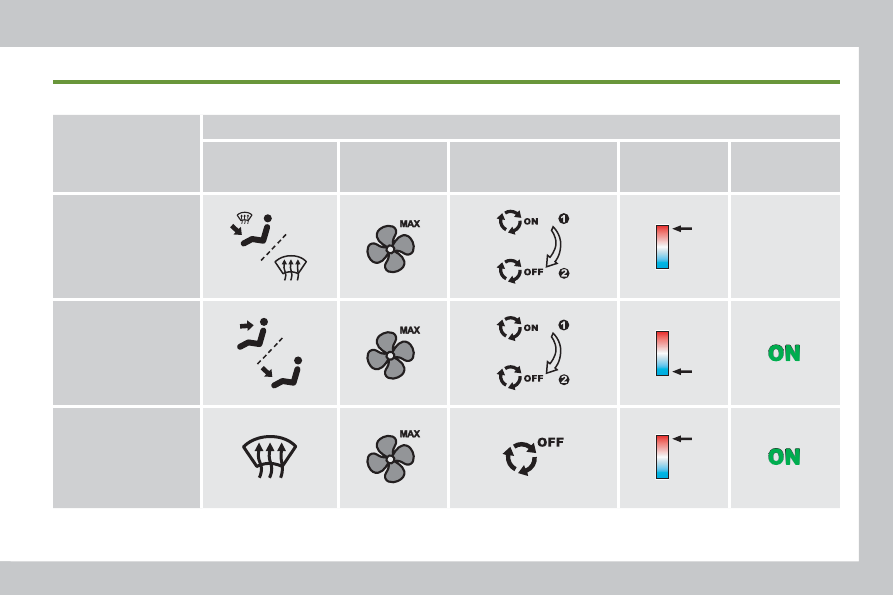

Recommended interior settings

FAMILIARISATION

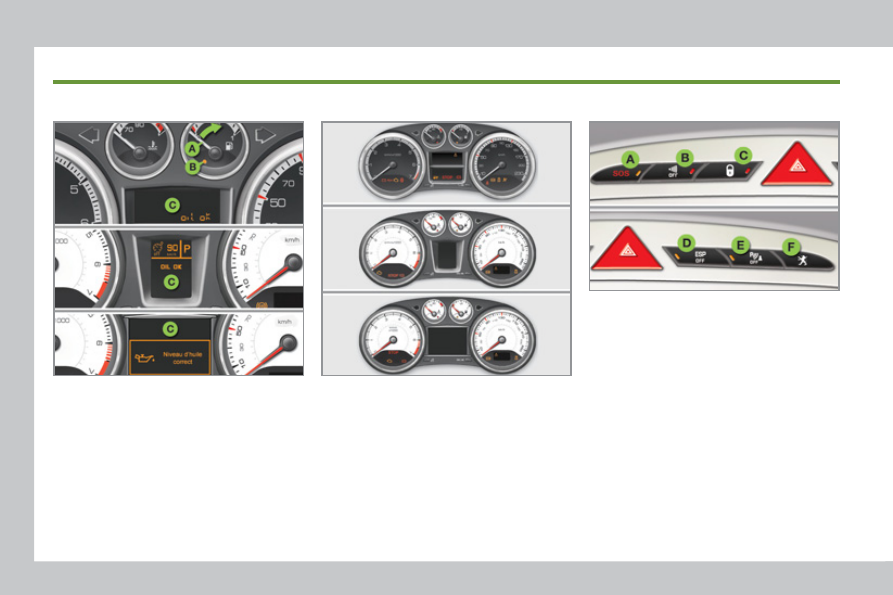

MONITORING

Instrument panel

Switch panel

A. With the ignition on, the needle

should indicate the level of fuel

remaining.

B. With the engine running, its

associated low level warning lamp

should switch off.

C. With the ignition on, the oil level

indicator should indicate for a few

seconds that the level is correct or

OK, depending on version.

If the levels are not correct, top up the

levels which are low.

Lighting of the indicator lamp indicates

the status of the corresponding function.
A. Emergency call in progress. 243
B. Deactivation of the alarm interior

volumetric monitoring.

C. Central locking.

D. Deactivation of the ESP/ASR

system. 140

E. Deactivation of the front and rear

parking sensors. 168

F. Access to PEUGEOT services.

243

1. With the ignition on, the orange and

red warning lamps come on.

2. With the engine running, these

warning lamps should go off.

If warning lamps remain on, refer to the

page concerned.

Warning lamps

29, 33

FAMILIARISATION

PASSENGER SAFETY

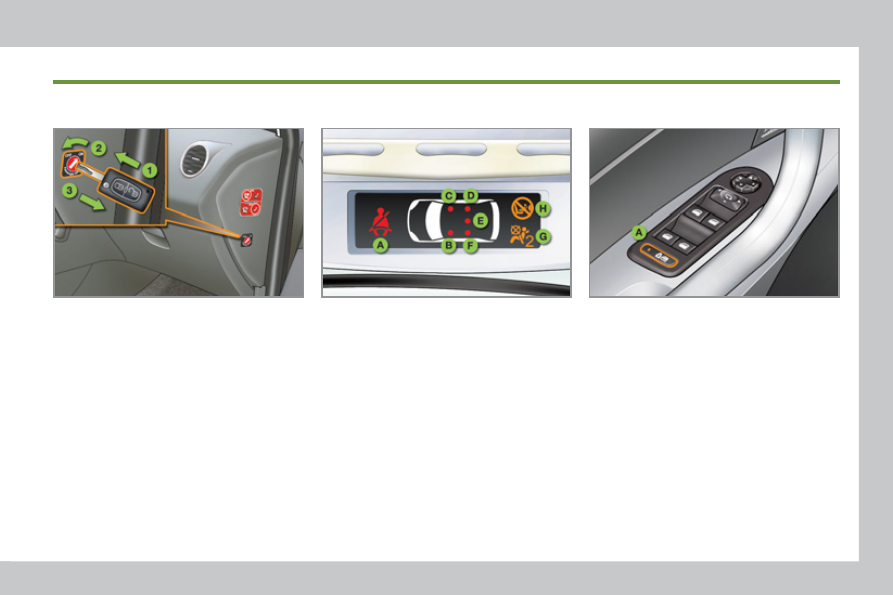

Passenger's front airbag

Electric child lock

1. Insert the key.
2. Select the position:

"OFF" (deactivation), with "rear

facing" child seat,

"ON" (activation), with front

passenger or "forwards facing"

child seat.

3. Remove the key keeping the switch

in the new position.

Lighting of the indicator lamp indicates

the status of the corresponding function.
A. Activation of the electric child lock.

A. Front and/or rear seat belts not

fastened / unfastened warning

lamp.

  B.   Front left seat belt warning lamp.
  C.   Front right seat belt warning lamp.
  D.   Rear right seat belt warning lamp * .
  E.   Rear centre seat belt warning

lamp * .

F. Rear left seat belt warning lamp * .
G. Passenger's front airbag

deactivated warning lamp.

H. Passenger's front airbag activated

warning lamp.

Seat belts and passenger's

front airbag

142, 147

146

136

* Only on SW individual rear seats.

FAMILIARISATION

PASSENGER COMFORT

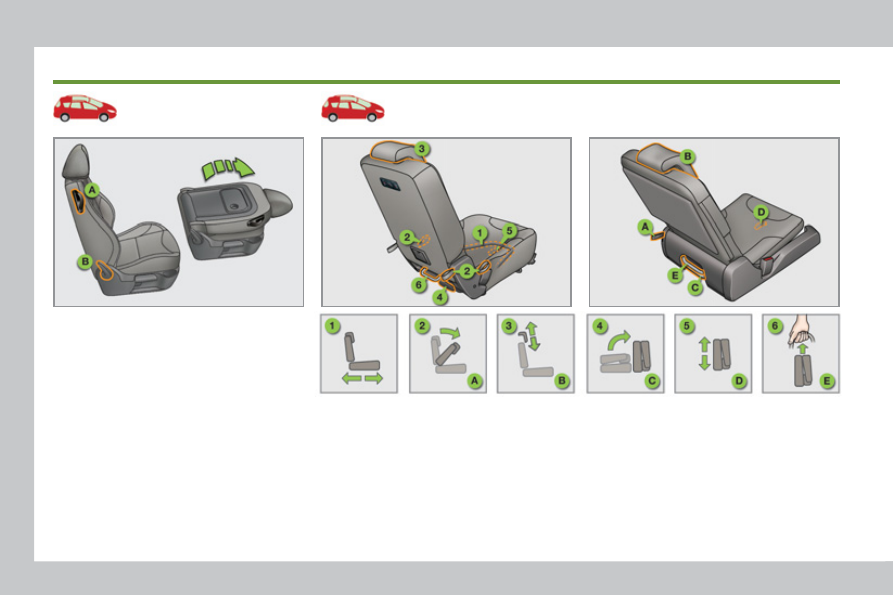

Operating the rear seats

  2nd row rear seats
   1.  Forwards-backwards adjustment.
  2.   Seat back angle adjustment / Table

position.

  3.   Head restraint height adjustment.
  4.  Folding.
  5.   Removal / Installation.
  6.  Carrying.

3rd row additional seats
A. Seat back angle adjustment / Table

position.

  B.   Head restraint height adjustment.
  C.  Folding.
  D.   Removal / Installation.
  E.  Carrying.

Operating the front

passenger seat

  Table position
   A.   Placing in the partial table position.
  B.   Placing in the full table position.

FAMILIARISATION

SEAT CONFIGURATION

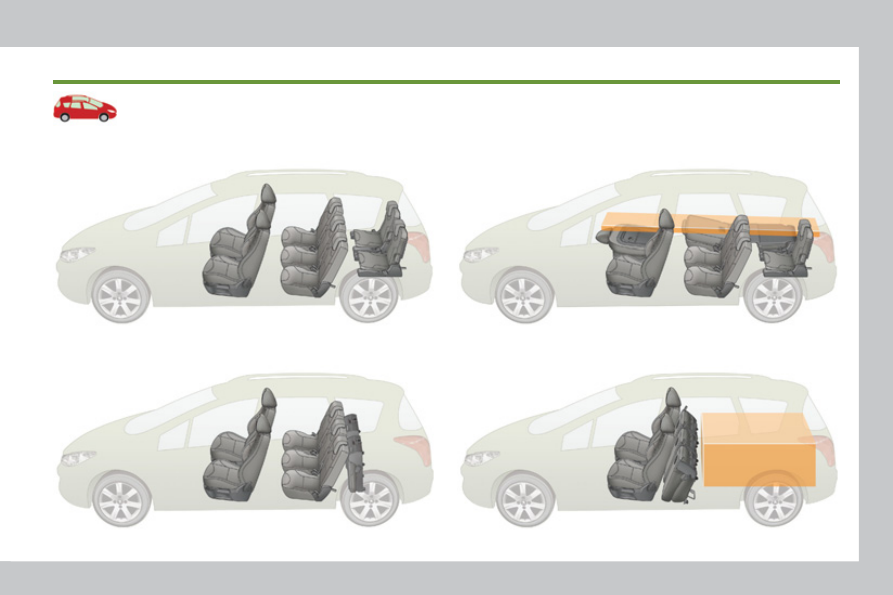

A few examples of seat modularity

7 seats

7 seats in 5 seats with additional

seats folded confi guration

Transporting long objects

Loading a large volume

FAMILIARISATION

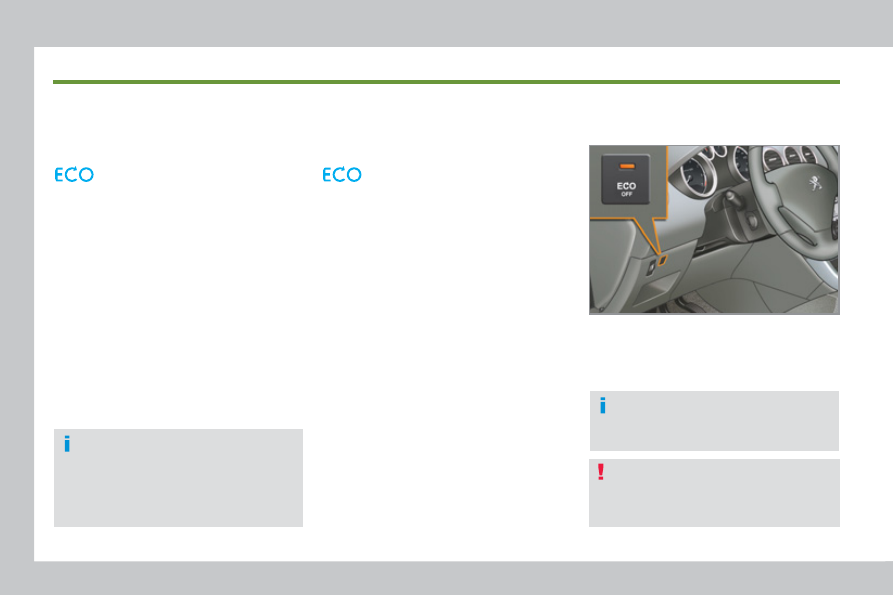

Stop & Start

Going into engine STOP mode

Going into engine START mode

Deactivation / Activation

DRIVING SAFELY

161

You can deactivate the system at any

time by pressing "ECO OFF" ; the warn-

ing lamp in the button comes on.

The "ECO" warning lamp comes on

in the instrument panel and the en-

gine automatically goes into standby:

The "ECO" warning lamp goes

off and the engine restarts au-

tomatically:

with a manual gearbox ; when you

fully depress the clutch pedal,

with a 6-speed electronic gear

control gearbox;

● gear lever in position A or M , when

you release the brake pedal,

● or gear lever in position N and the

brake pedal release, when you

move to position A or M ,

● or when you engage reverse.

with a manual gearbox ; at speeds

below 12 mph (20 km/h), put the

gear lever into neutral, then release

the clutch pedal,

with a 6-speed electronic gear

control gearbox ; at speeds below

5 mph (8 km/h), when you press

the brake pedal or move the gear

lever to position N .

In certain circumstances, STOP mode

may not be available; the "ECO" warn-

ing lamp fl ashes for a few seconds,

then goes off.

160

If you change gear without com-

pletely declutching, the engine will

not restart automatically. An alert

message is displayed to encour-

age you to fully depress the clutch

pedal.

161

The system is reactivated auto-

matically at every new start using

the key.

Before refuelling or doing anything

under the bonnet, you must switch

off the ignition with the key.

In certain circumstances, START mode

may be invoked automatically; the

"ECO" warning lamp fl ashes for a few

seconds, then goes off.

FAMILIARISATION

DRIVING SAFELY

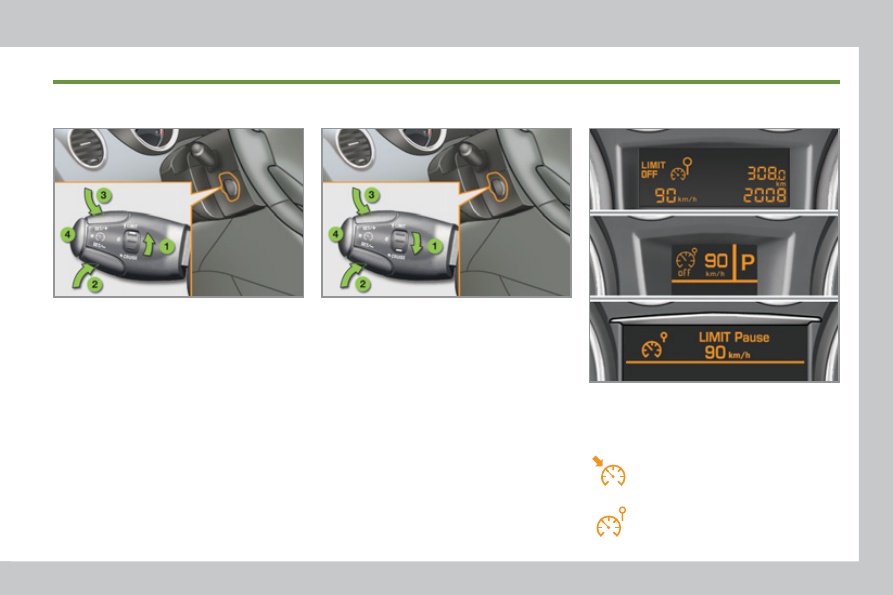

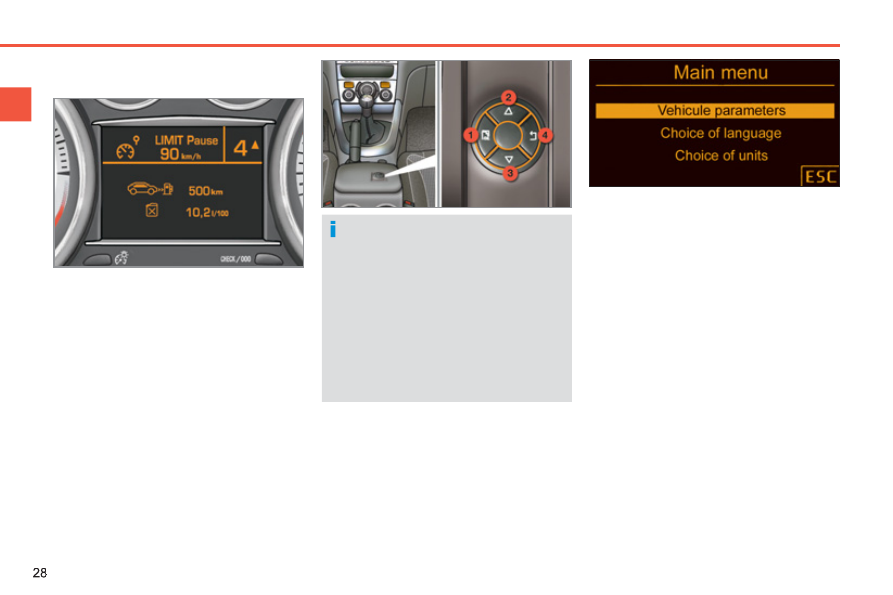

Speed limiter "LIMIT"

Display in the instrument panel

1. Limiter mode Selection / Off.
2. Decreasing of the programmed

value.

3. Increasing of the programmed

value.

4. Speed limiter On / Off.

The cruise control or speed limiter mode

appears in the instrument panel when it

is selected.

1. Cruise control mode Selection / Off.
2. Programming a speed / Decreasing

of the programmed value.

3. Programming a speed / Increasing

of the programmed value.

4. Cruise control Off / Resume.

Cruise control "CRUISE"

Cruise control

Speed limiter

165

163

In order to be programmed or activated,

the vehicle speed must be higher than

25 mph (40 km/h), with at least fourth gear

engaged on the manual gearbox (second

gear for the 6-speed electronic gear con-

trol gearbox or automatic gearbox).

The values must be set with the engine

running.

FAMILIARISATION

DRIVING SAFELY

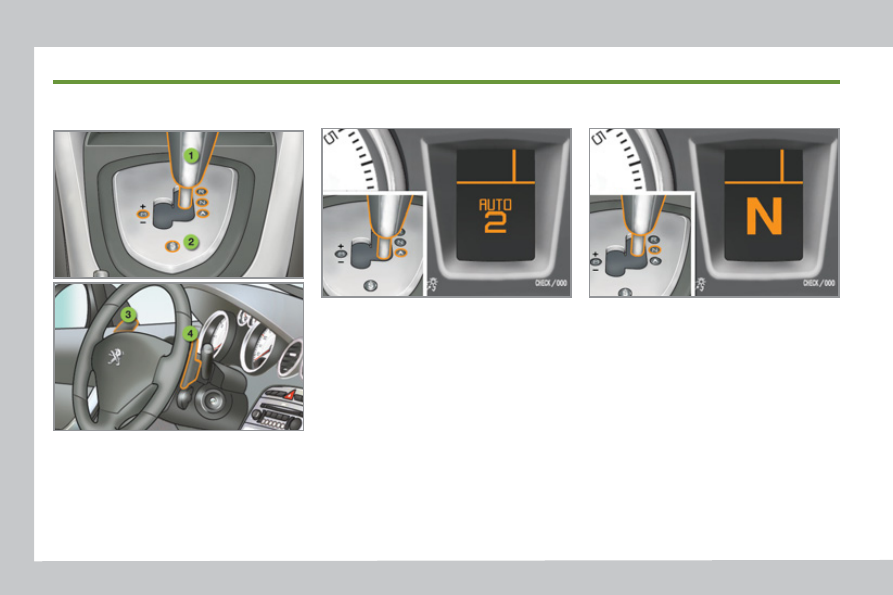

This 6-speed gearbox offers a choice

between the comfort of fully automatic

operation or the pleasure of manual

gear changing.
1. Gear lever.
2. Button

"S" (sport) .

3. Steering wheel "-" paddle.
4. Steering wheel "+" paddle.

The gear or the driving mode select-

ed appears in the instrument panel

screen.
  N:  neutral.
  R:  reverse gear.
  1 2 3 4 5 6:  gears engaged.
  AUTO:  automatic mode.
  S:  Sport driving style.

Display in the instrument panel

) Select position N and press the

brake pedal fi rmly while starting the

engine.

) Engage fi rst gear (position A or M )

or reverse (position R ) using the

gear lever 1 .

) Release the parking brake.
) Take your foot off the brake pedal

then accelerate.

Moving off

153

6-speed electronic gear control

gearbox

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your

gearbox

With a manual gearbox, move off gen-

tly, change up without waiting and

drive by changing up quite soon. If

your vehicle has the system, the gear

shift indicator invites you to change up;

it is displayed in the instrument panel,

follow its instructions.

With an automatic or electronic gear-

box, stay in Drive "D" or Auto "A" , ac-

cording to the type of gearbox, without

pressing the accelerator pedal heavily

or suddenly.

Drive smoothly

Maintain a safe distance between ve-

hicles, use engine braking rather than

the brake pedal, and press the accel-

erator progressively. These practices

contribute towards a reduction in fuel

consumption and CO

emissions and

also helps reduce the background traf-

fi c noise.

If your vehicle has cruise control, make

use of the system at speeds above

25 mph (40 km/h) when the traffi c is

fl owing well.

Control the use of your

electrical equipment

Before moving off, if the passenger

compartment is too warm, ventilate it by

opening the windows and air vents be-

fore using the air conditioning.
Above 30 mph (50 km/h), close the win-

dows and leave the air vents open.
Remember to make use of equipment

that can help keep the temperature in

the passenger compartment down (sun-

roof and window blinds...).
Switch off the air conditioning, unless

it has automatic digital regulation, as

soon as the desired temperature is at-

tained.
Switch off the demisting and defrosting

controls, if not automatic.
Switch off the heated seat as soon as

possible.

Switch off the headlamps and front fo-

glamps when the level of light does not

require their use.

Avoid running the engine before moving

off, particularly in winter; your vehicle will

warm up much faster while driving.

As a passenger, if you avoid connecting

your multimedia devices (fi lm, music,

video game...), you will contribute to-

wards limiting the consumption of elec-

trical energy, and so of fuel.
Disconnect your portable devices be-

fore leaving the vehicle.

Limit the causes of excess

consumption

Spread loads throughout the vehicle;

place the heaviest items in the bottom

of the boot, as close as possible to the

rear seats.
Limit the loads carried in the vehicle

and reduce wind resistance (roof bars,

roof rack, bicycle carrier, trailer...). Use

a roof box in preference.
Remove roof bars and roof racks after

use.

At the end of winter, remove snow

tyres and refi t your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly,

when cold, referring to the label in the

door aperture, driver's side.
Carry out this check in particular:
-

before a long journey,

at each change of season,

after a long period out of use.

Don't forget the spare wheel and the

tyres on any trailer or caravan.

Have your vehicle serviced regularly

(engine oil, oil fi lter, air fi lter...) and ob-

serve the schedule of operations rec-

ommended by the manufacturer.

When refuelling, do not continue after

the 3

cut-off of the nozzle to avoid

any overfl ow.

At the wheel of your new vehicle,

it is only after the fi rst 1 800 miles

(3 000 kilometres) that you will see

the fuel consumption settle down to a

consistent average.

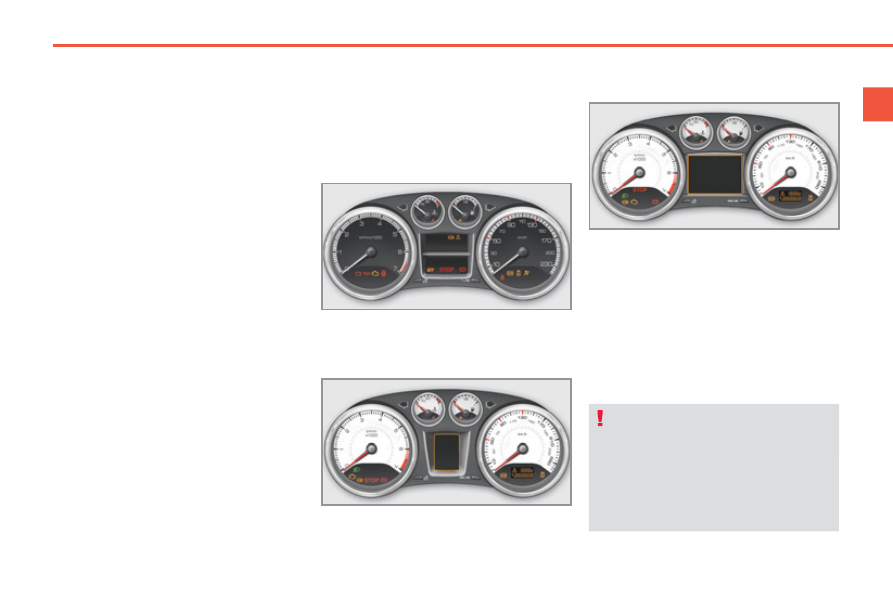

INSTRUMENTS and CONTROLS

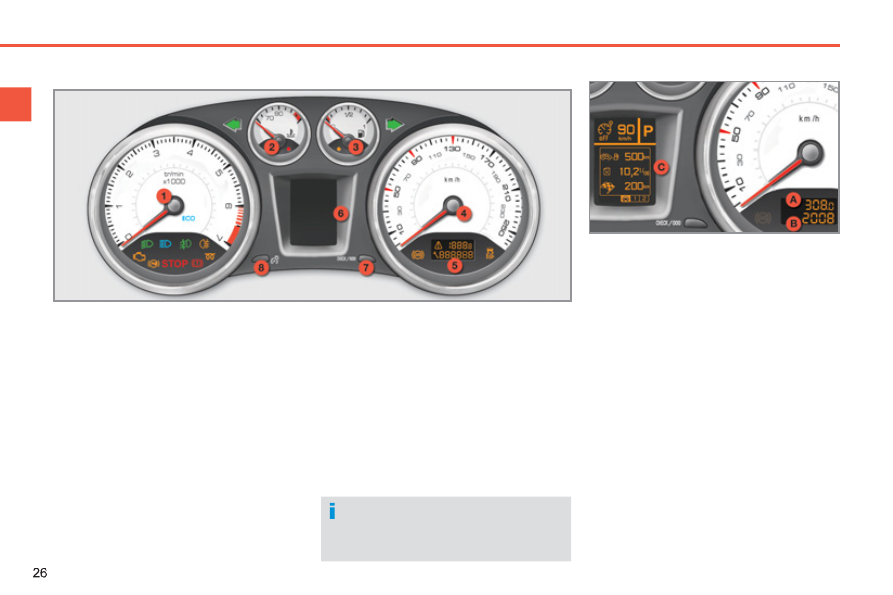

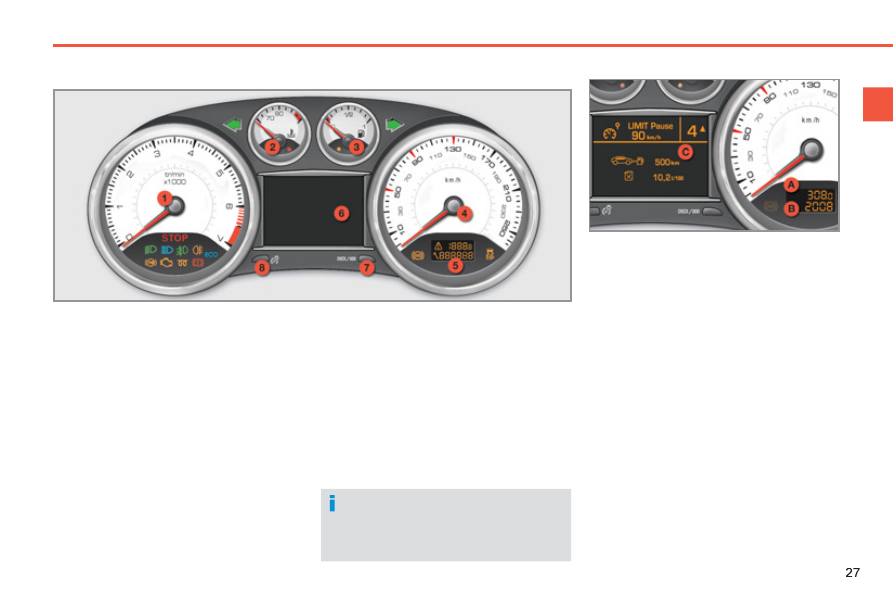

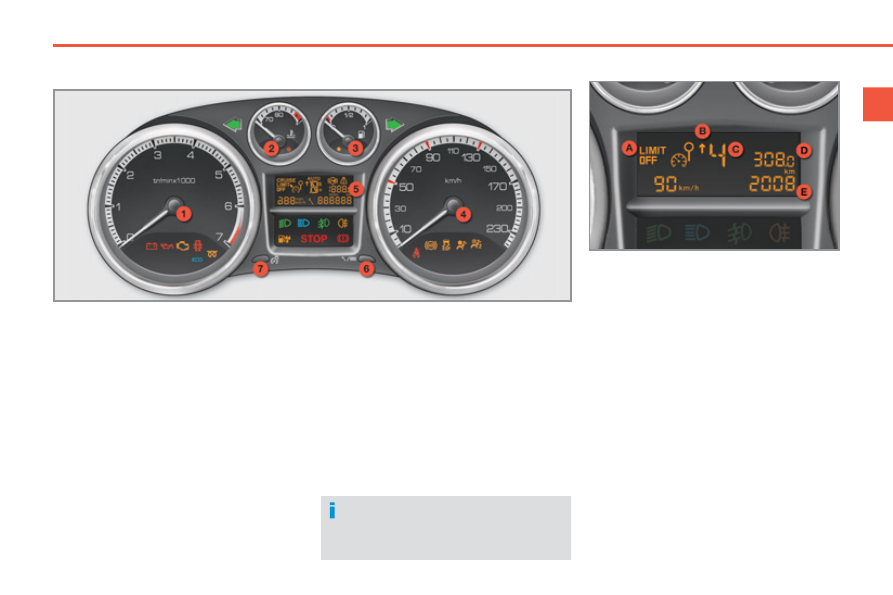

TYPE 1 INSTRUMENT PANEL

Dials

5. Screen.
6. Control button.

Recalls the service information.

Resets the function to zero (trip

distance recorder or service

indicator).

7. Instrument panel lighting button.

Adjusts the brightness of the lighting

of the instruments and controls.

1. Rev counter.

Indicates the speed of rotation of

the engine (x 1000 rpm).

2. Coolant temperature.

Indicates the temperature of the

engine coolant (° Celsius).

3. Fuel level.

Indicates the quantity of fuel

remaining in the tank.

4. Vehicle speed.

Indicates the current speed of the

moving vehicle (mph or km/h).

A. Speed limiter

(mph or km/h) or

Cruise control.

B. Gear shift indicator.
C. 6-speed electronic gear control

or automatic gearbox.

D. Trip distance recorder.

(miles or km)

E. Service indicator

(miles or km) then,

engine oil level indicator

then

distance recorder.

(miles or km)

These three functions are displayed

in succession when the ignition is

switched on.

Displays

For more information, refer to the

section on the button or function

and its associated display.

INSTRUMENTS and CONTROLS

TYPE 2 INSTRUMENT PANEL

Dials

6. Central screen.
7. Control button.

Starts a manual CHECK and

recalls the service information.

Resets the function to zero (trip

distance recorder or service

indicator).

8. Instrument panel lighting button.

Adjusts the brightness of the lighting

of the instruments and controls.

1. Rev counter.

Indicates the speed of rotation of

the engine (x 1000 rpm).

2. Coolant temperature.

Indicates the temperature of the

engine coolant (° Celsius).

3. Fuel level.

Indicates the quantity of fuel

remaining in the tank.

4. Vehicle speed.

Indicates the current speed of the

moving vehicle (mph or km/h).

5. Small screen.

A. Trip distance recorder.

(miles or km)

B. Distance recorder.

(miles or km)

C. Engine oil level indicator,

service indicator.

(miles or km)

These two functions are displayed

when the ignition is switched on,

then disappear after a few seconds.

Displays

For more information, refer to the

section on the button or function

and its associated display.

The following functions are displayed

depending on the selection.
-

Warning lamps / CHECK.

Tyre under-infl ation detection.

Speed limiter / Cruise control.

Gear shift indicator.

6-speed electronic gear control

or automatic gearbox.

Navigation - Guidance / Trip

computer.

Alert messages symbol.

INSTRUMENTS and CONTROLS

TYPE 3 INSTRUMENT PANEL WITH PEUGEOT CONNECT MEDIA

NAVIGATION (NG4 3D)

1. Rev counter.

Indicates the speed of rotation of

the engine (x 1000 rpm).

2. Coolant temperature.

Indicates the temperature of the

engine coolant (° Celsius).

3. Fuel level.

Indicates the quantity of fuel

remaining in the tank.

4. Vehicle speed.

Indicates the current speed of the

moving vehicle (km/h or mph).

5. Small screen.

A. Trip distance recorder.

(miles or km)

B. Distance recorder.

(miles or km).

C. Engine oil level indicator,

service indicator.

(miles or km)

These two functions are displayed

when the ignition is switched on,

then disappear after a few seconds.

The following functions are displayed

depending on the selection.
-

Warning lamps / CHECK.

Tyre under-infl ation detection.

Speed limiter / Cruise control.

Gear shift indicator.

6-speed electronic gear control

or automatic gearbox.

Navigation - Guidance / Trip

computer.

Vehicle and screen parameter

settings menus.

Alert messages.

Dials

Displays

6. Central screen.
7. Control button.

Starts a manual CHECK and

recalls the service information.

Resets the function to zero (trip

distance recorder or service

indicator).

8. Instrument panel lighting button.

Adjusts the brightness of the lighting

of the instruments and controls.

For more information, refer to the

section on the button or function

and its associated display.

INSTRUMENTS and CONTROLS

* According to country.

Instrument panel navigator associated

with the Peugeot Connect Media

Controls
There are four buttons to control the

large central instrument panel screen:
1. access the main menu, confi rm the

selection,

  2.   move up through the menu,
  3.   move down through the menu,
  4.   return to the previous screen, exit

from the menu.

Main menu
) Press button 1 for access to the

main menu and select one of the

following functions:

   -  "Vehicle parameters",
  -   "Choice of language",
  -   "Choice of units".

) Press button 2 or 3 to move on the

screen.

) Press button 1 again to confi rm the

selection.

The main menu and its associated

functions can only be accessed

when stationary, via buttons 1 to 4 .
A message appears on the cen-

tral screen above a certain speed

threshold, indicating that the main

menu cannot be displayed.
The trip computer displays can

only be accessed while driving, via

buttons 2 and 3 (refer to the "Trip

computer" section).

This group of buttons permits:
-

when stationary , confi guration of

the vehicle's equipment and of the

parameters of the central screen

(languages, units...),

while driving , scrolling of the

active functions (trip computer,

navigation...).

Vehicle parameters
This menu allows you to activate or

deactivate certain driving and comfort

equipment:
-

wiper linked with reverse gear

(refer to the "Visibility" section),

guide-me-home and welcome lighting

(refer to the "Visibility" section),

interior mood lighting (refer to the

"Visibility" section),

daytime running lamps (refer to the

"Visibility" section),

directional headlamps (refer to the

"Visibility" section),

rear parking sensors (refer to the

"Driving" section).

Choice of language
This menu allows you to select the lan-

guage used by the display: Deutsch,

English, Espanol, Français, Italiano,

Nederlands, Portugues, Türkçe * .
Choice of units
This menu allows you to select the

units: temperature (°Celsius or °Fahr-

enheit) and consumption (l/100 km,

mpg or km/l).

INSTRUMENTS and CONTROLS

The illumination of a warning lamp

is always accompanied by the dis-

play of an additional message, to

assist you in identifying the fault.
If you encounter any problems,

contact a PEUGEOT dealer or a

qualifi ed workshop.

Warning and indicator lamps

Visual indicators which inform the driver

of the occurrence of a fault (warning

lamp) or of the operation of a system

(operation or deactivation indicator

lamp).

Associated warnings
The illumination, fi xed or fl ashing, of

certain warning lamps is accompanied

by an audible signal.
Depending on your version of instru-

ment panel, illumination of the warning

lamp is also accompanied by:

Warning lamps

When the ignition is switched on
Certain warning lamps come on for

a few seconds when the ignition is

switched on.
When the engine is started, these warn-

ing lamps should go off.
If they remain on, before moving off,

refer to the explanations given for the

warning or indicator lamp concerned in

the tables below.

a message in the multifunction

screen,

a pictogram in the central instrument

panel screen and a message in the

multifunction screen,

a pictogram and a message in the

central instrument panel screen.

When the engine is running or the vehicle is

being driven, the illumination of one of the fol-

lowing warning lamps indicates a fault which

requires action on the part of the driver.

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Action / Observations

STOP

fi xed, alone

or associated

with another

warning lamp,

accompanied

by an audible

signal and a

message in

the screen.

Illumination of this warning

lamp is associated with a

serious braking system,

power steering, engine

lubrication or cooling

system malfunction or a

punctured tyre.

Stop as soon as it is safe to do so as there is a

risk that the engine will cut out while driving.
Park, switch off the ignition and contact a

PEUGEOT dealer or a qualifi ed workshop.

Braking

fi xed,

associated

with the STOP

warning lamp.

The braking system fl uid

level is too low.

You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by

PEUGEOT.
If the problem persists, have the system checked

by a PEUGEOT dealer or a qualifi ed workshop.

fi xed, associated

with the STOP

and ABS

warning lamp.

The electronic brake force

distribution (EBFD) system

has a fault.

You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a

qualifi ed workshop.

Maximum

coolant

temperature

fi xed with the

needle in the

red zone.

The temperature of the

cooling system is too high.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down before

topping up the level, if necessary.
If the problem persists, contact a PEUGEOT

dealer or a qualifi ed workshop.

Content .. 1 2 3 ..
