INSTRUMENTS and CONTROLS

Service

temporarily,

accompanied

by a message.

Minor faults have occurred

for which there is no

specifi c warning lamp.

Identify the fault by reading the message

displayed in the screen, such as:
-

doors, boot or bonnet open,

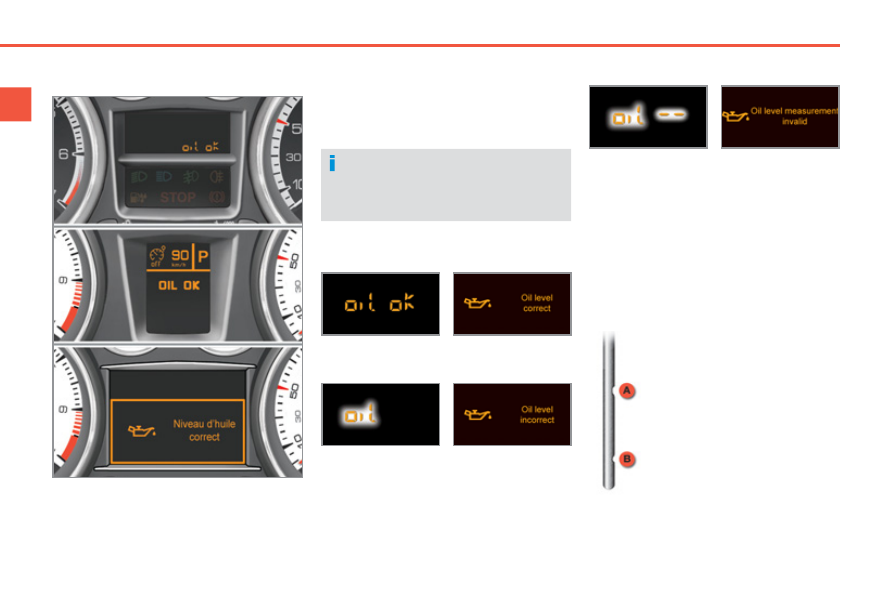

low engine oil level,

low screenwash/headlamp wash reservoir

level,

remote control battery fl at,

low tyre pressures,

saturation of the particle emission fi lter on

Diesel vehicles (see Checks - checking

levels / particle emissions fi lter).

For any other faults, contact a PEUGEOT dealer

or a qualifi ed workshop.

fi xed,

accompanied

by a message

and an audible

signal.

Major faults have occurred

for which there is no

specifi c warning lamp.

Identify the fault by reading the message shown

in the screen and you must then contact a

PEUGEOT dealer or a qualifi ed workshop.

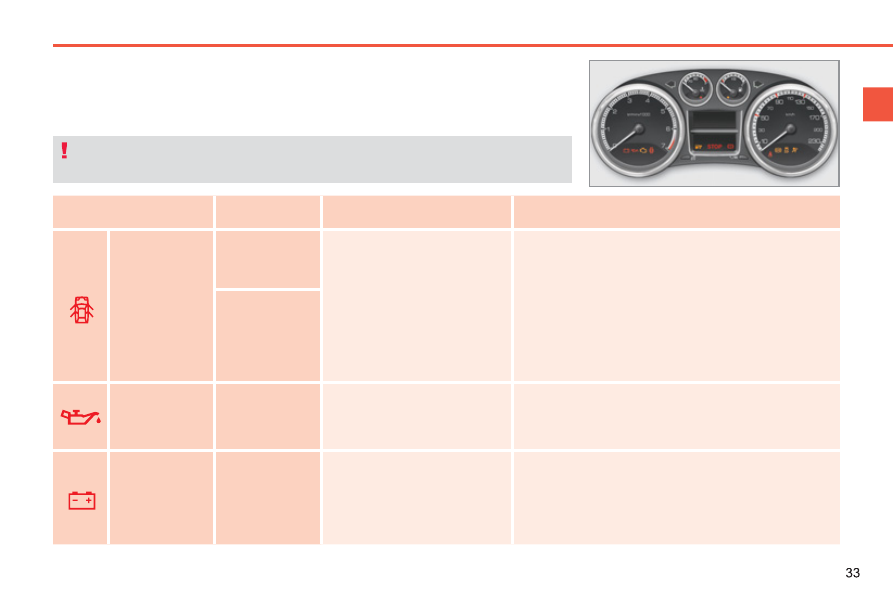

Warning lamp

is on

Cause

Action / Observations

Engine

autodiagnosis

system

fl ashing.

The engine management

system has a fault.

Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a

qualifi ed workshop.

fi xed.

The emission control

system has a fault.

The warning lamp should go off when the engine

is started.
If it does not go off, contact a PEUGEOT dealer

or qualifi ed workshop without delay.

INSTRUMENTS and CONTROLS

Low fuel level

fi xed with the

needle in the

red zone,

accompanied

by an audible

signal and a

message.

When it fi rst comes on there

remains approximately 6 litres

of fuel in the tank.
At this point, you begin to

use the fuel reserve.

Refuel as soon as possible to avoid running out

of fuel.
Until suffi cient fuel has been added, this warning

lamp will come on every time the ignition is

switched on, accompanied by an audible signal

and a message.
This audible signal and message are repeated

with increasing frequency as the fuel level drops

towards "0" .
Fuel tank capacity: approximately 60 litres .
Never continue to drive until you run out of fuel,

as this could damage the emission control and

injection systems.

Warning lamp

is on

Cause

Action / Observations

Anti-lock

Braking

System

(ABS)

fi xed.

The anti-lock braking

system has a fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact

a PEUGEOT dealer or a qualifi ed workshop

without delay.

Dynamic

stability

control (ESP/

ASR)

fl ashing.

The ESP/ASR regulation is

active.

The system optimises traction and improves the

directional stability of the vehicle.

fi xed.

Unless it has been

deactivated (button pressed

and its indicator lamp on) the

ESP/ASR system has a fault.

Have it checked by a PEUGEOT dealer or a

qualifi ed workshop.

Directional

headlamps

fl ashing.

The directional headlamps

system has a fault.

Have it checked by a PEUGEOT dealer or a

qualifi ed workshop.

Foot on the

brake pedal

fi xed.

You have forgotten to press

the brake pedal when

starting the engine, with

an electronic gear control

gearbox.

You have to press the brake pedal to start the

engine (gear lever in position N ).

INSTRUMENTS and CONTROLS

The other warning lamps appear only in this instrument panel.
The illumination of certain warning lamps may be accompanied by an audible sig-

nal; an additional message is still displayed in the multifunction screen, to help you

identify the fault.

Warning lamp

is on

Cause

Action / Observations

Door(s) open

fi xed if the

speed is

below 6 mph

(10 km/h).

A door or the boot is still

open.

Close the door or boot.

fi xed and

accompanied

by an audible

signal if the

speed is

above 6 mph

(10 km/h).

Engine oil

pressure

fi xed.

There is a fault with the

engine lubrication system.

You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a

PEUGEOT dealer or a qualifi ed workshop.

Battery

charge *

fi xed.

The battery charging circuit

has a fault (dirty or loose

terminals, slack or cut

alternator belt, ...).

The warning lamp should go off when the engine

is started.
If it does not go off, contact a PEUGEOT dealer

or a qualifi ed workshop.

If they are associated with the STOP warning lamp, you must stop the vehicle

as soon as it is safe to do so!

* According to destination country.

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Action / Observations

Water in

Diesel

fi xed.

The Diesel fuel fi lter

contains water.

Risk of damage to the injection system on Diesel

engines.
Contact a PEUGEOT dealer or a qualifi ed

workshop without delay.

Airbags

fi xed.

One of the airbag or seat

belt pretensioner systems

has a fault.

Have it checked by a PEUGEOT dealer or a

qualifi ed workshop.

Seat belt not

fastened /

unfastened

fi xed then

fl ashing

accompanied

by an

increasing

audible signal.

The driver and/or the front

passenger has not fastened

or has unfastened their seat

belt.
At least one of the rear

passengers has unfastened

their seat belt (only on the

2nd row rear seats on SW

individual rear seats).

Pull the strap then insert the tongue in the

buckle.

Passenger's

front airbag

fl ashing in the

instrument

panel and/or

in the seat

belt belt and

passenger's

front airbag

warning lamps

display.

The passenger's front

airbag has a fault.

The passenger's front airbag may not be

deployed in the event of a serious impact.
Have it checked by a PEUGEOT dealer or a

qualifi ed workshop.

INSTRUMENTS and CONTROLS

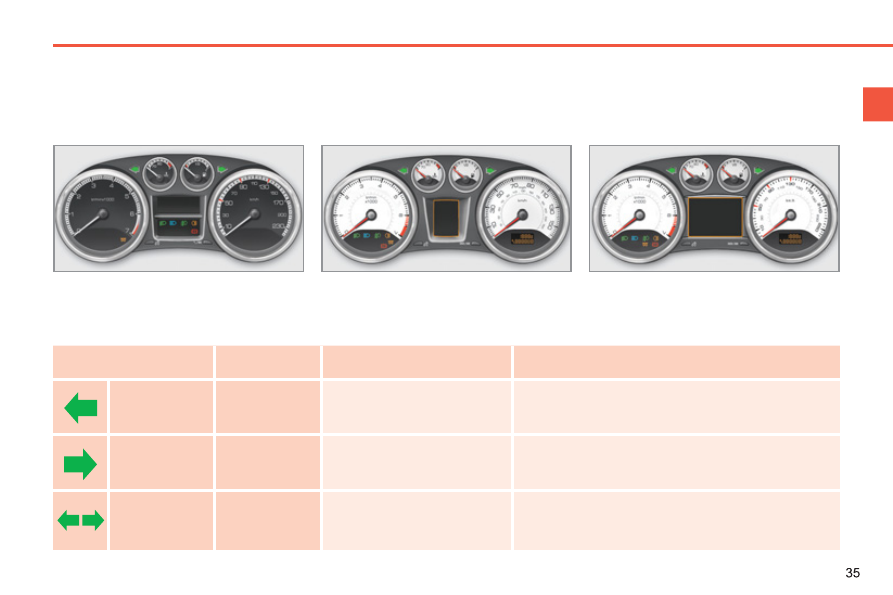

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.
It may be accompanied by an audible signal.
Depending on your version of instrument panel, the illumination of the lamp is accompanied by:

Warning lamp

is on

Cause

Action / Observations

Left-hand

direction

indicato r

fl ashing with

buzzer.

The lighting stalk is pushed

down.

Right-hand

direction

indicator

fl ashing with

buzzer.

The lighting stalk is pushed up.

Hazard

warning

lamps

fl ashing with

audible signal.

The hazard warning

lamps switch, located on

the dashboard, has been

operated.

The left-hand and right-hand direction indicators

and their associated indicator lamps fl ash

simultaneously.

a message in the multi-function

screen,

a pictogram in the central instrument

panel screen and a message in the

multifunction screen,

a pictogram and a message in the

central instrument panel screen.

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Action / Observations

Front

foglamps

fi xed.

The front foglamps are

switched on.

Turn the ring on the stalk rearwards twice to

switch off the front foglamps.

Rear

foglamps

fi xed.

The rear foglamps are

switched on.

Turn the ring on the stalk rearwards to switch off

the rear foglamps.

Diesel engine

pre-heating

fi xed.

The ignition switch is at the

2nd position (ignition on).

Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is

determined by the climatic conditions.

Parking brake

fi xed.

The parking brake is applied

or not properly released.

Release the parking brake to switch off the

warning lamp, keeping your foot on the brake

pedal.
Observe the safety recommendations.
For further information on the parking brake, refer

to the "Driving" section.

Dipped beam

headlamps

fi xed.

The lighting stalk is in the

"Dipped beam headlamps"

position or in the "AUTO"

position in conditions of low

light.

Main beam

headlamps

fi xed.

The lighting stalk is pulled

towards you.

Pull the stalk again to return to dipped beam

headlamps.

INSTRUMENTS and CONTROLS

Stop & Start

fi xed.

When the vehicle stops (red

lights, traffi c jams, ...) the

Stop & Start system has

put the engine into STOP

mode.

The warning lamp goes off and the engine

restarts automatically in START mode, as soon

as you want to move off.

fl ashes for a

few seconds,

then goes off.

STOP mode is temporarily

unavailable.
or
START mode is invoked

automatically.

Refer to "Driving - § Stop & Start" for special

cases with STOP mode and START mode.

Warning lamp

is on

Cause

Action / Observations

Passenger's

front airbag

fi xed on the

seat belt and

passenger's

front airbag

warning lamps

display.

The control switch, located

on the passenger's side of

the dashboard, has been

placed in the "ON" position.
The passenger's front

airbag is activated.
In this case, do not install a

"rear facing" child seat.

While you do not have a rear-facing child

seat fi tted to the front passenger seat, it is

recommended that the passenger's front airbag

be activated.
On the other hand, before fi tting a rear-facing

child seat, you must turn the control switch to the

"OFF" position.

INSTRUMENTS and CONTROLS

Warning lamp

is on

Cause

Action / Observations

Deactivation warning lamps
If one of the following warning lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This may be accompanied by an audible signal.
Depending on your version of instrument panel, illumination of the warning lamp is also accompanied by:

Passenger's

front airbag

fi xed in the

instrument

panel and/or

in the seat

belt and front

passenger's

airbag warning

lamps display.

The control switch, located on the

passenger's end of the dashboard, is

set to the "OFF" position.
The passenger's front airbag is

deactivated.
You can install a rear-facing child seat

on the front passenger seat.

To activate the front passenger's

airbag, set the switch to the "ON"

position; in this case, it is not possible

to fi t a child seat in the rear-facing

position on this seat.

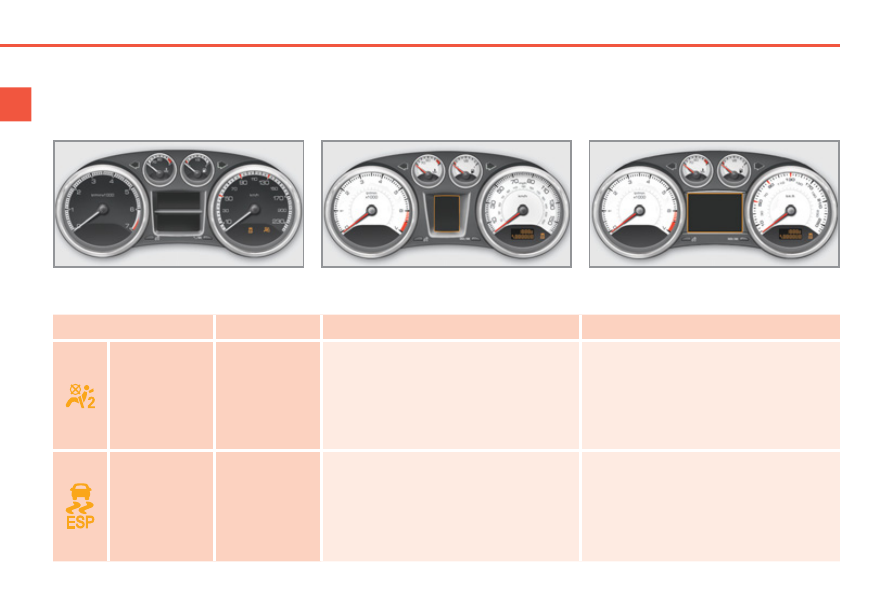

ESP/ASR

fi xed.

The button, located in the middle of

the dashboard, is pressed. Its indicator

lamp is on.
The ESP/ASR is deactivated. The

following functions are deactivated:
-

ESP (dynamic stability control),

ASR (wheel anti-slip regulation).

Press the button again to manually reactivate

these functions. Its indicator lamp goes off.
From approximately 30 mph (50 km/h), these

systems are reactivated automatically (except

for the 1.6 litre THP 200 hp petrol engine).
These function are activated automatically

when the vehicle is started.

a message in the multifunction

screen,

a pictogram in the central instrument

panel screen and a message in the

multifunction screen,

a pictogram and a message in the

central instrument panel screen.

INSTRUMENTS and CONTROLS

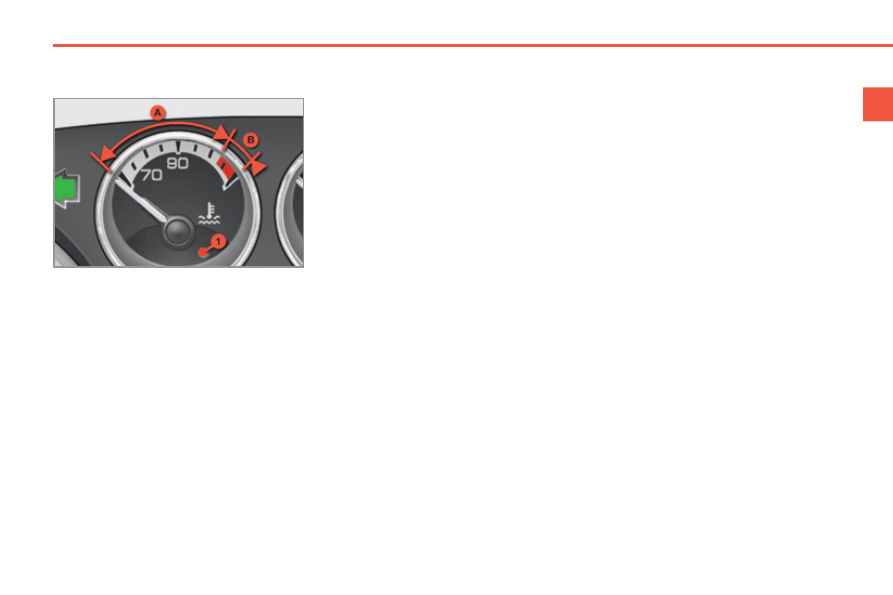

Coolant temperature indicator

With the engine running, when the nee-

dle is:
-

in zone A , the temperature is

correct,

in zone B , the temperature is

too high; the max temperature

warning lamp 1 and the central

STOP warning lamp come on,

accompanied by an audible signal

and a message in the screen.

You must stop as soon as it is safe

to do so.
Wait a few minutes before switching off

the engine.
Contact a PEUGEOT dealer or a quali-

fi ed workshop.

After driving for a few minutes, the tem-

perature and pressure in the cooling

system increase.
To top up the level:
) wait for the engine to cool,
) unscrew the cap by two turns to

allow the pressure to drop,

) when the pressure has dropped,

remove the cap,

) top up the level to the "MAX" mark.

INSTRUMENTS and CONTROLS

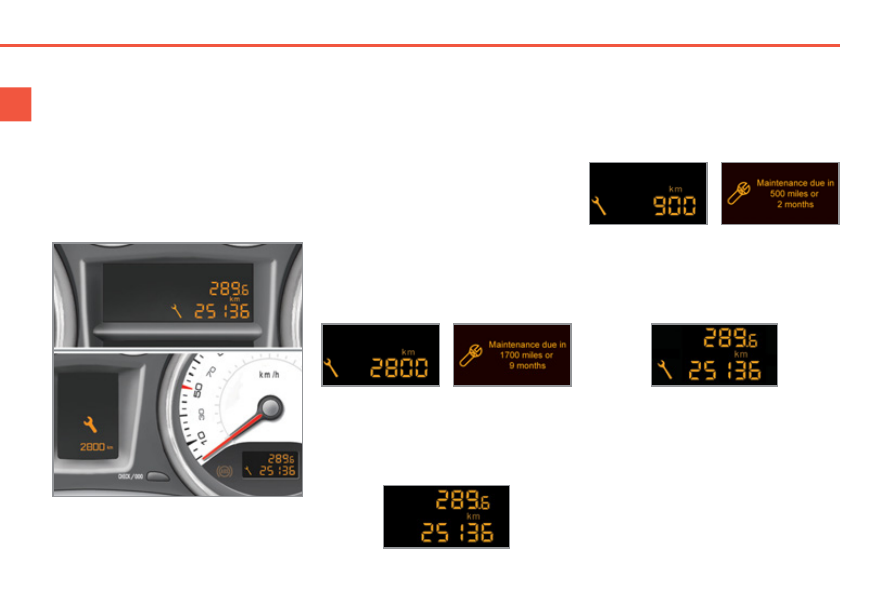

Service indicator

System which informs the driver when

the next service is due, in accordance

with the manufacturer's servicing

schedule.
The point at which the service is due is

calculated from the last indicator zero

reset. It is determined by two param-

eters:
-

the distance travelled,

the time elapsed since the last

service.

Between 600 miles (1 000 km) and

1 800 miles (3 000 km) remain before

the next service is due
For 5 seconds after the ignition is switched

on, the spanner symbolising the service

operations comes on. The distance re-

corder display line indicates the distance

remaining before the next service is due.
Example: 1 700 miles (2 800 km) re-

main before the next service is due.
For 5 seconds after the ignition is

switched on, the screen indicates:

5 seconds after the ignition is switched

on, the spanner goes off ; the distance

recorder resumes its normal operation.

The screen then indicates the total and

trip distances.

Less than 600 miles (1 000 km)

remain before the next service is due
Example: 560 miles (900 km) remain

before the next service is due.
For 5 seconds after the ignition is

switched on, the screen indicates:

5 seconds after the ignition is switched

on, the distance recorder resumes its

normal operation.

The spanner re-

mains on to indicate that a service

must be carried out soon.

More than 1 800 miles (3 000 km)

remain before the next service is due
When the ignition is switched on, no ser-

vice information appears in the screen.

INSTRUMENTS and CONTROLS

Following this operation, if you wish

to disconnect the battery, lock the

vehicle and wait at least fi ve min-

utes for the zero reset to be reg-

istered.

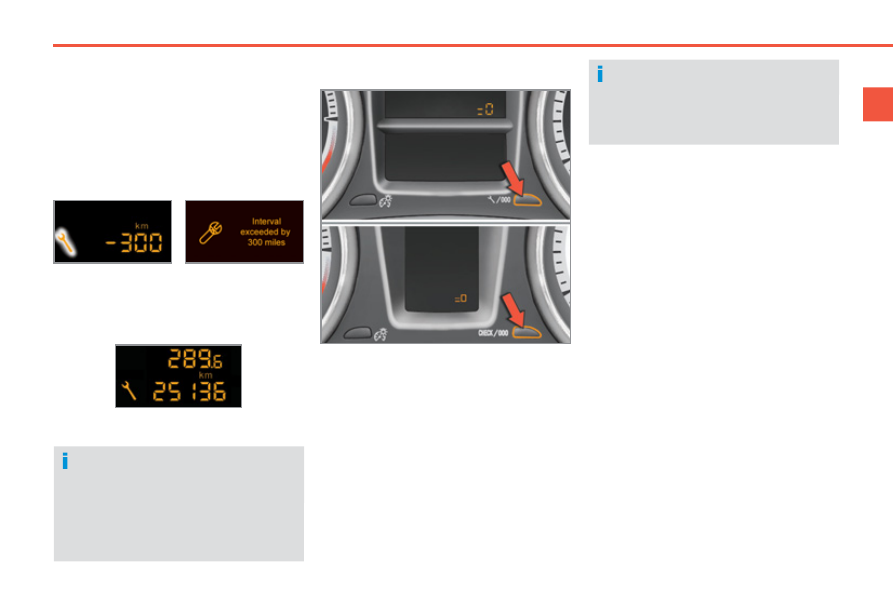

Service indicator zero reset

After each service, the service indicator

must be reset to zero.
The procedure for resetting to zero is as

follows:
) switch off the ignition,
) press and hold the ".../000" button

on the right of the instrument panel,

) switch on the ignition; the

distance recorder display begins a

countdown,

) when the instrument panel central

screen indicates "=0" , release the

button; the spanner disappears

from the screen.

The distance remaining may be

weighted by the time factor, de-

pending on the driving conditions.
Therefore, the spanner may also

come on if you have exceeded the

two year service interval.

Service overdue
For 5 seconds after the ignition is

switched on,

the spanner fl ashes to

indicate that the service must be carried

out as soon as possible.
Example: the service is overdue by 186 miles

(300 km).
For 5 seconds after the ignition is

switched on, the screen indicates:

5 seconds after the ignition is switched

on, the distance recorder resumes its

normal operation.

The spanner re-

mains on .

Retrieving the service information
You can access the service information

at any time.
This information appears, depending

on version, when running through the

manual check procedure.
) Briefl y press the ".../000" button on

the right of the instrument panel.

The service information is

displayed for a few seconds on the

instrument panel central screen,

then disappears.

INSTRUMENTS and CONTROLS

The level shown will only be correct

if the vehicle is on level ground and

the engine has been off for more

than 30 minutes.

Engine oil level indicator

This information is displayed for a few

seconds when the ignition is switched

on, after the service information.

Oil level correct

Oil level low

Oil level indicator fault

Dipstick

This is indicated by the fl ashing of "OIL" ,

linked with the service warning lamp, ac-

companied by an audible signal and a

message in the multifunction screen.
If the low oil level is confi rmed by a

check using the dipstick, the level must

be topped up to prevent damage to the

engine.

This is indicated by the fl ashing of "OIL--" .

Contact a PEUGEOT dealer or a qualifi ed

workshop.

Refer to the "Checks" section to locate

the dipstick and the oil fi ller cap on your

engine.

There are 2 marks on the

dipstick:
-

A = max; never exceed

this level (risk of

damage to the engine),

B = min; top up the level

via the oil fi ller cap,

using the grade of oil

suited to your engine.

INSTRUMENTS and CONTROLS

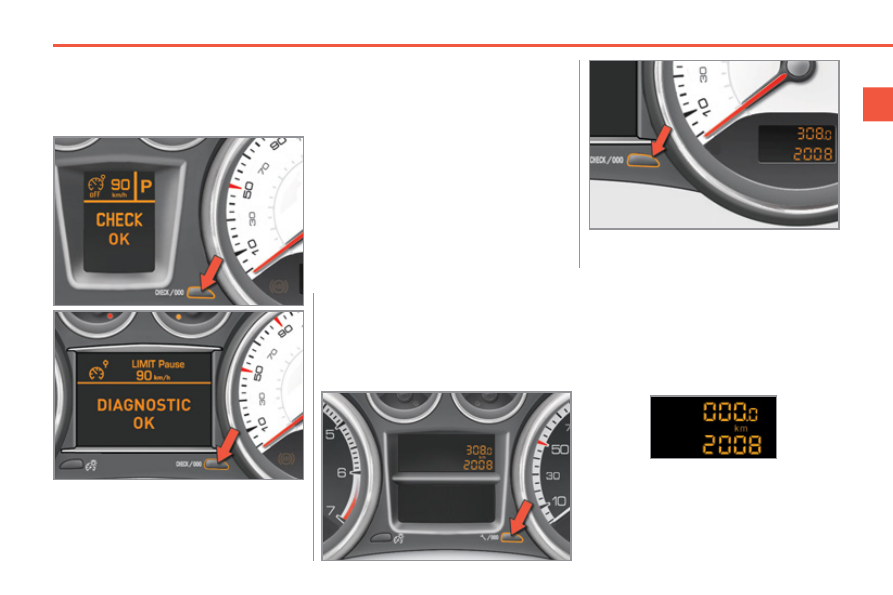

Distance recorders

The total and trip distances are dis-

played for thirty seconds when the ig-

nition is switched off, when the driver's

door is opened and when the vehicle is

locked or unlocked.

Total distance recorder

Trip distance recorder

) With the ignition on, press and hold

this button until zeros appear.

Manual Check

This function allows you to check the status

of the vehicle (reminder of the active alert

warnings) and the service information.

) With the engine running, to start

a manual check, briefl y press

the "CHECK/000" button on the

instrument panel.

If no faults have been detected,

"CHECK OK" appears in the instru-

ment panel central screen.

If a "major" fault has been detected, only

the warning lamps concerned appear

in the instrument panel central screen.

Have it checked by a PEUGEOT dealer

or a qualifi ed workshop.

If a "minor" fault has been detected, the warn-

ing lamp concerned then "CHECK OK" ap-

pear in the instrument panel central screen.

Contact a PEUGEOT or a qualifi ed work-

shop.

Measures a distance travelled since it

was reset to zero by the driver.

Measures the total distance travelled by

the vehicle since its fi rst registration.

INSTRUMENTS and CONTROLS

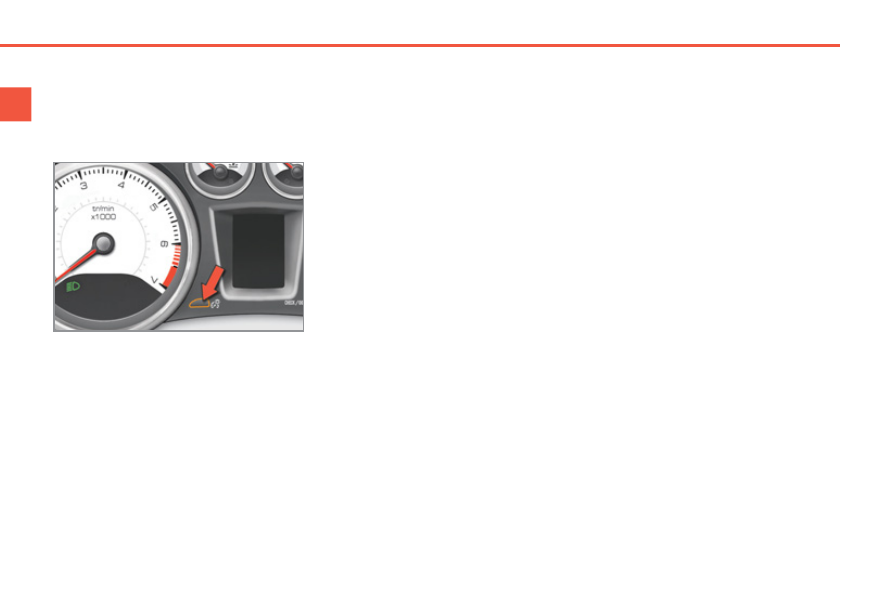

Lighting dimmer

Permits manual adjustment of the bright-

ness of the instruments and controls to

suit the ambient light level. Only operates

when the vehicle lighting is on, with the

exception of the daytime running lamps.

Activation
) Press the button to change the

brightness of the instruments and

controls.

) When the lighting reaches the

minimum setting, release the

button, then press again to

increase it.

or
) When the lighting reaches the

maximum setting, release the

button, then press again to reduce

it.

) When the lighting reaches the level

of brightness required, release the

button.

Deactivation
When the vehicle lighting is off, or in

day mode on vehicles fi tted with day-

time running lamps, pressing the button

does not have any effect.

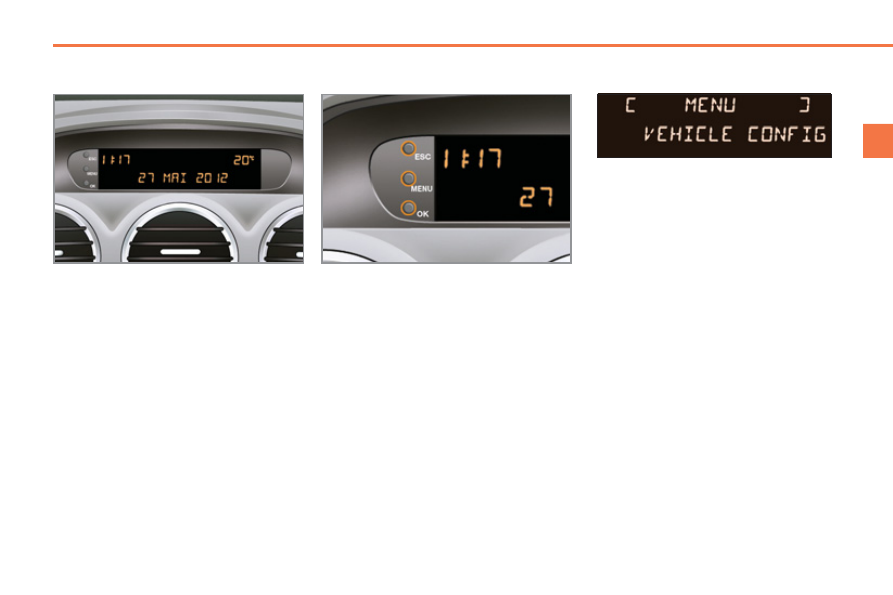

MULTIFUNCTION SCREENS

Displays in the screen

Depending on the context, displays:
   -  time,
  -  date,
  -   ambient temperature with air condi-

tioning (the value if there is a risk of

ice),

- trip

computer,

- alert

messages,

- parameter settings menus for the

screen and vehicle equipment.

MONOCHROME SCREEN A (WITHOUT

PEUGEOT CONNECT SOUND (RD5))

Controls

Main menu

Three buttons are used to control the

the screen:
-

"ESC" to abandon the operation in

progress,

"MENU" to scroll through the menus

or sub-menus,

"OK" to select the menu or sub-

menu required.

) Press the "MENU" button to scroll

through the various menus of the

main menu :

   -  vehicle confi guration,
  -  options,
  -  display settings,
  -  languages,
  -  units.

) Press the "OK" button to select the

menu required.

MULTIFUNCTION SCREENS

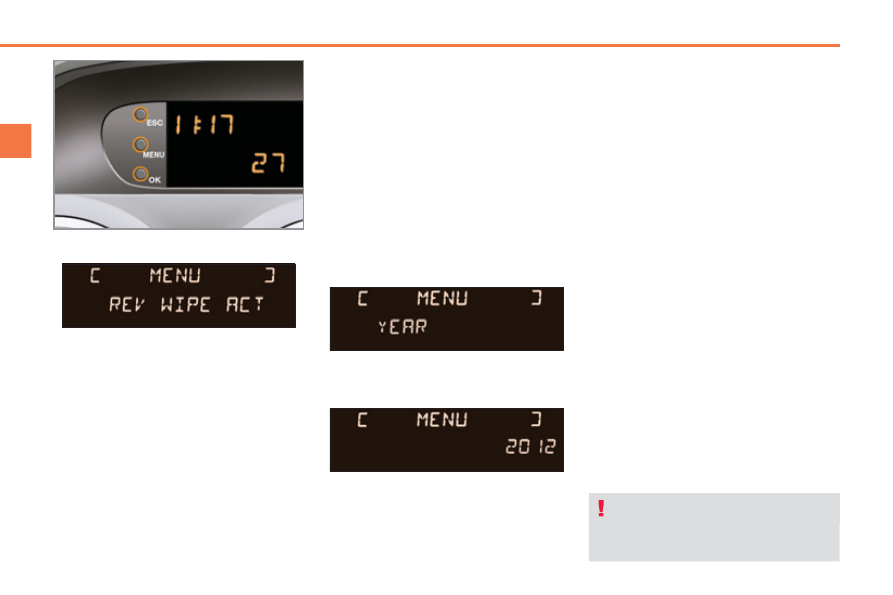

Vehicle confi guration

Options
Once the "Options" menu has been se-

lected, you can start diagnostics on the

state of the vehicle (current alerts).

Languages
Once the "Languages" menu has been

selected, you can change the language

used by the display (Français, Italiano,

Nederlands, Portugues, Portugues-Brasil,

Deutsch, English, Espanol).

Display settings
Once the "Display settings" menu has

been selected, you can gain access to

the following settings:
   -  year,
  -  month,
  -  day,
  -  hour,
  -  minutes,
  -

12 or 24 hour mode.

Units
Once the "Units" menu has been se-

lected, you can change the units of the

following parameters:
-

temperature (°C or °F),

- fuel consumption (l/100 km, mpg or

km/l).

) Once you have selected a setting,

press the "OK" button to change its

value.

) Wait for approximately ten sec-

onds without any action to allow

the changed data to be recorded or

press the "ESC" button to cancel.

The screen then returns to the normal

display.

Once the "Vehicle confi guration" menu

has been selected, you can activate or

deactivate the following equipment:
- wiper linked with reverse gear (see

"Visibility"),

daytime running lamps (see "Visibility"),

rear parking sensors (see "Driving").

For safety reasons, confi guration

of the multifunction screen by the

driver must only be done when sta-

tionary.

Peugeot 308 SW BL (2013 year). Instruction - part 3
