Peugeot 308 SW BL (2013 year). Instruction - part 1

This personal space offers advice and other useful information for

the care and maintenance of your vehicle.

You can find your user guide on the PEUGEOT website, under the

heading "Personal space".

Referring to the user guide on-line also gives you access to the

latest information available, easily identified by the bookmarks,

associated with this pictogram:

If the heading "Personal space" is not available on the public website

for your country, you can find your user guide at the following

address:

http://public.servicebox.peugeot.com

the link in "Private customer access",

the language,

the model,

the edition date appropriate for the date of registration of your vehicle.

Please note the following point:

The fitting of electrical equipment or accessories which are

not recommended by PEUGEOT may result in a failure of your

vehicle's electronic system. Please note this specific warning.

It is advisable to contact a PEUGEOT dealer to be shown the

recommended equipment and accessories.

Select:

You will find your user guide, presented in the same way as the paper version.

Thank you for choosing a 308, symbol

of confi dence, passion and inspiration.

Page reference:
this symbol invites you to refer to

the pages which provide details of

the function.

Key

Protection of the environment:
this symbol accompanies advice

relating to protection of the envi-

ronment.

Information:
this symbol draws your attention

to additional information for better

use of your vehicle.

Warning:
this symbol marks warnings which

it is essential to observe for your

own safety, for the safety of others

or to avoid any risk of damaging

your vehicle.

Your vehicle is fi tted with only some of the

equipment described in this document,

depending on its trim level, version and

the specifi cation for the country in which

it was sold.

WELCOME

This handbook has been designed to

enable you to make the most of your

308 saloon or 308 SW.

On the fi rst few pages, you will fi nd a

detailed summary, followed by a quick

reference guide intended to make it

easier for you to become familiar with

your vehicle.

All of the details specifi c to your 308,

comfort, safety, driving, are then pre-

sented in this handbook, to increase

your appreciation of the vehicle and

make the most of it.

308 saloon

308 SW with bench rear

seat

308 SW with individual rear

seats

At the end of the handbook, a visual

search enables you to identify the spe-

cial features in relation to the outline

illustration of your vehicle, saloon or SW.

Key

This key will enable you to distinguish

the special features of your vehicle:

CONTENTS

Instrument panels

Warning and indicator lamps

Indicators 39
Instrument panel buttons

Ventilation 61
Heating 63
Manual air conditioning

Rear screen demist - defrost

Dual-zone digital air conditioning 66
Front seats

Rear seats

Seat modularity

Mirrors 80
Steering wheel adjustment

COMFORT 61

Remote control key

Alarm 87
Electric windows

Doors 91
Boot 94
Panoramic sunroof

Fuel tank

Misfuel prevention (Diesel)

ACCESS 83

Lighting controls

LED lamps

101

Daytime running lamps

101

Headlamp adjustment

103

Directional lighting

104

Wiper controls

105

Automatic rain sensitive wipers

107

Courtesy lamps

108

Interior mood lighting

109

Boot lamp

109

VISIBILITY 99

109

Child seats

125

ISOFIX child seats

131

Child lock

136

CHILD

SAFETY 125

136

FAMILIARISATION 4

INSTRUMENTS and

CONTROLS 25

Screens without audio equipment

Screens with audio equipment

Retractable colour screen

(Peugeot Connect Navigation (RT6)) 52

Retractable colour screen (Peugeot Connect

Media Navigation (NG4 3D)) 54

Trip computer

MULTIFUNCTION

SCREENS 45

Interior fi ttings

110

Front armrest

113

Boot fi ttings

116

FITTINGS 110

124

ECO-DRIVING 23

CONTENTS

Direction indicators

137

Hazard warning lamps

137

Horn 137
Tyre under-infl ation detection

138

Emergency or assistance call

139

Braking assistance systems

139

Trajectory control systems

140

Front seat belts

141

Airbags 146

SAFETY 137

149

Parking brake

150

Manual gearbox

150

Gear shift indicator

151

Hill start assist

152

6-speed electronic

gear control gearbox

153

Automatic gearbox

157

Stop & Start

160

Speed limiter

163

Cruise control

165

Parking sensors

167

DRIVING 150

168

Bonnet 170
Running out of fuel (Diesel)

171

Petrol engines

172

Diesel engines

173

Checking levels

174

Checks 176

CHECKS 169

177

Temporary puncture repair kit

178

Changing a wheel

187

Changing a bulb

194

Changing a fuse

201

Battery 207
Energy economy mode

210

Changing a wiper blade

211

Towing the vehicle

211

Towing a trailer

214

Very cold climate screen

215

Fitting roof bars

216

Accessories 217

PRACTICAL

INFORMATION 178 Î 218

Petrol engines

219

Petrol weights

222

Diesel engines

228

Diesel weights

231

Dimensions 240
Identifi cation markings

241

TECHNICAL

DATA 219

242

AUDIO EQUIPMENT

and TELEMATICS

243 Î 364

VISUAL SEARCH

365 Î 371

ALPHABETICAL

INDEX 372

376

Emergency or assistance

243

Peugeot Connect Media

Navigation (NG4 3D)

247

Peugeot Connect Navigation (RT6) 291
Peugeot Connect Sound (RD5) 345

FAMILIARISATION

EXTERIOR

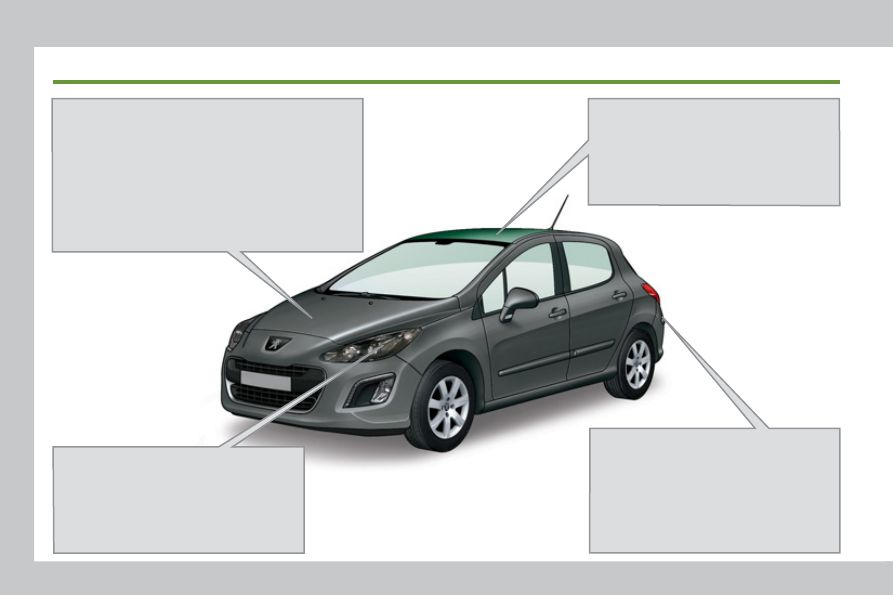

Stop & Start system
This system puts the engine temporarily into

standby during stops in the traffi c (red lights,

traffi c jams, etc....). The engine restarts auto-

matically as soon as you want to move off.

The Stop & Start system reduces fuel con-

sumption, exhaust emissions and the noise

level when stationary.
160

Directional lighting
This lighting automatically provides

additional visibility when cornering.
104

Panoramic sunroof
This roof provides incomparable vis-

ibility and light in the passenger com-

partment.
95

Temporary puncture repair kit
This kit is a complete system, con-

sisting of a compressor and a sealant

cartridge, for the temporary repair of

a tyre.
178

FAMILIARISATION

EXTERIOR

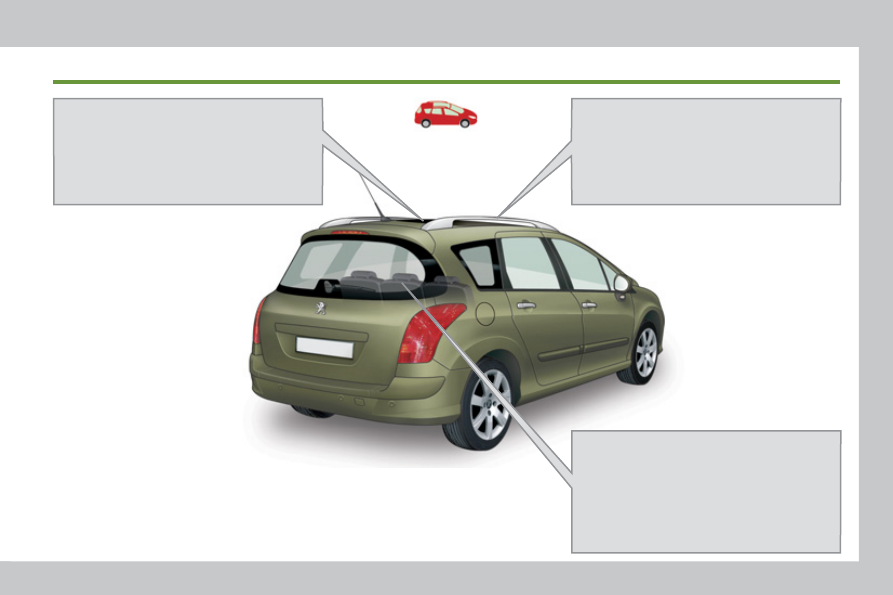

Roof bars
Transverse bars fi tted on longitudinal

bars, these allow you to load long and

bulky objects on the roof.
216

Panoramic sunroof
This roof provides incomparable visibility

and light in the passenger compartment.
95

Seat modularity
The individual rear seats of the 2nd and

3rd rows can be arranged in various

ways to permit different layout and load-

ing confi gurations.
78

FAMILIARISATION

ACCESS

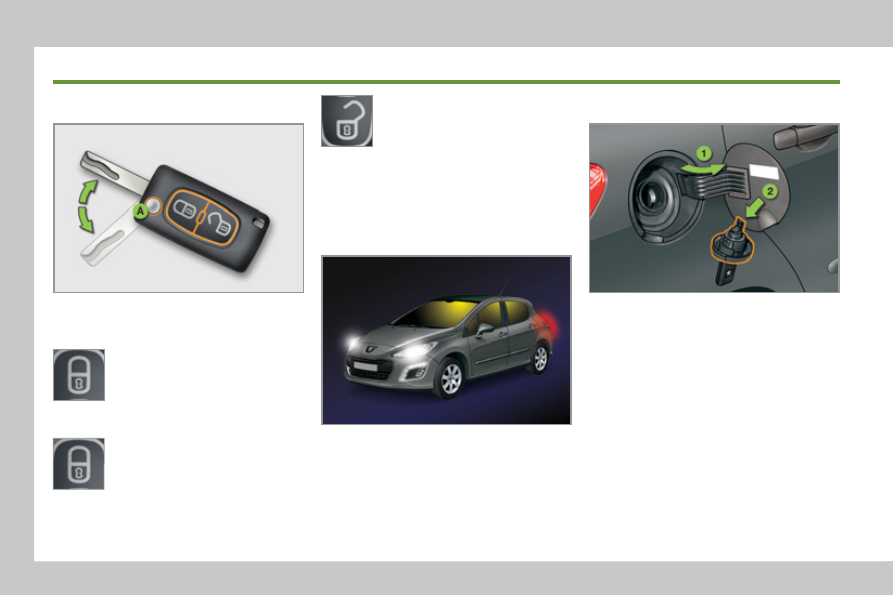

Remote control key

A. Unfolding / Folding the key

(fi rst press this button).

Normal locking
(press once; fi xed lighting of

the direction indicators).

Fuel tank

1. Opening the fuel fi ller fl ap.
2. Opening and hooking the fuel fi ller

cap.

Unlocking of the vehicle
(rapid fl ashing of the direction

indicators).

In the same way, the passenger com-

partment lighting, such as the courtesy

lamps, the front door sill lamps and the

footwell lamps, comes on.

Deadlocking of the vehicle
(press twice in succession;

fi xed lighting of the direction

indicators).

109

Capacity of the tank: approximately

60 litres.

103

When a sensor detects a low level of light,

the remote switching on of the dipped

beam headlamps and sidelamps makes

your approach to the vehicle easier.

FAMILIARISATION

ACCESS

Panoramic sunroof

Boot

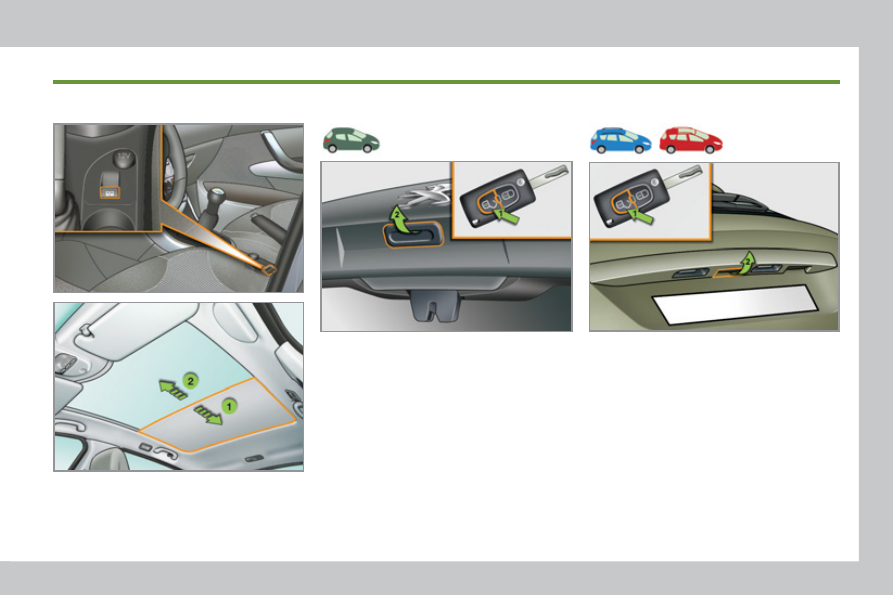

1. Opening the blind.
2. Closing the blind.

1. Unlocking the vehicle.
2. Opening the boot.

FAMILIARISATION

INTERIOR

Interior mood lighting
This dimmed lighting of the passenger

compartment improves visibility inside

the vehicle when the light is poor.
109

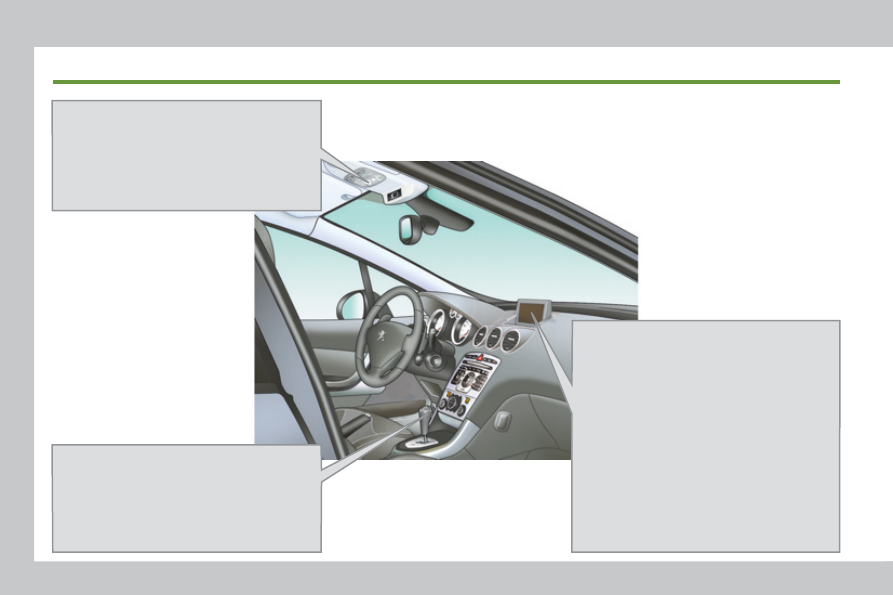

6-speed electronic gear control

gearbox
This system offers driving combining a

fully automatic mode and a a manual

mode.
153

Audio and communication systems
This equipment benefi ts from the latest

technology: MP3 compatible Peugeot

Connect Sound (RD5), Bluetooth,

Peugeot Connect Navigation (RT6) or

Peugeot Connect Media Navigation

(NG4 3D) with 16/9 retractable colour

screen, JBL audio system, auxiliary

sockets.
  Peugeot Connect Sound (RD5)
     345
  Peugeot Connect Navigation (RT6)
     291
  Peugeot Connect Media Navigation (NG4 3D)
     247

FAMILIARISATION

INSTRUMENTS AND CONTROLS

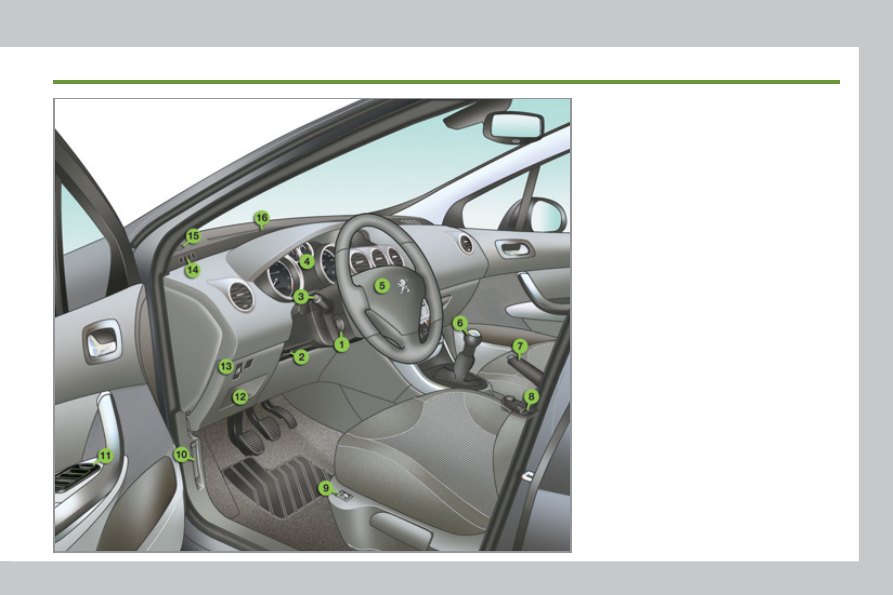

1. Cruise control / speed limiter

switches.

2. Steering wheel adjustment control.

3. Lighting and direction indicator

control stalk.

4. Instrument panel.

5. Driver's airbag.

Horn.

6. Gear lever.

7. Parking brake lever.

8. Panoramic sunroof blind control.

9. Heated seat control.

10. Bonnet release.

11. Door mirror controls.

Electric window controls.

12. Fusebox.

13. Manual headlamp height

adjustment.

Stop & Start button.

14. Front side window demisting vent.

15. Speaker (tweeter).

16. Windscreen demisting vent.

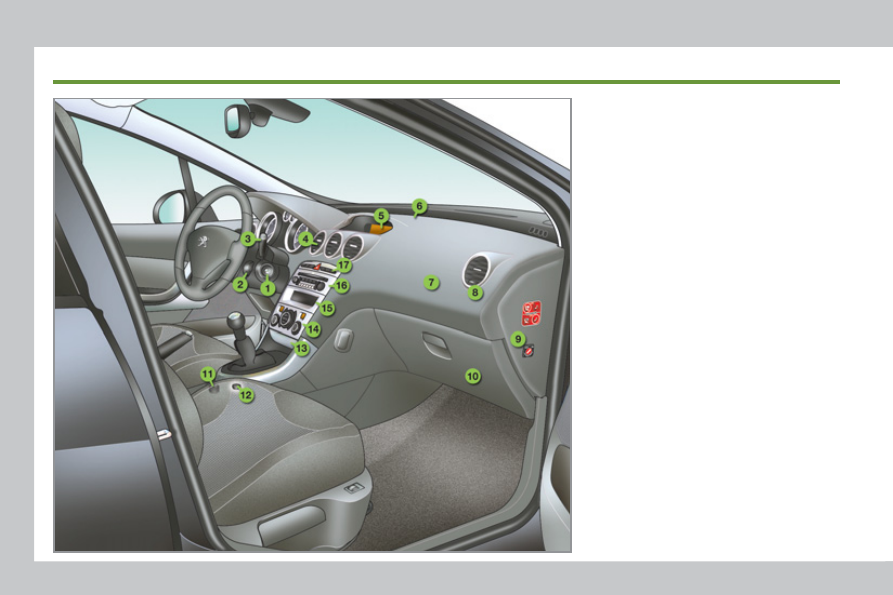

FAMILIARISATION

INSTRUMENTS AND CONTROLS

1. Steering lock and ignition.
2. Audio and telematics system

steering mounted control.

3. Wiper / screenwash / trip computer

control stalk.

  4.   Central adjustable air vents.
  5.  Multifunction screen.
  6.  Sunshine sensor.
  7.  Passenger's airbag.
  8.   Side adjustable air vent.
  9.   Passenger's airbag deactivation.
  10.  Glove box / Audio/video sockets.
  11.  Storage compartment or instrument

panel navigator associated with

Peugeot Connect Media Navigation

(NG4 3D).

  12.  12 V accessory socket.
  13.  Front  ashtray.
  14.  Heating / air conditioning controls.
  15.  Open  storage.
  16.  Audio and telematics system.
  17.  Emergency call button.
Alarm

button.

Central locking button.

Hazard warning lamps button.

Dynamic stability control (ESP/

ASR) button.

Parking sensors button.

PEUGEOT services button

FAMILIARISATION

SITTING COMFORTABLY

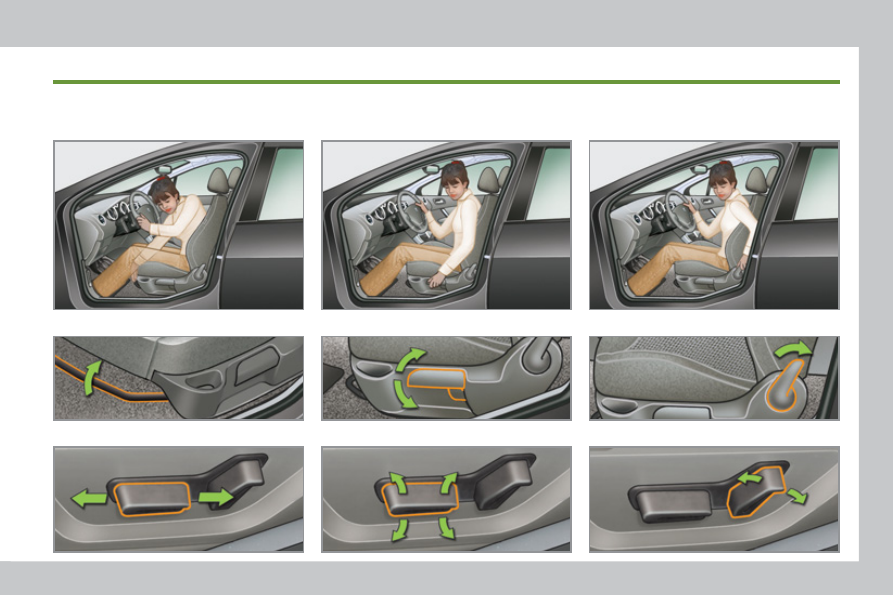

Driver's seat

Manual adjustment

Electric adjustment

Forwards-backwards

Seat back angle

Height

FAMILIARISATION

Steering wheel adjustment

   1.   Unlocking the control.
  2.   Adjustment for height and reach.
  3.   Locking the control.

SITTING COMFORTABLY

Front seats

Other functions available...
Table position for the front passen-

ger seat (SW).
Storing driving positions (driver's

electric seat).
Heated seats.

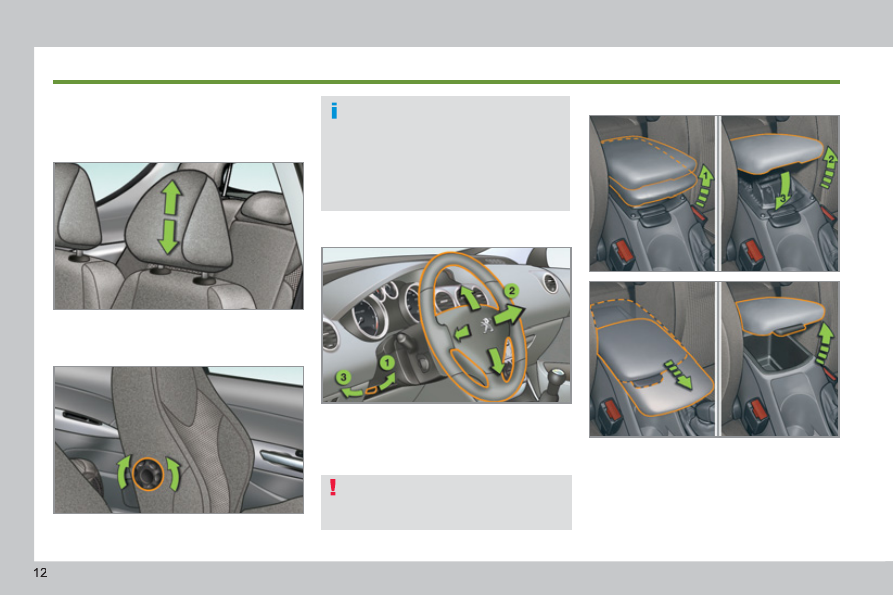

Head restraint height

Lumbar

Front armrest

113

For your comfort, the height and longi-

tudinal position of the front armrest can

be adjusted.
It also has a storage compartment.

As a safety precaution, these op-

erations must only be carried out

when stationary.

FAMILIARISATION

SITTING COMFORTABLY

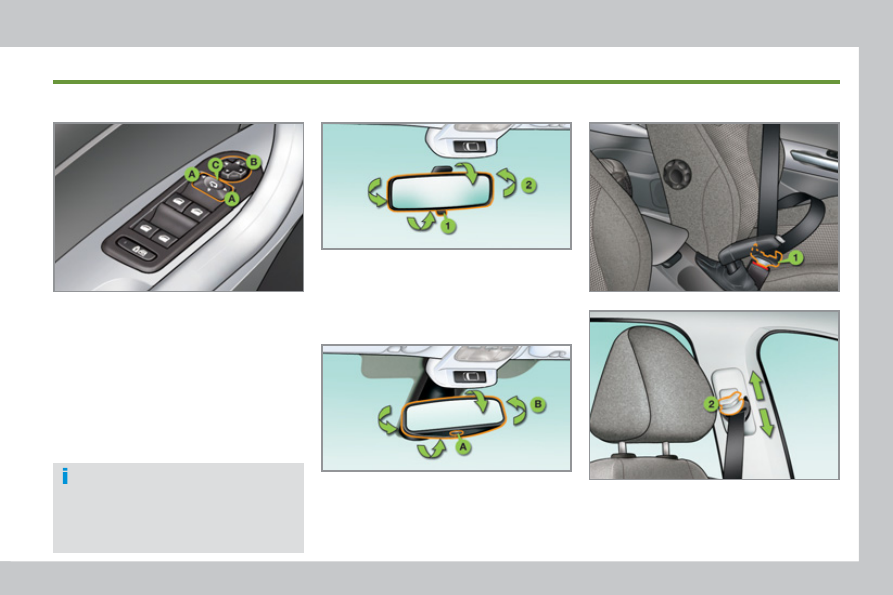

Door mirrors

Adjustment

Other functions available...
Folding / Unfolding.
Automatic tilting of the mirror in re-

verse gear for parking.

Rear view mirror

Manual day/night model

Front seat belts

1. Fastening the buckle.
2. Height adjustment.

A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the

mirror in the four directions.

C. De-selection of the mirror.

141

1. Selection of the "day" position of

the mirror.

2. Adjusting the mirror.

  Automatic day/night model
   A.  Light sensor.
  B.   Adjusting the mirror.

FAMILIARISATION

SEEING CLEARLY

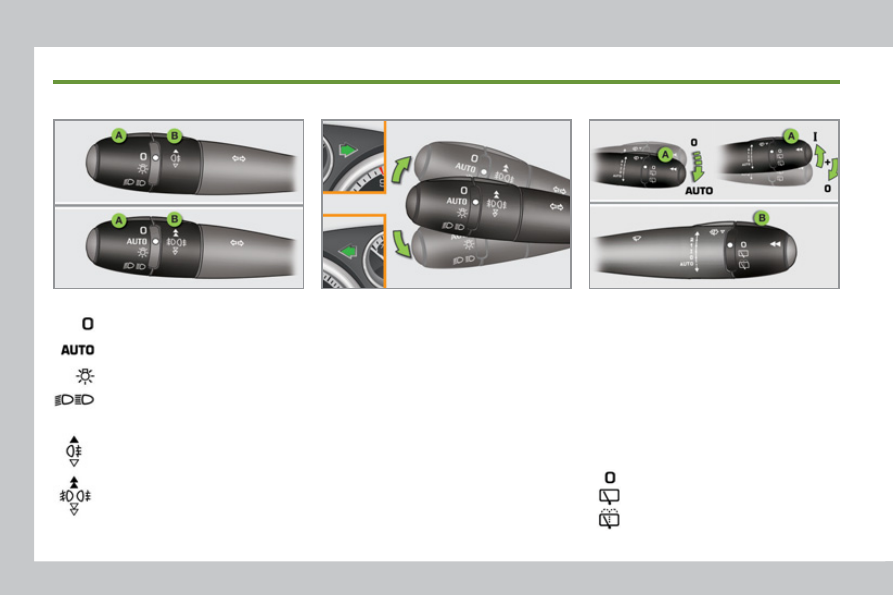

Lighting

Ring A

Ring B

Raise or lower the lighting stalk passing

the point of resistance; the corresponding

direction indicators will fl ash for as long

as the stalk remains in this position.

Direction indicators

Switching on "AUTO"
) Press the stalk down and release it.

Ring B: rear wiper

106

Lighting off.

Automatic illumination of head-

lamps.
Sidelamps.

Dipped / main beam headlamps.

Rear foglamp.

Front and rear foglamps.

Park.
Intermittent wipe.

Wash-wipe.

Stalk A: windscreen wipers
105

Wipers

Switching off "AUTO"
) Push the stalk up and return it to

position "0" .

107

137

"Motorway" function
Press the lighting stalk up or down once,

without passing the point of resistance;

the corresponding direction indicators

will fl ash three times.
This function can be used at any speed,

but it is particularly useful when chang-

ing lane on high-speed roads.

Content .. 1 2 3 ..
