RADIO: selection of the previous stored station.
Selection of the previous entry in the address book.

RADIO: selection of the next stored station.
Selection of the next entry in the address book.

RADIO: change to the next radio station on the list.

Long press: automatic search for a higher frequency.
CD: selection of the next track.
CD: continuous press: fast forward play.

RADIO: change to the previous radio station on the List.

Long press: automatic search for a lower frequency.
CD: selection of the previous track.
CD: continuous press: fast reverse.

- Change the sound source.

- Make a call from the address book.
- Pick up/Hang up the telephone.

- Press for more than 2 seconds:

access to the address book.

Volume increase.

Volume decrease.

Mute: function activated

by pressing the volume
increase and decrease

buttons simultaneously.

Restore the sound by
pressing one of the two

volume buttons.

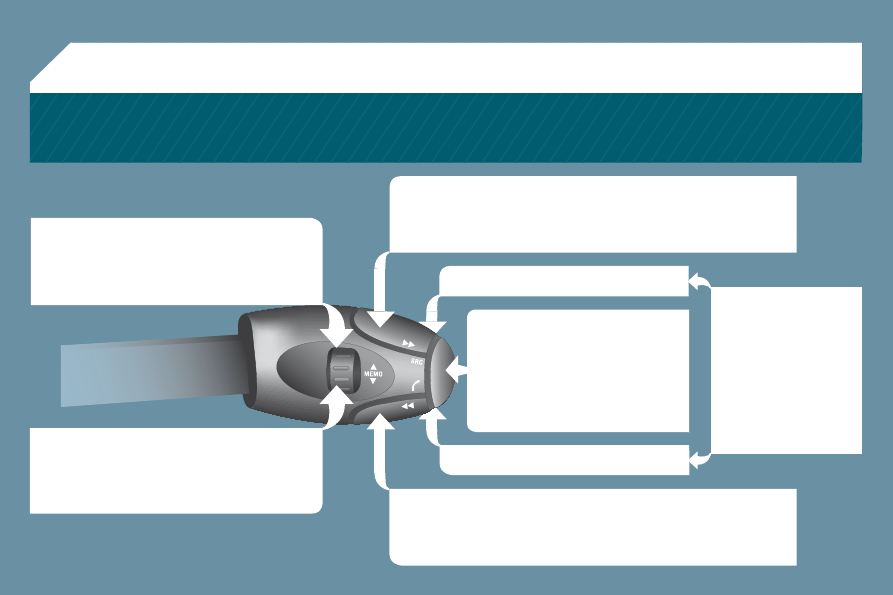

STEERING MOUNTED CONTROLS

152

03 GENERAL OPERATION

For a detailed global view of the menus available, refer to the "Screen

menu map" section.

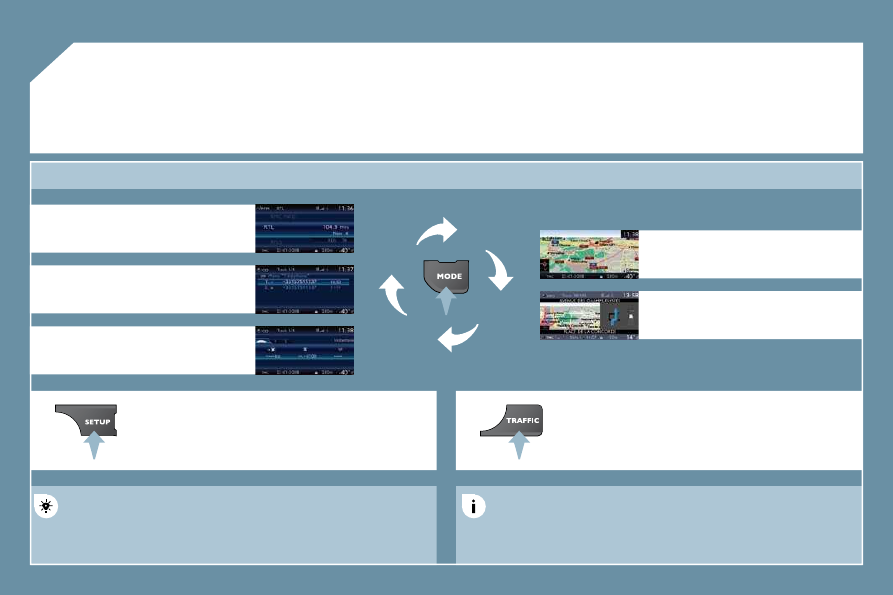

Press the MODE button several times in succession for access to the following menus:

For cleaning the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, with no additional product.

RADIO /MUSIC MEDIA

PLAYERS

TELEPHONE

(If a conversation is in progress)

FULL SCREEN MAP

NAVIGATION

(If guidance is in progress)

SETUP:

system language * , date and time * , display,

vehicle settings * , unit and system settings, "Demo mode".

TRAFFIC:

TMC information and messages.

* Available according to model.

TRIP COMPUTER

153

A press on the OK dial gives access to

short-cut menus according to the display
on the screen.

MUSIC MEDIA PLAYERS:

NAVIGATION (IF GUIDANCE IS IN PROGRESS):

ABORT GUIDANCE

REPEAT ADVICE

BLOCK ROAD

ROUTE INFO

SHOW DESTINATION

TRIP INFO

Route type

Avoid

Satellites

ZOOM/SCROLL

VOICE ADVICE

ROUTE OPTIONS

RADIO:

IN FM MODE

TRAFFIC INFO (TA)

RDS

RADIOTEXT

REGIONAL PROG.

IN AM MODE

REFRESH AM LIST

DISPLAY ACCORDING TO THE CONTEXT

TRAFFIC INFO (TA)

PLAY OPTIONS

NORMAL ORDER

RANDOM TRACK

REPEAT FOLDER

SCAN

SELECT MUSIC

TELEPHONE:

END CALL

HOLD CALL

DIAL

DTMF-TONES

PRIVATE MODE

MICRO OFF

GENERAL OPERATION

FULL SCREEN MAP:

ABORT GUIDANCE /RESUME GUIDANCE

SET DESTINATION

POIS NEARBY

POSITION INFO

MAP SETTINGS

ZOOM/SCROLL

154

NAVIGATION - GUIDANCE

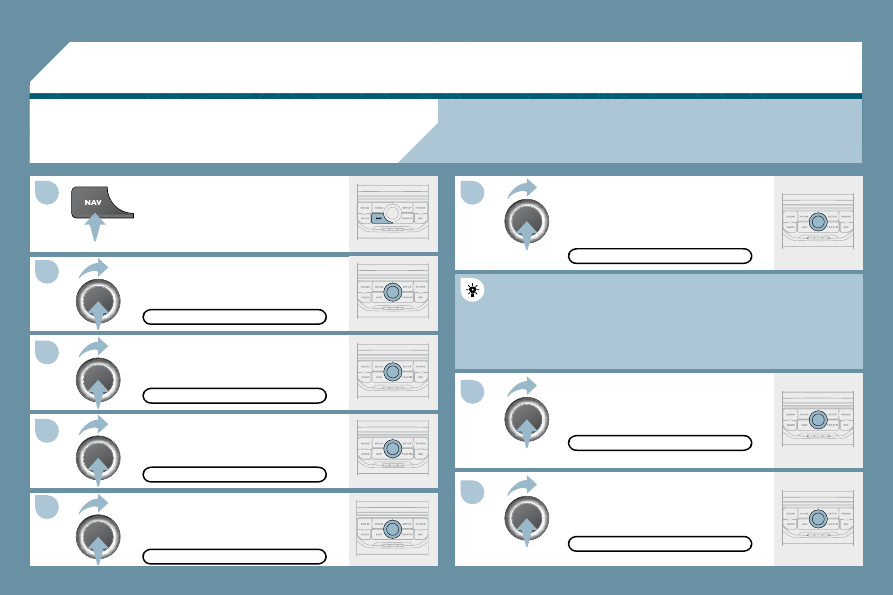

SELECTING A DESTINATION

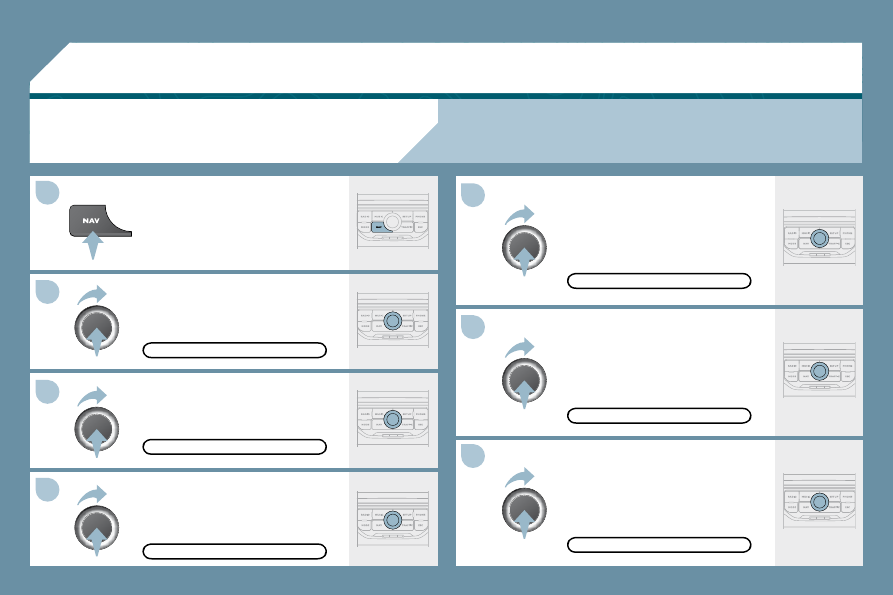

Press the NAV button again or select
the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Destination input" function

and press the dial to conﬁ rm.

Press the NAV button.

Select the letters of the town one by

one conﬁ rming each time by pressing
the dial.

Once the country has been selected,
turn the dial and select the town

function. Press the dial to conﬁ rm.

NAVIGATION MENU

DESTINATION INPUT

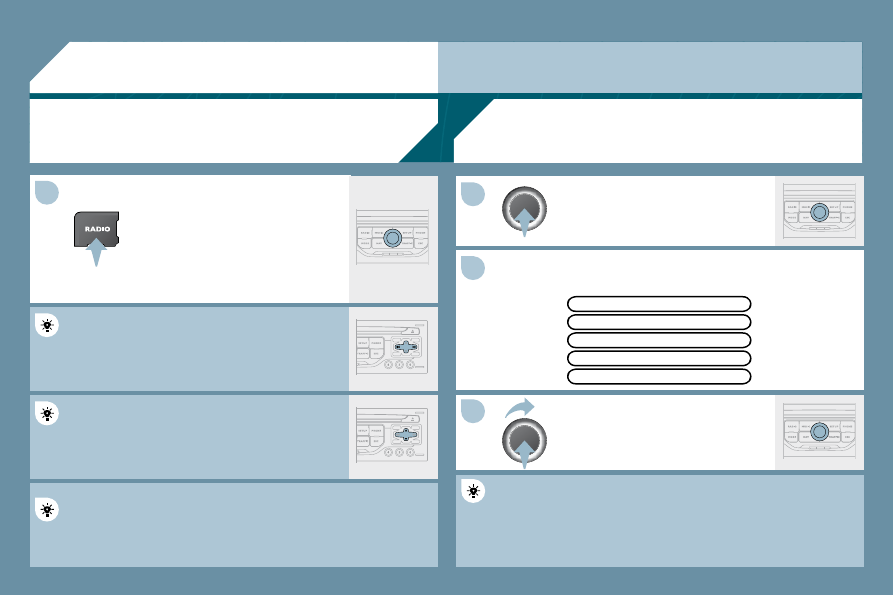

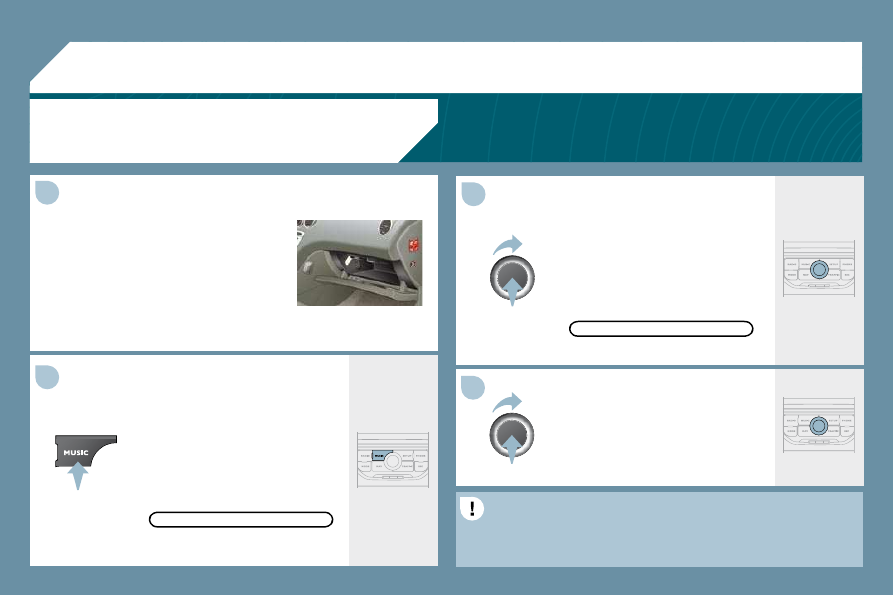

Insert the SD card in the front panel reader and leave it there to use the Navigation functions.
The navigation SD card data must not be modiﬁ ed.
Map data updates are available from PEUGEOT dealers.

A pre-set list (by entering the ﬁ rst few letters) of the towns in the

A pre-set list (by entering the ﬁ rst few letters) of the towns in the
country selected can be accessed via the LIST button on

tton on the virtual

keypad.

Select the "Address input" function

and press the dial to conﬁ rm.

ADDRESS INPUT

The list of the last 20 destinations appears under the Navigation

The list of the last 20 destinations appears under the Navigation
Menu function.

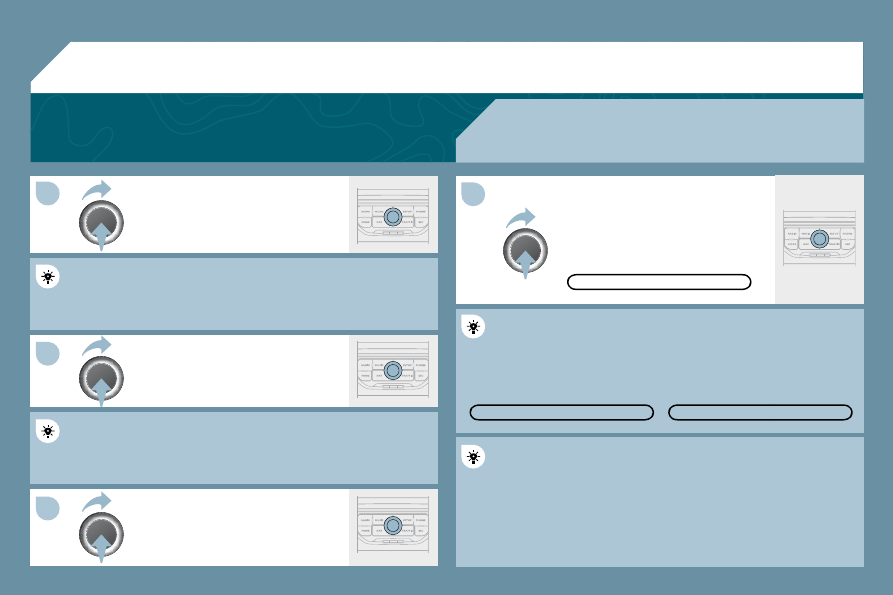

155

To clear a destination; from steps 1 to 3, select "Choose from last destinations". A long press
on one of the destinations displays a list of actions from which you can select:
Delete entry

Delete list

Repeat steps 5 to 7 for the "Street"

and "House number" functions.

Turn the dial and select OK.

Press the dial to conﬁ rm.

Select the "Save to address book" function to record th

ord the address

entered in a directory ﬁ le. Press the dial to conﬁ rm the selection.

Peugeot Connect Navigationallows up to 500 contact ﬁ les to be

Peugeot Connect Navigationallows up to 500 contact ﬁ les to be
recorded.

To speed up the process, the post code can be entered

tered directly after

selecting the "Postal code" function.
Use the virtual keypad to enter the letters and digits.

Then select "Start route guidance"

and the press the dial to conﬁ rm.

During guidance, pressing the end
of the lighting stalk repeats the last
guidance instruction.

You can zoom in/zoom out on the map using the dial.

It is possible to scroll the map or select its orientation via the short-

cut menu of the FULL SCREEN MAP. Press the dial then select

cut menu of the FULL SCREEN MAP. Press the dial then select
"Map settings".

Select the route type:

"Fast route", "Short route" or "Optimized route" and press the dial to

conﬁ rm.

It is also possible to select a destination via "Choose from address

book" or "Choose from last destinations".

CHOOSE FROM LAST DESTINATIONS

CHOOSE FROM ADDRESS BOOK

START ROUTE GUIDANCE

NAVIGATION - GUIDANCE

156

NAVIGATION - GUIDANCE

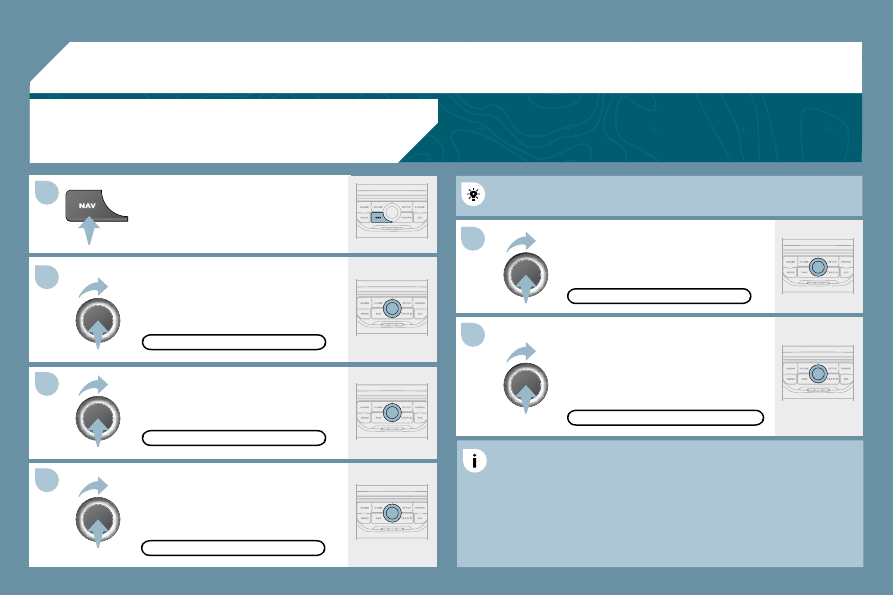

ROUTE OPTIONS

Select the "Route dynamics" function.
This function gives access to the

"Trafﬁ c independent" or "Semi-

dynamic" options.

Select the "Avoidance criteria"
function. This function provides
access to the AVOID options

(motorways, toll roads, ferries).

Turn the dial and select the
"Recalculate" function to take into
account the route options selected.

Press the dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Route type" function and

press the dial to conﬁ rm. This function
allows you to change the route type.

Select the "Route options" function

and press the dial to conﬁ rm.

RECALCULATE

AVOIDANCE CRITERIA

ROUTE DYNAMICS

ROUTE TYPE

ROUTE OPTIONS

NAVIGATION MENU

The route selected by the Peugeot Connect Navigation audio/telephone depends directly on the route

options.
Changing these options may change the route completely.

157

Enter a new address, for example.

Once the new address has been

entered, select OK and press the dial

to conﬁ rm.

Select "Recalculate" and press the

dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select
the "Navigation" Menu function and

press the dial to conﬁ rm.

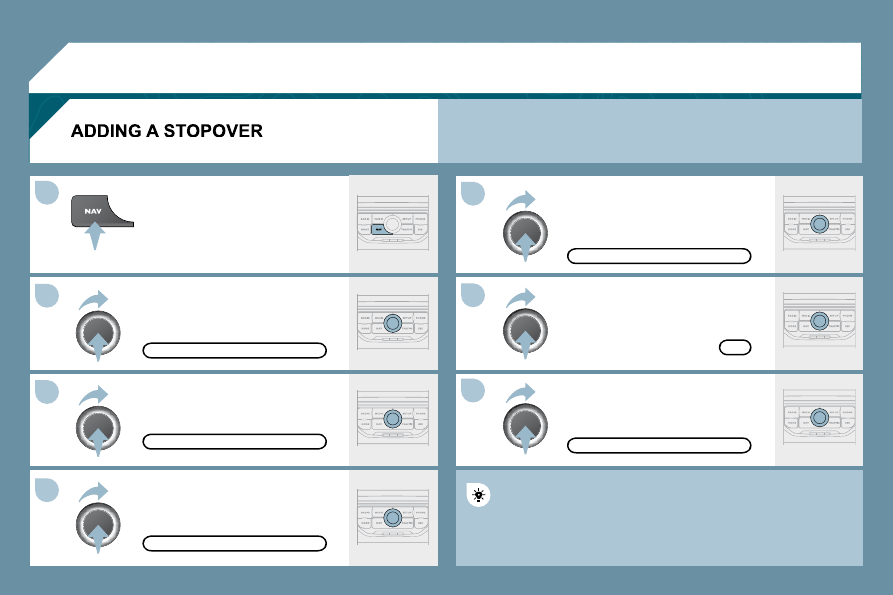

Select the "Add stopover" function

(5 stopovers maximum) and press the

dial to conﬁ rm.

Select the "Stopovers" function and

press the dial to conﬁ rm.

ADDRESS INPUT

ADD STOPOVER

STOPOVERS

"NAVIGATION" MENU

RECALCULATE

The stopover must be completed or deleted in order for the guidance

The stopover must be completed or deleted in order for the guidance
to continue to the next destination. Otherwise, the Peug

Peugeot Connect

Navigation will always return you to the previous stopov

topover.

Stopovers can be added to the route once the destination has been selected.

NAVIGATION - GUIDANCE

158

NAVIGATION - GUIDANCE

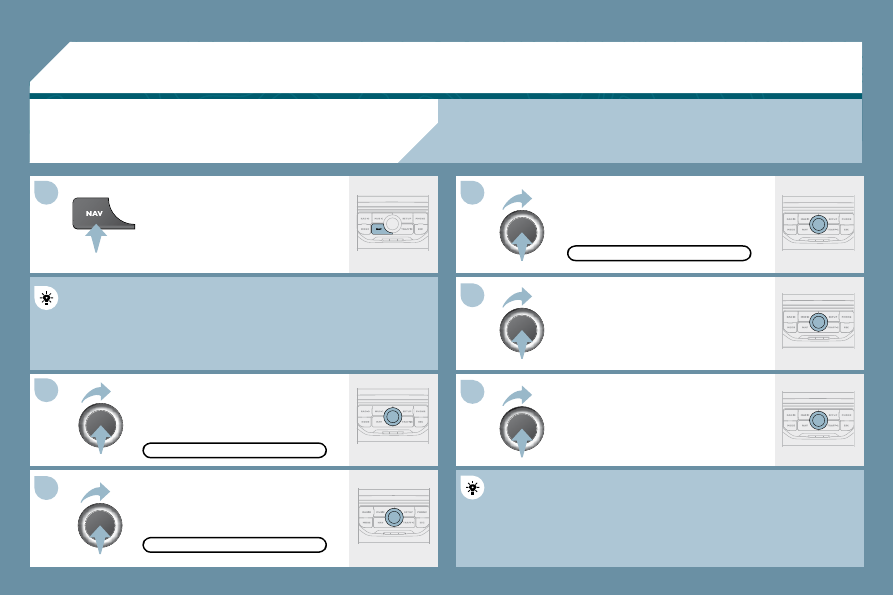

SEARCHING FOR POINTS OF INTEREST

(POI)

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and

press the dial to conﬁ rm.

Select the "POI nearby" function to
search for POIs around the vehicle.

Select the "POI search" function and

press the dial to conﬁ rm.

NAVIGATION MENU

POI SEARCH

POI NEARBY

Select the "POI in city" function to
search for POIs in the city required.
Select the country then enter the

name of the city using the virtual
keypad.

Select the "POI near route" function to
search for POIs near the route.

Select the "POI in country" function
to search for POIs in the country
required.

Select the "POI near destination"
function to search for POIs near the
point of arrival of the route.

POI NEAR DESTINATION

POI NEAR ROUTE

POI IN COUNTRY

POI IN CITY

A list of cities present in the country selected can be acc

be accessed via

the LIST button on the virtual keypad.

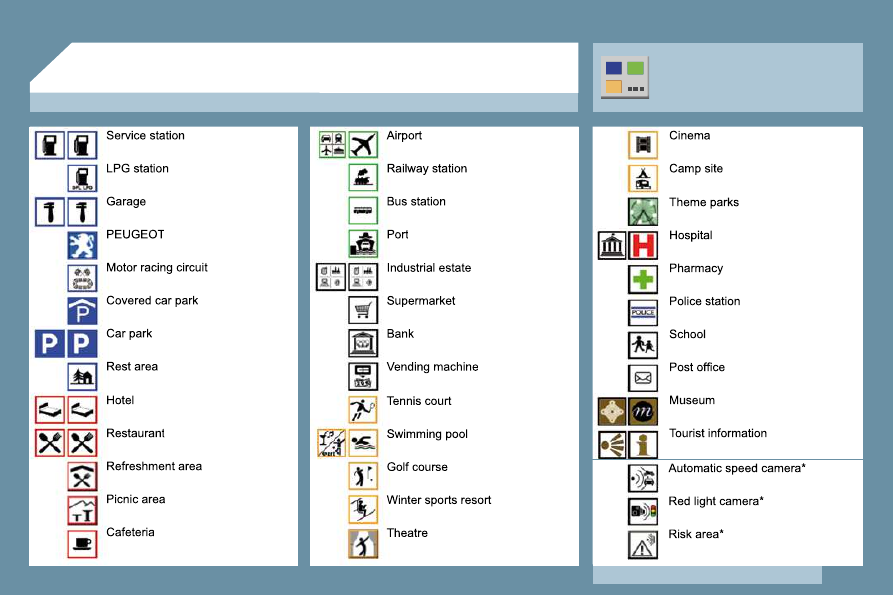

The points of interest (POI) indicate all of the service locations in the vicinity (hotels, various
businesses, airports...).

160

NAVIGATION SETTINGS

NAVIGATION - GUIDANCE

Select "Set parameters for risk areas"
to gain access to the "Display on

map", "Visual alert" and "Sound alert"
functions.

Select the "POI categories on Map"
function to select the POIs to be

displayed on the map by default.

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Settings" function and

press the dial to conﬁ rm.

POI CATEGORIES ON MAP

SETTINGS

SET PARAMETERS FOR RISK AREAS

NAVIGATION MENU

Select the "Navi volume" function and

turn the dial to set the volume of each

voice synthesiser (trafﬁ c information,

alert messages…).

NAVI VOLUME

The volume of the Risk Areas POIs alert can only be adjusted
during this type of alert.

UPDATING THE RISK AREAS POIs

This requires an SDHC (High Capacity) compatible reader.

Download the update ﬁ le from the Internet (www.peugeot.fr or

www.peugeot.co.uk).

Open this ﬁ le and copy the extracted documents to the DATABASE

folder on the SD card, replacing the existing ﬁ les.

161

TRAFFIC INFORMATION

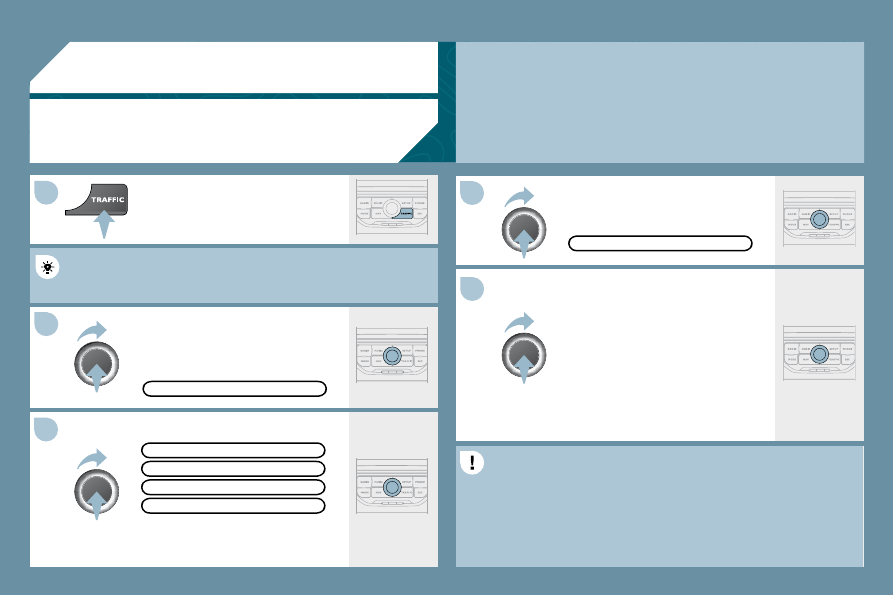

CONFIGURE THE FILTERING AND

DISPLAY OF TMC MESSAGES

TMC (Trafﬁ c Message Channel) messages contain information on trafﬁ c and weather conditions,
received in real time and transmitted to the driver in the form of audible announcements and
symbols on the navigation map.
The navigation system can then suggest an alternative route to avoid a trafﬁ c problem.

Then select the radius of the ﬁ lter in

miles (km) required in accordance
with the route, press the dial to

conﬁ rm.

When all of the messages on the
route are selected, the addition of a

geographical ﬁ lter is recommended

(within a radius of 3 miles (5 km) for

example) to reduce the number of

messages displayed on the map.

The geographical ﬁ lter follows the

movement of the vehicle.

The ﬁ lters are independent and their results are cumulative.

We recommend a ﬁ lter on the route and a ﬁ lter around the vehicle of:

- 2 miles (3 km) or 3 miles (5 km) for a region with heavy trafﬁ c,

- 6 miles (10 km) for a region with normal trafﬁ c,

- 30 miles (50 km) for long journeys (motorway).

Press the TRAFFIC button again or

select the Trafﬁ c Menu function and

press the dial to conﬁ rm.

Press the TRAFFIC button.

Select the "Geo. Filter" function and

press the dial to conﬁ rm.

MESSAGES ON ROUTE

The list of TMC messages appears under the Trafﬁ c Menu sorted in

order of proximity.

ONLY WARNINGS ON ROUTE

TRAFFIC MENU

Select the ﬁ lter of your choice:

ALL WARNING MESSAGES

ALL MESSAGES

The messages appear on the map
and on the list.
To exit, press ESC.

GEO. FILTER

162

TRAFFIC INFORMATION

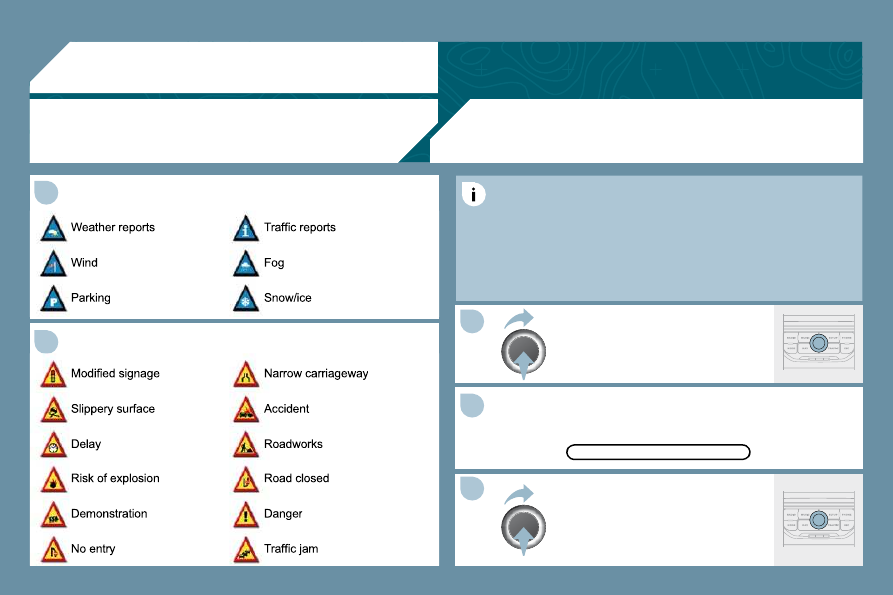

PRINCIPAL TMC SYMBOLS

Red and yellow triangle: trafﬁ c information, par example:

Black and blue triangle: general information, for example:

With the current audio source
displayed on the screen, press the
dial.

The shortcut menu for the source appears and gives access to:

Select Trafﬁ c Announcements (TA)

and press the dial to conﬁ rm and go
to the associated settings.

The TA (Trafﬁ c Announcement) function gives priority to TA alert

messages. To operate, this function needs good reception of a radio

station transmitting this type of message. When a trafﬁ c report is

transmitted, the current audio source (Radio, CD, Jukebox, ...) is

interrupted automatically to play the TA message. Normal playback

of the audio source resumes at the end of the transmission of the

message.

RECEIVING TA MESSAGES

163

SELECTING A STATION

When the current radio station is
displayed on the screen, press the
dial.

The radio source short-cuts menu appears and provides access to

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function required and press

the dial to conﬁ rm to gain access to
the corresponding settings.

RDS, if displayed, allows you to continue listening to the same

station by automatic retuning to alternative frequencies. However, in

certain conditions, coverage of an RDS station may not be assured

certain conditions, coverage of an RDS station may not be assured
throughout the entire country as radio stations do not co

not cover 100 % of

the territory. This explains the loss of reception of the sta

the station during

a journey.

The external environment (hill, building, tunnel, underground car park...) may interfere with the
reception, including in RDS following mode. This phenomenon is a normal result of the way in which
radio waves are transmitted and does not in any way indicate a failure of the audio equipment.

RDS - REGIONAL MODE

Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning

the dial and press to conﬁ rm.

RADIOTEXT

REGIONAL PROG.

RDS

While listening to the radio, press one of the
buttons to select the previous or next station on
the list.

Press one of the buttons on the numeric keypad for more than

2 seconds to store the current station.

Press the button on the numeric keypad to recall the stored radio

Press the button on the numeric keypad to recall the stored radio
station.

RADIO

A long press of one of the buttons starts the

automatic search for a station with a lower or
higher frequency.

164

07 MUSIC MEDIA PLAYERS

CD, MP3/WMA CD

INFORMATION AND ADVICE

In order to be able to play a recorded CDR or CDRW, w

RW, when

recording it is preferable to select the ISO 9660 level 1, 2 or Joliet

recording it is preferable to select the ISO 9660 level 1, 2 or Joliet
standard.

If the disc is recorded in another format it may not be played

If the disc is recorded in another format it may not be played
correctly.

It is recommended that the same recording standard is always used

for an individual disc, with as low a speed as possible (4x maximum)

for optimum sound quality.

In the particular case of a multi-session CD, the Joliet standard is

recommended.

The Peugeot Connect Navigation will only play audio ﬁ les with the

extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and

the extension ".wma" with a speed of between 5 Kbps and 384 Kbps.

It also supports the VBR (Variable Bit Rate) mode.

No other type of ﬁ le (.mp4, .m3u...) can be played.

The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3

and the WMA format, an abbreviation of Windows Media Audio and

the property of Microsoft, are audio compression standards which

permit the recording of several tens of music ﬁ les on a single disc.

It is advisable to restrict ﬁ le names to 20 characters, without using

special characters (e.g. : " " ? ; ù) to avoid any play or display

problems.

165

SELECTING/PLAYING MUSIC

CD, MP3/WMA CD

The playing and displaying of an MP3/WMA compilation may

depend on the recording programme and/or the settings used. We

recommend the ISO 9660 ﬁ le standard.

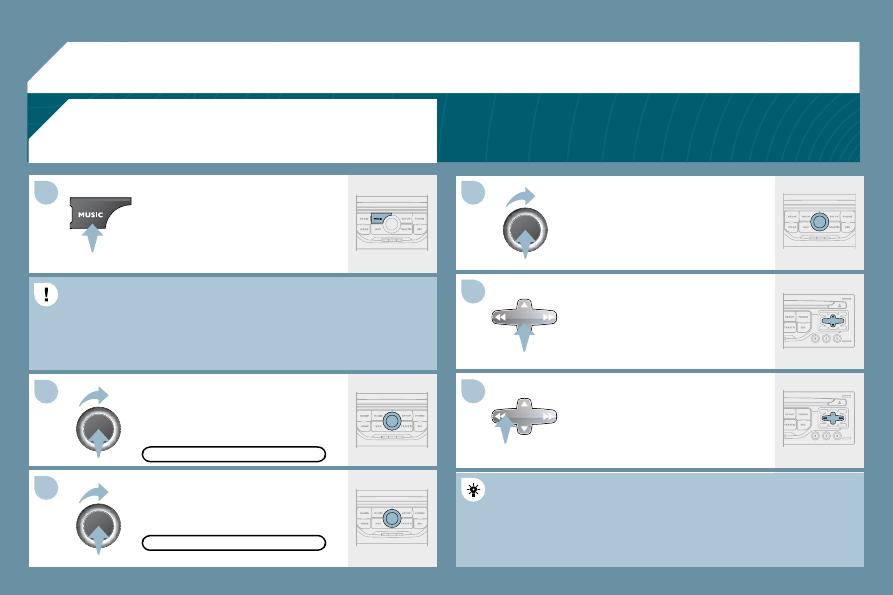

Press the MUSIC button.

Select the "Select music" function and

press the dial to conﬁ rm.

Press the up or down button to select
the next/previous folder.

Select the music source required:
CD, MP3/WMA CD. Press the dial to

conﬁ rm. Play begins.

SELECT MUSIC

Press the MUSIC button again or
select the "Music" Menu function and

press the dial to conﬁ rm.

Press one of the buttons to select a

music track.
Press and hold one of the buttons for
fast forward or rewind play.

"MUSIC" MENU

The list of tracks or MP3/WMA ﬁ les appears under "Music" Menu.

MUSIC MEDIA PLAYERS

166

Connect the portable equipment (MP3/

WMA player…) to the JACK audio
socket or to the USB port, using a
suitable audio cable.

Press the MUSIC button then press
it again or select the Music Menu

function and press the dial to conﬁ rm.

Select the AUX music source and

press the dial to conﬁ rm. Play begins

automatically.

Select the "External device" function
and press the dial to activate it.

EXTERNAL DEVICE

The display and management of the controls is via the portable

equipment.

USING THE EXTERNAL INPUT (AUX)

JACK/USB AUDIO CABLE NOT SUPPLIED

MUSIC MEDIA PLAYERS

MUSIC MENU

Peugeot 207 CC Dag (2010 year). Instruction - part 11
