PRACTICAL INFORMATION

135

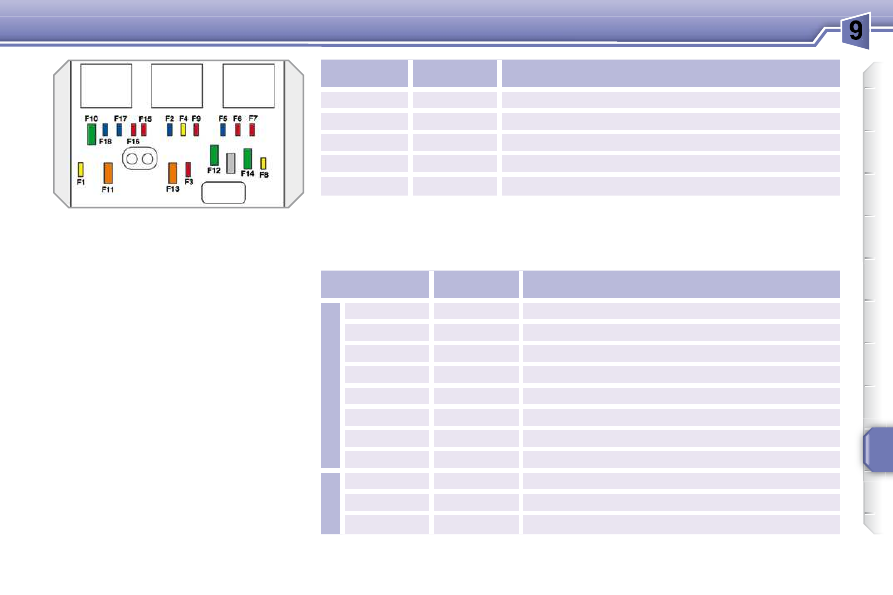

Fuse N°

Rating

Functions

F14

30 A

Diesel heater (Diesel).

F15

10 A

Left main beam headlamp.

F16

10 A

Right main beam headlamp.

F17

15 A

Left dipped beam headlamp.

F18

15 A

Right dipped beam headlamp.

Maxi-fuse table

* The maxi-fuses provide additional

protection for the electrical systems.

All work on the maxi-fuses must be

carried out by a PEUGEOT dealer.

Fuse N°

Rating

Functions

MF1 *

70 A

Fan assembly.

MF2 *

20 A/30 A

ABS/ESP pump.

MF3 *

20 A/30 A

ABS/ESP electrovalves.

MF4 *

60 A

Built-in systems interface supply.

MF5 *

60 A

Built-in systems interface supply.

MF6 *

30 A

Additional fan assembly (1.6 l 16V THP).

MF7 *

80 A

Dashboard fusebox.

MF8 *

Not used.

MF9 *

80 A

Heating unit (Diesel).

MF10 *

80 A

Electric power steering.

MF11 *

40 A

Valvetronic electric motor (1.6 l 16V THP).

PRACTICAL INFORMATION

136

BATTERY

Procedure for charging your battery

when it is ﬂ at or for starting the engine

using another battery.

Access to the battery

Starting using another battery

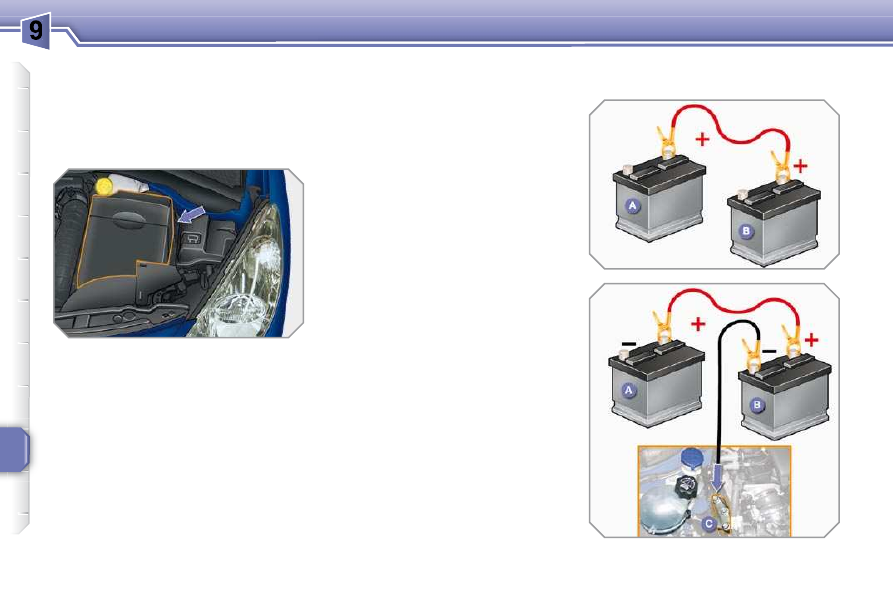

 Connect the red cable to the posi-

tive terminal (+) of the ﬂ at battery A ,

then to the positive terminal (+) of

the slave battery B .

 Connect one end of the green or

black cable to the negative terminal

(-) of the slave battery B .

 Connect the other end of the green

or black cable to an earth point C on
the broken down vehicle, as far as

possible from the battery (for exam-

ple, right-hand engine mounting).

 Operate the starter, let the engine

run.

 Wait until the engine returns to idle

and disconnect the cables.

The battery is located under the bonnet
on the left.
To gain access to it:
 open the bonnet using the interior re-

lease lever, then the exterior safety

catch,

 secure the bonnet stay,
 remove the plastic cover to gain

access to the two terminals.

PRACTICAL INFORMATION

137

Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without

disconnecting the terminals ﬁ rst.

The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They  must  be  disposed  of  in
accordance  with  regulations  and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and  vehicle  batteries  to  a  special
collection point.

Charging the battery using a
battery charger

 Disconnect the battery from the vehicle.
 Follow the instructions for use pro-

vided by the manufacturer of the
charger.

 Reconnect starting with the nega-

tive terminal (-).

 Check that the terminals and connec-

tors are clean. If they are covered with

sulphate (whitish or greenish deposit),

remove them and clean them.

It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.

  Before disconnecting the
battery
Wait  2  minutes  after  switching  off
the  ignition  before  disconnecting
the battery.
Close the windows, the retractable
roof  and  the  doors  before  discon-
necting the battery.

  Following reconnection of the
battery
Following  reconnection  of  the  bat-
tery, switch on the ignition and wait
1  minute  before  starting  to  permit
initialisation  of  the  electronic  sys-
tems. However, if problems remain
following  this  operation,  contact  a
PEUGEOT dealer.
Referring to the corresponding sec-

tion, you must yourself reinitialise:
-

the remote control key,

the electric windows and the
automatic partial opening of the
door windows,

the GPS satellite navigation
system.

Disconnecting the cables

Reconnecting the cables

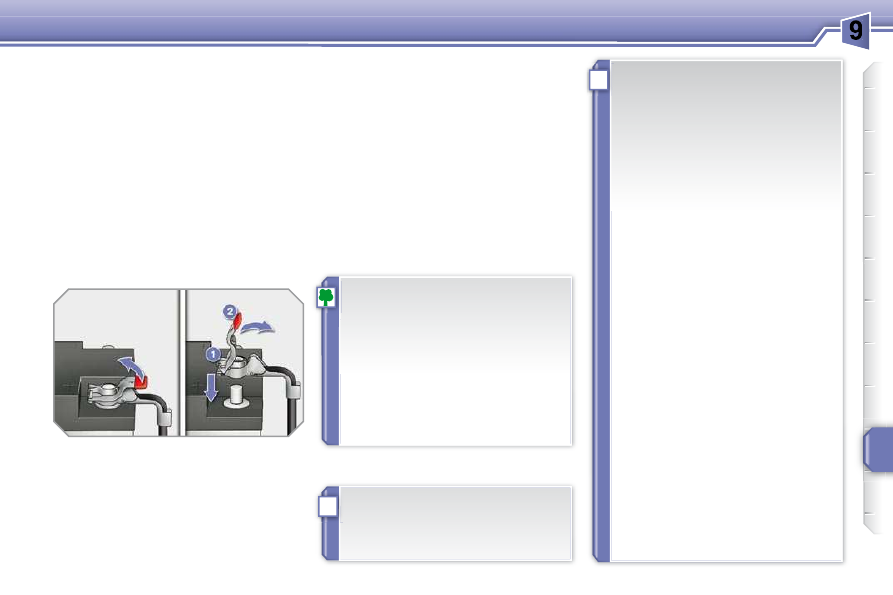

 Position the open clip 1 of the cable

on the positive terminal (+) of the

battery.

 Press vertically on the clip 1 to posi-

tion it correctly against the battery.

     Lock the clip by lowering the tab  2 .
Do not force the tab as locking will not
be  possible  if  the  clip  is  not  positioned
correctly; start the procedure again.

 Raise the locking tab fully.

PRACTICAL INFORMATION

138

A ﬂ at battery prevents the engine

from starting (refer to the corre-

sponding paragraph).

If a roof operation is in progress,
it will be completed, but no further
operation is possible.

ENERGY ECONOMY MODE

System which manages the duration of
use of certain functions to conserve a

sufﬁ cient level of charge in the battery.
After  the  engine  has  stopped,  you  can
still  use  functions  such  as  the  audio
equipment,  windscreen  wipers,  dipped
beam  headlamps,  courtesy  lamp,  etc.

for a maximum combined duration of

thirty minutes.

Exiting economy mode

These functions are reactivated auto-

matically next time the vehicle is driven.
 In order to resume the use of these

functions

immediately,

start

the

engine and let it run for a few minutes.

The time available to you will then be
double the duration for which the engine
is left running. However, this period will al-

ways be between ﬁ ve and thirty minutes.

Switching to economy mode

Once  the  thirty  minutes  are  over,  a
message  appears  on  the  multifunction
screen  indicating  that  the  vehicle  has
switched to economy mode and the ac-
tive functions are put on standby.

CHANGING A WIPER BLADE

Procedure for replacing a worn wiper
blade with a new one without the use
of tools.

Removing a front wiper blade

 Raise the corresponding wiper arm.
 Unclip the wiper blade and remove it.

Fitting a front wiper blade

 Check the size of the wiper blade

as the shorter blade is ﬁ tted on the

right-hand side of the vehicle.

 Put the corresponding new wiper

blade in place and clip it.

 Fold down the wiper arm carefully.

LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.

PRACTICAL INFORMATION

139

TOWING THE VEHICLE

Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.

Access to the tools

Towing your vehicle

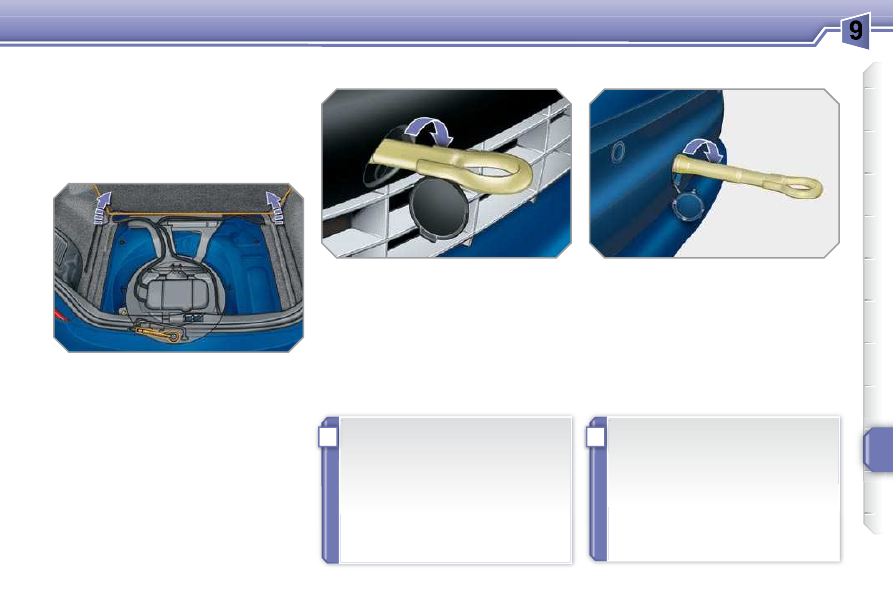

 On the front bumper, pull on the cov-

er to unclip it.

     Screw the towing eye in fully.
     Install the towing bar.
     Switch on the hazard warning lamps

on the towed vehicle.

 On the rear bumper, unclip the cover

by pressing at the bottom.

     Screw the towing eye in fully.
     Install the towing bar.
     Switch on the hazard warning lamps

on the towed vehicle.

Towing another vehicle

The towing eye is installed in a holder at

the bottom of the boot under the ﬂ oor.

For access to it:


place the vehicle in "coupé" conﬁ gu-

ration,

 open the boot,


raise the ﬂ oor,

 remove the towing eye from the

holder.

When  towing  with  all  four  wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When  towing  with  the  engine  off,
there  is  no  longer  any  braking  or
steering assistance.

 Place the gear lever in neutral

(position N on the automatic

gearbox).

Failure to observe this speciﬁ c

instruction may result in damage
to  certain  braking  units  and  the
absence  of  braking  assistance
when the engine is restarted.

PRACTICAL INFORMATION

140

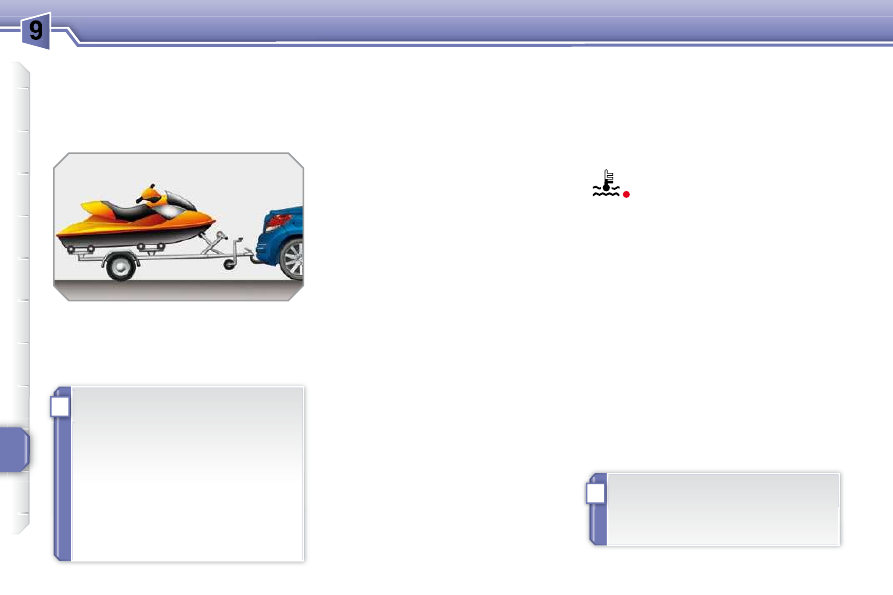

TOWING A TRAILER, A
CARAVAN, ETC.

Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.

Driving with a trailer subjects the towing

vehicle to more signiﬁ cant stress and its

driver must be particularly careful.

The maximum towing load on a long

slope depends on the gradient and the
ambient temperature.

Distribution of loads
 Distribute the load in the trailer so

that the heaviest items are as close

as possible to the axle and the nose

weight approaches the maximum

permitted without exceeding it.

Air density decreases with altitude, thus
reducing engine performance. Above

1 000 metres, the maximum towing load

must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.

Side wind
 Take into account the increased

sensitivity to side wind.

 If the warning lamp and the

STOP   warning  lamp  come
on,  stop  the  vehicle  and
switch  off  the  engine  as
soon as possible.

  Braking
Towing  a  trailer  increases  the  braking
distance.

Tyres
 Check the tyre pressures of the towing

vehicle and of the trailer, observing the
recommended pressures.

The rear parking sensors will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.

In all cases, pay attention to the coolant
temperature.

Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.

We recommend the use of genuine
PEUGEOT  towbars  and  their  har-
nesses  that  have  been  tested  and
approved  from  the  design  stage

of your vehicle, and that the ﬁ t-

ting of the towbar is entrusted to a
PEUGEOT dealer.
If the trailer is not ﬁ tted by a

PEUGEOT dealer, it is imperative

that it is ﬁ tted using the electrical

pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions.

Driving advice

  Cooling
Towing  a  trailer  on  a  slope  increases
the temperature of the coolant.
As  the  fan  is  electrically  controlled,  its
cooling  capacity  is  not  dependent  on
the engine speed.
      To  lower  the  engine  speed,  reduce

your speed.

Lighting
 Check the electrical lighting and sig-

nalling on the trailer.

PRACTICAL INFORMATION

142

The ﬁ tting of electrical equipment

or  accessories  which  are  not  rec-
ommended  by  PEUGEOT  may
result  in  a  failure  of  your  vehicle's
electronic system.
Please  note  this  speciﬁ c  warning.

You  are  advised  to  contact  a  rep-
resentative  of  the  Marque  to  be
shown the range of recommended
equipment and accessories.

ACCESSORIES

You  can  obtain  a  wide  range  of  ac-
cessories  and  original  parts  from  the
PEUGEOT network.
These accessories and parts have been
tested  and  approved  for  reliability  and
safety.
They are all adapted to your vehicle and

beneﬁ t from PEUGEOT's recommenda-

tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 cat-

egories: PROTECTION - TOURING -

IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.

"Protection":

anti-theft alarm, window etch-
ing, security wheel bolts,

breathalyzer, ﬁ rst aid kit,

warning triangle, high visibility
jacket, stolen vehicle tracking
system, puncture repair kit,
snow chains, anti-skid covers.

"Touring":

mats * , boot tray, ﬁ xed coat

hook on head restraint, light-
er, aluminium door sills, rear
head rest.

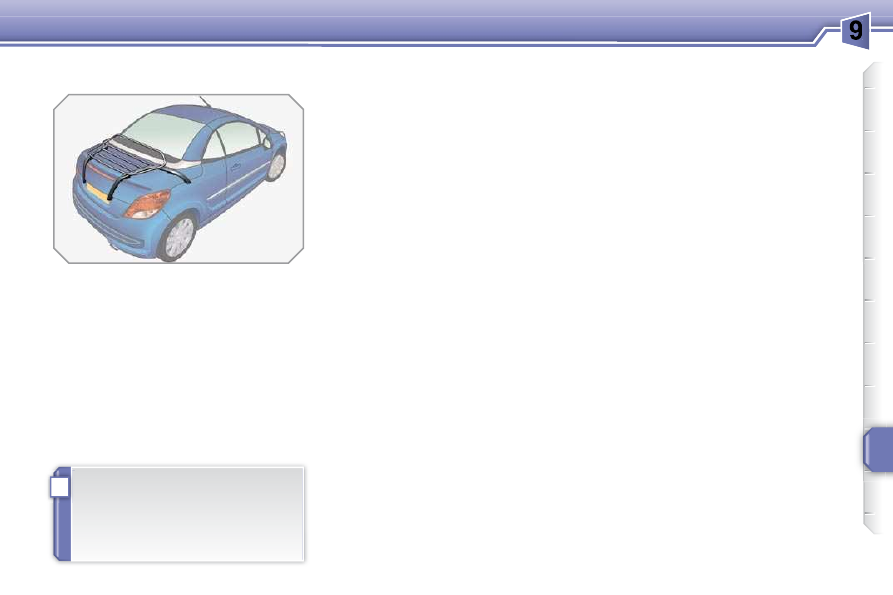

For leisure pursuits: bicycle car-

rier on towbar ** , boot luggage
carrier, booster seats and child
seats, spectacles storage.

Trailer towbar which must be ﬁ tted by

the PEUGEOT network.

"In-car technology":

audio

systems,

satellite

navigation

systems,

Blue-

tooth

hands-free

system,

CD changer, speakers, DVD
player, connection kit for MP3
player or portable CD player,

USB Box, front and rear park-

ing sensors.

"Styling":

seat covers compatible with
lateral

airbags,

aluminium

gear lever knob, styling strips,
alloy wheels, trims.

"Universal":

screenwash, interior and exte-

rior maintenance and cleaning
products.

* To prevent any risk of jamming the

pedals:

ensure that the mat is positioned
and secured correctly,

- never ﬁ t one mat on top of another.

Depending on the country in which
the  vehicle  is  sold,  it  is  compulso-
ry  to  have  a  high  visibility  jacket,
warning  triangle  and  spare  bulbs
available in the vehicle.

** Precautions relating to the bicycle

carrier on towbar:

observe the manufacturer's recom-

mendations for ﬁ tting and use,

refer  to  the  "Technical  data  -  §
Weights  and  towed  loads"  section
for information regarding the recom-
mended nose weight.

TECHNICAL DATA

143

MODELS:

ENGINES AND GEARBOXES

PETROL ENGINES

1.6 litre VTi 16V 120 hp

1.6 litre THP 16V 150 hp

Cubic capacity (cc)

1 598

Bore x stroke (mm)

77 x 85.8

Max power: EU standard (kW)

115

Max power engine speed (rpm)

5 750

5 800

Max torque: EU standard (Nm)

160

240

Max torque engine speed (rpm)

4 250

1 400

Fuel

Unleaded

Catalytic converter

Yes

GEARBOXES

Manual

(5-speed)

Automatic

(4-speed)

Manual

(6-speed)

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

4.25

Gearbox - Final drive

1.9

TECHNICAL DATA

145

MODELS:

ENGINES AND GEARBOXES

DIESEL ENGINE

1.6 litre Turbo HDI 110 hp

Cubic capacity (cc)

1 560

Bore x stroke (mm)

75 x 88.3

Max power: EU standard (kW)

Max power engine speed (rpm)

4 000

Max torque: EU standard (Nm)

240

Max torque engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle emission ﬁ lter

Yes

GEARBOX

Manual (6-speed)

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

3.75

Gearbox - Final drive

1.9

TECHNICAL DATA

144

The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed weight.

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.6 litre VTi 16V 120 hp

1.6 litre THP 16V 150 hp

Gearboxes

Manual

Auto.

Manual

- Kerb weight

1 417

1 455

1 484

- Payload

292

312

290

- Gross vehicle weight (GVW)

1 709

1 767

1 774

- Gross train weight (GVW)

on a 12 % gradient

2 559

2 647

2 664

- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

- Braked trailer * (with load transfer within

GTW limit)

1 040

1 060

- Unbraked trailer

600

- Recommended nose weight

TECHNICAL DATA

146

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engine

1.6 litre Turbo HDI 110 hp

Gearbox

Manual

- Kerb weight

1 475

- Payload

308

- Gross vehicle weight (GVW)

1 783

- Gross train weight (GTW)

on a 12 % gradient

2 673

- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

- Braked trailer * (with load transfer within

GTW limit)

1 070

- Unbraked trailer

600

- Recommended nose weight

TECHNICAL DATA

148

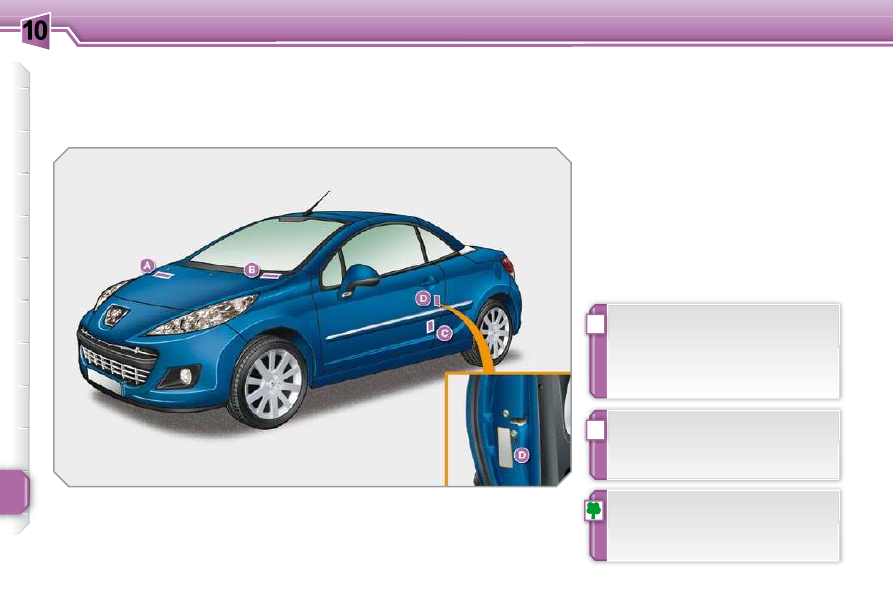

IDENTIFICATION MARKINGS

Various visible markings for the identiﬁ -

cation of your vehicle.

Wheels which are ﬁ tted with 205/45

R17 tyres cannot be ﬁ tted with

snow chains. For more information,
contact a PEUGEOT dealer.

If the inﬂ ation pressures are too low,

this increases fuel consumption.

The inﬂ ation pressures must be

checked when the tyres are cold,
at least once a month.

A. Vehicle identiﬁ cation (VIN) number

under the bonnet.

This number is etched on the bodywork

near the passenger compartment ﬁ lter.

B. Visible VIN on the dashboard.
This number is indicated on a self-ad-
hesive label which is visible through the
windscreen.

C. VIN on the chassis.
This number is indicated on a self-de-

stroying label afﬁ xed to the centre pillar,

near the driver’s door striker.
D. Manufacturer’s label.
This label is afﬁ xed to the edge of the

door on the driver’s side.
It bears the following information:
-

the wheel rim and tyre sizes,

the brands of tyre recommended by
the manufacturer,

- the associated inﬂ ation pressures,
-

the paint colour code.

149

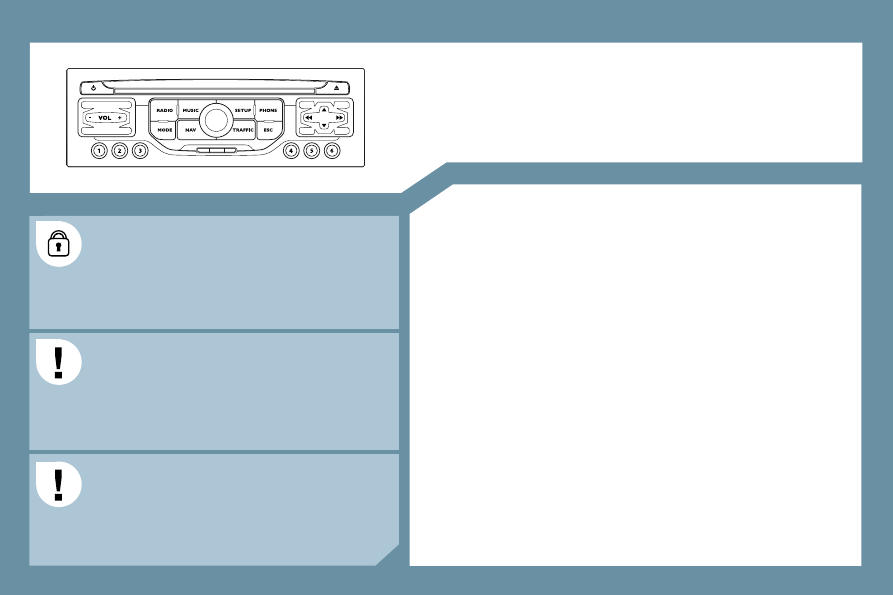

The Peugeot Connect Navigation is protected in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer

for conﬁ guration of the system.

Certain functions described in this handbook will become
available during the year.

Peugeot Connect Navigation

CONTENTS

01 First steps

02 Steering mounted controls p.

03 General operation

04 Navigation - Guidance

05 Trafﬁ c information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Conﬁ guration

10 Trip computer/vehicle parameters p.

11 Screen menu map

Frequently asked questions

For safety reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect
Navigation switches off following the activation of the

Energy Economy mode.

MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE

GPS EUROPE BY SD CARD

150

151

152

154

161

163

164

167

169

170

171

174

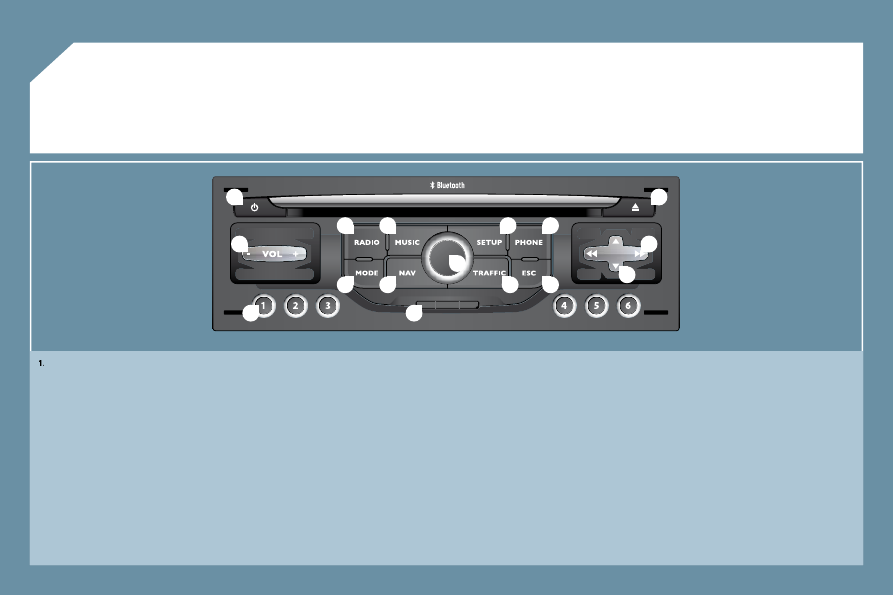

150

Engine not running

- Short press: on/off.

- Long press: CD pause, mute for the radio.

Engine running

- Short press: CD pause, mute for the radio.

- Long press: reinitialisation of the system.

2. Volume adjustment (each source is independent, including

also navigation messages and alerts)

3. Access to the "Radio" Menu. Display the list of stations.
4. Access to the "Music" Menu. Display the tracks.

6. Access to the "Phone" Menu. Display the call list.
7. Access to the "MODE" menu.

Selection of the successive display of:

Radio, Map, NAV (if navigation is in progress), Telephone (if a

conversation is in progress), Trip computer.

Long press: display of a black screen (DARK).

8.   Access to the "Navigation" Menu. Display the last destinations.
9.   Access to the "Trafﬁ c" Menu. Display the current trafﬁ c alerts.
10.   ESC: abandon the operation in progress.
11.   CD eject.
12.   Selection of the previous/next radio station from the list.

Selection of the previous/next MP3 directory.

Selection of the previous/next page of a list.

13. Selection of the previous/next radio station.

Selection of the previous/next CD or MP3 track.

Selection of the previous/next line of a list.

14. Buttons 1 to 6:

Selection of the stored radio station.

Long press: store the current radio station.

15. SD card reader (navigation SD card only).
16. Dial for selection of the screen display and according to the

context of the menu

Short press: contextual menu or conﬁ rmation.

Long press press: contextual menu speciﬁ c to the list

displayed.

Peugeot Connect Navigation CONTROL PANEL

3 - 4. Long press: access to the audio settings: front/rear and left/

right balance, bass/treble, equalizer, loudness, automatic

volume adjustment, initialise the settings.

5. Access to the "SETUP" menu.

Long press: access to the GPS coverage and the

demonstration mode.

FIRST STEPS

Peugeot 207 CC Dag (2010 year). Instruction - part 10
