DRIVING

103

* According to engine.

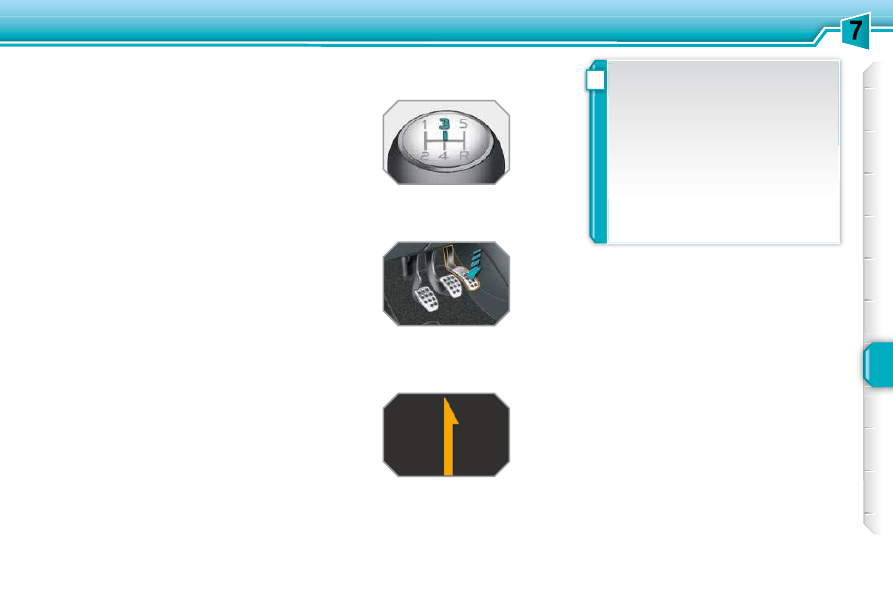

GEAR SHIFT INDICATOR *

System which reduces fuel consump-
tion by advising the driver to change up

on vehicles ﬁ tted with a manual gear-

box.

Operation

The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your  vehicle's  equipment,  the  system
may  advise  you  to  skip  one  or  more
gears.  You  can  follow  this  instruc-
tion  without  engaging  the  intermediate
gears.
The  gear  engagement  recommenda-
tions must not be considered compulso-

ry. In fact, the conﬁ guration of the road,

the amount of trafﬁ c and safety remain

determining factors when choosing the
best gear. Therefore, the driver remains
responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.

Example:
-

You are in third gear.

You press the accelerator pedal
moderately.

The system may suggest that you
engage a higher gear, if appropriate.

  The  information  appears  in  the  form
of  an  arrow  on  the  instrument  panel
screen.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear.

In the case of driving which makes
particular demands on the perfor-

mance of the engine (ﬁ rm pres-

sure  on  the  accelerator  pedal,  for
example,  when  overtaking...),  the
system will not recommend a gear
change.
The system never suggests:
   -   engaging ﬁ rst gear,
  -

engaging reverse gear,

engaging a lower gear.

DRIVING

AUTOMATIC GEARBOX

Four-speed  automatic  gearbox  which
offers  a  choice  between  the  comfort  of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Therefore,  four  driving  modes  are  of-
fered:
   -

automatic operation for electronic
management of the gears by the
gearbox,

sport programme for a more dynamic
style of driving,

snow programme to improve driving
when traction is poor,

manual operation for sequential
changing of the gears by the driver.

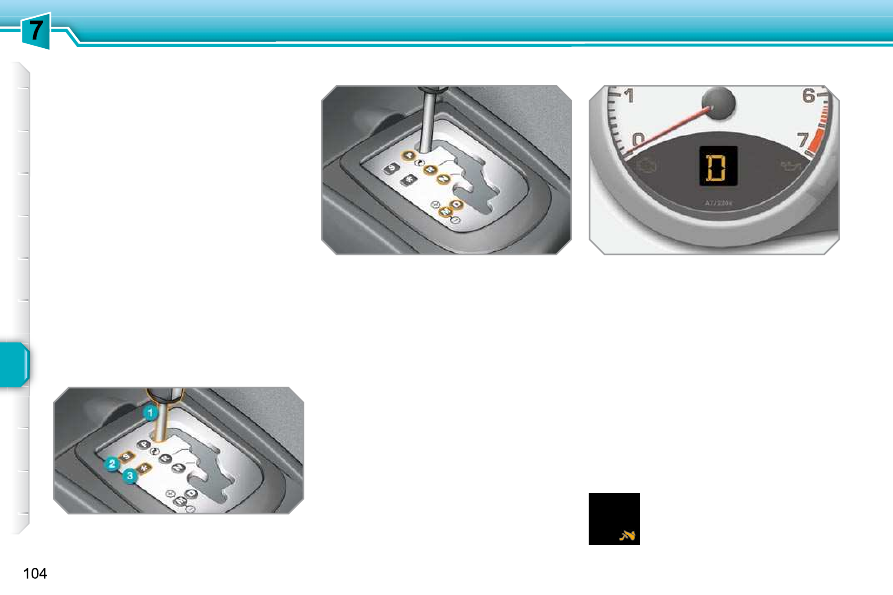

Gear lever

P. Park.
-

Immobilisation of the vehicle, park-
ing brake on or off.

Starting the engine.

R. Reverse.
-

Reversing manoeuvres, vehicle sta-
tionary, engine at idle.

N. Neutral.
-

Immobilisation of the vehicle, park-
ing brake on.

Starting the engine.

D. Automatic operation.
M. +/- Manual operation with sequential

changing of the four gears.

 Push forwards to change up through

the gears.

 Pull backwards to change down

through the gears.

Displays on the instrument panel

When  you  move  the  lever  in  the  gate
to  select  a  position,  the  corresponding
indicator is displayed on the instrument
panel.
  P.   Park
  R.   Reverse
  N.   Neutral
  D.   Drive (Automatic driving)
  S.     Sport  programme
    .     Snow  programme
  1, 2, 3, 4  .   Gear engaged during manual

operation

-. Invalid value during manual operation

 Press

the

brake

pedal

when this indicator lamp is
displayed on the instrument
panel (e.g.: starting the en-
gine).

Gear selection gate

   1.   Gear lever.
  2.   Button  "S"     (sport) .
  3.   Button  "    "     (snow).

Foot on brake

DRIVING

105

Moving off

      Apply the parking brake.
     Select position  P  or  N .
     Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction screen.
      With  the  engine  running,  press  the

brake pedal.

     Release the parking brake.
     Select position  R ,  D  or  M ,
     Gradually release the brake pedal.
The vehicle moves off immediately.

If  position   N   is  engaged  inadver-
tently  while  driving,  allow  the  en-
gine  to  return  to  idle  then  engage
position  D  to accelerate.

The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-

ing to the style of driving, the proﬁ le of

the road and the load in the vehicle.

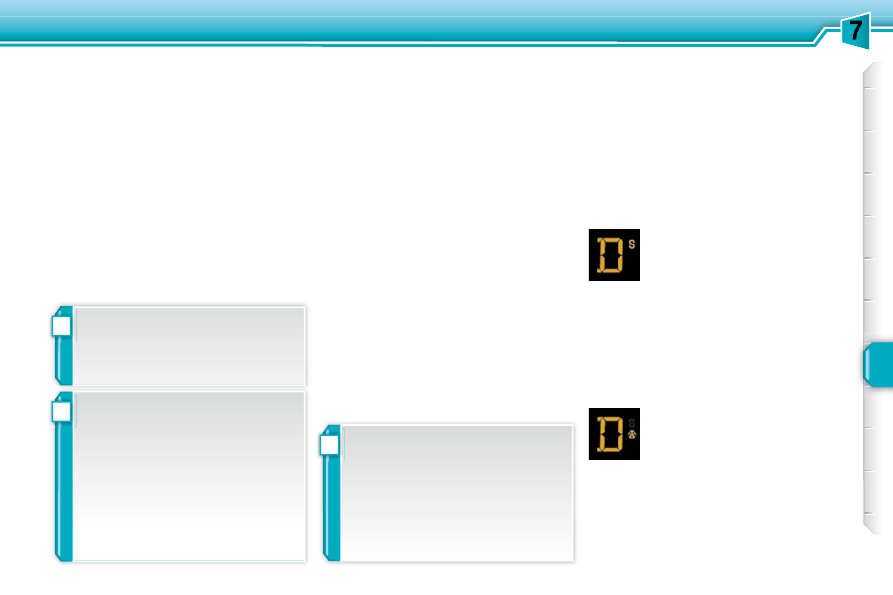

Automatic operation

 Select position D for automatic

changing of the four gears.

 appears on the instrument

panel.

Snow programme "  "
 Press button "  ", after starting the

engine.

The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.

S appears on the instrument
panel.

Sport programme "S"
 Press button "S" , after starting the

engine.

The gearbox automatically favours a
dynamic style of driving.

Never  select  position   N   while  the
vehicle is moving.
Never  select  positions   P   or   R
unless  the  vehicle  is  completely
stationary.

When the engine is running at idle,
with the brakes released, if position
R ,   D   or   M   is  selected,  the  vehicle
moves  even  without  the  accelera-
tor being pressed.
When the engine is running, never
leave  children  in  the  vehicle  with-
out supervision.
When carrying out maintenance with
the  engine  running,  apply  the  park-
ing brake and select position  P .

Sport and snow programmes

These two special programmes supple-
ment the automatic operation in very

speciﬁ c conditions of use.

Return to automatic operation

 At any time, press the button se-

lected again to quit the programme
engaged and return to auto-adaptive
mode.

For  maximum  acceleration  without
touching  the  lever,  press  the  accelera-
tor  pedal  down  fully  (kick  down).  The
gearbox  changes  down  automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down

automatically to provide efﬁ cient engine

braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.

DRIVING

106

Stopping the vehicle

Before  switching  off  the  engine,  you
can engage position  P  or  N  to place the
gearbox in neutral.
In  both  cases,  apply  the  parking  brake
to immobilise the vehicle.

Operating fault

There is a risk of damage to the
gearbox:
-

if you press the accelerator and
brake pedals at the same time,

if  you  force  the  movement  of
the gear lever from the  P  posi-
tion  to  another  position  when

the battery is ﬂ at.

To reduce fuel consumption when
at a prolonged standstill with the

engine running (trafﬁ c jam...), put

the gear lever in the N position and
apply the parking brake.

Manual operation

 Select position M for sequential

changing of the four gears.

 Push the lever towards the + sign to

change up a gear.

 Pull the lever towards the - sign to

change down a gear.

  D   disappears  and  the  gears
engaged  appear  in  succes-
sion on the instrument panel.
In  the  event  of  the  engine  la-
bouring  or  over-revving,  the

gear selected ﬂ ashes for a few sec-

onds,  then  the  actual  gear  engaged  is
displayed.
It is possible to change from position  D
(automatic)  to  position   M   (manual)  at
any time.
When  the  vehicle  is  stationary  or mov-
ing  very  slowly,  the  gearbox  selects
gear  M1  automatically.
The sport and snow programmes do not
operate in manual mode.

If  the  lever  is  not  in  position   P ,
when  the  driver's  door  is  opened
or  approximately  45  seconds  after
the ignition is switched off, a mes-
sage  appears  in  the  multifunction
screen.
      Return  the  lever  to  position   P ;

the message disappears.

It  is  only  possible  to  change  from  one
gear to another if the vehicle speed and
engine  speed  permit;  otherwise,  the
gearbox  will  operate  temporarily  in  au-
tomatic mode.

Invalid value during manual
operation

This  symbol  is  displayed  if  a
gear  is  not  engaged  correctly
(selector  between  two  posi-
tions).

When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible sig-
nal and a message on the mul-

tifunction  screen,  indicates  a  gearbox
malfunction.
In  this  case,  the  gearbox  switches  to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from  P  to  R  and from  N  to  R .
This  will  not  cause  any  damage  to  the
gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Contact a PEUGEOT dealer as soon as
possible.

DRIVING

107

SPEED LIMITER

System which prevents the vehicle from
exceeding  the  speed  programmed  by
the driver.
When  the  programmed  speed  limit  is
reached, pressing the accelerator pedal
no longer has any effect.
The speed limiter is  switched on  man-
ually:  it  requires  a  programmed  speed
of at least 20 mph (30 km/h).
The  speed  limiter  is   switched  off   by
manual operation of the control.
The  programmed  speed  can  be  ex-
ceeded temporarily by pressing the ac-

celerator ﬁ rmly.
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched
off.

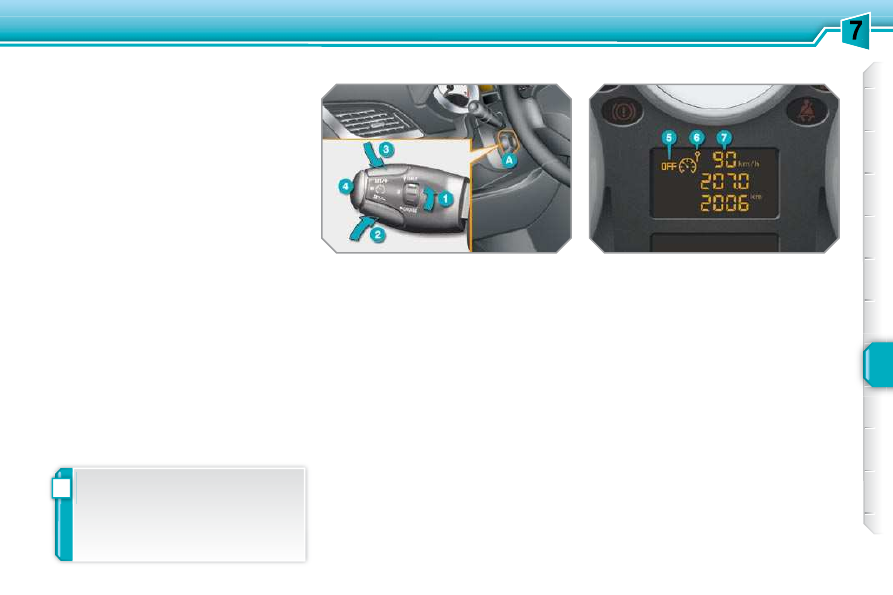

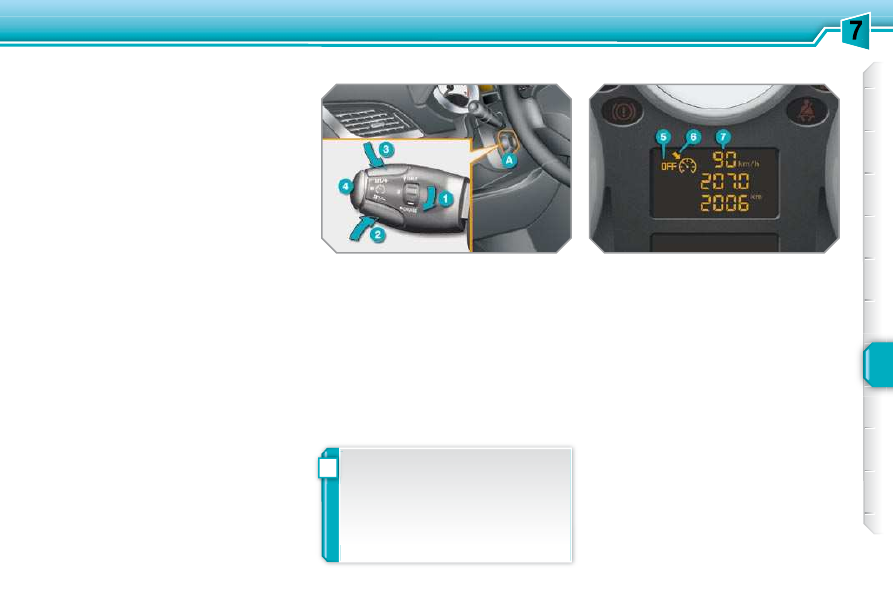

The controls of this system are grouped
together on stalk  A .
   1.   Speed limiter mode selection dial
  2.   Value decrease button
  3.   Value increase button
  4.   Speed limiter on/off button

The

programmed

information

grouped  together  on  the  instrument
panel screen.
5.  Speed limiter on/off indication
6.  Speed limiter mode selection indication
7.  Programmed speed value

Steering mounted controls

Displays on the instrument panel

The  speed  limiter  cannot,  in  any
circumstances,  replace  the  need
to  respect  speed  limits,  nor  can  it
replace  the  need  for  vigilance  and
responsibility  on  the  part  of  the
driver.

DRIVING

On a steep descent, the speed lim-
iter will not be able to prevent the
vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the

pedals:
-

ensure that the mat is posi-
tioned correctly,

- do not ﬁ t one mat on top of an-

other.

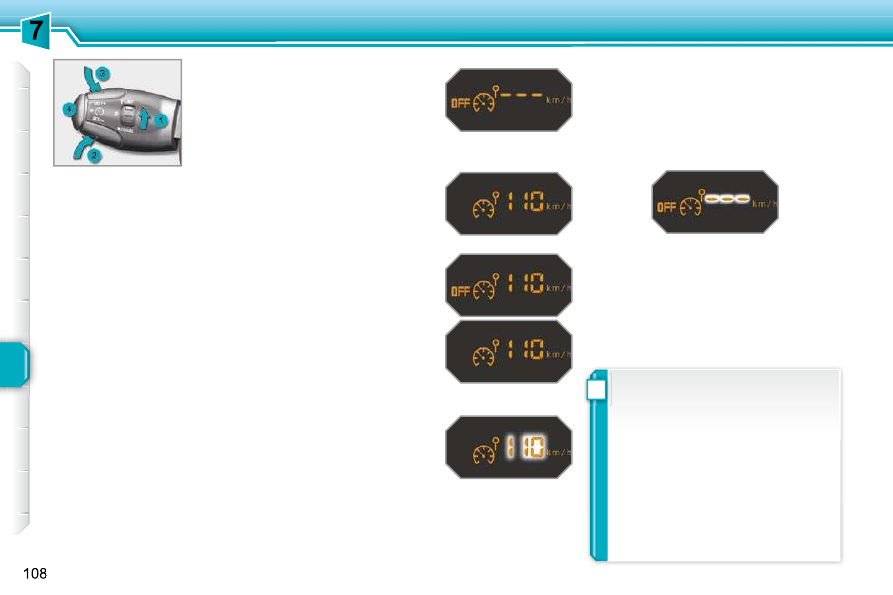

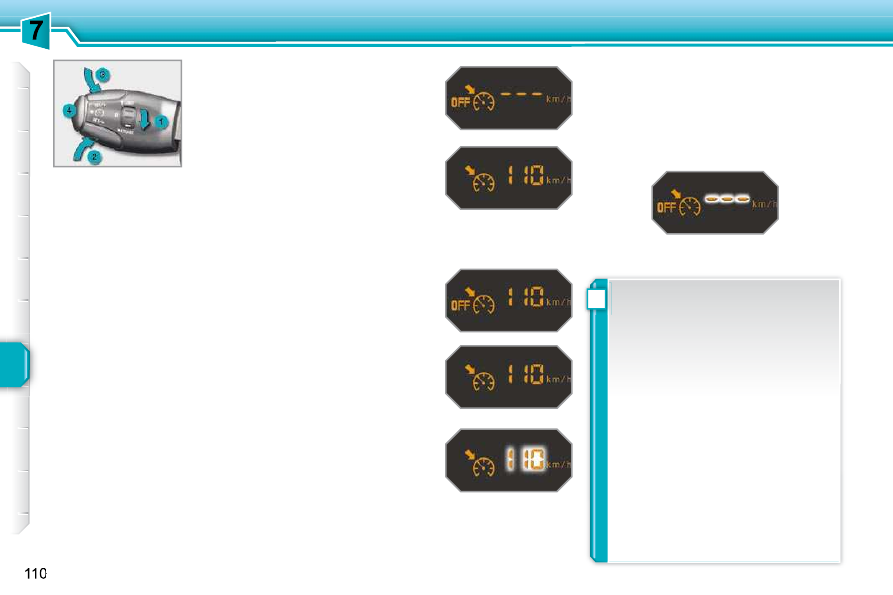

Programming

 Turn dial 1 to the "LIMIT" position:

the speed limiter mode is selected
but is not switched on (OFF).

Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal

ﬁ rmly past the point of resistance .
The speed limiter is deactivated temporarily and the pro-

grammed speed, which is still displayed, ﬂ ashes.
Returning to the programmed speed, by means of intention-
al or unintentional deceleration of the vehicle, automatically

cancels the ﬂ ashing of the programmed speed.

Return to normal driving

 Turn dial 1 to the "0" position: the speed limiter mode is

deselected. The display returns to the distance recorder.

Operating fault

In the event of a speed limiter mal-
function, the speed is cleared result-

ing in ﬂ ashing of the dashes. Contact a

PEUGEOT dealer to have the system
checked.

You do not have to switch the speed
limiter on in order to set the speed.

 Set the speed value by pressing button 2 or 3 (e.g.:

70 mph (110 km/h).

You can then change the programmed speed using but-
tons 2 and 3 :

   -   by + or - 1 mph (km/h) = short press,
  -   by + or - 5 mph (km/h) = long press,
  -   in steps of + or - 5 mph (km/h) = maintained press.

 Switch the speed limiter on by pressing button 4 .
 Switch the speed limiter off by pressing button 4 : the dis-

play conﬁ rms that it has been switched off (OFF).

 Switch the speed limiter back on by pressing button 4

again.

DRIVING

109

CRUISE CONTROL

System  which  automatically  maintains
the  speed  of  the  vehicle  at  the  value
programmed  by  the  driver,  without  any
action on the accelerator pedal.
The  cruise  control  is   switched  on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h), as well as
the engaging:
   -

of fourth gear on the manual gear-
box,

of second gear on the automatic
gearbox, in sequential mode,

of position D on the automatic gear-
box.

The cruise control is  switched off  man-
ually or by pressing the brake or clutch
pedal  or  on  triggering  of  the  ESP  sys-
tem for safety reasons.
It is possible to exceed the programmed
speed  temporarily  by  pressing  the  ac-
celerator pedal.
To  return  to  the  programmed  speed,
simply release the accelerator pedal.
Switching  off  the  ignition  cancels  any
programmed speed value.

The controls of this system are grouped
together on stalk  A .
   1.   Cruise control mode selection dial
  2.   Value decrease button
  3.   Value increase button
  4.   Cruise control off/resume button

The

programmed

information

grouped  together  on  the  instrument
panel screen.
  5.   Cruise control off/resume indication
  6.   Cruise  control  mode  selection  indi-

cation

7. Programmed speed value

Steering mounted controls

Displays on the instrument panel

The  cruise  control  cannot,  in  any
circumstances,  replace  the  need
to  respect  speed  limits,  nor  can  it
replace  the  need  for  vigilance  and
responsibility  on  the  part  of  the
driver.
You  are  advised  to  keep  your  feet
near the pedals at all times.

DRIVING

When the cruise control is switched
on,  be  careful  if  you  maintain  the
pressure on one of the programmed
speed  changing  buttons:  this  may
result in a very rapid change in the
speed of your vehicle.
Do  not  use  the  cruise  control  on

slippery roads or in heavy trafﬁ c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the

pedals:
-

ensure that the mat is posi-
tioned correctly,

- never ﬁ t one mat on top of an-

other.

Programming

 Turn dial 1 to the "CRUISE" po-

sition: the cruise control mode is
selected but is not switched on
(OFF).

Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed

speed results in ﬂ ashing of this speed on the screen.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically can-

cels the ﬂ ashing of the speed.

Return to normal driving

 Turn dial 1 to the "0" position: the cruise control mode is

deselected. The display returns to the distance recorder.

Operating fault

In the event of a cruise control mal-
function, the speed is cleared result-

ing in ﬂ ashing of the dashes. Contact a

PEUGEOT dealer to have the system
checked.

 Set the programmed speed by ac-

celerating  to  the  required  speed,
then  press  button   2   or   3   (e.g.:
70 mph (110 km/h)).

 Switch off the cruise control by pressing button 4 : the

display conﬁ rms that it has been switched off (OFF).

 Switch the cruise control back on by pressing button 4

again.

You can then change the programmed speed using buttons
2 and 3 :
-

by + or - 1 mph (km/h) = short press,

by + or - 5 mph (km/h) = long press,

in steps of + or - 5 mph (km/h) = maintained press.

DRIVING

111

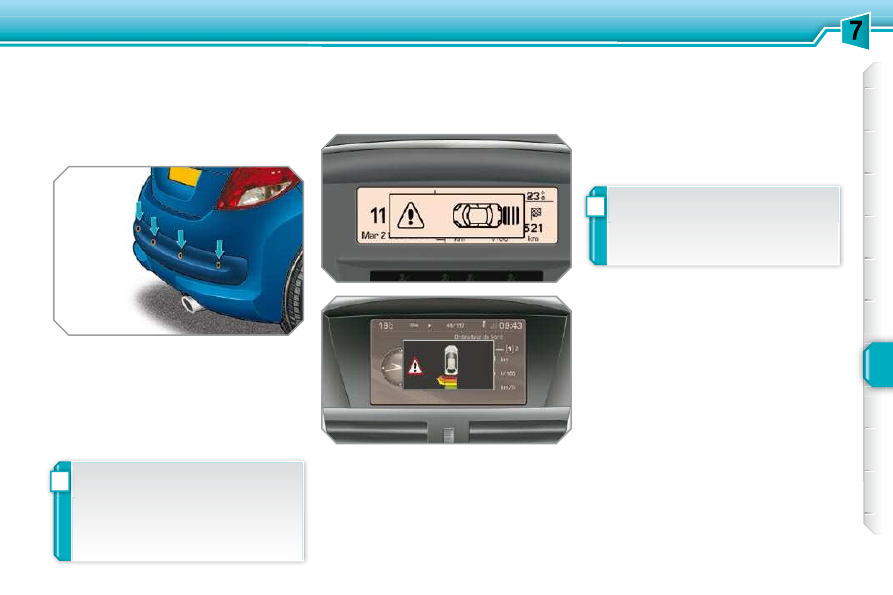

VISUAL AND AUDIBLE
PARKING SENSORS

System consisting of four proximity
sensors, installed in the rear bumper.

It detects any obstacle (person, vehicle,
tree, barrier...) located behind the vehi-
cle, however, it will not be able to detect
obstacles located immediately below
the bumper.

The parking sensors are switched on
by engaging reverse gear.
This is accompanied by an audible signal.

* According to version.

An object, such as a stake, a road-

works cone or any other similar

object may be detected at the start

of the manoeuvre but may no lon-
ger be detected when the vehicle
moves nearer to it.

When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the
audible signal becomes continuous and
the "Danger" symbol appears, depend-
ing on the multifunction screen version.

The parking sensor system cannot, in
any circumstances, replace the need
for vigilance and responsibility on the
part of the driver.

The parking sensors are switched off
by moving the gear lever to neutral.

The proximity information is indicated
by:
-

an audible signal which becomes
more rapid as the vehicle approach-
es the obstacle,

a  diagram  on  the  multifunction
screen * ,  with  blocks  which  move
closer to the vehicle.

DRIVING

112

Deactivation/Activation of the rear
parking sensors

Operating fault

  In bad weather or in winter, ensure
that  the  sensors  are  not  covered
with  mud,  ice  or  snow.  When  re-
verse gear is engaged, an audible
signal  (long  bleep)  indicates  that
the sensors may be dirty.
When  the  vehicle  is  moving  at  a
speed  below  6  mph  (10  km/h),  cer-
tain  sound  sources  (motorcycle,
lorry,  pneumatic  drill,  etc.)  may  trig-
ger the audible signals of the parking
sensor system.

If  an  operating  fault  occurs,
when  reverse  gear  is  engaged
this  warning  lamp  is  displayed
on  the  instrument  panel  and/or

a message appears on the screen, ac-
companied by an audible signal (short
bleep).
Consult a PEUGEOT dealer.

The status of the function is stored
when the ignition is switched off.
For further details about the access
to the parking sensors menu, refer

to the vehicle conﬁ guration section

corresponding to your multifunction
screen.

The function will be deactivated au-
tomatically if a trailer is being towed

or a bicycle carrier is ﬁ tted (vehicle

ﬁ tted with a towbar or bicycle car-

rier recommended by PEUGEOT.

The function is deactivated
or activated via the multi-

function screen conﬁ gura-

tion menu.

114

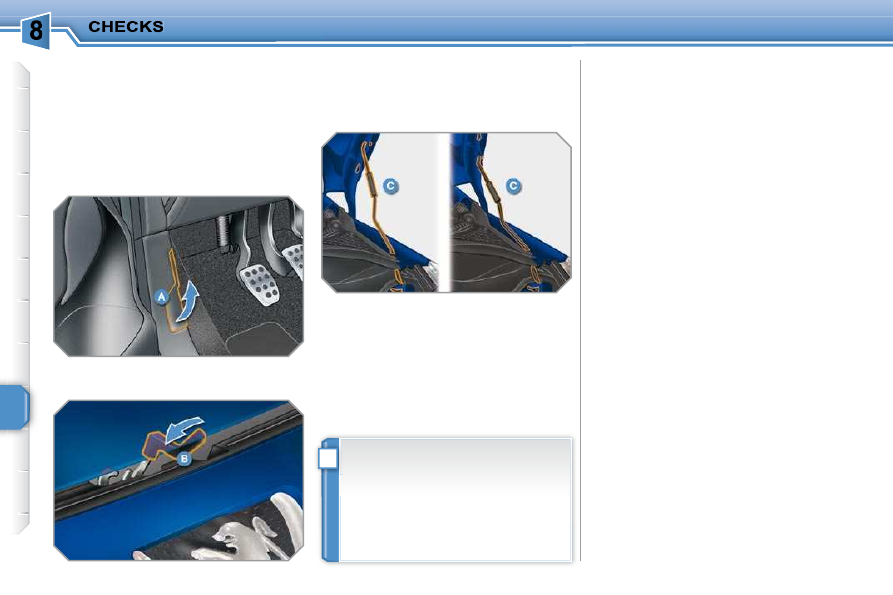

BONNET

Protects the components of the engine and
provides access for checking levels.

 Push the exterior safety catch B to

the left and raise the bonnet.

 Unclip the stay C from its housing.
 Fix the stay in one of the two notches

to hold the bonnet open.

Closing

 Take the stay out of the support

notch.

 Clip the stay in its housing.
 Lower the bonnet and release it at

the end of its travel.

 Pull on the bonnet to check that it is

secured correctly.

RUNNING OUT OF FUEL
(DIESEL)

If your vehicle is ﬁ tted with an HDI en-

gine, the fuel system must be primed if
you run out of fuel (refer to the corre-
sponding image).
If the engine does not start ﬁ rst time,

don't keep trying.
Operate the priming pump again, then
the starter motor.

Opening

 Open the front left door.
 Pull the interior release lever A ,

located at the bottom of the door
frame.

The  location  of  the  interior  control
prevents  opening  of  the  bonnet
while the front left door is closed.
When the engine is hot, handle the
exterior  safety  catch  and  bonnet
stay with care (risk of burns).

1.6 litre Turbo HDI 16V engine



Fill the fuel tank with at least ﬁ ve

litres of diesel.

 Open the bonnet.
 Operate the priming pump until it

hardens (it may be hard at the ﬁ rst

press).

 Operate the starter until the engine

starts.

 Close the bonnet.

115

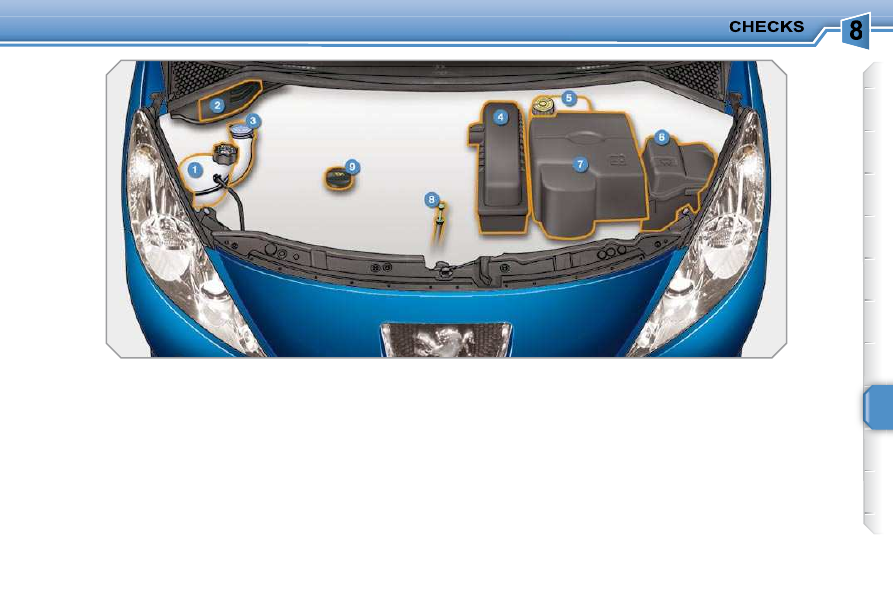

PETROL ENGINES

The caps and covers provide access for checking the levels of the various ﬂ uids and to replace certain components.

1. Coolant reservoir.

Passenger compartment ﬁ lter.

3. Screenwash and headlamp wash

reservoir.

Air ﬁ lter.

Brake ﬂ uid reservoir.

6. Fusebox.

7. Battery.

8. Engine oil dipstick.

Engine oil ﬁ ller cap.

116

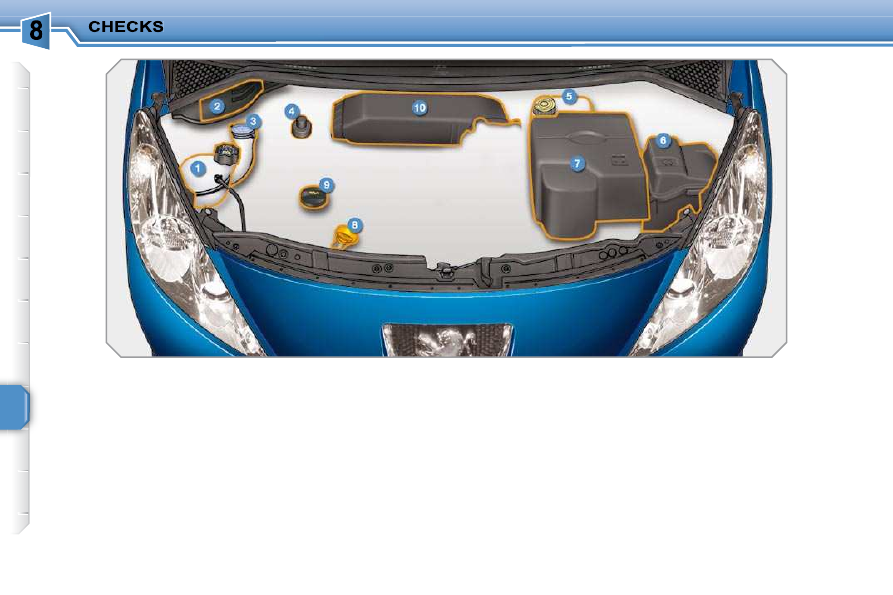

DIESEL ENGINE

The caps and covers provide access for checking the levels of the various ﬂ uids, to replace certain components and to prime

the fuel system.

1. Coolant reservoir.

Passenger compartment ﬁ lter.

3. Screenwash and headlamp wash

reservoir.

4. Priming pump.

Brake ﬂ uid reservoir.

6. Fusebox.

7. Battery.

8. Engine oil dipstick.

Engine oil ﬁ ller cap.

10.

Air ﬁ lter.

117

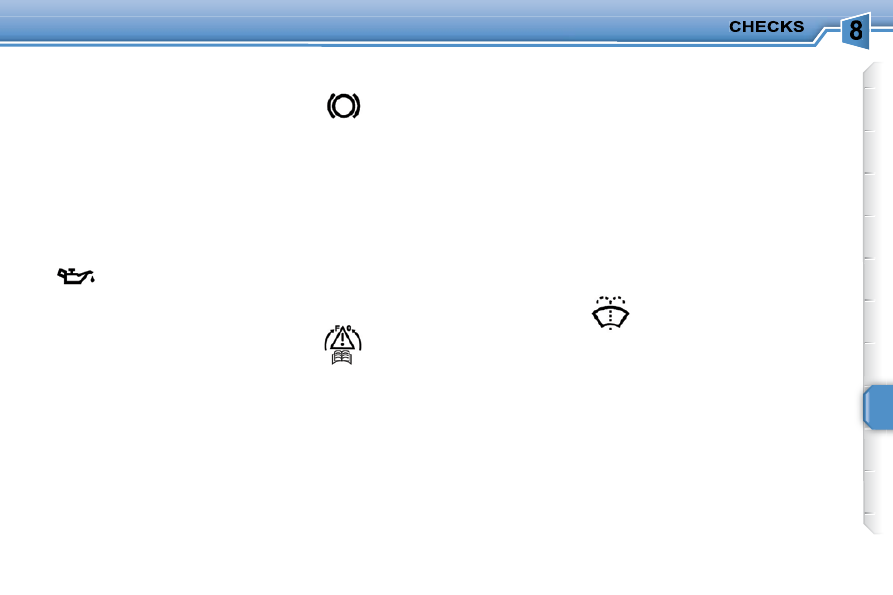

CHECKING LEVELS

Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signiﬁ cantly, have the

corresponding system checked by a
PEUGEOT dealer.
Take care when working under the bon-
net, as some parts of the engine can be
extremely hot (risk of burns).

Brake fluid level

To  avoid  any  risk  of  scalding,  unscrew
the cap by two turns to allow the pres-
sure  to  drop.  When  the  pressure  has
dropped,  remove  the  cap  and  top  up
the level.

Oil level

The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.

The check is carried out either when
the ignition is switched on using the oil
level indicator on the instrument panel,
or using the dipstick.

The brake ﬂ uid level should be

close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the brake ﬂ uid
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.

Coolant level

The  coolant  level  should  be
close  to  the  "MAX"  mark  but
should never exceed it.
When  the  engine  is  warm,  the

temperature of the coolant is regulated
by the fan. This can operate with the ig-
nition off.

On vehicles which are ﬁ tted with a

particle emission ﬁ lter, the fan may

operate after the vehicle has been

switched off, even if the engine is

cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.

Screenwash and headlamp
wash * fluid

The minimum level of this ﬂ uid

is indicated by an audible sig-
nal and a message on the mul-
tifunction screen.

Top up the level when you stop the
vehicle.

* According to country.

  Changing the engine oil
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine  and  emission  control  system,
the use of additives in the engine oil is
prohibited.

Oil speciﬁ cation
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations.

Fluid speciﬁ cation

The brake ﬂ uid must conform to the

manufacturer's recommendations and

fulﬁ l the DOT4 standards.

  Changing the coolant
The  coolant  does  not  have  to  be
changed.

Fluid speciﬁ cation
The coolant must conform to the manu-
facturer's recommendations.

  Fluid speciﬁ cation
To  guarantee  optimum  cleaning  and
avoid  freezing,  plain  water  should  not

be used to top up or replace this ﬂ uid.

118

Avoid any prolonged contact of

used oil or ﬂ uids with the skin.

Most of these ﬂ uids are harmful to

health or indeed very corrosive.

Do not discard used oil or ﬂ uids

into sewers or onto the ground.
Take used oil to an authorised
waste disposal site or a PEUGEOT
dealer.

Diesel additive level (Diesel with
particle emission filter)

The minimum level of this additive is
indicated by lighting of the service war-
ning lamp, accompanied by an audible
signal and a message on the multifunc-
tion screen.

Used products

Unless

otherwise

indicated,

check

these components in accordance with
the Warranty and Maintenance Record
and in relation to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.

Battery

The battery does not require
any maintenance.
However, check that the ter-

minals are clean and correctly
tightened, particularly in sum-

mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.

Air filter and passenger compartment filter

Refer  to  the  Warranty  and
Maintenance  Record  for  de-
tails  of  the  replacement  inter-
vals for these components.
Depending  on  the  environ-

ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary (re-
fer to the "Engines" section).
A clogged passenger compartment ﬁ lter

may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.

Particle emission filter (Diesel)

It is imperative that the maintenance of

the particle emission ﬁ lter is carried out

by a PEUGEOT dealer.

Oil filter

Replace the oil ﬁ lter each time

the engine oil is changed.
Refer  to  the  Warranty  and
Maintenance  Record  for  de-
tails  of  the  replacement  inter-
val for this component.

Following  prolonged  operation  of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at the
exhaust on acceleration. This does
not have any adverse effect on the
performance  of  the  vehicle  or  on
the environment.

  Topping up
This  additive  must  be  topped  up  by  a
PEUGEOT dealer without delay.

118

Avoid any prolonged contact of

used oil or ﬂ uids with the skin.

Most of these ﬂ uids are harmful to

health or indeed very corrosive.

Do not discard used oil or ﬂ uids

into sewers or onto the ground.
Take used oil to an authorised
waste disposal site or a PEUGEOT
dealer.

Diesel additive level (Diesel with
particle emission filter)

The minimum level of this additive is
indicated by lighting of the service war-
ning lamp, accompanied by an audible
signal and a message on the multifunc-
tion screen.

Used products

Unless

otherwise

indicated,

check

these components in accordance with
the Warranty and Maintenance Record
and in relation to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.

Battery

The battery does not require
any maintenance.
However, check that the ter-

minals are clean and correctly
tightened, particularly in sum-

Air filter and passenger compartment filter

Refer  to  the  Warranty  and
Maintenance  Record  for  de-
tails  of  the  replacement  inter-
vals for these components.
Depending  on  the  environ-

ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary (re-
fer to the "Engines" section).
A clogged passenger compartment ﬁ lter

may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.

Particle emission filter (Diesel)

It is imperative that the maintenance of

the particle emission ﬁ lter is carried out

by a PEUGEOT dealer.

Oil filter

Replace the oil ﬁ lter each time

the engine oil is changed.
Refer  to  the  Warranty  and
Maintenance  Record  for  de-
tails  of  the  replacement  inter-
val for this component.

  Topping up
This  additive  must  be  topped  up  by  a
PEUGEOT dealer without delay.

Peugeot 207 CC Dag (2010 year). Instruction - part 8
