The AEB system operates at speeds above
approximately 3 mph (5 km/h). For the pe-
destrian detection function, the system
operates at speeds between 6 – 37 mph
(10 – 60 km/h).

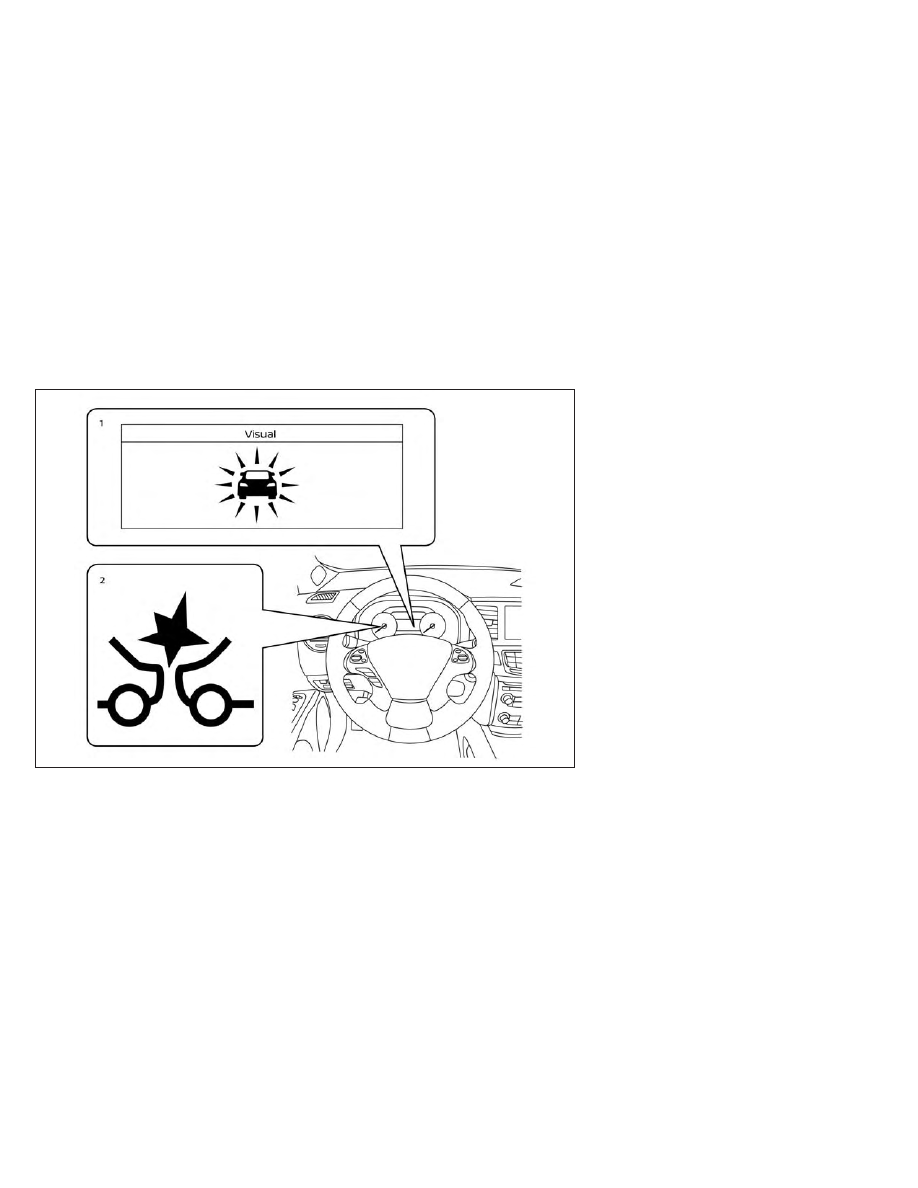

If a risk of a forward collision is detected,
the AEB with Pedestrian Detection system
will firstly provide the warning to the driver
by flashing the vehicle ahead detection in-
dicator (yellow) in the vehicle information
display and providing an audible alert. If the
driver applies the brakes quickly and force-
fully after the warning, and the AEB with
Pedestrian Detection system detects that
there is still the possibility of a forward col-
lision, the system will automatically in-
crease the braking force.

If the driver does not take action, the AEB
with Pedestrian Detection system issues
the second visual (flashing) (red and white)
and audible warning. If the driver releases
the accelerator pedal, then the system ap-
plies partial braking. If the risk of a collision
becomes imminent, the AEB with Pedes-
trian Detection system applies harder
braking automatically.

While the AEB with Pedestrian Detection
system is operating, you may hear the
sound of brake operation. This is normal
and indicates that the AEB with Pedestrian
Detection system is operating properly.

NOTE:

The vehicle’s brake lights come on when
any braking is performed by the AEB
with Pedestrian Detection system.

Depending on vehicle speed and distance
to the vehicle or pedestrian ahead, as well
as driving and roadway conditions, the sys-
tem may help the driver avoid a forward
collision or may help mitigate the conse-
quences if a collision should be unavoid-
able. If the driver is handling the steering
wheel, accelerating or braking, the AEB with
Pedestrian Detection system will function
later or will not function.

The automatic braking will cease under the
following conditions:
• When the steering wheel is turned to

avoid a collision.

• When the accelerator pedal is depressed.
• When there is no longer a vehicle or a

pedestrian detected ahead.

If the AEB with Pedestrian Detection sys-
tem has stopped the vehicle, the vehicle
will remain at a standstill for approximately
2 seconds before the brakes are released.

5-88

Starting and driving

TURNING THE AEB WITH
PEDESTRIAN DETECTION SYSTEM
ON/OFF

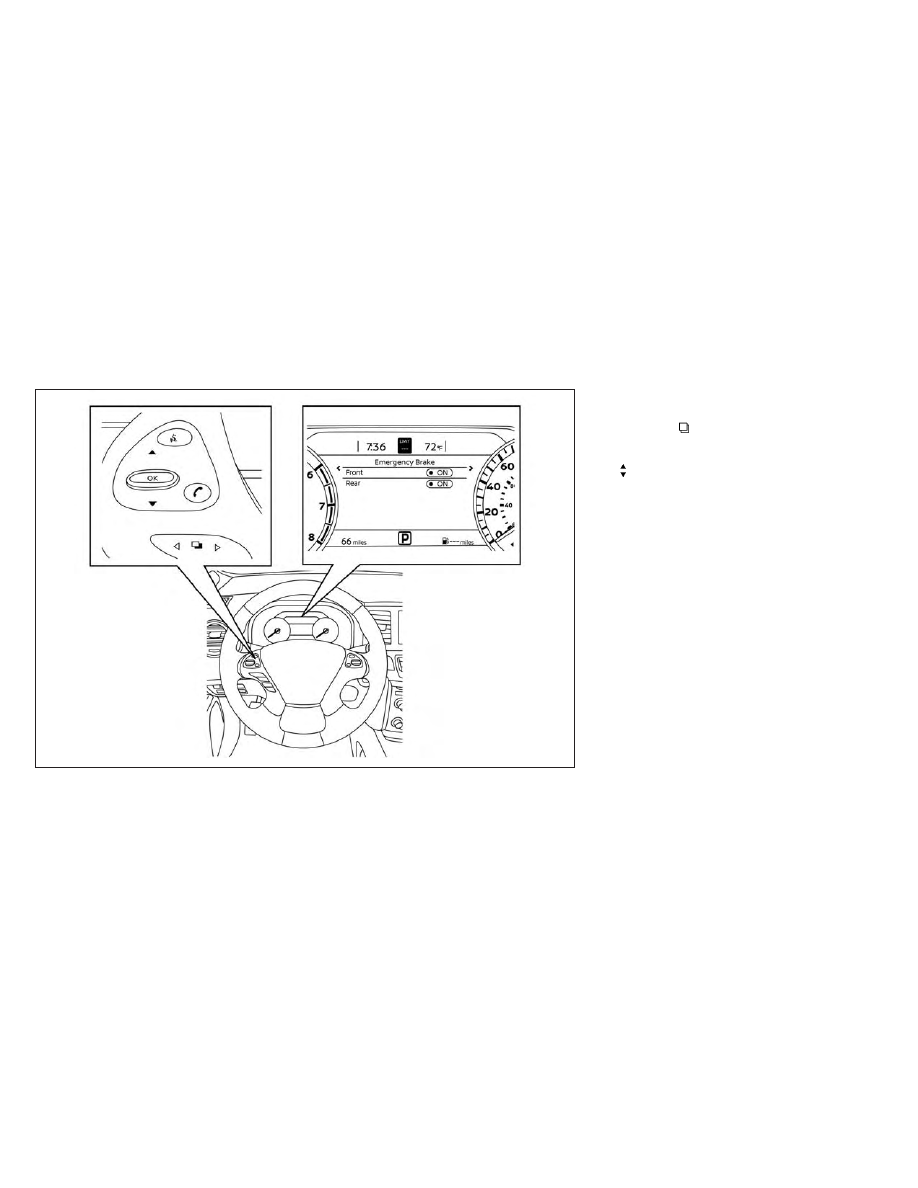

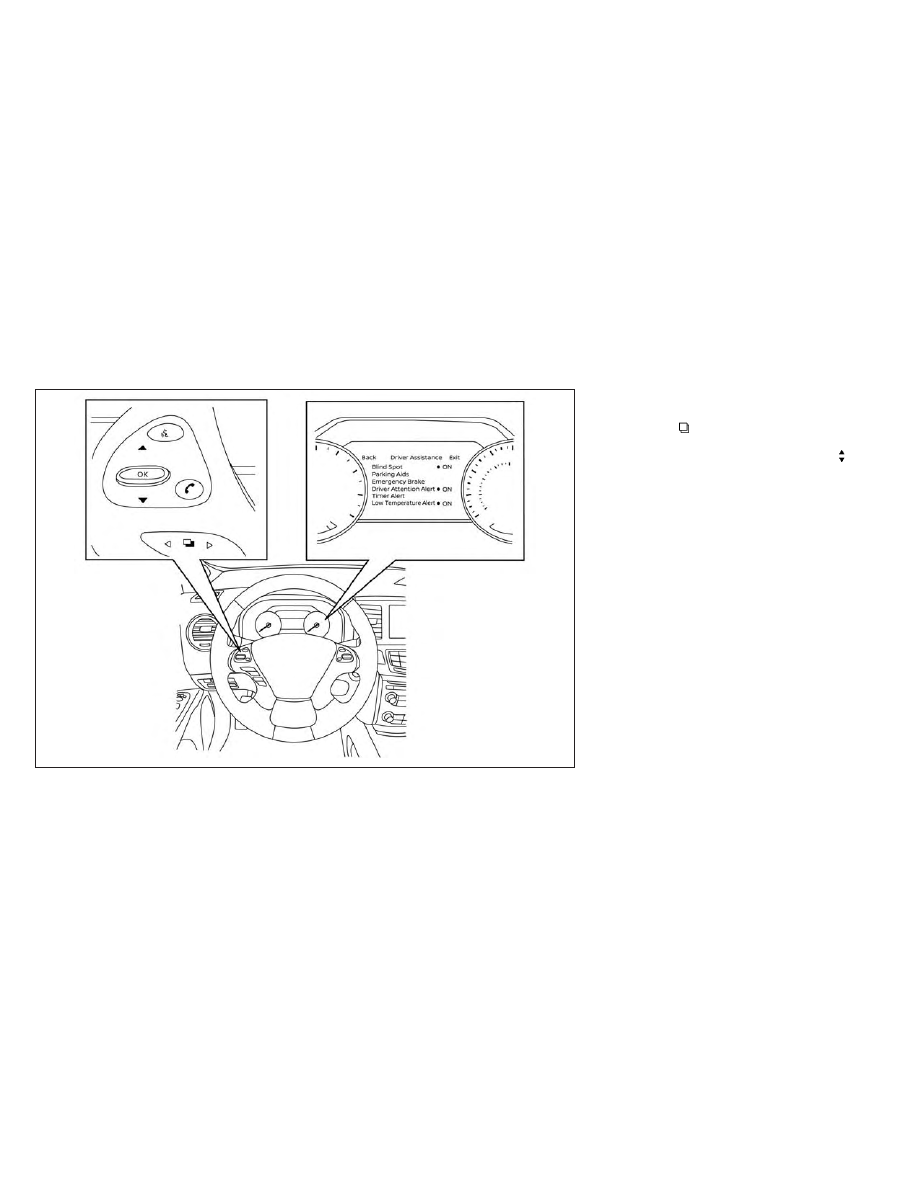

Perform the following steps to enable or
disable the AEB with Pedestrian Detection
system.

1. Press the

button until “Settings” dis-

plays in the vehicle information display
and then press the OK button. Use the

button to select “Driver Assistance.”

Then press the OK button.

2. Select “Emergency Brake” and press the

OK button.

3. Select “Front” and press the OK button to

turn the system on or off.

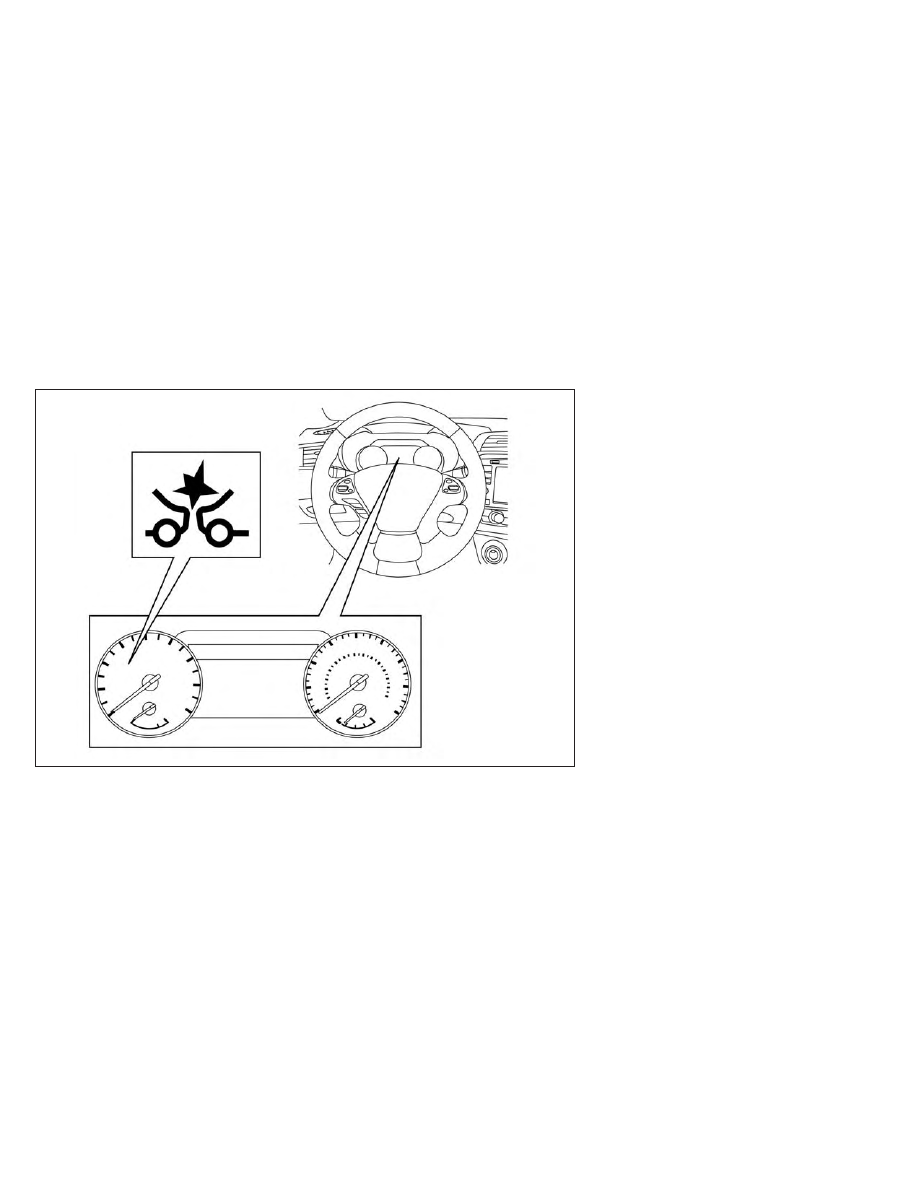

When the AEB with Pedestrian Detection
system is turned off, the AEB with Pedes-
trian

Detection

system

warning

light

illuminates.

NOTE:

•

The AEB with Pedestrian Detection sys-
tem will be automatically turned on
when the engine is restarted.

•

The I-FCW system is integrated into the
AEB with Pedestrian Detection system.
There is not a separate selection in
the vehicle information display for the
I-FCW system. When the AEB with Pe-
destrian Detection system is turned off,
the I-FCW system is also turned off.

LSD3434

Starting and driving

5-89

AEB WITH PEDESTRIAN
DETECTION SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the AEB with Pedestrian Detection
system. Failure to operate the vehicle in
accordance with these system limita-
tions could result in serious injury or
death.

•

The AEB with Pedestrian Detection
system cannot detect all vehicles or
pedestrians under all conditions.

•

The AEB with Pedestrian Detection
system does not detect the following:

–

Pedestrians that are small (for ex-
ample, children), in a sitting posi-
tion, operating toys/skateboards,
on scooters or in wheelchairs, or
not in an upright standing or
walking position.

–

Animals of any size.

–

Obstacles (for example, cargo or de-
bris) on the roadway or roadside.

–

Oncoming or crossing vehicles.

–

Vehicles where the tires are difficult
to see or the shape of the rear of the
vehicle is unclear or obstructed.

–

Parked vehicles.

•

The AEB with Pedestrian Detection
system has some performance limi-
tations.

–

If a stationary vehicle is in the ve-

hicle’s path, the system will not
function when the vehicle ap-
proaches the stationary vehicle at
speeds over approximately 50
mph (80 km/h).

–

Pedestrian

detection

will

not

function

when

the

vehicle

driven at speeds over approxi-
mately 37 mph (60 km/h) or below
approximately 6 mph (10km/h).

•

For pedestrians, the AEB with Pedes-
trian Detection system will not issue
the first warning.

•

The AEB with Pedestrian Detection
system may not function properly
or detect a vehicle or pedestrians
ahead in the following conditions:

–

In poor visibility conditions (such
as rain, snow, fog, dust storms,
sand storms, smoke, and road
spray from other vehicles).

–

If dirt, ice, snow, fog or other mate-
rial is covering the radar sensor
area or camera area of windshield.

–

If strong light (for example, sun-
light or high beams) enters the
front camera or a sudden change
in brightness occurs (for example,
entering a tunnel or driving in
lightning).

–

In dark or dimly lit conditions,
such as at night or in tunnels, in-
cluding cases where your vehi-
cle’s headlights are off or dim, or
the tail lights of the vehicle ahead
are off.

–

When the direction of the camera
is misaligned.

–

When driving on a steep downhill
slope, on roads with sharp curves,
and/or bumpy or dirt roads.

–

If there is interference by other ra-
dar sources.

–

When your vehicle’s position or
movement is changed quickly or
significantly (for example, lane
change, turning vehicle, abrupt
steering, sudden acceleration or
deceleration).

5-90

Starting and driving

–

When your vehicle or the vehicle
or

pedestrian

ahead

moves

quickly or significantly such that
the system cannot detect and re-
act in time (for example, pedes-
trian moving quickly toward the
vehicle at close range, vehicle cut-
ting in, changing lanes, making a
turn, steering abruptly, sudden
acceleration or deceleration).

–

When the vehicle or pedestrian is
offset from the vehicle’s forward
path.

–

If the speed difference between
the two vehicles is small.

–

The pedestrian’s profile is par-
tially obscured or unidentifiable;
for example, due to transporting
luggage, pushing a stroller, wear-
ing bulky or very loose-fitting
clothing or accessories, or being
in a unique posture (such as rais-
ing hands).

–

There is poor contrast of a person
to the background, such as having
clothing color or pattern which is
similar to the background.

–

For approximately 15 seconds af-
ter starting the engine.

–

If the vehicle ahead has a unique
or unusual shape, extremely low
or high clearance heights, or un-
usual cargo loading or is narrow
(for example, a motorcycle).

–

When the vehicle or pedestrian is
located near a traffic sign, a reflec-
tive area (for example, water on
road), or is in a shadow.

–

When multiple pedestrians are
grouped together.

–

When the view of the pedestrian is
obscured by a vehicle or other
object.

–

While towing a trailer or other
vehicle.

•

The system performance may be de-
graded in the following conditions:

–

The vehicle is driven on a slippery
road.

–

The vehicle is driven on a slope.

–

Excessively

heavy

baggage

loaded in the rear seat or the
cargo area of your vehicle.

•

The system is designed to automati-
cally check the sensor’s (radar and
camera) functionality, within certain
limitations. The system may not de-
tect some forms of obstruction of the
sensor area such as ice, snow or
stickers, for example. In these cases,

the system may not be able to warn
the driver properly. Be sure that you
check, clean and clear sensor areas
regularly.

•

In some road and traffic conditions,
the AEB with Pedestrian Detection
system may unexpectedly apply par-
tial braking. When acceleration is
necessary, depress the accelerator
pedal to override the system.

•

The AEB with Pedestrian Detection
system may operate when a pattern,
object, shadow or lights are detected
that are similar to the outline of ve-
hicles or pedestrians, or if they are
the same size and position as a ve-
hicle or motorcycle’s tail lights.

•

The system may keep operating
when the vehicle ahead is turning
right or left.

•

The system may operate when your
vehicle is approaching and passing a
vehicle ahead.

•

Depending on the road shape (curved
road, entrance and exit of the curve,
winding road, lane regulation, under
construction, etc.), the system may
operate temporarily for the oncoming
vehicle in front of your vehicle.

Starting and driving

5-91

WARNING

•

The AEB with Pedestrian Detection
system may react to:

–

objects on the roadside (traffic
sign, guardrail, pedestrian, motor-
cycle, vehicle, etc.)

–

pedestrians when driving on the
narrow alleys, etc.

–

pedestrians who temporarily pro-
trude into or approaching the
driving lane to avoid the obstacles
on the road shoulder

–

objects above road (low bridge,
traffic sign, etc.)

–

objects on the road surface (rail-
road track, grate, steel plate, etc.)

–

objects in the parking garage
(beam, pillar, etc.)

–

pedestrians or motorcycles ap-
proaching the travelling lane

–

vehicles, pedestrians, motorcycles
or objects in adjacent lanes or close
to the vehicle

–

oncoming pedestrians

–

objects on the road (such as trees)

•

Braking distances increase on slip-
pery surfaces.

•

Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.

LSD4248

5-92

Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE

Condition A:

In the following conditions, the AEB with
Pedestrian Detection system warning light
blinks and the system will be turned off
automatically:
• The radar sensor picks up interference

from another radar source.

• The camera area of the windshield is

misted or frozen.

• Strong light is shining from the front.
• The cabin temperature is over approxi-

mately 104°F (40°C) in direct sunlight.

• The camera area of the windshield glass

is continuously covered with dirt, etc.

Action to take

When the above conditions no longer exist,
the AEB with Pedestrian Detection system
will resume automatically.

NOTE:

When the inside of the windshield on the
camera area is misted or frozen, it will
take a period of time to remove it after
the A/C turns on. If dirt appears on this
area, it is recommended that you visit a
NISSAN dealer.

LSD2526

Starting and driving

5-93

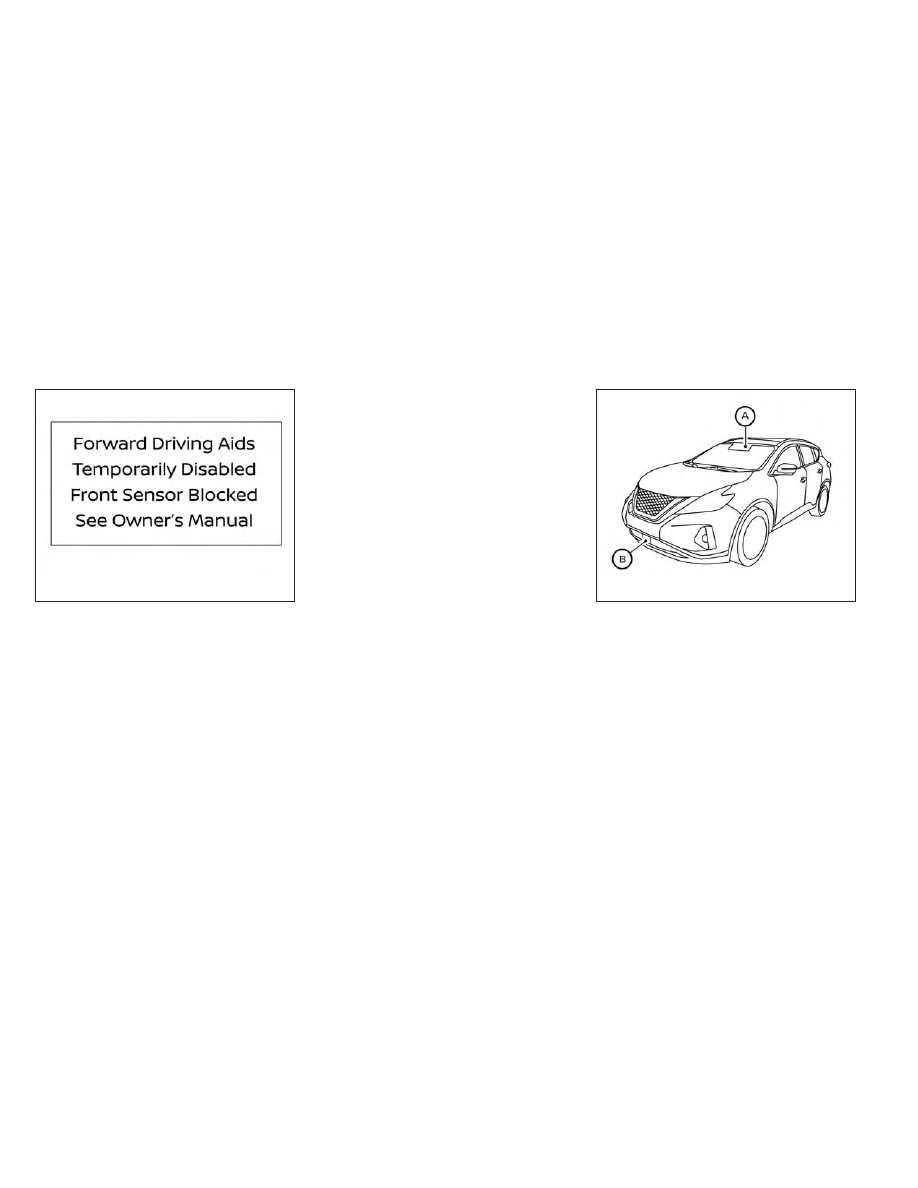

Condition B:

When there is inclement weather (rain, fog,
snow, etc.) blocking the front radar sensor,
the AEB with Pedestrian Detection system
will automatically be canceled, the chime
will sound, the AEB with Pedestrian Detec-
tion system warning light illuminates and
the “Forward Driving Aids Temporarily Dis-
abled Front Sensor Blocked See Owner’s
Manual” warning message will appear in
the vehicle information display.

Action to take:

When the conditions listed above are no
longer present, the warning message will
no longer be available in the vehicle infor-
mation display. If the “Forward Driving Aids
Temporarily Disabled Front Sensor Blocked
See Owner’s Manual” warning message
continues to be displayed, have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.

Condition C:

When the radar sensor of the front bumper
is covered with mud, dirt, snow ice, etc., or is
obstructed, the AEB with Pedestrian Detec-
tion system will automatically be canceled.
The chime will sound, the AEB with Pedes-
trian Detection system warning light illumi-
nates and the “Forward Driving Aids Tem-

porarily Disabled Front Sensor Blocked See
Owner’s Manual” warning message will ap-
pear in the vehicle information display.

Action to take:

If the warning message appears, stop the
vehicle in a safe place, place the shift lever
in the P (Park) position, and turn the engine
off. When the radar signal is temporarily
interrupted, clean the sensor area of the
front bumper and restart the engine. If the
“Forward Driving Aids Temporarily Disabled
Front Sensor Blocked See Owner’s Manual”
warning message continues to be dis-
played, have the system checked. It is rec-
ommended that you visit a NISSAN dealer
for this service.

Condition D:

When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snowfields, driving next to
long walls), the system may illuminate the
AEB with Pedestrian Detection system
warning light and display the “Forward
Driving Aids Temporarily Disabled Front
Sensor

Blocked

See

Owner’s

Manual”

message.

Action to take:

When the above driving conditions no lon-
ger exist, turn the system back on.

Condition E:

When the Vehicle Dynamic Control (VDC)
system is turned OFF, the AEB with Pedes-
trian Detection system will not operate. In
this case only the visible and audible
warning operates. The AEB with Pedestrian
Detection system OFF warning light (or-
ange) will illuminate.

Action to take:

When the VDC system is ON, the AEB with
Pedestrian Detection system will resume
automatically.

NOTE:
If the AEB with Pedestrian Detection
system stops working, the I-FCW sys-
tem will also stop working.

5-94

Starting and driving

SYSTEM MALFUNCTION

If the AEB with Pedestrian Detection sys-
tem malfunctions, it will be turned off auto-
matically, a chime will sound, the AEB with
Pedestrian Detection system warning light
(orange) will illuminate in the vehicle infor-
mation display.

Action to take

If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the en-
gine off and restart the engine. If the
warning light continues to illuminate, have
the AEB with Pedestrian Detection system
checked. It is recommended that you visit a
NISSAN dealer for this service.

SYSTEM MAINTENANCE

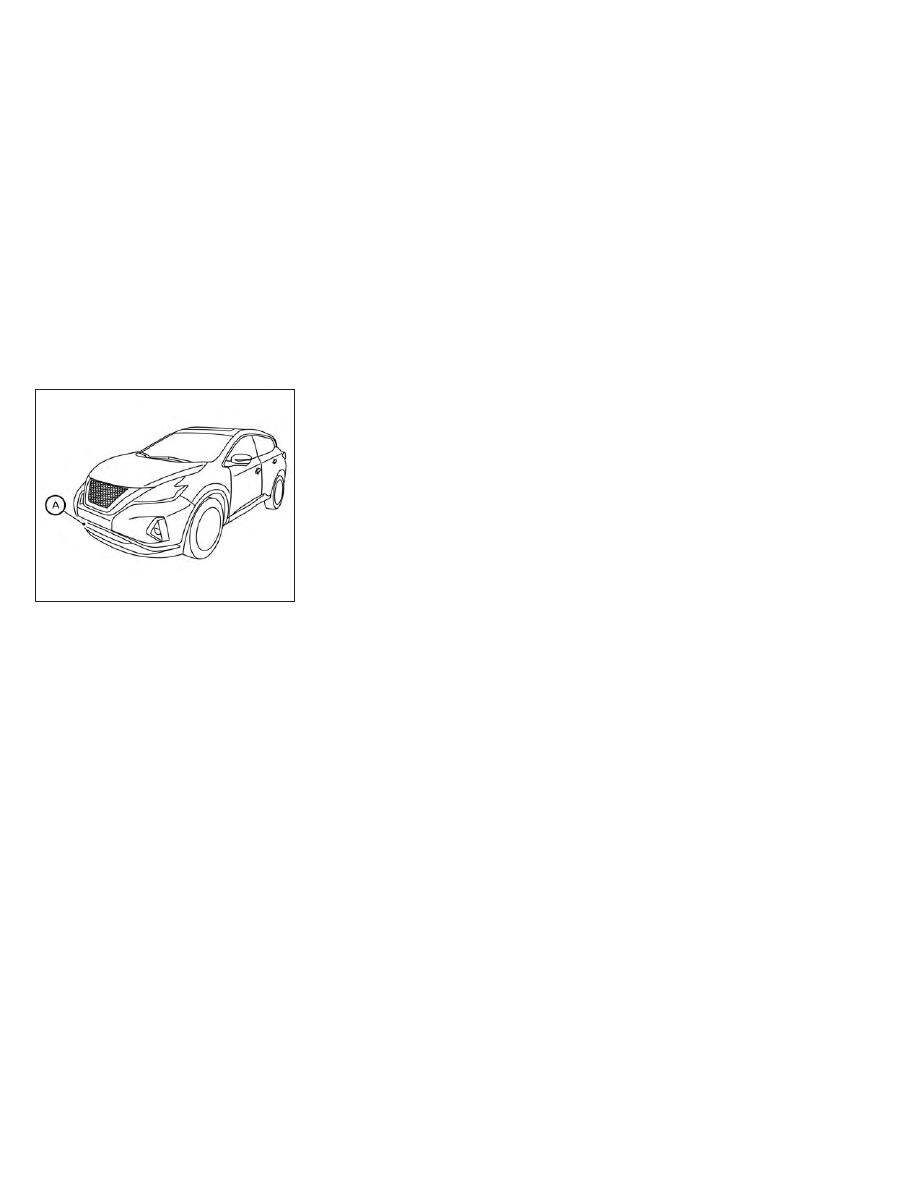

The radar sensor is located on the front of
the vehicle

. The camera is located on

the upper side of the windshield

To keep the AEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
• Always keep the sensor areas of the front

bumper/emblem and windshield clean.

• Do not strike or damage the areas around

the sensors (e.g., bumper, windshield).

LSD3916

LSD3368

Starting and driving

5-95

• Do not cover or attach stickers, or install

any accessory near the sensors. This
could block sensor signals and/or cause
failure or malfunction.

• Do not attach metallic objects near the

radar sensor (brush guard, etc.). This
could cause failure or malfunction.

• Do not place reflective materials, such as

white paper or a mirror, on the instru-
ment panel. The reflection of sunlight
may adversely affect the camera unit's
detection capability.

• Do not alter, remove or paint the front

bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit a NISSAN dealer.

Radio frequency statement

For USA

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:

1. This device may not cause harmful inter-

ference, and

2. This device must accept any interfer-

ence received, including interference
that may cause undesired operation.

FCC Warning

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

For Canada

This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s). Operation is sub-
ject to the following two conditions:

1. This device may not cause interference,

and

2. This device must accept any interfer-

ence received, including interference
that may cause undesired operation of
the device.

Le présent appareil est conforme aux
CNR d'Industrie Canada applicables aux
appareils

radio

exempts

licence.

L'exploitation est autorisée aux deux con-
ditions suivantes:

1. L'appareil ne doit pas produire de brouil-

lage, et

2. L'utilisateur de l'appareil doit accepter

tout

brouillage

radioélectrique

subi,

même si le brouillage est susceptible
d'en compromettre le fonctionnement.

Radio frequency radiation exposure infor-
mation:

This equipment complies with FCC and IC
radiation exposure limits set forth for an
uncontrolled environment.

This equipment should be installed and
operated with minimum distance of 30 cm
between the radiator and your body.

This transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.

Cet équipement est conforme aux limites
d'exposition aux rayonnements IC établies
pour un environnement non contrôlé.

Cet équipement doit être installé et utilisé
avec un minimum de 30 cm de distance
entre la source de rayonnement et votre
corps.

FCC Notice

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

5-96

Starting and driving

WARNING

Failure to follow the warnings and in-
structions for proper use of the I-FCW
system could result in serious injury or
death.

•

The I-FCW system can help warn the
driver before a collision occurs but
will not avoid a collision. It is the driv-
er’s responsibility to stay alert, drive
safely and be in control of the vehicle
at all times.

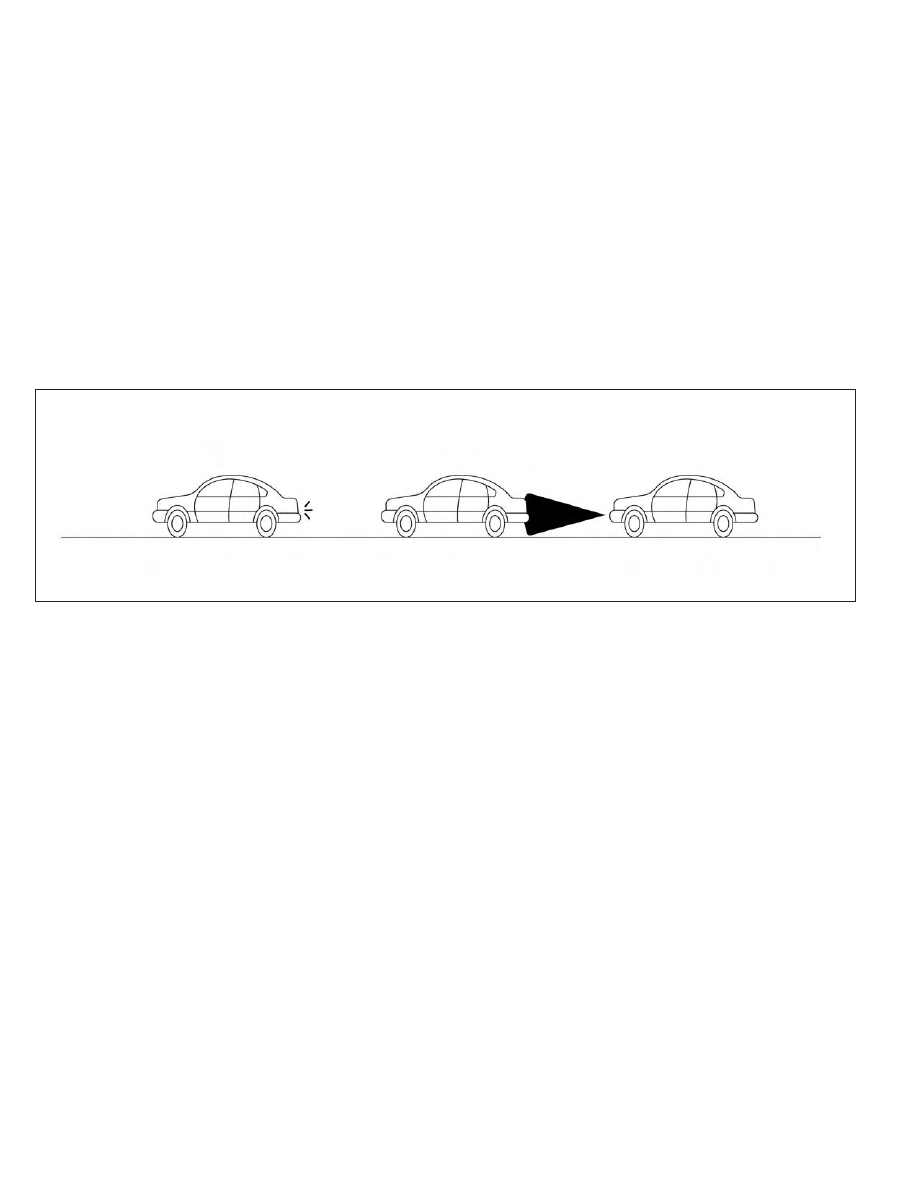

The I-FCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle
ahead in the same lane.

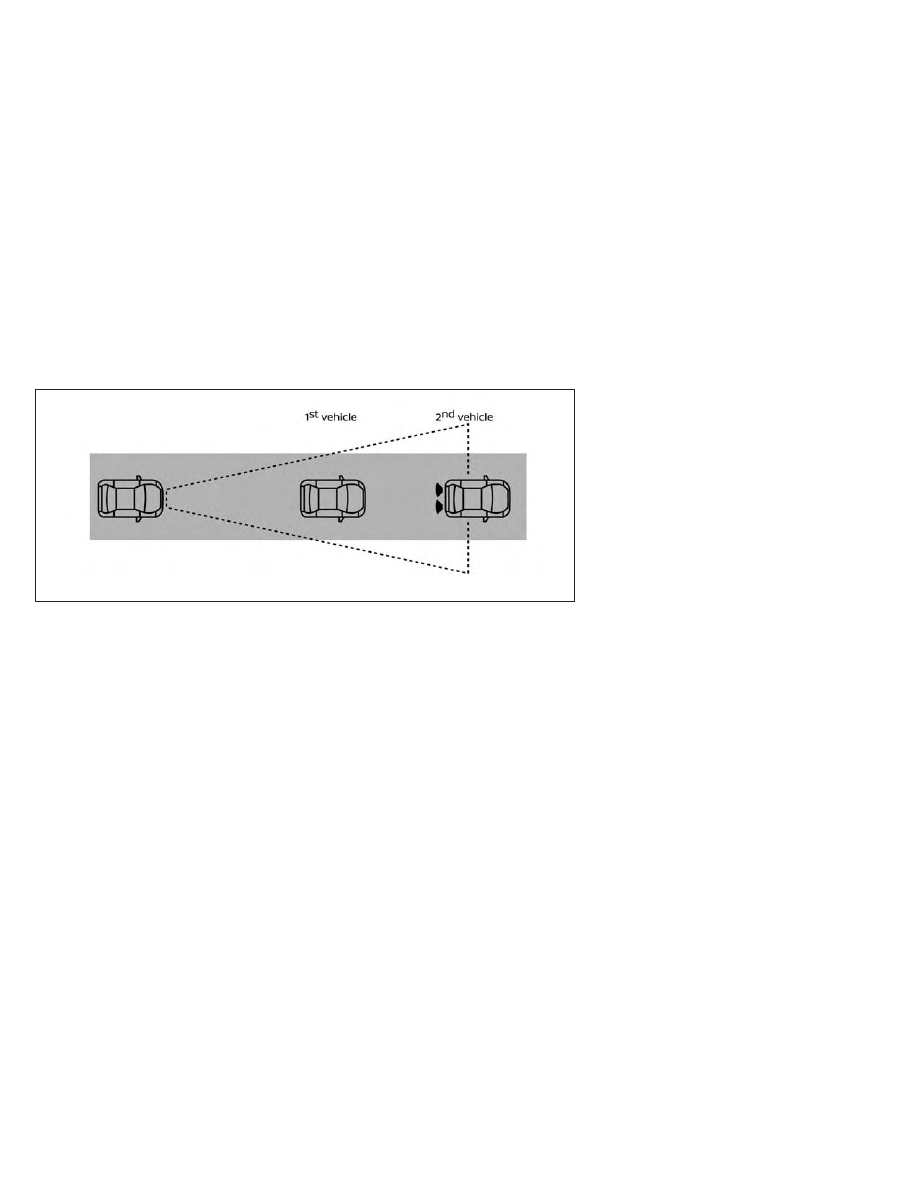

The I-FCW system uses a radar sensor

located on the front of the vehicle to mea-
sure the distance to the vehicle ahead in
the same lane.

LSD3435

INTELLIGENT FORWARD COLLISION
WARNING (I-FCW)

Starting and driving

5-97

TURNING THE I-FCW SYSTEM
ON/OFF

Perform the following steps to turn the
I-FCW system on or off.

1. Press the

button until “Settings” dis-

plays in the vehicle information display
and then press the OK button. Use the

button to select “Driver Assistance.”

Then press the OK button.

2. Select “Emergency Brake” and press the

OK button.

3. Select “Front” and press the OK button to

turn the system on or off.

When the I-FCW system is turned off, the
AEB with Pedestrian Detection system
warning light illuminates.

NOTE:
• The I-FCW system will be automatically

turned on when the engine is restarted.

• The I-FCW system is integrated into the

AEB with Pedestrian Detection system.
There is not a separate selection in
the vehicle information display for the
I-FCW system. When the AEB with Pe-
destrian Detection is turned off, the
I-FCW system is also turned off.

LSD3434

Starting and driving

5-101

WARNING

Listed below are the system limitations
for the I-FCW system. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

•

The I-FCW system cannot detect all
vehicles under all conditions.

•

The radar sensor does not detect the
following objects:

–

Pedestrians, animals or obstacles
in the roadway

–

Oncoming vehicles

–

Crossing vehicles

•

(Illustration A) The I-FCW system
does not function when a vehicle
ahead is a narrow vehicle, such as a
motorcycle.

•

The radar sensor may not detect a ve-
hicle ahead in the following conditions:

–

Snow or heavy rain

–

Dirt, ice, snow or other material
covering the radar sensor.

–

Interference

other

radar

sources.

–

Snow or road spray from traveling
vehicles.

–

Driving in a tunnel

–

(Illustration B) When the vehicle
ahead is being towed.

LSD2265

Illustration B

Starting and driving

5-103

–

(Illustration C) When the distance
to the vehicle ahead is too close,
the beam of the radar sensor is
obstructed.

–

(Illustration D) When driving on a
steep downhill slope or roads with
sharp curves.

•

The system is designed to automati-
cally check the sensor’s functionality,
within certain limitations. The sys-
tem may not detect some forms of
obstruction of the sensor area such
as ice, snow, stickers, etc. In these
cases, the system may not be able to
warn the driver properly. Be sure that
you check, clean and clear the sensor
area regularly.

•

Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.

5-104

Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE

Condition A

When the radar sensor picks up interfer-
ence from another radar source, making it
impossible to detect a vehicle ahead, the
I-FCW system is automatically turned off.

The AEB with Pedestrian Detection system
warning light (orange) will illuminate.

Action to take:

When the above conditions no longer exist,
the I-FCW system will resume automati-
cally.

Condition B

When there is inclement weather (rain, fog,
snow, etc.) blocking the front radar sensor,
the I-FCW system will automatically be
canceled. The chime will sound, the AEB
with Pedestrian Detection system warning
light illuminates and the “Forward Driving
Aids Temporarily Disabled Front Sensor
Blocked See Owner’s Manual” warning
message will appear in the vehicle infor-
mation display.

Action to take:

LSD2526

Starting and driving

5-107

See Owner’s Manual” warning message
continues to be displayed, have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.

Condition C

When the radar sensor of the front bumper
is covered with mud, dirt, snow, ice, etc., or is
obstructed, the I-FCW system will auto-
matically be canceled, the chime will
sound, the AEB with Pedestrian Detection
system warning light illuminates and the
“Forward Driving Aids Temporarily Disabled
Front Sensor Blocked See Owner’s Manual”
warning message will appear in the vehicle
information display.

Action to take:

Condition D

Blocked

See

Owner’s

Manual”

message.

Action to take:

When the above driving conditions no lon-
ger exist, turn the system back on.

NOTE:

If the AEB with Pedestrian Detection sys-
tem stops working, the I-FCW system will
also stop working.

SYSTEM MALFUNCTION

If the I-FCW system malfunctions, it will
be turned off automatically, a chime will
sound, the AEB with Pedestrian Detection
warning light (orange) will illuminate in the
vehicle information display.

Action to take

If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the en-
gine off and restart the engine. If the
warning light continues to illuminate, have
the I-FCW system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

LSD3916

5-108

Starting and driving

SYSTEM MAINTENANCE

The sensor

is located on the front of the

vehicle.

To keep the system operating properly, be
sure to observe the following:
• Always keep the sensor area of the front

bumper/emblem clean.

• Do not strike or damage the areas

around the sensor.

• Do not cover or attach stickers or similar

objects on the front bumper near the
sensor area. This could cause failure or
malfunction.

• Do not attach metallic objects near the

sensor area (brush guard, etc.). This could
cause failure or malfunction.

• Do not alter, remove or paint the front

bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit a NISSAN dealer.

Radio Frequency Statement

For USA

This device complies with Part 15 of the FCC
rules.

Operation is subject to the following two
conditions:

1. This device may not cause harmful inter-

ference, and

2. This device must accept any interfer-

ence received, including interference
that may cause undesired operation.

FCC Warning

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

This equipment has been tested and found
to comply with the limits for a Class A digi-
tal device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide

reasonable protection against harmful in-
terference when the equipment is oper-
ated in a commercial environment. This
equipment generates, uses, and can radi-
ate radio frequency energy and, if not in-
stalled and used in accordance with the
instruction manual, may cause harmful in-
terference to radio communications. Op-
eration of this equipment in a residential
area is likely to cause harmful interference
in which case the user will be required
to correct the interference at his own
expense.

Radio frequency radiation exposure infor-
mation:

This equipment complies with FCC radia-
tion exposure limits set forth for an uncon-
trolled environment.

This equipment should be installed and
operated with minimum distance of 20 cm
between the radiator and your body.

The transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.

LSD3435

Starting and driving

5-109

For Canada

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:

1. This device may not cause interference,

2. This device must accept any interfer-

ence received, including interference
that may cause undesired operation of
the device.

Le présent appareil est conforme aux
CNR d’Industrie Canada applicables aux
appareils

radio

exempts

licence.

L’exploitation est autorisée aux deux condi-
tions suivantes:

1. L’appareil ne doit pas produire de brouil-

lage, et

2. L’utilisateur de l’appareil doit accepter

tout

brouillage

radioélectrique

subi,

même si le brouillage est susceptible
d’en compromettre le fonctionnement.

Radio frequency radiation exposure infor-
mation:

This equipment complies with FCC and IC
radiation exposure limits set forth for an
uncontrolled environment.

This equipment should be installed and
operated with minimum distance of 30 cm
between the radiator and your body.

This transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.

Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé.

Cet équipement doit être installé et utilisé
avec un minimum de 30 cm de distance
entre la source de rayonnement et votre
corps.

FCC Notice

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

WARNING

Failure to follow the warnings and in-
structions for proper use of the I-DA
system could result in serious injury or
death.

•

The I–DA system is only a warning to
inform the driver of a potential lack
of driver attention or drowsiness. It
will not steer the vehicle or prevent
loss of control.

•

The I–DA system does not detect and
provide an alert of the driver’s lack
of attention or fatigue in every
situation.

•

It is the driver’s responsibility to:

•

Stay alert.

•

Drive safely.

•

Keep the vehicle in the traveling
lane.

•

Be in control of the vehicle at all
times.

•

Avoid driving when tired.

•

Avoid distractions (texting, etc.).

The I–DA system helps alert the driver if the
system detects a lack of attention or driv-
ing fatigue.

INTELLIGENT DRIVER ALERTNESS
(I-DA)

5-110

Starting and driving

The system monitors driving style and
steering behavior over a period of time,
and it detects changes from the normal
pattern. If the system detects that driver
attention is decreasing over a period of
time, the system uses audible and visual
warnings to suggest that the driver take a
break.

INTELLIGENT DRIVER ALERTNESS
SYSTEM OPERATION

If the system detects driver fatigue or that
driver attention is decreasing, the mes-
sage “Take a break?” appears in the vehicle
information display and a chime sounds
when the vehicle is driven at speeds above
37 mph (60 km/h).

The system continuously monitors driver
attention and can provide multiple warn-
ings per trip.

The system resets and starts reassessing
driving style and steering behavior when
the ignition switch is cycled from the ON to
the OFF position and back to the ON
position.

LSD2974

Starting and driving

5-111

INTELLIGENT DRIVER ALERTNESS
(I-DA) SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the I–DA system. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

•

The I-DA system may not operate
properly and may not provide an
alert in the following conditions:

–

Poor road conditions such as an

uneven road surface or pot holes.

–

Strong side wind.

–

If you have adopted a sporty driv-

ing style with higher cornering
speeds

higher

rates

acceleration.

–

Frequent

lane

changes

changes to vehicle speed.

•

The I–DA system will not provide an
alert in the following conditions:

–

Vehicle speeds lower than 37 mph

(60 km/h).

–

Short lapses of attention.

–

Instantaneous distractions such

as dropping an object.

System malfunction

If the Intelligent Driver Alertness system
malfunctions, the system warning mes-
sage will appear in the vehicle information
display, a chime will sound and the function
will be stopped automatically.

Action to take

Stop the vehicle in a safe location, place the
vehicle in P (Park) position, turn the engine
off and restart the engine. If the system
warning message continues to appear,
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

LIC3125

Starting and driving

5-113

CAUTION

During the first 1,200 miles (2,000 km),
follow these recommendations to ob-
tain maximum engine performance
and ensure the future reliability and
economy of your new vehicle. Failure to
follow these recommendations may
result in shortened engine life and re-
duced engine performance.

• Avoid driving for long periods at constant

speed, either fast or slow, and do not run
the engine over 4,000 rpm.

• Do not accelerate at full throttle in any

gear.

• Avoid quick starts.
• Avoid hard braking as much as possible.
• Do not tow a trailer for the first 500 miles

(805 kilometers). Your engine, axle or
other parts could be damaged.

Follow these easy-to-use Fuel Efficient
Driving Tips to help you achieve the most
fuel economy from your vehicle.

Use Smooth Accelerator and Brake
Pedal Application

• Avoid rapid starts and stops.
• Use smooth, gentle accelerator and

brake application whenever possible.

• Maintain constant speed while com-

muting and coast whenever possible.

Maintain Constant Speed

• Look ahead to try and anticipate and

minimize stops.

• Synchronizing your speed with traffic

lights allows you to reduce your num-
ber of stops.

• Maintaining a steady speed can mini-

mize red light stops and improve fuel
efficiency.

Use Air Conditioning (A/C) at Higher
Vehicle Speeds

• Below 40 mph (64 km/h), it is more

efficient to open windows to cool the
vehicle due to reduced engine load.

• Above 40 mph (64 km/h), it is more

efficient to use A/C to cool the vehicle
due to increased aerodynamic drag.

• Recirculating the cool air in the cabin

when the A/C is on reduces cooling
load.

Drive

Economical

Speeds

and

Distances

• Observing the speed limit and not ex-

ceeding 60 mph (97 km/h) (where le-
gally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.

• Maintaining a safe following distance

behind other vehicles reduces unnec-
essary braking.

• Safely monitoring traffic to anticipate

changes in speed permits reduced
braking

and

smooth

acceleration

changes.

• Select a gear range suitable to road

conditions.

Use Cruise Control

• Using cruise control during highway

driving helps maintain a steady speed.

• Cruise control is particularly effective

in providing fuel savings when driving
on flat terrains.

Plan for the Shortest Route

• Utilize a map or navigation system to

determine the best route to save time.

BREAK-IN SCHEDULE

FUEL EFFICIENT DRIVING TIPS

5-114

Starting and driving

Avoid Idling

• Shutting off your engine when safe for

stops exceeding 30–60 seconds saves
fuel and reduces emissions.

Buy an Automated Pass for Toll Roads

• Automated passes permit drivers to

use special lanes to maintain cruising
speed through the toll and avoid stop-
ping and starting.

Winter Warm Up

• Limit idling time to minimize impact to

fuel economy.

• Vehicles typically need no more than

30 seconds of idling at start-up to ef-
fectively circulate the engine oil before
driving.

• Your vehicle will reach its ideal operat-

ing temperature more quickly while
driving versus idling.

10.

Keeping your Vehicle Cool

• Park your vehicle in a covered parking

area or in the shade whenever possible.

• When entering a hot vehicle, opening

the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system.

• Keep your engine tuned up.
• Follow the recommended scheduled

maintenance.

• Keep the tires inflated to the correct pres-

sure. Low tire pressure increases tire
wear and lowers fuel economy.

• Keep all the wheels in correct alignment.

Improper alignment increases tire wear
and lowers fuel economy.

• Use the recommended viscosity engine oil.

For additional information, see “Engine oil
and oil filter recommendations” (P. 10-7).

If any malfunction occurs in the AWD sys-
tem while the engine is running, messages
are displayed in the meter.

INCREASING FUEL ECONOMY

ALL-WHEEL DRIVE (AWD) (if so
equipped)

Starting and driving

5-115

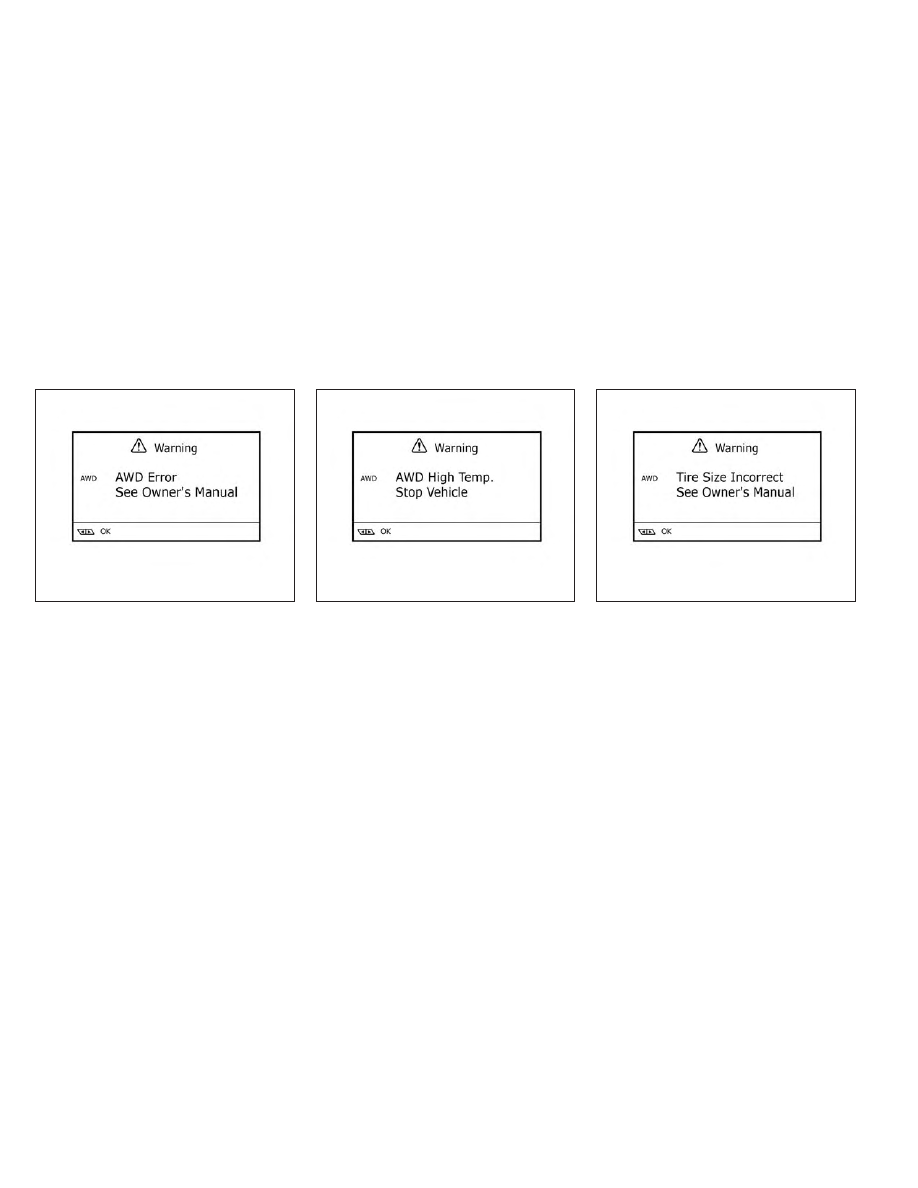

If the AWD error warning message is dis-
played, there may be a malfunction in the
AWD system. Reduce vehicle speed and
have your vehicle checked. It is recom-
mended that you visit a NISSAN dealer as
soon as possible.

The AWD high temperature message may
be displayed while trying to free a stuck
vehicle due to increased oil temperature.
The driving mode may change to 2-Wheel
Drive (2WD). If this message is displayed,
stop the vehicle with the engine idling, as
soon as it is safe to do so. Then if the mes-
sage turns off, you can continue driving.

The tire size message may be displayed if
there is a large difference between the di-
ameters of front and rear wheels. Pull off
the road in a safe area, with the engine
idling. Check that all tire sizes are the same,
that the tire pressure is correct and that
the tires are not excessively worn.

If any warning messages continue to be
displayed, have your vehicle checked. It is
recommended that you visit a NISSAN
dealer as soon as possible.

LSD2528

LSD2529

LSD2530

5-116

Starting and driving

WARNING

•

Do not drive beyond the performance
capability of the tires. Accelerating
quickly, sharp steering maneuvers or
sudden braking may cause loss of
control, even with AWD engaged.

•

For AWD equipped vehicles, do not
attempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with the
engine running. Doing so may result
in drivetrain damage or unexpected
vehicle movement which could result
in serious personal injury or vehicle
damage.

•

Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions
testing) or similar equipment even if
the other two wheels are raised off the
ground. Make sure that you inform the
test facility personnel that your ve-
hicle is equipped with AWD before it is
placed on a dynamometer. Using the
wrong test equipment may result in
drivetrain damage or unexpected ve-
hicle movement which could result
in serious personal injury or vehicle
damage.

CAUTION

•

Do not operate the engine on a free
roller when any of the wheels are
raised.

•

If you use the free roller, rotate four
wheels with the same speed without
raising any wheels.

•

If an AWD warning message is dis-
played while driving there may be a
malfunction in the AWD system. Re-
duce the vehicle speed immediately
and have your vehicle checked. It is
recommended

that

you

visit

NISSAN dealer as soon as possible.

•

The powertrain may be damaged if
you continue driving when the AWD
temperature or tire size incorrect
messages are displayed

•

If the AWD high temperature mes-
sage is displayed while you are driv-
ing, pull off the road in a safe area,
and idle the engine. The driving
mode will change to 2WD to prevent
the AWD system from malfunction-
ing. If the warning message turns off,
you can drive again.

•

If the tire size incorrect message is
displayed while you are driving, pull
off the road in a safe area with the
engine idling. Check that all tire sizes
are the same, that the tire pressure is
correct and that the tires are not ex-
cessively worn.

•

If a warning message continues to be
displayed after the above opera-
tions, have your vehicle checked as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.

Starting and driving

5-117

WARNING

•

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.

•

Safe parking procedures require that
both the parking brake be set and the
transmission placed into P (Park).
Failure to do so could cause the ve-
hicle to move unexpectedly or roll
away and result in an accident. Make
sure the shift lever has been pushed
as far forward as it can go and cannot
be moved without depressing the
foot brake pedal.

•

Never leave the engine running while
the vehicle is unattended.

•

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in
serious accidents.

•

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require
the assistance of others or pets unat-
tended in your vehicle. Additionally,

the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

1. Firmly apply the parking brake.

2. Move the shift lever to the P (Park)

position.

3. To help prevent the vehicle from rolling

into traffic when parked on an incline, it
is a good practice to turn the wheels as
illustrated.

•

HEADED DOWNHILL WITH CURB

Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb.

•

HEADED UPHILL WITH CURB

Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.

•

HEADED UPHILL OR DOWNHILL, NO
CURB

Turn the wheels toward the side of the
road so the vehicle will move away
from the center of the road if it moves.

4. Place the ignition switch in the LOCK

position.

WSD0050

PARKING/PARKING ON HILLS

5-118

Starting and driving

WARNING

•

If the engine is not running or is
turned off while driving, the power
assist for the steering will not work.
Steering will be harder to operate.

•

When the power steering warning
light illuminates with the engine run-
ning, there will be no power assist for
the steering. You will still have control
of the vehicle, but the steering will be
harder to operate. Have the power
steering system checked. It is recom-
mended that you visit a NISSAN
dealer for this service.

The power steering system is designed to
provide power assist while driving to oper-
ate the steering wheel with light force.

When the steering wheel is operated re-
peatedly or continuously while parking or
driving at a very low speed, the power as-
sist for the steering wheel will be reduced.
This is to prevent overheating of the power
steering system and protect it from getting
damaged. While the power assist is re-
duced, steering wheel operation will be-
come heavy. When the temperature of the
power steering system goes down, the
power assist level will return to normal.

Avoid repeating such steering wheel op-
erations that could cause the power steer-
ing system to overheat.

You may hear a sound when the steering
wheel is operated quickly. However, this is
not a malfunction.

If the power steering warning light illumi-
nates while the engine is running, it may
indicate the power steering system is not
functioning properly and may need servic-
ing. Have the power steering system
checked. It is recommended that you visit a
NISSAN dealer for this service.

When the power steering warning light illu-
minates with the engine running, there will
be no power assist for the steering, but you
will still have control of the vehicle. At this
time, greater steering effort is required to
operate the steering wheel, especially in
sharp turns and at low speeds.

For additional information, see “Power
steering warning light” (P. 2-15).

The brake system has two separate hy-
draulic circuits. If one circuit malfunctions,
you will still have braking at two wheels.

BRAKE PRECAUTIONS

Vacuum assisted brakes

The brake booster aids braking by using
engine vacuum. If the engine stops, you
can stop the vehicle by depressing the
brake pedal. However, greater foot pres-
sure on the brake pedal will be required to
stop the vehicle and stopping distance will
be longer.

Using the brakes

Avoid resting your foot on the brake pedal
while driving. This will overheat the brakes,
wear out the brake pads faster, and reduce
gas mileage.

To help reduce brake wear and to prevent
the brakes from overheating, reduce speed
and downshift to a lower gear before going
down a slope or long grade. Overheated
brakes may reduce braking performance
and could result in loss of vehicle control.

POWER STEERING

BRAKE SYSTEM

Starting and driving

5-119

Nissan Murano (2024 year). Manual in english - page 11
