Nissan Murano (2024 year). Manual in english

WARNING

•

Be sure the parking brake is fully re-
leased before driving. Failure to do so
can cause brake failure and lead to
an accident.

•

Do not release the parking brake
from outside the vehicle.

•

Do not use the shift lever in place of
the parking brake. When parking,
be sure the parking brake is fully
engaged.

•

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require
the assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

To engage:

Firmly depress the parking brake.

To release:

1. Firmly apply the foot brake.

2. Move the shift lever to the P (Park)

position.

3. Firmly depress the parking brake pedal

and it will release.

4. Before

driving,

sure

the

brake

warning light goes out.

The TSR system provides the driver with
information about the most recently de-
tected speed limit. The system captures
the road sign information with the multi-
sensing front camera unit

located on

the windshield in front of the inside rear-
view mirror and displays the detected
signs in the vehicle information display. For
vehicles equipped with a navigation sys-
tem, the speed limit displayed is based on a
combination of navigation system data
and live camera recognition. TSR informa-
tion is always displayed at the top of the
vehicle information display if the system is
enabled in the Driver Assistance settings.

LSD0158

LSD4587

PARKING BRAKE

TRAFFIC SIGN RECOGNITION (TSR) (if
so equipped)

5-24

Starting and driving

WARNING

The TSR system is only intended to be a
support device to help provide the
driver with information. It is not a re-
placement for the driver’s attention to
traffic conditions or responsibility to
drive safely. It cannot prevent acci-
dents due to carelessness. It is the driv-
er’s responsibility to stay alert and
drive safely at all times.

SYSTEM OPERATION

The Traffic Sign Recognition (TSR) system
displays the following types of road signs:

䊊

Speed sign detected (in Canada)

䊊

Speed sign detected (in USA)

䊊

Speed sign detected (no speed limit
detected)

䊊

“Do not pass” sign detected

CAUTION

•

The TSR system is intended as an aid
to careful driving. It is the driver’s re-
sponsibility to stay alert, drive safely,
and observe all road regulations that
currently apply, including looking out
for road signs.

LSD3377

LSD3378

Starting and driving

5-25

•

The TSR system may not function
properly

under

the

following

conditions:

–

When the road sign is not clearly
visible, for example, due to dam-
age or weather conditions.

–

When rain, snow or dirt adheres to
the windshield in front of the
multi-sensing camera unit.

–

When

the

headlights

are

not

bright, for example, due to dirt on
the lens or if the aiming is not ad-
justed properly.

–

When strong light enters the cam-
era unit. (For example, the light di-
rectly shines on the front of the
vehicle at sunrise or sunset.)

–

When a sudden change in bright-
ness occurs. (For example, when
the vehicle enters or exits a tunnel
or under a bridge.)

–

In areas not covered by the navi-
gation system.

–

If there are deviations in relation
to the navigation, for example due
to changes in the road routing.

–

When overtaking buses or trucks
with speed stickers.

TURNING THE TRAFFIC SIGN
RECOGNITION (TSR) SYSTEM ON
AND OFF

Perform the following steps to enable or
disable the TSR system.

1. Press the

button until “Settings” dis-

plays in the vehicle information display
and then press the OK button. Use the

button to select “Driver Assistance.”

Then press the OK button.

2. Select “Speed Limit Sign” and press the

OK button to turn the system on or off.

SYSTEM TEMPORARILY
UNAVAILABLE

If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately

104°F

[40°C])

and

then

started, the TSR system may be deacti-
vated automatically. The “Unavailable: High
Cabin Temperature” warning message will
appear in the vehicle information display.

Action to take:

When the interior temperature is reduced,
the TSR system will resume operating
automatically.

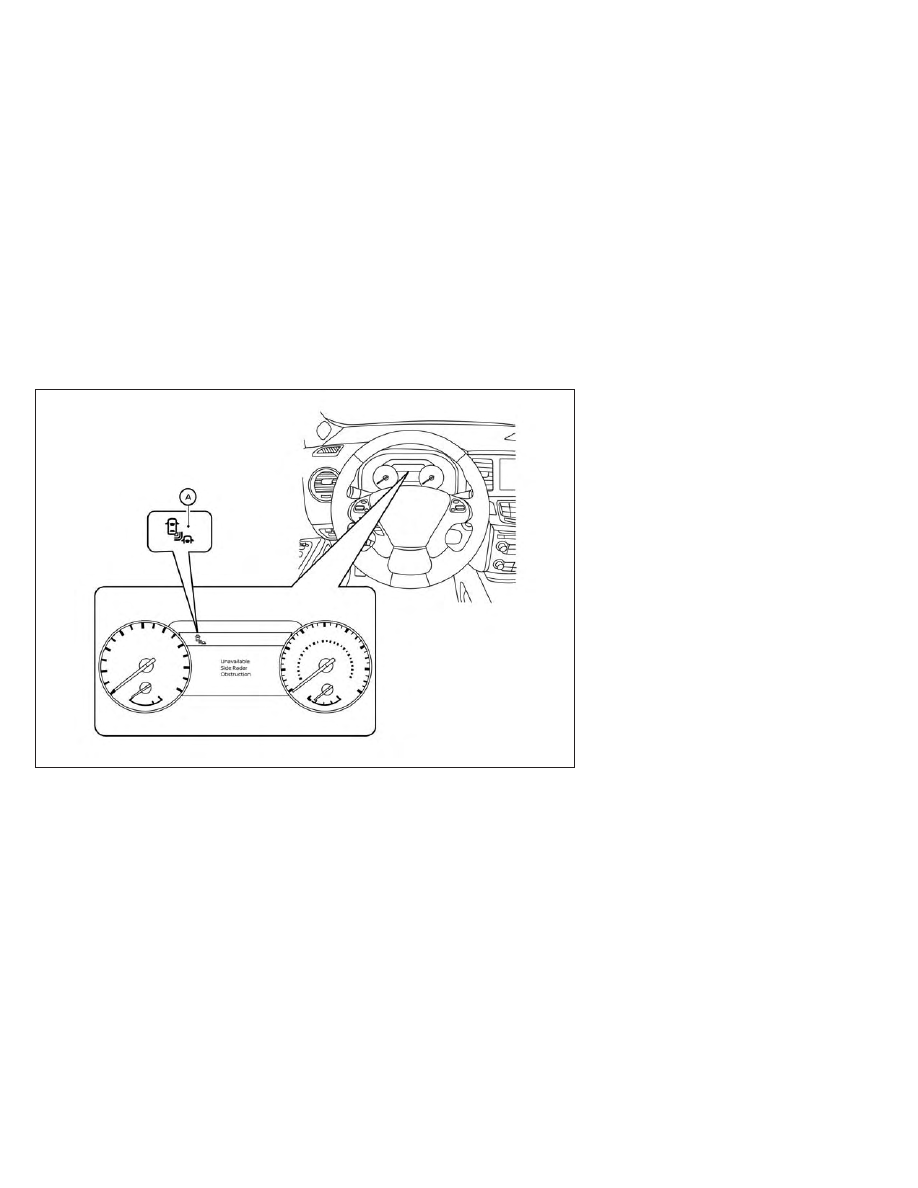

SYSTEM MALFUNCTION

If the TSR system malfunctions, it will be
turned off automatically and the LDW indi-
cator (orange) or the TSR system fault
warning message will illuminate in the ve-
hicle information display.

Action to take:

If the LDW indicator (orange) or the TSR
system fault warning message illuminates
in the display, pull off the road at a safe
location and stop the vehicle. Turn the en-
gine off and restart the engine. If the LDW
indicator (orange) or the TSR system fault
warning message continues to illuminate,

LSD3346

5-26

Starting and driving

have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

SYSTEM MAINTENANCE

The TSR system uses the same multi-
sensing front camera unit that is used by
the Lane Departure Warning (LDW) system,
located in front of the interior rearview mir-
ror. For additional information, see ”System
maintenance” (P. 5-31).

WARNING

Failure to follow the warnings and in-
structions for proper use of the LDW
system could result in serious injury or
death.

•

This system is only a warning device
to inform the driver of a potential un-
intended lane departure. It will not
steer the vehicle or prevent loss of
control. It is the driver’s responsibility
to stay alert, drive safely, keep the
vehicle in the traveling lane, and be in
control of the vehicle at all times.

The LDW system will operate when the ve-
hicle is driven at speeds of approximately
37 mph (60 km/h) and above, and only
when the lane markings are clearly visible
on the road.

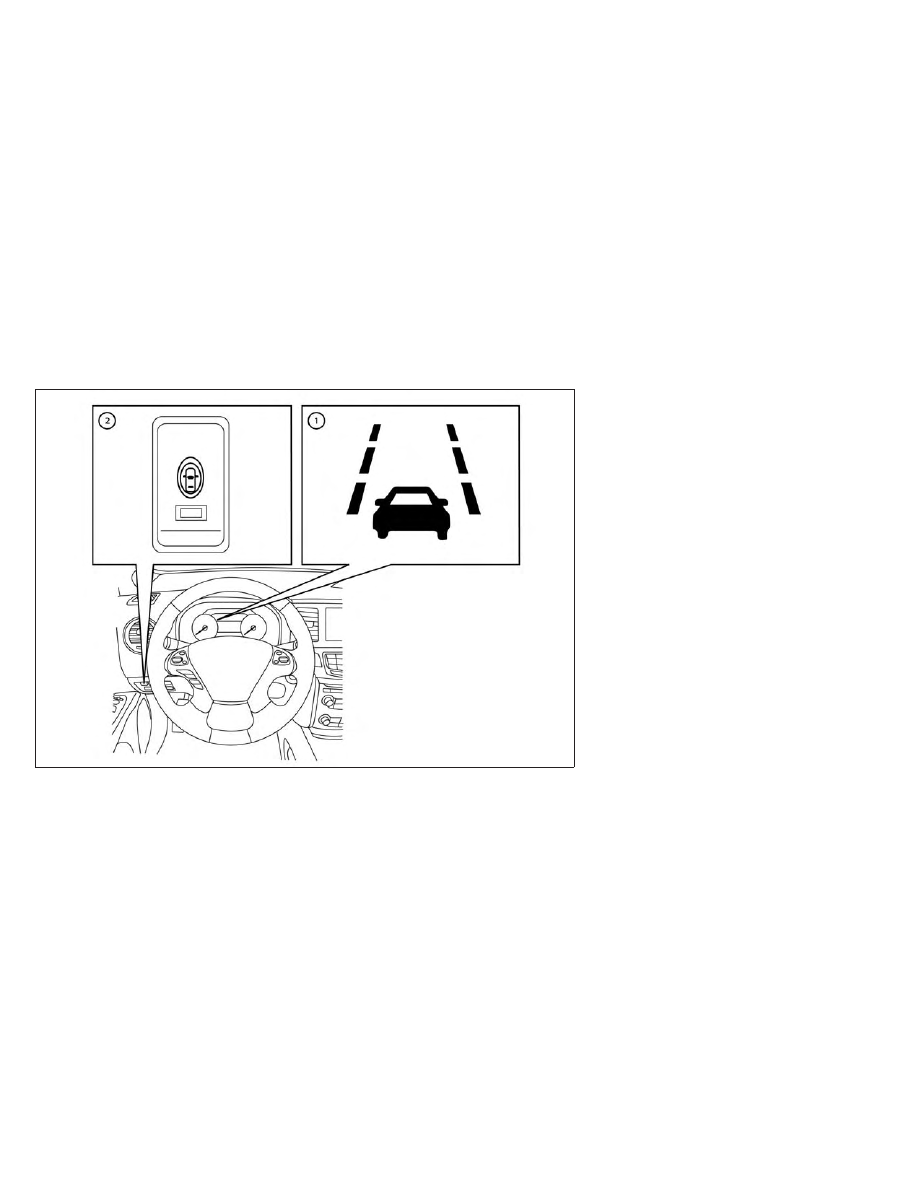

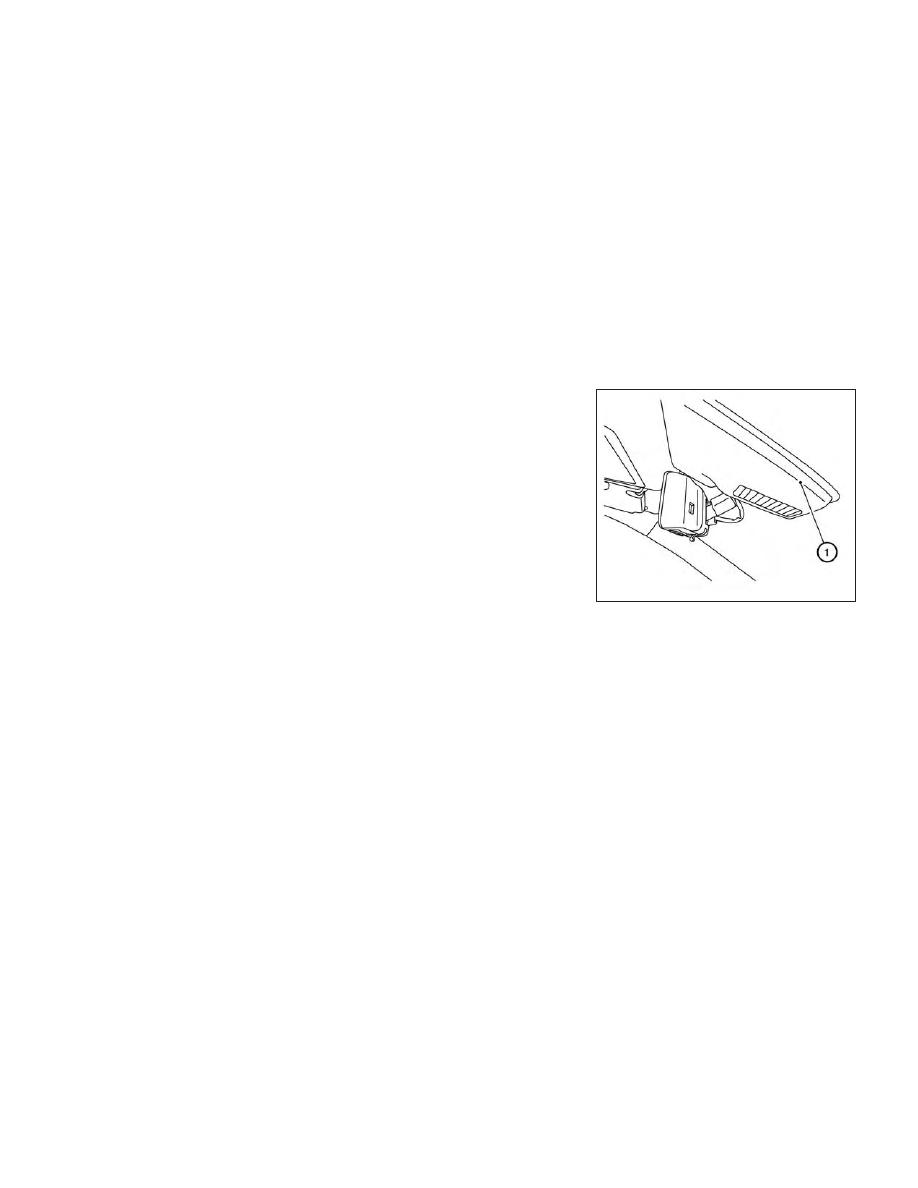

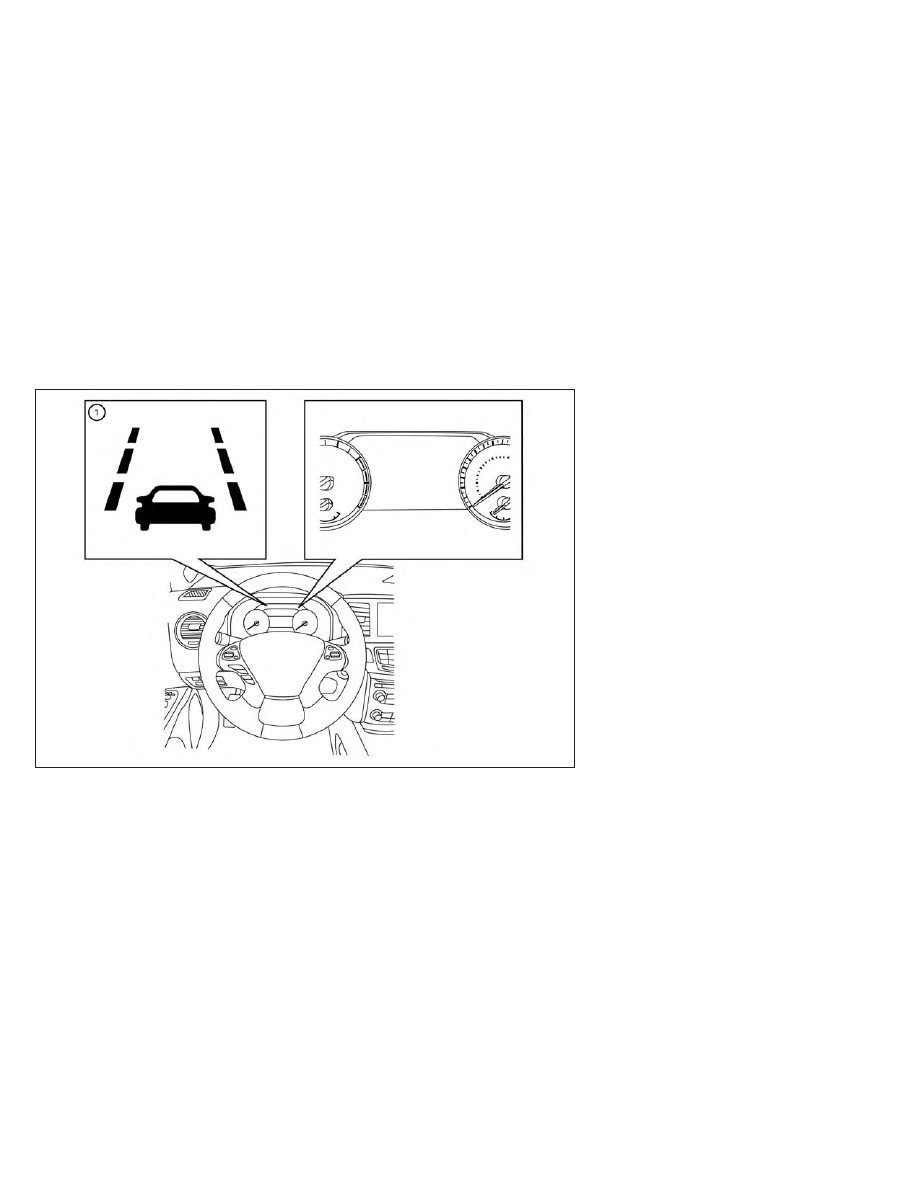

The LDW system monitors the lane mark-
ers on the traveling lane using the camera
unit

located above the inside mirror.

The LDW system warns the driver that the
vehicle is beginning to leave the driving
lane with an indicator and a steering wheel
vibration. For additional information, see
“LDW system operation” (P. 5-28).

LSD4587

LANE DEPARTURE WARNING (LDW)

Starting and driving

5-27

HOW TO ENABLE/DISABLE THE
LDW SYSTEM

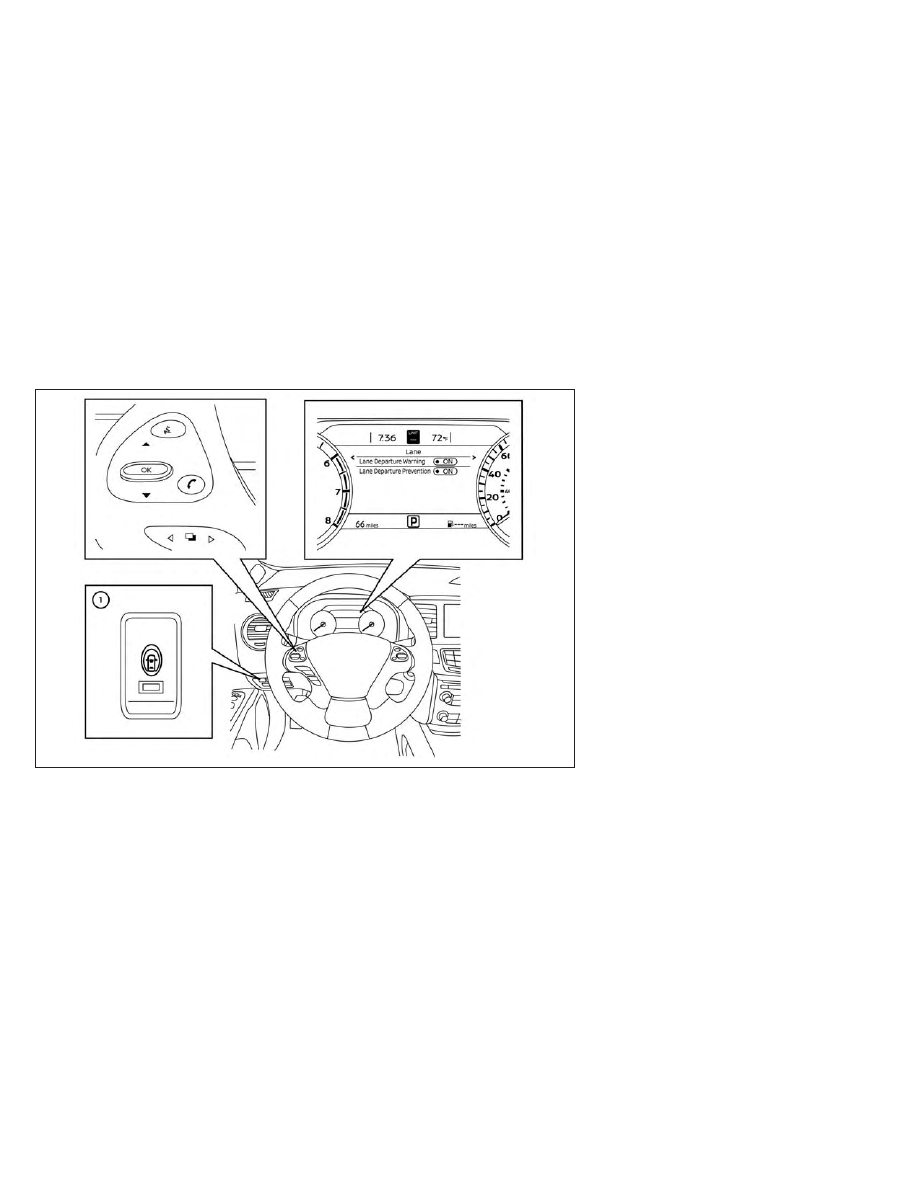

Perform the following steps to enable or
disable the LDW system.

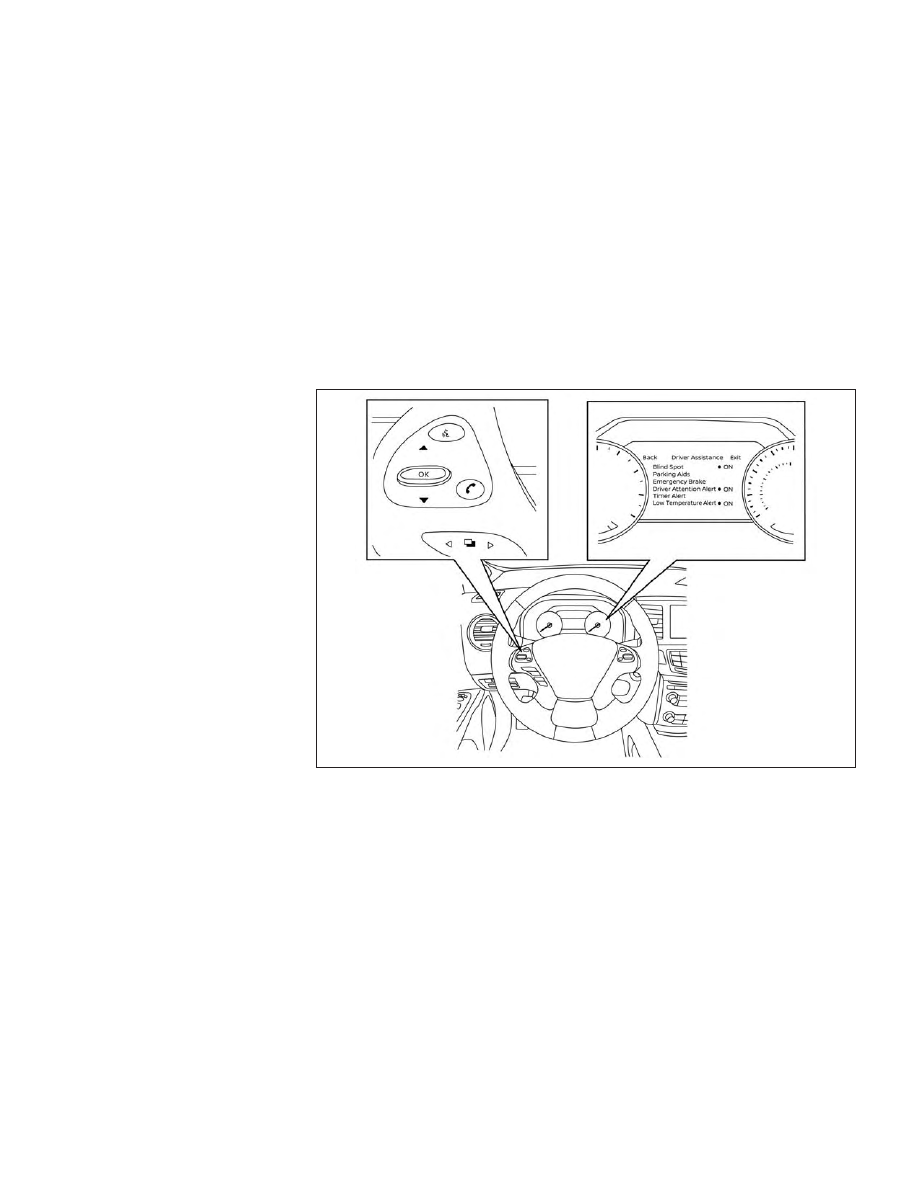

Using “Settings” in the vehicle informa-
tion display:

1. Press the

button until “Settings” dis-

plays in the vehicle information display
and then press the OK button. Use the

button to select “Driver Assistance.”

Then press the OK button.

2. Select “Lane” and press the OK button.

3. Select “Lane Departure Warning” and

press the OK button to turn the system
on or off.

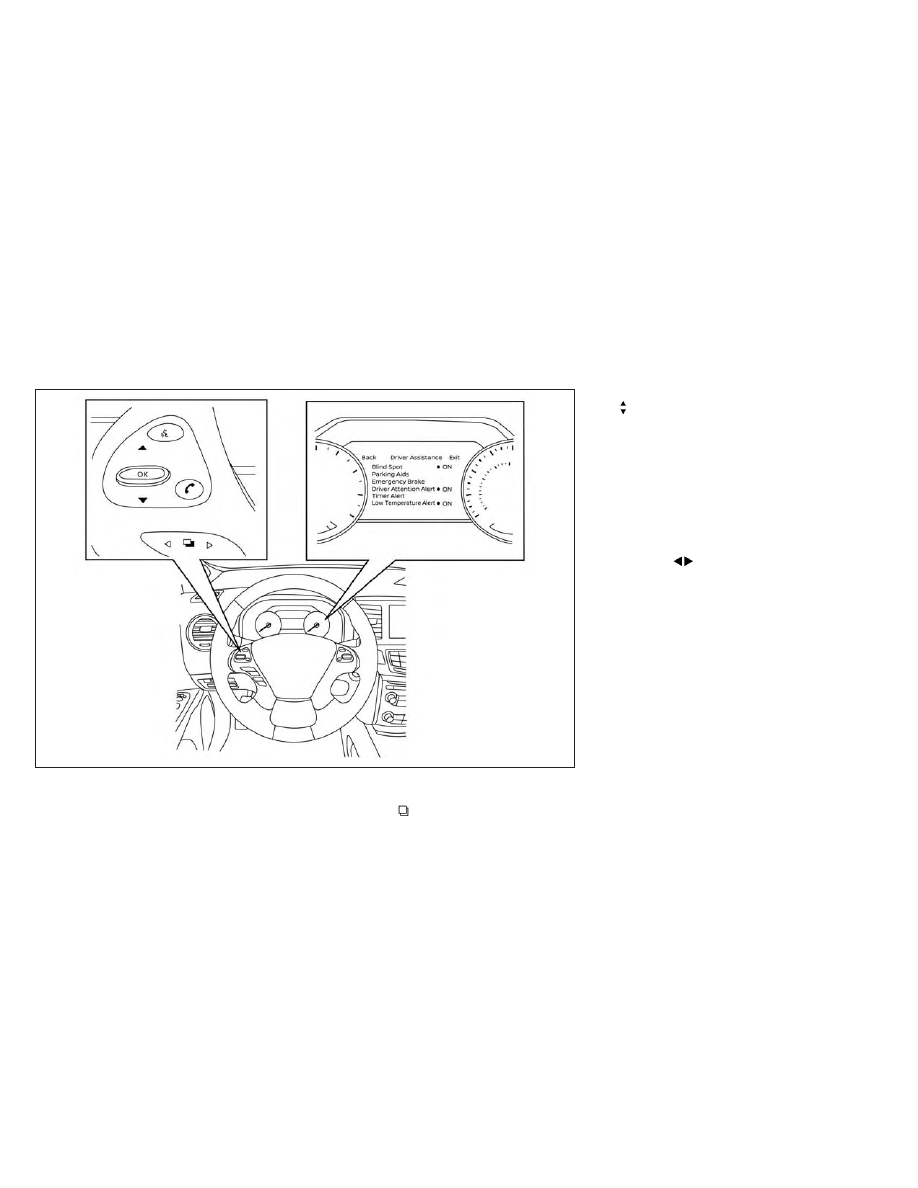

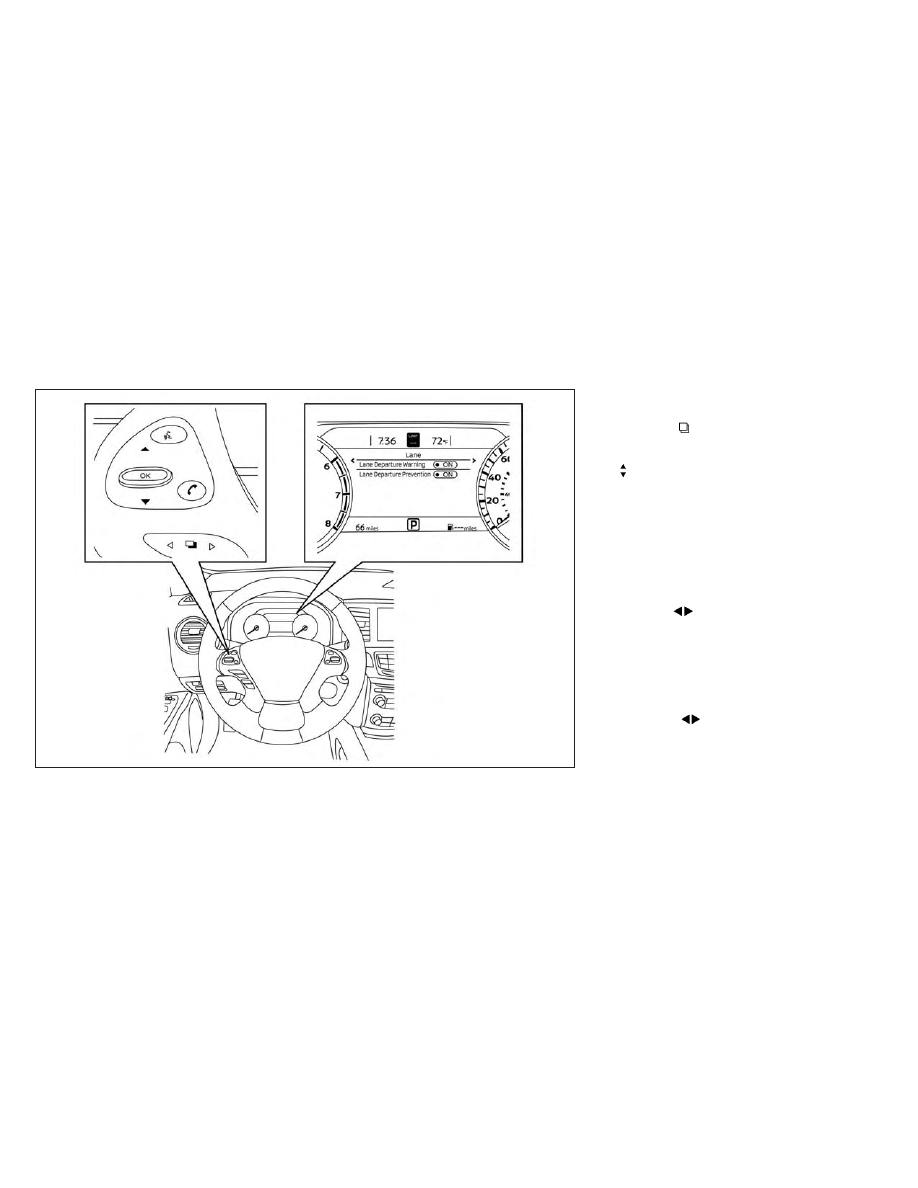

Using the “Driving Aids” screen in the ve-
hicle information display:

1. Use the

buttons on the steering

wheel to scroll to the Driving Aids screen.

2. Press the OK button to access the Driv-

ing Aids menu.

3. Select “Lane” and press the OK button

until “Lane Warning” is displayed.

4. Press the

buttons to return to the

Driving Aids screen.

NOTE:

When enabling/disabling the system,
the system will retain current settings
even if the engine is restarted.

LSD3429

Starting and driving

5-29

LDW SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the LDW system. Failure to follow
the

warnings

and

instructions

for

proper use of the LDW system could re-
sult in serious injury or death.

•

The system will not operate at
speeds below approximately 37 mph
(60 km/h) or if it cannot detect lane
markers.

•

Do not use the LDW system under the
following conditions as it may not
function properly:

–

During bad weather (rain, fog,

snow, etc.).

–

When driving on slippery roads,

such as on ice or snow.

–

When driving on winding or un-

even roads.

–

When there is a lane closure due to

road repairs.

–

When driving in a makeshift or

temporary lane.

–

When driving on roads where the

lane width is too narrow.

–

When driving without normal tire

conditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, nonstan-
dard wheels).

–

When the vehicle is equipped with

non-original brake parts or sus-
pension parts.

–

When you are towing a trailer or

other vehicle.

•

The system may not function prop-
erly under the following conditions:

–

On roads where there are multiple

parallel lane markers; lane mark-
ers that are faded or not painted
clearly; yellow painted lane mark-
ers; non-standard lane markers;
or lane markers covered with wa-
ter, dirt, snow, etc.

–

On roads where the discontinued

lane markers are still detectable.

–

On roads where there are sharp

curves.

–

On roads where there are sharply

contrasting objects, such as shad-
ows, snow, water, wheel ruts, seams
or lines remaining after road re-
pairs. (The LDW system could detect
these items as lane markers.)

–

On roads where the traveling lane

merges or separates.

–

When the vehicle’s traveling direc-

tion does not align with the lane
marker.

–

When traveling close to the ve-

hicle in front of you, which ob-
structs the lane camera unit de-
tection range.

–

When rain, snow, dirt or an object

adheres to the windshield in front
of the lane camera unit.

–

When the headlights are not bright

due to dirt on the lens or if the aim-
ing is not adjusted properly.

–

When strong light enters the lane

camera unit. (For example, the
light directly shines on the front of
the vehicle at sunrise or sunset.)

–

When a sudden change in bright-

ness occurs. (For example, when
the vehicle enters or exits a tunnel
or under a bridge.)

5-30

Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE

If the vehicle is parked in direct sunlight un-
der high temperature conditions (over ap-
proximately 104°F [40°C]) and then started,
the LDW system may be deactivated auto-
matically, the LDW indicator blinks (white)
and the following message will appear in
the vehicle information display: “Unavailable:
High Cabin Temperature.”

When the interior temperature is reduced,
the LDW system will resume operating
automatically.

The LDW system is not designed to warn
under the following conditions:
• When you operate the lane change signal

and change traveling lanes in the direc-
tion of the signal. (The LDW system will
become operable again approximately 2
seconds after the lane change signal is
turned off.)

• When the vehicle speed lowers to less

than approximately 37 mph (60 km/h).

After the above conditions have finished
and the necessary operating conditions
are satisfied, the LDW functions will resume.

SYSTEM MALFUNCTION

If the LDW system malfunctions, it will can-
cel automatically. The LDW/I—LI indicator
(orange) will illuminate in the display. If the
LDW/I—LI indicator (orange) illuminates in
the display, pull off the road to a safe loca-
tion and stop the vehicle. Turn the engine/
motor off and restart the engine/motor.
If the LDW/I—LI indicator (orange) contin-
ues to illuminate, have the LDW system
checked. It is recommended that you visit a
NISSAN dealer for this service.

SYSTEM MAINTENANCE

The lane camera unit

for the LDW sys-

tem is located above the inside mirror.
To keep the proper operation of the LDW
system and prevent a system malfunction,
be sure to observe the following:
• Always keep the windshield clean.
• Do not attach a sticker (including trans-

parent material) or install an accessory
near the camera unit.

LSD2712

Starting and driving

5-31

• Do not place reflective materials, such as

white paper or a mirror, on the instru-
ment panel. The reflection of sunlight
may adversely affect the camera unit’s
capability of detecting the lane markers.

• Do not strike or damage the areas

around the camera unit. Do not touch the
camera lens or remove the screw located
on the camera unit. If the camera unit is
damaged due to an accident, it is recom-
mended that you visit a NISSAN dealer.

WARNING

Failure to follow the warnings and in-
structions for proper use of the I-LI sys-
tem could result in serious injury or
death.

•

The I-LI system will not steer the ve-
hicle or prevent loss of control. It is
the driver’s responsibility to stay
alert, drive safely, keep the vehicle in
the traveling lane, and be in control of
the vehicle at all times.

•

The I-LI system is primarily intended
for use on well-developed freeways
or highways. It may not detect the
lane

markers

certain

road,

weather, or driving conditions.

The I-LI system can be turned on with the
dynamic driver assistance switch on the
instrument panel, when the engine is
started.

The I-LI system will operate when the ve-
hicle is driven at speeds of approximately
37 mph (60 km/h) and above, and only
when the lane markings are clearly visible
on the road.

The I-LI system warns the driver when the
vehicle has left the center of the traveling
lane with an indicator and a steering wheel
vibration. The system helps assist the
driver to return the vehicle to the center of
the traveling lane by applying the brakes to
the left or right wheels individually (for a
short period of time).

The I-LI system monitors the lane markers
on the traveling lane using the camera unit

located above the inside mirror.

LSD4587

INTELLIGENT LANE INTERVENTION
(I-LI)

5-32

Starting and driving

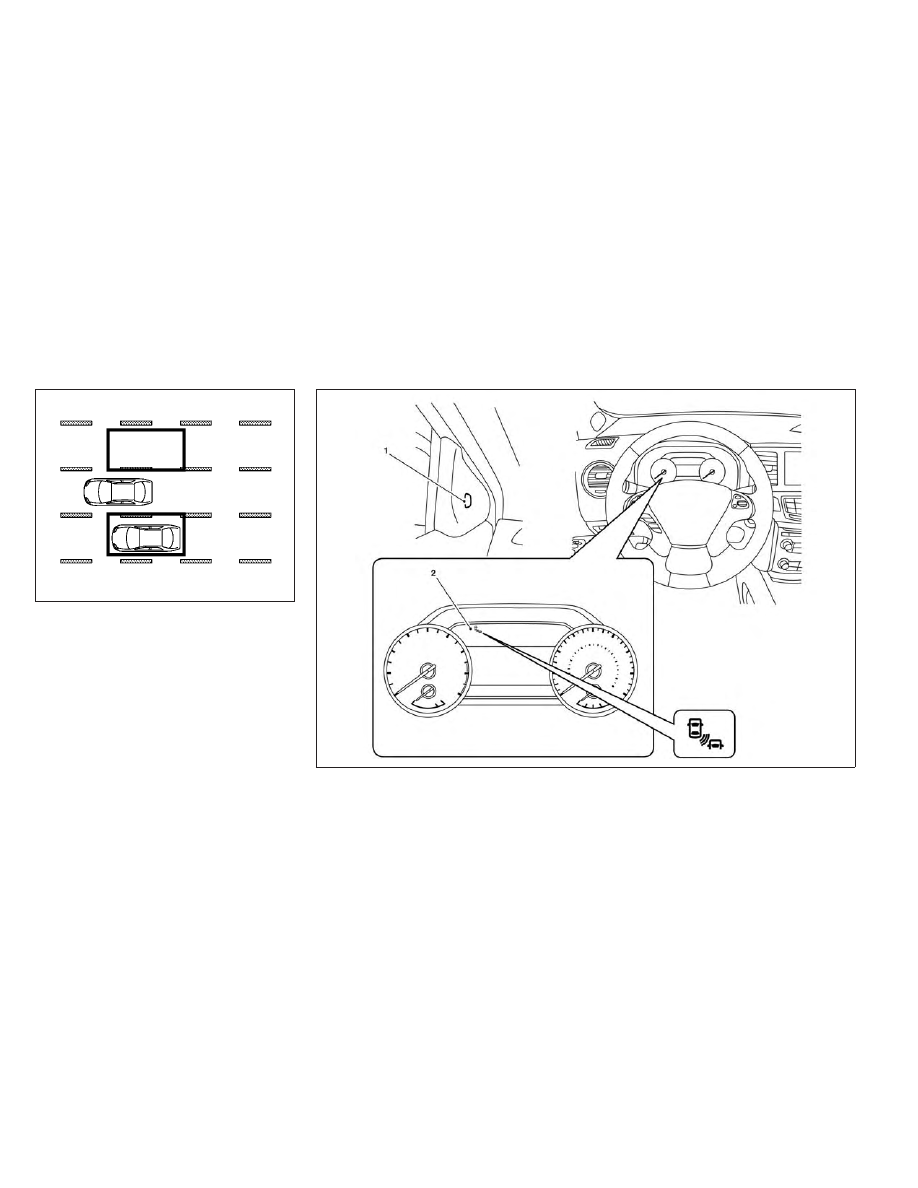

I-LI SYSTEM OPERATION

䊊

Lane Departure Warning (LDW)/ Intelli-
gent Lane Intervention (I-LI) indicator

䊊

Dynamic driver assistance switch

The I-LI system operates above approxi-
mately 37 mph (60 km/h). When the vehicle
approaches either the left or the right side
of the traveling lane, the steering wheel will
vibrate and the LDW/I—LI indicator

(or-

ange) on the instrument panel will blink to
alert the driver. Then, the I-LI system will
automatically apply the brakes for a short
period of time to help assist the driver to
return the vehicle to the center of the trav-
eling lane.

To turn on the I-LI system, push the dy-
namic driver assistance switch

after

starting the engine/motor. The LDW/I—LI
indicator (green) on the instrument panel
will illuminate. Push the dynamic driver as-
sistance switch again to turn off the I-LI
system. The LDW/I—LI indicator (green) will
turn off.

LSD4801

Starting and driving

5-33

HOW TO ENABLE/DISABLE THE I-LI
SYSTEM

The I-LI system can be turned on or off
using the dynamic driver assistance switch

on the instrument panel or “Settings” in

the vehicle information display.

When the system is off, the indicator light
on the dynamic driver assistance switch

turns off and the LDW indicator (green)

turns off.

Using dynamic driver assistance switch:

To turn on the I-LI system, push the dy-
namic driver assistance switch on the in-
strument panel after starting the engine.

The LDW/I—LI indicator (green) on the ve-
hicle information display will appear.

Push the dynamic driver assistance switch
again to turn off the I-LI system.

The LDW/I—LI indicator (green) on the ve-
hicle information display will turn off.

The I-LI system will be automatically turned
off when the engine is turned off.

LSD3431

5-34

Starting and driving

Using “Settings” in the vehicle informa-
tion display:

1. After starting the engine, press the

button until “Settings” displays in the ve-
hicle information display and then press
the OK button. Use the

button to

select “Driver Assistance.” Then press the
OK button.

2. Select “Lane” and press the OK button.

3. Select “Lane Departure Prevention” and

press the OK button to turn the system
on or off.

Using the “Driving Aids” screen in the ve-
hicle information display:

1. Use the

buttons on the steering

wheel to scroll to the Driving Aids screen.

2. Press the OK button to access the Driv-

ing Aids menu.

3. Select “Lane” and press the OK button

until “Lane Warning” is displayed.

4. Press the

buttons to return to the

Driving Aids screen.

To turn on the the I-LI system push the
dynamic driver assistance switch on
the instrument panel after starting the
engine.

I-LI SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the I-LI system. Failure to follow the
warnings and instructions for proper
use of the I-LI system could result in
serious injury or death.

•

The I-LI system may activate if you
change lanes without first activating
your turn signal or, for example, if a
construction zone directs traffic to
cross an existing lane marker. If this
occurs you may need to apply correc-
tive steering to complete your lane
change.

•

Because the I-LI may not activate un-
der the road, weather, and lane
marker conditions described in this
section, it may not activate every
time your vehicle begins to leave its
lane and you will need to apply cor-
rective steering.

•

When the I-LI system is operating,
avoid excessive or sudden steering
maneuvers. Otherwise, you could
lose control of the vehicle.

•

The I-LI system will not operate at
speeds below approximately 37 mph
(60 km/h) or if it cannot detect lane
markers.

•

Do not use the I-LI system under the
following conditions as it may not
function properly:

–

During bad weather (rain, fog,

snow, etc.).

–

When driving on slippery roads,

such as on ice or snow.

–

When driving on winding or un-

even roads.

–

When there is a lane closure due to

road repairs.

–

When driving in a makeshift or

temporary lane.

–

When driving on roads where the

lane width is too narrow.

–

When driving without normal tire

conditions (for example, tire wear,
low tire pressure, installation of
spare

tire,

tire

chains,

non-

standard wheels).

–

When the vehicle is equipped with

nonoriginal brake parts or sus-
pension parts.

Starting and driving

5-35

–

When you are towing a trailer or

other vehicle.

–

On roads where there are multiple

parallel lane markers; lane mark-
ers that are faded or not painted
clearly; yellow painted lane mark-
ers; non-standard lane markers;
or lane markers covered with wa-
ter, dirt, snow, etc.

–

On roads where discontinued lane

markers are still detectable.

–

On roads where there are sharp

curves.

–

On roads where there are sharply

contrasting objects, such as shad-
ows, snow, water, wheel ruts,
seams or lines remaining after
road repairs. (The I-LI system
could detect these items as lane
markers.)

–

On roads where the traveling lane

merges or separates.

–

When the vehicle’s traveling direc-

tion does not align with the lane
marker.

–

When traveling close to the ve-

hicle in front of you, which ob-
structs the lane camera unit de-
tection range.

–

When rain, snow or dirt adheres to

the windshield in front of the lane
camera unit.

–

When

the

headlights

are

not

bright due to dirt on the lens or if
the

aiming

not

adjusted

properly.

–

When strong light enters the lane

camera unit. (For example, the
light directly shines on the front of
the vehicle at sunrise or sunset.)

–

When a sudden change in bright-

ness occurs. (For example, when
the vehicle enters or exits a tunnel
or under a bridge.)

While the I-LI system is operating, you may
hear a sound of brake operation. This is
normal and indicates that the I-LI system is
operating properly.

SYSTEM TEMPORARILY
UNAVAILABLE

Condition A:

The warning and assist functions of the I-LI
system are not designed to work under the
following conditions:
• When you operate the lane change signal

and change the traveling lanes in the di-
rection of the signal. (The I-LI system will
be deactivated for approximately 2 sec-
onds after the lane change signal is
turned off.)

• When the vehicle speed lowers to less

than approximately 37 mph (60 km/h).

After the above conditions have finished
and the necessary operating conditions
are satisfied, the warning and assist func-
tions will resume.

Condition B:

The assist function of the I-LI system is not
designed to work under the following con-
ditions (warning is still functional):
• When the brake pedal is depressed.
• When the steering wheel is turned as far

as necessary for the vehicle to change
lanes.

5-36

Starting and driving

• When the vehicle is accelerated during

I-LI system operation.

• When the Intelligent Cruise Control (ICC)

approach warning occurs.

• When the hazard warning flashers are

operated.

• When driving on a curve at high speed.

After the above conditions have finished
and the necessary operating conditions
are satisfied, the I-LI system application of
the brakes will resume.

Condition C:

If the following messages appear in the
vehicle information display, a chime will
sound and the I-LI system will be turned off
automatically.
• “Unavailable Road is Slippery”:

When the VDC system (except Traction
Control System [TCS] function) or ABS
operates.

• “Currently Unavailable”:

When the VDC system is turned off.

Action to take:

When the above conditions no longer exist,
turn off the I-LI system. Push the dynamic
driver assistance switch again to turn the
I-LI system back on.

Temporary

disabled

status

high

temperature:

If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F [40°C]) and then the
I-LI system is turned on, the I-LI system
may be deactivated automatically, a chime
will sound and the following message will
appear on the vehicle information display:
“Unavailable: High

Cabin Temperature.”

When the interior temperature is reduced,
turn off the I-LI system. Push the dynamic
driver assistance switch again to turn the
system back on.

SYSTEM MALFUNCTION

If the I-LI system malfunctions, it will cancel
automatically. The LDW indicator (orange)
will illuminate in the display and a chime will
sound. If the LDW indicator (orange) illumi-
nates in the display, pull off the road to a
safe location and stop the vehicle. Turn the
engine/motor off and restart the engine/
motor. If the LDW indicator (orange) contin-
ues to illuminate, have the I-LI system
checked. It is recommended that you visit a
NISSAN dealer for this service.

SYSTEM MAINTENANCE

The lane camera unit

for the I-LI system

is located above the inside mirror. To keep
the proper operation of the I-LI system and
prevent a system malfunction, be sure to
observe the following:
• Always keep the windshield clean.
• Do not attach a sticker (including trans-

parent material) or install an accessory
near the camera unit.

LSD2712

Starting and driving

5-37

• Do not place reflective materials, such as

white paper or a mirror, on the instru-
ment panel. The reflection of sunlight
may adversely affect the camera unit’s
capability of detecting the lane markers.

• Do not strike or damage the areas

WARNING

Failure to follow the warnings and in-
structions for proper use of the BSW
system could result in serious injury or
death.

•

The BSW system is not a replacement
for proper driving procedures and is
not designed to prevent contact with
vehicles or objects. When changing
lanes, always use the side and rear
mirrors and turn and look in the di-
rection your vehicle will move to en-
sure it is safe to change lanes. Never
rely solely on the BSW system.

The BSW system helps alert the driver of
other vehicles in adjacent lanes when
changing lanes.

The BSW system uses radar sensors

installed near the rear bumper to detect
other vehicles in an adjacent lane.

LSD2223

BLIND SPOT WARNING (BSW)

5-38

Starting and driving

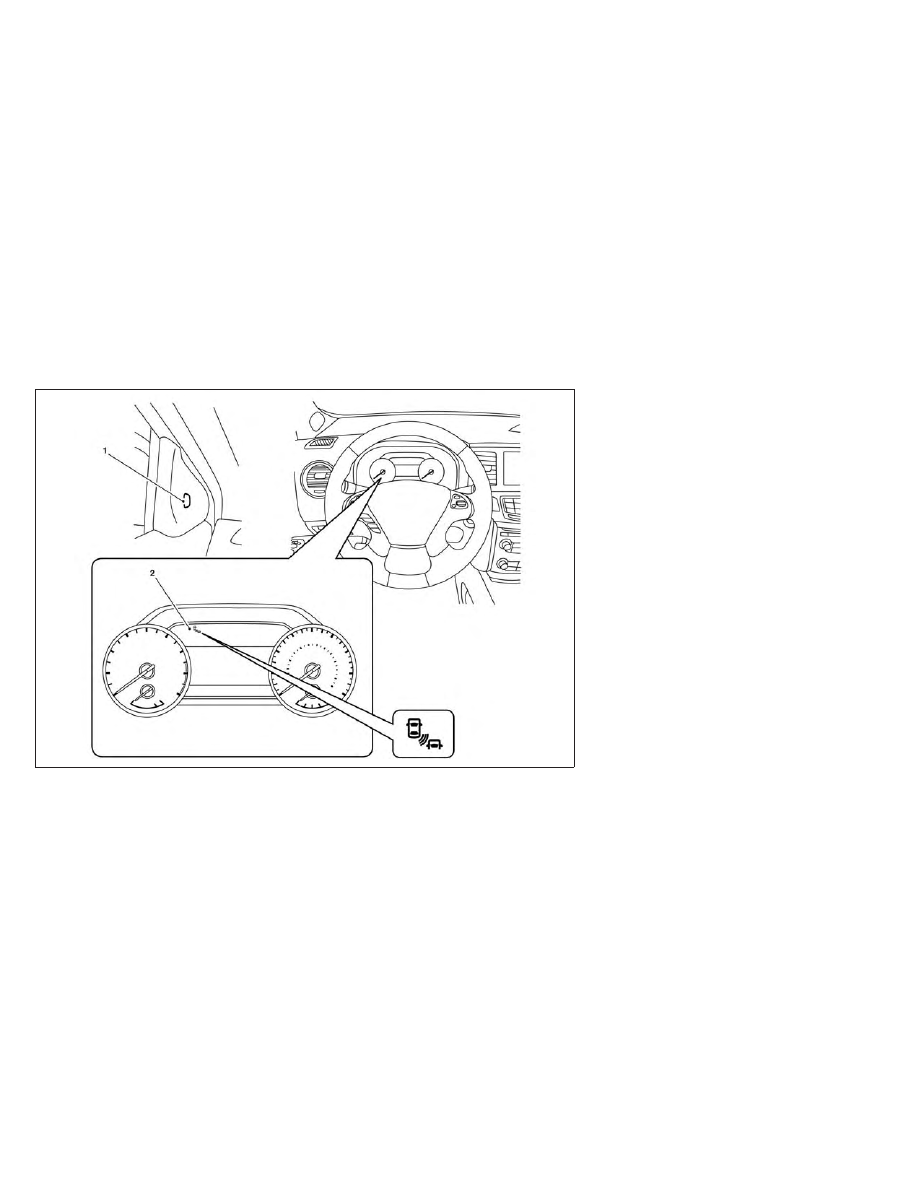

If the radar sensors detect a vehicle in the
detection zone, the side BSW/RCTA indica-
tor light (1) illuminates. If the turn signal is
then activated, the system chimes (twice)
and the side BSW/RCTA indicator light
flashes

and

the

BSW/RCTA

indicator

flashes (yellow) in the vehicle information
display. The side BSW/RCTA indicator light
continues to flash until the detected ve-
hicle leaves the detection zone.

The side BSW/RCTA indicator light illumi-
nates for a few seconds when the ignition
switch is placed in the ON position.

The brightness of the side BSW/RCTA indi-
cator light is adjusted automatically de-
pending on the brightness of the ambient
light.

NOTE:

When enabling/disabling the system,
the system setting will be retained even
if the engine is restarted.

HOW TO ENABLE/DISABLE THE
BSW SYSTEM

Perform the following steps to enable or
disable the BSW system.

LSD3432

5-40

Starting and driving

Using “Settings” in the vehicle informa-
tion display:

1. Press the

button until “Settings” dis-

plays in the vehicle information display
and then press the OK button. Use the

button to select “Driver Assistance.”

Then press the OK button.

2. Select “Blind Spot” and press the OK but-

ton to turn the system on or off.

Using the “Driving Aids” screen in the ve-
hicle information display:

1. Use the

buttons on the steering

wheel to scroll to the Driving Aids screen.

2. Press the OK button to access the Driv-

ing Aids menu.

3. Select “Blind Spot” and press the OK but-

ton to change the Driving Aids setting.

NOTE:
• When enabling/disabling the system,

the system will retain current settings
even if the engine is restarted.

• The RCTA system (if so equipped) is in-

tegrated into the BSW system. There is
not a separate selection in the vehicle
information display for the RCTA sys-
tem. When the BSW is disabled, the
RCTA system is also disabled.

• When the BSW system is turned on, the

BSW/RCTA indicator (white) in the ve-
hicle information display illuminates.

BSW SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the BSW system. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

•

The BSW system cannot detect all ve-
hicles under all conditions.

•

The radar sensors may not be able to
detect and activate BSW when cer-
tain objects are present such as:

–

Pedestrian, bicycles, animals.

–

Vehicles such as motorcycles, low

height vehicles, or high ground
clearance vehicles.

–

Oncoming vehicles.

–

Vehicles remaining in the detec-

tion zone when you accelerate
from a stop.

–

A vehicle merging into an adjacent

lane at a speed approximately the
same as your vehicle.

–

A vehicle approaching rapidly from

behind.

–

A vehicle which your vehicle over-

takes rapidly.

–

A vehicle that passes through the

detection zone quickly.

–

When overtaking several vehicles

in a row, the vehicles after the first
vehicle may not be detected if
they are traveling close together.

•

The radar sensor’s detection zone is
designed based on a standard lane
width. When driving in a wider lane,
the radar sensors may not detect
vehicles in an adjacent lane. When
driving in a narrow lane, the radar
sensors may detect vehicles driving
two lanes away.

•

The radar sensors are designed to
ignore

most

stationary

objects;

however, objects such as guardrails,
walls, foliage and parked vehicles
may occasionally be detected. This is
a normal operation condition.

•

The following conditions may reduce
the ability of the radar to detect other
vehicles:

–

Severe weather

–

Road spray

Starting and driving

5-41

–

Ice/frost/snow/dirt build-up on

the vehicle

•

Do not attach stickers (including
transparent material), install acces-
sories or apply additional paint near
the radar sensors. These conditions
may reduce the ability of the radar to
detect other vehicles.

•

Excessive noise (for example, audio
system volume, open vehicle win-
dow) will interfere with the chime
sound, and it may not be heard.

BSW DRIVING SITUATIONS

Indicator on

Indicator off

Indicator flashing

Another vehicle approaching
from behind

Illustration 1:

The side BSW/RCTA indicator

light illuminates if a vehicle enters the de-
tection zone from behind in an adjacent
lane.

NOTE:
• The radar sensors may not detect ve-

hicles which are approaching rapidly
from behind.

LSD2299

Illustration 1 – Approaching from behind

5-42

Starting and driving

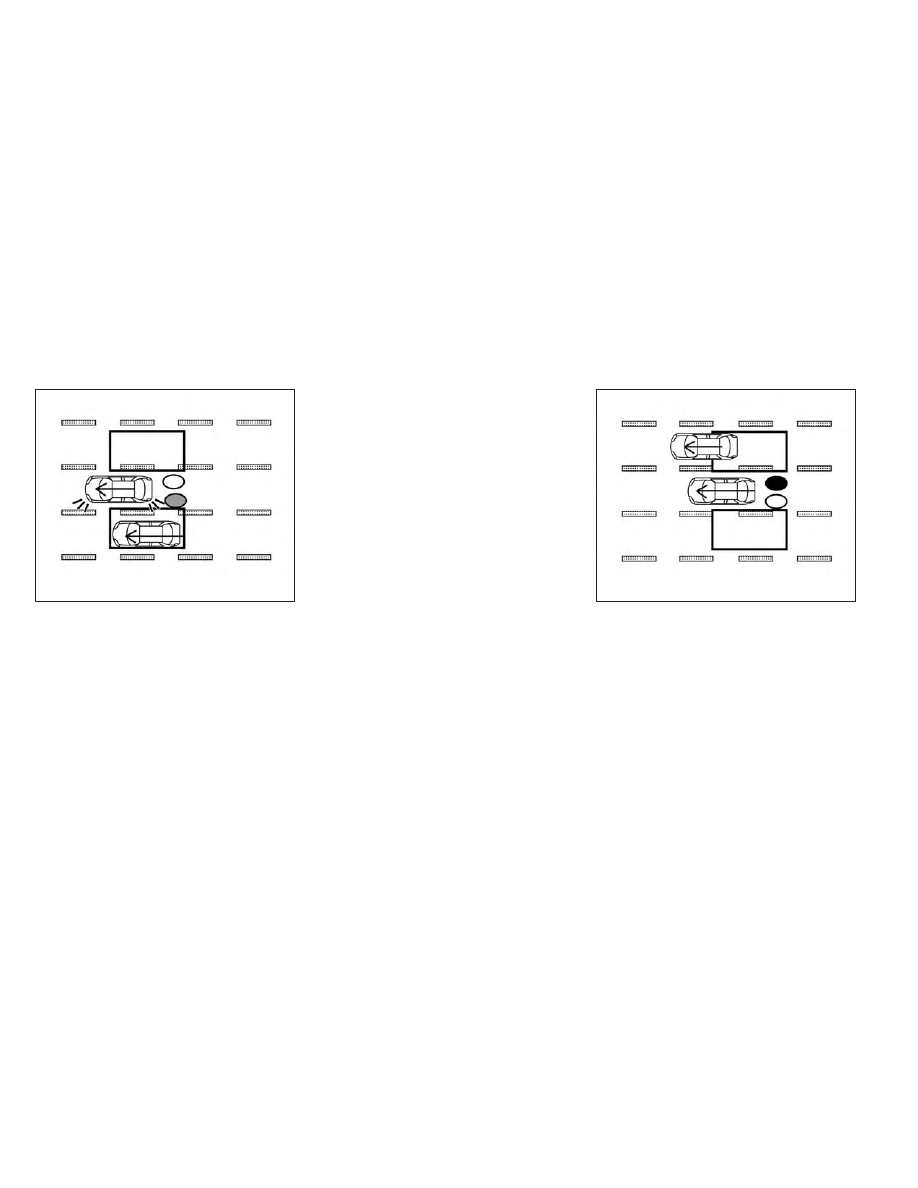

Illustration 2:

If the driver activates the

turn signal when another vehicle is in the
detection zone, then the system chimes
(twice) and the side BSW/RCTA indicator
light and the BSW/RCTA indicator flash.

NOTE:
• The radar sensors may not detect ve-

hicles which are approaching rapidly
from behind.

• If the driver activates the turn signal

before a vehicle enters the detection
zone, the side BSW/RCTA indicator
light and the BSW/RCTA indicator will
flash but no chime will sound when the
other vehicle is detected.

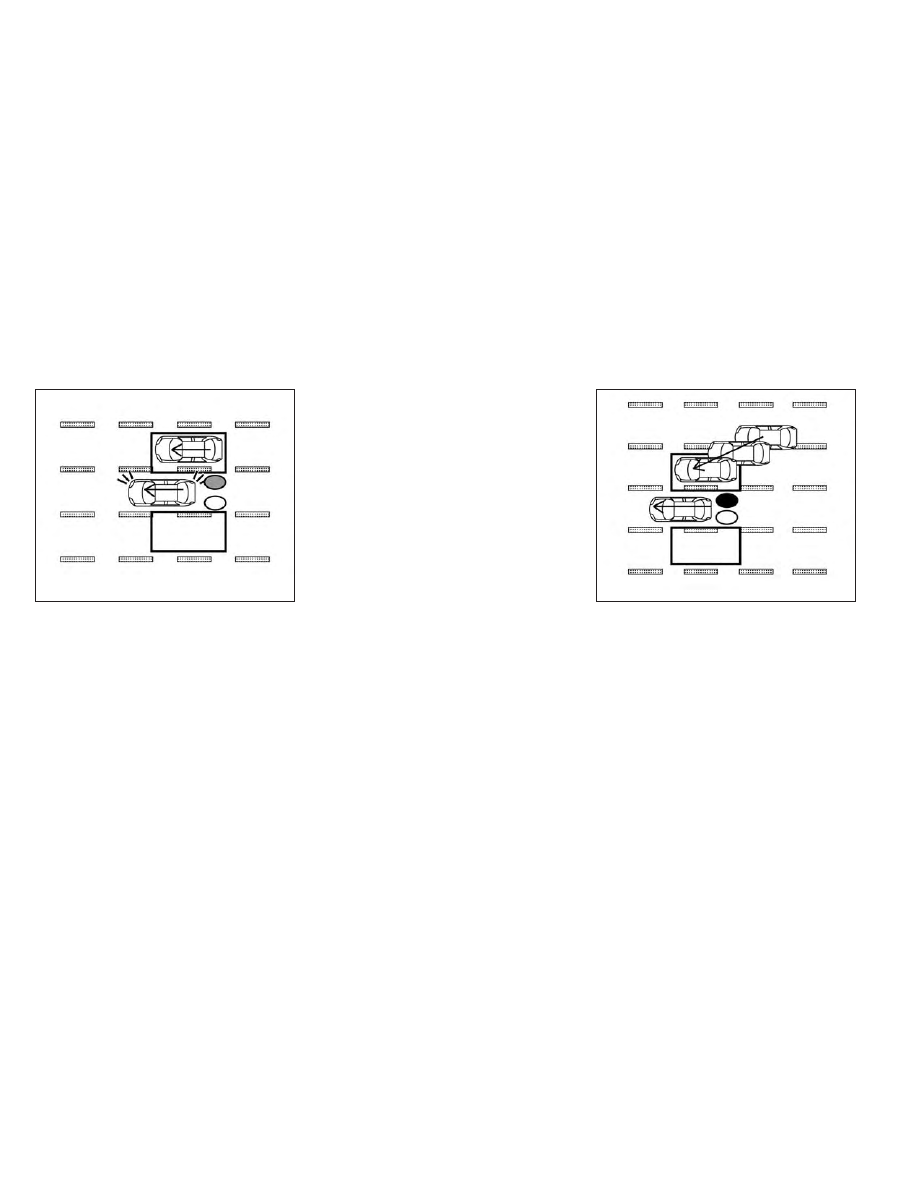

Overtaking another vehicle

Illustration 3:

The side BSW/RCTA indica-

tor light illuminates if you overtake a ve-
hicle and that vehicle stays in the detection
zone for approximately 2 seconds.

LSD2300

Illustration 2 – Approaching from

behind

LSD2302

Illustration 3 – Overtaking another

vehicle

Starting and driving

5-43

Illustration 4:

If the driver activates the

turn signal while another vehicle is in the
detection zone, then the system chimes
(twice) and the side BSW/RCTA indicator
light and the BSW/RCTA indicator flash.

NOTE:
• When overtaking several vehicles in a

row, the vehicles after the first vehicle
may not be detected if they are travel-
ing close together.

• The radar sensors may not detect

slower moving vehicles if they are
passed quickly.

• If the driver activates the turn signal

before a vehicle enters the detection
zone, the side BSW/RCTA indicator
light and the BSW/RCTA indicator will
flash but no chime will sound when the
other vehicle is detected.

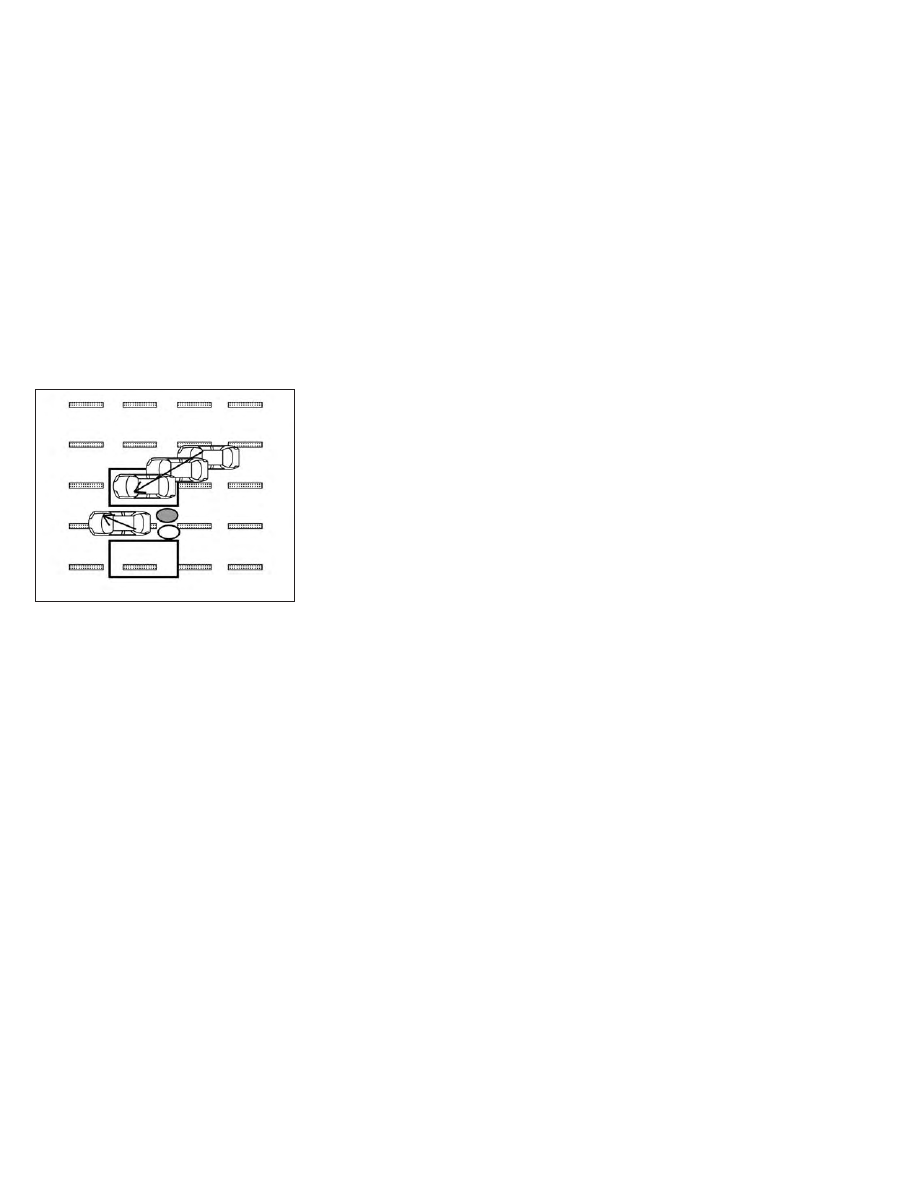

Entering from the side

Illustration 5:

The side BSW/RCTA indicator

light illuminates if a vehicle enters the de-
tection zone from either side.

LSD2303

Illustration 4 – Overtaking another

vehicle

LSD2305

Illustration 5 – Entering from the side

5-44

Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE

When radar blockage is detected, the sys-
tem will be deactivated automatically.
The “Unavailable: Side Radar Obstruction”
warning message will appear and the
BSW/RCTA indicator (white) will blink

the vehicle information display.

The system is not available until the condi-
tions no longer exist.

The radar sensors may be blocked by tem-
porary ambient conditions such as splash-
ing water, mist or fog. The blocked condi-
tion may also be caused by objects such
as ice, frost or dirt obstructing the radar
sensors.

NOTE:

If the BSW system stops working, the
RCTA system will also stop working.

Action to take:

When the above conditions no longer exist,
the system will resume automatically.

LSD3433

5-46

Starting and driving

Malfunction

If the BSW system malfunctions, it will turn
off automatically. The BSW/RCTA indicator
(orange) will appear in the vehicle informa-
tion display.

NOTE:

If the BSW system stops working, the
RCTA system (if so equipped) will also
stop working.

Action to take:

Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.

SYSTEM MAINTENANCE

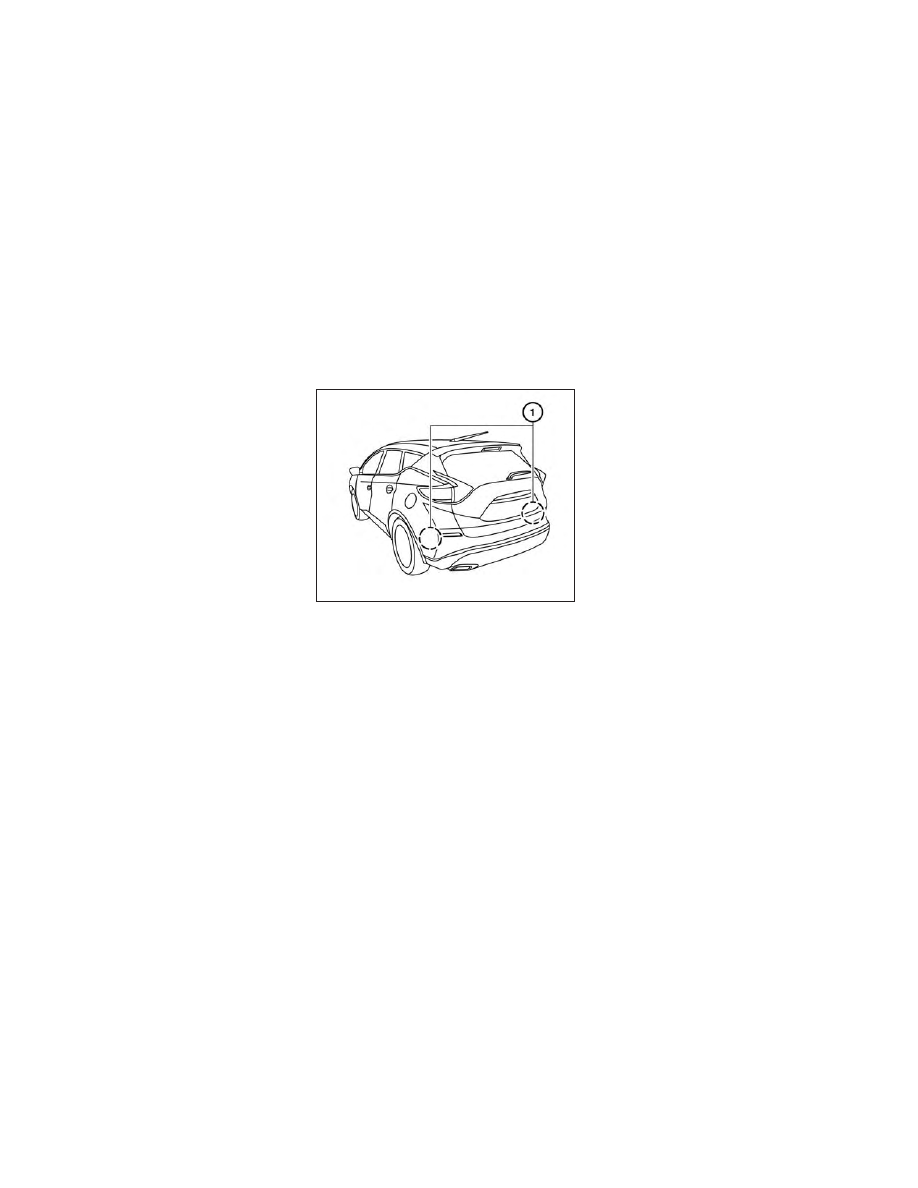

The two radar sensors

for the BSW and

RCTA systems are located near the rear
bumper. Always keep the area near the ra-
dar sensors clean.

The radar sensors may be blocked by tem-
porary ambient conditions such as splash-
ing water, mist or fog.

The blocked condition may also be caused
by objects such as ice, frost or dirt ob-
structing the radar sensors.

Check for and remove objects obstructing
the area around the radar sensors.

Do not attach stickers (including transpar-
ent material), install accessories or apply
additional paint near the radar sensors.

Do not strike or damage the area around
the radar sensors. It is recommended that
you visit a NISSAN dealer if the area around
the radar sensors is damaged due to a
collision.

Radio frequency statement

For USA

This device complies with Part 15 of the FCC
Rules.

Operation is subject to the following two
conditions:

1. This device may not cause harmful inter-

ference, and

2. This device must accept any interfer-

ence received, including interference
that may cause undesired operation.

FCC Warning

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

LSD2223

Starting and driving

5-47

For Canada

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Devel-
opment Canada’s licence-exempt RSS(s).
Operation is subject to the following two
conditions:

1. This device may not cause interference.

2. This device must accept any interfer-

ence, including interference that may
cause

undesired

operation

the

device.

Radiofrequency radiation exposure infor-
mation:

This equipment complies with radiation
exposure limits set forth for an uncon-
trolled

environment.

This

equipment

should be installed and operated with
minimum distance of 20 cm between the
radiator and the body of any persons, user
or bystander.

L’émetteur/récepteur exempt de licence
contenu dans le présent appareil est con-
forme aux CNR d’Innovation, Sciences et
Développement économique Canada ap-
plicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux
deux conditions suivantes:

1. L’appareil

doit

pas

produire

brouillage;

2. L’appareil doit accepter tout brouillage

radioélectrique subi, même si le brouil-
lage est susceptible d’en compromettre
le fonctionnement.

Cet équipement est conforme aux limites
d’exposition aux rayonnements établies
pour un enviornnement non contrôlé. Cet
équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la
source de rayonnement et votre corps.

WARNING

Failure to follow the warnings and in-
structions for proper use of the RCTA
system could result in serious injury or
death.

•

The RCTA system is not a replace-
ment for proper driving procedures
and is not designed to prevent con-
tact with vehicles or objects. When
backing out of a parking space, al-
ways use the side and rear mirrors
and turn and look in the direction
your vehicle will move. Never rely
solely on the RCTA system.

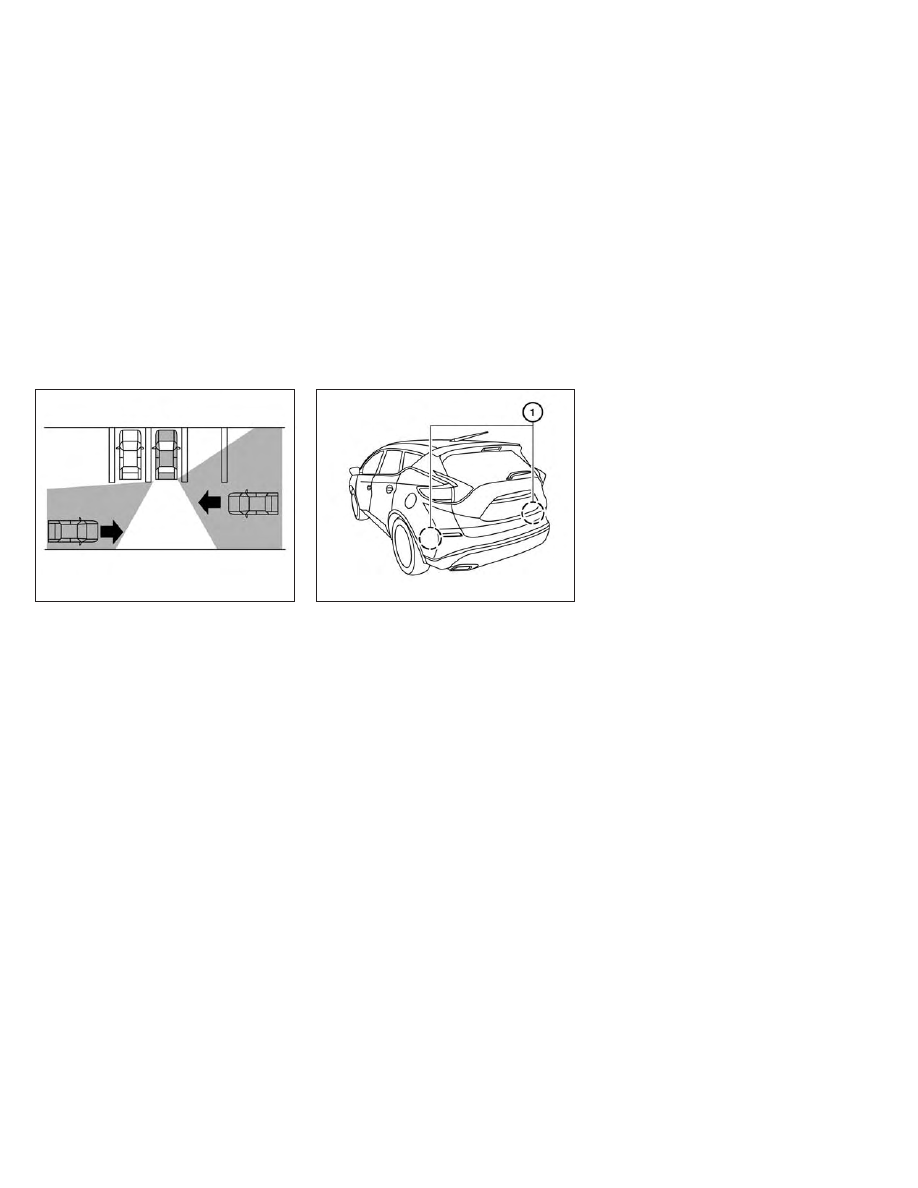

The RCTA system will assist you when
backing out from a parking space. When
the vehicle is in reverse, the system is de-
signed to detect other vehicles approach-
ing from the right or left of the vehicle. If the
system detects cross traffic, it will alert you.

REAR CROSS TRAFFIC ALERT (RCTA)

5-48

Starting and driving

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM

Perform the following steps to enable or
disable the RCTA system.

Using “Settings” in the vehicle informa-
tion display:

1. Press the

button until “Settings” dis-

plays in the vehicle information display

and then press the OK button. Use the

button to select “Driver Assistance.”

Then press the OK button.

2. Select “Blind Spot” and press the OK but-

ton to turn the system on or off.

When the RCTA system is turned on, the
BSW/RCTA indicator (white) in the vehicle
information display illuminates.

Using the “Driving Aids” screen in the ve-
hicle information display:

1. Use the

buttons on the steering

wheel to scroll to the Driving Aids screen.

2. Press the OK button to access the Driv-

ing Aids menu.

3. Select “Blind Spot” and press the OK but-

ton to change the Driving Aids setting.

NOTE:
• The RCTA system is integrated into the

BSW system. There is not a separate se-
lection in the vehicle information display
for the RCTA system. When the BSW is dis-
abled, the RCTA system is also disabled.

• When enabling/disabling the system,

the system setting will be retained
even if the engine is restarted.

LSD3432

Starting and driving

5-51

RCTA SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the RCTA system. Failure to operate
the vehicle in accordance with these

system limitations could result in seri-
ous injury or death.

•

Always check surroundings and turn
to check what is behind you before
backing up. The radar sensors detect
approaching (moving) vehicles. The

radar sensors cannot detect every
object such as:

–

Pedestrians,

bicycles,

motor-

cycles, animals or child-operated
toy vehicles

–

A vehicle that is passing at speeds

greater than approximately 19
mph (30 km/h)

–

A vehicle that is passing at speeds

lower than approximately 5 mph
(8 km/h)

•

The radar sensors may not detect
approaching vehicles in certain situ-
ations:

–

Illustration

: When a vehicle

parked next to you obstructs the
beam of the radar sensor.

–

Illustration

: When the vehicle is

parked in an angled parking space.

–

Illustration

: When the vehicle is

parked on inclined ground.

–

Illustration

When

ap-

proaching vehicle turns into your
vehicle's parking lot aisle.

–

Illustration

: When the angle

formed by your vehicle and ap-
proaching vehicle is small.

LSD3195

5-52

Starting and driving

•

The following conditions may reduce
the ability of the radar to detect other
vehicles:

–

Severe weather

–

Road spray

–

Ice/frost/snow/dirt build-up on

the vehicle

•

Excessive noise (e.g., audio system
volume, open vehicle window) will in-
terfere with the chime sound, and it
may not be heard.

NOTE:

In the case of several vehicles approach-
ing in a row (Illustration 1) or in the oppo-
site direction (Illustration 2), a chime may
not be sounded by the RCTA system af-
ter the first vehicle passes the sensors.

LSD2043

Illustration 1

LSD2044

Illustration 2

Starting and driving

5-53

SYSTEM TEMPORARILY
UNAVAILABLE

the vehicle information display.

The systems are not available until the
conditions no longer exist.

The radar sensors may be blocked by tem-
porary ambient conditions such as splash-
ing water, mist or fog.

The blocked condition may also be caused
by conditions such as ice, snow, frost or dirt
obstructing the radar sensors.

NOTE:

If the BSW system stops working, the
RCTA system will also stop working.

Action to take

When the above conditions no longer exist,
the system will resume automatically.

LSD3433

5-54

Starting and driving

Malfunction

When the RCTA system malfunctions, it will
turn off automatically. The BSW/RCTA indi-
cator (orange) will appear in the vehicle in-
formation display.

NOTE:

If the BSW system stops working, the
RCTA system will also stop working.

Action to take

SYSTEM MAINTENANCE

The two radar sensors

for the BSW and

RCTA systems are located near the rear
bumper. Always keep the area near the ra-
dar sensors clean.

The radar sensors may be blocked by tem-
porary ambient conditions such as splash-
ing water, mist or fog.

The blocked condition may also be caused
by objects such as ice, frost or dirt ob-
structing the radar sensors.

Check for and remove objects obstructing
the area around the radar sensors.

Do not attach stickers (including transpar-
ent material), install accessories or apply
additional paint near the radar sensors.

Do not strike or damage the area around
the radar sensors. It is recommended that
you visit a NISSAN dealer if the area around
the radar sensors is damaged due to a
collision.

Radio frequency statement

For USA

This device complies with Part 15 of the FCC
Rules.

Operation is subject to the following two
conditions:

1. This device may not cause harmful inter-

ference, and

2. This device must accept any interfer-

ence received, including interference
that may cause undesired operation.

FCC Warning

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.

LSD2223

Starting and driving

5-55

Nissan Murano (2024 year). Manual in english - page 9
