Nissan Versa Note (2019 year). Instruction

Lower the rear center armrest to access
the cup holders.

CAUTION

∙ Do not use bottle holder for any other

objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.

∙ Do not use bottle holder for open liq-

uid containers.

Rear – console

LIC3612

Rear – armrest (if so equipped)

LIC2656

Bottle holder

LIC2158

2-38

Instruments and controls

DIVIDE-N-HIDE® ADJUSTABLE
FLOOR (if so equipped)

WARNING

Do not put objects heavier than 110 lbs.
(50 kg) on the load floor.

To lower:

1. Lift and open the panel.

2. Move the load floor along the upper

trim panel channels toward the rear of
vehicle until it reaches the end of the
slot.

3. Move the load floor along the lower

trim panel channels toward the front of
the vehicle until the latches lock it into
place.

4. Lift and close the panel.

To raise:

1. Lift and open the panel

2. Move the load floor along the lower

trim panel channels toward the rear of
the vehicle until it reaches the end of
the slot.

3. Move the load floor along the upper

trim panel channels toward the front of
the vehicle until the latches lock it into
place.

4. Lift and close the panel.

LIC2527

LIC2528

Instruments and controls

2-39

CARGO COVER (if so equipped)

WARNING

∙ Never put anything on the cargo

cover, no matter how small. Any ob-
ject on it could cause an injury in an
accident or sudden stop.

∙ Do not put objects heavier than 44 lbs.

(20 kg) on the cargo cover for long
periods of time.

∙ Do not leave the cargo cover in the

vehicle with it disengaged from the
holder.

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

∙ Your child could be seriously injured

or killed in a collision if the child re-
straint top tether strap is damaged.

∙ Properly secure cargo and do not al-

low it to contact the top tether strap
when it is attached to the top tether
anchor. Cargo that is not properly se-
cured or cargo that contacts the top
tether strap may damage the top
tether strap during a collision. If the
cargo cover contacts the top tether
strap when it is attached to the top
tether anchor, remove the cargo cover
from the vehicle or secure it on the
cargo floor below its attachment lo-
cation. If the cargo cover is not re-
moved, it may damage the top tether
strap during a collision. Your child
could be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.

The cargo cover keeps the luggage com-
partment contents hidden from the out-
side.

LIC2125

2-40

Instruments and controls

To remove the cargo cover:

∙ Remove the straps from the rear hatch.

∙ Remove the cargo cover holders

䊊

from the rear pillar.

∙ Lower the cargo cover down against

the seatback, rotate and remove from
the cargo area.

POWER WINDOWS (if so equipped)

WARNING

∙ Make sure that all passengers have

their hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.

The power windows operate when the ig-
nition switch is placed in the ON position or
for a period of time after the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.

Window lock button

Power door lock switch

Front passenger’s side window
switch

Right rear passenger’s window
switch

Left rear passenger’s window
switch

Driver’s side automatic switch

WIC1100

WINDOWS

Instruments and controls

2-41

Driver’s side power window
switch

The driver’s side control panel is equipped
with switches to open or close the front
and rear passenger windows.

To open a window, push the switch and
hold it down. To close a window, pull the
switch and hold it up. To stop the opening
or closing function at any time, simply re-
lease the switch.

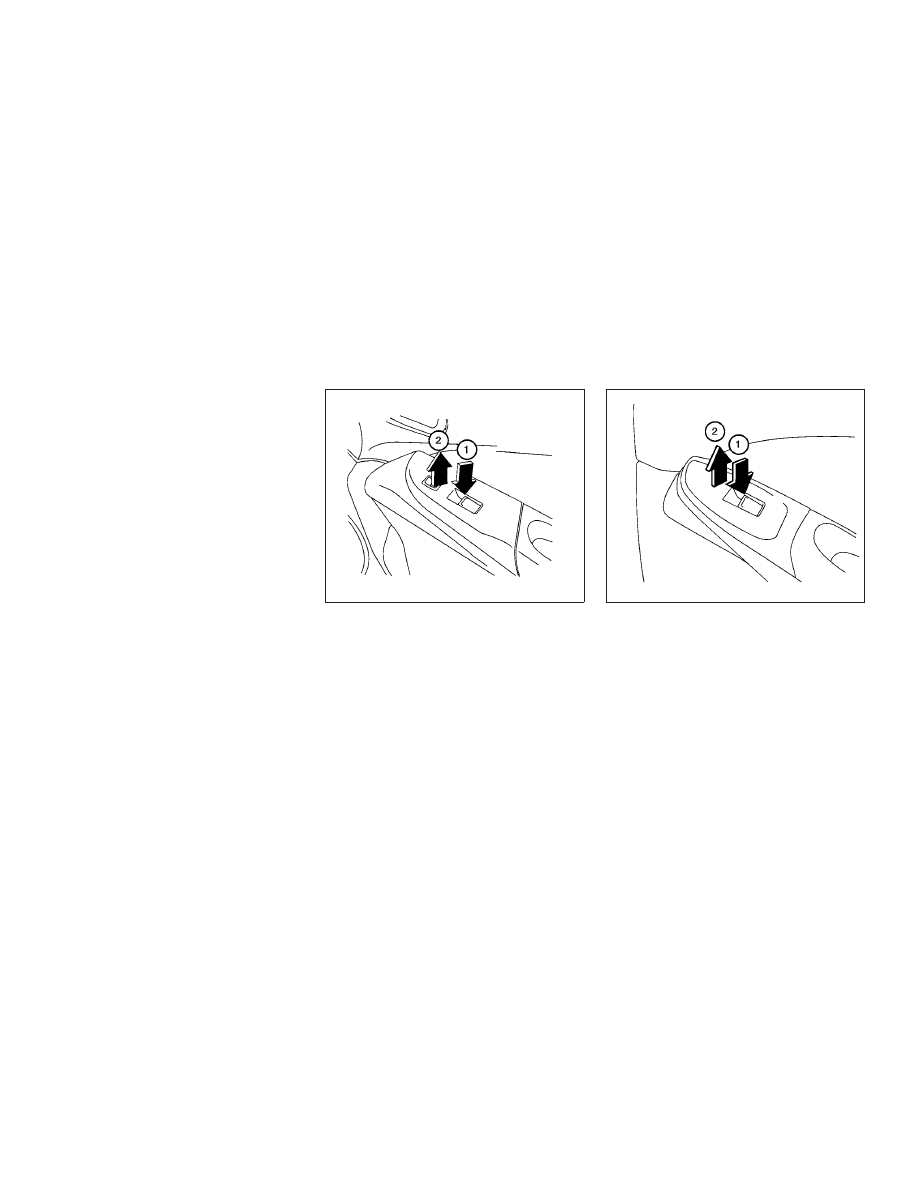

Front passenger’s power window
switch

The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window, push the switch
and hold it down

䊊

. To close the window,

pull the switch up

䊊

Rear power window switch

The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down

䊊

. To close the window, pull the

switch up

䊊

Locking passengers’ windows

When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.

WIC0260

WIC0261

2-42

Instruments and controls

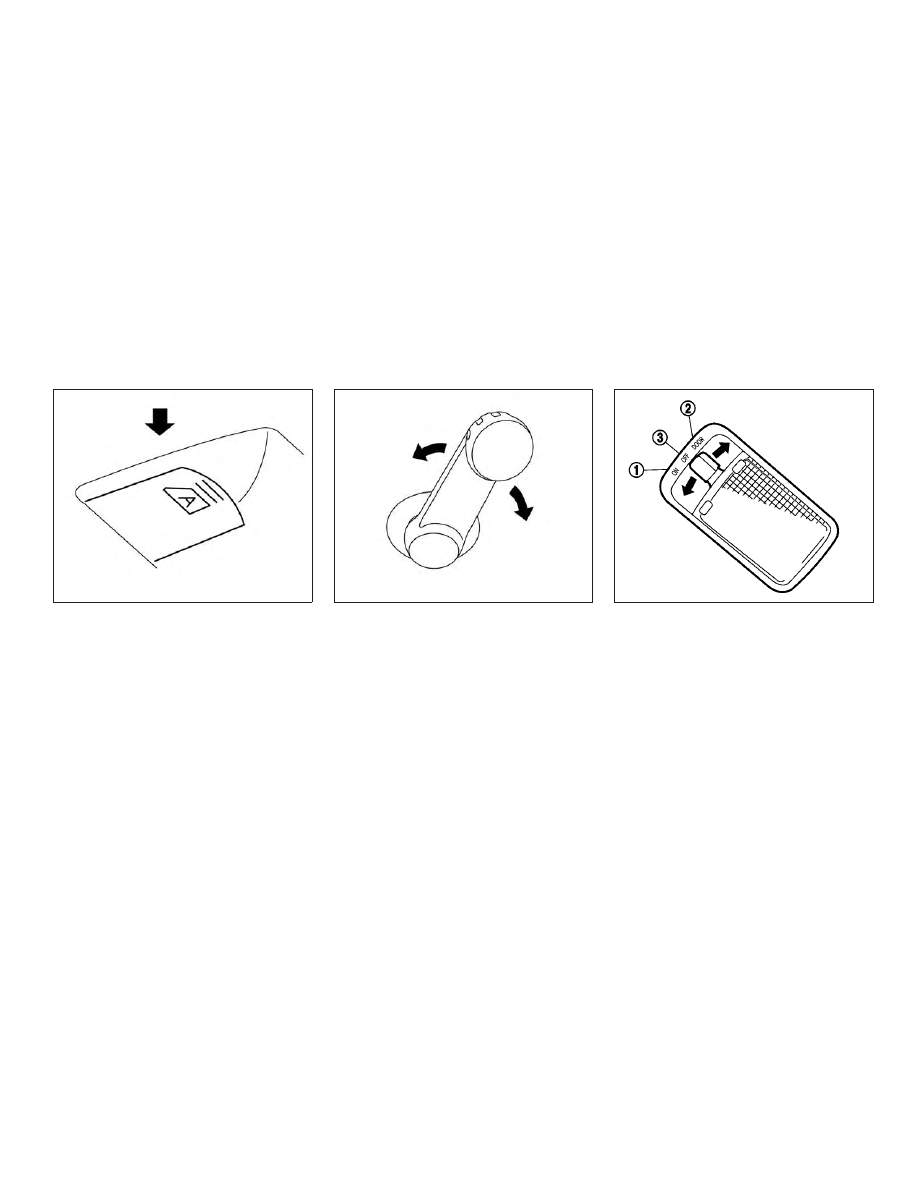

Automatic operation

To fully open a window equipped with au-
tomatic

operation,

push

the

window

switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lift the switch up while the win-
dow is opening.

MANUAL WINDOWS (if so
equipped)

The side windows can be opened or closed
by turning the hand crank on each door.

The interior light has a three-position
switch and operates regardless of ignition
switch position.

When the switch is in the ON position

䊊

the interior lights illuminate, regardless of
door position. The lights will go off after a
period of time unless the ignition switch is
placed in the ACC or ON position.

LIC3770

LIC3352

SIC2063A

INTERIOR LIGHTS

Instruments and controls

2-43

When the switch is in the DOOR position

䊊

the interior lights will stay on for a period of
time when:

∙ The doors are unlocked by the key fob, a

key or the power door lock switch while
all doors are closed and the ignition
switch is placed in the OFF position.

∙ The driver’s door is opened and then

closed while the key is removed from
the ignition switch.

∙ The key is removed from the ignition

switch while all doors are closed.

The lights will turn off while the timer is
activated when:

∙ The driver’s door is locked by the key

fob, a key, or the power door lock switch.

∙ The ignition switch is placed in the ON

position.

When the switch is in the OFF position

䊊

the interior lights do not illuminate, regard-
less of door position.

The lights will turn off automatically after a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

MAP LIGHT

The map light has a three-position switch
and operates regardless of ignition switch
position.

When the switch is in the ON position

䊊

the map light illuminates, regardless of
door position. The light will go off after a
period of time unless the ignition switch is
placed in the ACC or ON position.

LIC2126

2-44

Instruments and controls

When the switch is in the DOOR position

䊊

the map light will stay on for a period of
time when:

∙ The doors are unlocked by the key fob (if

so equipped), a key or the power door
lock switch while all doors are closed
and the ignition switch is placed in the
OFF position.

∙ The driver’s door is opened and then

closed while the key is removed from
the ignition switch.

∙ The key is removed from the ignition

switch while all doors are closed.

The light will turn off while the timer is acti-
vated when:

∙ The driver’s door is locked by the key fob

(if so equipped), a key, or the power door
lock switch.

∙ The ignition switch is placed in the ON

position.

When the switch is in the OFF position

䊊

the map light does not illuminate, regard-
less of door position.

The light will turn off automatically after a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the
light will turn off.

The light also illuminates with other interior
lights when the interior light switch is in the
DOOR position. For additional information,
refer to “Interior lights” in this section.

The lights will turn off automatically after a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.

LUGGAGE COMPARTMENT LIGHT

Instruments and controls

2-45

Master key

Transponder chip (if so equipped)

Key number plate

A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.

A key number is only necessary when you
have lost all keys and do not have one to
make a duplicate. If you still have a key, it
can be duplicated without knowing the key
number.

Integrated door lock key fob

Key number plate

CAUTION

Do not leave the ignition key inside the
vehicle when you leave the vehicle.

Type A (if so equipped)

LPD2130

Type B (if so equipped)

LPD2045

KEYS

3-2

Pre-driving checks and adjustments

NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.

Two Intelligent Keys

Mechanical keys (inside Intelligent
Keys)

Key number plate

NISSAN INTELLIGENT KEY® (if so
equipped)

Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key system com-
ponents and NISSAN Vehicle Immobilizer
System components.

Never leave these keys in the vehicle.

As many as four Intelligent Keys can be
registered and used with one vehicle. The
new keys must be registered prior to use
with the Intelligent Key system and NISSAN
Vehicle Immobilizer System of your vehicle.
It is recommended that you visit a NISSAN
dealer for this service. Since the registra-
tion process requires erasing all memory in
the Intelligent Key components when reg-
istering new keys, be sure to take all Intelli-
gent Keys that you have to the NISSAN
dealer.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.

LPD0350

Pre-driving checks and adjustments

3-3

CAUTION

Listed below are conditions or occur-
rences which will damage the Intelli-
gent Key:

∙ Do not allow the Intelligent Key, which

contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.

∙ Do not drop the Intelligent Key.

∙ Do not strike the Intelligent Key

sharply against another object.

∙ Do not change or modify the Intelli-

gent Key.

∙ Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely
dry.

∙ Do not place the Intelligent Key for an

extended period in an area where
temperatures exceed 140°F (60°C).

∙ Do not attach the Intelligent Key with

a key holder that contains a magnet.

∙ Do not place the Intelligent Key near

equipment that produces a magnetic
field, such as a TV, audio equipment
and personal computers.

If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that
Intelligent Key from the vehicle. This may
prevent the unauthorized use of the Intelli-
gent Key to operate the vehicle. For infor-
mation regarding the erasing procedure, it
is recommended that you visit a NISSAN
dealer.

Mechanical key

The Intelligent Key contains the mechani-
cal key, which can be used in case of a
discharged battery.

To remove the mechanical key, release the
lock knob on the back of the Intelligent Key.

To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.

The mechanical key can be used for opera-
tion in the same way as an ordinary key.

SPA1951

3-4

Pre-driving checks and adjustments

CAUTION

Always carry the mechanical key in-
stalled in the Intelligent Key slot.

For additional information, refer to “Doors”
in this section and “Storage” in the “Instru-
ments and controls” section of this manual.

NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS (if so equipped)

You can only drive your vehicle using the
keys which are registered to the NISSAN
Vehicle Immobilizer System components
in your vehicle.

A mechanical key can be used for all the
locks.

Never leave the keys in the vehicle.

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra NISSAN
Vehicle Immobilizer System keys. Your ex-
isting key can be duplicated without know-
ing the key number. As many as four
NISSAN Vehicle Immobilizer System keys
can be used with one vehicle. You should
bring all NISSAN Vehicle Immobilizer Sys-
tem keys that you have to a NISSAN dealer
for registration. This is because the regis-

tration process will erase the memory of all
key codes previously registered into the
NISSAN Vehicle Immobilizer System. After
the registration process, these compo-
nents will only recognize keys coded into
the NISSAN Vehicle Immobilizer System
during registration. Any key that is not
given to the dealer at the time of registra-
tion will no longer be able to start your
vehicle.

CAUTION

Do not allow the immobilizer system
key, which contains an electrical tran-
sponder, to come into contact with wa-
ter or salt water. This could affect sys-
tem function.

When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to
open the doors.

WARNING

∙ Always have the doors locked while

driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from unintention-
ally opening the doors, and will help
keep out intruders.

∙ Before opening any door, always look

for and avoid oncoming traffic.

DOORS

Pre-driving checks and adjustments

3-5

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, including
entrapment in windows and/or inad-
vertent door lock activation, do not
leave children, people who require the
assistance of others and/or pets un-
attended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

LOCKING WITH KEY

To lock or unlock the vehicle, turn the key as
shown.

Manual

To lock a door, turn the key toward the front
of the vehicle

䊊

. To unlock, turn the key

toward the rear of the vehicle

䊊

Selective open (if so equipped)

The power door lock system allows you to
lock or unlock all doors at the same time.

Turning the key toward the front

䊊

of the

vehicle locks all doors.

Turning the key one time toward the rear

䊊

of the vehicle unlocks that door. From

that position, returning the key to neutral

䊊

(where the key can only be removed and

inserted) and turning it toward the rear
again within 5 seconds unlocks all doors

䊊

Driver’s side

LPD2160

LPD2161

3-6

Pre-driving checks and adjustments

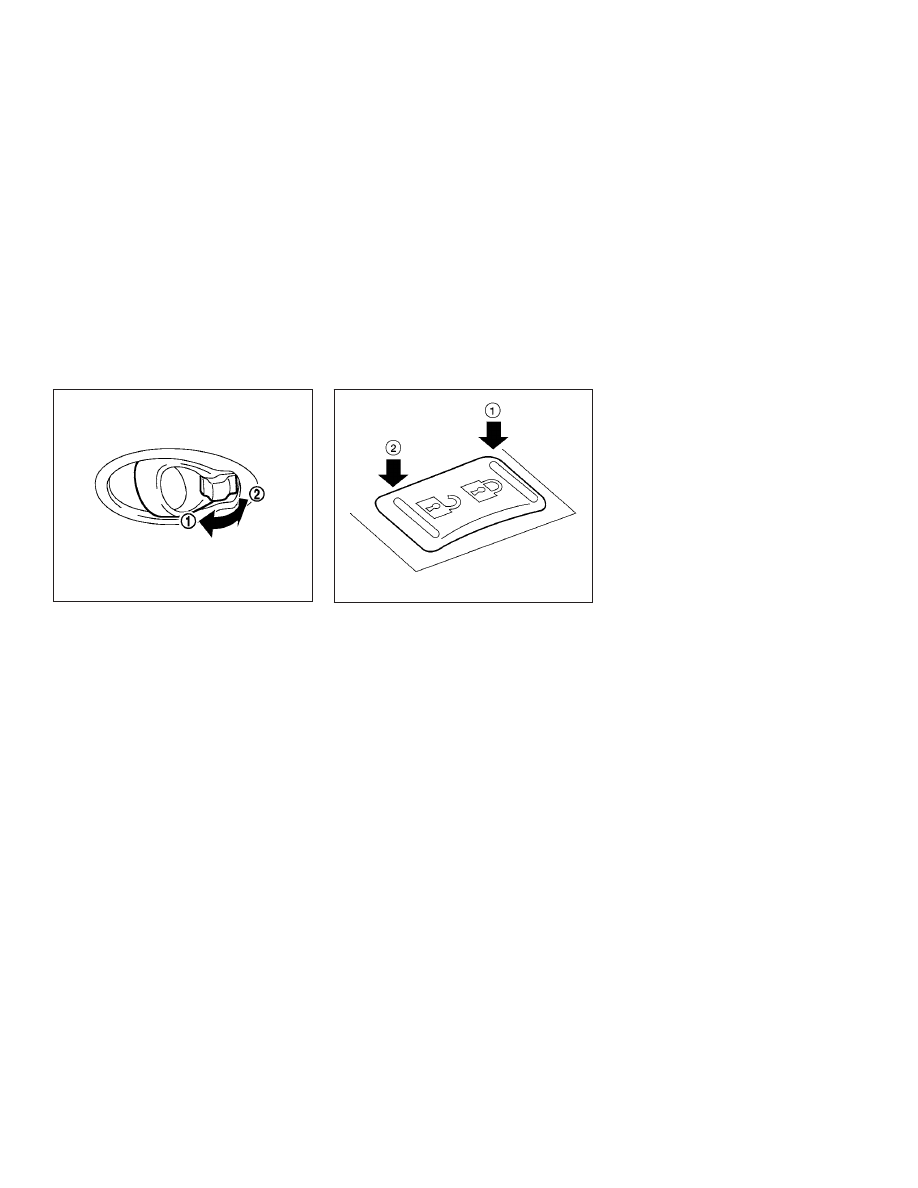

LOCKING WITH INSIDE LOCK KNOB

To lock the door without the key, close the
door and move the inside lock knob to the
lock position

䊊

To unlock the door without the key, move
the inside lock knob to the unlock position

䊊

LOCKING WITH POWER DOOR
LOCK SWITCH (if so equipped)

To lock all the doors without a key, push the
door lock switch (driver’s or front passen-
ger’s side) to the lock position

䊊

. When

locking the door this way, be certain not to
leave the key inside the vehicle.

To unlock all the doors without a key, push
the door lock switch (driver’s or front pas-
senger’s side) to the unlock position

䊊

Lockout protection

When the power door lock switch is moved
to the lock position and any door is open, all
doors will lock and unlock automatically.
With the Intelligent Key left in the vehicle
and any door is open, all doors will unlock
automatically and a chime will sound after
the door is closed.

These functions help to prevent the Intelli-
gent Key from being accidentally locked
inside the vehicle.

AUTOMATIC DOOR LOCKS (if so
equipped)

∙ All doors lock automatically when the

vehicle

speed

reaches

mph

(24 km/h).

∙ Continuously

Variable

Transmission

(CVT) (if so equipped)

– All doors unlock automatically when

the transmission is placed in the P
(Park) position.

∙ Manual transmission (if so equipped)

– All doors unlock automatically when

the ignition is placed in the off posi-
tion.

Inside lock

SPA2760

WPD0381

Pre-driving checks and adjustments

3-7

Nissan Versa Note (2019 year). Instruction - part 8
