Nissan Pathfinder Hybrid (2015 year). Instruction

Turn the VOL/ON·OFF control knob to adjust the
volume.

This vehicle has Speed Sensitive Volume (SSV)
for audio. The audio volume changes as the driv-
ing speed changes.

Audio settings

Audio

Bass

Adjusts the bass to the desired level.

Treble

Adjusts the treble to the desired level.

Balance

Adjusts the balance to the desired level. Balance adjusts the sound level between the left and right speakers.

Fade

Adjusts the fade to the desired level. Fade adjusts the sound level between the front and rear speakers.

Speed Sensitive Vol.

Adjusts the speed sensitive volume function, which increases the volume of the audio system as the speed of the vehicle increases. Set to
“OFF” to disable the feature. The higher the setting, the more the volume increases in relation to vehicle speed.

Bass, treble, balance and fade can also be adjusted by pressing the AUDIO control knob and turning it to select the item to adjust. When the desired item
is shown on the display, turn the tuning to adjust and then press the AUDIO button until the display returns to the main audio screen. If the button is not
pressed for approximately 10 seconds, the radio or CD display will automatically reappear.

4-64

Monitor, climate, audio, phone and voice recognition systems

Clock operation

For additional information on setting the clock,
refer to “How to use the setting button” in this
section.

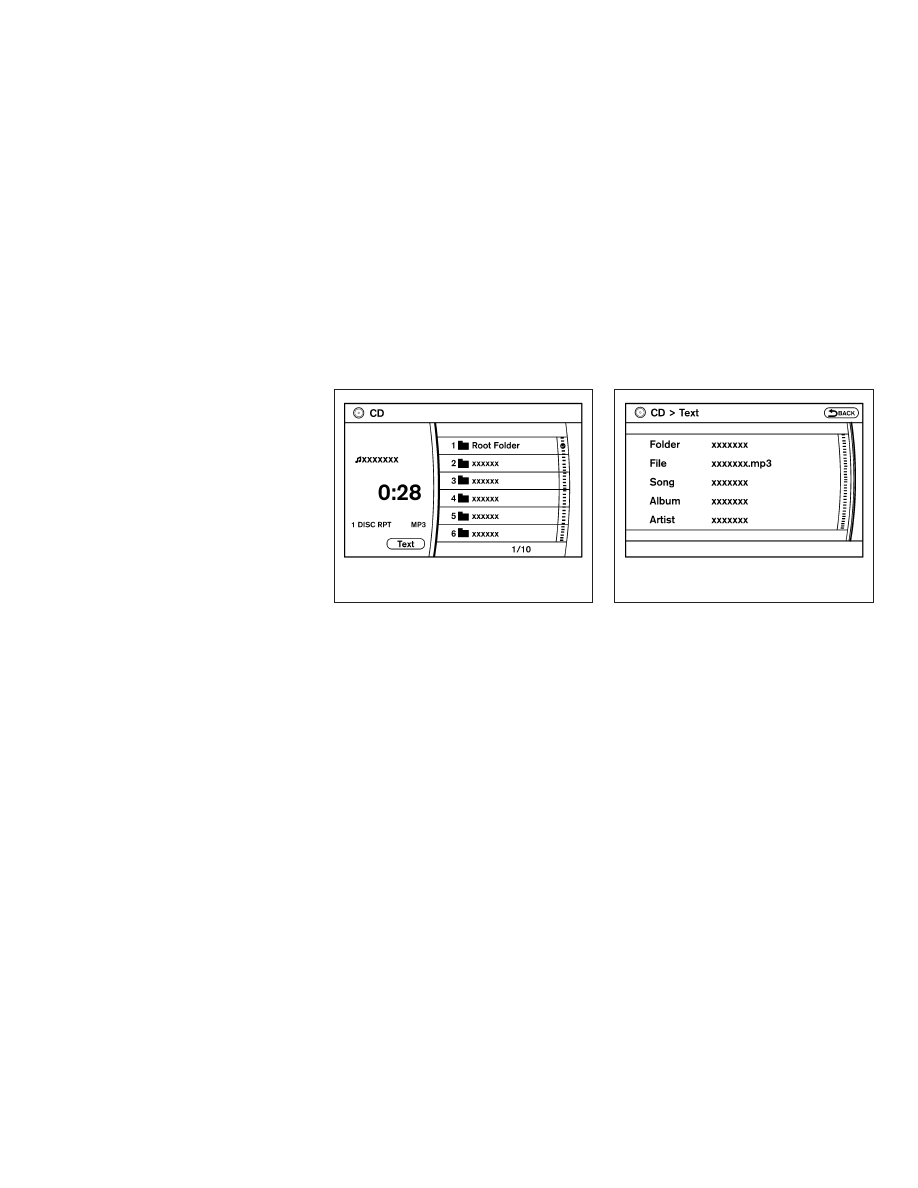

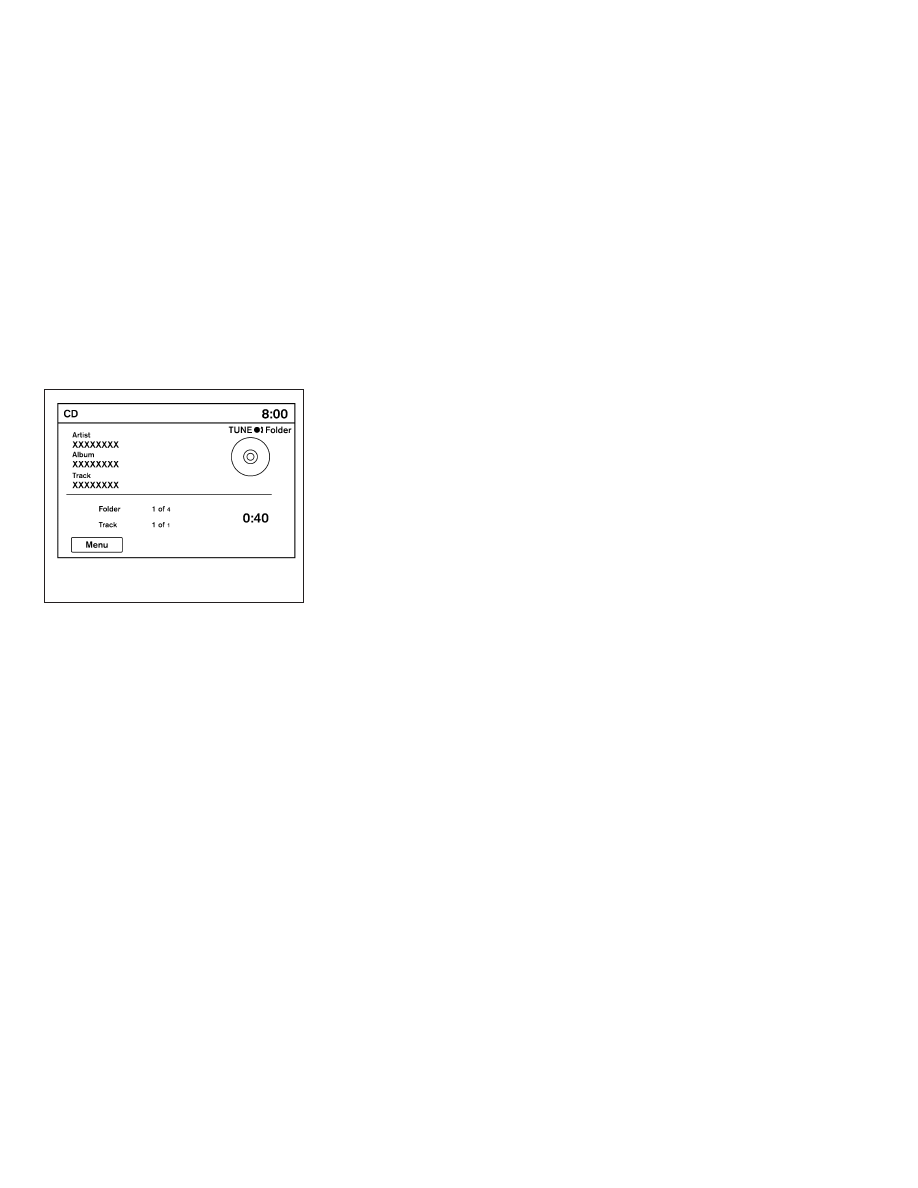

CD/MP3 display mode

While listening to a CD or an MP3/WMA CD,
certain text might be able to be displayed (when
CD encoded with text is being used).

Depending on how the CD or MP3/WMA CD is
encoded, the following text might be able to be
displayed by selecting the “Text” key:

● Folder displays the name of the current

folder being accessed.

● File displays the name of the file currently

playing.

● Song displays the ID3 encoded tag of the

song name.

● Album displays the ID3 encoded tag of the

album name.

● Artist displays the ID3 encoded tag of the

artist’s name.

● Disc displays the disc name of the CD cur-

rently playing.

● Track displays the name of the song on the

CD currently playing.

Some of this text or modes might not display
while playing a regular CD. Select the “Menu” key
with the NISSAN controller, then select the “Text”
key to display the text for the CD.

WHA0949

WHA0950

Monitor, climate, audio, phone and voice recognition systems

4-65

Press the BACK button to exit the CD text display
screen.

FM/AM/SAT radio operation

FM/AM band select

Pressing the FM·AM button will change the band
as follows:

→ FM1 → FM2 → AM

When the FM·AM button is pressed while the
ignition switch is in the ACC or ON position, the
radio will come on at the station last played.

The last station played will also come on when
the VOL/ON·OFF control knob is pressed ON.

If a compact disc is playing when the FM·AM
button is pressed, the compact disc will auto-
matically be turned off and the last radio station
played will come on.

The FM stereo indicator (STEREO) will illuminate
during FM stereo reception. When the stereo
broadcast signal is weak, the radio will automati-
cally change from stereo to monaural reception.

XM band select

Pressing the AUX button will change the band as
follows:

USB

→ XM1* → XM2* → XM3* → AUX → USB

When the AUX button is pressed while the igni-
tion switch is in the ACC or ON position, the
radio will come on at the station last played.

The last station played will also come on when
the VOL/ON·OFF control knob is pressed ON.

*When the AUX button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and a
SiriusXM® Satellite Radio service subscription is
active. Satellite radio is not available in Alaska,
Hawaii and Guam.

If a compact disc is playing when the AUX button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.

TUNE/FOLDER (Tuning) knob

manually

tune

the

radio,

turn

the

TUNE/FOLDER knob to the right or left.

SEEK/CAT and TRACK

tuning buttons

Press the SEEK/CAT

button or the

TRACK

button to tune from high to low or

low to high frequencies and stop at the next
broadcasting station.

SCAN tuning

Press the SCAN button to stop at each broad-
casting station for 5 seconds. Pressing the
SCAN button again during this 5 second period
will stop scan tuning and the radio will remain
tuned to that station. If the SCAN button is not
pressed within 5 seconds, scan tuning moves to
the next station.

1 to 6 Station memory operations

Six stations can be set for the AM band. Twelve
stations can be set for the FM band (6 for FM1, 6
for FM2). Eighteen stations can be set for the XM
band (6 for XM1, 6 for XM2, 6 for XM3).

1. Choose the radio band AM, FM1 or FM2

using the FM·AM select button or choose
the satellite band SAT1 or SAT2 using the
AUX button.

2. Tune to the desired station using manual,

SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard.

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other buttons can be set in the same man-

ner.

4-66

Monitor, climate, audio, phone and voice recognition systems

If the battery cable is disconnected, or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.

Radio data system (RDS)

RDS stands for Radio Data System, and is a data
information service transmitted by some radio
stations on the FM band (not AM band). Cur-
rently, most RDS stations are in large cities, but
many stations are now considering broadcasting
RDS data.

RDS can display:

● Station call sign, such as “WHFR 98.3”.
● Station name, such as “The Groove”.
● Music or programming type such as “Clas-

sical”, “Country”, or “Rock”.

When the “Text” key is selected with the NISSAN
controller on the display while the radio is playing,
additional information is displayed on the screen.

If the station broadcasts RDS information, the
RDS icon is displayed.

Compact disc (CD) player operation

Place the ignition in the ACC or ON position and
insert the compact disc into the slot with the label
side facing up. The compact disc will be guided
automatically into the slot and start playing.

If the radio is already operating, it will automati-
cally turn off and the compact disc will play.

If the system has been turned off while the com-
pact

disc

was

playing,

pressing

the

VOL/ON·OFF control knob will start the compact
disc.

DISC button

When the DISC button is pressed with the sys-
tem off and a compact disc loaded, the system
will turn on and the compact disc will start to play.

When the DISC button is pressed with a com-
pact disc loaded with the radio playing, the radio
will automatically be turned off and the compact
disc will start to play.

SEEK/CAT and TRACK

buttons

When the SEEK/CAT

button is pressed

while a compact disc is playing, the track being
played returns to its beginning. Press several
times to skip back through tracks. The compact
disc will go back the number of times the button
is pressed.

When the TRACK

button is pressed while

a compact disc is playing, the next track will start
to play from its beginning. Press several times to
skip through tracks. The compact disc will ad-

vance the number of times the button is pressed.
(When the last track on the compact disc is
skipped through, the first track will be played.)

The NISSAN controller can also be used to se-
lect tracks when a CD is playing.

SEEK/CAT and TRACK

(Rewind and Fast For-

ward) buttons

Press and hold the SEEK/CAT

(rewind)

button or the TRACK

(fast forward) button

while a compact disc is playing; the compact disc
will play while rewinding or fast forwarding. When
the button is released, the compact disc will
return to normal play speed.

TUNE/FOLDER knob

While playing an MP3/WMA CD, turn the
TUNE/FOLDER knob right or left to scan forward
or backward through available folders.

RPT (repeat)/RDM (random) button

When the RPT/RDM button is pressed while the
compact disc is playing, the play pattern can be
changed as follows:

Repeat All

→ 1 Track Repeat → 1 Disc Random

→ Repeat All

Monitor, climate, audio, phone and voice recognition systems

4-67

CD with compressed audio files

Repeat All

→ 1 Folder Repeat → 1 Track Repeat

→ 1 Disc Random → 1 Folder Random → Re-
peat All

Repeat All: Normal play mode. All tracks will
constantly play in sequential order.
1 Folder Repeat: The folder that is currently being
accessed will be repeated.
1 Track Repeat: The track that is currently playing
will be repeated.
1 Disc Random: The tracks on the disc that is
currently playing will be played in a mixed order.
1 Folder Random: The tracks in the folder that is
currently playing will be played in a mixed order.

CD EJECT button

When the

button is pressed with the com-

pact disc loaded, the compact disc will be
ejected.

When the

button is pressed while the

compact disc is being played, the compact disc
will eject and the system will turn off.

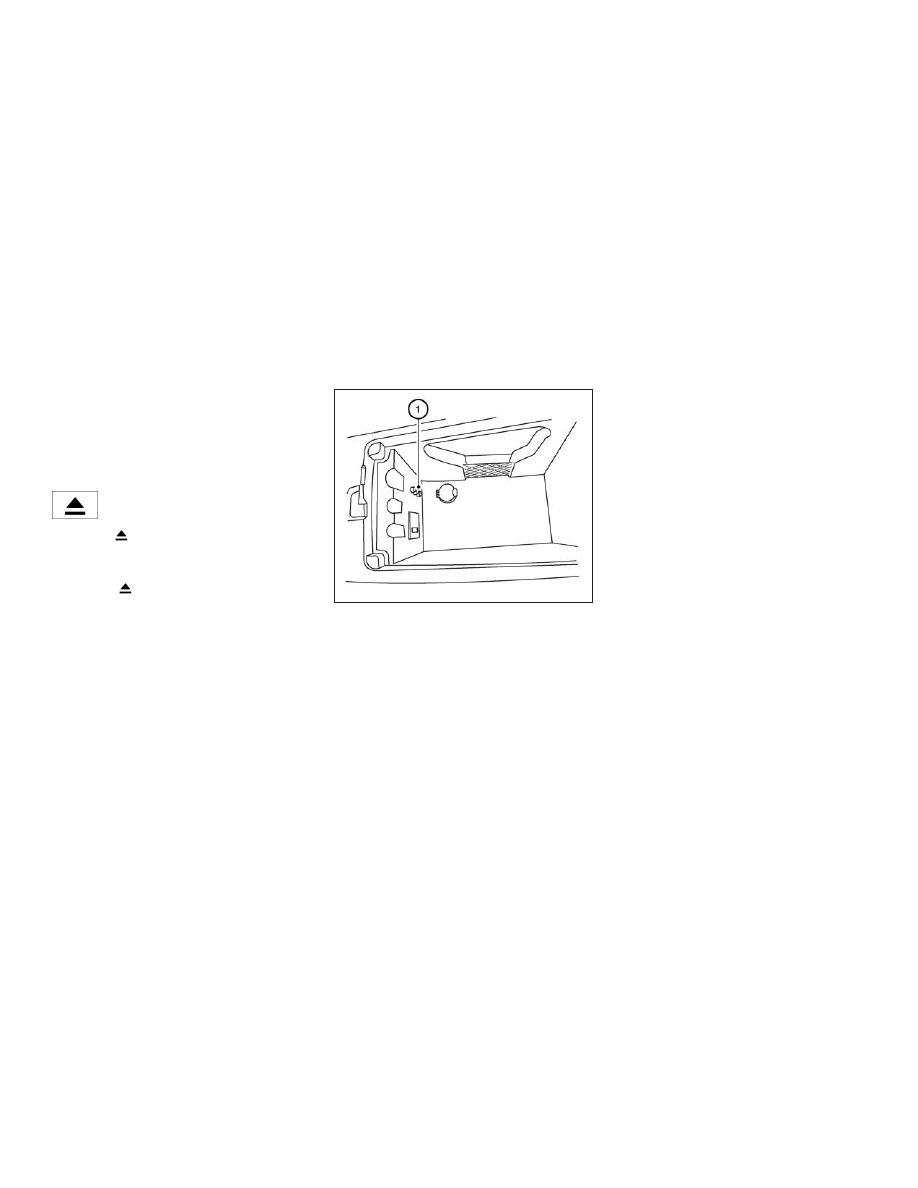

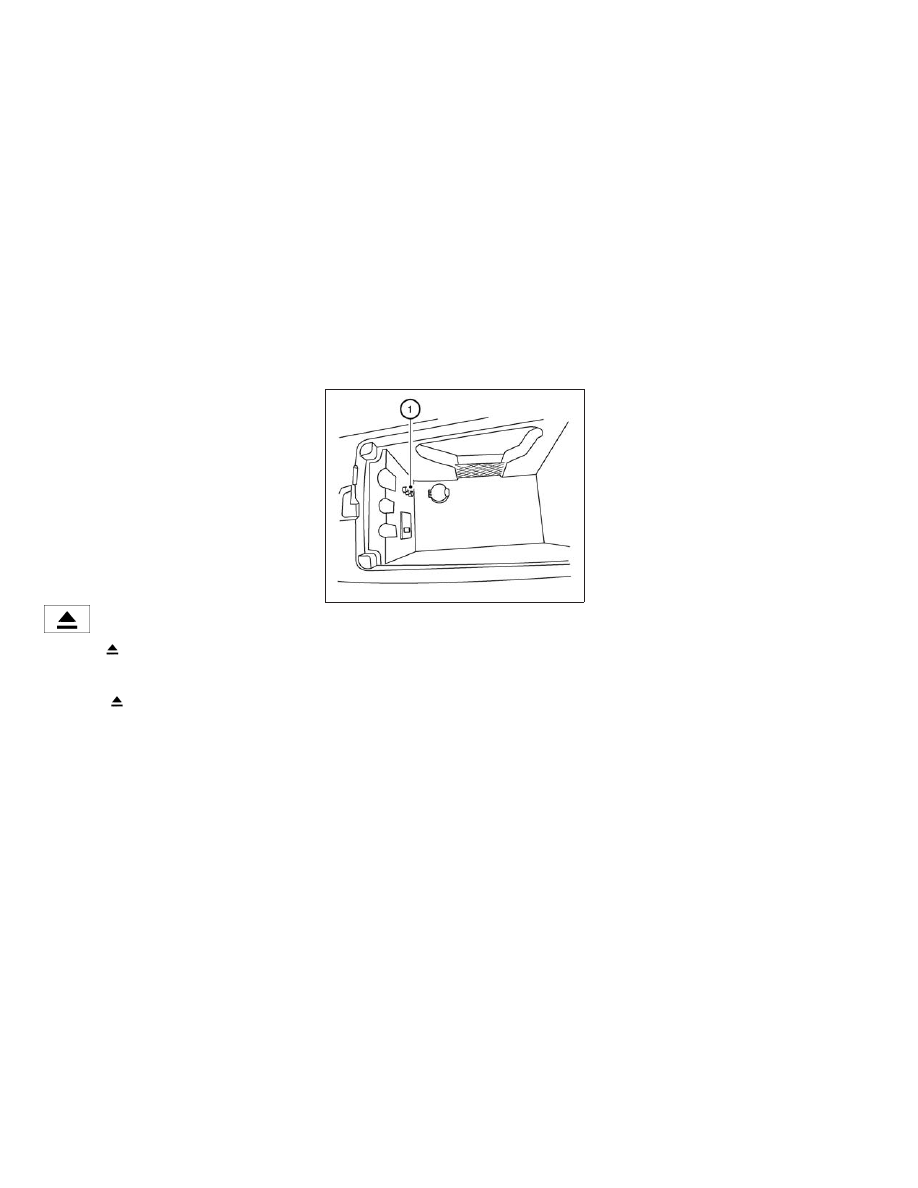

AUX (auxiliary) input jacks

The auxiliary input jacks are located inside the
center console

䊊

. NTSC compatible devices

such as video games, camcorders and portable
video players can be connected to the auxiliary
input jacks. Audio devices, such as some MP3
players, can also be connected to the system
through the auxiliary input jacks.

The auxiliary input jacks are color coded for iden-
tification purposes:

● Red – right channel audio input
● White – left channel audio input
● Yellow – video input

Before connecting a device to the auxiliary input
jacks, turn off the power of the portable device.

With a compatible device connected to the aux-
iliary input jacks, press the AUX button until the
AUX mode appears in the display. The output
from the device will be played through the display
(when the vehicle is in the (P) Park position and
the parking brake engaged) and audio system.

LHA2031

4-68

Monitor, climate, audio, phone and voice recognition systems

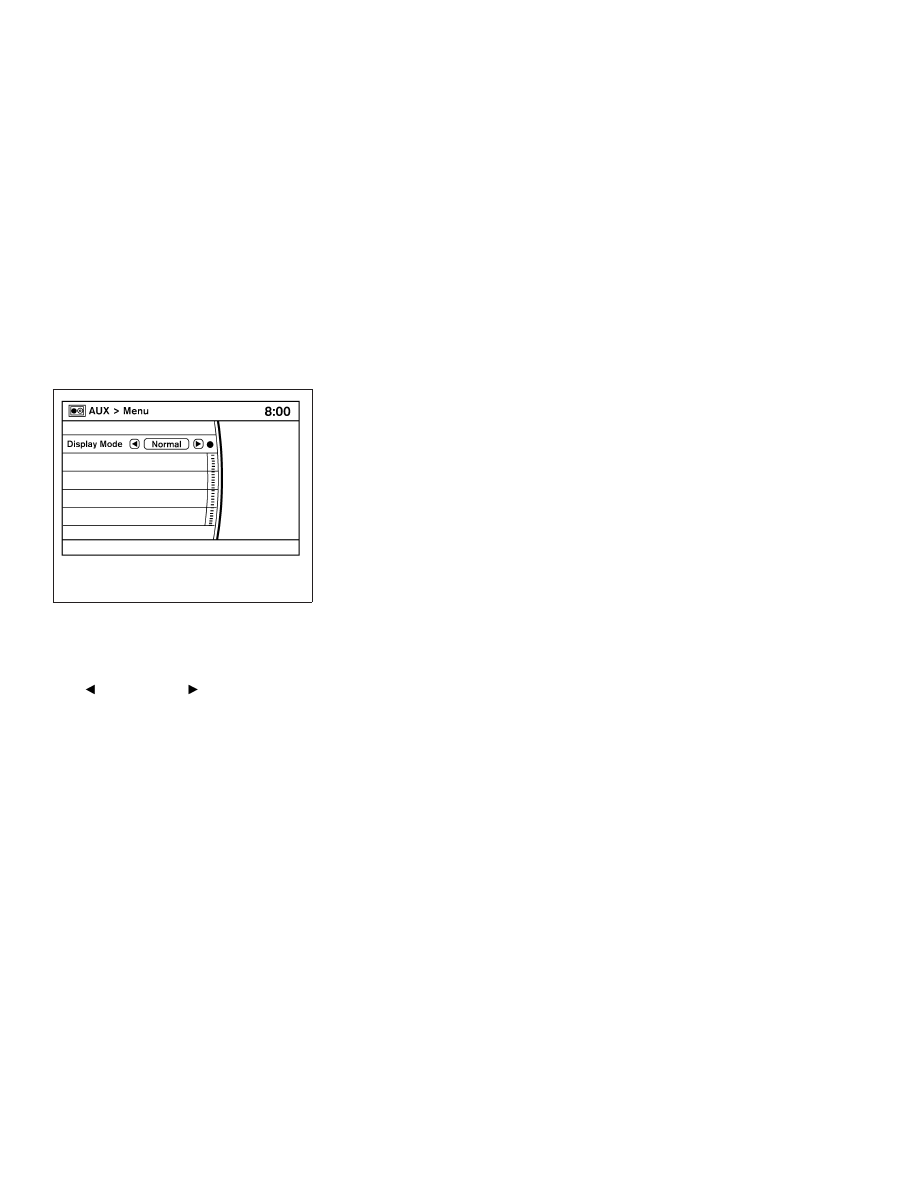

AUX settings

Select the “Settings” key using the NISSAN con-
troller and press the ENTER button.

Choose one of the display modes by selecting

the “

” key or the “

” key:

● Normal
● Wide
● Cinema

Additional features

For additional information about the iPod® player
available with this system, refer to “iPod® player
operation without Navigation System” in this sec-
tion.

For additional information about the USB (Uni-
versal Serial Bus) connection port available with
this system, refer to “USB (Universal Serial Bus)
Connection Port (models with Navigation Sys-
tem)” in this section.

LHA1367

Monitor, climate, audio, phone and voice recognition systems

4-69

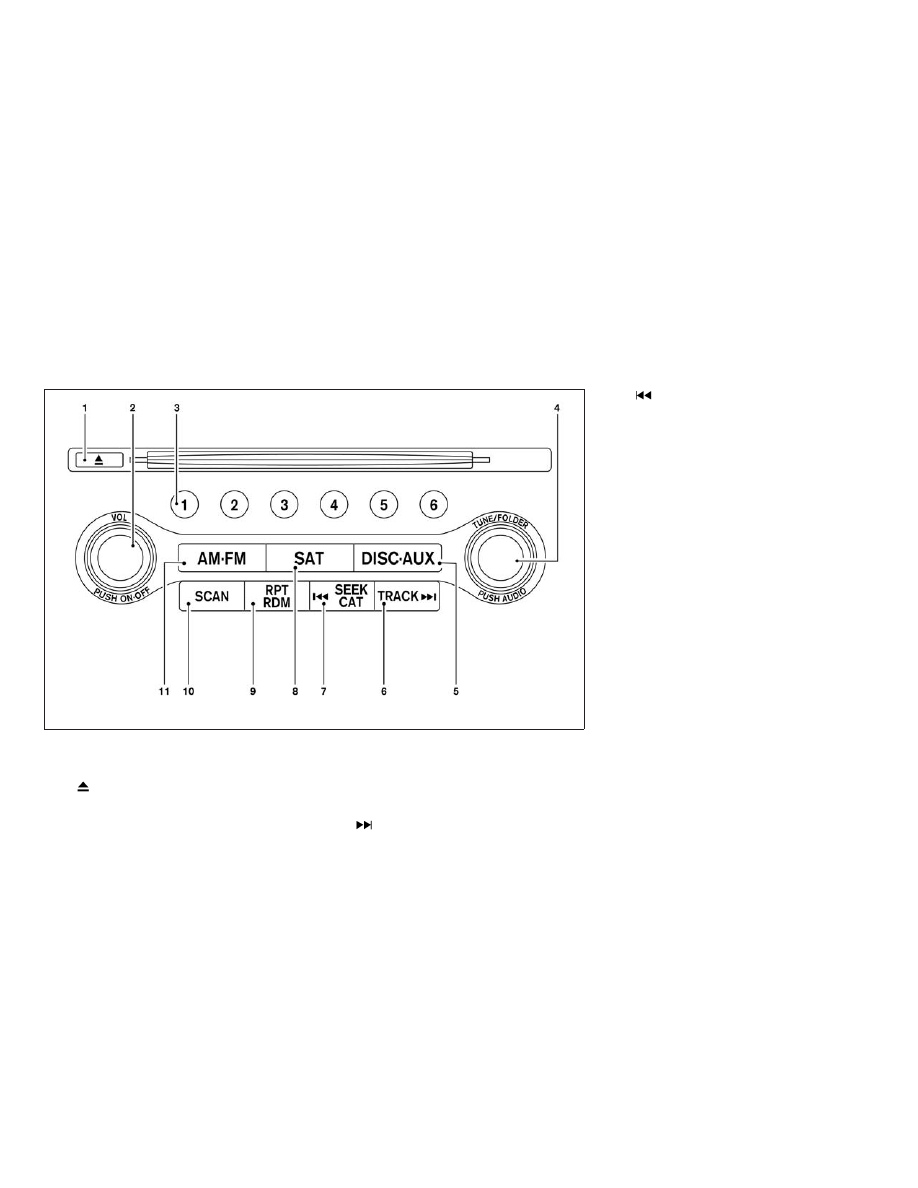

FM/AM/SAT RADIO WITH CD/DVD
PLAYER (if so equipped)

CD eject button

2. PUSH ON·OFF button/VOL (volume) con-

trol knob

3. Station select (1 - 6) buttons

4. AUDIO

button/TUNE/FOLDER

control

knob

5. DISC·AUX button

TRACK button

SEEK/CAT button

8. SAT* button

9. RPT (repeat)/RDM (random) button

10. SCAN button

11. AM·FM button

*No satellite radio reception is available when the
SAT button is pressed to access satellite radio
stations unless optional satellite receiver and an-
tenna are installed and a SiriusXM® Satellite
Radio service subscription is active. Satellite ra-
dio is not available in Alaska, Hawaii and Guam.

For all operation precautions, refer to

⬙Audio op-

eration precautions

⬙ in this section.

Audio main operation

VOL/ON·OFF control

Place the ignition switch in the ACC or ON
position and push the VOL/ON·OFF control knob
while the system is off to call up the mode that
was playing immediately before the system was
turned off.

To turn the system off, press the VOL/ON·OFF
control knob.

Turn the VOL/ON·OFF control knob to adjust the
volume.

LHA2449

4-70

Monitor, climate, audio, phone and voice recognition systems

This vehicle has Speed Sensitive Volume (SSV)
for audio. The audio volume changes as the driv-
ing speed changes.

Audio settings

Audio

Bass

Adjusts the bass to the desired level.

Treble

Adjusts the treble to the desired level.

Balance

Adjusts the balance to the desired level. Balance adjusts the sound level between the left and right speakers.

Fade

Adjusts the fade to the desired level. Fader adjusts the sound level between the front and rear speakers.

Speed Adjust Vol.

Adjusts the speed sensitive volume function, which increases the volume of the audio system as the speed of the vehicle increases.
Set to “OFF” to disable the feature. The higher the setting, the more the volume increases in relation to vehicle speed.

DivX Registration Code

Displays the DivX registration code on the screen.

Display Album Cover Art

Toggles on or off the display of the CD jacket art when available if a CD is playing.

Monitor, climate, audio, phone and voice recognition systems

4-71

CD, DVD or USB with compressed audio
files

While listening to a CD or compressed audio
files, certain text might be able to be displayed
(when CD encoded with text is being used).

Depending on how the CD or compressed audio
files are encoded, the following text might be
displayed:

● Folder displays the name of the current

folder being accessed.

● File displays the name of the file currently

playing.

● Song displays the ID3 encoded tag of the

song name.

● Album displays the ID3 encoded tag of the

album name.

● Artist displays the ID3 encoded tag of the

artist’s name.

Some of this text might not display while playing a
regular CD.

FM/AM/SAT radio operation

FM/AM band select

Pressing the AM·FM button will change the band
as follows:

→ FM1 → FM2 → AM

When the AM·FM button is pressed while the
ignition switch is in the ACC or ON position, the
radio will come on at the station last played.

The last station played will also come on when
the VOL/ON·OFF control knob is pressed ON.

If a compact disc is playing when the AM·FM
button is pressed, the compact disc will auto-
matically be turned off and the last radio station
played will come on.

The FM stereo indicator STEREO will illuminate
during FM stereo reception. When the stereo

broadcast signal is weak, the radio will automati-
cally change from stereo to monaural reception.

SAT band select

Pressing the SAT button will change the band as
follows:

XM1*

→ XM2* → XM3* → XM1

When the SAT button is pressed while the igni-
tion switch is in the ACC or ON position, the
radio will come on at the station last played.

The last station played will also come on when
the VOL/ON·OFF control knob is pressed ON.

*When the SAT button is pressed, the satellite
radio reception will not be available unless an
optional satellite receiver and antenna are in-
stalled and a SiriusXM® Satellite Radio service
subscription is active. Satellite radio is not avail-
able in Alaska, Hawaii and Guam.

If a compact disc is playing when the SAT button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.

TUNE/FOLDER (Tuning) knob

manually

tune

the

radio,

turn

the

TUNE/FOLDER knob to the right or left.

LHA1258

4-72

Monitor, climate, audio, phone and voice recognition systems

SEEK/CAT and TRACK

tuning buttons

For AM or FM:
Press the SEEK/CAT

button or the

TRACK

button to tune from high to low or

low to high frequencies and stop at the next
broadcasting station.

For XM:
Press the SEEK/CAT

button or the

TRACK

button to go to the first channel of

the previous or next category.

SCAN tuning

1 to 6 Station memory operations

Six stations can be set for the AM band. Twelve
stations can be set for the FM band (six for FM1,
six for FM2). Eighteen channels can be set for the
SAT radio (six for XM1, six for XM2, six for XM3 –
if so equipped).

1. Choose the radio band AM, FM1 or FM2

using the FM·AM select button, or choose
the satellite band XM1, XM2 or XM3 using
the SAT button.

2. Tune to the desired station using manual,

SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until the preset number is updated on the
display and the sound is briefly muted.

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other buttons can be set in the same man-

ner.

If the battery cable is disconnected, or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.

List (AM and FM)

Select the “List” key using the NISSAN controller
or touch-screen to see a list of the presets in the
AM, FM1 or FM2 preset banks.

Menu (SiriusXM® Satellite Radio)

Select the “Menu” key using the NISSAN control-
ler or touch-screen to see a list of options:

● Preset List — Displays the list of presets.

Press and hold the touch-screen or ENTER
button on the NISSAN controller to save a
preset.

● Customize Channel List — deselect chan-

nels to skip while using the TUNE/FOLDER
knob.

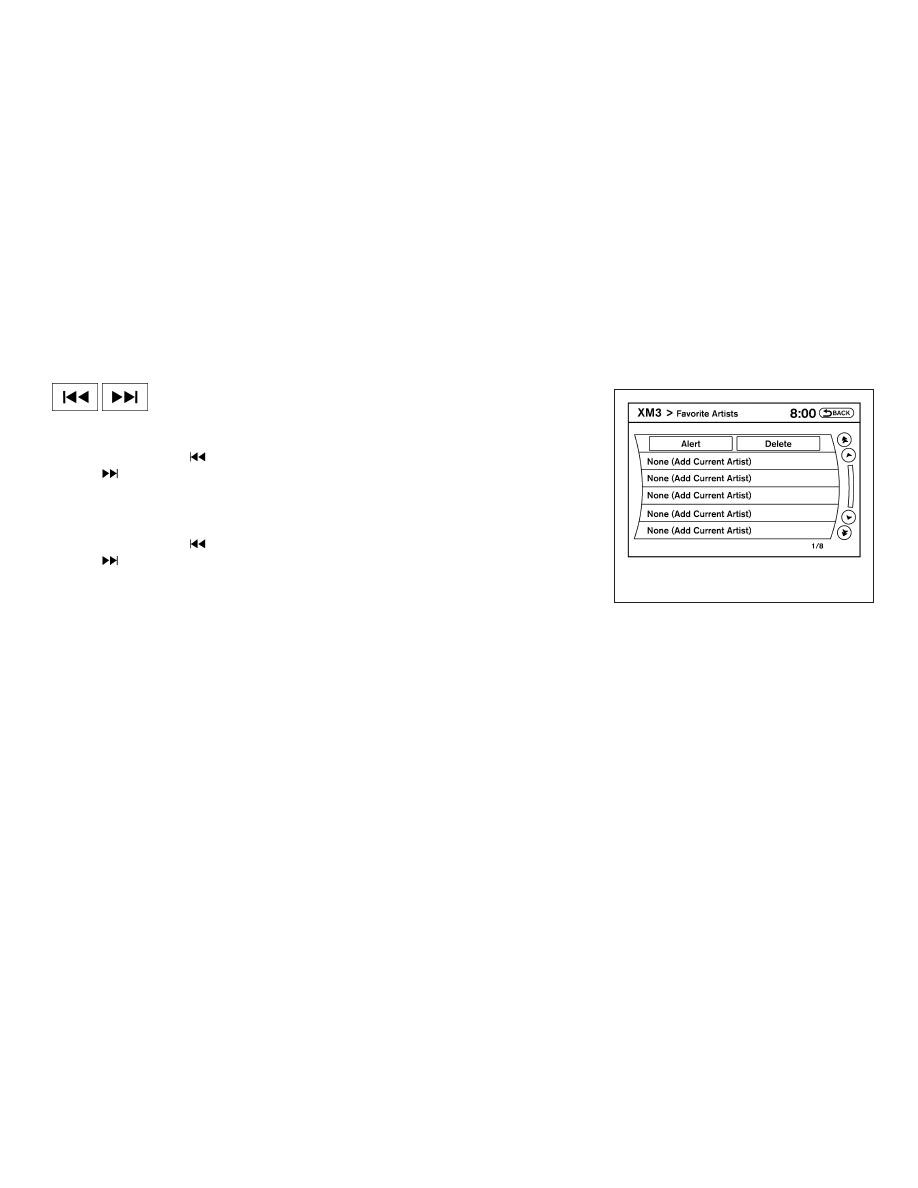

● Favorite Artist & Songs

– Tags the current artist or song playing on

SiriusXM® Satellite Radio as a favorite.

LHA1375

Monitor, climate, audio, phone and voice recognition systems

4-73

– Turn the Alert ON to indicate whenever a

favorite artist or song is playing on Siri-
usXM® Satellite Radio. The audio system
must be playing SiriusXM® Satellite Ra-
dio for this feature to work.

– Delete a favorite artist or song.

● Categories — Displays a category list for

SiriusXM® Satellite Radio. Select a cat-
egory to select the first channel for that
category.

● Direct Tune — Tune to a channel by entering

the channel number.

Radio data system (RDS)

RDS can display:

● Station call sign, such as “WHFR 98.3”.
● Station name, such as “The Groove”.
● Music or programming type such as “Clas-

sical”, “Country”, or “Rock”.

● Station specific text.

If the station broadcasts RDS information, the
text information is automatically displayed.

Compact disc (CD) player operation

Place the ignition in the ACC or ON position and
insert the compact disc into the slot with the label
side facing up. The compact disc will be guided
automatically into the slot and start playing.

If the radio is already operating, it will automati-
cally turn off and the compact disc will play.

If the system has been turned off while the com-
pact

disc

was

playing,

pressing

the

VOL/ON·OFF control knob will start the compact
disc.

DISC·AUX button

When the DISC·AUX button is pressed with the
system off and the compact disc loaded, the
system will turn on and the compact disc will start
to play.

When the DISC·AUX button is pressed with the
compact disc loaded but the radio playing, the
radio will automatically be turned off and the
compact disc will start to play.

SEEK/CAT and TRACK

buttons

When the SEEK/CAT

button is pressed

When the TRACK

button is pressed while

the compact disc is playing, the next track will
start to play from its beginning. Press several
times to skip through tracks. The compact disc
will advance the number of times the button is
pressed. (When the last track on the compact
disc is skipped through, the first track will be
played.)

The NISSAN controller can also be used to se-
lect tracks when a CD is being played.

SEEK/CAT and TRACK

(Rewind and Fast

Forward) buttons

Press and hold the SEEK/CAT

(rewind)

button or the TRACK

(fast forward) button

while a compact disc is playing; the compact disc
will play while rewinding or fast forwarding. When

4-74

Monitor, climate, audio, phone and voice recognition systems

the button is released, the compact disc will
return to normal play speed.

TUNE/FOLDER knob

While playing a CD with compressed audio files,
turn the TUNE/FOLDER knob right or left to play
the next or previous folder.

CD EJECT button

When the

button is pressed with the com-

pact disc loaded, the compact disc will be
ejected.

When the

button is pressed while the

compact disc is being played, the compact disc
will eject and the system will turn off.

AUX (auxiliary) input jacks

The auxiliary input jacks are located inside the
center console

䊊

. NTSC compatible devices

The auxiliary input jacks are color coded for iden-
tification purposes:

● Red – right channel audio input
● White – left channel audio input
● Yellow – video input

Before connecting a device to the auxiliary input
jacks, turn off the power of the portable device.

With a compatible device connected to the aux-
iliary input jacks, press the DISC·AUX button
repeatedly until the AUX mode appears in the
display. The output from the device will be played
through the display (when the vehicle is in the (P)
Park position and the parking brake engaged)
and audio system.

LHA2031

Monitor, climate, audio, phone and voice recognition systems

4-75

AUX settings

Select the “Settings” key using the NISSAN con-
troller.

The display mode can be set to Normal, Wide or
Cinema. The volume setting can be set to Low,
Medium or High.

Additional features

For additional information about the iPod® player
available with this system, refer to “iPod® player
operation with Navigation System” in this section.

For additional information about the USB inter-
face available with this system, refer to “USB

(Universal Serial Bus) Connection Port (models
with Navigation System)” in this section.

For additional information about the Bluetooth®
streaming audio feature available with this sys-
tem, refer to “Bluetooth® streaming audio” in this
section.

DIGITAL VERSATILE DISC (DVD)
PLAYER OPERATION (models with
Navigation System)

Precautions

Start the engine when using the DVD entertain-
ment system.

Movies will not be shown on the front display
while the vehicle is in any drive position to reduce
driver distraction. Audio is available when a movie
is played. To view movies on the front display,
stop the vehicle in a safe location, move the shift
lever to the P (Park) position and apply the park-
ing brake.

WARNING

● The driver must not attempt to operate

the DVD system or wear the head-
phones while the vehicle is in motion so
that full attention may be given to ve-
hicle operation.

● Do not attempt to modify the system to

display a movie on the front screen
while the vehicle is being driven. Doing
so may distract the driver and may
cause a collision and serious personal
injury or death.

CAUTION

● Only operate the DVD while the vehicle

engine is running. Operating the DVD
for extended periods of time with the
engine OFF can discharge the vehicle
battery.

WHA1393

LHA1394

4-76

Monitor, climate, audio, phone and voice recognition systems

● Do not allow the system to get wet.

Excessive moisture such as spilled liq-
uids

may

cause

the

system

malfunction.

● While playing VIDEO-CD media, this

DVD player does not guarantee com-
plete functionality of all VIDEO-CD
formats.

Playing a DVD

DISC-AUX button

Park the vehicle in a safe location for the front
seat occupants to operate the DVD drive while
watching the images.

Press the DISC-AUX button until the DVD mode
is active on the display.

When a DVD is loaded, it will be replayed auto-
matically.

The operation screen will be turned on when the
DISC-AUX button is pressed while a DVD is
playing. The operation screen will turn off auto-
matically after a period of time. To turn it on again,
press the DISC-AUX button.

DVD operation keys

When the DVD is playing without the operation
screen being shown, you may use the touch-
screen to select items from the displayed video.

You may also use the NISSAN controller to select
an item from the displayed video. When the op-
eration screen is being shown, use the NISSAN
controller or the touch-screen to select an item
from the displayed menus.

PAUSE

Select the

key to pause the DVD. To re-

sume playing the DVD, use the

key.

PLAY

Select the

key to start playing the DVD or

resume playing the DVD after it has been paused.

STOP

Select the

key to stop playing the DVD.

NEXT/PREVIOUS
CHAPTER

Select the

key to skip the chapter(s) of the

disc forward. Select the

key to skip the

chapter(s) of the disc backward. The chapters
will advance forward or backward the number of
times the respective key is touched or selected
with the NISSAN controller.

CM SKIP

This function is only for DVD-VIDEO and DVD-

VR. Select the

key to fast forward

or rewind a set interval of time based on the CM
settings. For additional information, refer to “DVD
settings” in this section.

Top Menu

When the “Top Menu” key is selected while the
DVD is playing, the top menu specific to each
disc will be displayed. For additional information,
refer to the instructions attached to the disc.

DVD settings

Select the “Settings” key to adjust the following
settings:

● Key (DVD-VIDEO)

Displays the operation keys for the specific
DVD menu.

– Select the directional keys to move the

cursor on the DVD menu.

– Select the “Enter” key to fix the selected

menu item.

– Select the “Move” key to move the loca-

tion of the operation keys on the screen.

Monitor, climate, audio, phone and voice recognition systems

4-77

– Select the “Back” key to return to the

previous menu screen.

– Select the “Hide” key to hide the opera-

tion keys.

● Title Menu (DVD-VIDEO)

Some menus specific to each disc will be
shown. For additional information, refer to
the instructions attached to the disc.

● Title Search (DVD-VIDEO, DVD-VR)

The scene with the specified title will be
displayed the number of times the “+” or “-”
side is selected.

● Group Search (VIDEO CD)

The scene with the specified group will be
displayed the number of times the “+” or “-”
side is selected.

● 10 Key Search (DVD-VIDEO, VIDEO CD,

CD-DA, DVD-VR)
Select the “10 Key Search” key to open the
number entry screen. Input the number you
want to search for and select the “OK” key.
The specified Title/Chapter or Group/Track
will be played.

● Select No. (VIDEO CD)

Select the “Select No.” key to open the
number entry screen. Input the number you
want to search for and select the “OK” key.
The specified scene will be played.

● Angle (DVD-VIDEO)

If the DVD contains different angles (such as
moving images), the current image angle
can be switched to another one. Select the
“Angle” key and use the “+” or “-” key to
change the angle.

● Angle Mark (DVD-VIDEO)

When this item is turned on, an angle mark
will be shown on the bottom of the screen if
the scene can be seen from a different angle.

● Menu Skip (DVD-VIDEO)

DVD menus are automatically configured
and the contents will be played directly
when the “Menu Skip” key is turned on. Note
that some discs may not be played directly
even if this item is turned on.

● CM Skip (DVD-VIDEO)

Select the “CM Skip” key to choose the
setting time for CM backward and forward
operations. Use the “+” or “-” key to choose
a setting time of 15, 30 or 60 seconds.

● DRC (DVD-VIDEO, DVD-VR)

DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.

● DVD Language (DVD-VIDEO, VIDEO CD)

Select the “DVD Language” key to open the
number entry screen. Input the number cor-
responding to the preferred language and
select the “OK” key. The DVD top menu
language will be changed to the one speci-
fied.

● Display

Adjust the image quality of the screen by
selecting the preferred adjustment items.

● Audio

Choose the preferred language for the au-
dio.

● Subtitle (DVD-VIDEO, DVD-VR)

Choose the preferred language for the sub-
titles.

● Display Mode (DVD-VIDEO, VIDEO CD,

DVD-VR)
Choose from the “Full”, “Wide”, “Normal” or
“Cinema” mode.

● Title List (DVD-VR)

Choose the preferred title from the list.

● Play Mode

Choose the preferred play mode.

● PG/PL Mode (DVD-VR)

Choose from the “PG” or “PL” mode.

4-78

Monitor, climate, audio, phone and voice recognition systems

USB (Universal Serial Bus)
CONNECTION PORT (models
without Navigation System) (if so
equipped)

Connecting a device to the USB
connection port

WARNING

Do not connect, disconnect, or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

The USB connection port is located in the center
console. Insert the USB device into the port

䊊

When a compatible storage device is plugged
into the port, compatible audio files on the stor-
age device can be played through the vehicle’s
audio system.

Audio file operation

AUX button

Place the ignition switch in the ON or ACC
position and press the AUX button to switch to
the USB input mode. If another audio source is
playing and a USB memory device is inserted,
press the AUX button repeatedly until the center
display changes to the USB memory mode.

If the system has been turned off while the USB
memory was playing, push the ON-OFF/VOL
control knob to restart the USB memory.

SEEK/CAT and TRACK

(Reverse or Fast Forward)

buttons

Press and hold the SEEK/CAT

(rewind)

button or TRACK

(fast forward) button for

1.5 seconds while an audio file on the USB
device is playing to reverse or fast forward the
track being played. The track plays at an in-
creased speed while reversing or fast forwarding.
When the button is released, the audio file re-
turns to normal play speed.

WHA1366

Monitor, climate, audio, phone and voice recognition systems

4-79

Nissan Pathfinder Hybrid (2015 year). Instruction - part 18
