Nissan Pathfinder Hybrid (2015 year). Instruction - part 19

SEEK/CAT and TRACK

buttons

Press the SEEK/CAT button

while an au-

dio file on the USB device is playing to return to
the beginning of the current track. Press the
SEEK/CAT button

several times to skip

backward several tracks.

Press the TRACK button

while an audio

file on the USB device is playing to advance one
track. Press the TRACK button

several

times to skip forward several tracks. If the last
track in a folder on the USB device is skipped, the
first track of the next folder is played.

Folder selection

To change to another folder in the USB memory,
turn the TUNE/FOLDER knob or choose a folder
displayed on the screen.

RPT (repeat)/RDM (random) button

When the RPT (repeat)/RDM (random) button is
pressed while the USB memory is playing, the
play pattern can be changed as follows:

Repeat All

→ 1 Folder Repeat → 1 Track Repeat

→ All Random → 1 Folder Random → Repeat All

USB (Universal Serial Bus)
CONNECTION PORT (models with
Navigation System) (if so equipped)

Connecting a device to the USB
connection port

WARNING

Do not connect, disconnect, or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

WHA1366

LHA1378

4-80

Monitor, climate, audio, phone and voice recognition systems

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

The USB connection port is located in the center
console. Insert the USB device into the port

䊊

When a compatible storage device is plugged
into the port, compatible audio files on the stor-
age device can be played through the vehicle’s
audio system.

Audio file operation

DISC•AUX button

Place the ignition switch in the ON or ACC
position and press the DISC•AUX button to
switch to the USB input mode. If another audio
source is playing and a USB memory device is
inserted, press the DISC•AUX button repeatedly
until the center display changes to the USB
memory mode.

If the system has been turned off while the USB
memory was playing, push the ON-OFF/VOL
control knob to restart the USB memory.

SEEK/CAT and TRACK

(Reverse or Fast Forward)

buttons

Press and hold the SEEK/CAT

(rewind)

button or TRACK

(fast forward) button for

1.5 seconds while an audio file on the USB
device is playing to reverse or fast forward the
track being played. The track plays at an in-
creased speed while reversing or fast forwarding.
When the button is released, the audio file re-
turns to normal play speed.

SEEK/CAT and TRACK

buttons

Press the SEEK/CAT button

while an au-

dio file on the USB device is playing to return to
the beginning of the current track. Press the
SEEK/CAT button

several times to skip

backward several tracks.

Press the TRACK button

while an audio

file on the USB device is playing to advance one
track. Press the TRACK button

several

times to skip forward several tracks. If the last
track in a folder on the USB device is skipped, the
first track of the next folder is played.

Folder selection

To change to another folder in the USB memory,
turn the TUNE/FOLDER knob or choose a folder
displayed on the screen.

RPT (repeat)/RDM (random) button

When the RPT (repeat)/RDM (random) button is
pressed while the USB memory is playing, the
play pattern can be changed as follows:

Normal

→ 1 Folder Repeat → 1 Track Repeat →

All Random

→ 1 Folder Random → Normal

Monitor, climate, audio, phone and voice recognition systems

4-81

Menu

There are some options available during play-
back. Select one of the following that are dis-
played on the screen, if necessary. Refer to the
following information for each item.

● Movie Playback

Switch to the movie playback mode. This
item is displayed only when the USB
memory contains movie files.
The shift lever must be in Park (P) with the
parking brake engaged to watch movies
from a USB device.

● Folder List/Track List

Displays the folder or track list. The “Movie
Playback” key is also displayed in this list
screen and enables you to switch to the
movie playback mode.

● Play Mode

Choose the preferred play mode using the
NISSAN controller or the touch-screen.

Movie file operation

Park the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.

DISC-AUX button

When the DISC-AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on. If another audio source is
playing and the USB memory is inserted, press
the DISC-AUX button repeatedly until the center
display changes to the USB memory mode.

LHA2785

LHA1379

4-82

Monitor, climate, audio, phone and voice recognition systems

Operation keys

To operate the USB memory, select the desired
key displayed on the display screen.

●

Pause

Select the

key to pause the movie file.

To resume playing the movie file, use
the

key.

●

Play

Select the

key to start playing the

movie file or resume the movie file if it has
been paused.

●

Stop

Select the

key to stop playing the

movie file.

●

Next Chapter/Fast Forward

Select the

key to skip the chapter(s)

of the disc forward. The chapters will ad-
vance the number of times the key is se-
lected. Press and hold the key to fast for-
ward the chapter.

●

Previous Chapter/Rewind

Select the

key to skip the chapter(s)

of the disc backward. The chapters will go
back the number of times the key is selected.
Press and hold the key to rewind the chap-
ter.

List

Select the “List” key on the movie file operation
screen to display the file list.

Settings

Select the “Settings” key to adjust the following
settings:

● Audio File Playback

Switch to the audio playback mode. This
item is displayed only when the USB
memory contains audio files.

● Play Mode

Choose between the “Normal” or “1 Track
Repeat” play modes.

LHA1380

Monitor, climate, audio, phone and voice recognition systems

4-83

● 10 Key Search

Select the “10 Key Search” key to open the
number entry screen. Input the number you
want to search for and the specified file or
folder will be played.

● Display

Adjust the image quality of the screen.

● DRC

DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.

● Audio

Choose the preferred language of the audio.

● Subtitle

Choose the preferred language of the sub-
titles.

● Display Mode

Choose between the “Normal”, “Wide”,
“Cinema” or “Full” display modes.

iPod®* PLAYER OPERATION
WITHOUT NAVIGATION SYSTEM (if
so equipped)

Connecting iPod®

WARNING

Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

To connect an iPod® to the vehicle so that the
iPod® can be controlled with the audio system
controls and display screen, use the USB con-
nection port located in the center console. Con-
nect the iPod®-specific end of the cable to the
iPod® and the USB end of the cable to the USB
connection port on the vehicle

䊊

. If your iPod®

supports charging via a USB connection, its bat-
tery will be charged while connected to the ve-
hicle with the ignition switch in the ACC or ON
position.

WHA1366

4-84

Monitor, climate, audio, phone and voice recognition systems

While connected to the vehicle, the iPod® can
only be operated by the vehicle audio controls.

To disconnect the iPod® from the vehicle, re-
move the USB end of the cable from the USB
connection port on the vehicle, then remove the
cable from the iPod®.

* iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.

Compatibility

The following models are compatible:

● iPod® 5th Generation - version 1.2.1
● iPod® Classic - version 1.1
● iPod® Touch - version 2.1.0
● iPod® Nano - 1st generation version 1.3.1
● iPod® Nano - 2nd generation version 1.1.3
● iPod® Nano - 3rd generation version 1.0.2

Make sure that your iPod® firmware is updated to
the version indicated above.

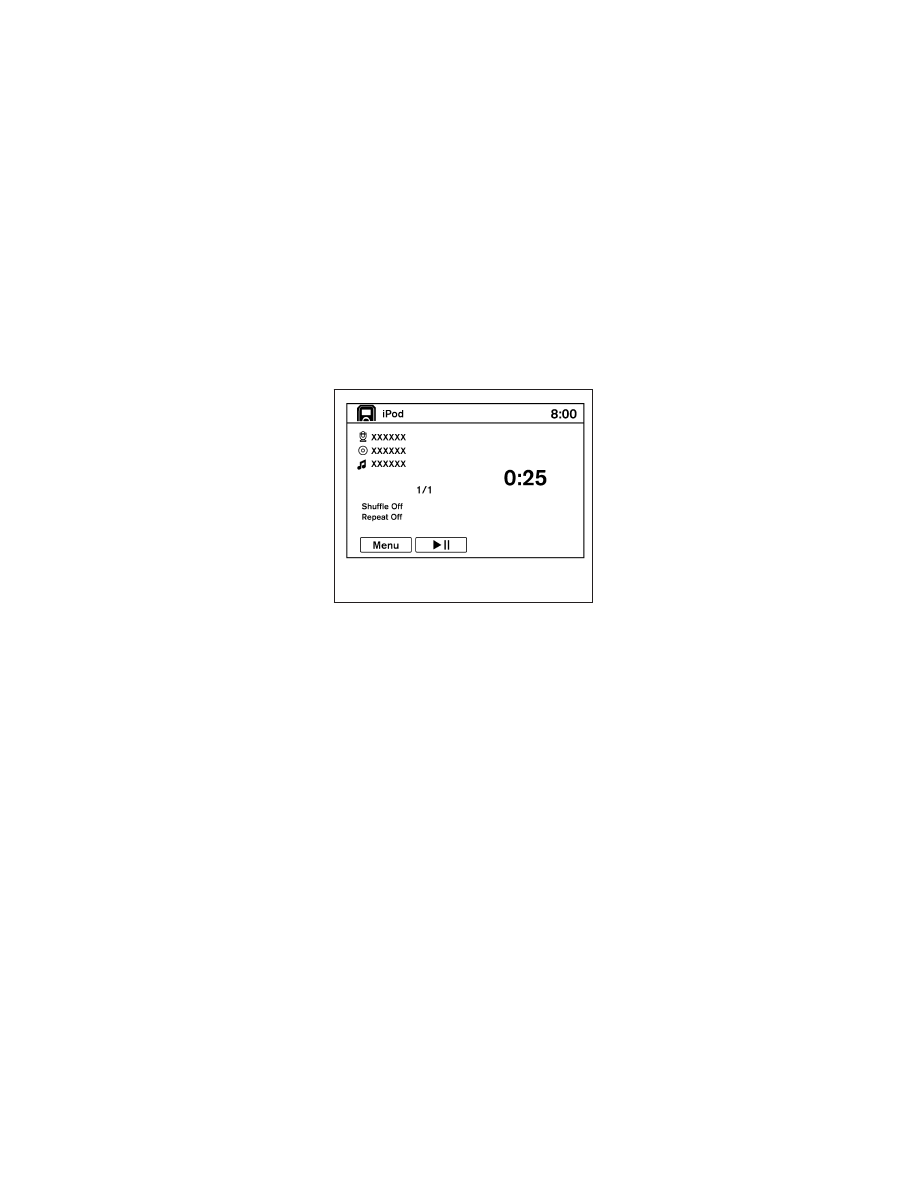

Audio main operation

Place the ignition switch in the ACC or ON
position. Press the AUX button repeatedly to
switch to the iPod® mode.

If the system has been turned off while the iPod®
was playing, pressing the VOL/ON·OFF control
knob will start the iPod®.

AUX button

When the AUX button is pressed with the system
off and the iPod® connected, the system will turn
on. If another audio source is playing and the
iPod® is connected, press the AUX button re-
peatedly until the center display changes to the
iPod® mode.

LHA1395

Monitor, climate, audio, phone and voice recognition systems

4-85

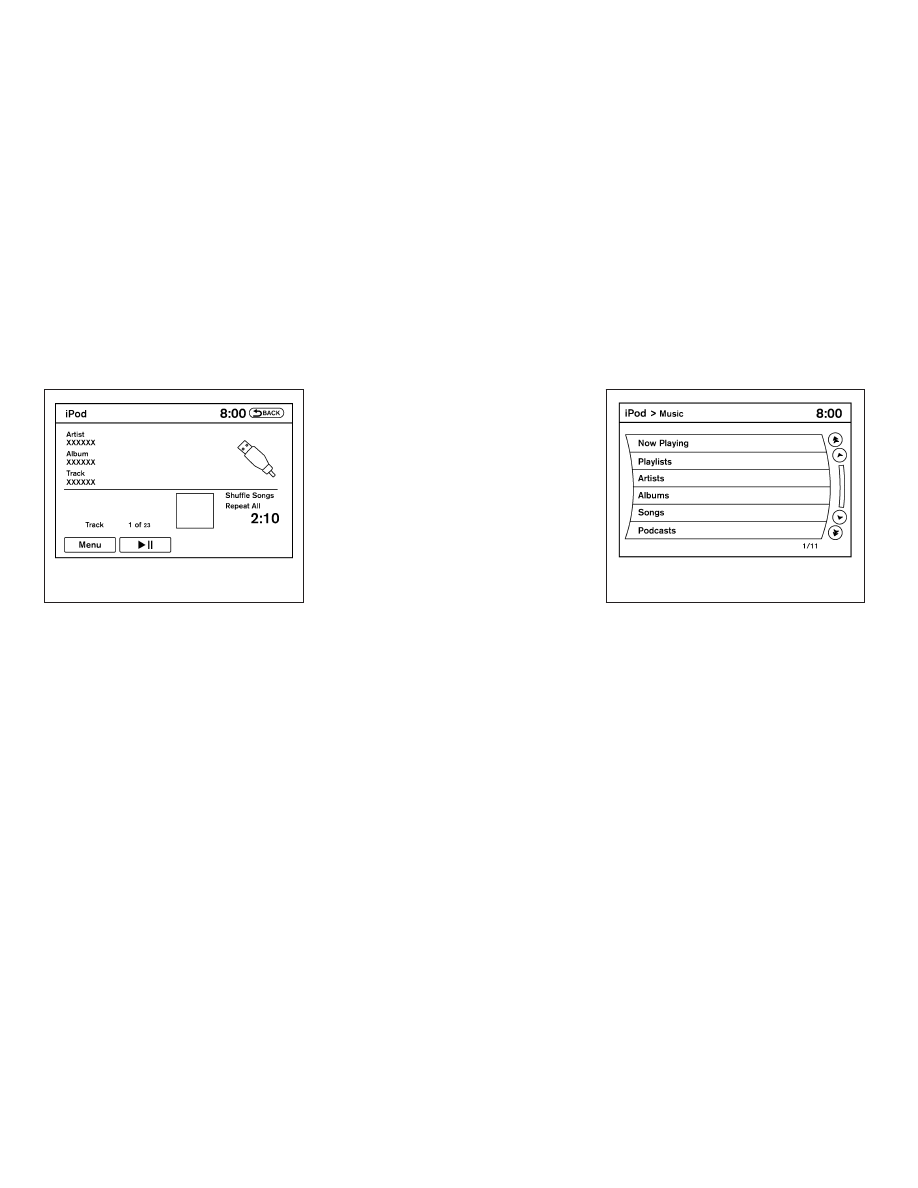

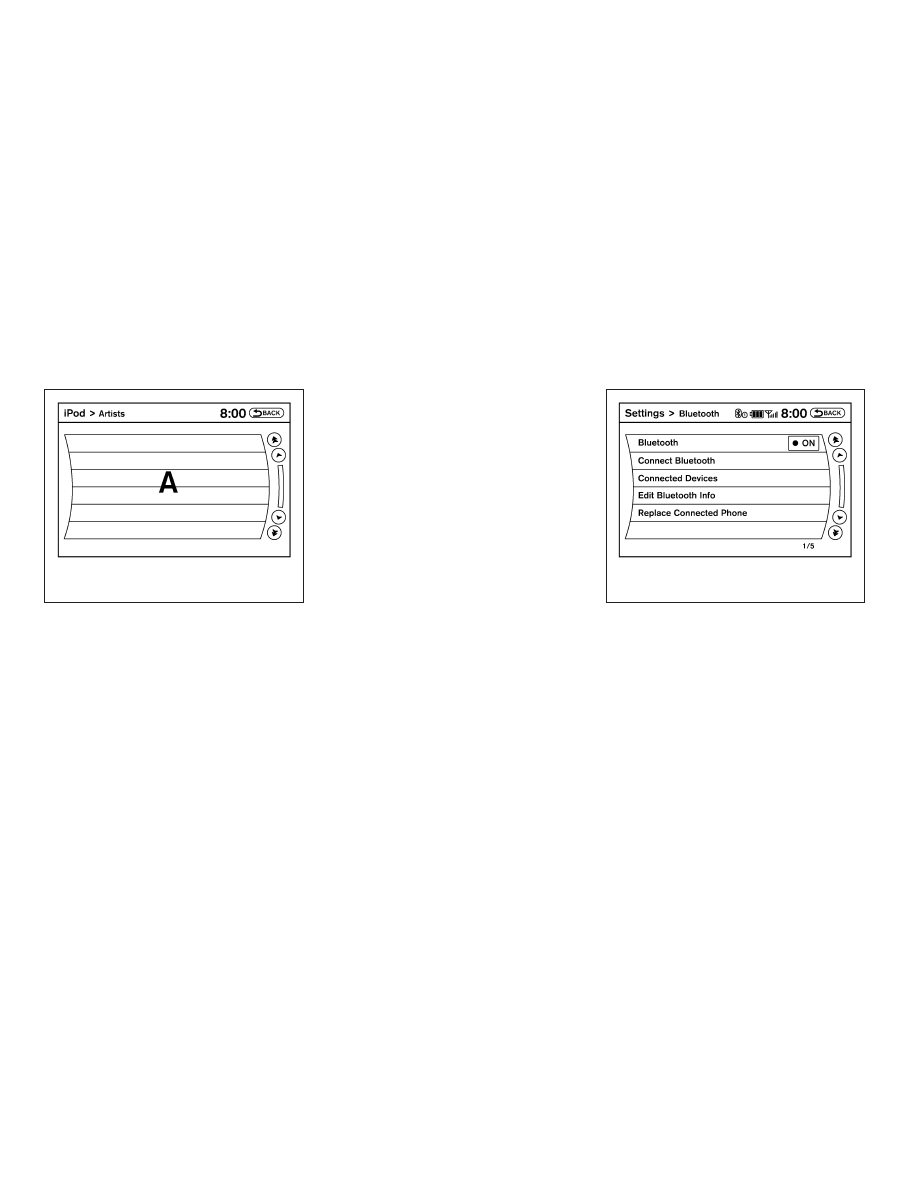

Interface

The interface for iPod® operation shown on the
vehicle center display is similar to the iPod®
interface. Use the NISSAN controller and the
BACK button to play the iPod® with your favorite
settings.

The following items can be chosen from the menu
list screen. For additional information about each
item, refer to the iPod® Owner’s Manual.

● Playlists
● Podcasts
● Songs

● Albums
● Artists
● Genres
● Composers
● Audiobooks

The following keys shown on the screen are also
available:

● MENU: returns to the previous screen.
●

: plays/pauses the music selected.

SEEK/CAT and TRACK buttons

When the

SEEK/CAT button or

TRACK button is pressed for less than 1.5 sec-
onds while the iPod® is playing, the next track or
the beginning of the current track on the iPod®
will be played.

When the

SEEK/CAT button or

TRACK button is pressed for more than 1.5 sec-
onds while the iPod® is playing, the iPod® will
play while fast forwarding or rewinding. When the
button is released, the iPod® will return to the
normal play speed.

iPod®* PLAYER OPERATION WITH
NAVIGATION SYSTEM (if so
equipped)

Connecting iPod®

WARNING

Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

LHA1396

WHA1366

4-86

Monitor, climate, audio, phone and voice recognition systems

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

䊊

. If your iPod®

supports charging via a USB connection, its bat-
tery will be charged while connected to the ve-
hicle with the ignition switch in the ACC or ON
position.

While connected to the vehicle, the iPod® can
only be operated by the vehicle audio controls.

To disconnect the iPod® from the vehicle, re-
move the USB end of the cable from the USB
connection port on the vehicle, then remove the
cable from the iPod®.

* iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.

Compatibility

The following models are compatible:

● iPod® 5th Generation (firmware version

1.2.3 or later)

● iPod® Classic (firmware version 1.1.1 or

later)

● iPod® Touch (firmware version 2.0.0 or

later)*

● iPod® nano - 1st generation (firmware ver-

sion 1.3.1 or later)

● iPod® nano - 2nd generation (firmware ver-

sion 1.1.3 or later)

● iPod® nano - 3rd generation (firmware ver-

sion 1.1.3 or later)

● iPod® nano - 4th generation (firmware ver-

sion 1.0.4 or later)

● iPod® nano - 5th generation (firmware ver-

sion 1.0.1 or later)

* Some features of this iPod® may not be fully
functional.

Make sure that your iPod® firmware is updated to
the version indicated above.

Monitor, climate, audio, phone and voice recognition systems

4-87

Audio main operation

Place the ignition switch in the ACC or ON
position. Press the DISC·AUX button repeatedly
to switch to the iPod® mode.

If the system has been turned off while the iPod®
was playing, pressing the VOL/ON·OFF control
knob will start the iPod®.

DISC·AUX button

When the DISC·AUX button is pressed with the
system off and the iPod® connected, the system
will turn on. If another audio source is playing and
the iPod® is connected, press the DISC·AUX
button repeatedly until the center display
changes to the iPod® mode.

Interface

The following items can be chosen from the menu
list screen. For additional information about each
item, refer to the iPod® Owner’s Manual.

● Now Playing
● Playlists
● Artists

LHA1397

LHA1398

4-88

Monitor, climate, audio, phone and voice recognition systems

● Albums
● Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● Shuffle Songs
● Play Mode

The following keys shown on the screen are also
available:

● MENU: returns to the previous screen.
●

: plays/pauses the music selected.

Play mode

While the iPod® is playing, touch the “Menu” key
to display the iPod® menu. Touch the “Play
Mode” key to display the Play Mode screen and
adjust the settings for Shuffle, Repeat and Audio-
books. For additional information, refer to the
iPod® Owner’s Manual.

SEEK/CAT and TRACK buttons

When the

SEEK/CAT button or

TRACK button is pressed for less than 1.5 sec-
onds while the iPod® is playing, the next track or
the beginning of the current track on the iPod®
will be played.

When the

SEEK/CAT button or

The NISSAN controller can also be used to se-
lect tracks when the iPod® is playing.

LHA1315

Monitor, climate, audio, phone and voice recognition systems

4-89

Scrolling menus

While navigating long lists of artists, albums or
songs in the music menu, it is possible to scroll
the list by the first letter. To activate letter index-
ing, perform one of the following:

● Turn the NISSAN controller quickly.
● Press and hold the up/down directional ar-

rows on the NISSAN controller.

● Touch and hold the page up/down arrows

on the touch-screen.

To exit the scrolling by letter mode, perform one of
the following:

● Press the ENTER button on the NISSAN

controller.

● Push the ENTER switch on the steering

wheel.

● Do not touch the controls for 2 seconds.

BLUETOOTH® STREAMING AUDIO
(if so equipped)

If you have a compatible Bluetooth® audio de-
vice that is capable of playing audio files, the
device can be connected to the vehicle’s audio
system so that the audio files on the device play
through the vehicle’s speakers.

Connecting Bluetooth® audio

To connect your Bluetooth® audio device to the
vehicle, follow the procedure below:

1. Press the SETTING button on the control

panel.

2. Touch the “Bluetooth” key.

3. Touch the “Connect Bluetooth” key.

LHA1399

LHA1316

4-90

Monitor, climate, audio, phone and voice recognition systems

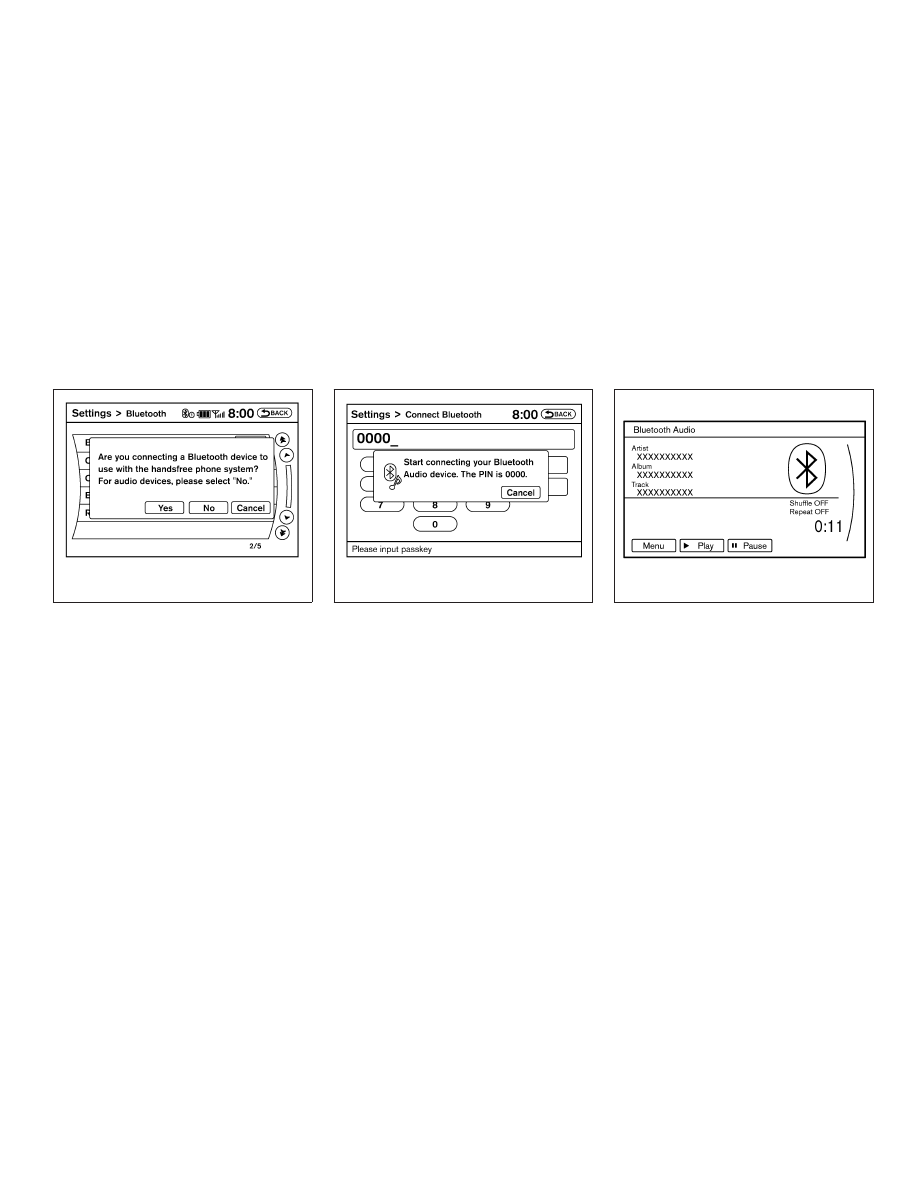

4. A screen will appear asking if you are con-

necting the device to use with the hands-
free phone system. Select the “No” key.

5. Enter a PIN of your choice. It will be needed

by your Bluetooth® audio device to com-
plete the connection process. For additional
information, refer to the Bluetooth® audio
device’s owner’s manual.

Audio main operation

To switch to the Bluetooth® audio mode, press
the DISC-AUX button repeatedly until the
Bluetooth® audio mode is displayed on the
screen.

The controls for the Bluetooth® audio are dis-
played on the screen.

LHA1317

LHA1351

SAA2510

Monitor, climate, audio, phone and voice recognition systems

4-91

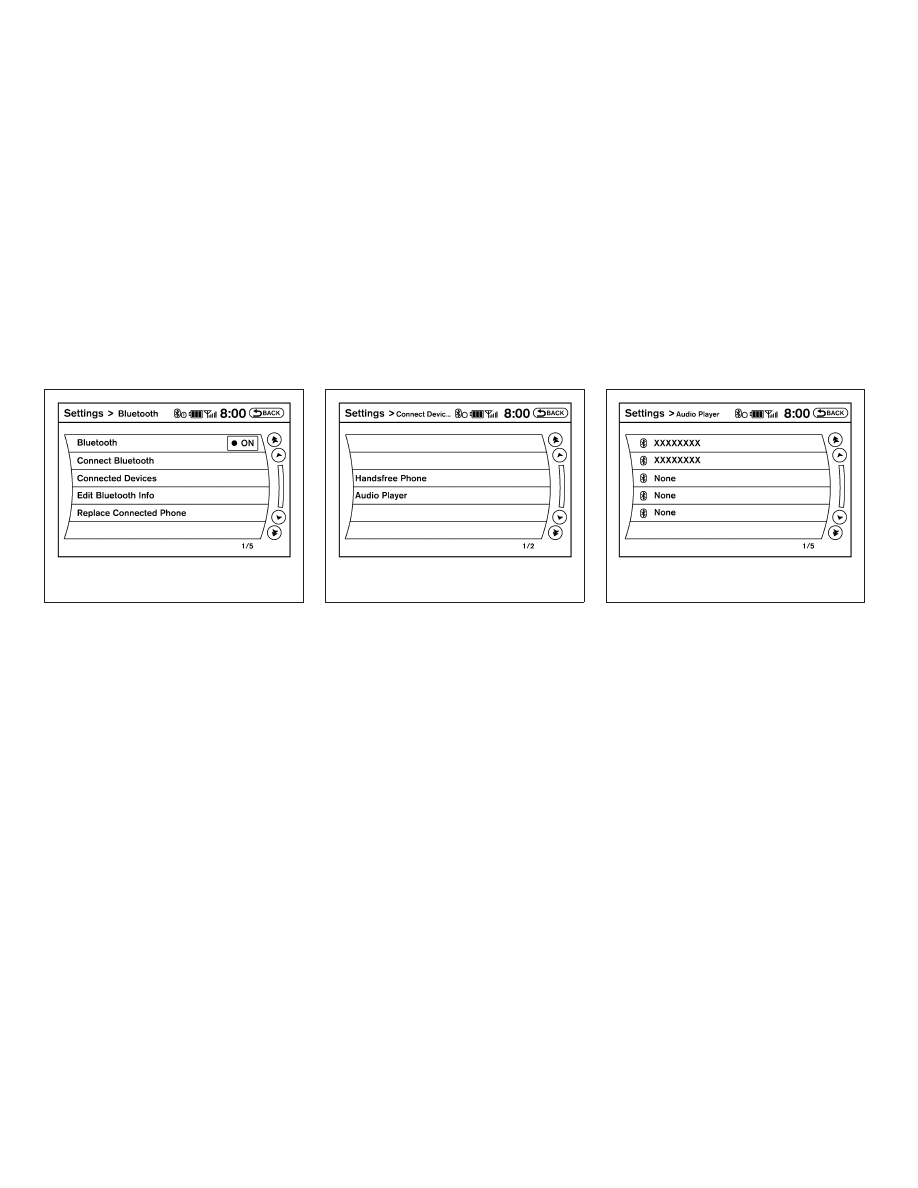

Bluetooth® audio settings

To adjust the Bluetooth® audio settings, follow
the procedure below:

1. Press the SETTING button on the control

panel.

2. Touch the “Bluetooth” key.

3. Touch the “Connected Devices” key.

4. Touch the “Audio Player” key.

5. A list of the connected Bluetooth® audio

players is displayed. Touch the name of the
device you wish to edit.

LHA1316

LHA1296

LHA1297

4-92

Monitor, climate, audio, phone and voice recognition systems

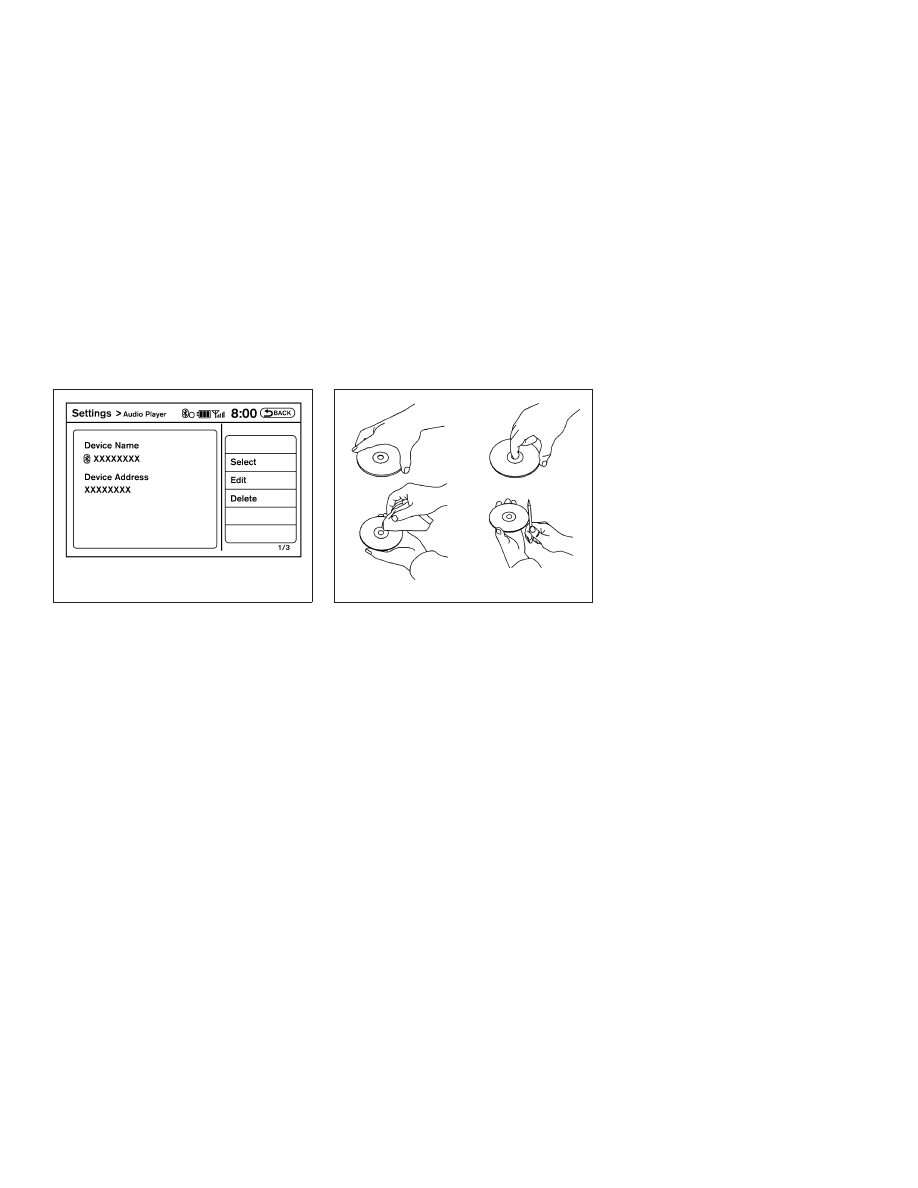

6. The Device Name and Device Address are

displayed on the screen. Touch the “Select”
key

make

this

device

the

active

Bluetooth® audio player. Touch the “Edit”
key to edit the details of the player, such as
Device Name. Touch the “Delete” key to
delete the device.

CD CARE AND CLEANING

● Handle a CD by its edges. Do not bend the

disc. Never touch the surface of the disc.

● Always place the discs in the storage case

when they are not being used.

● To clean a disc, wipe the surface from the

center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.

● Do not use a conventional record cleaner or

alcohol intended for industrial use.

● A new disc may be rough on the inner and

outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.

LHA1298

LHA0049

Monitor, climate, audio, phone and voice recognition systems

4-93

(menu control) switch/ENTER

button

(back) switch

SOURCE switch

Volume control switch

STEERING WHEEL SWITCH FOR
AUDIO CONTROL

The audio system can be operated using the
controls on the steering wheel.

POWER on switch

With the ignition switch in the ACC or ON posi-
tion, push the SOURCE switch to turn the audio
system on.

SOURCE select switch

Push the source select switch to change the
mode in the following sequence:

Models without Navigation System
AM

→ FM1 → FM2 → XM1 → XM2 → XM3 →

USB/iPod®*

→ CD → AUX* → AM.

Models with Navigation System
AM

→ FM1 → FM2 → XM1 → XM2 → XM3 →

CD/DVD*

→ USB/iPod®* → Bluetooth® Audio*

→ AUX* → AM.

* These modes are only available when compat-
ible media storage is inserted into the device.

Volume control switch

Push the volume control switch to increase or
decrease the volume.

Menu control
switch/ENTER button

While the display is showing a MAP, STATUS or
Audio screen, tilt the Menu Control switch up-
ward or downward to select a station, track, CD

or folder. For most audio sources, tilting the
switch up/down for more than 1.5 seconds pro-
vides a different function than a tilting up/down
for less than 1.5 seconds.

AM and FM

● Tilt up/down for less than 1.5 seconds to

increase or decrease the preset station.

● Tilt up/down for more than 1.5 seconds to

seek up or down to the next station.

● Press the ENTER button to show the list of

preset stations.

XM (if so equipped)

● Tilt up/down for less than 1.5 seconds to

increase or decrease the preset station.

● Tilt up/down for more than 1.5 seconds to

go to the next or previous category.

● Press the ENTER button to show the XM

Menu.

iPod®

● Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

● Press the ENTER button to show the iPod

Menu.

LHA3170

4-94

Monitor, climate, audio, phone and voice recognition systems

● Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

● Tilt up/down for more than 1.5 seconds to

increase or decrease the folder number (if
playing compressed audio files).

● Press the ENTER button to show the CD

Menu.

DVD (if so equipped)

● Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

● Tilt up/down for more than 1.5 seconds to

increase or decrease the title number.

● Press the ENTER button to select an item

from the DVD display.

● When the transparent operation menu ap-

pears, the switch will control the menu.

USB

● Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

● Tilt up/down for more than 1.5 seconds to

increase or decrease the folder number.

● Press the ENTER button to show the USB

Menu.

Bluetooth® Audio

● Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

AUX

● Press the ENTER button to show the AUX

Menu.

BACK switch

Press the

switch to return to the previous

screen or cancel the current selection.

ANTENNA

The rod antenna cannot be shortened, but can be
removed. When you need to remove the antenna,
turn the antenna rod counterclockwise

䊊

To install the antenna rod, turn the antenna rod
clockwise

䊊

and hand tighten.

The window antenna pattern is printed inside the
rear window.

LHA0709

Monitor, climate, audio, phone and voice recognition systems

4-95

Content .. 17 18 19 20 ..
