Nissan Pathfinder Hybrid (2015 year). Instruction

The front view will not be displayed when the
vehicle speed is above 10 km/h (6 mph).

NOTE:

When the monitor displays the front view
and the steering wheel turns about 90 de-
grees or less from the neutral position,
both the right and left predictive course
lines

䊊

are displayed. When the steering

wheel turns about 90 degrees or more, a
line is displayed only on the opposite side
of the turn.

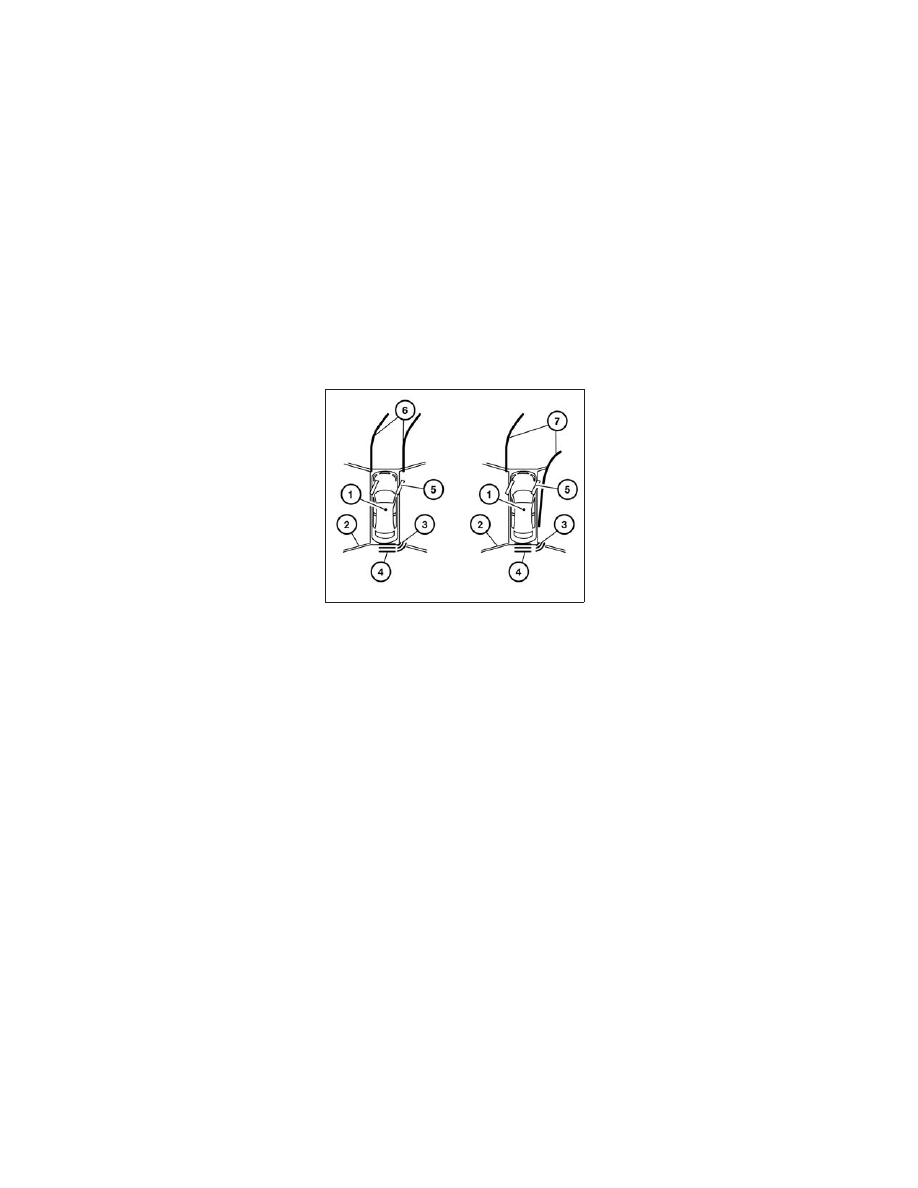

Bird’s-eye view

The bird’s-eye view shows the overhead view of
the vehicle, which helps confirm the vehicle po-
sition and the predicted course to a parking
space.

The vehicle icon

䊊

shows the position of the

vehicle. Note that the size of the vehicle icon on
the bird’s-eye view may differ somewhat from the
actual vehicle.

The areas that the cameras cannot cover

䊊

are

indicated in black.

The non-viewable area

䊊

is highlighted in yellow

for several seconds after the bird’s-eye view is

displayed. It will be shown only the first time after
the ignition switch is placed in the ON position.

When the corner of the vehicle moves closer to
an object, the corner sonar indicators

䊊

appear.

When the center of the vehicle moves close to an
object, the center sonar indicator

䊊

appears (if

so equipped).

The driver can check the direction and angle of
the tire on the display by tire icon

䊊

when driving

the vehicle forward or backward.

Predictive course lines (

䊊

and

䊊

) indicate the

predictive course when operating the vehicle.
The predictive course lines will be displayed on
the monitor when the steering wheel is turned.
The predictive course lines will move depending
on how much the steering wheel is turned and
will not be displayed while the steering wheel is in
the neutral position.

When the monitor displays the front view and the
steering wheel turns about 90 degrees or less
from the neutral position, the two green predic-
tive course lines

䊊

are shown in front of the

vehicle.

When the steering wheel turns about 90 degrees
or more, one green predictive course lines is
shown in front of the vehicle and other green
predictive course lines

䊊

is shown at side of the

vehicle.

LHA2213

4-32

Monitor, climate, audio, phone and voice recognition systems

When the monitor displays the rear view, the
predictive course lines are shown at back of the
vehicle.

WARNING

● Objects in the bird’s-eye view will ap-

pear further than the actual distance
because the bird’s-eye view is a pseudo
view that is processed by combining the
views from the cameras on the outside
mirrors, the front and the rear of the
vehicle.

● Tall objects, such as a curb or vehicle,

may be misaligned or not displayed at
the seam of the views.

● Objects that are above the camera can-

not be displayed.

● The view of the bird’s-eye view may be

misaligned when the camera position
alters.

● A line on the ground may be misaligned

and is not seen as being straight at the
seam of the views. The misalignment
will increase as the line proceeds away
from the vehicle.

● Tire angle display does not indicate the

actual tire angle.

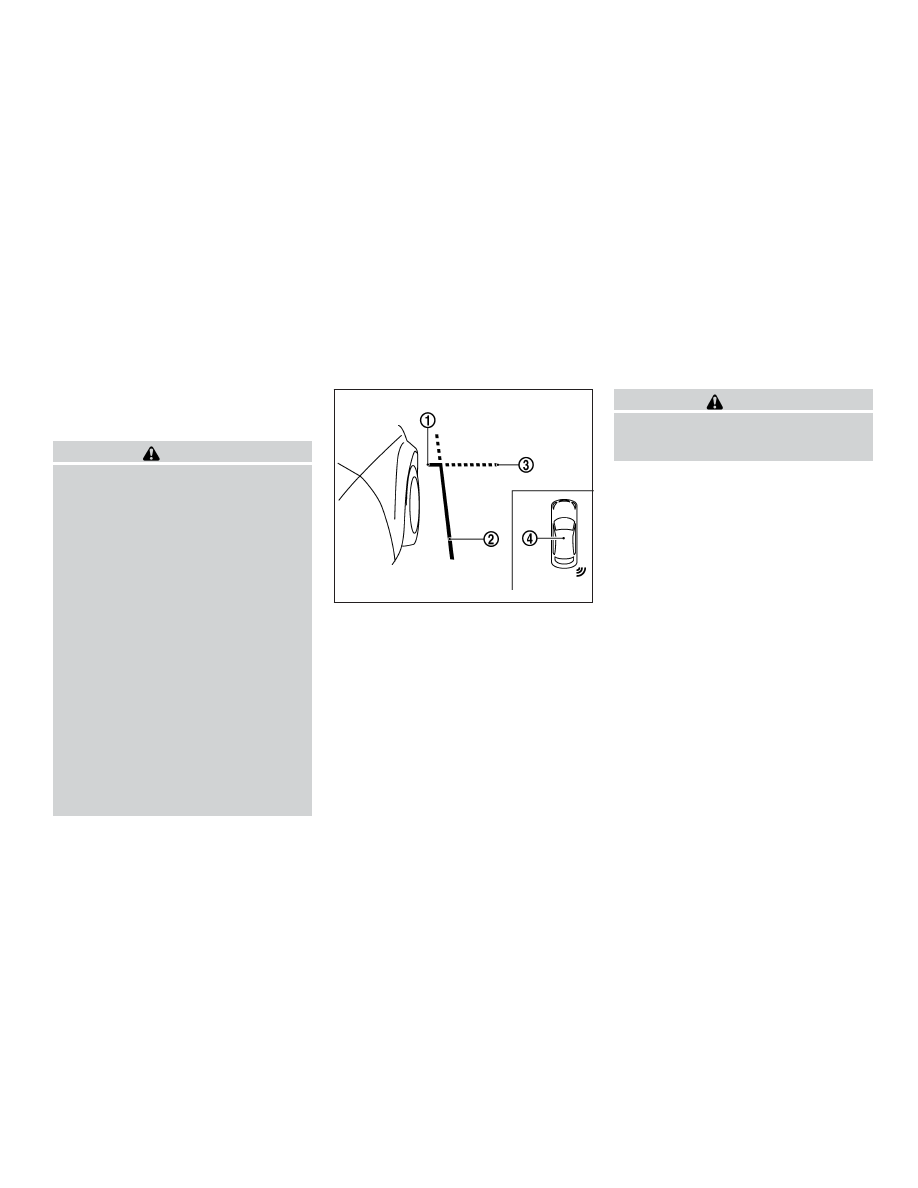

Front-side view

Guiding lines

Guiding lines that indicate the width and the front
end of the vehicle are displayed on the monitor.

The front-of-vehicle line

䊊

shows the front part

of the vehicle.

The side-of-vehicle line

䊊

shows the vehicle

width including the outside mirror.

The extensions

䊊

of both the front

䊊

and side

䊊

lines are shown with a green dotted line.

The rear sonar indicator will appear when the rear
of the vehicle moves closer to an object

䊊

CAUTION

● The turn signal light may look like the

side-of-vehicle

line.

This

not

malfunction.

SAA1842

Monitor, climate, audio, phone and voice recognition systems

4-33

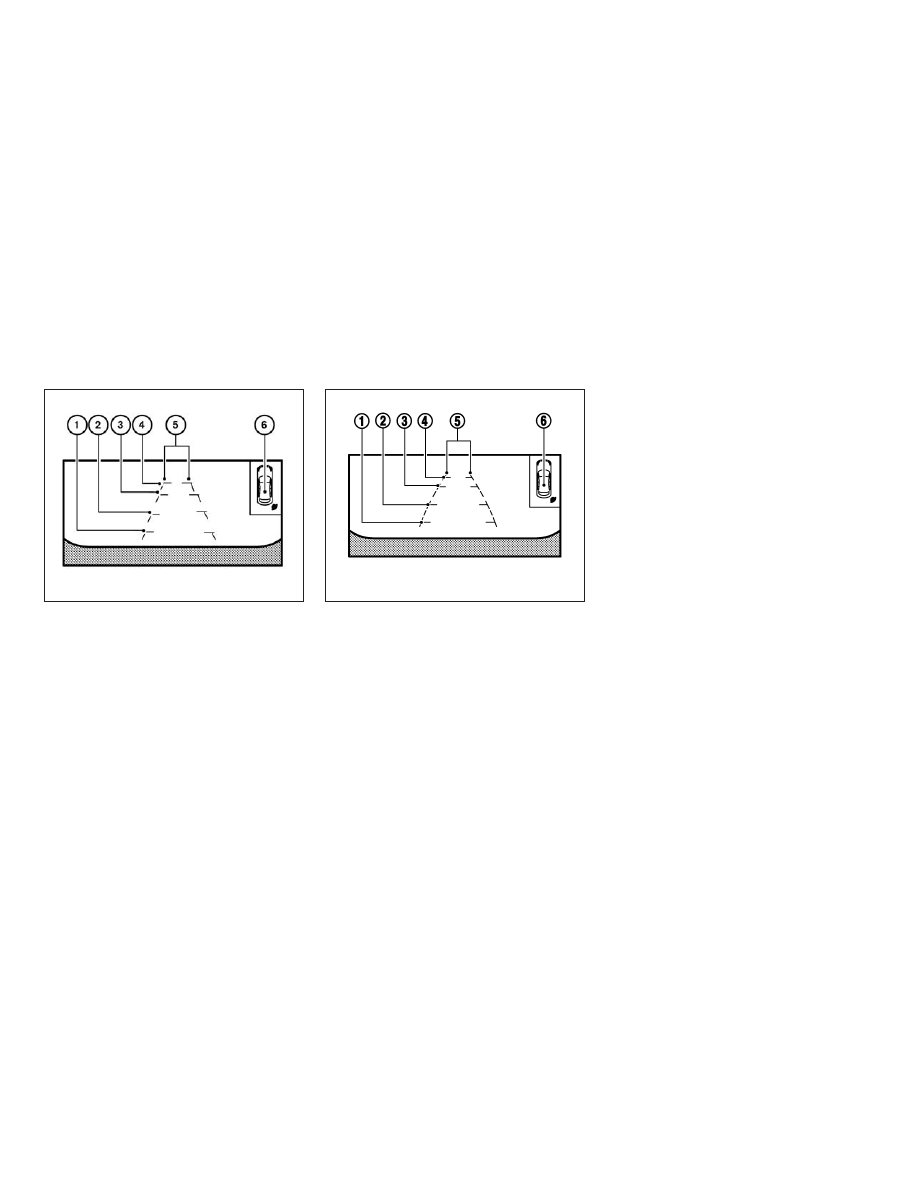

Front-wide and rear-wide view

The front-wide and rear-wide view shows a wider
area on the entire screen and allows the checking
of the blind corners on right and left sides. The
rear-wide view displays an approximately 180-
degree area while the front-view and rear-view
display an approximately 150-degree area. The
predictive course lines are not displayed when
using the front-wide and rear-wide view.

Distance guide lines

Indicates distances from the vehicle body:

● Red line

䊊

: approximately 1.5 ft (0.5 m)

● Yellow line

䊊

: approximately 3 ft (1 m)

● Green line

䊊

: approximately 7 ft (2 m)

● Green line

䊊

: approximately 10 ft (3 m)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing up.

The corner sonar indicator

䊊

will appear when a

corner of the vehicle moves closer to an object.

Front-wide view

LHA2318

Rear-wide view

SAA2629

4-34

Monitor, climate, audio, phone and voice recognition systems

DIFFERENCE BETWEEN
PREDICTIVE AND ACTUAL
DISTANCES

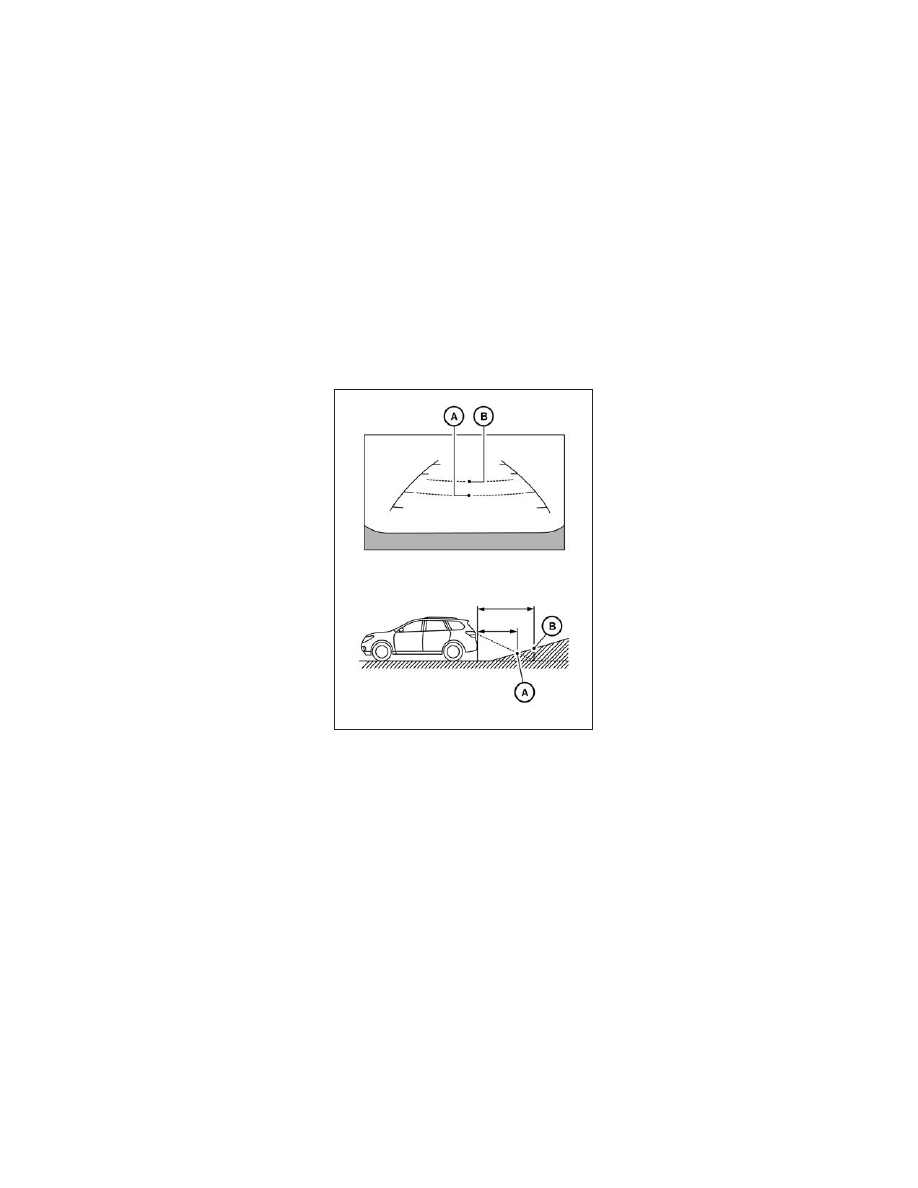

Backing up on a steep uphill

When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 1.0 m (3 ft) to the
place

䊊

, but the actual 1.0 m (3 ft) distance on

the hill is the place

䊊

. Note that any object on

the hill is further than it appears on the monitor.

LHA3145

Monitor, climate, audio, phone and voice recognition systems

4-35

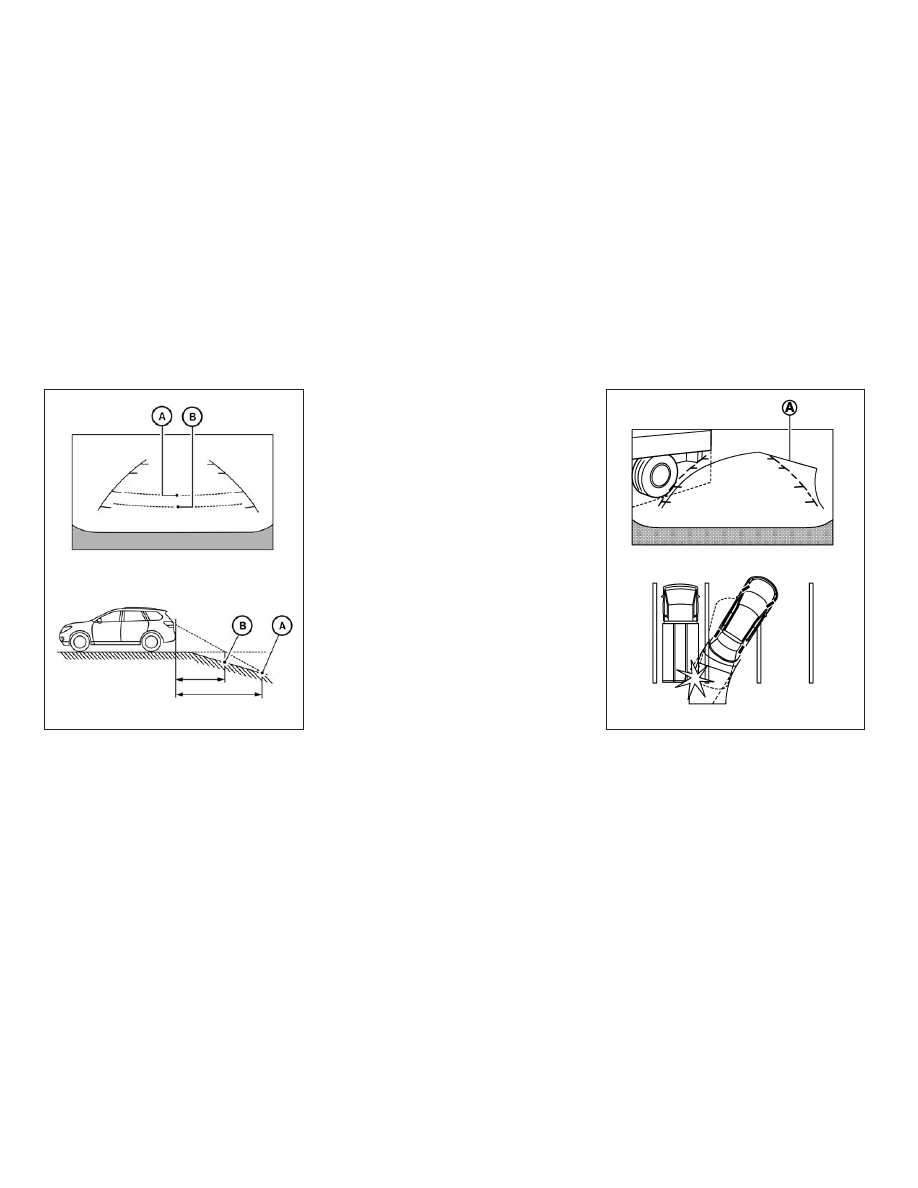

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place

䊊

, but the actual 3 ft (1.0 m) distance on

the hill is the place

䊊

. Note that any object on

the hill is closer than it appears on the monitor.

Backing up near a projecting object

The predicted course lines

䊊

do not touch the

object in the display. However, the vehicle may hit
the object if it projects over the actual backing up
course.

LHA3146

LHA1201

4-36

Monitor, climate, audio, phone and voice recognition systems

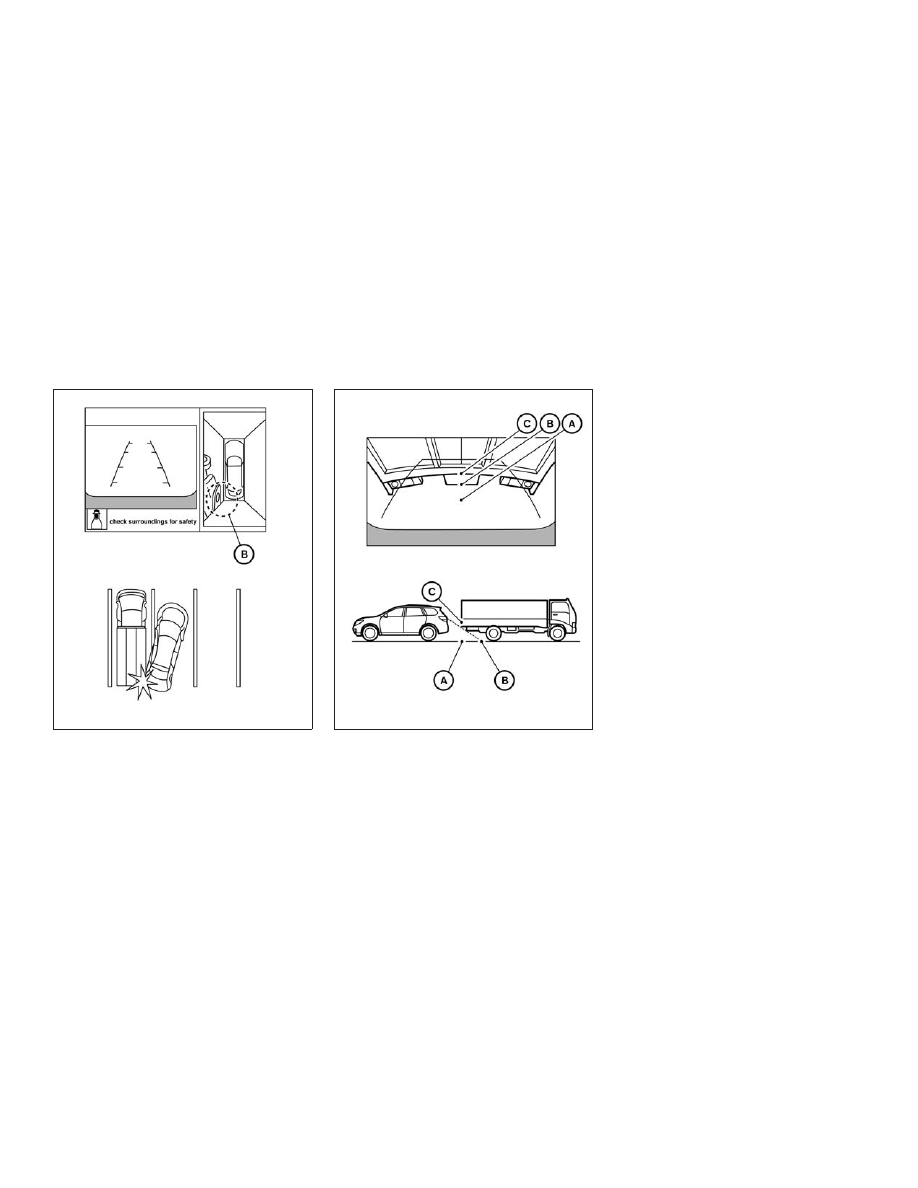

There may be a small distance visible between
the vehicle and the object in the bird-eye view on
the display

䊊

Backing up behind a projecting object

The position

䊊

is shown farther than the position

䊊

in the display. However, the position

䊊

actually at the same distance as the position

䊊

The vehicle may hit the object when backing up to

the position

䊊

if the object projects over the

actual backing up course.

HOW TO SWITCH THE DISPLAY

With the ignition switch in the ON position, press
the CAMERA button or move the shift lever to the
R (Reverse) position to operate the Around View
Monitor.

The Around View® Monitor can display two split
view as well as a single view of the front-wide
view or rear-wide view. Select the “Change View”
key to switch between the available views.

LHA2548

LHA3147

Monitor, climate, audio, phone and voice recognition systems

4-37

If the shift lever is not in the R (Reverse) position,
the available views are:

● Front-view/bird’s-eye view split screen
● Front-view/front-side view split screen
● Front-wide view

If the shift lever is in the R (Reverse) position, the
available views are:

● Rearview/bird’s-eye view split screen
● Rearview/front-side view split screen
● Rear-wide view

The display will switch from the Around View
Monitor screen when:

● When the shift lever is in the D (Drive) posi-

tion and the vehicle speed increases above
approximately 6 mph (10 km/h).

● When a different screen is selected.

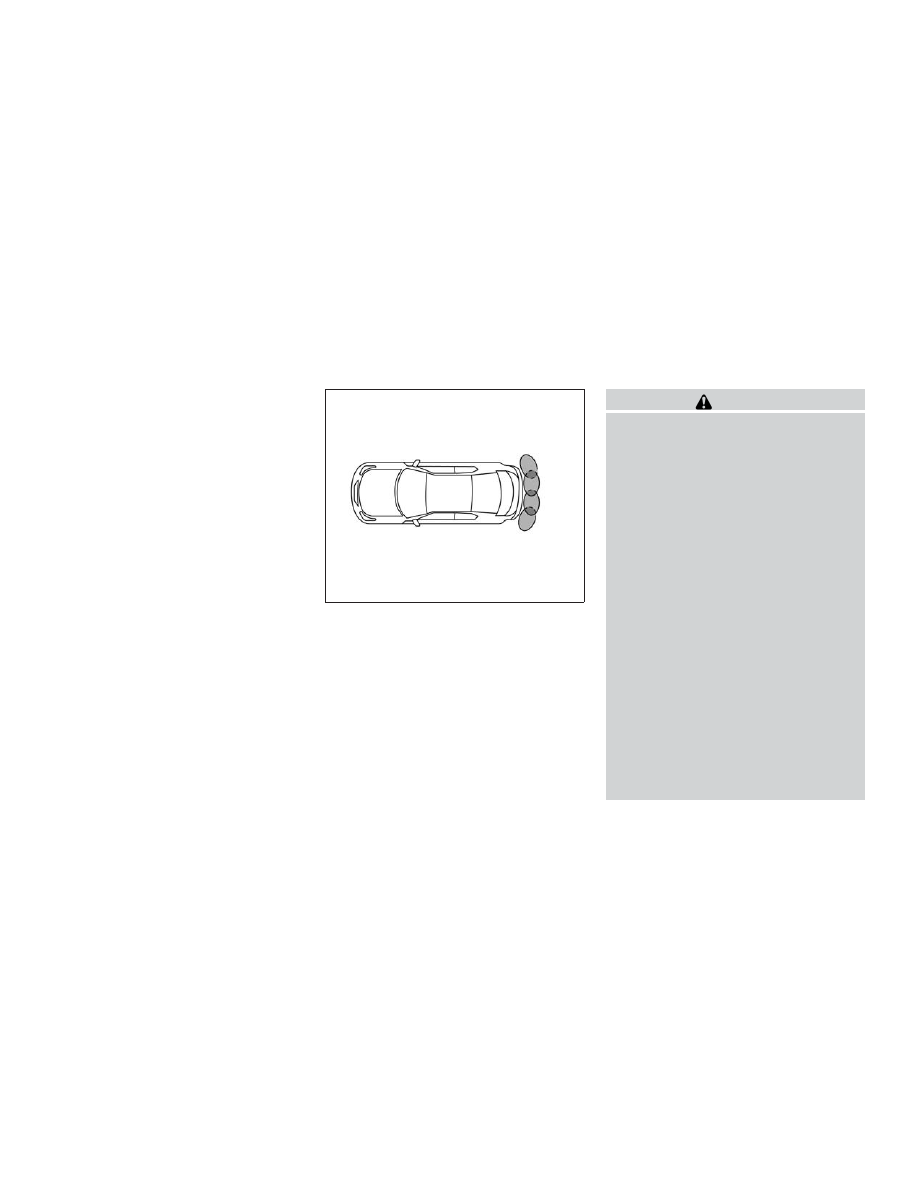

PARKING SENSOR / REAR CENTER
SONAR

The sonar (parking sensor) sounds a tone to
inform the driver of obstacles near the bumper.

The colors of the sonar indicators and the dis-
tance guide lines in the rear view indicate differ-
ent distances to the object.

WARNING

● The sonar (parking sensor) is a conve-

nience feature. It is not a substitute for
proper parking.

● The system is deactivated at speeds

above 6 mph (10 km/h). It is reactivated
at lower speeds.

● The driver is always responsible for

safety

during

parking

and

other

maneuvers.

● Always look around and check that it is

safe to move before parking.

● Read and understand the limitations of

the sonar (parking sensor) as contained
in this section.

● Inclement

weather

ultrasonic

sources such as an automatic car wash,
a truck’s compressed-air brakes or a
pneumatic drill may affect the function
of the system; this may include reduced
performance or a false activation.

● This function is designed as an aid to

the driver in detecting large stationary
objects to help avoid damaging the
vehicle.

LHA2549

4-38

Monitor, climate, audio, phone and voice recognition systems

● The system is not designed to prevent

contact with small or moving objects.

● The system will not detect small objects

below the bumper, and may not detect
objects close to the bumper or on the
ground.

● The system may not detect the follow-

ing objects:

– Fluffy objects such as snow, cloth,

cotton, glass or wool.

– Thin objects such as rope, wire or

chain.

– Wedge-shaped objects.

● If your vehicle sustains damage to the

bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.

CAUTION

● Excessive noise (such as audio system

volume or an open vehicle window) will
interfere with the tone and it may not be
heard.

● Keep the surface of the sonar sensors

(located on the rear bumper fascia) free
from accumulations of snow, ice and
dirt. Do not scratch the surface of the
sonar sensors when cleaning. If the
sensors are covered, the accuracy of the
sonar function will be diminished.

The system gives the tone for rear objects when
the shift lever is in the R (Reverse) position.

The system is deactivated at speeds above
10 km/h (6 mph). It is reactivated at lower
speeds.

When the objects are detected, the indicator
(green) appears and blinks and the tone sounds
intermittently. When the vehicle moves closer to
the object, the color of the indicator turns yellow
and the rate of the blinking and the rate of the
tone increase. When the vehicle is very close to
the object, the indicator stops blinking and turns
red, and the tone sounds continuously.

The intermittent tone will stop after 3 seconds
when an object is detected by only the corner
sonar and the distance does not change.

The tone will stop when the object is no longer
near the vehicle.

In the below cases, the sonar will be turned back
on automatically:

● When the shift lever is in the R (Reverse)

position.

● When vehicle speed decreases below ap-

proximately 10 km/h (6 mph).

● When the ignition switch is placed in the

OFF position and turned back to the ON
position again.

● The sonar system can be permanently

turned off using the meter settings.

Monitor, climate, audio, phone and voice recognition systems

4-39

HOW TO ADJUST THE SCREEN
VIEW

To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the Around
View Monitor, press the SETTING button with the
Around View Monitor on, select the item key and
adjust the level using the NISSAN controller.

Do not adjust the Brightness, Tint, Color, Con-
trast and Black Level of the Around View Monitor
while the vehicle is moving. Make sure the park-
ing brake is firmly applied.

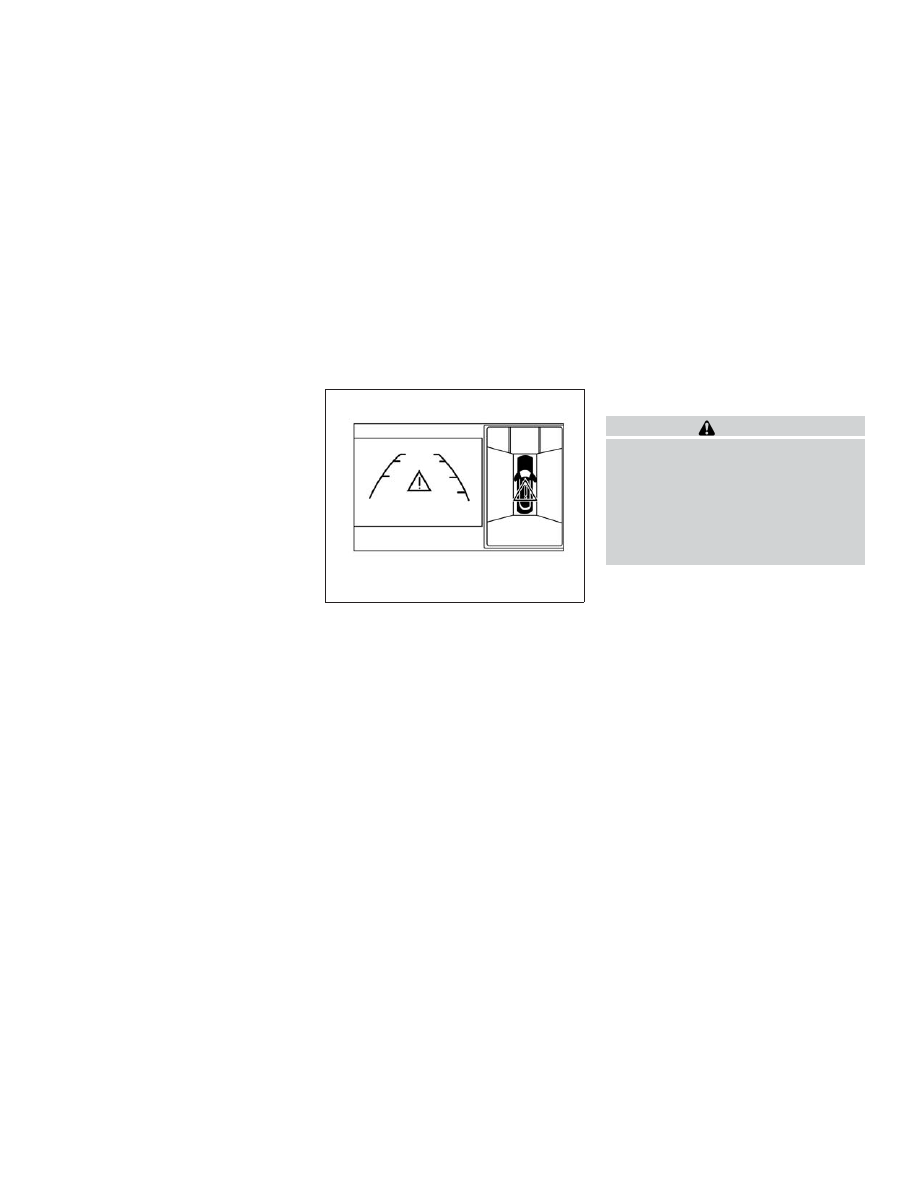

VIEW MALFUNCTION

When the “!” icon is displayed on the screen, the
Around View Monitor may not be calibrated cor-
rectly. This will not hinder normal driving function
but the system should be inspected by a NISSAN
dealer.

OPERATING TIPS

CAUTION

● Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration. To clean the camera,
wipe with a cloth dampened with a di-
luted mild cleaning agent and then wipe
with a dry cloth.

● Do not damage the camera as the moni-

tor screen may be adversely affected.

● The screen displayed on the Around View

Monitor will automatically return to the pre-
vious screen 3 minutes after the CAMERA
button has been pressed with the shift lever
in a position other than the R (Reverse)
position.

● When the view is switched, the display im-

ages on the screen may be displayed in
some delay.

● When the temperature is extremely high or

low, the screen may not display objects
clearly. This is not a malfunction.

● When strong light directly shines on the

camera, objects may not be displayed
clearly. This is not a malfunction.

LHA2550

4-40

Monitor, climate, audio, phone and voice recognition systems

● The screen may flicker under fluorescent

light. This is not a malfunction.

● The colors of objects on the Around View

Monitor may differ somewhat from the actual
color of objects. This is not a malfunction.

● Objects on the Around View Monitor may

not be clear and the color of the object may
differ in a dark environment. This is not a
malfunction.

● There may be differences in sharpness be-

tween each camera view of the bird’s-eye
view.

● If dirt, rain or snow accumulates on the cam-

era, the Around View Monitor may not dis-
play objects clearly. Clean the camera.

● Do not use wax on the camera lens. Wipe off

any wax with a clean cloth that has been
dampened with a mild detergent diluted with
water.

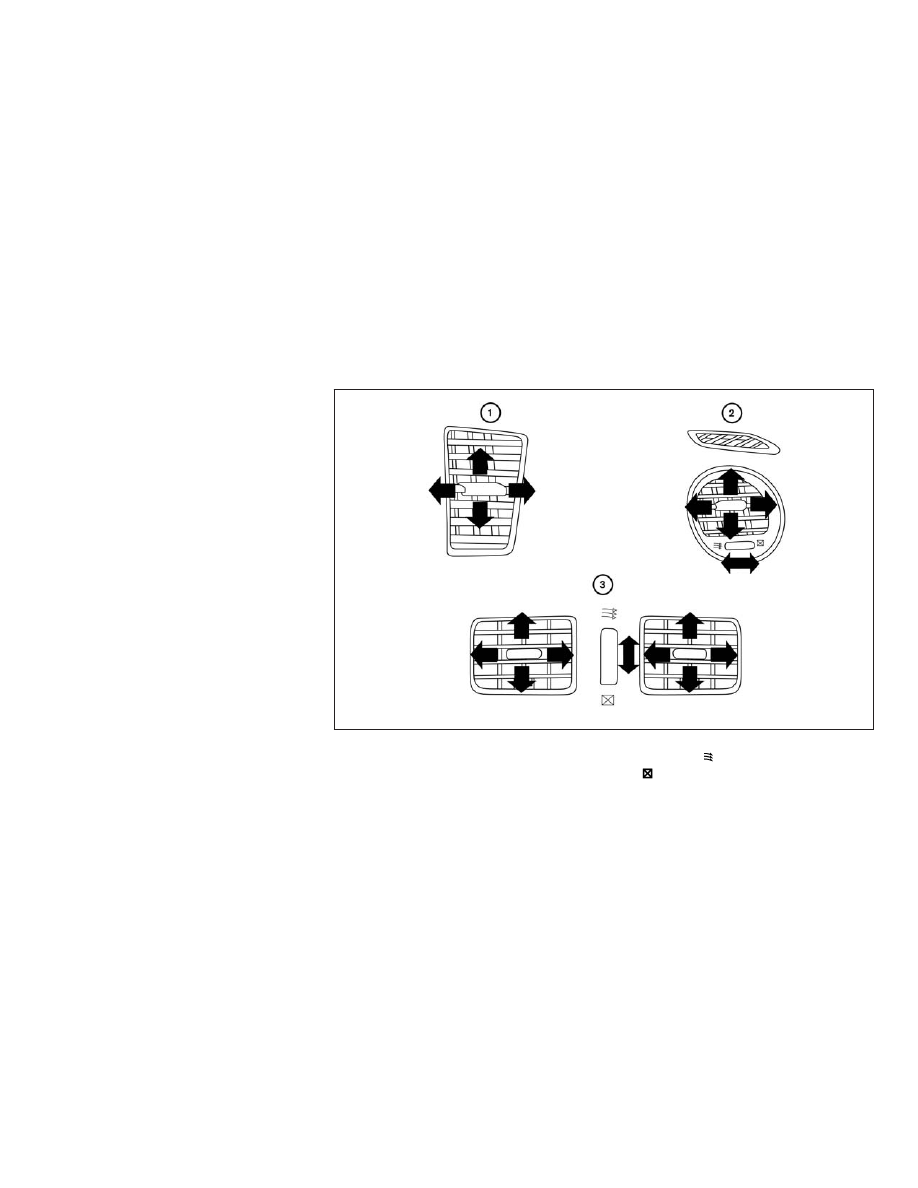

Adjust air flow direction for the center vents

䊊

driver’s and passenger’s side vents

䊊

, and rear

vents

䊊

by moving the vent slide and/or vent

assemblies.

Open or close the vents using the dial. Move the
dial toward the

to open the vents or toward

the

to close them.

LHA2480

VENTS

Monitor, climate, audio, phone and voice recognition systems

4-41

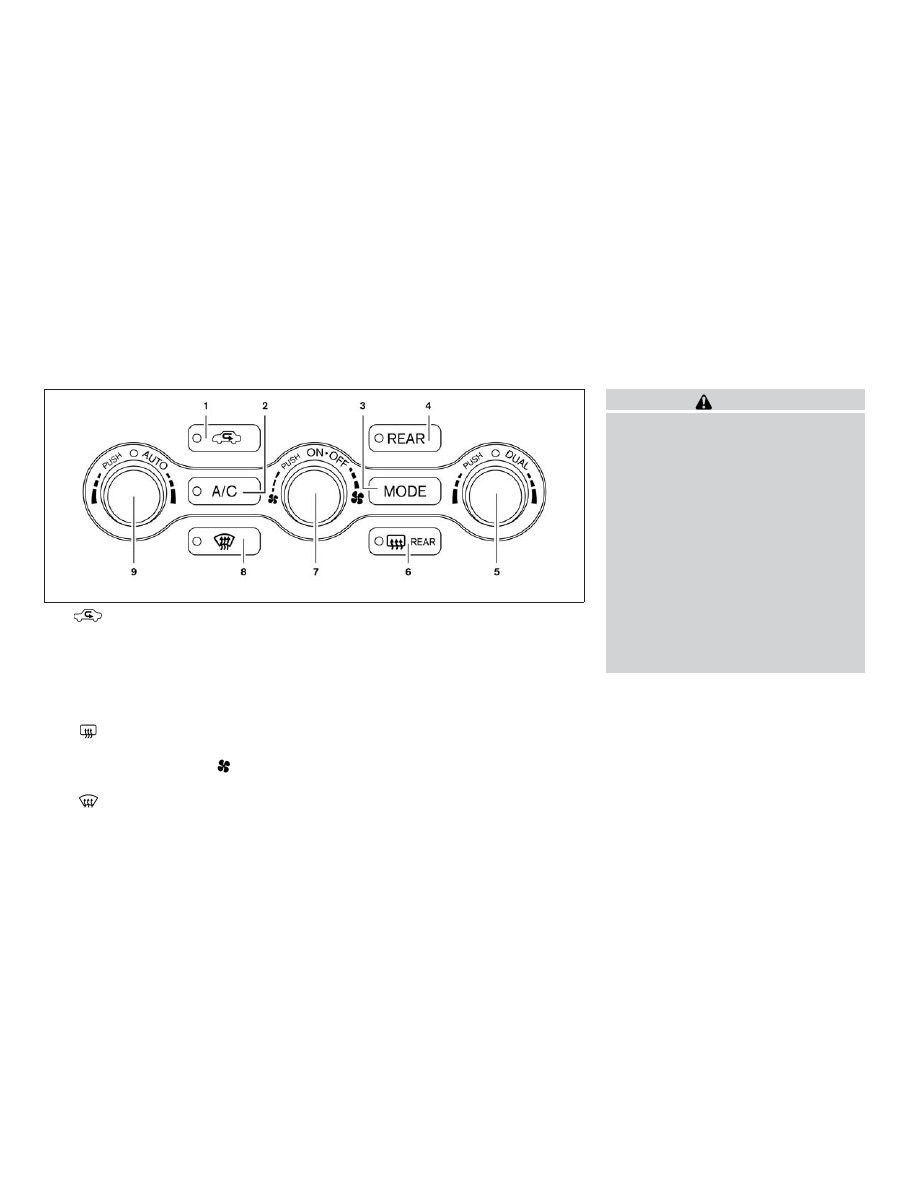

(air recirculation) button

A/C (air conditioner) ON/OFF button

MODE (manual air flow control) button

REAR button

DUAL (passenger’s side temperature
control) ON/OFF button/Temperature
control knob (passenger’s side)

(rear window and outside mirror

defroster) button

PUSH ON/OFF button/

(fan

speed control) knob

(front defroster) button

AUTO (automatic) climate control ON
button/Temperature control knob (driv-
er’s side)

WARNING

● The air conditioner cooling function op-

erates only when the engine is running.

● Do not leave children or adults who

would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.

● Do not use the recirculation mode for

long periods as it may cause the interior
air to become stale and the windows to
fog up.

Start the engine and operate the controls to
activate the air conditioner.

NOTE:

● Odors from inside and outside the vehicle

can build up in the air conditioner unit. Odor
can enter the passenger compartment
through the vents.

LHA2670

HEATER AND AIR CONDITIONER
(automatic)

4-42

Monitor, climate, audio, phone and voice recognition systems

● When parking, set the heater and air condi-

tioner controls to turn off air recirculation to
allow fresh air into the passenger compart-
ment. This should help reduce odors inside
the vehicle.

AUTOMATIC OPERATION

Cooling and/or dehumidified heating
(AUTO)

This mode may be used all year round as the
system automatically works to keep a constant
temperature. Air flow distribution and fan speed
are also controlled automatically.

1. Press the AUTO button on. (The indicator on

the button will illuminate and AUTO will be
displayed.)

2. Turn the temperature control dial to the left

or right to set the desired temperature.

● Adjust the temperature display to about

75°F (24°C) for normal operation.

● The temperature of the passenger compart-

ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.

● A visible mist may be seen coming from the

vents in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.

3. You can individually set driver’s and front

passenger’s side temperature using each
temperature control dial. When the DUAL
button or passenger’s side temperature dial
is turned, the DUAL indicator will come on.
To turn off the passenger’s side temperature
control, press the DUAL button.

Heating (A/C OFF)

The air conditioner does not activate. When you
need to heat only, use this mode.

1. Press the A/C button. The A/C indicator will

turn off.

2. Turn the temperature control dial to set the

desired temperature.

● The temperature of the passenger compart-

ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.

● Do not set the temperature lower than the

outside air temperature. Otherwise, the sys-
tem may not work properly.

● Not recommended if windows fog up.

Dehumidified defrosting or defogging

1. Press the

front defroster button on.

(The indicator light on the button will come
on.)

2. Turn the temperature control dial to set the

desired temperature.

● To quickly remove ice from the outside of the

windows, use the fan speed control dial to
set the fan speed to maximum.

● As soon as possible after the windshield is

clean, press the AUTO button to return to
the automatic mode.

● When the

front defroster button is

pressed, the air conditioner will automati-
cally be turned on at outside temperatures
above 36°F (2°C). The air recirculate mode
automatically turns off, allowing outside air
to be drawn into the passenger compart-
ment to further improve the defogging per-
formance.

Monitor, climate, audio, phone and voice recognition systems

4-43

MANUAL OPERATION
Fan speed control

Turn the

fan speed control dial to manually

control the fan speed.

Press the AUTO button to return to automatic
control of the fan speed.

Air recirculation

Press the

air recirculation button to recir-

culate interior air inside the vehicle. The
indicator light on the button will come on.

The air recirculation cannot be activated when
the air conditioner is in the

front defrosting

mode.

Automatic intake air control

In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the in-
take air, press the

air recirculation button.

To return to the automatic control mode, press
and hold the

air recirculation button for

about 2 seconds. The indicator light will flash
twice, and then the intake air will be controlled
automatically.

Air flow control

Pressing the MODE button manually controls air
flow and selects the air outlet:

— Air flows from center and side

vents.

— Air flows from center and side

vents and foot outlets.

— Air flows mainly from foot outlets.
— Air flows from defroster and foot

outlets.

— Air flows from defroster outlets.

4-44

Monitor, climate, audio, phone and voice recognition systems

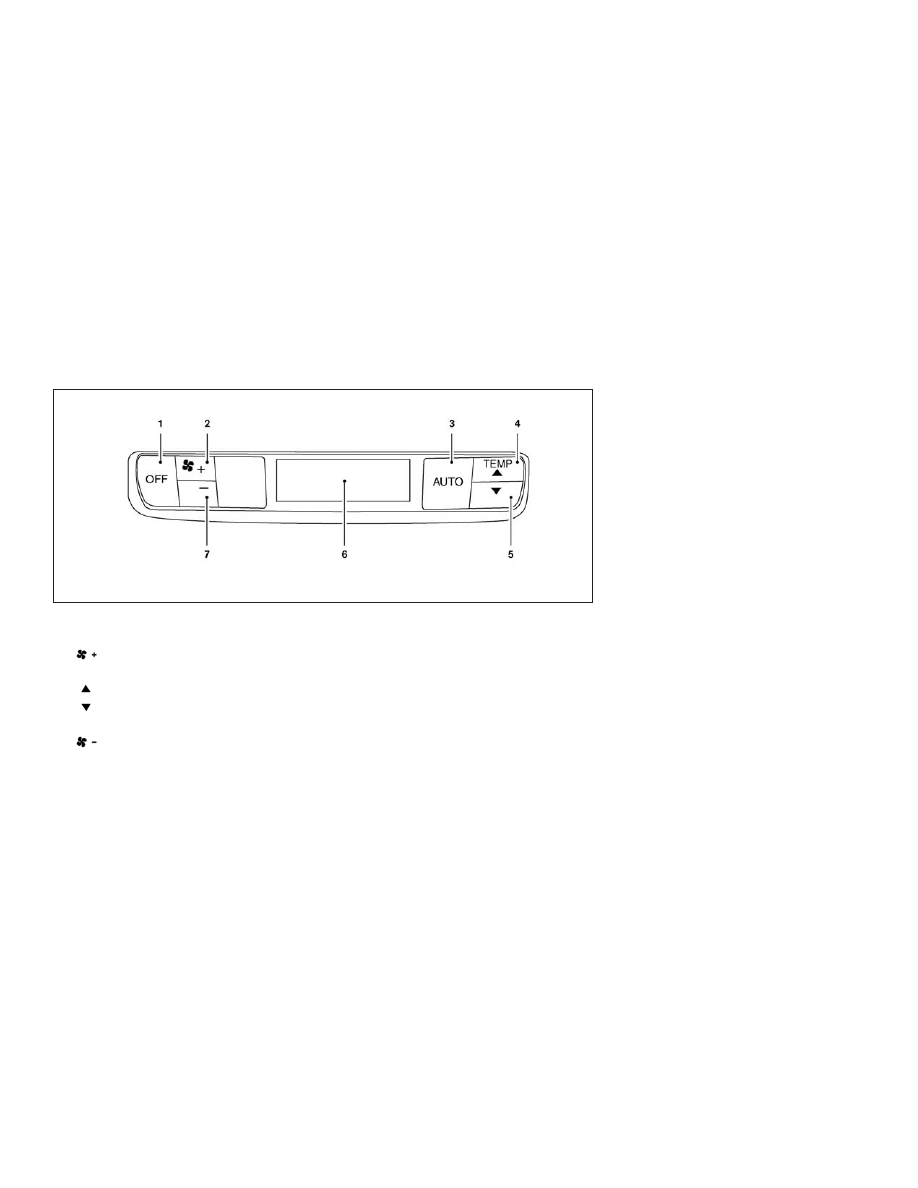

Rear automatic air conditioning system

1. OFF button
2.

(fan speed increase) button

3. AUTO button
4.

(temperature increase) button

(temperature decrease) button

6. Display
7.

(fan speed decrease) button

To control the rear automatic air conditioning
system with the front air conditioner control
panel, press the REAR button. When the rear
automatic air conditioning system control is on,

the indicator light on the REAR button will illumi-
nate and the front display will switch to the Rear
Air-conditioning screen.

The rear automatic air conditioning system can
be adjusted with the front air conditioner control
panel, when the Rear Air-conditioning screen is
displayed.

To adjust the front air conditioning system, press
the REAR button one more time.

Automatic operation

1. Press the AUTO button. The AUTO indicator

light will illuminate and “AUTO” will appear
on the display.

2. Turn the temperature control dial (driver’s

side) to set the desired temperature.

Manual operation

● Temperature control

Press the temperature control buttons to set
the desired temperature.

● Fan speed control

Press the fan speed increase or decrease
button to manually control the fan speed.

Rear Heating (A/C off)

1. Press the REAR button to display the Rear

Air-conditioning screen on the front display
when the rear automatic air conditioning
system is on.

2. Press the AUTO button. The AUTO indicator

light will illuminate and “AUTO” will appear
on the display.

3. If the A/C indicator light illuminates, press

the A/C button. The A/C indicator light will
turn off.

4. Turn the temperature control dial to set the

desired temperature.

● Do not set the temperature lower than the

outside air temperature. Doing so may cause
the temperature to not be controlled prop-
erly.

LHA2134

Monitor, climate, audio, phone and voice recognition systems

4-45

● To dehumidify the air, press the A/C key

before turning on the heater.

Turning the system off

1. Press the REAR button on the front control

panel until the Rear Air-conditioning screen
is displayed. The REAR button indicator will
remain illuminated.

2. Press the OFF button. The REAR button

indicator on the front climate control panel
will turn OFF, and the rear climate controls
also turn OFF.

Rear control buttons

The rear seat passengers can adjust the rear
automatic air conditioning system using the con-
trol switches at the rear of the center console.

The rear control buttons do not function when the
Rear Air-conditioning screen is shown on the
front display. To activate the rear control buttons,
press the REAR button on the front air condi-
tioner control panel and switch the screen on the
front display.

● OFF button: Turns rear automatic air condi-

tioning system off.

● Fan speed increase and decrease buttons:

Adjusts the rear fan speed up or down.

● AUTO button: Turns rear automatic air con-

ditioning system on, AUTO mode on.

● Temperature increase and decrease but-

tons: Adjusts the rear temperature up or
down.

To turn system off

Press the OFF button.

OPERATING TIPS

● When the engine coolant temperature and

outside air temperature are low, the air flow
from the foot outlets may not operate for a
maximum of 150 seconds. However, this is
not a malfunction. After the coolant tempera-
ture warms up, air flow from the foot outlets
will operate normally.

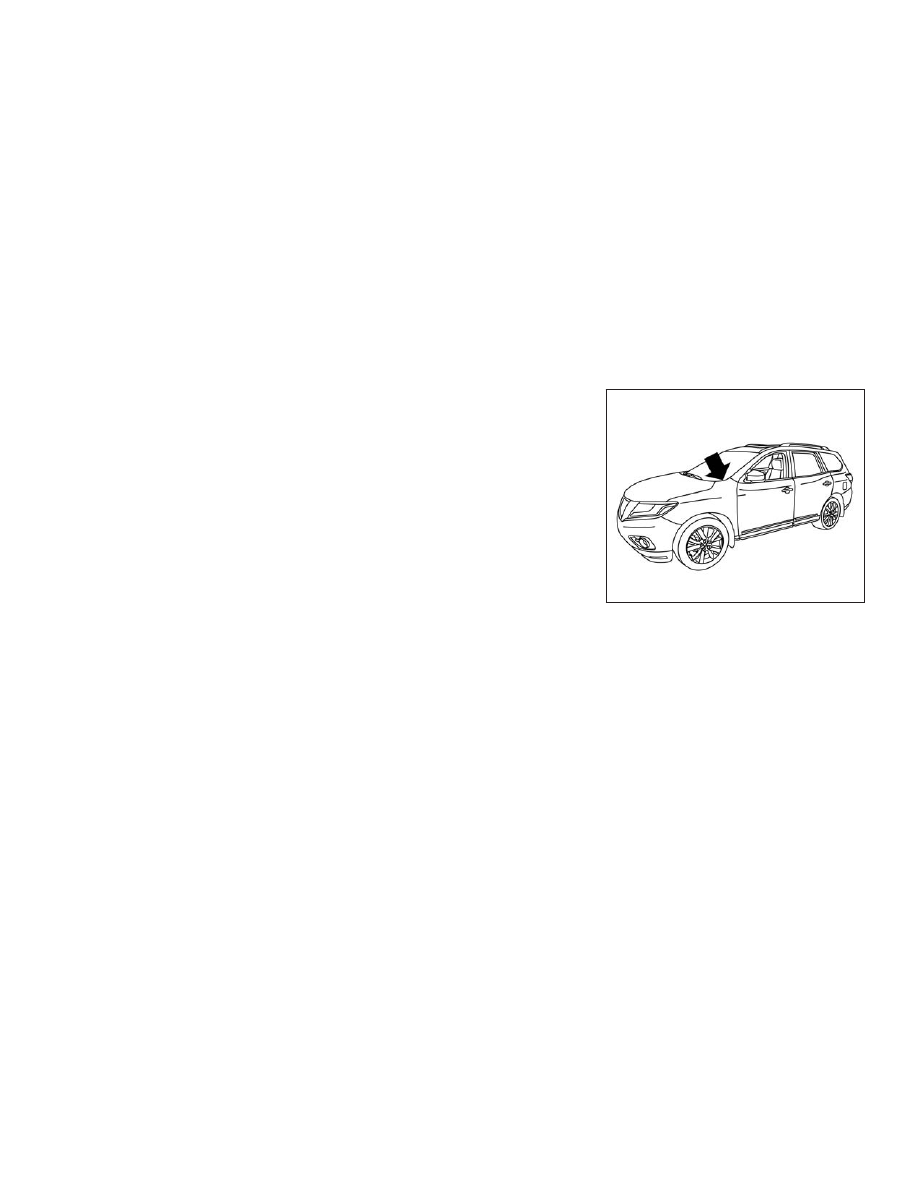

The sunload sensor, located on the top driver’s
side of the instrument panel, helps the system
maintain a constant temperature. Do not put any-
thing on or around this sensor.

LHA2473

4-46

Monitor, climate, audio, phone and voice recognition systems

The air conditioner system in your NISSAN ve-
hicle is charged with a refrigerant designed with
the environment in mind.

This refrigerant does not harm the earth’s
ozone layer.

Special charging equipment and lubricant is re-
quired when servicing your NISSAN air condi-
tioner. Using improper refrigerants or lubricants
will cause severe damage to your air conditioner
system. For additional information, refer to “Air
conditioner system refrigerant and oil recommen-
dations” in the “Technical and consumer informa-
tion” section of this manual.

A NISSAN dealer is able to service your “environ-
mentally friendly” air conditioning system.

WARNING

The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment.

RADIO

Place the ignition switch in the ACC or ON
position and press the VOL (volume)/ON·OFF
(power) knob to turn the radio on. If you listen to
the radio with the engine not running, the ignition
switch should be placed in the ACC position.

Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external influ-
ences. Intermittent changes in reception quality
normally are caused by these external influences.

Using a cellular phone in or near the vehicle
may influence radio reception quality.

Radio reception

Your NISSAN radio system is equipped with
state-of-the-art electronic circuits to enhance ra-
dio reception. These circuits are designed to
extend reception range, and to enhance the qual-
ity of that reception.

However, there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle, even
when the finest equipment is used. These char-
acteristics are completely normal in a given re-
ception area and do not indicate any malfunction
in your NISSAN radio system.

Reception conditions will constantly change be-
cause of vehicle movement. Buildings, terrain,
signal distance and interference from other ve-
hicles can work against ideal reception. De-
scribed below are some of the factors that can
affect your radio reception.

Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the de-
vice in a different location may reduce or elimi-
nate the noise.

FM RADIO RECEPTION

Range: FM range is normally limited to 25 – 30 mi
(40 – 48 km), with monaural (single channel) FM
having slightly more range than stereo FM. Exter-
nal influences may sometimes interfere with FM
station reception even if the FM station is within
25 mi (40 km). The strength of the FM signal is
directly related to the distance between the
transmitter and receiver. FM signals follow a line-
of-sight path, exhibiting many of the same char-
acteristics as light. For example, they will reflect
off objects.

Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to fade
and/or drift.eb

Static and flutter: During signal interference from
buildings, large hills or due to antenna position

SERVICING AIR CONDITIONER

AUDIO SYSTEM

Monitor, climate, audio, phone and voice recognition systems

4-47

Nissan Pathfinder Hybrid (2015 year). Instruction - part 16
