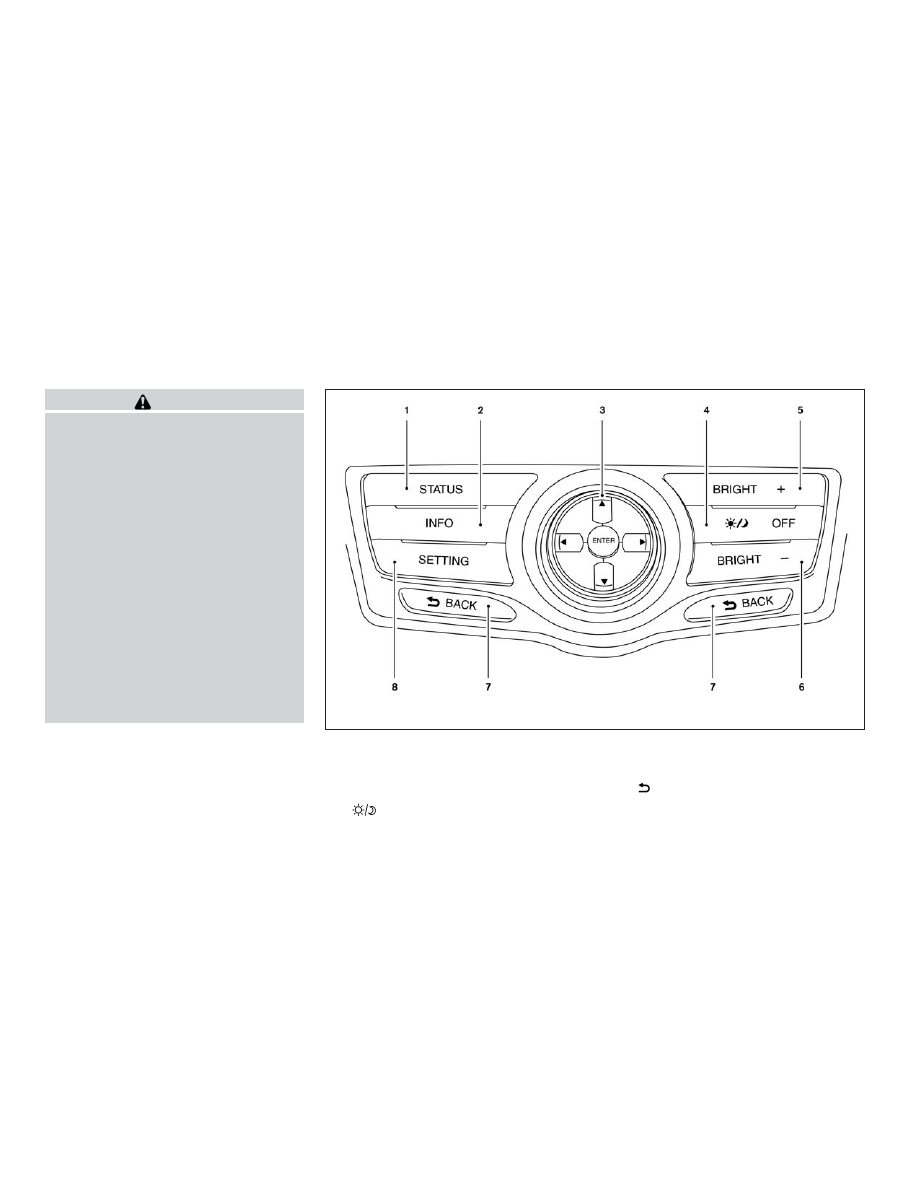

1. STATUS button

2. INFO button

3. NISSAN controller

OFF brightness control button

5. BRIGHT + (brightness control) button

6. BRIGHT – (brightness control) button

BACK (previous) button

8. SETTING button

LHA2469

CONTROL PANEL BUTTONS — COLOR
SCREEN WITHOUT NAVIGATION
SYSTEM (if so equipped)

4-4

Monitor, climate, audio, phone and voice recognition systems

CAUTION

● The glass display screen may break if it

is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.

● To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

● Do not splash any liquid such as water

or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

When you use this system, make sure the engine
is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.

Reference symbols:

ENTER button — This is a button on the control
panel.

“Example” — Words marked in quotes refer to a
key shown on the display. These keys can only be
selected using the NISSAN controller.

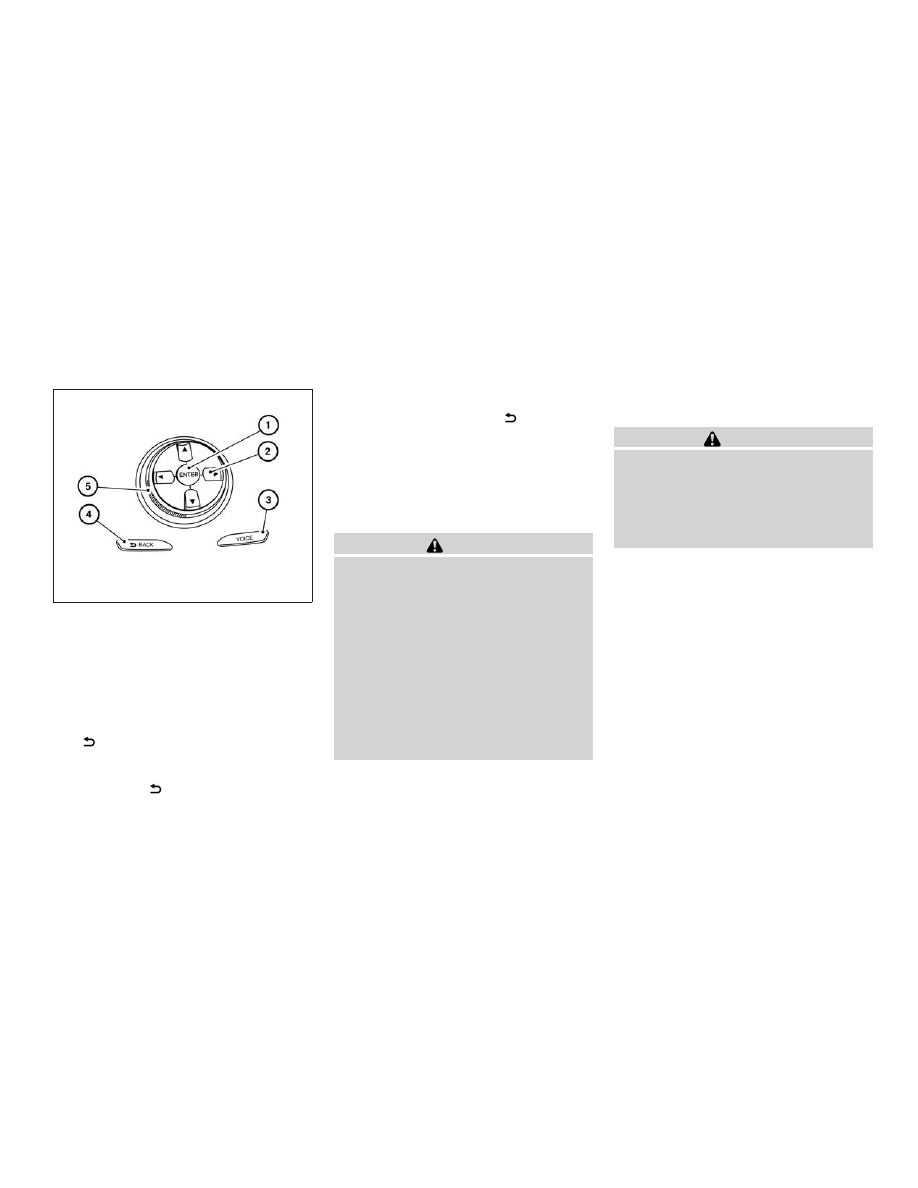

HOW TO USE THE NISSAN
CONTROLLER

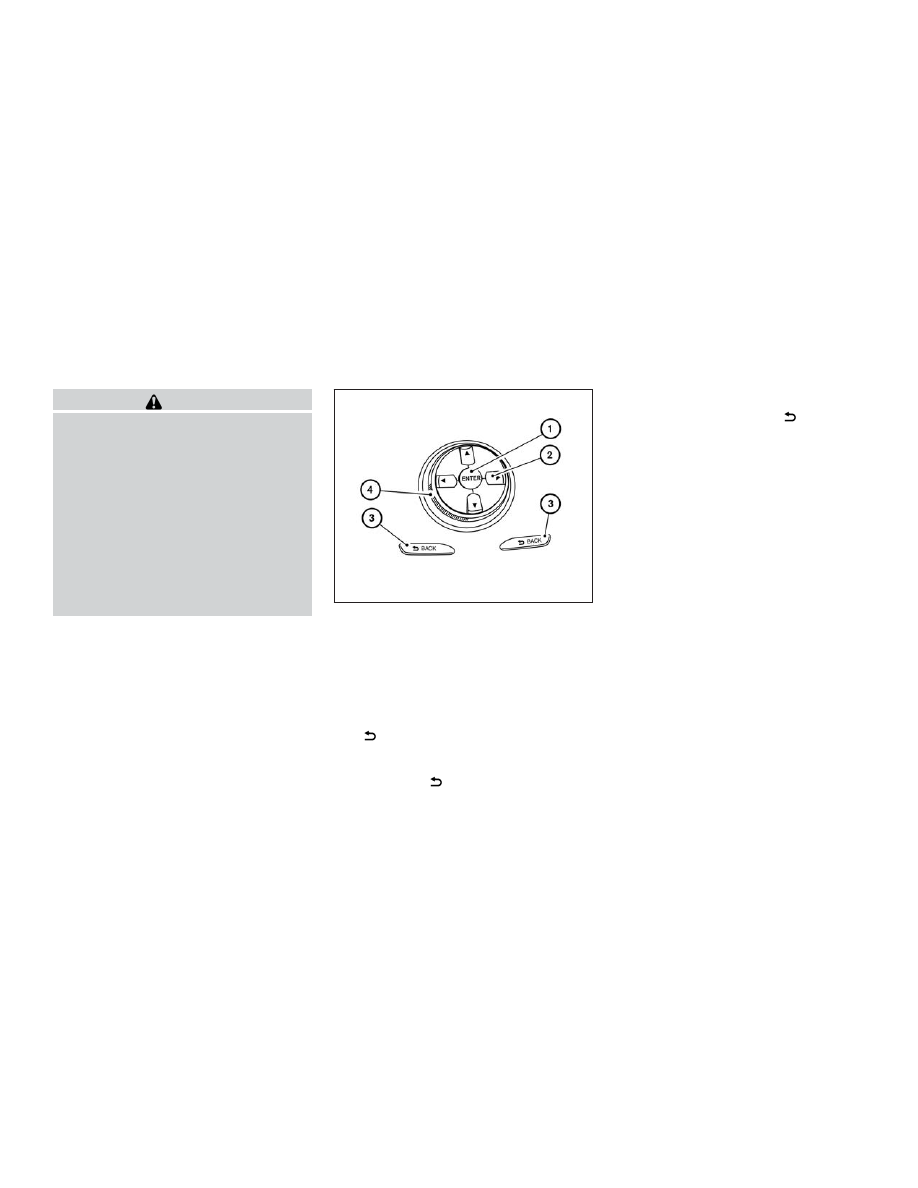

Use the NISSAN controller to choose an item on
the display screen. Highlight an item on the dis-
play using the main directional buttons

䊊

or the

center dial

䊊

. Then press the ENTER button

䊊

to select the item or perform the action.

The

BACK button

䊊

has two functions:

● Go back to the previous display (cancel).

If you press the

BACK button

䊊

during

setup, the setup will be canceled and/or the
display will return to the previous screen.

● Finish setup.

In some screens pressing the

BACK but-

ton

䊊

accepts the changes made during setup.

LHA3179

Monitor, climate, audio, phone and voice recognition systems

4-5

HOW TO SELECT MENUS ON THE
SCREEN

Vehicle functions are viewed on the center dis-
play screen in menus. Whenever a menu selec-
tion is made or menu item is highlighted, different
areas on the screen provide you with important
information. See the following for details:

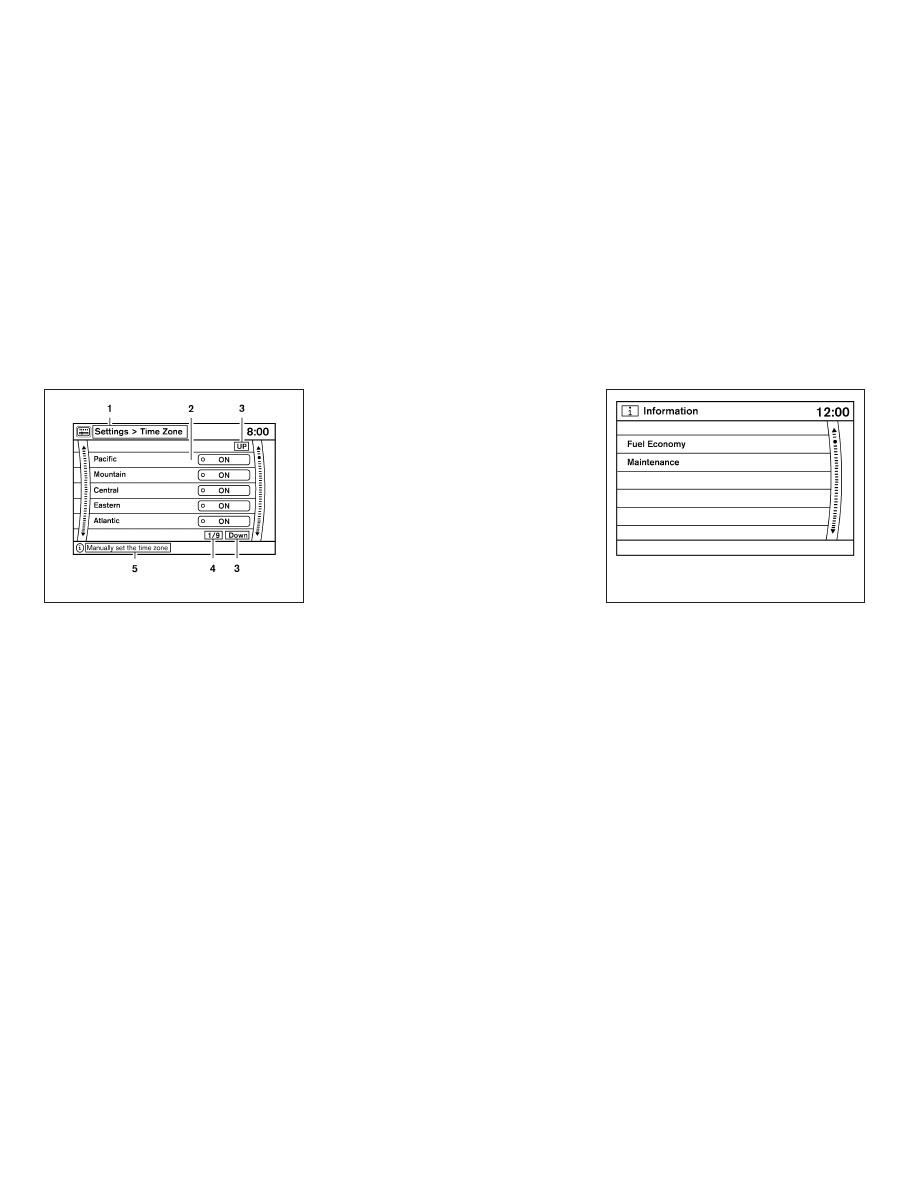

1. Header:

Shows the path used to get to the current
screen (for example, press the SETTING
button > then select the “Clock” key, then
select the “Time Zone” key).

2. Menu Selections:

Shows the options to choose within that
menu screen (for example, Pacific time zone,
Mountain time zone, etc.).

3. UP/DOWN Movement Indicator:

Shows that the NISSAN controller may be
used to move UP/DOWN on the screen and
select more options.

4. Screen Count:

Shows the number of menu selections avail-
able for that screen (for example, 1/9).

5. Footer/Information Line:

Provides more information (if available)
about the menu selection currently high-
lighted (for example, manually set the time
zone).

HOW TO USE THE STATUS
BUTTON

To display the status of the audio, climate control
system and fuel consumption, press the STATUS
button.

The following information will appear when the
STATUS button is pressed multiple times:

Audio

→ Audio and climate control system →

Audio and fuel consumption

→ Audio

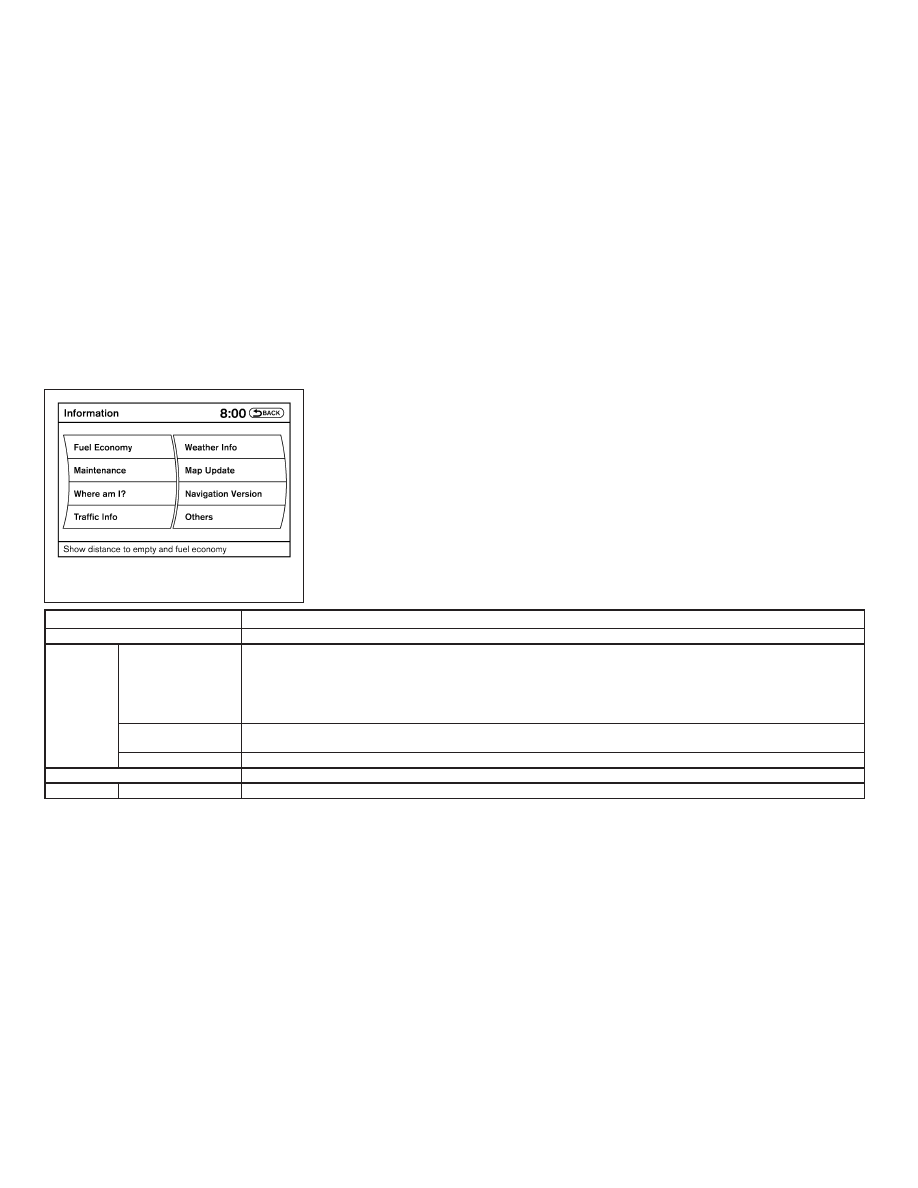

HOW TO USE THE INFO BUTTON

Press the INFO button. This screen sets or dis-
plays various information that is helpful for using
the vehicle. Available items include fuel economy
and maintenance information.

LHA1300

WHA1149

4-6

Monitor, climate, audio, phone and voice recognition systems

Menu Item

Result

Fuel Economy

Displays Fuel Economy menu.

Distance to Empty (DTE)

Displays an estimation of the distance that the vehicle can be driven before refueling. The DTE is constantly calculated based on the
amount of fuel in the fuel tank and actual fuel consumption. The display is updated every 30 seconds. When the fuel level is low, the DTE
display will change to (*).
NOTE: If the amount of fuel added while the ignition switch is OFF is small, the display just before the ignition switch is turned off may
continue to be displayed.
NOTE: When driving uphill or rounding curves, the fuel in the tank shifts, which may momentarily change the display.

Average Fuel Economy

Displays the average fuel economy since the last reset. The display is updated every 30 seconds and 1/3 mi (500 m). After a reset or
connecting the battery cables, the display might show (**.*).

Fuel Economy Record

Select the “View” key to display the average fuel consumption history in a graph form.

Maintenance

Displays maintenance reminders.

Reminder keys (1–4)

Select a key to display that maintenance interval.

Reset Distance

Resets the distance for the selected reminder to 0 km (mi).

Interval

Displays the interval for the selected reminder. Select the “+” or “-” keys to adjust the distance up or down.

Interval Re-
minder

Displays status of the selected interval reminder. Select to toggle on or off. If set to “On”, the maintenance notice screen will be displayed
once the interval is met and the ignition switch is placed in the OFF and then ON position.

Monitor, climate, audio, phone and voice recognition systems

4-7

HOW TO USE THE SETTING
BUTTON

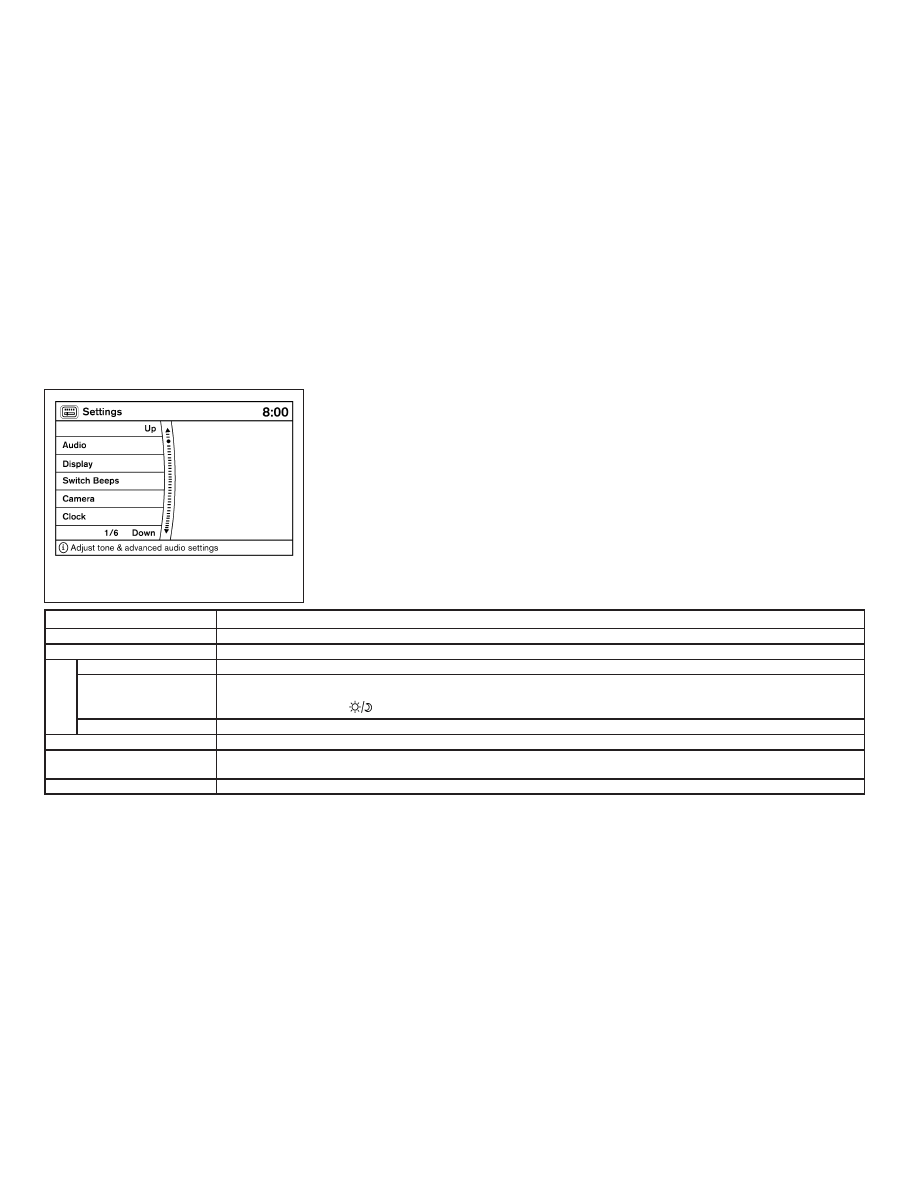

Press the SETTING button. This screen displays
and adjusts various settings and functions that
are available for your vehicle. Use the NISSAN
controller to select an item and then press the
ENTER button. When the amber indicator next to
an item is illuminated, the feature is enabled.

Menu Item

Result

Audio

For additional information, refer to “Audio system” in this section.

Display

Adjusts the settings for the display screen.

Brightness/Contrast

Adjusts the brightness or contrast of the map background.

Display off

Toggles the display screen on and off. The amber indicator is illuminated when the display is set to “On”. When the display is set to “Off” and a
control panel, audio or heater and air conditioner button is pressed, the display will resume until that operation is finished. To turn the display

back on, press and hold the

OFF button for approximately 2 seconds or return to the display setting screen and adjust the setting.

Background Color

Adjusts the display screen between day and night mode.

Switch Beeps

Toggles on and off the beep sound that is heard when a control panel button is pressed.

Camera

Toggles the predictive course lines on or off when the rear view camera is displayed on screen. For additional information, refer to “RearView
Monitor” in this section.

Clock

Adjusts the clock settings.

LHA1304

4-8

Monitor, climate, audio, phone and voice recognition systems

Menu Item

Result

On-screen Clock

Toggles on or off the clock in the upper right corner of the display.

Clock Format

Toggles between a 12-hour and 24-hour clock.

Daylight Savings Time

Toggles on or off the daylight savings time.

Time Zone

Adjusts the time zone. Choose a time zone from the available list.

Adjust Clock

Manually adjusts the hours and minutes of the clock.

Language & Units

Adjusts the language shown in the display. Available settings are “English”, “Français”, “or “Español”. Adjusts the unit settings shown on the
display. Available settings are “US” (mi,°F,MPG) and “Metric (km, °C, L/100 km))”.

OFF BUTTON

change

the

display

brightness,

press

the

OFF button. Pressing the button again

will change the display to the day

or the

night

display. The brightness can then be

adjusted using the NISSAN controller.

The display brightness can also be adjusted us-
ing the + (brighter) button or the

⫺ (dimmer)

button.

If no operation is done within 10 seconds, the
display will return to the previous display.

Press and hold the

OFF button for more

than 2 seconds to turn the display off. Press the
button again to turn the display on.

Monitor, climate, audio, phone and voice recognition systems

4-9

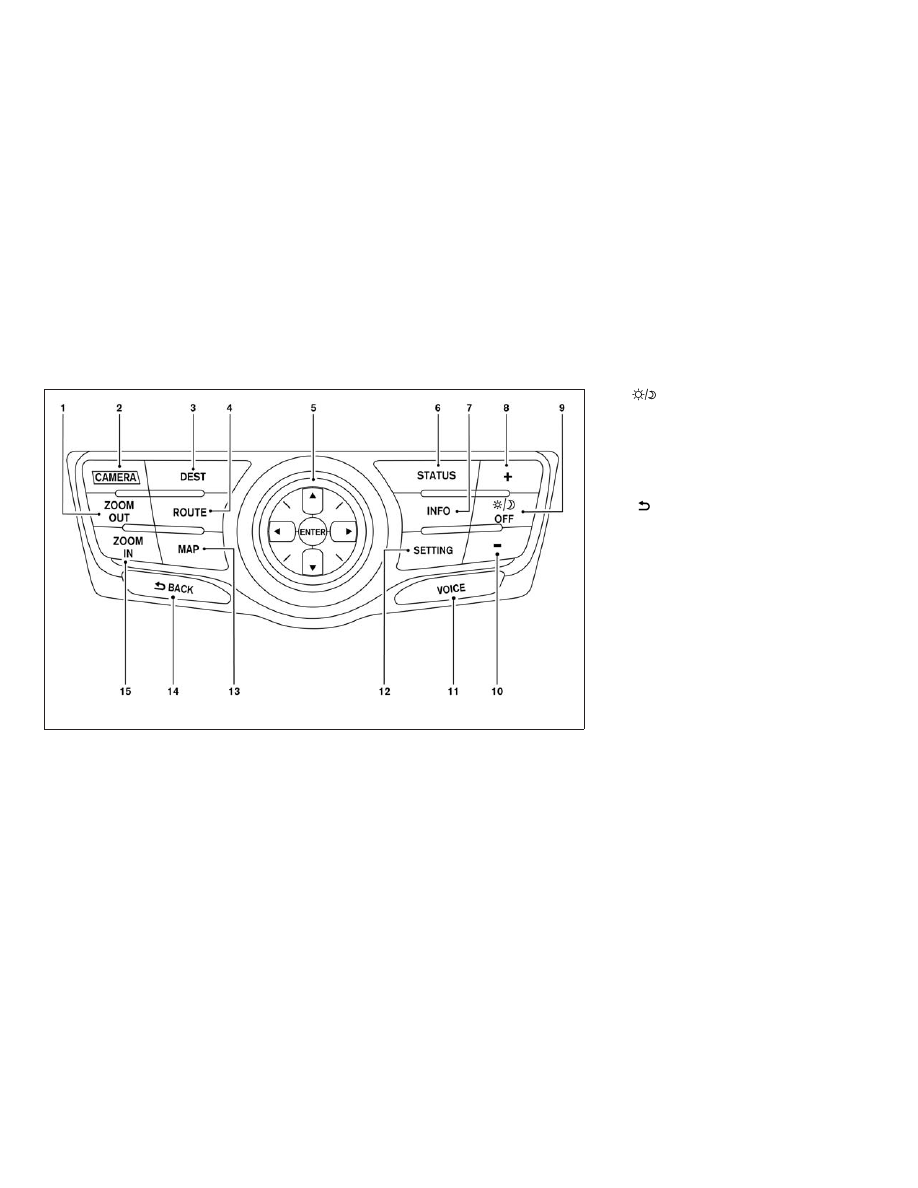

1. ZOOM OUT button*

2. CAMERA button

3. DEST (destination) button*

4. ROUTE button*

5. NISSAN controller (P. 4-11)

6. STATUS button (P. 4-13)

7. INFO button (P. 4-14)

8. + (brightness control) button

OFF brightness control button

10. - (brightness control) button

11. VOICE button*

12. SETTING button (P. 4-16)

13. MAP button*

14.

BACK (previous) button

15. ZOOM IN button*

*For Navigation system control buttons, refer to
the

separate

Navigation

System

Owner’s

Manual.

When you use this system, make sure the engine
is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.

Reference symbols:

ENTER button — This is a button on the control
panel.

“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen or using the
NISSAN controller.

LHA2446

CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)

4-10

Monitor, climate, audio, phone and voice recognition systems

HOW TO USE THE NISSAN
CONTROLLER

Use the NISSAN controller to choose an item on
the display screen. Highlight an item on the dis-
play using the main directional buttons

䊊

or the

center dial

䊊

. Then press the ENTER button

䊊

to select the item or perform the action.

The

BACK button

䊊

has two functions:

● Go back to the previous display (cancel).

If you press the

BACK button

䊊

during

setup, the setup will be canceled and/or the
display will return to the previous screen.

● Finish setup.

In some screens, pressing the

BACK but-

ton

䊊

accepts the changes made during setup.

For the VOICE button

䊊

functions, refer to the

separate Navigation System Owner’s Manual.

HOW TO USE THE TOUCH-
SCREEN

CAUTION

● The glass display screen may break if it

is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.

● To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

● Do not splash any liquid such as water

or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

To help ensure safe driving, some functions can-
not be operated while driving.

The on-screen functions that are not available
while driving will be “grayed out” or muted.

Park the vehicle in a safe location and then oper-
ate the navigation system.

WARNING

● ALWAYS give your full attention to

driving.

● Avoid using vehicle features that could

distract you. If distracted, you could
lose control of your vehicle and cause
an accident.

LHA3180

Monitor, climate, audio, phone and voice recognition systems

4-11

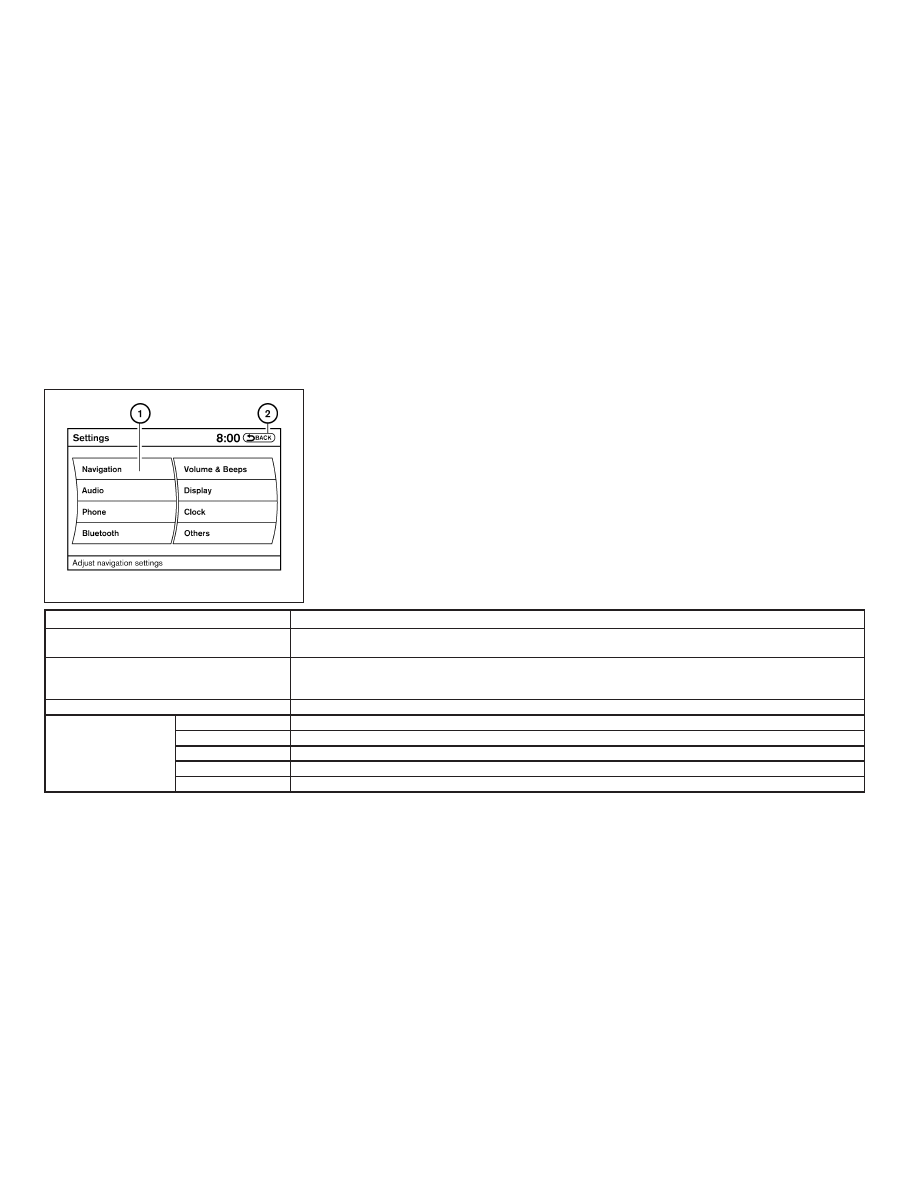

Touch-screen operation

With this system, the same operations as those
for the NISSAN controller are possible using the
touch-screen operation.

Menu Item

Result

Selecting the item

Touch an item to select . To select the “Navigation” key, touch the “Navigation” key

䊊

on the screen. Touch the “BACK” key

䊊

to return to the previous screen.

Adjusting the item

Touch the “+” key or the “

⫺” key to adjust the settings of an item. Touch the up arrow to scroll up the page one item at a time,

or touch the double up arrow to scroll up an entire page. Touch the down arrow to scroll down the page one item at a time, or
touch the double down arrow to scroll down an entire page.

Inputting characters

Touch the letter or number key. There are some options available when inputting characters.

Uppercase

Shows uppercase characters.

Lowercase

Shows lowercase characters.

Space

Inserts a space.

Delete

Deletes the last inputted character with one touch. Touch and hold the “Delete” key to delete all of the characters.

Completes the character input.

LHA1227

4-12

Monitor, climate, audio, phone and voice recognition systems

Touch-screen maintenance

If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or de-
tergent. Dampen the cloth first, and then wipe the
screen.

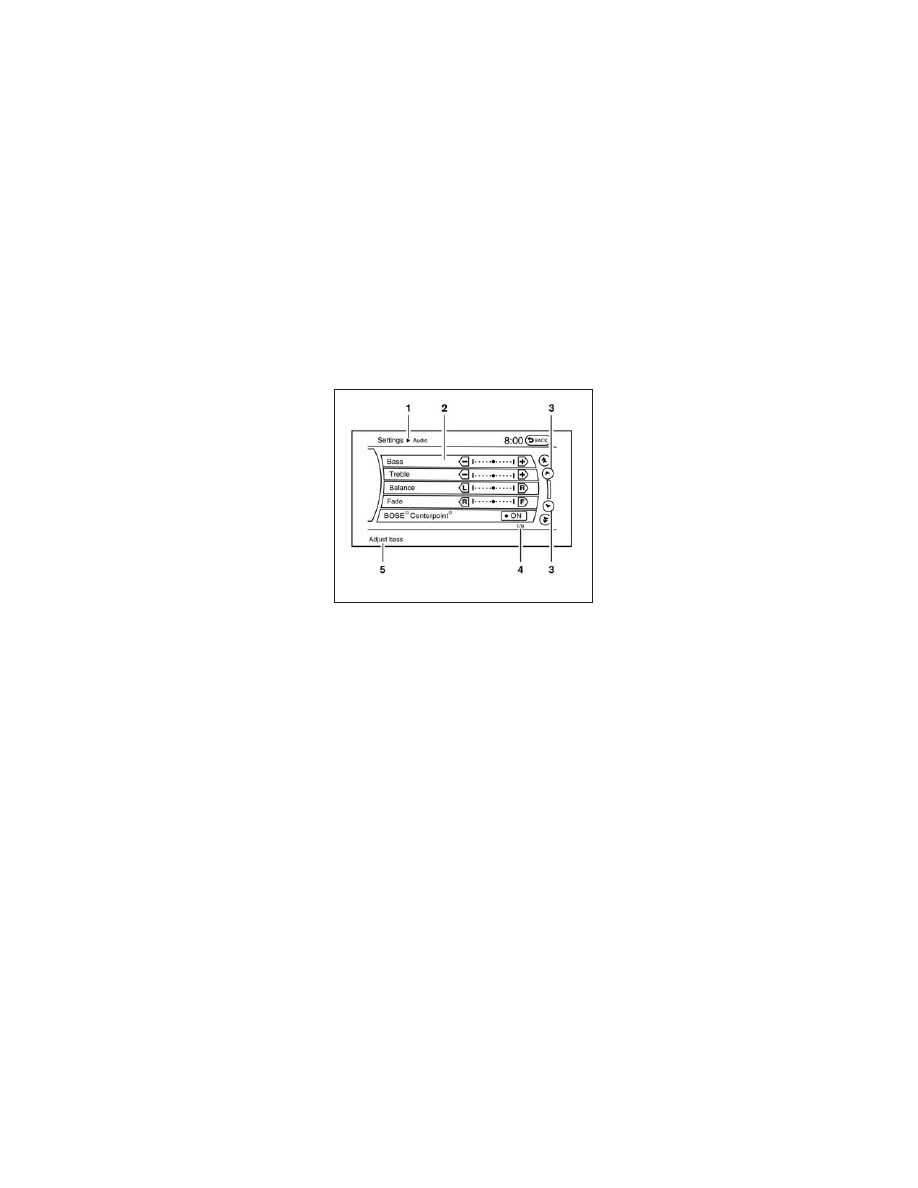

HOW TO SELECT MENUS ON THE
SCREEN

1. Header:

Shows the path used to get to the current
screen (for example, press the SETTING
button > then select the “Audio” key).

2. Menu Selections:

Shows the options to choose within that
menu screen (for example, Bass, etc.).

3. Up/Down Movement Indicator:

Shows that the NISSAN controller may be
used to move up or down on the screen to
select more options.

4. Screen Count:

Shows the number of menu selections avail-
able for the current menu even if they are on
multiple pages (for example, 1/9).

5. Footer/Information Line:

Provides more information (if available)
about the menu selection currently high-
lighted (for example, Adjust bass).

HOW TO USE THE STATUS
BUTTON

The STATUS button is used to display system
information. Three different split screens of infor-
mation are available. Press the STATUS button
multiple times to cycle through these screens as
follows:

Audio with Turn Information for Navigation

→

Audio with Fuel Economy Information

→ Audio

with Climate Control Information

→ Audio with

Turn Information for Navigation

LHA2178

Monitor, climate, audio, phone and voice recognition systems

4-13

HOW TO USE THE INFO BUTTON

Press the INFO button. This screen sets or dis-
plays various information that is helpful for using
the vehicle. Available items include fuel economy,
maintenance, navigation and voice recognition
information.

Menu Item

Result

Fuel Economy

Displays Fuel Economy menu.

Distance to Empty (DTE)

Average Fuel Economy

Displays the average fuel economy since the last reset. The display is updated every 30 seconds and 1/3 mi (500 m). After a reset or
connecting the battery cables, the display might show (**.*). Select “Reset Fuel Eco” to reset the fuel economy calculation to 0.

Fuel Economy History

Touch the “View” key to display the average fuel consumption history in a graph form.

Maintenance

Displays maintenance reminders.

Reminder keys

Touch a key to display the maintenance interval for engine oil, oil filter, tire or other reminder.

LHA1231

4-14

Monitor, climate, audio, phone and voice recognition systems

Menu Item

Result

Reset Distance

Resets the distance for the selected reminder to 0 mi (km).

Interval

Displays the interval for the selected reminder. Select the “+” or “-” keys to adjust the distance up or down.

Interval Re-
minder

Where am I?

For additional information, refer to the separate Navigation System Owner’s Manual.

Traffic Info

For additional information, refer to the separate Navigation System Owner’s Manual.

Weather Info

For additional information, refer to the separate Navigation System Owner’s Manual.

Map Update

For additional information, refer to the separate Navigation System Owner’s Manual.

Navigation Version

For additional information, refer to the separate Navigation System Owner’s Manual.

Others

Displays a list of further options.

Map Update

For additional information regarding Map Updates, refer to the separate Navigation System Owner’s Manual.

Navigation Version

For additional information regarding Navigation Version, refer to the separate Navigation System Owner’s Manual.

GPS Position

For additional information regarding GPS Position, refer to the separate Navigation System Owner’s Manual.

Voice Recognition (if so
equipped)

For additional information regarding Voice Recognition, refer to “NISSAN Voice Recognition System” in this section.

Monitor, climate, audio, phone and voice recognition systems

4-15

Content .. 12 13 14 15 ..
