Nissan Juke (2017 year). Instruction

SCE0504

2. Loosen each wheel nut one or two turns by

turning it counterclockwise with the wheel
nut wrench. Do not remove the wheel
nuts until the tire is off the ground.

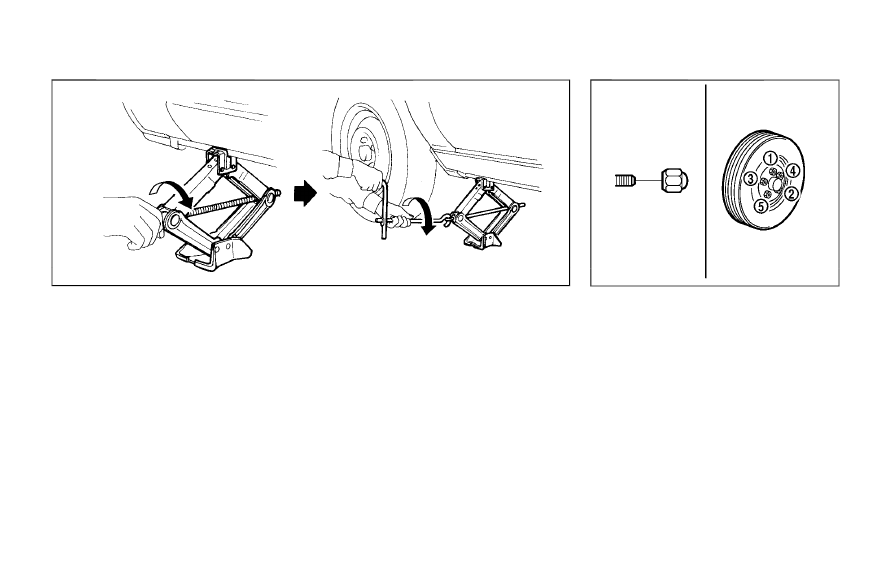

3. To lift the vehicle, securely hold the jack lever

and rod with both hands as shown above.
Carefully raise the vehicle until the tire clears
the ground. Remove the wheel nuts, and
then remove the tire.

SCE0933

Installing the spare tire

The spare tire is designed for emergency
use. (See specific instructions under the
heading “Wheels and tires” (P.8-28).)

1. Clean any mud or dirt from the surface

between the wheel and hub.

2. Carefully put the spare tire on and tighten

the wheel nuts finger tight. Check that all the
wheel nuts contact the wheel surface
horizontally.

3. With the wheel nut wrench, tighten wheel

nuts alternately and evenly in the sequence
illustrated (

), more

than 2 times, until they are tight.

In case of emergency

6-7

6-8

In case of emergency

4. Lower the vehicle slowly until the tire

touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence illustrated. Lower the
vehicle completely.

WARNING

. Incorrect wheel nuts or improperly

tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.

. Do not use oil or grease on the

wheel studs or nuts. This could
cause the nuts to become loose.

. Retighten the wheel nuts when the

vehicle has been driven for 600
miles (1,000 km) (also in cases of a
flat tire, etc.).

As soon as possible, tighten the

wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

80 ft-lb (108 N·m)

The wheel nuts must be kept tightened
to specifications at all times. It is
recommended that the wheel nuts be

tightened to specifications at each
lubrication interval.

Adjust tire pressure to the COLD

pressure.

COLD pressure:

After the vehicle has been parked for 3
hours or more or driven less than 1 mile
(1.6 km).

COLD tire pressures are shown on the
Tire and Loading Information label
affixed to the driver side center pillar.

Stowing the damaged tire and the tools

1. Securely store the jack, tools and the

damaged tire in the storage area.

2. Replace the cargo floor box and board.

3. Close the liftgate.

WARNING

. Always make sure that the spare tire

and jacking equipment are properly
secured after use. Such items can
become dangerous projectiles in an
accident or sudden stop.

. The spare tire and small size spare

tire are designed for emergency use.
See specific instructions under the

heading “Wheels and tires” (P.8-28).

To start your engine with a booster battery, the
instructions and precautions below must be
followed.

WARNING

. If done incorrectly, jump starting

can lead to a battery explosion,
resulting in severe injury or death.
It could also damage your vehicle.

. Explosive hydrogen gas is always

present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.

. Do not allow battery fluid to come

into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is
a corrosive sulfuric acid solution
which can cause severe burns. If
the fluid should come into contact
with anything, immediately flush the
contacted area with water.

. Keep the battery out of the reach of

children.

. The booster battery must be rated at

12 volts. Use of an improperly rated
battery can damage your vehicle.

. Whenever working on or near a

battery, always wear suitable eye
protectors (for example, goggles or
industrial safety spectacles) and
remove rings, metal bands, or any
other jewelry. Do not lean over the
battery when jump starting.

. Do not attempt to jump start a

frozen battery. It could explode
and cause serious injury.

. Your vehicle has an automatic en-

gine cooling fan. It could come on at
any time. Keep hands and other
objects away from it.

In case of emergency

6-9

JUMP STARTING

6-10

In case of emergency

SCE0981

WARNING

Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause
personal injury.

1. If the booster battery is in another vehicle

, position the two vehicles (

and

)

to bring their batteries into close proximity to
each other.

Do not allow the two vehicles to touch.

2. Apply the parking brake.

3. Continuously Variable Transmission

(CVT) models:

Move the shift lever to the P (Park) position.

Manual Transmission (MT) models:

Move the shift lever to the N (Neutral)
position.

4. Switch off all unnecessary electrical systems

(headlights, heater, air conditioner, etc.).

5. Remove the vent caps on the battery (if so

equipped). Cover the battery with a firmly
wrung out moist cloth to reduce explosion
hazard.

6. Connect jumper cables in the sequence as

illustrated (

If the battery is discharged, the ignition
switch cannot be moved from the OFF
position. Connect the jumper cables to
the booster vehicle

before pushing

the ignition switch.

CAUTION

. Always connect positive (+) to posi-

tive (+) and negative (

í) to body

ground (for example, as illustrated),
not to the battery.

. Make sure the jumper cables do not

touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.

7. Start the engine of the booster vehicle

and let it run for a few minutes.

8. Keep the engine speed of the booster

vehicle

at about 2,000 rpm, and start

the engine of the vehicle

being jump

started.

CAUTION

Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, place the
ignition switch in the OFF position and
wait 10 seconds before trying again.

9. After starting your engine, carefully discon-

nect the negative cable and then the positive
cable (

10. Replace the vent caps (if so equipped). Be

sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.

Do not attempt to start the engine by pushing.

CAUTION

. Continuously Variable Transmission

(CVT) models cannot be push-
started or tow-started. Attempting
to do so may cause transmission
damage.

. Three-way catalyst equipped mod-

els should not be started by pushing
since the three way catalyst may be
damaged.

. Never try to start the vehicle by

towing it; when the engine starts,
the forward surge could cause the
vehicle to collide with the tow
vehicle.

CAUTION

. Do not continue to drive if your

vehicle overheats. Doing so could
cause engine damage or a vehicle
fire.

. To avoid the danger of being

scalded, never remove the radiator
cap while the engine is still hot.
When the radiator cap is removed,
pressurized hot water will spurt out,
possibly causing serious injury.

. Do not open the hood if steam is

coming out.

If your vehicle is overheating (indicated by the
high temperature warning light (if so equipped)
or an extremely high temperature gauge reading
(if so equipped)), or if you feel a lack of engine
power, detect abnormal noise, etc., take the
following steps:

1. Move the vehicle safely off the road and

apply the parking brake.

2. Continuously Variable Transmission

(CVT) models:

Move the shift lever to the P (Park) position.

In case of emergency

6-11

PUSH STARTING

IF YOUR VEHICLE OVERHEATS

6-12

In case of emergency

Manual Transmission (MT) models:

Move the shift lever to the N (Neutral)
position.

Do not stop the engine.

3. Turn off the air conditioner (if so equipped).

Open all the windows, move the heater or air
conditioner temperature control to maximum
hot and fan control to high speed.

4. Get out of the vehicle. Look and listen for

steam or coolant escaping from the radiator
before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no steam
or coolant can be seen.

5. Open the engine hood.

WARNING

If steam or water is coming from the
engine, stand clear to prevent getting
burned.

6. Visually check the drive belt for damage or

looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking or
the cooling fan does not run, stop the
engine.

WARNING

Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine
cooling fan can start at any time.

7. After the engine cools down, check the

coolant level in the reservoir with the engine
running. Add coolant to the reservoir if
necessary. Have your vehicle repaired. It is
recommended you visit a NISSAN dealer for
this service.

When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must
be followed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from a NISSAN dealer. Local service
operators are familiar with the applicable laws
and procedures for towing. To assure proper
towing and to prevent accidental damage to
your vehicle, NISSAN recommends that you
have a service operator tow your vehicle. It is
advisable to have the service operator carefully
read the following precautions.

WARNING

. Never ride in a vehicle that is being

towed.

. Never get under your vehicle after it

has been lifted by a tow truck.

CAUTION

. When towing, make sure that the

transmission, axles, steering system
and powertrain are in working con-
dition. If any unit is damaged, dol-
lies must be used.

. Always attach safety chains before

towing.

For information about towing your vehicle behind
a recreational vehicle (RV), see “Flat towing”
(P.10-18) of this manual.

In case of emergency

6-13

TOWING YOUR VEHICLE

6-14

In case of emergency

SCE0950

Two-wheel drive models

TOWING RECOMMENDED BY NISSAN

Two-Wheel Drive (2WD) models

NISSAN recommends that your vehicle be
towed with the driving (front) wheels off the
ground or place the vehicle on a flat bed truck as
illustrated.

CAUTION

. Never tow CVT models with the front

wheels on the ground or four
wheels on the ground (forward or
backward), as this may cause ser-
ious and expensive damage to the

transmission. If it is necessary to
tow the vehicle with the rear wheels
raised, always use towing dollies
under the front wheels.

. When towing CVT models with the

front wheels on towing dollies:
Push the ignition switch to the
ACC or ON position, and secure
the steering wheel in a straight-
ahead position with a rope or simi-
lar device. Move the shift lever to
the N (Neutral) position.

. When towing a CVT model with the

rear wheels on the ground (if you do
not use towing dollies): Always
release the parking brake.

SCE0952

All-wheel drive models

All-Wheel Drive (AWD) models

NISSAN recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.

CAUTION

Never tow AWD models with any of the
wheels on the ground as this may cause
serious and expensive damage to the
powertrain.

VEHICLE RECOVERY (freeing a stuck
vehicle)

WARNING

To avoid vehicle damage, serious per-
sonal injury or death when recovering a
stuck vehicle:

. Contact a professional towing ser-

vice to recover the vehicle if you
have any questions regarding the
recovery procedure.

. Tow chains or cables must be at-

tached only to main structural mem-

bers of the vehicle.

. Do not use the vehicle tie-downs to

tow or free a stuck vehicle.

. Only use devices specifically de-

signed for vehicle recovery and
follow the manufacturer’s instruc-
tions.

. Always pull the recovery device

straight out from the front of the
vehicle. Never pull at an angle.

. Route recovery devices so they do

not touch any part of the vehicle
except the attachment point.

If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed
specifically for vehicle recovery. Always follow
the manufacturer’s instructions for the recovery
device.

Rocking a stuck vehicle

If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:

1. Turn off the Vehicle Dynamic Control (VDC)

system.

2. Make sure the area in front and behind the

vehicle is clear of obstructions.

In case of emergency

6-15

6-16

In case of emergency

3. Turn the steering wheel right and left to clear

an area around the front tires.

4. Slowly rock the vehicle forward and back-

ward.

Shift back and forth between R (Reverse)

and D (Drive) (Continuously Variable
Transmission models) or 1st and R
(Reverse) (Manual Transmission models).

Apply the accelerator as little as possible

to maintain the rocking motion.

Release the accelerator pedal before

shifting between R and D (Continuously
Variable Transmission models) or 1st and
R (Manual Transmission models).

Do not spin the tires above 35 MPH (55

km/h).

5. If the vehicle cannot be freed after a few

tries, contact a professional towing service
to remove the vehicle.

7-2

Appearance and care

In order to maintain the appearance of your
vehicle, it is important to take proper care of it.

To protect the paint surfaces, wash your vehicle
as soon as you can:
. after a rainfall to prevent possible damage

from acid rain

. after driving on coastal roads
. when contaminants such as soot, bird

droppings, tree sap, metal particles or bugs
get on the paint surface

. when dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.

When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.

Be careful not to scratch the paint surface
when putting on or removing the body
cover.

WASHING

Wash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or
general purpose dishwashing liquid mixed with
clean, lukewarm (never hot) water.

CAUTION

. Do not use car washes that use acid

in the detergent. Some car washes,
especially brushless ones, use some
acid for cleaning. The acid may react
with some plastic vehicle compo-
nents, causing them to crack. This
could affect their appearance, and
also could cause them not to func-
tion properly. Always check with
your car wash to confirm that acid
is not used.

. Do not wash the vehicle with strong

household soap, strong chemical
detergents, gasoline or solvents.

. Do not wash the vehicle in direct

sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.

. Avoid using tight-napped or rough

cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.

Rinse the vehicle thoroughly with plenty of clean
water.

Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.

Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.

CLEANING EXTERIOR

JVA0014X

Model with rear spoiler

CAUTION

Do not use an automatic car wash for
model with rear spoiler. The rear spoiler
may be damaged.

WAXING

Regular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.

A NISSAN dealer can assist you in choosing the
proper product.
. Wax your vehicle only after a thorough

washing. Follow the instructions supplied
with the wax.

. Do not use a wax containing any abrasives,

cutting compounds or cleaners that may
damage the vehicle finish.

Machine compound or aggressive polishing on a
base coat/clear coat paint finish may dull the
finish or leave swirl marks.

REMOVING SPOTS

Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting damage
or staining. Special cleaning products are
available at a NISSAN dealer or any automotive
accessory stores.

UNDERBODY

In areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing the acceleration of corrosion on the
underbody and suspension. Before the winter
period and again in the spring, the underseal
must be checked and, if necessary, re-treated.

GLASS

Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for glass
to become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.

CAUTION

When cleaning the inside of the win-
dows, do not use sharp-edged tools,
abrasive cleaners or chlorine-based
disinfectant cleaners. They could da-
mage the electrical conductors, radio
antenna elements or rear window
defroster elements.

Appearance and care

7-3

7-4

Appearance and care

WHEELS

Wash the wheels when washing the vehicle to
maintain their appearance.
. Clean the inner side of the wheels when the

wheel is changed or the underside of the
vehicle is washed.

. Inspect wheel rims regularly for dents or

corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.

. NISSAN recommends that the road wheels

be waxed to protect against road salt in
areas where it is used during winter.

CAUTION

Do not use abrasive cleaners when
washing the wheels.

ALUMINUM ALLOY WHEELS

Wash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.

CAUTION

Follow the directions below to avoid
staining or discoloring the wheels:

. Do not use a cleaner that uses

strong acid or alkali contents to
clean the wheels.

. Do not apply wheel cleaners to the

wheels when they are hot. The
wheel temperature should be the
same as ambient temperature.

. Rinse the wheel to completely re-

move the cleaner within 15 minutes
after the cleaner is applied.

CHROME PARTS

Clean chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.

TIRE DRESSING

NISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.

If you choose to use a tire dressing, take the
following precautions:
. Use a water-based tire dressing. The coat-

ing on the tire dissolves more easily with an
oil-based tire dressing.

. Apply a light coat of tire dressing to help

prevent it from entering the tire tread/
grooves (where it would be difficult to
remove).

. Wipe off excess tire dressing using a dry

towel. Make sure the tire dressing is
completely removed from the tire tread/
grooves.

. Allow the tire dressing to dry as recom-

mended by tire dressing manufacturer.

Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth dam-
pened in mild soap solution, then wipe clean
with a dry soft cloth.

Regular care and cleaning is required in order to
maintain the appearance of the leather.

Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.

Use a cloth dampened only with water, to clean
the meter and gauge lens.

WARNING

Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensors. This can also affect the
operation of the air bag system and
result in serious personal injury.

CAUTION

. Never use benzine, thinner, or any

similar material.

. For cleaning, use a soft cloth, dam-

pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.

. Do not spray any liquid such as

water on the meter lens. Spraying
liquid may cause the system to
malfunction.

. Small dirt particles can be abrasive

and damaging to the leather sur-
faces and should be removed
promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning
fluids, solvents, detergents or am-
monia-based cleaners as they may
damage the leather’s natural finish.

. Never use fabric protectors unless

recommended by the manufacturer.

. Do not use glass or plastic cleaner

on meter or gauge lens covers. It

may damage the lens cover.

AIR FRESHENERS

Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
. Hanging-type air fresheners can cause

permanent discoloration when they contact
vehicle interior surfaces. Place the air
freshener in a location that allows it to hang
free and not contact an interior surface.

. Liquid-type air fresheners typically clip on

the vents. These products can cause
immediate damage and discoloration when
spilled on interior surfaces.

Carefully read and follow the manufacturer’s
instructions before using air fresheners.

FLOOR MATS

WARNING

To avoid potential pedal interference
that may result in a collision, injury or
death:

. NEVER place a floor mat on top of

another floor mat in the driver front
position or install them upside
down or backwards.

Appearance and care

7-5

CLEANING INTERIOR

7-6

Appearance and care

. It is recommended that you use only

genuine NISSAN floor mats specifi-
cally designed for use in your vehi-
cle model and model year.

. Properly position the mats in the

floorwell using the floor mat posi-
tioning hooks. See “Floor mat in-
stallation” (P.7-6).

. Make sure the floor mat does not

interfere with pedal operation.

. Periodically check the floor mats to

make sure they are properly in-
stalled.

. After cleaning the vehicle interior,

check the floor mats to make sure
they are properly installed.

The use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior. Mats should be
maintained with regular cleaning and replaced if
they become excessively worn.

SAI0050

Floor mat installation

Your vehicle is equipped with floor mat position-
ing hook(s). The number and shape of the floor
mat positioning hook(s) for each seating position
varies depending on the vehicle.

When installing genuine NISSAN floor mats,
follow the installation instructions provided with
the floor mat and the following:

1. Position the floor mat in the floorwell so that

the floor mat grommet holes are aligned with
the hook(s).

2. Secure the grommet holes into the hook(s)

and ensure that the floor mat is properly
positioned.

3. Make sure the floor mat does not interfere

with pedal operation. With the ignition in the
OFF position and the shift lever in the P
(Park) position (Continuously Variable Trans-
mission (CVT) models) or the shift lever in
the N (Neutral) position (Manual Transmis-
sion (MT) models), fully apply and release all
pedals. The floor mat must not interfere with
pedal operation or prevent the pedal from
returning to its normal position. It is recom-
mended you see a NISSAN dealer for
details about installing the floor mats in your
vehicle.

Nissan Juke (2017 year). Instruction - part 20
