Nissan Juke (2017 year). Instruction

CAUTION

. Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.

. Do not grab the USB port cover (if

so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

. Do not leave the USB cable in a

place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

To connect an iPod

to the vehicle so that the

iPod

can be controlled with the audio system

controls and display screen, use the USB port
located on the lower center of the instrument
panel. Connect the iPod

-specific end of the

cable to the iPod

and the USB end of the cable

to the USB port on the vehicle. If your iPod

supports charging via a USB connection, its

battery will be charged while connected to the
vehicle with the ignition switch in the ACC or
ON position.

While connected to the vehicle, the iPod

may

only be able to be operated by the vehicle audio
controls.

To disconnect the iPod

from the vehicle,

remove the USB end of the cable from the
USB port on the vehicle, then remove the cable
from the iPod

iPod

is a trademark of Apple Inc., registered in

the U.S. and other countries.

Compatibility:

The following models are compatible:
. iPod Classic

5th generation (firmware

version 1.3.0 or later)

. iPod Classic

6th generation (firmware

version 2.0.1 or later)

. iPod Classic

6th (6.1) generation (firmware

version 2.0.1 or later)

. iPod Classic

6th (6.2) generation (firmware

version 2.0.4 or later)

. iPod Touch

2nd generation (firmware ver-

sion 4.2.1 or later)*

. iPod Touch

3rd generation (firmware ver-

sion 5.1.1 or later)

. iPod Touch

4th generation (firmware ver-

sion 6.1.3 or later)

. iPod Touch

5th generation (firmware ver-

sion 6.1.3 or later)

. iPod nano

- 2nd generation (firmware

version 1.1.3 or later)

. iPod nano

- 3rd generation (firmware

version 1.1.3 or later)

. iPod nano

- 4th generation (firmware

version 1.0.4 or later)

. iPod nano

- 5th generation (firmware

version 1.0.2 or later)

. iPod nano

- 6th generation (firmware

version 1.2 or later)

. iPod nano

- 7th generation (firmware

version 1.2 or later)

. iPhone

3G (firmware version 4.2.1 or later)

. iPhone

3GS (firmware version 5.1.1or

later)

. iPhone

4 (firmware version 6.1.3 or later)

. iPhone

4S (firmware version 6.1.3 or later)

. iPhone

5 (firmware version 6.1.3 or later)

* Some features of this iPod

may not be fully

functional.

Make sure that your iPod

firmware is updated

to the version indicated above.

Heater, air conditioner, audio and phone systems

4-69

4-70

Heater, air conditioner, audio and phone systems

JVH0746X

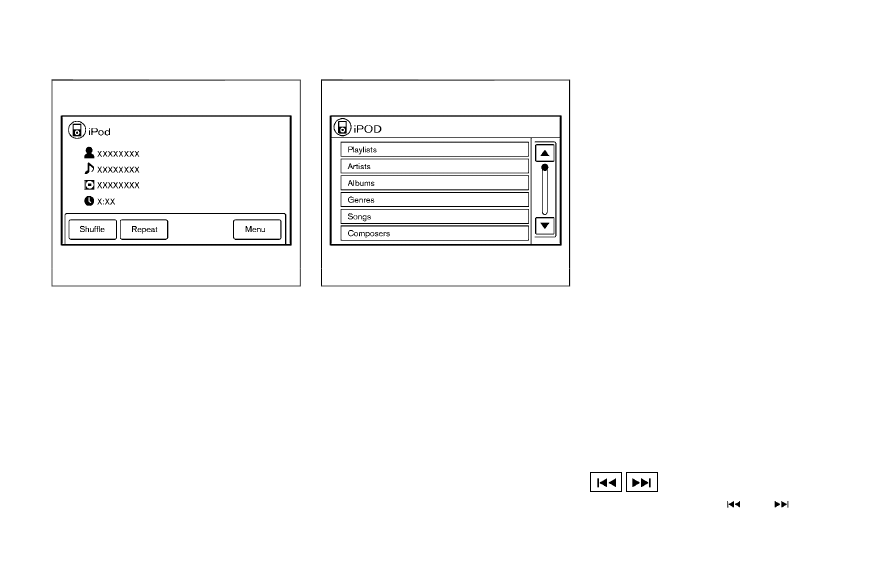

Audio main operation:

Place the ignition switch in the ACC or ON
position. Push the AUX button repeatedly to
switch to the iPod

mode.

If the system has been turned off while the iPod

was playing, pushing the ON·OFF button will
start the iPod

AUX button:

When the AUX button is pushed with the system
off and the iPod

connected, the system will turn

on. If another audio source is playing and the
iPod

is connected, push the AUX button

repeatedly until the center display changes to
the iPod

mode.

JVH0747X

Interface:

The interface for iPod

operation shown on the

vehicle’s audio system display screen is similar
to the iPod

interface. Use the touch-screen,

BACK button or the TUNE knob to navigate the
menus on the screen.

When the iPod

is playing, touch the “Menu”

key to bring up the iPod

interface.

Depending on the iPod

model, the following

items may be available on the menu list screen.
For further information about each item, see the
iPod

Owner’s Manual.

. Playlists

. Artists
. Albums
. Genres
. Songs
. Composers
. Audiobooks
. Podcasts
Shuffle and repeat play mode:

While the iPod

is playing, the play pattern can

be altered so that songs are repeated or played
randomly.
. Shuffle:

Touch the “Shuffle” key to apply a random
play pattern to the iPod

. When the Shuffle

mode is active, the text is highlighted. To
cancel Shuffle mode, touch the “Shuffle” key
again until the text is no longer highlighted.

. Repeat:

Touch the “Repeat” key to apply a repeat
play pattern to the iPod

. When the repeat

mode is active, the text is highlighted. To
cancel Repeat mode, touch the “Repeat”
key again until the text is no longer high-
lighted.

Seek button:

Push the seek button

to skip

backward or forward one track.

4-72

Heater, air conditioner, audio and phone systems

JVH0735X

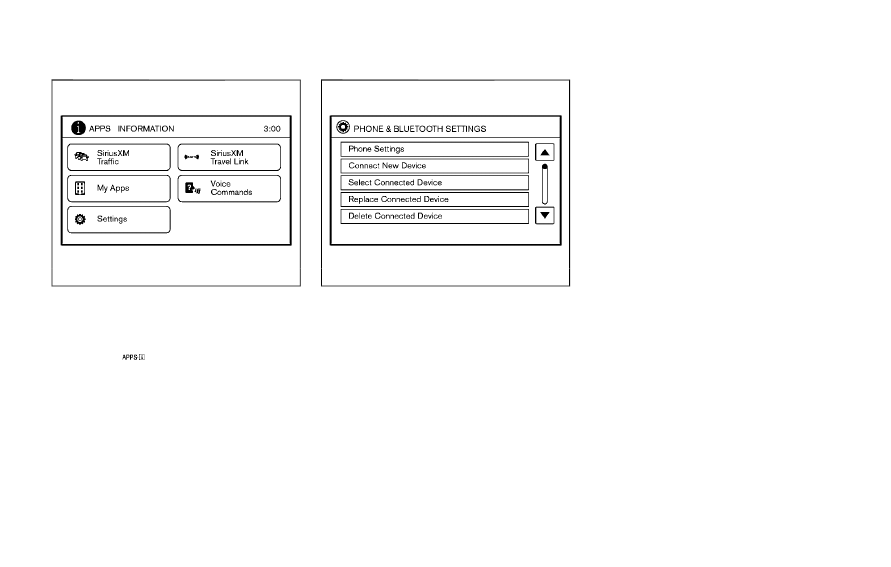

Connecting Bluetooth

audio:

To connect your Bluetooth

audio device to the

vehicle, follow the procedure below:

1. Push the

button.

2. Touch the “Settings” key.

3. Touch the “Phone & Bluetooth” key.

JVH0750X

4. Touch the “Connect New Device” key.

5. The system acknowledges the command

and asks you to initiate connecting from the
phone handset. The connecting procedure
of the cellular phone varies according to
each cellular phone model. See the cellular
phone Owner’s Manual for details. You can
also visit www.nissanusa.com/bluetooth for
instructions on connecting NISSAN recom-
mended cellular phones.

Audio main operation:

To switch to the Bluetooth

audio mode, push

the AUX button repeatedly until the Bluetooth

audio mode is displayed on the screen.

The controls for the Bluetooth

audio are

displayed on the screen.

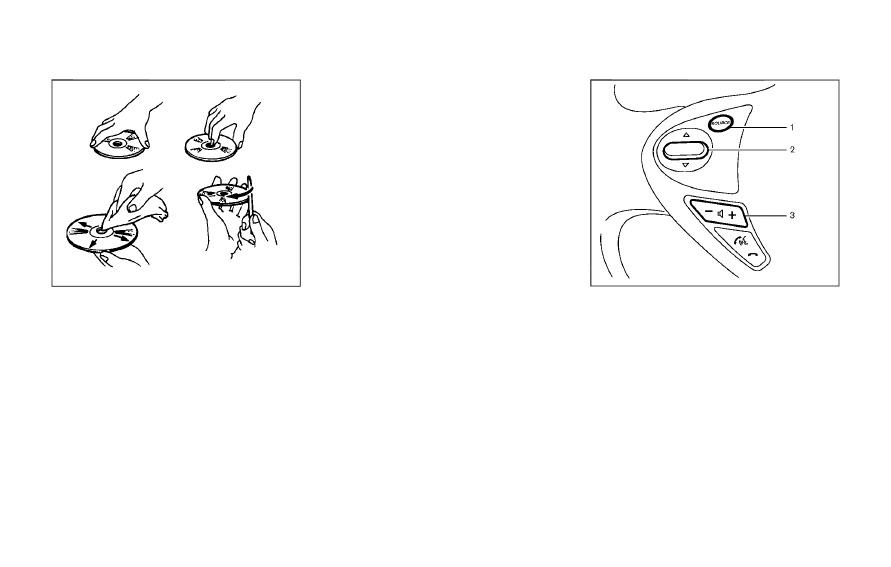

SAA0451

CD/USB MEMORY CARE AND
CLEANING

. Handle a CD by its edges. Never touch the

surface of the disc. Do not bend the disc.

. Always place the discs in the storage case

when they are not being used.

. To clean a disc, wipe the surface from the

center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.

. A new disc may be rough on the inner and

outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.

USB memory

. Do not touch the terminal portion of the USB

memory.

. Do not place heavy objects on the USB

memory.

. Do not store the USB memory in very humid

locations.

. Do not expose the USB memory to direct

sunlight.

. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner’s Manual for
the details.

SAA3383

SOURCE select switch

Tuning switch

VOLUME control switch

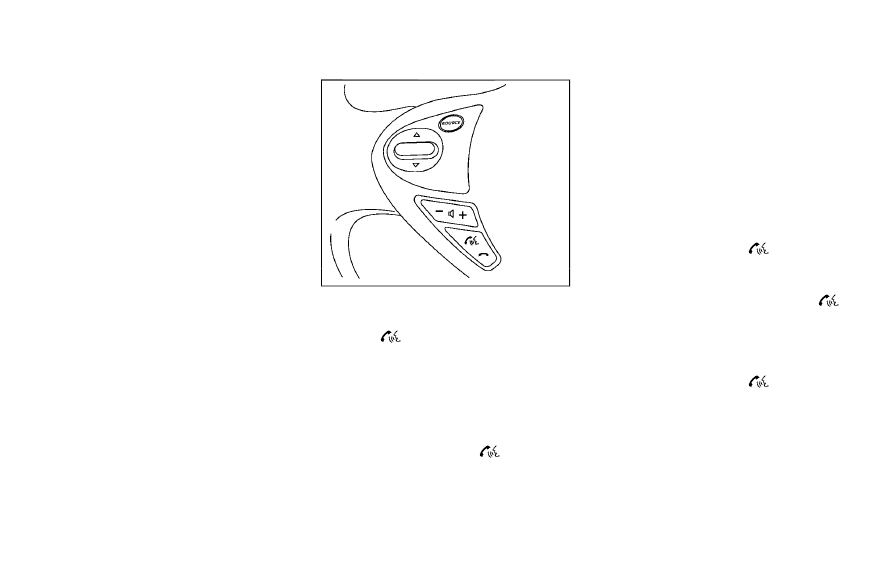

STEERING WHEEL SWITCH FOR
AUDIO CONTROL

The audio system can be operated using the
controls on the steering wheel.

SOURCE select switch

Push the SOURCE select switch to change the
mode to available audio source.

Heater, air conditioner, audio and phone systems

4-73

4-74

Heater, air conditioner, audio and phone systems

VOLUME control switch

Push up or down the VOLUME control switch to
increase or decrease the volume.

Tuning switch

AM and FM radio:
. Push the tuning switch for less than 1.5

seconds to change the next or previous
radio preset.

. Push the tuning switch for more than 1.5

seconds to seek the next or previous radio
station.

SXM operation (if so equipped):
. Tilt up/down for less than 1.5 seconds to

increase or decrease the preset station.

. Tilt up/down for more than 1.5 seconds to

go to the next or previous category.

iPod

. Push the tuning switch for less than 1.5

seconds to return to the beginning of the
present program or skip to the next program.
Push several times to skip back or skip
through programs.

. This system searches for the blank intervals

between selections. If there is a blank
interval within one program or there is no
interval between programs, the system may

not stop in the desired or expected location.

CD:
. Push the tuning switch for less than 1.5

seconds to return to the beginning of the
present program or skip to the next program.
Push several times to skip back or skip
through programs.

. This system searches for the blank intervals

between selections. If there is a blank
interval within one program or there is no
interval between programs, the system may
not stop in the desired or expected location.

. Push the tuning switch for more than 1.5

seconds to change the folders (if there are
any folders).

USB:
. Push the tuning switch for less than 1.5

seconds to return to the beginning of the
present program or skip to the next program.
Push several times to skip back or skip
through programs.

. This system searches for the blank intervals

between selections. If there is a blank
interval within one program or there is no
interval between programs, the system may
not stop in the desired or expected location.

. If there are any folders, push the tuning

switch for more than 1.5 seconds to change

the folders (if so equipped).

Bluetooth

Audio operation:

. Tilt up/down for less than 1.5 seconds to

skip ahead or back to the next song.

. Tilt up/down for more than 1.5 seconds to

reverse or fast forward the current track.

SAA2102

Type A (if so equipped)

SAA2374

Type B (if so equipped)

ANTENNA

To remove the antenna, hold the bottom of the
antenna and turn it counterclockwise.

To install the antenna, turn the antenna clock-
wise and tighten.

CAUTION

. To avoid damaging or deforming the

antenna, be sure to fold down (if so
equipped) or remove the antenna
under the following conditions.

— The vehicle enters a garage with

a low ceiling.

— The vehicle is covered with a car

cover.

. Be sure that antenna is removed

before the vehicle enters an auto-
matic car wash.

. Always properly tighten the antenna

rod during installation. Otherwise,
the antenna rod may break during
vehicle operation.

This vehicle is equipped with Smartphone
Integration technology. This allows many com-
patible Smartphone applications to be displayed
and easily controlled through the vehicle’s
touchscreen.

NOTE:

A compatible smartphone and registration
is required to use mobile applications or to
access connected features of certain vehi-
cle applications.

REGISTERING WITH NISSANCON-
NECT

APP

To use the Smartphone Integration feature, it is
necessary for the user to register. In order to
register, visit the NissanConnect

website and

App. Once

registered, download the NissanConnect

App

from your compatible phone’s application down-
load source and then log into the application. If
you already have an account created through
the App, please log in.

NissanConnect

website:

For U.S.

www.nissanusa.com/connect/

For Canada

Canada.NissanConnect.com

Heater, air conditioner, audio and phone systems

4-75

NISSANCONNECT

APP

SMARTPHONE INTEGRATION

4-76

Heater, air conditioner, audio and phone systems

CONNECT PHONE

To use this feature, a compatible smartphone
must be connected via Bluetooth

or USB to

the vehicle. For more information on connecting
your phone, see “Bluetooth

Hands-Free Phone

System (models without navigation system)”
(P.4-80) or “Bluetooth

Hands-Free Phone

System (models with navigation system)” (P.4-
89).

NOTE:
. For Apple iPhones

, NissanConnect

Apps REQUIRES the phone to be
plugged in via USB.

. For Android phones, NissanConnect

Apps REQUIRES the phone to be
paired via Bluetooth

APPLICATION DOWNLOAD

Once connected, the NissanConnect

App

will search your phone to determine which
compatible applications are currently installed.
The user will then choose which apps they want
to bring into their vehicle from the list of apps
within the “Manage My Apps” section of the
NissanConnect

App on their smartphone. The

vehicle will then download the in-vehicle inter-
face for each of these compatible applications.
Once downloaded, the user can access their
selected smartphone applications through the
vehicle touchscreen. For more information on

application availability see NissanConnect

website.

NissanConnect

website:

For U.S.

www.nissanusa.com/connect/

For Canada

www.Nissan.ca/NissanConnect (English)

www.Nissan.ca/NissanConnect/fr (French)

GENERAL INFORMATION

Apple Siri

Eyes Free personal assistant can be

accessed from the vehicle. Siri

Eyes Free can

be accessed in Siri

Eyes Free mode to reduce

user distraction. In this mode, Siri

Eyes Free is

available for interaction by voice control. After
connecting a compatible Apple device by using
Bluetooth

, Siri

Eyes Free can be activated

using the

TALK switch on the steering

wheel.

Siri

is a trademark of Apple Inc., registered in

the U.S. and other countries.

INFO:

. Some Siri

Eyes Free functions, such as

opening apps, may not be available during
driving.

. For best results, always update your device

to the latest software version.

. Keep the interior of the vehicle as quiet as

possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.

. For functions that can be used in Siri

Eyes

Free, please refer to the Apple website.

SIRI

EYES FREE

REQUIREMENTS

Siri

is available on the iPhone

4S or later.

Devices released before iPhone

4S are not

supported by the Siri

Eyes Free system.

Visit www.apple.com/ios/siri for details about
device compatibility.

Siri

must be enabled on the phone. Please

check phone settings.

If the device has a lock screen, Siri

must be

accessible from the lock screen. Please check
phone settings.

For best results, always update your device to
the latest software version.

SAA3385

SIRI

EYES FREE ACTIVATION

Siri

Eyes Free function can be activated by

using the

TALK switch on the steering

wheel.

Models with navigation system

1. Connect a Siri

Eyes Free enabled iPhone

to the vehicle. (See “Connecting procedure”
(P.4-92).)

2. After the Bluetooth

connection is estab-

lished, push and hold the

TALK switch

to activate the Siri

Eyes Free function.

Models without navigation system

1. Connect a Siri

Eyes Free enabled iPhone

to the vehicle. (See “Initialization” (P.4-83).)

2. After the Bluetooth

connection is estab-

lished, the switch operation select screen is
displayed.

3. Select “Short Press” or “Long Press” for

Siri

Eyes Free activation. Switch action can

also be changed from the Bluetooth

settings menu. (See “Changing Siri

Eyes

Free Settings (models without navigation
system)” (P.4-78).)

OPERATING SIRI

EYES FREE

1. Push or push and hold the

TALK switch.

2. Speak your command and then listen to the

Siri

Eyes Free reply.

After starting Siri

Eyes Free, push the

TALK switch again within 5 seconds of the end
of the Siri

Eyes Free announcement to extend

the session.

Example 1 - Playing music

1. Push or push and hold the

TALK switch.

2. Say “Play (artist name, song name, etc.)”.

3. Your vehicle will automatically change to

Bluetooth

Audio or iPod

mode* when the

music starts playing. Mode selection is
determined by the phone.

*: If the iPhone

is also connected with the

USB cable.

If the audio track does not start playing

Heater, air conditioner, audio and phone systems

4-77

4-78

Heater, air conditioner, audio and phone systems

automatically after Siri

Eyes Free ends, try

changing the track or audio source to resume
playback.

NOTE:

For best results, use the native music app.
Performance of music control function
while using Podcasts, Audiobook or other
3rd party music apps may vary and is
controlled by the iPhone

Example 2 - Replying to text messages

1. If a compatible iPhone

is connected and

“Show Notifications” of the iPhone

settings

is enabled, the vehicle will display a notifica-
tion for new incoming text messages.

2. After reading the message, push or push

and hold the

TALK switch to reply using

Siri

Eyes Free.

3. After a beep sounds, say “Text message” or

a similar command to reply using Siri

Eyes

Free.

CHANGING SIRI

EYES FREE SET-

TINGS (models without navigation sys-
tem)

Settings for Siri

Eyes Free can be found in the

Bluetooth

settings menu. (See “Bluetooth

settings” (P.4-88).)

1. Push the ENTER/SETTING button.

2. Use the TUNE·FOLDER or TUNE·SCROLL

knob to select “Bluetooth” and then push
the ENTER/SETTING button.

3. Use the TUNE·FOLDER or TUNE·SCROLL

knob to select “Siri” and then push the
ENTER/SETTING button.

4. Select “Short Press” or “Long Press” using

the TUNE·FOLDER or TUNE·SCROLL knob
and then push the ENTER/SETTING button.

TROUBLESHOOTING GUIDE

Symptom

Cause and Countermeasure

Cannot access Siri

Eyes Free from the switch on the steering wheel Check if a Bluetooth

connection is established between the iPhone

and the system.

Check if Siri

is enabled on the device. On your phone, go to Siri

setting.

Check that Siri

can be accessed from the device lock screen. This can be set in the settings menu

of your phone.

Models without navigation system:
Check the settings for Siri

Eyes Free activation on the vehicle audio system. If the setting is “Long

Press”, you must push and hold the

TALK switch on the steering wheel for more than 1.5

seconds to start Siri

Eyes Free. If the setting is “Short Press”, a short push and release of the switch

should start Siri

Eyes Free.

Audio source does not change automatically to iPod

or Bluetooth

Audio mode

For best results, use the native music app. Performance of music control function while using
Podcasts, Audiobook or other 3rd party music apps may vary.

For best results, play media already stored on your device. Streaming music or playback from cloud
storage may degrade performance.

Switch the source manually by pushing the AUX or MEDIA button on the vehicle audio system or the
SOURCE select switch on the steering wheel.

Play, pause, next track, previous track or play timer does not work

For best results, use the native music app. Performance of music control function while using
Podcasts, Audiobook or other 3rd party music apps may vary and is controlled by the device.

Cannot hear any music/audio being played back from a connected
iPhone

Check that the audio source is set to Bluetooth

Audio or iPod

mode. A USB connection is

required for iPod

mode.

Cannot hear map turn-by-turn direction guidance from a connected
iPhone

Check that the audio source is set to Bluetooth

Audio or iPod

mode. A USB connection is

required for iPod

mode.

Cannot receive text message notifications on the vehicle audio
system

Check if “Show Notifications” is enabled on your phone. On your phone, go to Bluetooth

settings.

Find the device name, like “My Car”. Tap

on your phone. Turn on “Show Notifications”.

Cannot reply to text message notifications using Siri

Eyes Free

After receiving an incoming text message, follow the on-screen guidance. Push or push and hold the

TALK switch on the steering wheel for Siri

Eyes Free. After Siri

Eyes Free starts, say “Text

Message”.

Heater, air conditioner, audio and phone systems

4-79

4-80

Heater, air conditioner, audio and phone systems

When installing a car phone or a CB radio in
your vehicle, be sure to observe the following
precautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.

WARNING

. A cellular phone should not be used

for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.

. If you must make a call while your

vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.

. If a conversation in a moving vehicle

requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.

CAUTION

. Keep the antenna as far away as

possible from the electronic control
modules.

. Keep the antenna wire more than 8

in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.

. Adjust the antenna standing-wave

ratio as recommended by the man-
ufacturer.

. Connect the ground wire from the

CB radio chassis to the body.

. For details, it is recommended you

visit a NISSAN dealer.

WARNING

. Use a phone after stopping your

vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.

. If you are unable to devote full

attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.

CAUTION

To avoid draining the vehicle battery,
use a phone after starting the engine.

Your vehicle is equipped with the Bluetooth

Hands-Free Phone System. If you have a
compatible Bluetooth

enabled cellular phone,

you can set up the wireless connection between
your cellular phone and the in-vehicle phone
module. With Bluetooth

wireless technology,

you can make or receive a hands-free telephone
call with your cellular phone in the vehicle.

CAR PHONE OR CB RADIO

Bluetooth

HANDS-FREE PHONE

SYSTEM (models without
navigation system)

Once your cellular phone is connected to the in-
vehicle phone module, no other phone connect-
ing procedure is required. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
placed in the ACC or ON position with the
previously connected cellular phone turned on
and carried in the vehicle.

NOTE:

Some devices require the user to accept
connections to other Bluetooth

devices. If

your phone does not connect automatic
ally to the system, consult the phone’s
Owner’s Manual for details on device
operation.

You can connect up to 5 different Bluetooth

cellular phones to the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.

Before using the Bluetooth

Hands-Free Phone

System, refer to the following notes.
. Set up the wireless connection between a

compatible cellular phone and the in-vehicle
phone module before using the Hands-Free
Phone System.

. Some Bluetooth

enabled cellular phones

may not be recognized by the in-vehicle
phone module. Please visit www.nissanusa.
com/bluetooth for a recommended phone

list.

. You will not be able to use a hands-free

phone under the following conditions:
— Your vehicle is outside of the cellular

service area.

— Your vehicle is in an area where it is

difficult to receive a cellular signal; such
as in a tunnel, in an underground parking
garage, near a tall building or in a
mountainous area.

. When the radio wave condition is not ideal

or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.

. Do not place the cellular phone in an area

surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.

. While a cellular phone is connected through

the Bluetooth

wireless connection, the

battery power of the cellular phone may
discharge quicker than usual. The Blue-
tooth

Hands-Free Phone System cannot

charge cellular phones.

. If the Hands-Free Phone System seems to

be malfunctioning, see “Troubleshooting
guide” in this section. You can also visit
www.nissanusa.com/bluetooth for trouble-

shooting help.

. Some cellular phones or other devices may

cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.

. Refer to the cellular phone Owner’s Manual

regarding the telephone charges, cellular
phone antenna and body, etc.

REGULATORY INFORMATION

FCC Regulatory information

. CAUTION: To maintain compliance with

FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.

. Operation is subject to the following two

conditions:
1) this device may not cause interference

and

2) this device must accept any interference,

including interference that may cause
undesired operation of the device

Heater, air conditioner, audio and phone systems

4-81

4-82

Heater, air conditioner, audio and phone systems

IC Regulatory information

. Operation is subject to the following two

conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.

. This Class B digital apparatus meets all

requirements of the Canadian Interference-
Causing Equipment Regulations.

Bluetooth

trademark

Bluetooth

is a trademark owned

by Bluetooth SIG, Inc., and
licensed to Visteon Corporation.

USING THE SYSTEM

The voice recognition system allows hands-free
operation of the Bluetooth

Phone System.

If the vehicle is in motion, some commands may
not be available so full attention may be given to
vehicle operation.

SAA3385

Control buttons and microphone

The control buttons for the Bluetooth

Hands-

Free Phone System are located on the steering
wheel.

PHONE SEND:

Push the

button to initiate a VR session or

answer an incoming call.

INFO:

If the “Siri” on the Bluetooth

settings menu is

set to “Short Press”, pushing and holding the

PHONE SEND button initiates a VR

session for Hands-Free Phone operation. (See
“Bluetooth

settings” (P.4-88).)

You can also use the

button to interrupt the

system feedback and give a command at once.
See “List of voice commands” and “During a
call” in this section for more information.

PHONE END:

While the voice recognition system is active,
push and hold the

button to quit the voice

recognition system at any time.

Microphone:

Microphone is located near the map lights.

Manual control:

While using the Voice Recognition system, it is
possible to select menu options by using the
steering wheel controls instead of speaking
voice commands. To activate manual control
mode, push the

button on the steering

wheel to access the phone menu and then tilt
the tuning switch (

) up or down.

The manual control mode does not allow dialing
a phone number by digits. The user may select
an entry from the Phonebook or Recent Calls
lists. To reactivate Voice Recognition, exit the
manual control mode by pushing and holding the

button. At that time, pushing the

button

will start the Hands-Free Phone System.

Choosing a language

You can interact with the Bluetooth

Hands-

Free Phone System using several languages
that are available. For operations to change the
language, see “Audio main operation” (P.4-45)
or “Audio main operation” (P.4-54).

Changing voice feedback volume

If you want to adjust the volume of the voice
feedback, push the volume control switch on the
steering wheel while being provided with feed-
back. You can also use the VOL (volume) control
knob on the audio unit.

Initialization

When the ignition switch is placed in the ACC
or ON position, voice recognition is initialized,
which takes a few seconds. If the

button is

pushed before the initialization completes, the
system will announce “Hands-free phone sys-
tem not ready” and will not react to voice
commands.

Connecting procedure:

NOTE:

The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be cancelled.

You can register up to 5 different Bluetooth

cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.

To connect a phone to the Bluetooth

Hands-

Free Phone System;

1. Push the ENTER/SETTING button.

2. Use the TUNE·FOLDER or TUNE·SCROLL

control knob to select “Bluetooth” and then
push the ENTER/SETTING button.

3. Select “Add Phone” and then push the

ENTER/SETTING button.

4. When a message with a PIN appears on the

screen, operate the Bluetooth

phone to

enter the PIN.

The connecting procedure varies according to
each phone. See the phone’s Owner’s Manual
for details.

Giving voice commands

To operate voice recognition, push and release
the

button located on the steering wheel.

After the tone sounds, speak a command.

The command given is picked up by the
microphone, and voice feedback is given when
the command is accepted.
. If you need to hear the available commands

for the current menu again, say “Help” and
the system will repeat them.

. If a command is not recognized, the system

announces, “Command not recognized.
Please try again.” Make sure the command
is said exactly as prompted by the system
and repeat the command in a clear voice.

. If you want to go back to the previous

command, you can say “Go back” any time
the system is waiting for a response.

. You can cancel a command when the

system is waiting for a response by saying,
“Cancel” or “Quit.” The system announces
“Cancel” and ends the VR session. You can
also push and hold the

button on the

steering wheel at any time to end the VR
session. Whenever the VR session is
cancelled, a double beep is played to
indicate you have exited the system.

Heater, air conditioner, audio and phone systems

4-83

4-84

Heater, air conditioner, audio and phone systems

. If you want to adjust the volume of the voice

feedback, push the (

- or

+) button

on the steering wheel while being provided
with feedback. You can also use the radio
volume control knob.

Voice Prompt Interrupt:

In most cases you can interrupt the voice
feedback to speak the next command by
pushing the

button on the steering wheel.

After interrupting the system, wait for a beep
before speaking your command.

One Shot Call:

To use the system faster, you may speak the
second level commands with the main menu
command on the main menu. For example, push
the

button and after the tone say, “Call

Redial”.

Operating tips:

To get the best performance out of the voice
recognition system, observe the following:
. Keep the interior of the vehicle as quiet as

possible. Close the windows to eliminate
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing voice commands correctly.

. Wait until the tone sounds before speaking a

command. Otherwise, the command will not
be received properly.

. Start speaking a command within 5 seconds

after the tone sounds.

. Speak in a natural voice without pausing

between words.

Voice commands

Voice commands can be used to operate the
Bluetooth

Hands-Free Phone System. Push

the

button and say “Phone” to bring up the

phone command menu. The available options
are:
. Call
. Phonebook
. Recent Calls
. Show Applications
. Messaging
. Select Phone
Call:

For more information on the “Call” command,
see “Making a call” (P.4-85).

Phonebook:

The following commands are available under
“Phonebook”:
. (A Name)

Say a name in the phonebook to bring up a
list of options for that phonebook entry. The
system will say the name it interpreted
based on the voice command provided. If

the name is incorrect, say “Correction” to
hear another name.
Once the correct phonebook entry is
identified, say “Dial” to dial the number or
“Send Text” to send a text message to that
number. Say “Record Name” to record a
name for the phonebook entry. Say “Delete
Recording” to delete a recorded name for
the phonebook entry.

. List Names

Speak this command to have the system list
the names in the phonebook one by one
alphabetically. Say “Dial” to dial the number
of the current name or “Send Text” to send a
text message to that number. Say “Next
Entry” or “Previous Entry” to move through
the list alphabetically. Say “Record Name” to
record a name for the current phonebook
entry. Say “Delete Recording” to delete a
recorded name for the current phonebook
entry.

. Delete Entry

Speak this command to delete an entry in
the phonebook. Choose an entry to delete
by speaking the desired name or say “List
Names”.

Nissan Juke (2017 year). Instruction - part 15
