Nissan Juke (2017 year). Instruction

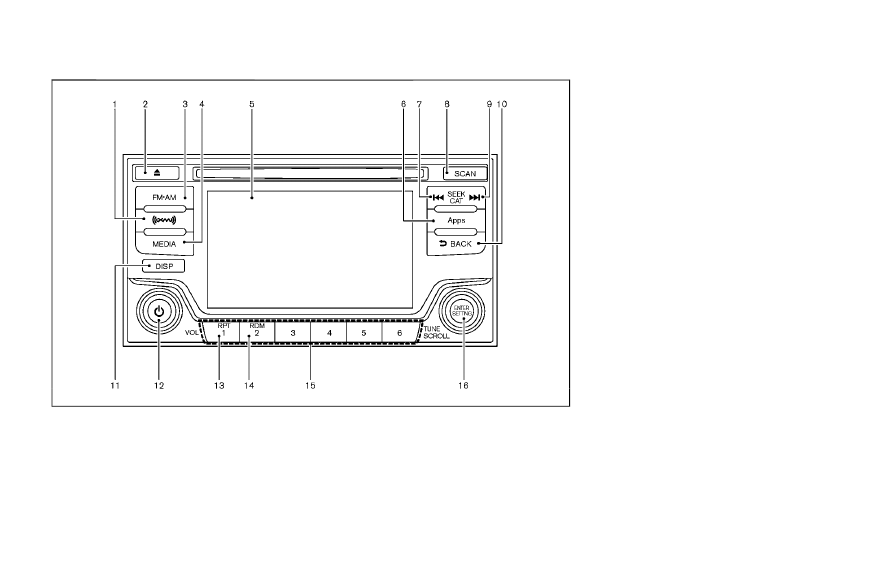

JVH1055X

XM band select button

CD eject button

FM·AM button

MEDIA button

Color display

Apps button

Radio CAT (category)/REW (rewind) button for
SEEK/TRACK

Radio SCAN tuning button

Radio CAT (category)/FF (fast forward) button
for SEEK/TRACK

10.

BACK button

11.

DISP (display) button

12.

Power button/VOL (volume) control knob

13.

RPT (repeat) play button

14.

RDM (random) play button

15.

Radio station preset select buttons

16.

ENTER/SETTING button/TUNE·SCROLL con-
trol knob

FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type A) (if so
equipped)

For all operation precautions, see “Audio opera-
tion precautions” (P.4-35).
. No satellite radio reception is available when

the SAT band option is selected unless the
optional satellite receiver and antenna are
installed, and there is an active SiriusXM
Satellite Radio subscription.

. The satellite radio mode requires an active

SiriusXM Satellite Radio subscription. The
satellite radio is not available in Alaska,
Hawaii and Guam.

. It may take some time to receive the

activation signal after subscribing the Sir-
iusXM Satellite Radio. After receiving the
activation signal, an available channel list will
be automatically updated in the radio. Push
the ignition switch from LOCK to ACC to
update the channel list.

Heater, air conditioner, audio and phone systems

4-53

4-54

Heater, air conditioner, audio and phone systems

Audio main operation

The audio system operates when the ignition
switch is placed in the ON or ACC position.

Head unit:

The auto loudness circuit enhances the low and
high frequency ranges automatically.

Power button / VOL (volume) control

knob:

Push the Power button/VOL (volume) control
knob to turn on and off the audio system.

Turn the Power button/VOL (volume) control
knob to adjust the volume.

Audio settings:

The settings screen will appear when pushing
the ENTER/SETTING button.

The following items are available in the settings
screen.
. Bluetooth

It is possible to set the Bluetooth

settings.

For details of the Bluetooth

settings, see

“Bluetooth

settings” (P.4-88).

. Bass, Treble, Balance and Fade

Controls the sound of the audio system.
Balance adjusts the sound between the left
and right speakers. Fade adjusts the sound
between the front and rear speakers.
Select the “Bass”, “Treble”, “Balance” or

“Fade” using the TUNE·SCROLL control
knob and then push the ENTER/SETTING
button. Turn the TUNE·SCROLL control
knob to adjust the Bass, Treble, balance
and Fade of the screen to the preferred
level. Push the ENTER/SETTING button to
apply the setting.

. Brightness and Contrast

Adjust the brightness and contrast of the
screen.
Select the “Brightness” or “Contrast” using
the TUNE·SCROLL control knob and then
push the ENTER/SETTING button. Turn the
TUNE·SCROLL control knob to adjust the
brightness and contrast of the screen to the
preferred level. Push the ENTER/SETTING
button to apply the setting.

. Clock Adjust

Adjust the clock according to the following
procedure.
1) Select “Clock Adjust” using the TU-

NE·SCROLL control knob and then
push the ENTER/SETTING button.

2) Adjust the hour with the TUNE·SCROLL

control knob and then push the ENTER/
SETTING button.

3) Adjust the minute with the TUNE·SC-

ROLL control knob and then push the
ENTER/SETTING button.

24 hour clock is not available.

. On-Screen Clock

When this item is turned on, a clock is
always displayed in the upper right corner of
the screen.
Select the “On-Screen Clock” using the
TUNE·SCROLL control knob and then push
the ENTER/SETTING button. You can tog-
gle between ON and OFF using the
TUNE·SCROLL control knob.

. RDS Display (if so equipped)

RDS (radio data system) information can be
shown on the display. Select “RDS Display”
using the TUNE·SCROLL control knob and
then push the ENTER/SETTING button. You
can toggle between ON and OFF using the
TUNE·SCROLL control knob. Push the
ENTER/SETTING button to apply the
setting.

. Speed Sensitive Vol.

To change the Speed Sensitive Volume
(Speed Sensitive Vol.) level from off (0) to
5, turn the TUNE·SCROLL control knob.

. AUX Vol.

Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Choose a setting between +1 and
+3 or choose 0 to disable the feature
entirely.

. Language Select

The language settings can be changed.
Select “Language Select” using the TU-
NE·SCROLL control knob and then push the
ENTER/SETTING button. Use the TU-
NE·SCROLL control knob to select the
preferred language. Push the ENTER/
SETTING button to apply the setting.

DISP button:

Display of the screen can be canceled by
pushing the

button. You can still listen to

music that is being played back even while the
screen display is turned off. If you want to
display the screen again, push the

button

once more. Pushing some of the audio source
buttons will also turn the screen back on and
display the screens of the corresponding
sources.

MEDIA button:

Pushing the

button will switch the audio

source as follows:

?USB/iPod ? Bluetooth Audio ? AUX ?

Apps button:

The

button launches the Smartphone

Integration mode. See “NissanConnect

App

smartphone integration” (P.4-75).

FM-AM-SAT Radio operation

radio (FM·AM) band select:

Pushing the FM·AM button will change the band
as follows:

? FM1 ? FM2 ? AM

radio (SAT) band select:

Pushing the XM band select button will change
the band as follows:

XM1

? XM2 ? XM3 ? XM1

When the XM band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.

The last channel played will also come on when
the Power button is pushed to ON.

The satellite radio is not available in Alaska,
Hawaii and Guam.

If another audio source is playing when the radio
band select button is turned to ON, the audio
source will automatically be turned off and the
last radio channel played will come on.

When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.

TUNE (Tuning):
. For AM and FM radio

Turn the radio TUNE·SCROLL control knob
for manual tuning.

. For SiriusXM Satellite Radio

Turn the radio TUNE·SCROLL control knob
to seek channels from all of the categories
when any category is not selected.

SEEK tuning/CAT (category):

. For AM and FM radio

Push the SEEK button

to tune

from low to high or high to low frequencies
and to stop at the next broadcasting station.

. For SiriusXM Satellite Radio

Push the SEEK button

to tune to

the first channel of the next or previous
category.

SCAN tuning:

Push the SCAN tuning button to tune from low
to high frequencies and stop at each broad-
casting station for several seconds. Pushing the
button again during this several seconds period
will stop SCAN tuning and the radio will remain
tuned to that station.

If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next

Heater, air conditioner, audio and phone systems

4-55

4-56

Heater, air conditioner, audio and phone systems

station.

Station memory operations:

12 stations can be set for the FM band (6 each
for FM1 and FM2) and 6 stations can be set for
the AM band.

1. Choose the radio band using the

button.

2. Tune to the desired station.

3. Push and hold the desired station preset

button

until beep sounds.

4. The station indicator will then come on.

Memorizing is now complete.

5. Other buttons can be set in the same

manner.

If the battery cable is disconnected, or if the fuse
opens, the station memory will be erased. In that
case, reset the desired stations.

CD player operation

Place the ignition switch in the ON or ACC
position, and insert the compact disc (CD) into
the slot with the label side facing up. The CD will
be guided automatically into the slot and start
playing.

After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.

If another audio source is already operating, it
will automatically turn off and the CD will play.

If the system was turned off while the CD was
playing, pushing the Power button will start the
CD.

PLAY:

With a CD loaded, press the

button until

the CD mode is displayed on the screen.

Next/Previous Track and Fast

Forward/Rewind :

When the

button is pushed and hold

while the CD is being played, the CD will play
while fast forwarding or rewinding. When the
button is released, the CD will return to normal
play speed.

When the

button is pushed while

the CD is being played, the next track or the

beginning of the current track on the CD will be
played. Push the

button again to select the

previous track.

RPT (repeat) button:

When the

button is pushed while the CD is

played, the play pattern can be changed as
follows:

(CD)

(Normal) ⇔ 1 Track Repeat

(CD with compressed audio files)

(Normal)

? 1 Folder Repeat ? 1 Track Repeat

? (Normal)

RDM (random) button:

When the

button is pushed while a CD is

being played, the play pattern can be changed
as follows:

(CD)

(Normal) ⇔ 1 Disc Random

(CD with compressed audio files)

(Normal)

? 1 Disc Random ? 1 Folder

Random

? (Normal)

CD eject button:

When the

button is pushed with the CD

loaded, the CD will be ejected.

If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.

USB (Universal Serial Bus) connection
port

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

. Do not force the USB device into the

USB port. Inserting a USB device
tilted or upside-down into the port
may damage the port. Make sure
that the USB device is connected
correctly to the USB port.

. Do not grab the USB port cover (if

so equipped) when pulling a USB
device out of the port. This could
damage the port and the cover.

. Do not leave a USB cable in a place

where it can be pulled unintention-
ally. Pulling the cable may damage
the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

SAA3444

USB main operation:

The USB outlet connector is located on the
lower part of the instrument panel. Connect a
USB memory device into the connector. When
the audio system operates, the system will
switch to the USB memory device mode
automatically.

If the system has been turned off while the USB
memory device was playing, pushing the Power
button will start the USB memory device.

MEDIA button:

To change to the USB mode, push the
button with a USB connected until the USB
mode is selected.

Heater, air conditioner, audio and phone systems

4-57

4-58

Heater, air conditioner, audio and phone systems

Next/Previous File and Fast

Forward/Rewind:

When the

button is pushed and held

while a USB memory is being played, the USB
memory will play while forwarding or rewinding.
When the button is released, the USB memory
will return to normal play speed.

When the

button is pushed while

the USB memory is being played, the next track
or the beginning of the current track on the USB
memory will be played. Push the

button

again to select the previous track.

Folder selection:

To change to another folder in the USB memory,
choose a folder displayed on the screen using
the TUNE·SCROLL knob.

REPEAT (RPT):

When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.

To change the play mode, push the RPT button
repeatedly and the mode will change as follows.

(Normal)

? 1 Folder Repeat ? 1 Track Repeat

? (Normal)

RANDOM (RDM):

When the RDM button is pushed while a USB
memory is being played, the play pattern can be
changed as follows.

To change the play mode, push the RDM button
repeatedly, and the mode will change as follows.

(Normal)

? All Random ? 1 Folder Random ?

(Normal)

BACK button:

When the BACK button is pushed, it returns to
the previous display.

iPod

player operation

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

. Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.

. Do not grab the USB port cover (if

so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

. Do not leave the USB cable in a

place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

Connecting iPod

The USB port is located on the lower part of the
instrument panel. Connect the iPod

cable to

the USB connector. See “USB (Universal Serial
Bus) connection port” (P.4-57). When the audio
system operates, the system will switch to the
iPod

mode automatically. The battery of the

iPod

is charged while the cable is connected to

the vehicle.

Depending on the version of the iPod

, the

display on the iPod

shows a NISSAN or

Accessory Attached screen when the connec-
tion is completed. When the iPod

is connected

to the vehicle, the iPod

music library can only

be operated by the vehicle audio controls.

* iPod

and iPhone

are a trademark of Apple

Inc., registered in the U.S. and other countries.

Compatibility:

The following models are compatible:
. iPod nano

1G (Firmware version 1.3.1 -)

. iPod nano

2G (Firmware version 1.1.3 -)

. iPod nano

3G (Firmware version 1.0.0 -)

. iPod nano

4G (Firmware version 1.0.2 -)

. iPod nano

5G (Firmware version 1.0.1 -)

. iPod nano

6G (Firmware version 1.0 -)

. iPod nano

7G (Firmware version 1.0.0 -)

. iPod

5G (Firmware version 1.2.1 -)

. iPod classic

(Firmware version 1.0.0 -)

. iPod Touch

(iOS 1.1 -)

. iPod Touch

2G (iOS 2.1.1 -)

. iPod Touch

3G (iOS 3.1 -)

. iPod Touch

4G (iOS 4.1 -)

. iPod Touch

5G (iOS 6.0.0 -)

. iPhone

(iOS 1.0.0 - 2.2.1)

. iPhone

3G (iOS 2.1 -)

. iPhone

3GS (iOS 3.0 -)

. iPhone

4/4S (iOS 4.0 -)

. iPhone

5 (iOS 6.0.0 -)

Operations attributable to firmware update by
Apple are not guaranteed.

iPod

main operation:

The system operates when the ignition switch is
in the ON or ACC position. Push the

button

repeatedly to switch to the iPod

mode.

If the system was turned off while the iPod

was

playing, pushing the Power button will start the
iPod

If another audio source is playing and the iPod

is connected, pushing the

button repeat-

edly will change the system to the iPod

mode.

When in the iPod

mode, the interface for iPod

operation is shown on the audio display. The
items on the menu list can be scrolled by turning
the TUNE·SCROLL dial while the iPod

operational. To select an item, push the
ENTER/SETTING button. The following items
in the iPod

menu appear on the display.

. Now playing
. Playlists

. Artists
. Albums
. Songs
. Podcasts
. Genres
. Composers
. Audiobooks
. Shuffle Songs
For more information about each item, see the
iPod

Owner’s Manual.

Next/Previous Track and Fast

Forward/Rewind:

When the

button is pushed and hold

while the iPod

is playing, the iPod

will play

while fast forwarding or rewinding. When the
button is released, the iPod

will return to the

normal play speed.

When the

button is pushed while

the iPod

is playing, the next track or the

beginning of the current track on the iPod

will

be played. Push the

button again to select

the previous track.

Heater, air conditioner, audio and phone systems

4-59

4-60

Heater, air conditioner, audio and phone systems

RPT (repeat) button:

When the

button is pushed while a track is

being played, the play pattern can be changed
as follows:

(Repeat Off)

? 1 Track Repeat? All Repeat ?

(Repeat Off)

RDM (random) button:

When the

button is pushed while a track is

being played, the play pattern can be changed
as follows:

(Shuffle Off)

? Track Shuffle ? (Shuffle Off)

BACK button:

The display will return to the previous screen.

Bluetooth

audio player operation

If you have a compatible Bluetooth

audio

device that is capable of playing audio files,
the device can be connected to the vehicle’s
audio system so that the audio files on the
device play through the vehicle’s speakers.

Regulatory information:

Bluetooth

trademark:

Bluetooth

is a trademark owned

by Bluetooth SIG, Inc. and li-
censed to Visteon Corporation.

Connecting Bluetooth

device:

To connect your Bluetooth

device to the

vehicle, follow the procedure below:

1. Push the ENTER/SETTING button.

JVH0620X

2. Select “Bluetooth” .

3. Select “Add Phone” . This same screen can

be accessed to remove, replace or select a
different Bluetooth

device.

4. The system acknowledges the command

and asks you to initiate a connection from
the Bluetooth

device. The procedure for

connecting a Bluetooth

device varies

according to the cellular phone model. See
the Owner’s manual of the Bluetooth

device for details.

Bluetooth

audio main operation:

To switch to the Bluetooth

audio mode, push

the

button repeatedly until the Bluetooth

4-62

Heater, air conditioner, audio and phone systems

JVH0738X

CD eject button

FM·AM button

AUX button

CD insert slot

button

Push to display the apps information screen. For
details, see “How to use the APPS·i button”
(P.4-5).

Backward seek button and

Forward

seek button

BACK button

TUNE knob / AUDIO button

Display screen

10.

ON·OFF button / VOL (volume) control knob

11.

CD button

12.

SXM button*

FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type B) (if so
equipped)

*No satellite radio reception is available when
the SXM button is pushed to access satellite
radio stations unless optional satellite receiver
and antenna are installed and a SiriusXM
Satellite Radio service subscription is active.
Satellite radio is not available in Alaska, Hawaii
and Guam.

For all operation precautions, see “Audio opera-
tion precautions” (P.4-35).

Audio main operation

ON·OFF button / VOL (volume) control
knob:

Place the ignition switch in the ACC or ON
position and push the ON·OFF button while the
system is off to call up the available audio source
that was playing immediately before the system
was turned off.

To turn the system off, push the ON·OFF button.

Turn the VOL (volume) control knob to adjust the
volume.

This vehicle may be equipped with Speed
Sensitive Volume. When this feature is active,
the audio volume changes as the driving speed

changes.

Audio settings:

1. push the

button.

2. Touch the “Settings” key.

3. Touch the “Audio” key.

Use the touch-screen to adjust the following
items to the desired setting:

Bass:

Adjusts the bass to the desired level.

Treble:

Adjusts the treble to the desired level.

Balance:

Adjusts the balance to the desired level.
Balance adjusts the sound level between
the left and right speakers.

Fade:

Adjusts the fade to the desired level.
Fade adjusts the sound level between
the front and rear speakers.

Speed Sensitive Vol.:

Adjusts the speed sensitive volume
function, which increases the volume of
the audio system as the speed of the
vehicle increases. Set to “OFF” to dis-
able the feature. The higher the setting,
the more the volume increases in relation
to vehicle speed.

AUX Volume Level:

Controls the volume level of incoming
sound when an auxiliary device is con-
nected to the system. Available options
are Low (Quiet), Medium, and High
(Loud).

Bass, treble, balance and fade can also be
adjusted by pushing the AUDIO control knob
and turning it to select the item to adjust. When
the desired item is shown on the display, turn the
tuning to adjust and then push the AUDIO
button until the display returns to the main audio
screen. If the button is not pushed for approxi-
mately 10 seconds, the radio or CD display will
automatically reappear.

SXM settings:

To view the SXM settings:

1. Push the

button.

2. Touch the “Settings” key.

3. Touch the “SXM” key.

The signal strength, activation status and other
information are displayed on the screen.

FM/AM/SAT radio operation

FM·AM button:

Push the FM·AM button to change the band as
follows:

? FM1 ? FM2 ? AM

If another audio source is playing when the
FM·AM button is pushed, the audio source
playing will automatically be turned off and the
last radio station played will begin playing.

The FM stereo indicator (ST) is shown on the
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio
automatically changes from stereo to monaural
reception.

SXM band select:

Pushing the SXM button will change the band
as follows:

SXM1*

? SXM2* ? SXM3* ? SXM1*

(satellite, if so equipped)

When the SXM button is pushed while the
ignition switch is in the ACC or ON position, the
radio will come on at the last station played.

The last station played will also come on when
the ON·OFF button is pushed.

*When the SXM button is pushed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and a

Heater, air conditioner, audio and phone systems

4-63

4-64

Heater, air conditioner, audio and phone systems

SiriusXM Satellite Radio service subscription is
active. Satellite radio is not available in Alaska,
Hawaii and Guam.

If a compact disc is playing when the SXM
button is pushed, the compact disc will auto-
matically be turned off and the last radio station
played will come on.

While the radio is in SXM mode, the operation
can be controlled through the touch-screen.
Touch the “Channels” key to display a list of
channels. Touch a channel displayed on the list
to change to that channel. Touch the “Cate-
gories” key to display a list of categories. Touch
a category displayed on the list to display
options within that category.

Tuning with the touch-screen:

When in AM or FM mode, the radio can be
tuned using the touch-screen. To bring up the
visual tuner, touch the “Tune” key on the lower
right corner of the screen. A screen appears
with a bar running from low frequencies on the
left to high frequencies on the right. Touch the
screen at the location of the frequency you wish
to tune and the station will change to that
frequency. To return to the regular radio display
screen, touch the “OK” key.

Tuning with the TUNE knob:

The radio can also be manually tuned using the
TUNE knob. When in FM or AM mode, turn the
TUNE knob to the left for lower frequencies or to
the right for higher frequencies. When in SXM
mode, turn the TUNE knob to change the
channel.

SEEK tuning:

When in FM or AM mode, push the seek buttons

to tune from low to high or high to

low frequencies and to stop at the next broad-
casting station.

When in SXM mode, push the seek buttons
or

to change the category.

JVH0741X

1 to 6 Station memory operations:

Twelve stations can be set for the FM band (6
for FM1, 6 for FM2) and six stations can be set
for the AM band. Eighteen stations can be set
for the SXM band (6 for SXM1, 6 for SXM2, 6
for SXM3).

1. Choose the radio band AM, FM1 or FM2

using the FM·AM select button or choose
the radio band SXM1, SXM2, SXM3 using
the SXM button.

2. Tune to the desired station using manual or

seek tuning. Touch and hold any of the
desired station memory keys (1 – 6) until a
beep sound is heard.

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other keys can be set in the same manner.

If the battery cable is disconnected or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations.

Presets can also be selected by touching the
desired preset number on the screen.

Compact Disc (CD) player operation

If the radio is already operating, it automatically
turns off and the compact disc begins to play.

CD button:

When the CD button is pushed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.

When the CD button is pushed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact
disc will start to play.

CD/MP3/WMA display mode:

Menu item

CD/MP3 display mode

While listening to a CD or an MP3/WMA CD, certain text may be displayed (when a
CD encoded with text is being used). Depending on how the CD or MP3/WMA CD
is encoded, the text is displayed listing the artist, album and song title. There are
other keys displayed on the screen when a CD is playing:

Random

Touch the “Random” key to apply a random play pattern to the CD. If an MP3 CD is
playing, touching “Random” or alternates between Random Folder, and Random All.
This text will appear on the display. To cancel Random mode, touch the “Random”
key until the key is no longer highlighted.

Repeat

Touch the “Repeat” key to apply a repeat play pattern to the CD. If an MP3 CD is
playing, touching “Repeat” alternates between repeating the current song and
repeating the current folder. This text will appear on the display. To cancel Repeat
mode, touch the “Repeat” key until the key is no longer highlighted.

Browse

Touch the “Browse” key to display the titles on the CD in list format. Touch the title of
a song in the list to begin playing that song. If an MP3 CD is playing, touching the
“Browse” key will also list the folders on the disc. Follow the procedure for selecting
a song with the touch-screen to choose a folder.

Heater, air conditioner, audio and phone systems

4-65

4-66

Heater, air conditioner, audio and phone systems

SEEK (Fast Forward/Rewind)

buttons:

Push and hold the seek buttons

for

1.5 seconds while the compact disc is playing to
reverse or fast forward the track being played.
The compact disc plays at an increased speed
while reversing or fast forwarding. When the
button is released, the compact disc returns to
normal play speed.

SEEK (Previous/Next Track)

buttons:

Push the seek button

while a CD or MP3/

WMA CD is playing to return to the beginning of
the current track. Push the seek button
several times to skip backward several tracks.

Push the seek button

while a CD or MP3/

WMA CD is playing to advance one track. Push
the seek button

several times to skip

forward several tracks. If the last track on a
CD is skipped, the first track on the disc is
played. If the last track in a folder of an MP3/
WMA CD is skipped, the first track of the next
folder is played.

CD eject button:

When the button is pushed with a compact disc
loaded, the compact disc will eject and the last
source will be played.

If the disc is not removed within 10 seconds, the
disc will reload.

JVH0370X

AUX (Auxiliary) input

The AUX IN jack is located on the lower center
of the instrument panel. The AUX IN jack
accepts any standard analog audio input such
as from a portable cassette tape/CD player,
MP3 player or a laptop computer. Push the AUX
button to play a compatible device plugged into
the AUX IN jack.

NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.

JVH0742X

USB (Universal Serial Bus) connection
port

Connecting a device to the USB port:

WARNING

Do not connect, disconnect, or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

. Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.

. Do not grab the USB port cover (if

so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

. Do not leave the USB cable in a

place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

The USB port is located on the lower center of
the instrument panel. Insert the USB device into
the port.

When a compatible storage device is plugged
into the port, compatible audio files on the
storage device can be played through the
vehicle’s audio system.

Audio file operation:

AUX button:

Place the ignition switch in the ON or ACC
position and push the AUX button to switch to
the USB input mode. If another audio source is
playing and a USB memory device is inserted,
push the AUX button until the center display
changes to the USB memory mode.

If the system has been turned off while the USB
memory was playing, push the ON·OFF button
to restart the USB memory.

Heater, air conditioner, audio and phone systems

4-67

4-68

Heater, air conditioner, audio and phone systems

JVH0743X

Play information:

Information about the audio files being played is
shown on the display screen of the vehicle’s
audio system. Touch “Browse” to display the list
of categories that can be used to narrow the
search. Touch the name of a song on the screen
to begin playing that song.

Seek button:

Push the

button while an audio file on the

USB device is playing to return to the beginning
of the current track. Push the

button several

times to skip backward several tracks.

Push the

button while an audio file on the

USB device is playing to advance one track.

Push the

button several times to skip

forward several tracks. If the last track in a folder
on the USB device is skipped, the first track of
the next folder is played.

Random and repeat play mode:

While files on a USB device are playing, the play
pattern can be altered so that songs are
repeated or played randomly.
. Random:

Touch the “Random” key to apply a random
play pattern to the USB device. To cancel
Random mode, touch the “Random” key
again.

. Repeat:

Touch the “Repeat” key to apply a repeat
play pattern to the USB device. To cancel
Repeat mode, touch the “Repeat” key again.

SAA3445

iPod

player operation (if so equipped)

Connecting iPod

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

Nissan Juke (2017 year). Instruction - part 14
