Satellite radio reception (if so equipped):

When the satellite radio is used for the first time
or the battery has been replaced, the satellite
radio may not work properly. This is not a
malfunction. Wait more than 10 minutes with the
satellite radio ON and the vehicle away from any
metal or large buildings for the satellite radio to
receive all of the necessary data.

The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.

Satellite radio performance may be affected if
cargo carried on the roof blocks the satellite
radio signal.

If possible, do not put cargo near the satellite
antenna.

A buildup of ice on the satellite radio antenna
can affect satellite radio performance. Remove
the ice to restore satellite radio reception.

SAA0480

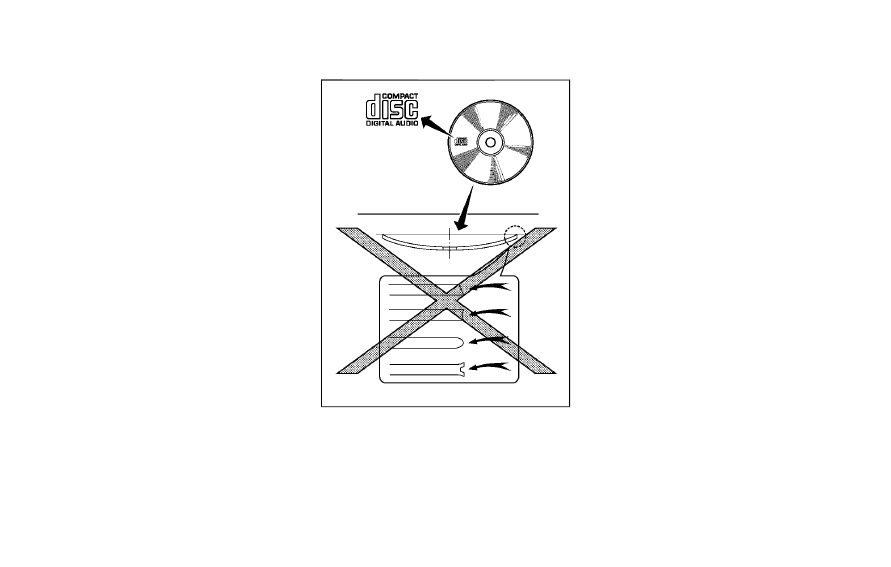

Compact Disc (CD) player

. Do not force a compact disc into the CD

insert slot. This could damage the CD
and/or CD player.

. During cold weather or rainy days, the

player may malfunction due to the
humidity. If this occurs, remove the CD

and dehumidify or ventilate the player
completely.

. The player may skip while driving on

rough roads.

. The CD player sometimes cannot func-

tion when the passenger compartment
temperature is extremely high. De-
crease the temperature before use.

. Only use high quality 4.7 in (12 cm)

round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc
or packaging.

. Do not expose the CD to direct sun-

light.

. CDs that are of poor quality, dirty,

scratched, covered with fingerprints,
or that have pin holes may not work
properly.

. The following CDs may not work prop-

erly:

— Copy control compact discs (CCCD)
— Recordable compact discs (CD-R)
— Rewritable compact discs (CD-RW)

. Do not use the following CDs as they

may cause the CD player to malfunc-
tion.

— 3.1 in (8 cm) discs

Heater, air conditioner, audio and phone systems

4-37

4-38

Heater, air conditioner, audio and phone systems

— CDs that are not round
— CDs with a paper label
— CDs that are warped, scratched, or

have abnormal edges

. This audio system can only play pre-

recorded CDs. It has no capabilities to
record or burn CDs.

. If the CD cannot be played, error

messages as the following examples
will be displayed.

Check Disc:

— Confirm that the CD is inserted

correctly (the label side is facing
up, etc.).

— Confirm that the CD is not bent or

warped and it is free of scratches.

Push Eject:

This is an error due to the temperature
inside the player is too high. Remove
the CD by pushing the EJECT button,
and after a short time reinsert the CD.
The CD can be played when the tem-
perature of the player returns to nor-
mal.

Unplayable Track:

The file is unplayable in this audio
system (only MP3 or WMA CD).

USB (Universal Serial Bus) Connection
Port

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

. Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.

. Do not grab the USB port cover (if

so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

. Do not leave the USB cable in a

place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

The vehicle is not equipped with a USB device.
USB devices should be purchased separately
as necessary.

This system cannot be used to format USB
devices. To format a USB device, use a personal
computer.

In some states/area, the USB device for the
front seats plays only sound without images for
regulatory reasons, even when the vehicle is
parked.

This system supports various USB memory
devices, USB hard drives and iPod

players.

Some USB devices may not be supported by
this system.
. Partitioned USB devices may not be played

correctly.

. Some characters used in other languages

(Chinese, Japanese, etc.) are not displayed
properly on display. Using English language
characters with a USB device is recom-
mended.

General notes for USB use:

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

Notes for iPod

use:

iPod

is a trademark of Apple Inc., registered in

the U.S. and other countries.
. Improperly plugging in the iPod

may cause

a checkmark to be displayed on and off
(flickering). Always make sure that the iPod

is connected properly.

. An iPod nano

(1st Generation) may remain

in fast forward or rewind mode if it is
connected during a seek operation. In this
case, please manually reset the iPod

. An iPod nano

(2nd Generation) will con-

tinue to fast-forward or rewind if it is
disconnected during a seek operation.

. An incorrect song title may appear when the

Play Mode is changed while using an iPod
nano

(2nd Generation)

. Audiobooks may not play in the same order

as they appear on an iPod

. Large video files cause slow responses in an

iPod

. The vehicle center display may

momentarily black out, but will soon recover.

. If an iPod

automatically selects large video

files while in the shuffle mode, the vehicle
center display may momentarily black out,
but will soon recover.

Compressed Audio Files (MP3/WMA)

Explanation of terms:
. MP3 — MP3 is short for Moving Pictures

Experts Group Audio Layer 3. MP3 is the
most well known compressed digital audio
file format. This format allows for near “CD
quality” sound, but at a fraction of the size of
normal audio files. MP3 conversion of an
audio track can reduce the file size by
approximately a 10:1 ratio (Sampling: 44.1
kHz, Bit rate: 128 kbps) with virtually no
perceptible loss in quality. The compression
reduces certain parts of sound that seem
inaudible to most people.

. WMA — Windows Media Audio (WMA) is a

compressed audio format created by Micro-
soft as an alternative to MP3. The WMA
codec offers greater file compression than
the MP3 codec, enabling storage of more
digital audio tracks in the same amount of
space when compared to MP3s at the same
level of quality.

. Bit rate — Bit rate denotes the number of

bits per second used by a digital music file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.

. Sampling frequency — Sampling frequency

is the rate at which the samples of a signal

are converted from analog to digital (A/D
conversion) per second.

. Multisession — Multisession is one of the

methods for writing data to media. Writing
data once to the media is called a single
session, and writing more than once is
called a multisession.

. ID3/WMA Tag — The ID3/WMA tag is the

part of the encoded MP3 or WMA file that
contains information about the digital music
file such as song title, artist, album title,
encoding bit rate, track time duration, etc.
ID3 tag information is displayed on the
Album/Artist/Track title line on the display.

* Windows

and Windows Media

are regis-

tered trademarks or trademarks of Microsoft
Corporation in the United States of America
and/or other countries.

Heater, air conditioner, audio and phone systems

4-39

Specification chart (for models without navigation system):

Supported media

CD, CD-R, CD-RW, USB2.0

Supported file systems

CD, CD-R, CD-RW: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are
not supported.

USB memory: FAT16, FAT32

Supported versions*1

MP3

Version

MPEG1 Audio Layer 3

Sampling frequency

32 kHz - 48 kHz

Bit rate

32 kbps - 320 kbps, VBR*4

WMA*2

Version

WMA7, WMA8, WMA9

Sampling frequency

32 kHz - 48 kHz

Bit rate

32 kbps - 192 kbps, VBR4, 32 kbps - 320 kbps (WMA9 only)

Tag information (Song title and Artist name)

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)

WMA tag (WMA only)

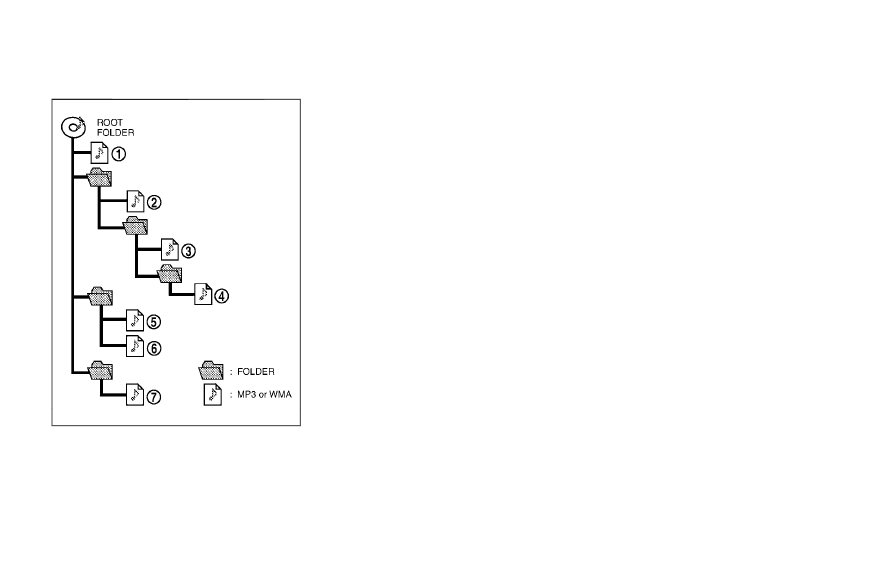

Folder levels

CD, CD-R, CD-RW

Folder levels: 8, Folders: 255, Files: 999 (Max. 255 files for one folder)

USB

Folder levels: 8, Folders 255, Files: 2500 (Max. 255 files for one folder)
Memory size: 4GB

Displayable character codes*3

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16
Non-BOM Big Endian), 05: UNICODE (UTF-8)

Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

Protected WMA files (DRM) cannot be played.

Available codes depend on what kind of media, versions and information are going to be displayed.

When VBR files are played, the playback time may not be displayed correctly.

Heater, air conditioner, audio and phone systems

4-41

4-42

Heater, air conditioner, audio and phone systems

Specification chart (for models with navigation system):

Supported media

CD, CD-R, CD-RW

Supported file systems

ISO9660 LEVEL1, ISO9660 LEVEL2, Apple ISO, Romeo, Joliet * ISO9660 Level 3 (packet writing) is not
supported.

Supported
versions*1

MP3

Version

MPEG1, MPEG2, MPEG2.5

Sampling frequency

8 kHz - 48 kHz

Bit rate

8 kbps - 320 kbps, VBR

WMA*2

Version

WMA7, WMA8, WMA9

Sampling frequency

32 kHz - 48 kHz

Bit rate

48 kbps - 192 kbps, VBR

Tag information

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3 (MP3 only)

Folder levels

Folder levels: 8, Max folders: 255 (including root folder), Files: 512 (Max. 255 files for one folder)

Text character number limitation

128 characters

Displayable character codes*2

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big
Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian)

Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

Available codes depend on what kind of media, versions and information are going to be displayed.

Troubleshooting guide:

Symptom

Cause and Countermeasure

Cannot play

Check if the disc or USB device was inserted correctly.

Check if the disc is scratched or dirty.

Check if there is condensation inside the player. If there is, wait until the condensation is gone (about 1 hour) before using the player.

If there is a temperature increase error, the CD player will play correctly after it returns to the normal temperature.

If there is a mixture of music CD files (CD-DA data) and MP3/WMA files on a CD, only the music CD files (CD-DA data) will be
played.

Files with extensions other than “.MP3”, “.WMA”, “.mp3” or “.wma” cannot be played. In addition, the character codes and number of
characters for folder names and file names should be in compliance with the specifications.

Check if the finalization process, such as session close and disc close, is done for the disc.

Check if the disc or USB device is protected by copyright.

Poor sound quality

Check if the disc is scratched or dirty.

Bit rate may be too low.

It takes a relatively long time before
the music starts playing.

If there are many folders or file levels on the MP3/WMA disc, or if it is a multisession disc, or USB device, some time may be required
before the music starts playing.

Music cuts off or skips

The writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc., might not
match the specifications. Try using the slowest writing speed.

Skipping with high bit rate files

Skipping may occur with large quantities of data, such as for high bit rate data.

Move immediately to the next song
when playing

When a non-MP3/WMA file has been given an extension of “.MP3”, “.WMA”, .“mp3” or “.wma”, or when play is prohibited by
copyright protection, there will be approximately 5 seconds of no sound and then the player will skip to the next song.

Songs do not play back in the
desired order

The playback order is the order in which the files were written by the writing software. Therefore, the files might not play in the desired
order.

Heater, air conditioner, audio and phone systems

4-43

4-44

Heater, air conditioner, audio and phone systems

Bluetooth

Audio player

Bluetooth

is a trademark owned

by Bluetooth SIG, Inc. and li-
censed to Robert Bosch GmbH
and Visteon Corporation.

. Some Bluetooth

audio devices may not be

recognized by the in-vehicle audio system.

. It is necessary to set up the wireless

connection between a compatible Blue-
tooth

audio device and the in-vehicle

Bluetooth

module before using the Blue-

tooth

audio player.

. Operating procedure of the Bluetooth

audio player will vary depending on the
device. Make sure it is understood how to
operate an audio device before using it with
this system.

. The Bluetooth

audio player may be

stopped under the following conditions:
— Receiving a hands-free call.
— Checking the connection to the hands-

free phone.

. Do not place a Bluetooth

audio device in

an area surrounded by metal or far away
from the in-vehicle Bluetooth

module to

prevent tone quality degradation and wire-
less connection disruption.

. While an audio device is connected through

a Bluetooth

wireless connection, the bat-

tery power of the device may discharge
quicker than usual.

. This system supports the Bluetooth

Audio

Distribution Profile (A2DP, AVRCP).

. Wireless LAN (Wi-Fi) and the Bluetooth

functions share the same frequency band
(2.4 GHz). Using the Bluetooth

and the

wireless LAN functions at the same time may
slow down or disconnect the communica-
tion and cause undesired noise. It is
recommended that you turn off the wireless
LAN (Wi-Fi) when using the Bluetooth

functions.

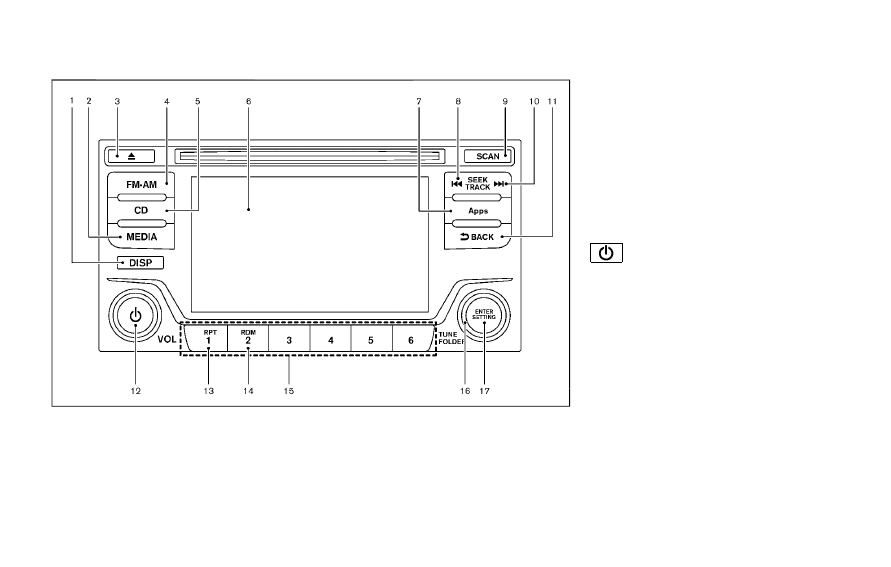

JVH0866X

DISP (display) button

MEDIA button

CD eject button

FM·AM button

CD button

Color display

Apps button

SEEK TRACK (rewind) button

Radio SCAN tuning button

10.

SEEK TRACK (forward) button

11.

BACK button

12.

Power button/VOL (volume) control knob

13.

RPT (repeat) play button

14.

RDM (random) play button

15.

Radio station preset select buttons

16.

TUNE·FOLDER knob

17.

ENTER/SETTING button

FM-AM RADIO WITH COMPACT DISC
(CD) PLAYER (if so equipped)

Audio main operation

Head unit:

The auto loudness circuit enhances the low and
high frequency ranges automatically.

Power button/VOL (volume) control

knob:

Push the Power button/VOL (volume) control
knob to turn on and off the audio system.

Turn the Power button/VOL (volume) control
knob to adjust the volume.

Audio settings:

The settings screen will appear when the
ENTER/SETTING button is pushed.

The following items are available in the settings
screen.
. Bluetooth

It is possible to set the Bluetooth

settings.

For details of the Bluetooth

settings, see

“Bluetooth

settings” (P.4-88).

. Bass, Treble, Balance and Fade

Controls the sound of the audio system.

Heater, air conditioner, audio and phone systems

4-45

4-46

Heater, air conditioner, audio and phone systems

Balance adjusts the sound between the left
and right speakers. Fade adjusts the sound
between the front and rear speakers.
Select the “Bass”, “Treble”, “Balance” or
“Fade” using the TUNE·FOLDER knob, and
then push the ENTER/SETTING button.
Turn the TUNE·FOLDER knob to adjust the
Bass, Treble, balance and Fade of the
screen to the preferred level. Push the
ENTER/SETTING button to apply the
setting.

. Speed Sensitive Vol.

To change the Speed Sensitive Volume
(Speed Sensitive Vol.) level from off (0) to
5, turn the TUNE·FOLDER knob.

. AUX Vol.

Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Choose a setting between +1 and
+3 or choose 0 to disable the feature
entirely.

. Brightness and Contrast

Adjust the brightness and contrast of the
screen.
Select “Brightness” or “Contrast” using the
TUNE·FOLDER knob and then push the
E N T E R / S E T T I N G b u t t o n . Tu r n t h e
TUNE·FOLDER knob to adjust the bright-
ness and contrast of the screen to the

preferred level. Push the ENTER/SETTING
button to apply the setting.

. Clock Adjust

Adjust the clock according to the following
procedure.
1) Select “Clock Adjust” using the

TUNE·FOLDER knob and then push
the ENTER/SETTING button.

2) Adjust the hour with the TUNE·FOLDER

knob and then push the ENTER/
SETTING button.

3 ) A d j u s t

t h e

m i n u t e

w i t h

t h e

TUNE·FOLDER knob and then push
the ENTER/SETTING button.

24 hour clock is not available.

. On-Screen Clock

When this item is turned on, a clock is
always displayed in the upper right corner of
the screen.
Select the “On-Screen Clock” using the
TUNE·FOLDER knob and then push the
ENTER/SETTING button. You can toggle
b e t w e e n O N a n d O F F u s i n g t h e
TUNE·FOLDER knob.

. RDS Display (if so equipped)

RDS (radio data system) information can be
shown on the display. Select “RDS Display”
using the TUNE·FOLDER knob and then
push the ENTER/SETTING button. You can

toggle between ON and OFF using the
TUNE·FOLDER knob. Push the ENTER/
SETTING button to apply the setting.

. Language Select

The language settings can be changed.
Select “Language Select” using the
TUNE·FOLDER knob and then push the
E N T E R / S E T T I N G b u t t o n . U s e t h e
TUNE·FOLDER knob to select the preferred
language. Push the ENTER/SETTING but-
ton to apply the setting.

DISP button:

Display of the screen can be canceled by
pushing the

button. You can still listen to

music that is being played back even while the
screen display is turned off. If you want to
display the screen again, push the

button

once more. Pushing some of the audio source
buttons will also turn the screen back on and
display the screens of the corresponding
sources.

MEDIA button:

Pushing the

button will switch the audio

source as follows:

USB/iPod

? Bluetooth Audio ? AUX ? USB/

iPod

Apps button:

The

button launches the Smartphone

Integration mode. See “NissanConnect

App

smartphone integration” (P.4-75).

FM-AM Radio operation

radio (FM·AM) band select:

Push the

button to change the band as

follows:

? FM1 ? FM2? AM

TUNE (Tuning):

Turn the TUNE·FOLDER knob for manual tuning.

SEEK tuning:

Push the

button to tune from low to

high or high to low frequencies and to stop at
the next broadcasting station.

SCAN tuning:

Push the

button to tune from low to high

frequencies and stop at each broadcasting
station for several seconds. Pushing the button
again during this several seconds period will
stop SCAN tuning and the radio will remain
tuned to that station.

If the

button is not pushed within this

period, SCAN tuning moves to the next station.

Radio memory buttons:

Up to 12 stations can be set for the FM band (6
each for FM1 and FM2) and 6 stations can be
set for the AM band.

1. Choose the radio band using the

button.

2. Tune to the desired station.

3. Push and hold the desired station preset

button

until beep sounds.

4. The station indicator will then come on. The

station is now set to the button memory.

5. Other buttons can be set in the same

manner.

If the battery cable is disconnected, or if the fuse
opens, the station memory will be erased. In that
case, reset the desired stations.

CD player operation

Place the ignition switch in the ON or ACC
position. Insert the Compact Disc (CD) into the
slot with the label side facing up. The CD will be
guided automatically into the slot and start
playing.

After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.

If another audio source is already operating, it
will automatically turn off and the CD will play.

If the system has been turned off while the CD
was playing, pushing the Power button will start
the CD.

CD PLAY:

When the CD button is pushed while a CD is
loaded, the CD will start playing.

SEEK TRACK:

When the

button is pushed and hold

while the CD is being played, the CD will play
while fast forwarding or rewinding. When the
button is released, the CD will return to normal
play speed.

When the

button is pushed while

the CD is being played, the next track or the
beginning of the current track on the CD will be
played. Push the

button again to select the

previous track.

Heater, air conditioner, audio and phone systems

4-47

4-48

Heater, air conditioner, audio and phone systems

REPEAT (RPT):

When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:

(CD)

(Normal) ⇔ 1 Track Repeat

(CD with compressed audio files)

(Normal)

? 1 Folder Repeat ? 1 Track Repeat

? (Normal)

RANDOM (RDM):

When the RDM button is pushed while a CD is
being played, the play pattern can be changed
as follows:

(CD)

(Normal) ⇔ 1 Disc Random

(CD with compressed audio files)

(Normal)

? 1 Disc Random ? 1 Folder

Random

? (Normal)

CD eject:

When the

button is pushed with the CD

loaded, the CD will be ejected.

If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.

USB (Universal Serial Bus) connection
port

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

. Do not force the USB device into the

USB port. Inserting a USB device
tilted or upside-down into the port
may damage the port. Make sure
that the USB device is connected
correctly to the USB port.

. Do not grab the USB port cover (if

so equipped) when pulling a USB
device out of the port. This could
damage the port and the cover.

. Do not leave a USB cable in a place

where it can be pulled unintention-
ally. Pulling the cable may damage
the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

SAA3444

USB main operation:

The USB connection port is located on the
lower part of the instrument panel. Connect a
USB memory device into the connector. When
the audio system operates, the system will
switch to the USB memory device mode
automatically.

If the system has been turned off while the USB
memory device was playing, pushing the Power
button will start the USB memory device.

MEDIA button:

To change to the USB mode, push the
button with a USB connected until the USB
mode is selected.

Next/Previous File and Fast

Forward/Rewind:

When the

button is pushed and hold

while a USB memory is being played, the USB
memory will play while forwarding or rewinding.
When the button is released, the USB memory
will return to normal play speed.

When the

button is pushed while

the USB memory is being played, the next track
or the beginning of the current track on the USB
memory will be played. Push the

button

again to select the previous track.

Folder selection:

To change to another folder in the USB memory,
choose a folder displayed on the screen using
the TUNE·SCROLL knob.

REPEAT (RPT):

When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.

To change the play mode, push the RPT button
repeatedly and the mode will change as follows.

(Normal)

? 1 Folder Repeat ? 1 Track Repeat

? (Normal)

RANDOM (RDM):

When the RDM button is pushed while a USB
memory is being played, the play pattern can be
changed as follows.

To change the play mode, push the RDM button
repeatedly, and the mode will change as follows.

(Normal)

? All Random ? 1 Folder Random ?

(Normal)

BACK button:

When the BACK button is pushed, it returns to
the previous display.

iPod

player operation

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

Heater, air conditioner, audio and phone systems

4-49

4-50

Heater, air conditioner, audio and phone systems

CAUTION

. Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.

. Do not grab the USB port cover (if

so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

. Do not leave the USB cable in a

place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

Connecting iPod

The USB connection port is located on the
lower part of the instrument panel. Connect the
iPod

cable to the USB connector. See “USB

(Universal Serial Bus) connection port” (P.4-48).
When the audio system operates, the system
will switch to the iPod

mode automatically. The

battery of the iPod

is charged while the cable is

connected to the vehicle.

Depending on the version of the iPod

, the

display on the iPod

shows a NISSAN or

Accessory Attached screen when the connec-
tion is completed. When the iPod

is connected

to the vehicle, the iPod

music library can only

be operated by the vehicle audio controls.

* iPod

and iPhone

are a trademark of Apple

Inc., registered in the U.S. and other countries.

Compatibility:

The following models are compatible:
. iPod nano

1G (Firmware version 1.3.1 -)

. iPod nano

2G (Firmware version 1.1.3 -)

. iPod nano

3G (Firmware version 1.0.0 -)

. iPod nano

4G (Firmware version 1.0.2 -)

. iPod nano

5G (Firmware version 1.0.1 -)

. iPod nano

6G (Firmware version 1.0 -)

. iPod nano

7G (Firmware version 1.0.0 -)

. iPod

5G (Firmware version 1.2.1 -)

. iPod classic

(Firmware version 1.0.0 -)

. iPod Touch

(iOS 1.1 -)

. iPod Touch

2G (iOS 2.1.1 -)

. iPod Touch

3G (iOS 3.1 -)

. iPod Touch

4G (iOS 4.1 -)

. iPod Touch

5G (iOS 6.0.0 -)

. iPhone

(iOS 1.0.0 - 2.2.1)

. iPhone

3G (iOS 2.1 -)

. iPhone

3GS (iOS 3.0 -)

. iPhone

4/4S (iOS 4.0 -)

. iPhone

5 (iOS 6.0.0 -)

Operations attributable to firmware update by
Apple are not guaranteed.

iPod

main operation:

The system operates when the ignition switch is
in the ON or ACC position. Push the

button

repeatedly to switch to the iPod

mode.

If the system was turned off while the iPod

was

playing, pushing the Power button will start the
iPod

If another audio source is playing and the iPod

is connected, pushing the

button repeat-

edly will change the system to the iPod

mode.

When in the iPod

mode, the interface for iPod

operation is shown on the audio display. The
items on the menu list can be scrolled by turning
the TUNE·FOLDER dial while the iPod

operational. To select an item, push the
ENTER/SETTING button. The following items
in the iPod

menu appear on the display.

. Now playing
. Playlists

. Artists
. Albums
. Songs
. Podcasts
. Genres
. Composers
. Audiobooks
. Shuffle Songs
For more information about each item, see the
iPod

Owner’s Manual.

Next/Previous Track and Fast

Forward/Rewind:

When the

button is pushed and hold

while the iPod

is playing, the iPod

will play

while fast forwarding or rewinding. When the
button is released, the iPod

will return to the

normal play speed.

When the

button is pushed while the

iPod

is playing, the next track or the beginning

of the current track on the iPod

will be played.

Push the

button again to select the previous

track.

Push the

button more than once to

skip through the tracks.

RPT (repeat) button:

When the

button is pushed while a track is

being played, the play pattern can be changed
as follows:

(Repeat Off)

? 1 Track Repeat? All Repeat ?

(Repeat Off)

RDM (random) button:

When the

button is pushed while a track is

being played, the play pattern can be changed
as follows:

(Shuffle Off)

? Track Shuffle ? (Shuffle Off)

BACK button:

The display will return to the previous screen.

Bluetooth

audio player operation

If you have a compatible Bluetooth

audio

device that is capable of playing audio files,
the device can be connected to the vehicle’s
audio system so that the audio files on the
device play through the vehicle’s speakers.

Regulatory information:

Bluetooth

trademark:

Bluetooth

is a trademark owned

by Bluetooth SIG, Inc. and li-
censed to Visteon Corporation.

Connecting Bluetooth

device:

To connect your Bluetooth

device to the

vehicle, follow the procedure below:

1. Push the ENTER/SETTING button.

Heater, air conditioner, audio and phone systems

4-51

4-52

Heater, air conditioner, audio and phone systems

JVH0620X

2. Select “Bluetooth” .

3. Select “Add Phone or Device” . This same

screen can be accessed to remove, replace
or select a different Bluetooth

device.

4. The system acknowledges the command

and asks you to initiate a connection from
the Bluetooth

device. The procedure for

connecting a Bluetooth

device varies

according to the cellular phone model. See
the Owner’s manual of the Bluetooth

device for details.

Bluetooth

audio main operation:

To switch to the Bluetooth

audio mode, push

the

button repeatedly until the Bluetooth

audio mode is displayed on the screen.

The controls for the Bluetooth

audio are

displayed on the screen. Use the Preset
button to play and use the Preset

button to

pause.

JVH0370X

AUX (Auxiliary) input jack

The AUX input jack is located on the lower part
of the instrument panel. The AUX input jack
accepts any standard analog audio input such
as from a portable cassette tape/CD player,
MP3 player or laptop computer.

Push the

button repeatedly to play a

compatible device when it is plugged into the
AUX input jack.

NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.

Nissan Juke (2017 year). Instruction - part 13
