Nissan Juke (2017 year). Instruction

. 123/ABC:

Changes the keyboard between numbers
and alphabets.

. Space:

Inserts a space.

. Delete:

Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters.

. OK:

Completes the character input.

Touch screen maintenance

If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first and then wipe
the screen.

HOW TO USE THE BACK BUTTON

Push the BACK button to return to the previous
screen.

JVH0735X

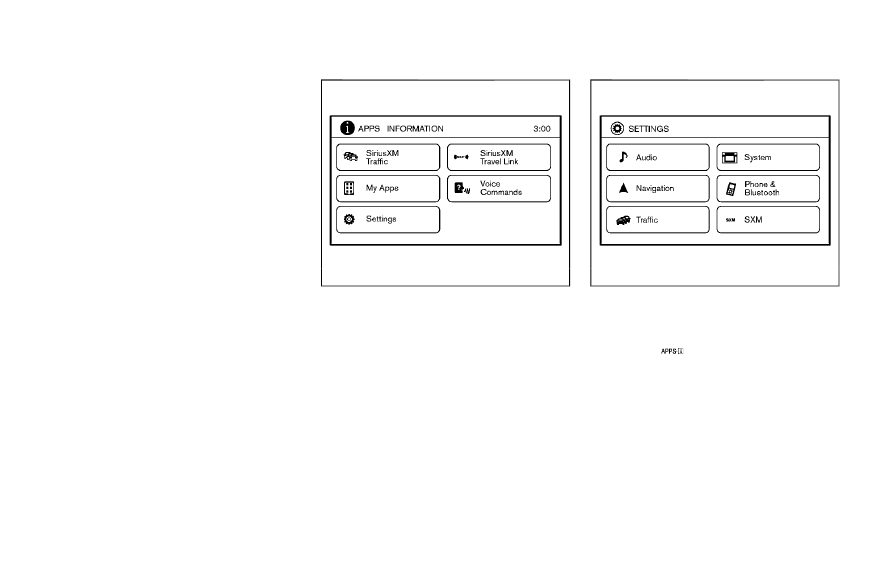

HOW TO USE THE APPS·I BUTTON

For information about the “SiriusXM Travel Link”,
and “SiriusXM Traffic” features, see the separate
Navigation System Owner’s Manual.

For information about the “My Apps” key, see
“NissanConnect

App smartphone integration”

(P.4-75).

For information about the “Voice Commands”
key, see “NISSAN Voice Recognition System
(models with navigation system)” (P.4-96).

JVH1249X

To select and/or adjust several functions,
features and modes that are available for your
vehicle:

1. Push the

button.

2. Touch the “Settings” key.

3. Touch the desired item.

Heater, air conditioner, audio and phone systems

4-5

4-6

Heater, air conditioner, audio and phone systems

Menu Item

Result

Audio

For more details, see “FM-AM-SAT radio with Compact Disc (CD) player (Type B)” (P.4-62).

Navigation

See the separate Navigation System Owner’s Manual for more information.

Phone & Bluetooth

For more details, see “Bluetooth

Hands-Free Phone System (models with navigation system)” (P.4-89).

System

Touch this key to select and/or adjust various functions of this system. A screen with additional options will
appear.

Display

Touch this key to adjust the appearance of the display.

Brightness

Adjusts the brightness of the display.

Display Mode

Adjusts to fit the level of lighting in the vehicle. Touch key to cycle through options. “Day” and “Night” modes are
suited for the respective times of day while “Auto” controls the display automatically.

Scroll Direction

Adjusts the direction of the menu scroll. Choose to either move up or down.

Clock

Touch this key to adjust the time.

Time Format

The clock can be set to 12 hours or 24 hours.

Date Format

Select from five possible formats of displaying the day, month, and year.

Clock Mode

Adjust the mode for the clock. “Auto” uses the system’s GPS to automatically maintain the time. “Manual” allows
you to set the clock using the “Set Clock Manually” key.

Set Clock Manually

Adjust the clock manually, Touch the “+” or “-” keys to adjust the hours, minutes, day, month and year up or down.
“Clock Mode” must be set to manual for this option to be available.

Daylight Savings Time

Adjusts the daylight savings time on or off.

Time Zone

Choose the applicable time zone from the list.

Language

Touch this key to change the language on the display.

Camera Settings

Touch this key to change the camera settings.

Display Mode

Touch this key to select the touch-screen display mode (day, night, or automatic).

Brightness

Adjust touch-screen brightness.

Contrast

Adjust touch-screen contrast.

Color

Adjust touch-screen color.

Temperature Unit

Touch this key to change the temperature unit being displayed (Fahrenheit or Celsius).

Touchscreen click

Toggles the touch-screen click feature on or off. When activated a click sound will be heard every time a key on
the screen is touched.

System Beeps

Toggle the system beep tones feature on or off. When activated, a beep sound will be heard when a pop-up
message appears on the screen or a button on the unit (such as the

button) is pushed and held for 2

seconds.

Return to Factory Settings / Clear Memory

Touch this key to return all settings to default and to clear the memory.

Software Licenses

Touch this key to display software licensing information.

Traffic

Touch this key to display traffic settings. See the separate Navigation System Owner’s Manual for more
information.

SXM

Touch this key to display SXM status information. For SXM setup, see “FM-AM-SAT radio with Compact Disc
(CD) player (Type B)” (P.4-62).

Heater, air conditioner, audio and phone systems

4-7

4-8

Heater, air conditioner, audio and phone systems

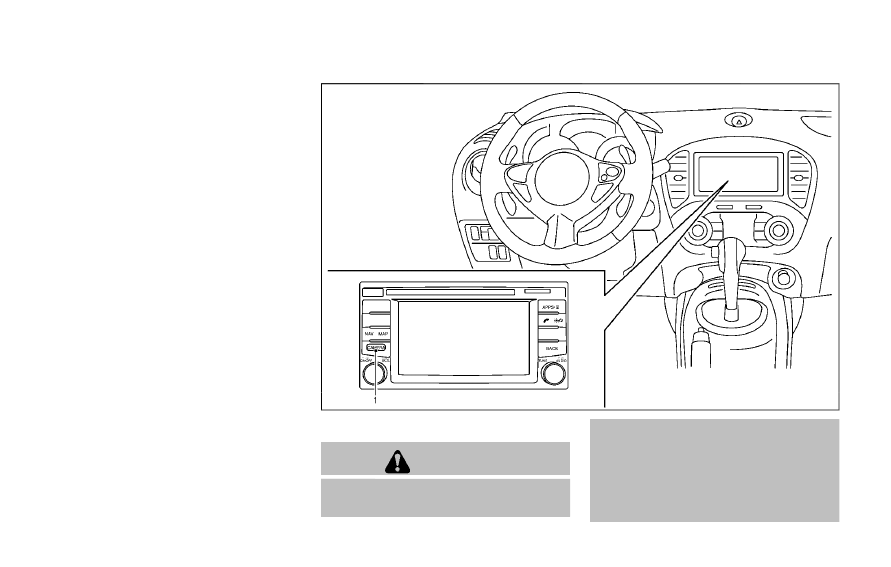

HOW TO USE BRIGHTNESS CON-
TROL BUTTON

To change the display brightness, push the
button. Pushing the button again will change the
display to the day or the night display.

If no operation is performed, the display will
return to the previous display.

Push and hold the

button to turn the display

off. Push the button again to turn the display on.

HOW TO USE THE ON·OFF BUTTON/
VOLUME CONTROL KNOB

Push the ON·OFF button to turn audio function
on and off. Turn the volume control knob to
adjust audio volume.

HOW TO USE THE CAMERA BUTTON

For more information regarding the CAMERA
button, see “Around View

Monitor (AVM)

(models with navigation system)” (P.4-13).

WARNING

Failure to follow the warnings and
instructions for proper use of the Rear-
View Monitor could result in serious
injury or death.

. The RearView Monitor is a conve-

nience but it is not a substitute for
proper backing. Always turn and
look out the windows, and check
mirrors to be sure that it is safe to
move before operating the vehicle.
Always back up slowly.

. The system is designed as an aid to

the driver in showing large station-
ary objects directly behind the vehi-
cle, to help avoid damaging the
vehicle.

. The distance guide line and the

vehicle width line should be used
as a reference only when the vehicle
is on a level paved surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automatically
shows a rear view of the vehicle when the shift
lever is placed in the “R” (Reverse) position.

The radio can still be heard while the RearView
Monitor is active.

REARVIEW MONITOR (models
without navigation system)

JVH1219X

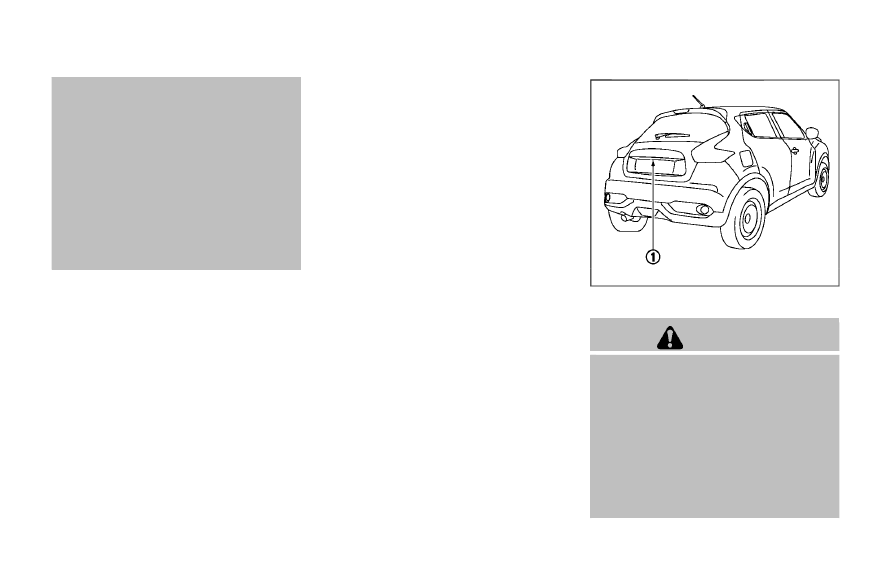

To display the rear view, the RearView Monitor
system uses a camera located just above the
vehicle’s license plate

REARVIEW MONITOR SYSTEM OP-
ERATION

With the ignition switch in the ON position,
move the shift lever to the “R” (Reverse) position
to operate the RearView Monitor.

SAA2776

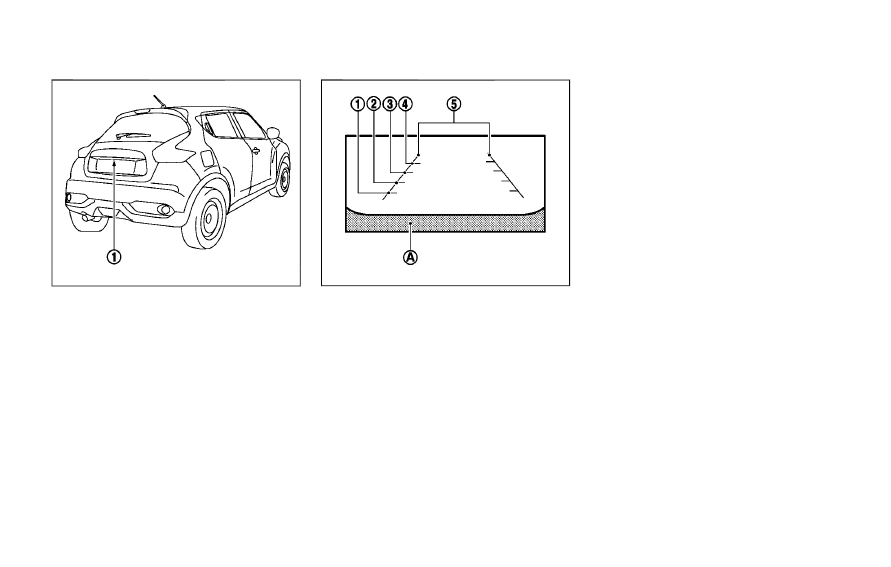

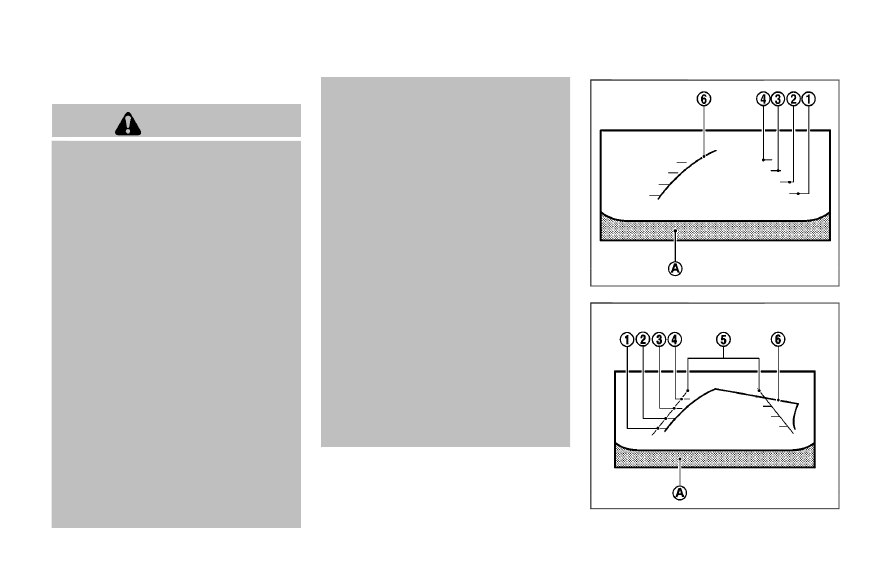

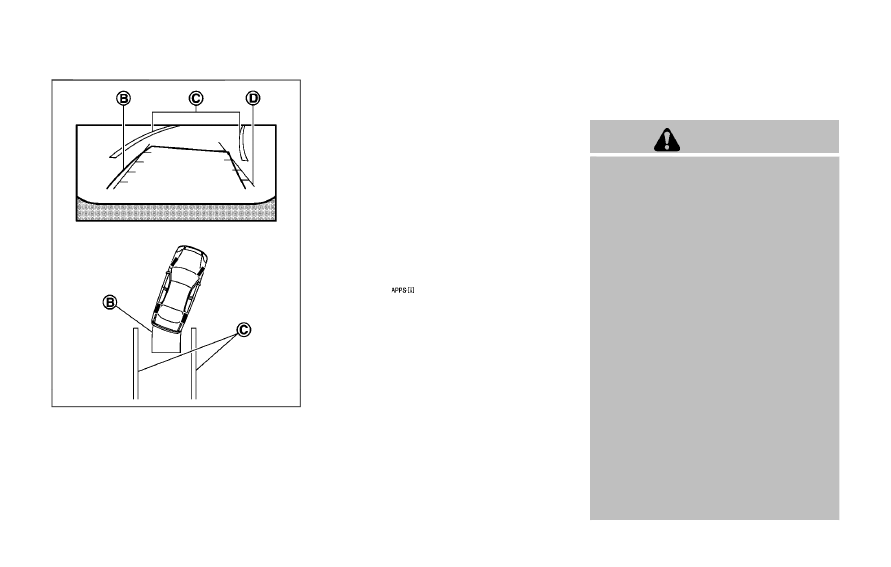

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line

are displayed on the monitor.

Distance guide lines:

Indicate distances from the bumper.
. Red line

: approx. 1.5 ft (0.5 m)

. Yellow line

: approx. 3 ft (1 m)

. Green line

: approx. 7 ft (2 m)

. Green line

: approx. 10 ft (3 m)

Vehicle width guide lines

Indicate the vehicle width when backing up.

Difference between predictive and actual
distances

The displayed guidelines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in the
monitor relative to the guidelines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or park
and exit the vehicle to view the positioning of
objects behind the vehicle.

Heater, air conditioner, audio and phone systems

4-9

4-10

Heater, air conditioner, audio and phone systems

JVH1159X

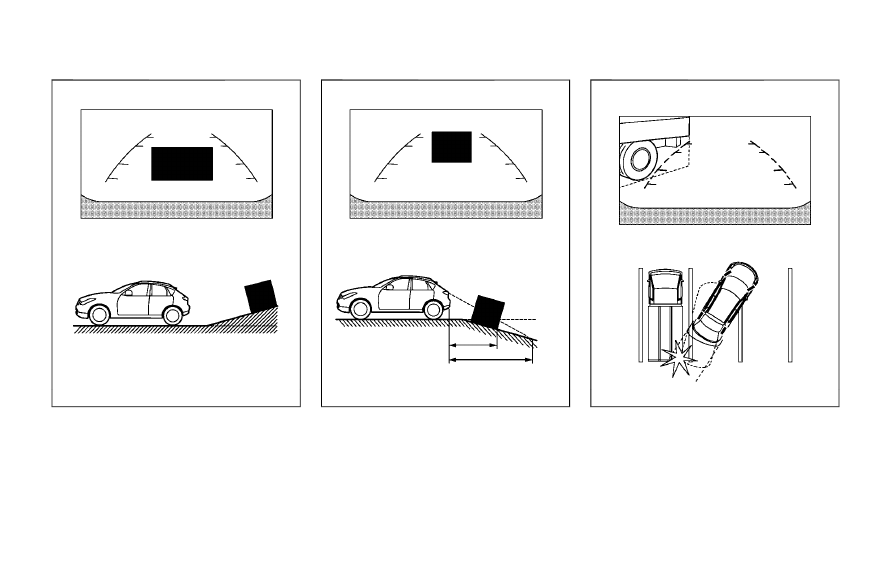

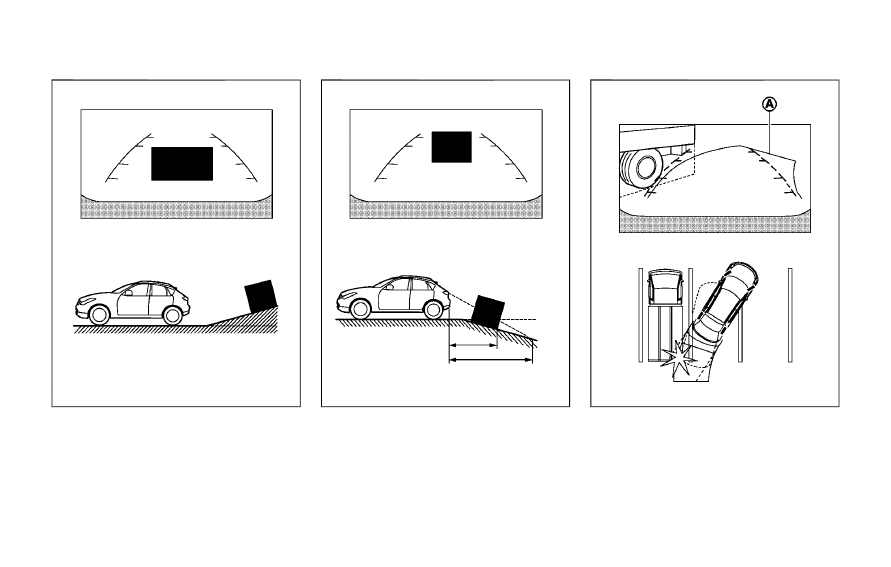

Backing up on a steep uphill:

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is farther than it
appears on the monitor.

JVH1160X

Backing up on a steep downhill:

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.

SAA3440

Backing up near a projecting object:

The vehicle may seem to nearly clear the object
in the display. However, the vehicle may hit the
object if it projects over the actual backing up
course.

SAA3475

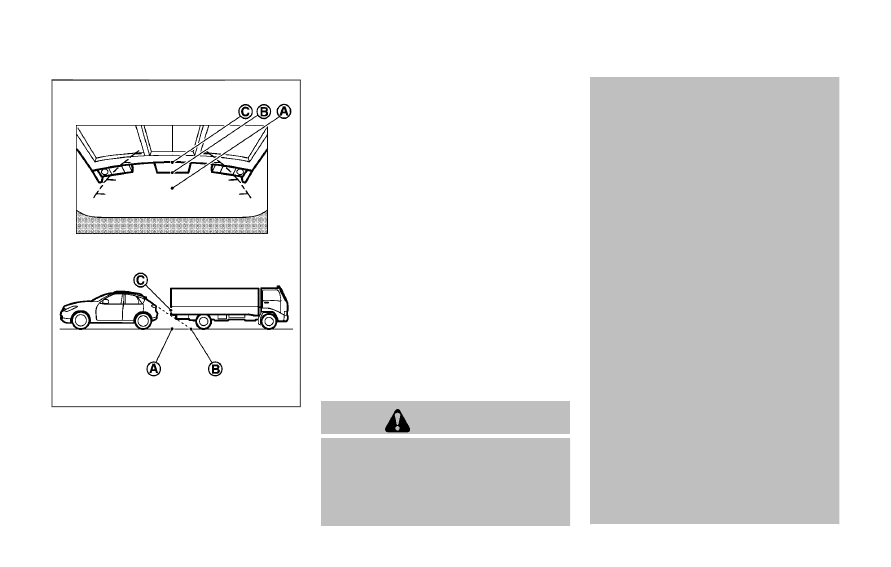

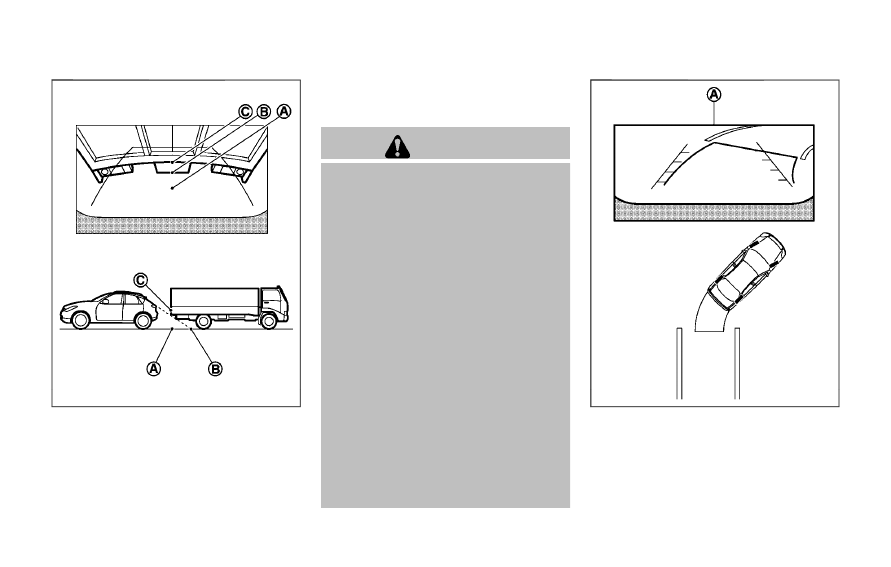

Backing up behind a projecting object:

The position

is shown farther than the

position

in the display. However, the

position

is actually at the same distance

as the position

. The vehicle may hit the

object when backing up to the position

the object projects over the actual backing up

course.

ADJUSTING THE SCREEN

1. Push the ENTER/SETTING button while the

RearView monitor screen is displayed.

2. A d j u s t

t h e b r i g h t n e s s

u s i n g t h e

TUNE·FOLDER or TUNE·SCROLL control
knob.

3. Push the ENTER/SETTING button and

adjust the contrast using the TUNE·FOLDER
or TUNE·SCROLL control knob.

4. Push the ENTER/SETTING button to return

to the RearView monitor screen.

NOTE:

Do not adjust any of the display settings of
the RearView Monitor while the vehicle is
moving. Make sure the parking brake is
firmly applied.

REARVIEW MONITOR SYSTEM LIM-
ITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in ser-
ious injury or death.

. The system cannot completely elim-

inate blind spots and may not show
every object.

. Underneath the bumper and the

corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.

. Objects viewed in the RearView

Monitor differ from actual distance
because a wide-angle lens is used.

. Objects in the RearView Monitor

will appear visually opposite com-
pared to when viewed in the rear
view and outside mirrors.

. Use the displayed lines as a refer-

ence. The lines are highly affected
by the number of occupants, fuel
level, vehicle position, road condi-
tions and road grade.

. Make sure that the liftgate is se-

curely closed when backing up.

. Do not put anything on the rearview

camera. The rearview camera is
installed above the license plate.

Heater, air conditioner, audio and phone systems

4-11

4-12

Heater, air conditioner, audio and phone systems

. When washing the vehicle with

high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.

. Do not strike the camera. It is a

precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.

The following are operating limitations and do
not represent a system malfunction:
. When the temperature is extremely high or

low, the screen may not clearly display
objects.

. When strong light is directly coming on the

camera, objects may not be displayed
clearly.

. Vertical lines may be seen in objects on the

screen. This is due to strong reflected light
from the bumper.

. The screen may flicker under fluorescent

light.

. The colors of objects on the RearView

Monitor may differ somewhat from the actual
color of objects.

. Objects on the monitor may not be clear in a

dark environment.

. If dirt, rain or snow accumulates on the

camera, the RearView Monitor may not
display objects clearly. Clean the camera.

. Do not use wax on the camera window.

Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.

JVH1219X

SYSTEM MAINTENANCE

CAUTION

. Do not use alcohol, benzine or

thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.

. Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on the camera

, RearView Monitor may not display objects

clearly. Clean the camera by wiping it with a
cloth dampened with a diluted mild cleaning
agent and then wiping it with a dry cloth.

JVH1223X

1. CAMERA button

WARNING

Failure to follow the warnings and
instructions for the proper use of the

Around View

Monitor system could

result in serious injury or death.

. The Around View

Monitor is a

convenient feature but it is not a
substitute for proper vehicle opera-
tion because it has areas where

Heater, air conditioner, audio and phone systems

4-13

AROUND VIEW

MONITOR (AVM)

(models with navigation system)

4-14

Heater, air conditioner, audio and phone systems

objects cannot be viewed. The four
corners of the vehicle in particular,
are areas where objects do not
always appear in the bird’s-eye,
front, or rear views. Always check
your surroundings to be sure that it
is safe to move before operating the
vehicle. Always operate the vehicle
slowly. Always look out the win-
dows and check mirrors to be sure
that it is safe to move.

. The driver is always responsible for

safety during parking and other
maneuvers.

CAUTION

Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.

The Around View

Monitor system is designed

as an aid to the driver in situations such as slot
parking or parallel parking.

The monitor displays various views of the
position of the vehicle in a split screen format.
All views are not available at all times.

Available views:
. Bird’s-eye view

The surrounding view of the vehicle.

. Front-side view

The view around and ahead of the front
passenger’s side wheel.

. Front view

The view to the front of the vehicle.

. Rear view

The view to the rear of the vehicle.

JVH1224X

To display the multiple views, the Around View

Monitor system uses cameras

located in the

front grill, on the vehicle’s outside mirrors and
one just above the vehicle’s license plate.

AROUND VIEW

MONITOR SYSTEM

OPERATION

With the ignition switch in the ON position, push
the CAMERA button on the instrument panel or
move the shift lever to the R (Reverse) position
to operate the Around View

Monitor.

Available views

WARNING

. The distance guide lines and the

vehicle width lines should be used
as a reference only when the vehicle
is on a paved, level surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.

. Use the displayed lines and the

bird’s-eye view as a reference. The
lines and the bird’s-eye view are
greatly affected by the number of
occupants, fuel level, vehicle posi-
tion, road condition and road grade.

. If the tires are replaced with differ-

ent sized tires, the predictive course
lines and the bird’s-eye view may be
displayed incorrectly.

. When driving the vehicle up a hill,

objects viewed in the monitor are
farther than they appear. When
driving the vehicle down a hill,
objects viewed in the monitor are
closer than they appear.

. Objects in the monitor will appear

visually opposite compared to when
viewed in the rear view and outside
mirrors.

. Use the mirrors or actually look to

properly judge distances to other
objects.

. The distance between objects

viewed in the rear view differs from
actual distance because a wide-
angle lens is used.

. On a snow-covered or slippery road,

there may be a difference between
the predictive course line and the
actual course line.

. The vehicle width and predictive

course lines are wider than the
actual width and course.

. The displayed lines on the rear view

will appear slightly off to the right
because the rear view camera is not
installed in the rear center of the
vehicle.

SAA1840

Front view

SAA1896

Rear view

Heater, air conditioner, audio and phone systems

4-15

4-16

Heater, air conditioner, audio and phone systems

Front and rear view:

Guiding lines, which indicate the vehicle width
and distances to objects with reference to the
vehicle body line

, are displayed on the

monitor.

Distance guide lines:

Indicate distances from the vehicle body.
. Red line

: approx. 1.5 ft (0.5 m)

. Yellow line

: approx. 3 ft (1 m)

. Green line

: approx. 7 ft (2 m)

. Green line

: approx. 10 ft (3 m)

Vehicle width guide lines

Indicate the vehicle width when backing up.

Predictive course lines

Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the straight ahead
position.

The front view will not be displayed when the
vehicle speed is above 6 MPH (10 km/h).

NOTE:
. When the monitor displays the front

view and the steering wheel turns

about 90 degrees or less from the
straight ahead position, both the right
and left predictive course lines

are

displayed. When the steering wheel
turns about 90 degrees or more, the
predictive course line is displayed only
on the opposite side of the turn.

JVH1037X

Bird’s-eye view:

The bird’s-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predicted course to a parking
space.

The vehicle icon

shows the position of the

vehicle. Note that the distance between objects
viewed in the bird’s-eye view differs from the
actual distance.

The areas that the cameras cannot cover

are

indicated in black.

After the ignition switch is placed in the ON
position, the non-viewable area

is high-

lighted in yellow for 3 seconds after the bird’s-

eye view is displayed.

In addition, the non-viewable corners are dis-
played in red (blink for the first 3 seconds)

to remind the drivers to be cautious.

WARNING

. Objects in the bird’s-eye view will

appear farther than the actual dis-
tance because the bird’s-eye view is
a pseudo view that is processed by
combining the views from the cam-
eras on the outside mirrors, the
front and the rear of the vehicle.

. Tall objects, such as a curb or

vehicle, may be misaligned or not
displayed at the seam of the views.

. Objects that are above the camera

cannot be displayed.

. The view for the bird’s-eye view may

be misaligned when the camera
position alters.

. A line on the ground may be mis-

aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as
the line proceeds away from the
vehicle.

SAA3571

Front-side view:

Guiding lines:

Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.

The front-of-vehicle line

shows the front part

of the vehicle.

The side-of-vehicle line

shows the vehicle

width including the outside mirrors.

The extensions

of both the front

and

side

lines are shown with a green dotted

line.

CAUTION

. The turn signal light may look like

the side-of-vehicle line. This is not a
malfunction.

Difference between predictive and actual
distances

Heater, air conditioner, audio and phone systems

4-17

4-18

Heater, air conditioner, audio and phone systems

JVH1159X

Backing up on a steep uphill:

JVH1160X

Backing up on a steep downhill:

SAA1923

Backing up near a projecting object:

The predictive course lines

do not touch the

object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.

SAA1980

Backing up behind a projecting object:

The position

is shown farther than the

position

in the display. However, the

position

is actually at the same distance

as the position

. The vehicle may hit the

object when backing up to the position

the object projects over the actual moving

course.

How to park with predictive course lines

WARNING

. If the tires are replaced with differ-

ent sized tires, the predictive course
lines may be displayed incorrectly.

. On a snow-covered or slippery road,

there may be a difference between
the predictive course line and the
actual course line.

. If the battery is disconnected or

becomes discharged, the predictive
course lines may be displayed in-
correctly. If this occurs, please per-
form the following procedures:

— Turn the steering wheel from

lock to lock while the engine is
running.

— Drive the vehicle on a straight

road for more than 5 minutes.

. When the steering wheel is turned

with the ignition switch in the ACC
position, the predictive course lines
may be displayed incorrectly.

SAA1897

1. Visually check that the parking space is safe

before parking your vehicle.

2. The rear view of the vehicle is displayed on

the screen

when the shift lever is moved

to the R (Reverse) position.

Heater, air conditioner, audio and phone systems

4-19

4-20

Heater, air conditioner, audio and phone systems

SAA1898

3. Slowly back up the vehicle adjusting the

steering wheel so that the predictive course
lines

enter the parking space

4. Maneuver the steering wheel to make the

vehicle width guide lines

parallel to the

parking space

while referring to the

predictive course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the P
(Park) position and apply the parking brake.

How to switch the display

The Around View

Monitor can display two split

views. Push the CAMERA button, change the
shift lever position, to switch between the
available views.

HOW TO ADJUST THE SCREEN VIEW

The display settings such as Display Mode,
Brightness, Contrast and Color of the Around
View

Monitor can be adjusted.

1. Push the

button.

2. Touch “Settings”.

3. Touch “System” and then touch “Camera

Settings”.

4. Select an item you wish to adjust.

5. Adjust the level of the setting item using the

TUNE knob.

NOTE:

Do not adjust any of the display settings of
the Around View

Monitor while the vehi-

cle is moving. Make sure the parking brake
is firmly applied.

AROUND VIEW

MONITOR SYSTEM

LIMITATIONS

WARNING

Listed below are the system limitations
for Around View

Monitor. Failure to

operate the vehicle in accordance with
these system limitations could result in
serious injury or death.

. Do not use the Around View

Moni-

tor with the outside mirrors in the
stored position, and make sure that
the liftgate is securely closed when
operating the vehicle using the
Around View

Monitor.

. The distance between objects

viewed on the Around View

Moni-

tor differs from the actual distance.

. The cameras are installed above the

front grille, the outside mirrors and
above the rear license plate. Do not
put anything on the cameras.

. When washing the vehicle with

highpressure water, be sure not to
spray it around the cameras. Other-
wise, water may enter the camera
unit causing water condensation on

Nissan Juke (2017 year). Instruction - part 11
