Nissan Juke (2017 year). Instruction

passenger’s door is opened during this period of
about 45 seconds, power to the moonroof is
canceled.

Sunshade

The sunshade will open automatically when the
moonroof is opened. However, it must be closed
manually.

SIC4624

Sliding the moonroof

To fully open or close the moonroof, push the
switch toward

and release

it; it need not be held. The roof will automatically
open or close all the way. To stop the roof, push
the switch in any direction while it is opening or
closing.

Tilting the moonroof

To tilt up, first close the moonroof by pushing the
switch toward

. Push the switch toward

again and release it; it need not be

held. To tilt down the moonroof, push the switch
toward

Auto reverse function

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.

If the control unit detects something caught in
the moonroof when it is closing, the moonroof
will be immediately opened.

The auto reverse function can be activated when
the moonroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
pushed to the OFF position.

If the moonroof cannot be closed automatically
when the auto reverse function activates due to
a malfunction, push and hold the switch toward

Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.

Instruments and controls

2-53

2-54

Instruments and controls

If the moonroof does not operate

If the moonroof does not operate properly,
perform the following procedure to initialize the
moonroof operation system.

1. If the moonroof is open, close it fully by

repeatedly pushing the switch toward

2. Push and hold the switch toward

tilt the moonroof up.

3. Release the moonroof switch after the

moonroof moves slightly up and down.

4. Push and hold the switch toward

fully tilt the moonroof down.

5. Check if the moonroof switch operates

normally.

If the moonroof does not operate properly after
performing the procedure above, have your
moonroof checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.

SIC4572

MAP LIGHTS (if so equipped)

Operate the map light switch to turn the map
light on or off.

: ON position

: OFF position

INTERIOR LIGHTS

SIC4573

MAP LIGHT CONTROL SWITCH (if so
equipped)

The map lights control switch has three posi-
tions: ON

, OFF

and center.

ON position

When the switch is in the ON position

, the

map lights will illuminate.

OFF position

When the switch is in the OFF position

, the

map lights will not illuminate, regardless of the
condition.

Center position

When the switch is in the center position, the
map lights will illuminate under the following
conditions:
. ignition switch is placed in the OFF position

— remain on for about 15 seconds.

. doors are unlocked by pushing the UN-

LOCK

button (on the Intelligent Key) or

the request switch with the ignition switch in
the LOCK position
— remain on for about 15 seconds.

. any door is opened and then closed with the

ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened with the ignition switch

in the ACC or ON position
— remain on while the door is opened.

When the door is closed, the lights go
off.

The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.

CARGO LIGHT

The cargo room lights illuminate when the
liftgate is opened. When the liftgate is closed,
the lights will turn off.

Instruments and controls

2-55

3-2

Pre-driving checks and adjustments

A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, it is recommended you visit a
NISSAN dealer for duplicates by using the key
number. NISSAN does not record any key
numbers so it is very important to keep track of
your key number plate.

A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, it can be duplicated
without knowing the key number.

SPA2406

Intelligent Key (2 sets)

Mechanical key (inside Intelligent Key) (2 sets)

Key number plate

INTELLIGENT KEYS

Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-

nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.

CAUTION

. Be sure to carry the Intelligent Key

with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.

— The Intelligent Key is water

resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.

— Do not bend, drop or strike it

against another object.

— If the outside temperature is

below 14

8F (-108C) degrees, the

battery of the intelligent key
may not function properly.

— Do not place the Intelligent Key

for an extended period in a
place where temperatures ex-
ceed 140

8F (608C).

KEYS

— Do not change or modify the

Intelligent Key.

— Do not use a magnet key holder.

— Do not place the Intelligent Key

near an electric appliance such
as a television set, personal
computer or cellular phone.

— Do not allow the Intelligent Key

to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.

. If an Intelligent Key is lost or stolen,

NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, it is recom-
mended you visit a NISSAN dealer.

SPA2033

Mechanical key

To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.

To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.

Use the mechanical key to lock or unlock the
doors. (See “Doors” (P.3-4).)

CAUTION

Always carry the mechanical key in-
stalled in the Intelligent Key.

Pre-driving checks and adjustments

3-3

3-4

Pre-driving checks and adjustments

WARNING

. Always have the doors locked while

driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.

. Before opening any door, always

look for and avoid oncoming traffic.

. To help avoid risk of injury or death

through unintended operation of
the vehicle and or its systems,
including entrapment in windows
or inadvertent door lock activation,
do not leave children, people who
require the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.

SPA2602

LOCKING WITH KEY

The power door lock system allows you to lock
or unlock all doors simultaneously.
. Turning the driver’s door key cylinder to the

front of the vehicle

will lock all doors and

the liftgate.

. Turning the driver’s door key cylinder once

to the rear of the vehicle

will unlock the

driver’s door. After returning the key to the
neutral position, turning it to the rear again
within 5 seconds will unlock all doors and
the liftgate.

SPA2603

LOCKING WITH INSIDE LOCK KNOB

To lock the door without the key, move the inside
lock knob to the lock position

then close the

door.

To unlock, move the inside lock knob to the
unlock position

When locking the door without a key, be
sure not to leave the key inside the vehicle.

DOORS

SPA2803

Driver’s armrest

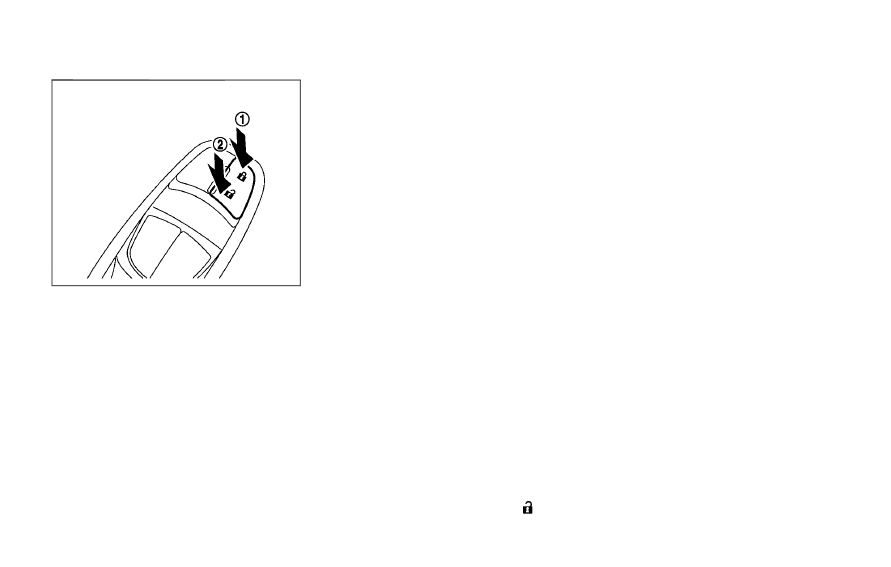

LOCKING WITH POWER DOOR LOCK
SWITCH

Operating the power door lock switch will lock
or unlock all the doors. The switch is located on
the driver’s door armrest.

To lock the doors, push the power door lock
switch to the lock position

with the driver’s

door open, then close the door.

When locking the door this way, be sure
not to leave the key inside the vehicle.

To unlock the doors, push the power door lock
switch to the unlock position

Lockout protection

Lockout protection function helps to prevent the
keys from being accidentally locked inside the
vehicle.
. When the power door lock switch is moved

to the lock position with the ignition switch
placed in the ACC or ON position and any
door open, all doors will lock and then
unlock automatically.

. When the power door lock switch is moved

to the lock position with the Intelligent Key
left in the vehicle and any door open, all
doors will unlock automatically and a chime
will sound after the door is closed.

AUTOMATIC DOOR LOCKS

. All doors lock automatically when the vehicle

speed reaches 15 MPH (24 km/h).

. All doors unlock automatically when the

ignition switch is placed in the OFF position.

The automatic unlock function can be
deactivated or activated.

To deactivate or activate the automatic door
unlock system, perform the following procedure.

1. Close all doors.

2. Place the ignition switch in the ON position.

3. Within 20 seconds, push and hold the

power door lock switch to the

(UN-

LOCK) position for more than 5 seconds.

4. When activated, the hazard warning lights

will flash twice. When deactivated, the
hazard warning lights will flash once.

5. The ignition switch must be placed in the

OFF and ON position again between each
setting change.

When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition is placed in the OFF position. To unlock
the door manually, use the inside lock knob or
the power door lock switch.

Pre-driving checks and adjustments

3-5

3-6

Pre-driving checks and adjustments

SPA2801

CHILD SAFETY REAR DOOR LOCK

Child safety rear door locks help prevent the rear
doors from being opened accidentally, espe-
cially when small children are in the vehicle.

When the levers are in the lock position

, the rear doors can be opened only

from the outside.

To disengage, move the levers to the unlock
position

WARNING

. Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.

. The Intelligent Key transmits radio

w a v e s w h e n t h e b u t t o n s a r e
pushed. The FAA advises that the
radio waves may affect aircraft na-
vigation and communication sys-
t e m s .

D o

n o t

o p e r a t e

t h e

Intelligent Key while on an airplane.
Make sure the buttons are not
operated unintentionally when the
unit is stored during a flight.

The Intelligent Key system can operate all the
door locks using the remote controller function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.

Be sure to read the following before using the
Intelligent Key system.

CAUTION

. Be sure to carry the Intelligent Key

with you when operating the vehi-
cle.

. Never leave the Intelligent Key in

the vehicle when you leave the
vehicle.

The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
. When operating near a location where

strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.

. When in possession of wireless equipment,

such as a cellular phone, transceiver, and
CB radio.

. When the Intelligent Key is in contact with or

covered by metallic materials.

. When any type of radio wave remote control

is used nearby.

. When the Intelligent Key is placed near an

electric appliance such as a personal

INTELLIGENT KEY SYSTEM

computer.

. When the vehicle is parked near a parking

meter.

In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.

Although the life of the battery varies depending
on the operating conditions, the battery’s life is
approximately 2 years. If the battery is dis-
charged, replace it with a new one.

Since the Intelligent Key is continuously receiv-
ing radio waves, if the key is left near equipment
which transmits strong radio waves, such as
signals from a TV and personal computer, the
battery life may become shorter.

For information regarding replacement of a
battery, see “Intelligent Key battery replacement”
(P.8-20).

As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information about
the purchase and use of additional Intelligent
Keys, contact a NISSAN dealer.

CAUTION

. Do not allow the Intelligent Key,

which contains electrical compo-
nents, to come into contact with

water or salt water. This could affect
the system function.

. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key

sharply against another object.

. Do not change or modify the Intel-

ligent Key.

. Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet,
immediately wipe until it is comple-
tely dry.

. If the outside temperature is below

8F (í108C) degrees, the battery of

the Intelligent Key may not function
properly.

. Do not place the Intelligent Key for

an extended period in an area where
temperatures exceed 140

8F (608C).

. Do not attach the Intelligent Key

with a key holder that contains a
magnet.

. Do not place the Intelligent Key near

equipment that produces a mag-
netic field, such as a TV, audio
equipment, personal computers or
cellular phone.

If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that
Intelligent Key from the vehicle. This may prevent
the unauthorized use of the Intelligent Key to
operate the vehicle. For information regarding
the erasing procedure, it is recommended that
you contact a NISSAN dealer.

The Intelligent Key function can be disabled. For
information about disabling the Intelligent Key
function, it is recommended that you contact a
NISSAN dealer.

Pre-driving checks and adjustments

3-7

3-8

Pre-driving checks and adjustments

SPA2074

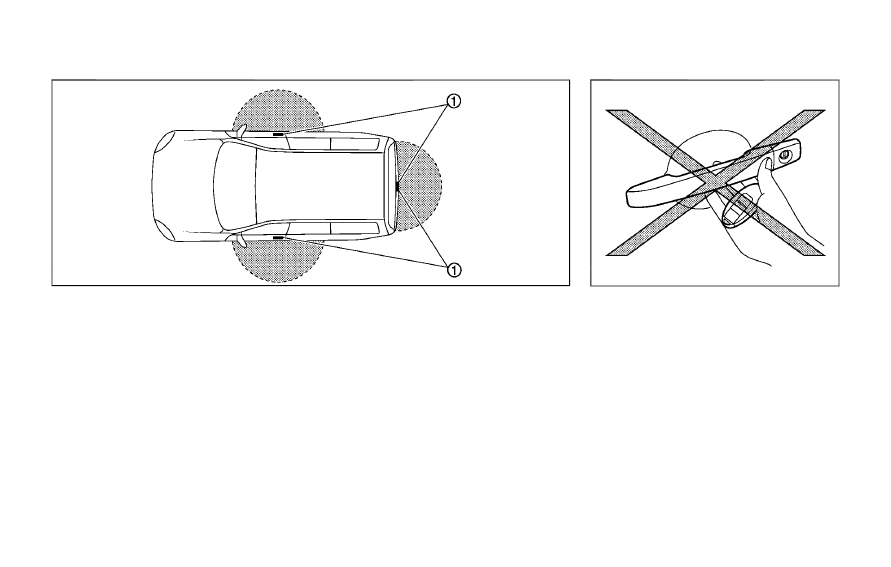

INTELLIGENT KEY OPERATING
RANGE

The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch

When the Intelligent Key battery is discharged or
strong radio waves are present near the operat-
ing location, the Intelligent Key system’s operat-
ing range becomes narrower, and the Intelligent
Key may not function properly.

The operating range is within 31.50 in (80 cm)
from each request switch

If the Intelligent Key is too close to the door
glass, handle or rear bumper, the request

switches may not function.

When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors including the
liftgate.

SPA2407

DOOR LOCKS/UNLOCKS PRECAU-
TION

. Do not push the door handle request switch

with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the In-
telligent Key is outside the vehicle.

. After locking with the door handle request

switch, verify the doors are securely locked
by testing them.

. To prevent the Intelligent Key from being left

inside the vehicle, make sure you carry the
key with you and then lock the doors.

. Do not pull the door handle before pushing

the door handle request switch. The door
will be unlocked but will not open. Release
the door handle once and pull it again to
open the door.

SPA2408

SPA2710

SPA2545

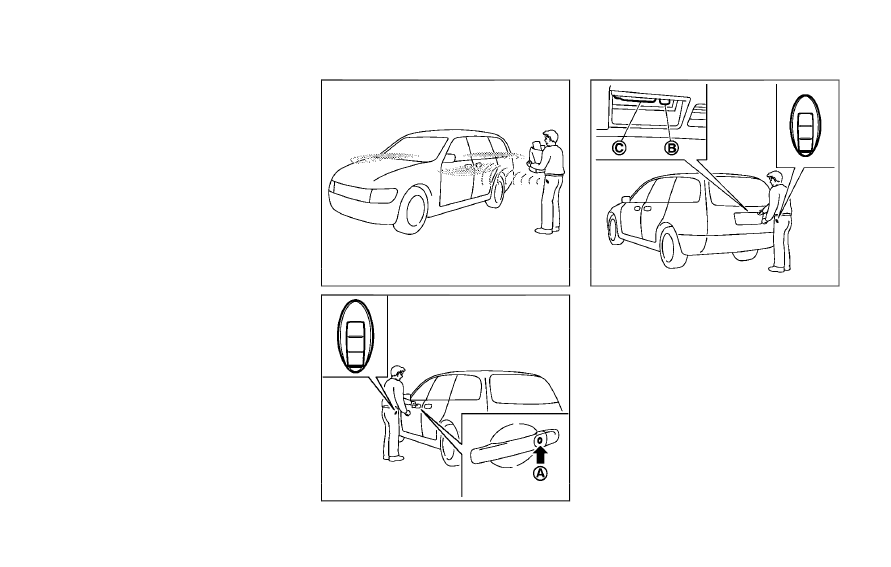

INTELLIGENT KEY OPERATION

You can lock or unlock the doors without taking
the key out from your pocket or bag.

When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch (driver’s or front passen-
ger’s)

or liftgate request switch

within

the range of operation.

When you lock or unlock the doors, the hazard
indicator will flash and the horn (or the outside
chime) will sound as a confirmation. For details,
see “Setting hazard indicator and horn mode”
(P.3-13).

Pre-driving checks and adjustments

3-9

3-10

Pre-driving checks and adjustments

Locking doors

1. Place the ignition switch in the OFF position

and carry the Intelligent Key with you.*1

2. Close all the doors.*2

3. Push the door handle request switch (dri-

ver’s or front passenger’s)

or the liftgate

request switch

while carrying the

Intelligent Key with you.*3

4. All the doors and the liftgate will lock.

5. The hazard indicator flashes twice and the

outside chime sounds twice.

*1:

Doors will lock with the request switch while the
ignition switch is in the ACC or ON position.

*2:

Doors will not lock with the request switch while
any door is open.

*3:

Doors will not lock with the request switch when
the Intelligent Key is left inside the vehicle.
However, when an Intelligent Key is inside the
vehicle, doors can be locked with another
registered Intelligent Key.

Unlocking doors

1. Push the door handle request switch

the liftgate request switch

while carry-

ing the Intelligent Key with you.

2. The hazard indicator flashes once and out-

side chime sounds once. The corresponding
door or the liftgate will unlock.

3. Push the request switch again within 1

minute.

4. The hazard indicator flashes once and out-

side chime sounds once again. All the doors
and the liftgate will unlock.

All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the request switch while
the doors are locked.
. Opening any door.
. Pushing the ignition switch.
During this 1-minute time period, if the UNLOCK

button on the Intelligent Key is pushed, all

doors will be locked automatically after another
1 minute.

Opening liftgate

1. Carry the Intelligent Key.

2. Push the liftgate opener switch

3. The liftgate will unlock.

BATTERY SAVER SYSTEM

When all the following conditions are met for a
period of time, the battery saver system will cut
off the power supply to prevent battery dis-
charge.
. The ignition switch is in the ACC position,

and

. All doors are closed, and
. The shift lever is in the P (Park) position

(Continuously Variable Transmission mod-
els).

WARNING LIGHTS AND AUDIBLE
REMINDERS

To help prevent the vehicle from moving
unexpectedly by erroneous operation of the
Intelligent Key listed on the following chart or
to help prevent the vehicle from being stolen,
chime or beep sounds inside and outside the
vehicle and a warning light illuminates or blinks.

When a chime or beep sounds or the warning
light illuminates or blinks, be sure to check the
vehicle and Intelligent Key.

See “Troubleshooting guide” (P.3-11) and
“Warning lights, indicator lights and audible
reminders” (P.2-15).

Intelligent Key system warning light:

P position selecting warning light:

TROUBLESHOOTING GUIDE

Symptom

Possible cause

Action to take

When pushing the ignition switch
to stop the engine

The P position selecting warning light in the
meter illuminates and the inside warning chime
sounds continuously (Continuously Variable
Transmission models).

The shift lever is not in the P (Park)
position.

Shift the shift lever to the P (Park) position.

When shifting the shift lever to the
P (Park) position.

The inside warning chime sounds continuously
(Continuously Variable Transmission models).

The ignition switch is in the ACC or ON
position.

Push the ignition switch to the OFF posi-
tion.

When opening the driver’s door
to get out of the vehicle

The inside warning chime sounds continuously.

The ignition switch is in the ACC
position.

Push the ignition switch to the OFF posi-
tion.

When closing the door after get-
ting out of the vehicle

The Intelligent Key system warning light in the
meter blinks in yellow, and the outside chime
sounds 3 times and the inside warning chime
sounds for a few seconds.

The ignition switch is in the ACC or ON
position.

Push the ignition switch to the OFF posi-
tion.

The P position selecting warning light in the
meter illuminates and the outside chime
sounds continuously (Continuously Variable
Transmission models).

The ignition switch is in the ACC or OFF
position and the shift lever is not in the P
(Park) position.

Move the shift lever to the P (Park) position
and push the ignition switch to the OFF
position.

When closing the door with the
inside lock knob turned to LOCK

The outside chime sounds for a few seconds
and all the doors unlock.

The Intelligent Key is inside the vehicle.

Carry the Intelligent Key with you.

When pushing the request switch
or the LOCK

button on the

Intelligent Key to lock the door

The outside chime sounds for a few seconds.

The Intelligent Key is inside the vehicle.

Carry the Intelligent Key with you.

A door is not closed securely.

Close the door securely.

When pushing the ignition switch
to start the engine

The Intelligent Key system warning light in the
meter blinks in green.

The battery charge is low.

Replace the battery with a new one. (See
“Intelligent Key battery replacement” (P.8-
20).)

The Intelligent Key system warning light in the
meter blinks in yellow and the inside warning
chime sounds for a few seconds.

The Intelligent Key is not in the vehicle.

Carry the Intelligent Key with you.

When pushing the ignition switch

The Intelligent Key system warning light in the
meter illuminates in yellow.

It warns of a malfunction with the
Intelligent Key system.

It is recommended that you contact a
NISSAN dealer.

Pre-driving checks and adjustments

3-11

3-12

Pre-driving checks and adjustments

HOW TO USE REMOTE KEYLESS
ENTRY FUNCTION

WARNING

. Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.

. The Intelligent Key transmits radio

w a v e s w h e n t h e b u t t o n s a r e
pushed. The FAA advises that the
radio waves may affect aircraft na-
vigation and communication sys-
t e m s .

D o

n o t

o p e r a t e

t h e

Intelligent Key while on an airplane.
Make sure the buttons are not
operated unintentionally when the
unit is stored during a flight.

CAUTION

. Do not allow the Intelligent Key,

which contains electrical compo-
nents, to come into contact with
water or salt water. This could affect

the system function.

. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key

sharply against another object.

. Do not change or modify the Intel-

ligent Key.

. Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet,
immediately wipe until it is comple-
tely dry.

. If the outside temperature is below

8F (-108C) degrees, the battery of

the intelligent key may not function
properly.

. Do not place the Intelligent Key for

an extended period in an area where
temperatures exceed 140

8F (608C).

. Do not attach the Intelligent Key

with a key holder that contains a
magnet.

. Do not place the Intelligent Key near

equipment that produces a mag-
netic field, such as a TV, audio
equipment, personal computers or
cellular phone.

The remote keyless entry function can operate
all door locks using the remote keyless entry

function of the Intelligent Key. The remote
keyless entry function can operate at a distance
of approximately 33 ft (10 m) from the vehicle.
(The operating distance depends upon the
conditions around the vehicle.)

The remote keyless entry function will not
operate:
. When the Intelligent Key is not within the

operational range.

. When the doors are open or not closed

securely.

. When the Intelligent Key battery is dis-

charged.

The remote keyless entry function can also
operate the vehicle alarm.

Nissan Juke (2017 year). Instruction - part 9
