Pulling up the wiper arm:

The windshield wipers must be in the service
position in order to replace the wiper blades.

To move the wiper blades to the service position,
follow this procedure:
. When the ignition switch is in the “ON”

position or within 60 seconds of placing the
ignition switch to the “OFF” position, lift the
lever up

*

4

two times in less than 0.5

seconds. The windshield wipers will move to
the service position automatically, and the
wiper blades can now be replaced. To
replace the wiper blades, see “Windshield
wiper blades” (P.8-15).

To move the wiper blades back to the original
position:
. Lift the lever up

*

4

or push the lever down

to operate at any wiper speed.

CAUTION

This function can be operated even

if the ignition switch is in the “ON”
position. However, to prevent an
accident or damage when pulling
up the wiper arm, be sure to observe
the following precautions.

— Make sure the shift lever is in

the P (Park) position (Continu-
ously Variable Transmission
models).

— Make sure the shift lever is in

the N (Neutral) position, with the
parking brake fully applied
(Manual Transmission models).

— Never allow the passengers to

operate the windshield wiper
switch inadvertently.

Do not operate the windshield wiper

while the wiper arm is pulled up. The
wiper arm may be damaged.

WARNING

In freezing temperatures the washer
solution may freeze on the rear window
glass and obscure your vision. Warm
the rear window with the defroster
before you wash the rear window.

CAUTION

Do not operate the washer continu-

ously for more than 30 seconds.

Do not operate the washer if the

reservoir tank is empty.

Do not fill the window washer

reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.

Pre-mix washer fluid concentrates

with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the

Instruments and controls

2-37

REAR WINDOW WIPER AND
WASHER SWITCH

2-38

Instruments and controls

window washer reservoir tank to
mix the washer fluid concentrate
and water.

If the rear window wiper operation is
interrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that is
on and around the wiper arms. In approxi-
mately 1 minute, turn the switch on again
to operate the wiper.

SIC3666

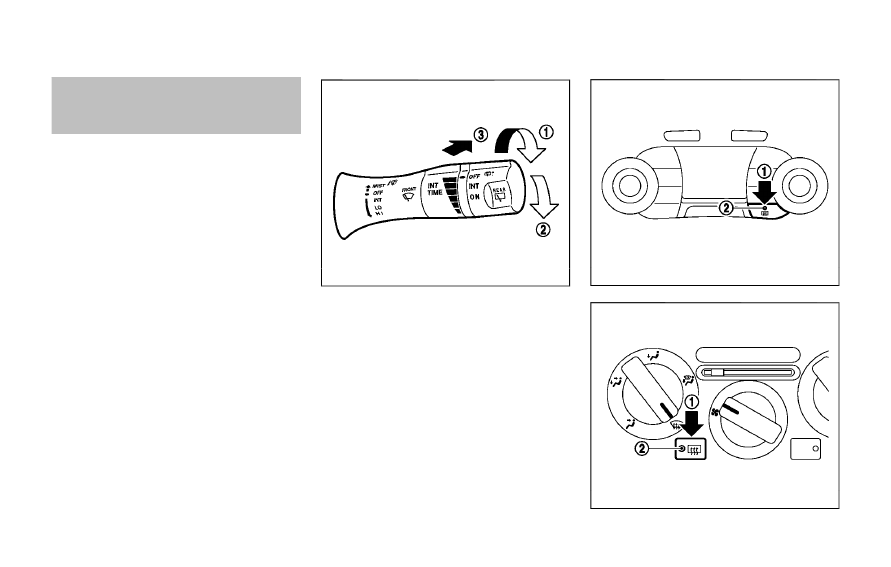

The rear window wiper and washer operate
when the ignition switch is in the ON position.

Turn the switch clockwise from the OFF position
to operate the wiper.

*

1

Intermittent (INT) — intermittent operation (not
adjustable)

*

2

Low (ON) — continuous low speed operation

Push the switch forward

*

3

to operate the

washer. Then the wiper will also operate several
times.

SIC4520

Type A (if so equipped)

SIC4519

Type B (if so equipped)

REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH

To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch

*

1

on. The indicator light

*

2

will illuminate. Push the switch again to turn

the defroster off.

It will automatically turn off in approximately 15
minutes.

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.

XENON HEADLIGHTS (if so equipped)

WARNING

HIGH VOLTAGE

When xenon headlights are on, they

produce a high voltage. To prevent
an electric shock, never attempt to
modify or disassemble. It is recom-
mended to have your xenon head-
lights replaced at a NISSAN dealer.

Xenon headlights provide consider-

ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, it is recommended to take
your vehicle to a NISSAN dealer and
have the headlights adjusted cor-
rectly.

When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
The life of xenon headlights will be

shortened by frequent on-off opera-

tion. It is generally desirable not to turn
off the headlights for short intervals
(for example, when the vehicle stops at
a traffic signal).

If the xenon headlight bulb is close to

burning out, the brightness will drasti-
cally decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, it is recommended
you visit a NISSAN dealer.

Instruments and controls

2-39

HEADLIGHT AND TURN SIGNAL
SWITCH

2-40

Instruments and controls

SIC3668

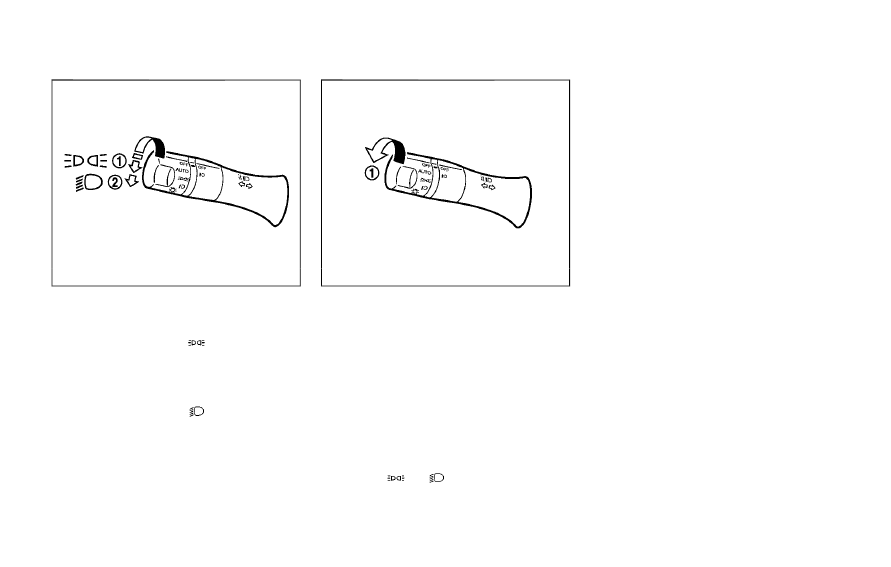

HEADLIGHT SWITCH

Lighting

*

1

Turn the switch to the

position:

The front parking, side marker, tail, license plate,
instrument lights will come on. However, the
daytime running light (for NISMO models and
Canada) will turn off.

*

2

Turn the switch to the

position:

Headlights will come on and all the other lights
remain on. However, the daytime running light
(for NISMO models and Canada) will turn off.

SIC3669

Autolight system (if so equipped)

The autolight system allows the headlights to be
set so they turn on and off automatically.

To set the autolight system:

1. Make sure the headlight switch is in the

AUTO position

*

1

.

2. Place the ignition switch in the ON position.

3. The autolight system automatically turns the

headlights on and off.

To turn the autolight system off, turn the switch
to the OFF,

or

position.

The autolight system can turn on the headlights
automatically when it is dark and turn off the

headlights when it is light.

The headlights will also be turned on automa-
tically at twilight or in rainy weather (when the
windshield wiper is operated continuously).

If the ignition switch is placed in the OFF
position and one of the doors is opened and this
condition is continued, the headlights remain on
for 5 minutes.

SAA1232

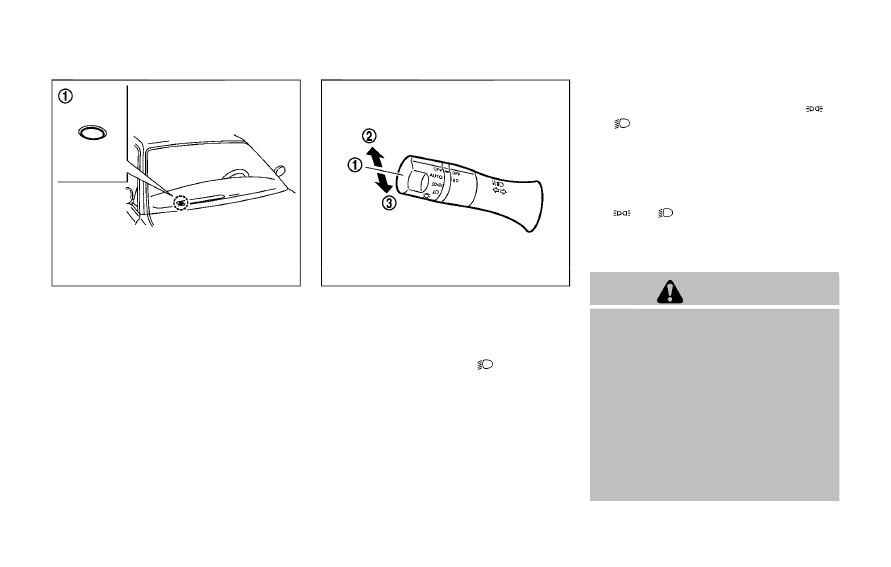

Be sure not to put anything on top of the
photo sensor

*

1

located on the top of the

instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and the
headlights will illuminate.

Automatic headlights off delay

You can keep the headlights on for up to 45
seconds after you place the ignition switch in the
OFF position and open any door then close all
the doors.

SIC3670

Headlight beam select

*

1

To select the low beam, put the lever in the
neutral position as shown.

*

2

To select the high beam, push the lever forward
while the switch is in the

position. Pull it

back to select the low beam.

*

3

Pulling the lever toward you will flash the
headlight high beam even when the headlight
switch is in the OFF position.

Battery saver system

. When the headlight switch is in the

or

position while the ignition switch is in

the ON position, the lights will automatically
turn off within a period of time after the
ignition switch has been placed in the OFF
position.

. When the headlight switch remains in the

or

position after the lights auto-

matically turn off, the lights will turn on when
the ignition switch is placed in the ON
position.

CAUTION

When you turn on the headlight

switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.

Never leave the light switch on

when the engine is not running for
extended periods of time even if the
headlights turn off automatically.

Instruments and controls

2-41

2-42

Instruments and controls

Daytime running light system (for NISMO
models and Canada)

The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position. Turn the headlight switch to the
position for full illumination when driving at night.
(The daytime running lights will turn off.)

If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
switch is placed in the OFF position.

WARNING

When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.

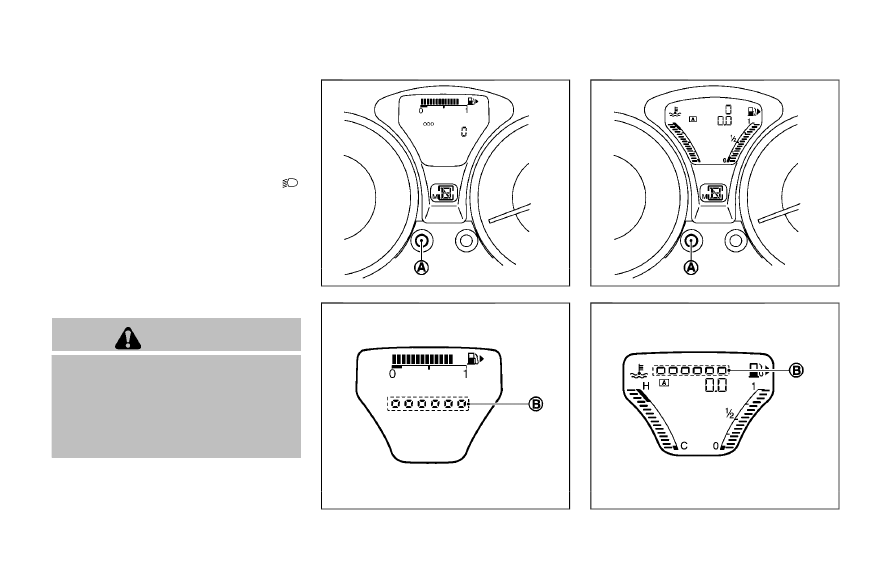

JVI1342X

Type A (if so equipped)

JVI1343X

Type A (if so equipped)

SIC4517

Type B (if so equipped)

SIC4129

Type B (if so equipped)

Instrument brightness control

The instrument brightness control operates
when the ignition switch is in the ON position.

Push the control knob

*

A

to adjust the bright-

ness of the instrument panel lights. The bright-
ness indicator

*

B

will be shown briefly in the

vehicle information display when the control is
turned.

When the brightness level reaches the maximum
or minimum, a beep will sound.

SIC3671

TURN SIGNAL SWITCH

*

1

Turn signal

Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.

*

2

Lane change signal

Move the lever up or down until the turn signal
begins to flash, but the lever does not latch, to
signal a lane change. Hold the lever until the lane
change is completed.

Move the lever up or down until the turn signal
begins to flash, but the lever does not latch, and
release the lever. The turn signal will automati-
cally flash three times.

Choose the appropriate method to signal a lane
change based on road and traffic conditions.

Instruments and controls

2-43

2-44

Instruments and controls

SIC3672

FOG LIGHT SWITCH (if so equipped)

To turn the fog lights on, turn the headlight
switch to the

position, then turn the switch

to the

position. To turn them off, turn the

switch to the OFF position.

The headlights must be on for the fog lights to
operate. The fog lights automatically turn off
when the high beam headlights are selected.

SIC4521

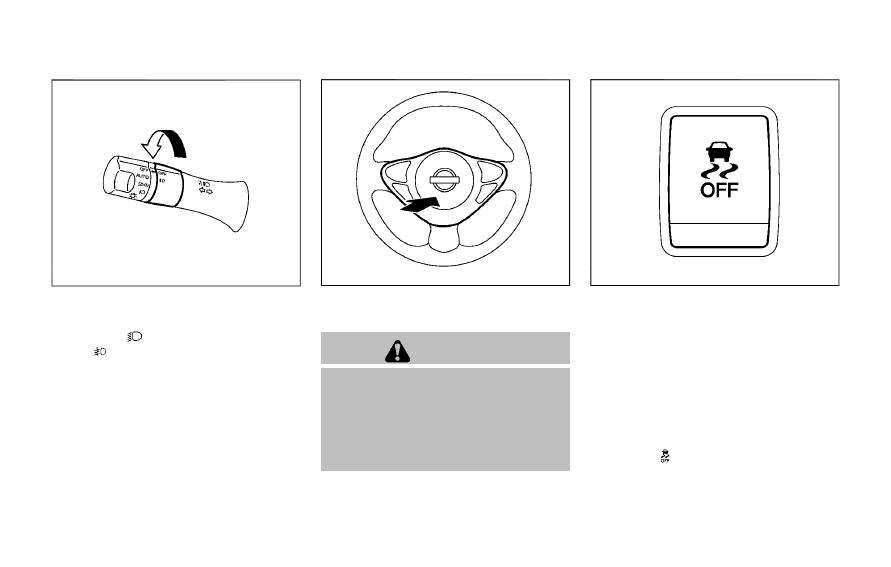

To sound the horn, push the center pad area of
the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.

SIC4544

The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.

If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.

To turn off the VDC system, push the VDC OFF
switch. The

indicator light will illuminate.

Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” (P.5-37).)

HORN

VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH

WARNING

Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
body parts that contact the seat. Use of
the seat heater by such people could
result in serious injury.

CAUTION

The battery could run down if the

seat heater is operated while the
engine is not running.

Do not use the seat heater for

extended periods or when no one
is using the seat.

Do not put anything on the seat

which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.

Do not place anything hard or heavy

on the seat or pierce it with a pin or
similar object. This may result in

damage to the heater.

Any liquid spilled on the heated seat

should be removed immediately
with a dry cloth.

When cleaning the seat, never use

gasoline, thinner, or any similar
materials.

If any malfunctions are found or the

heated seat does not operate, turn
the switch off and have the system
checked. It is recommended you
visit a NISSAN dealer for this ser-
vice.

SIC2770

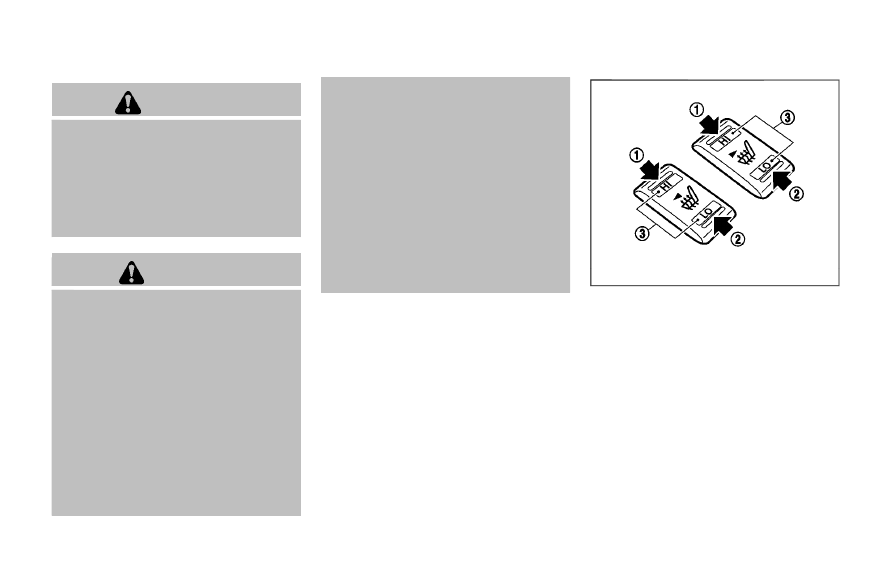

The seats are warmed by built-in heaters. The
switches located on the center console can be
operated independently of each other.

1. Start the engine.

2. Select heat range.

*

1

For high heat, push the HI (High) side of

the switch.

*

2

For low heat, push the LO (Low) side of

the switch.

The indicator light in the switch

*

3

will

illuminate when the heater is on.

3. To turn off the heater, return the switch to

the level position. Make sure the indicator
light goes off.

Instruments and controls

2-45

HEATED SEATS (if so equipped)

2-46

Instruments and controls

The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.

When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.

SIC4525

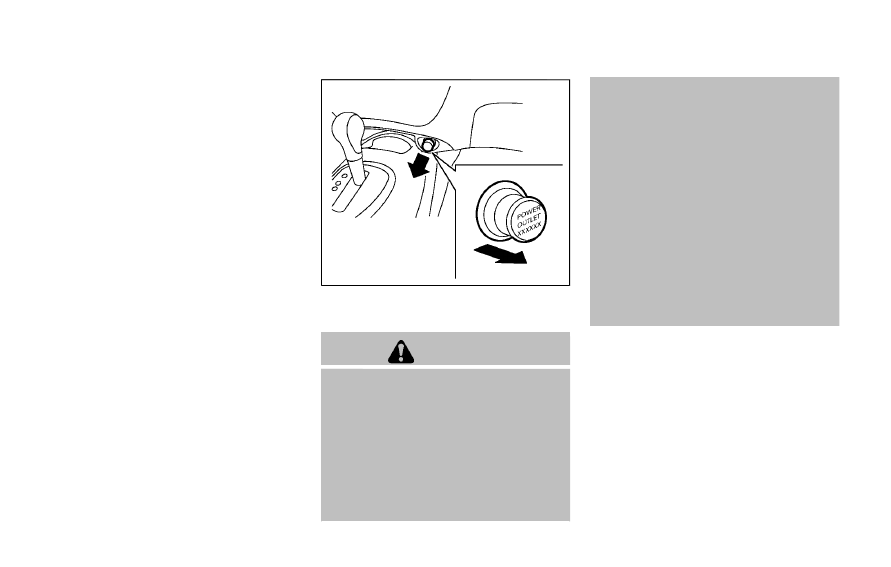

The power outlet is located in the instrument
panel.

CAUTION

The outlet and plug may be hot

during or immediately after use.

Do not use with accessories that

exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.

Use power outlet with the engine

running to avoid discharging the
vehicle battery.

Avoid using power outlet when the

air conditioner, headlights or rear
window defroster is on.

This power outlet is not designed

for use with a cigarette lighter unit.

Push the plug in as far as it will go.

If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.

Before inserting or disconnecting a

plug, be sure the electrical acces-
sory being used is turned OFF.

When not in use, be sure to close

the cap. Do not allow water or any
liquid to contact the outlet.

POWER OUTLET

CUP HOLDERS

CAUTION

Avoid abrupt starting and braking

when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.

Use only soft cups in the cup holder.

Hard objects can injure you in an
accident.

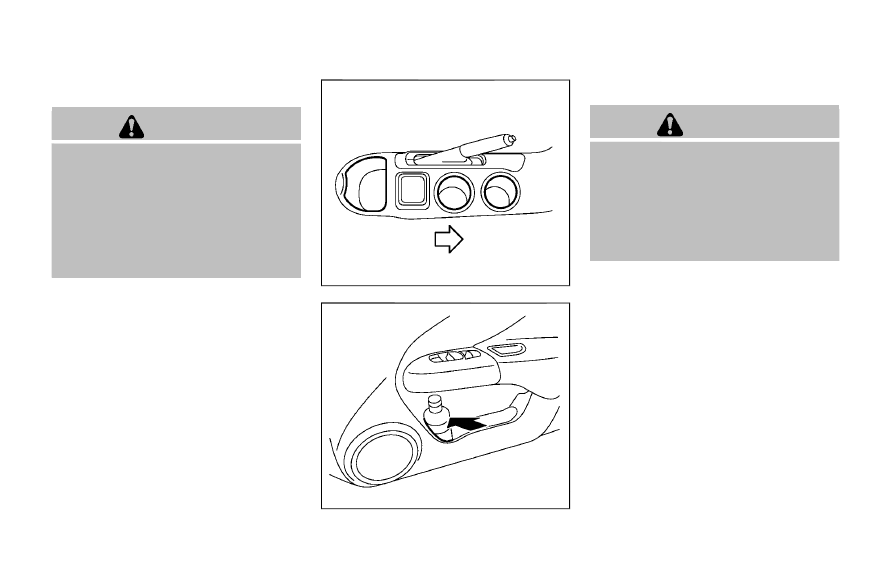

SIC4527

Center console

SIC4528

Door (front and rear)

Soft bottle holders

CAUTION

Do not use bottle holder for any

other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.

Do not use bottle holder for open

liquid containers.

Instruments and controls

2-47

STORAGE

2-48

Instruments and controls

SIC4529

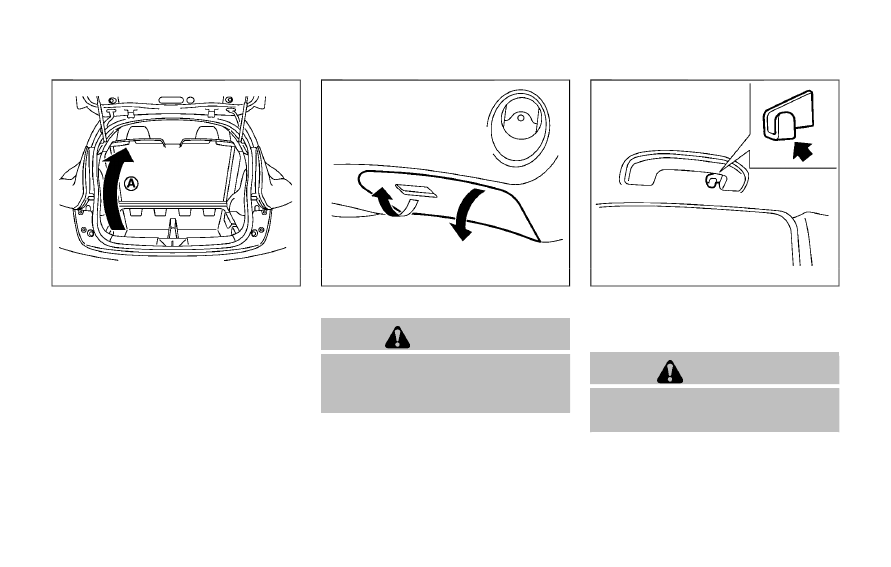

CARGO FLOOR BOX

1. To open the cargo floor box, pull the board

*

A

.

SIC4526

GLOVE BOX

WARNING

Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.

To open the glove box, pull the handle.

To close, push the lid in until the lock latches.
The glove box light illuminates when the head-
light switch is turned on.

SIC3505

COAT HOOK

The coat hook is located above the rear side
window.

CAUTION

Do not apply a total load of more than 2
kg (4 lb) to the hook.

CARGO COVER (if so equipped)

WARNING

Never put anything on the cargo

cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.

Do not leave the cargo cover in the

vehicle with it disengaged from the
holder.

The child restraint top tether strap

may be damaged by contact with
the cargo cover or items in the
luggage area. Remove the cargo
cover from the vehicle or secure it
and any luggage. Your child could
be seriously injured or killed in a
collision if the top tether strap is
damaged.

The cargo cover keeps the luggage compart-
ment contents hidden from the outside.

SIC4584

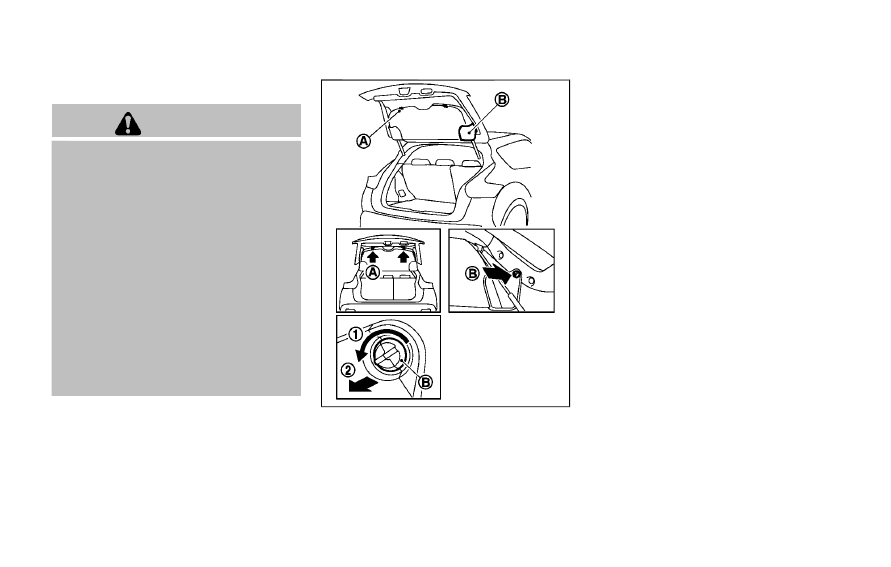

To install the cargo cover:

1. Open the liftgate.

2. Fix the clip

*

A

on the liftgate lower garnish.

3. Fix the clip

*

B

on the liftgate side garnish.

4. Hook the rope on the clip located on the

liftgate side garnish.

To remove the cargo cover:

1. Open the liftgate.

2. Remove the rope from the liftgate side

garnish.

3. Remove the clip

*

B

from the liftgate side

garnish.

4. Remove the clip

*

A

from the liftgate lower

garnish.

Instruments and controls

2-49

2-50

Instruments and controls

POWER WINDOWS

WARNING

Make sure that all passengers have

their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.

To help avoid risk of injury or death

through unintended operation of
the vehicle and or its systems,
including entrapment in windows
or inadvertent door lock activation,
do not leave children, people who
require the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.

The power windows operate when the ignition
switch is in the ON position, or for about 45
seconds after the ignition switch is placed in the
OFF position. If the driver’s or front passenger’s
door is opened during this period of about 45

seconds, power to the windows is canceled.

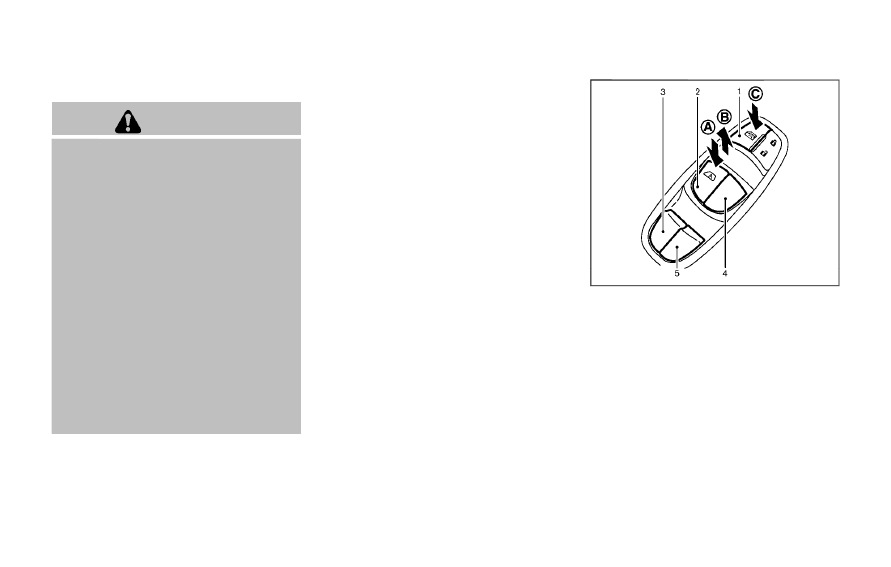

SIC4533

1.

Window lock button

2.

Driver side window

3.

Rear left passenger side window

4.

Front passenger side window

5.

Rear right passenger side window

Main power window switch (driver’s
side)

To open or close the window, push down

*

A

or

pull up

*

B

the switch and hold it. The main

switch (driver side switches) will open or close
all the windows.

WINDOWS

Locking passengers’ windows

When the lock button

*

C

is pushed in, only the

driver side window can be opened or closed.
Push it in again to cancel.

SIC4523

Passenger side power window switch

The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.

SIC4524

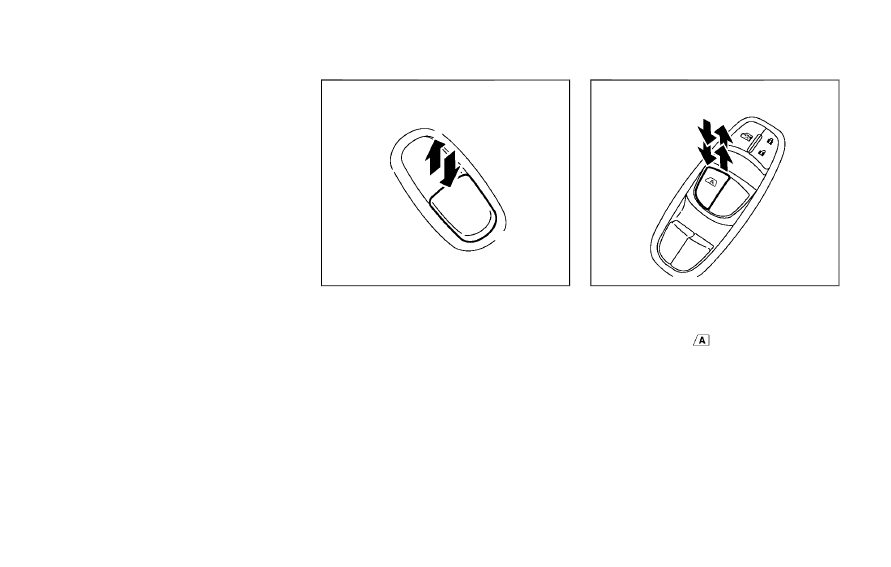

Automatic operation

The automatic operation is available for the
switch that has an

mark on its surface.

To fully open or close the window, completely
push down or pull up the switch and release it;
the switch need not be held. The window will
automatically open or close all the way. To stop
the window, just push or lift the switch in the
opposite direction.

A light push or pull on the switch will cause the
window to open or close until the switch is
released.

Instruments and controls

2-51

2-52

Instruments and controls

Auto-reverse function

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.

If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.

The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is placed
in the OFF position.

Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

If the windows do not close automatically

If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.

1. Place the ignition switch in the ON position.

2. Close the door.

3. Open the window completely by operating

the power window switch.

4. Pull the power window switch and hold it to

close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.

5. Release the power window switch. Operate

the window by the automatic function to
confirm the initialization is complete.

If the power window automatic function does
not operate properly after performing the pro-
cedure above, it is recommended you have your
vehicle checked by a NISSAN dealer.

WARNING

In an accident you could be thrown

from the vehicle through an open
moonroof. Always use seat belts
and child restraints.

Do not allow anyone to stand up or

extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.

CAUTION

Remove water drops, snow, ice or

sand from the moonroof before
opening.

Do not place any heavy object on

the moonroof or surrounding area.

POWER MOONROOF

The moonroof only operates when the ignition
switch is in the ON position.

The moonroof is operational for about 45
seconds, even if the ignition switch is pushed
to the OFF position. If the driver’s door or the

MOONROOF (if so equipped)















Content   ..  6  7  8  9   ..
