Nissan Juke (2017 year). Instruction - part 6

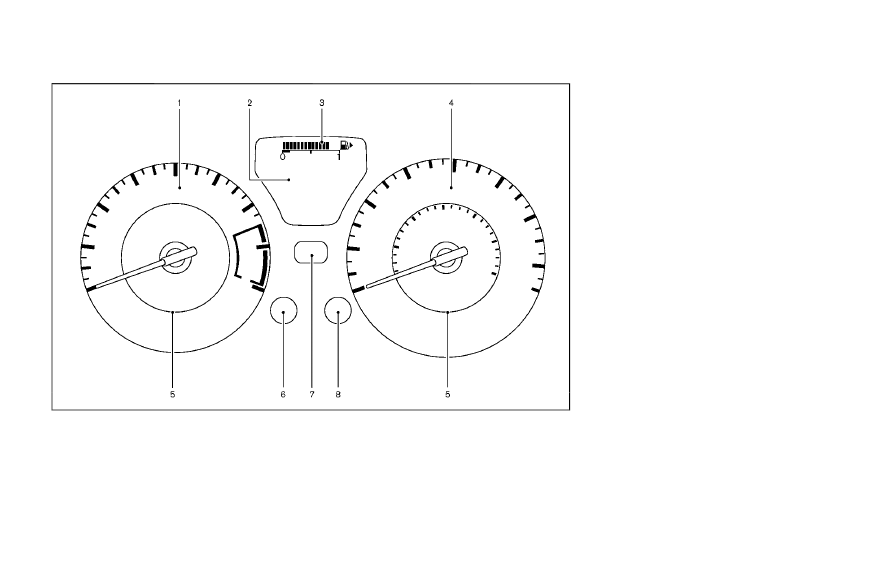

JVC0850X

Type A (if so equipped)

Tachometer

Vehicle information display
— Odometer/twin trip odometer
— Trip computer
— Torque vectoring AWD (AWD model)
— Outside air temperature

Fuel gauge

Speedometer

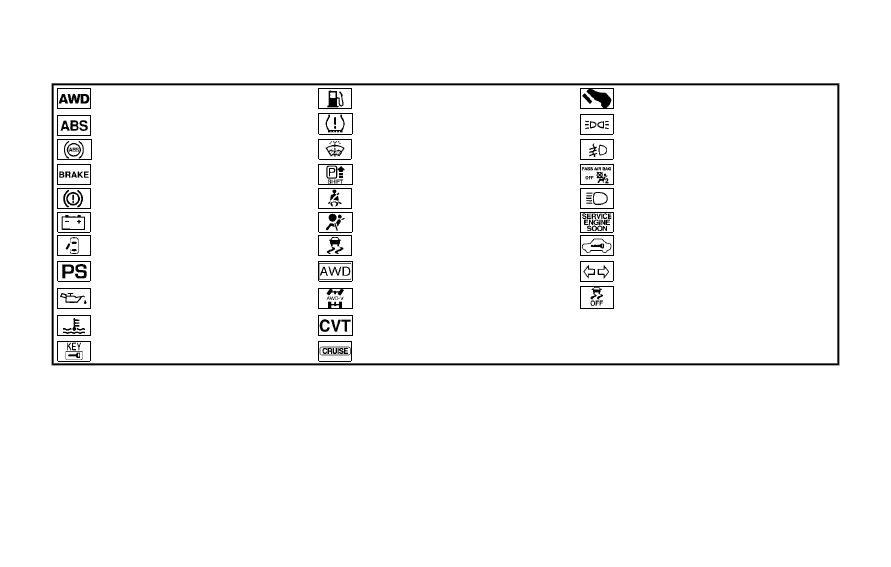

Warning/indicator lights

Instrument brightness control knob

Continuously Variable Transmission (CVT) posi-
tion indicator*

RESET switch for trip odometer/Trip computer
mode switch

if so equipped

The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.

Instruments and controls

2-5

METERS AND GAUGES

2-6

Instruments and controls

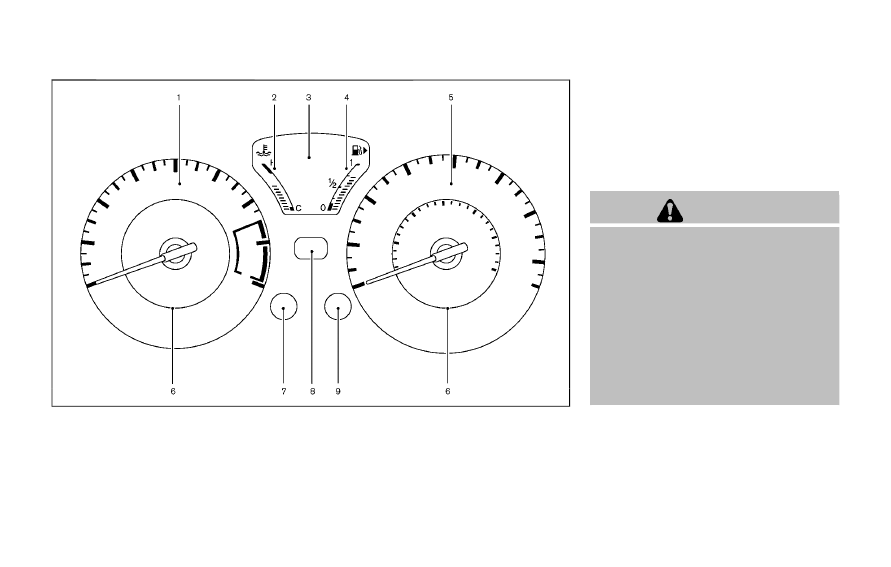

SIC4601

Type B (if so equipped)

Tachometer

Engine coolant temperature gauge

Vehicle information display
— Odometer/twin trip odometer
— Trip computer
— Torque vectoring AWD (AWD model)
— Outside air temperature

Fuel gauge

Speedometer

Warning/indicator lights

Instrument brightness control knob

Continuously Variable Transmission (CVT) posi-
tion indicator*

RESET switch for trip odometer/Trip computer
mode switch

if so equipped

The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.

CAUTION

. For cleaning, use a soft cloth, dam-

pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.

. Do not spray any liquid such as

water on the meter lens. Spraying
liquid may cause the system to
malfunction.

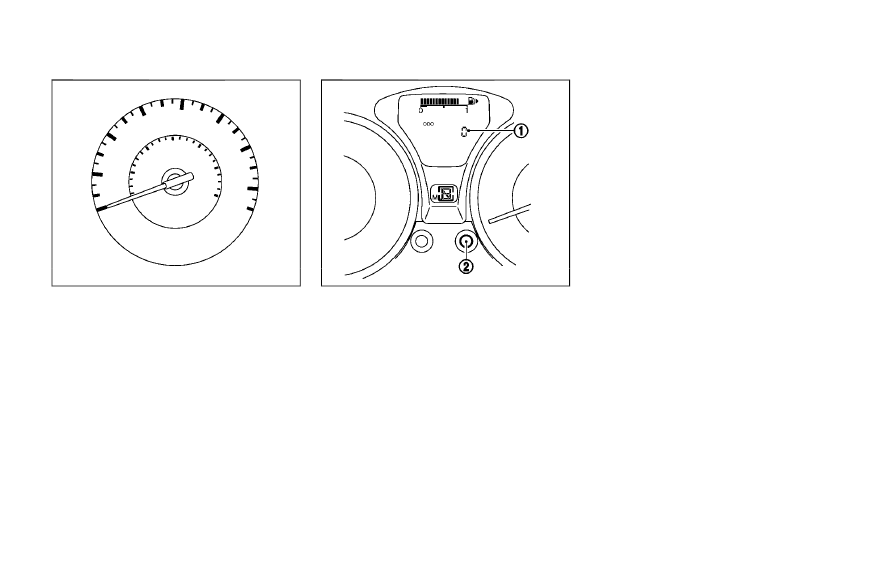

SIC4504

Speedometer

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).

JVI1323X

Odometer/twin trip odometer

Odometer/twin trip odometer (Type A) (if
so equipped)

The odometer and twin trip odometer

are

displayed when the ignition switch is in the ON
position.

The odometer records the total distance the
vehicle has been driven.

The twin trip odometer records the distance of
individual trips.

Changing the display:

Pushing the reset switch

located on the

meter panel changes the display as follows:

ODO

? TRIP A ? TRIP B ? Trip computer

mode

? ODO

For trip computer information, see “Trip compu-
ter” (P.2-13).

Resetting the trip odometer:

Pushing the reset switch

for approximately 1

second resets the trip odometer to zero.

Instruments and controls

2-7

2-8

Instruments and controls

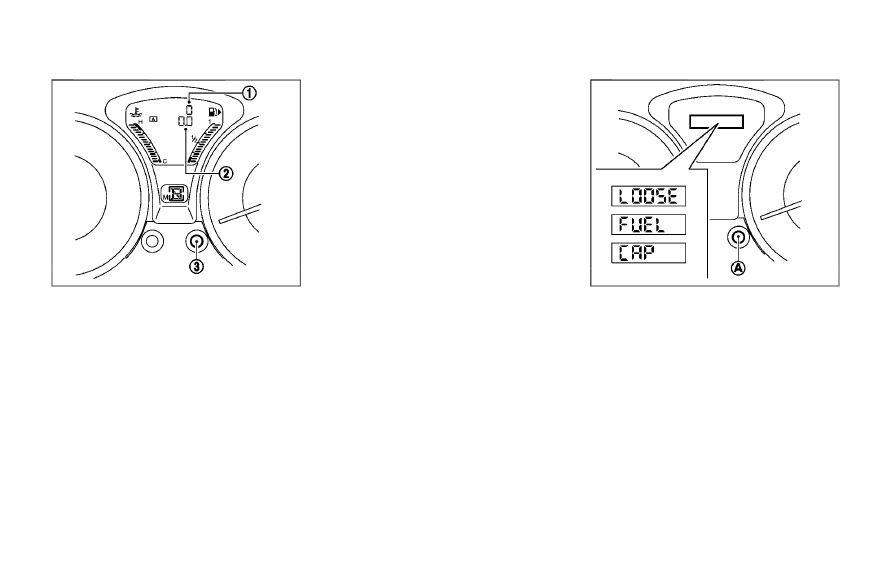

SIC4571

Odometer/twin trip odometer

Odometer/twin trip odometer (Type B) (if
so equipped)

The odometer

/twin trip odometer

are

displayed when the ignition switch is in the ON
position.

The odometer records the total distance the
vehicle has been driven.

The twin trip odometer records the distance of
individual trips.

Changing the display:

Pushing the reset switch

located on the

meter panel changes the display as follows:

TRIP A

? TRIP B ? Trip computer mode ?

TRIP A

For trip computer information, see “Trip compu-
ter” (P.2-13).

Resetting the trip odometer:

Pushing the reset switch

for approximately 1

second resets the trip odometer to zero.

SPA2809

Loose fuel cap warning message

Push the reset switch

for more than 1

second to reset the LOOSE FUEL CAP warning
message after the fuel cap has been tightened.
For additional information see “Fuel-filler cap”
(P.3-18) of this manual.

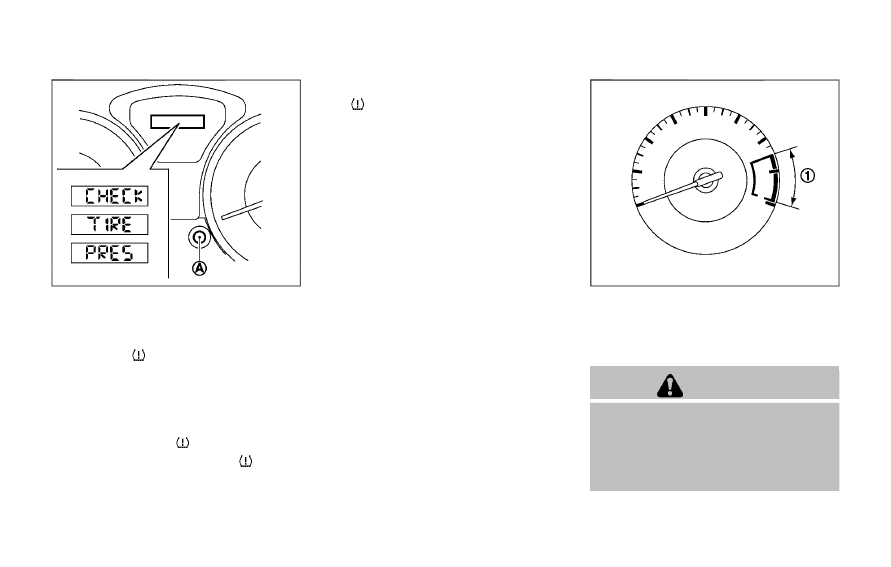

JVI1372X

Check tire pressure warning message

The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire pressure
warning light

is illuminated and low tire

pressure is detected. Check and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The CHECK TIRE PRES
warning message turns off when the low tire
pressure warning light

turns off.

The low tire pressure warning light

remains

illuminated until the tires are inflated to the
recommended COLD tire pressure. The CHECK
TIRE PRES warning message is displayed each
time the ignition switch is placed in the ON

position as long as the low tire pressure warning
light

remains illuminated.

The CHECK TIRE PRES warning message can
be turned off by pushing the reset switch

For more information see “Low tire pressure
warning light” (P.2-18), “Tire Pressure Monitor-
ing System (TPMS)” (P.5-3), and “Wheels and
tires” (P.8-28).

Extended storage fuse warning message

The SHIP PHASE On/PUSH FUSE In warning
message may be displayed if the extended
storage fuse switch is not pushed in (switched
on). When this message is displayed, push in
(switch on) the extended storage fuse switch to
turn off the message. For more information, see
“Extended storage fuse switch” (P.8-20).

SIC4506

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev the
engine into the red zone

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

Instruments and controls

2-9

2-10

Instruments and controls

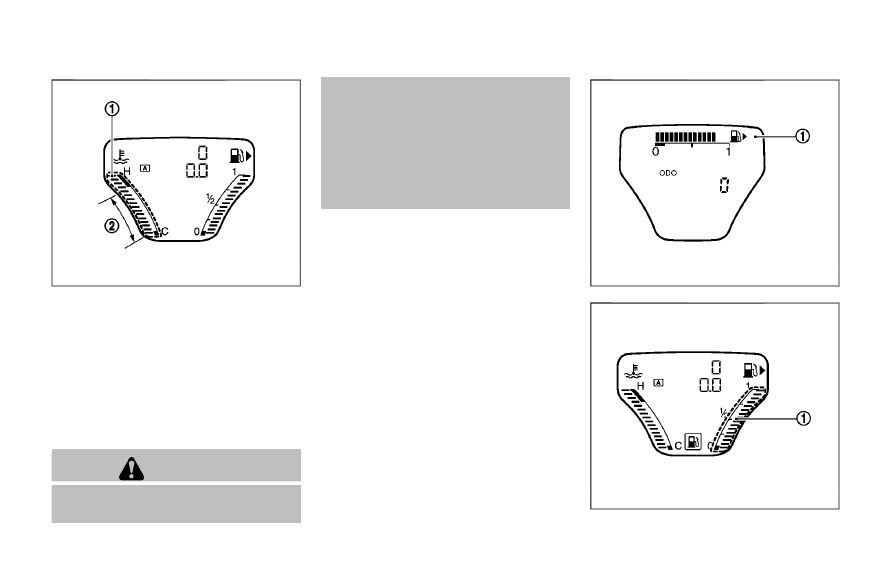

SIC4123

ENGINE COOLANT TEMPERATURE
GAUGE (Type B) (if so equipped)

The gauge

indicates the engine coolant

temperature.

The engine coolant temperature is within the
normal range when the gauge is within the zone

shown in the illustration.

The engine coolant temperature varies with the
outside air temperature and driving conditions.

CAUTION

If the gauge indicates engine coolant
temperature near the hot (H) end of the

normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en-
gine. See “If your vehicle overheats”
(P.6-11) for immediate action required.

JVI1324X

Type A (if so equipped)

SIC4124

Type B (if so equipped)

FUEL GAUGE

The gauge

indicates the approximate fuel

level in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

Refill the fuel tank before the gauge
registers 0 (empty).

The low fuel warning light

illuminates when

the amount of fuel in the tank is getting low.
Refuel as soon as it is convenient, preferably
before the gauge reaches 0. There will be a
small reserve of fuel in the tank when the fuel
gauge reaches 0.

The

indicates that the fuel-filler door is

located on the front passenger’s side of the
vehicle.

CAUTION

. If the vehicle runs out of fuel, the

malfunction indicator light (MIL)

may come on. Refuel as soon as
possible. After a few driving trips,
the

light should turn off. If the

light remains on after a few driving
trips, have the vehicle inspected. It
is recommended you visit a NISSAN
dealer for this service.

. For additional information, see

“Malfunction Indicator Light (MIL)”
(P.2-22).

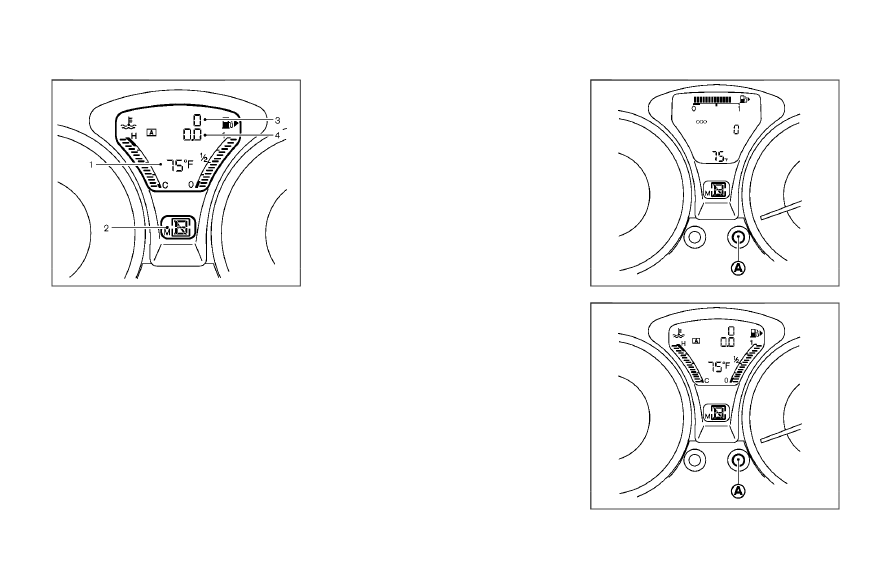

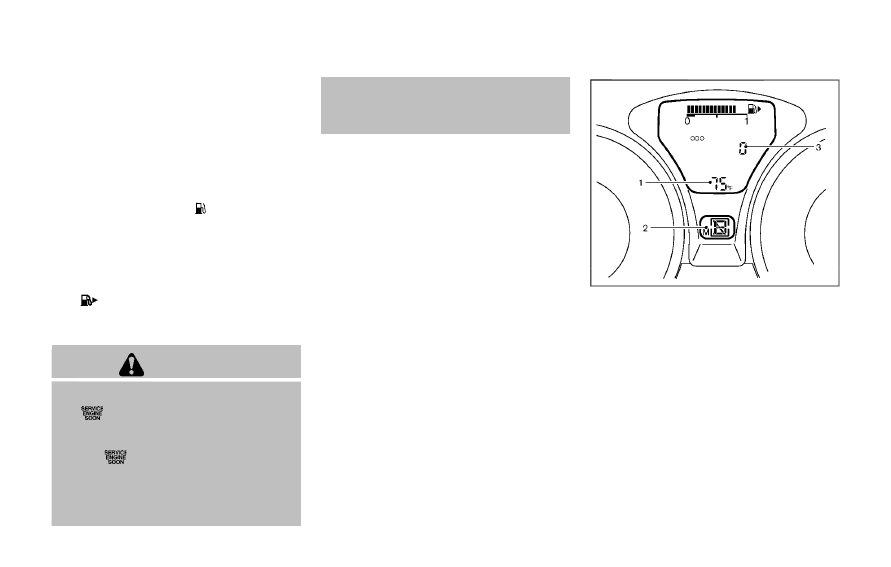

JVI1325X

VEHICLE INFORMATION DISPLAY
(Type A) (if so equipped)

When the ignition switch is placed in the ON
position, the vehicle information display shows
the following information:

Outside air temperature

Continuously Variable Transmission (CVT) posi-
tion indicator (if so equipped)

Twin trip odometer/Odometer/Trip computer/
Instrument brightness control display

Instruments and controls

2-11

2-12

Instruments and controls

SIC4531

VEHICLE INFORMATION DISPLAY
(Type B) (if so equipped)

When the ignition switch is placed in the ON
position, the vehicle information display shows
the following information:

Outside air temperature

Continuously Variable Transmission (CVT) posi-
tion indicator (if so equipped)

Odometer/Instrument brightness control display

Twin trip odometer/Trip computer

OUTSIDE AIR TEMPERATURE

The outside air temperature is displayed in

8F or

8C.
When the outside air temperature becomes
37

8F (38C) or lower, the outside air temperature

display blinks to give a warning. The display will
stop blinking after 1 minute or when the outside
air temperature becomes 39

8F (48C) or above.

The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.

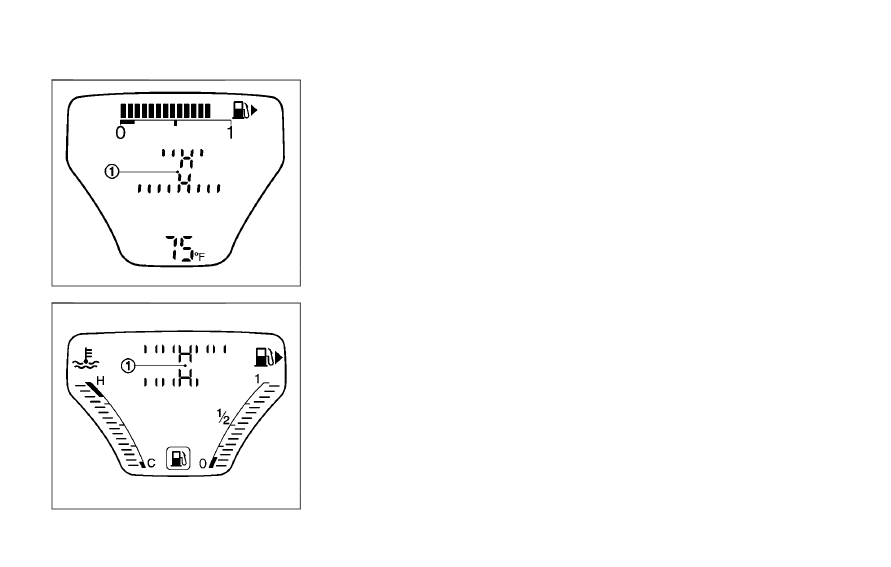

CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATOR
(if so equipped)

The Continuously Variable Transmission (CVT)
position indicator indicates the shift lever posi-
tion when the ignition switch is in the ON
position.

JVI1326X

Type A (if so equipped)

SIC4532

Type B (if so equipped)

TRIP COMPUTER

The switch for the trip computer is located on
the meter panel.

When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer mode
switch

Each time the trip computer mode switch

pushed, the display will change as follows:

For Type A (if so equipped):

ODO

? (TRIP A ? TRIP B) ? Current fuel

consumption

? Distance to empty (dte) ?

Average fuel consumption

? Torque vectoring

AWD (AWD model)

? ODO

For Type B (if so equipped):

(TRIP A

? TRIP B) ? Current fuel consumption

? Distance to empty (dte) ? Average fuel
consumption

? Elapsed time ? Torque vector-

ing AWD (AWD model) (

? TRIP A)

Current fuel consumption

The current fuel consumption mode shows the
current fuel consumption.

Distance to empty (dte — mls or km)

The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning
feature. When the fuel level is low, the dte mode
is automatically selected and the dte display will
blink. Push the trip computer mode switch

to return to the mode that was selected before
the warning occurred.

When the fuel level drops even lower, the dte
display will change to “----”.
. If the amount of fuel added is small, the

display just before the ignition switch is
turned off may continue to be displayed.

. When driving uphill or rounding curves, the

fuel in the tank shifts, which may momenta-
rily change the display.

Average fuel consumption (mpg or l
(liter)/100 km)

The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the trip computer
mode switch

for approximately 1 second.

The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “---”.

Elapsed time (Type B) (if so equipped)

The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the trip computer mode switch

for approximately 1 second.

Instruments and controls

2-13

2-14

Instruments and controls

JVI1327X

Type A (if so equipped)

SIC4600

Type B (if so equipped)

Torque vectoring AWD (AWD model)

The Torque vectoring mode shows the current
amount of torque distributed to each wheel.
Each torque indicator is displayed as a bar
graph

divided into 3 segments. The upper

indicator displays the current amount of torque
distribution (left and right) for the front wheels.
The lower indicator displays the current amount
of torque distribution (left and right) for the rear
wheels. The number of segments shows the
amount of torque currently distributed to each
wheel.

Resetting displays

For Type A (if so equipped):

When the average fuel consumption or TRIP B
is displayed, push the trip computer mode
switch

for longer than 3 seconds. The

average fuel consumption and trip odometer
(TRIP B only) displays will be reset at the same
time.

For Type B (if so equipped):

When the average fuel consumption, elapsed
time or TRIP B is displayed, push the trip
computer mode switch

for longer than 3

seconds. The average fuel consumption,
elapsed time and trip odometer (TRIP B only)
displays will be reset at the same time.

All-Wheel Drive (AWD) warning light (AWD
model) (if so equipped)

Low fuel warning light

Engine start operation indicator light

Anti-lock Braking System (ABS) warning
light

Low tire pressure warning light

Exterior light indicator

Low washer fluid warning light (if so
equipped)

Front fog light indicator light (if so equipped)

Brake warning light

P position selecting warning light

Front passenger air bag status light

Seat belt warning light

High beam indicator light

Charge warning light

Supplemental air bag warning light

Malfunction Indicator Light (MIL)

Door open warning light

Vehicle Dynamic Control (VDC) warning light

Security indicator light

Electric power steering warning light

All-Wheel Drive (AWD) indicator light (AWD
model) (if so equipped)

Turn signal/hazard indicator lights

Engine oil pressure warning light

All-Wheel Drive (AWD)-V indicator light
(AWD model) (if so equipped)

Vehicle Dynamic Control (VDC) off indicator
light

High temperature warning light (if so
equipped)

Continuously Variable Transmission (CVT)
indicator light (if so equipped)

Intelligent Key system warning light

Cruise indicator light

Instruments and controls

2-15

WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

2-16

Instruments and controls

CHECKING LIGHTS

With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition
switch in the ON position without starting the
engine. The following lights (if so equipped) will
come on:

The following lights (if so equipped) come on
briefly and then go off:

If any light does not come on or operates in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunction. It
is recommended you have the system checked
by a NISSAN dealer.

WARNING LIGHTS

All-Wheel Drive (AWD) warning

light (AWD model)

When the ignition switch is in the “ON” position,
the All-Wheel Drive (AWD) warning light will
illuminate. It will turn off soon after the engine is
started.

If the AWD system malfunctions or the revolu-
tion or radius of the front and the rear wheel
differs, the AWD warning light will either remain
illuminated or blink. (See “All-Wheel Drive

(AWD)” (P.5-29).)

Anti-lock Braking System

(ABS) warning light

When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.

If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked. It is recommended
you visit a NISSAN dealer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “Brake system” (P.5-35).)

Brake warning light

This light functions for both the parking brake
and the foot brake systems.

Parking brake indicator:

When the ignition switch is in the ON position,
the light illuminates when the parking brake is
applied.

Low brake fluid warning light:

When the ignition switch is in the ON position,

the light warns of a low brake fluid level. If the
light illuminates while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:

1. Check the brake fluid level. If brake fluid is

necessary, add fluid and have the system
checked. It is recommended you have this
service performed by a NISSAN dealer.
(See “Brake and clutch fluid” (P.8-9).)

2. If the brake fluid level is correct, have the

warning system checked. It is recommended
you have this service performed by a
NISSAN dealer.

Anti-lock Braking System (ABS) warning
indicator:

When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired. It is recommended you visit a NISSAN
dealer for this service. (See “Anti-lock Braking
System (ABS) warning light” (P.2-16).)

WARNING

. Your brake system may not be

working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.

. Pressing the brake pedal with the

engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.

. If the brake fluid level is below the

minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It
is recommended you visit a NISSAN
dealer for this service.

Charge warning light

If the light illuminates while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, have
your vehicle serviced immediately. It is recom-
mended you visit a NISSAN dealer for this
service.

CAUTION

Do not continue driving if the alternator
belt is loose, broken or missing.

Door open warning light

This light illuminates when any of the doors and/
or liftgate are not closed securely while the
ignition switch is in the ON position.

Electric power steering warning

light

When the ignition switch is in the ON position,
the electric power steering warning light illumi-
nates. After starting the engine, the electric
power steering warning light turns off. This
indicates the electric power steering is opera-

tional.

If the electric power steering warning light
illuminates while the engine is running, it may
indicate the electric power steering is not
functioning properly and may need servicing.
Have the electric power steering checked. It is
recommended you visit a NISSAN dealer for this
service.

When the electric power steering warning light
illuminates with the engine running, the power
assist to the steering will cease operation but
you will still have control of the vehicle. At this
time, greater steering efforts are required to
operate the steering wheel, especially in sharp
turns and at low speeds.

See “Electric power steering” (P.5-34).

Engine oil pressure warning light

This light warns of low engine oil pressure. If the
light flickers or illuminates during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.

The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
“Engine oil” (P.8-5).)

Instruments and controls

2-17

2-18

Instruments and controls

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.

High temperature warning light (if

so equipped)

When the ignition switch is in the ON position,
the high temperature warning light illuminates
and then turns off. This indicates that the high
temperature sensor in the engine coolant system
is operational.

CAUTION

. If the high temperature warning

light illuminates while the engine
is running, it may indicate the en-
gine temperature is extremely high.
Stop the vehicle safely as soon as
possible. If the vehicle is over-
heated, continuing vehicle opera-
tion may seriously damage the

engine. (For the immediate action
required, see “If your vehicle over-
heats” (P.6-11).)

Intelligent Key system warning light

After the ignition switch is placed in the ON
position, this light comes on for about 2 seconds
and then turns off.

This light illuminates or blinks as follows:
. The light blinks in yellow when the door is

closed with the Intelligent Key left outside
the vehicle and the ignition switch in the
ACC or ON position. Make sure that the
Intelligent Key is inside the vehicle.

. The light blinks in green when the Intelligent

Key battery is running out of power. Replace
the battery with a new one. (See “Intelligent
Key battery replacement” (P.8-20).)

. The light illuminates in yellow when it warns

of a malfunction with Intelligent Key system.

If the warning light illuminates in yellow while the
engine is stopped, it may be impossible to start
the engine. If the light comes on while the engine
is running, you can drive the vehicle. However in
these cases, it is recommended you visit a
NISSAN dealer for repair as soon as possible.

Low fuel warning light

This light illuminates when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the 0
(empty) position.

There will be a small reserve of fuel
remaining in the tank when the fuel gauge
reaches the 0 position.

Low tire pressure warning light

Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.

The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
CHECK TIRE PRES (pressure) warning mes-
sage is also displayed in the vehicle information
display.

When the low tire pressure warning light
illuminates, you should stop and adjust the tire

pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning
light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.

The low tire pressure warning light remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The CHECK
TIRE PRES warning message is displayed each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated.

For additional information, see “Check tire
pressure warning message” (P.2-9), “Tire Pres-
sure Monitoring System (TPMS)” (P.5-3) and
“Tire Pressure Monitoring System (TPMS)” (P.6-
3).

TPMS malfunction:

If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain
on after 1 minute. The CHECK TIRE PRES
warning message is not displayed if the low tire

pressure warning light illuminates to indicate a
TPMS malfunction. Have the system checked. It
is recommended you visit a NISSAN dealer for
this service.

For additional information, see “Tire Pressure
Monitoring System (TPMS)” (P.5-3).

WARNING

. If the light does not illuminate with

the ignition switch placed in the ON
position, have the vehicle checked.
It is recommended you visit a
NISSAN dealer for this service as
soon as possible.

. If the light illuminates while driving,

avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the

recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low
tire pressure warning light OFF. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat or the TPMS may
be malfunctioning. If you have a flat
tire, replace it with a spare tire as
soon as possible. If no tire is flat
and all tires are properly inflated, it
is recommended you consult a
NISSAN dealer.

. Since the spare tire is not equipped

with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The
light will remain on after 1 minute.
Have your tires replaced and/or
TPMS system reset as soon as
possible. It is recommended you
visit a NISSAN dealer for these
services.

. Replacing tires with those not ori-

ginally specified by NISSAN could
affect the proper operation of the
TPMS.

Instruments and controls

2-19

2-20

Instruments and controls

CAUTION

. The TPMS is not a substitute for the

regular tire pressure check. Be sure
to check the tire pressure regularly.

. If the vehicle is being driven at

speeds of less than 16 MPH (25
km/h), the TPMS may not operate
correctly.

. Be sure to install the specified size

of tires to the four wheels correctly.

Low washer fluid warning light

(Canada only)

This light illuminates when the washer fluid is at
a low level. Add washer fluid as necessary. (See
“Window washer fluid” (P.8-9).)

P position selecting warning light

The warning light blinks in red when the ignition
switch is pushed to stop the engine with the
shift lever in any position except the P (Park)
position.

If this warning appears, move the shift lever to
the P (Park) position or push the ignition switch
to the ON position.

An inside warning chime will also sound.

See “Intelligent Key system” (P.3-6).

Seat belt warning light

The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is placed in the ON position, and will
remain illuminated until the driver’s seat belt is
fastened. At the same time, the chime will sound
for about 6 seconds unless the driver’s seat belt
is securely fastened.

The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is
occupied. For about 5 seconds after the ignition
switch is in the ON position, the system does
not activate the warning light for the front
passenger.

See “Seat belts” (P.1-10) for precautions on
seat belt usage.

Supplemental air bag warning light

After placing the ignition switch in the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
supplemental front air bag and supplemental
side air bag, curtain air bag systems and/or
pretensioner seat belt are operational.

If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and
pretensioner systems need servicing.
. The supplemental air bag warning light

remains on after approximately 7 seconds.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light does

not illuminate at all.

It is recommended you visit a NISSAN dealer for
these services.

Unless checked and repaired, the Supplemental
Restraint Systems and/or the pretensioners may
not function properly.

For additional information, see “Supplemental
restraint system” (P.1-38).

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked. It is recommended you
visit a NISSAN dealer for this service.

Content .. 4 5 6 7 ..
