REAR SEAT

SE-31

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

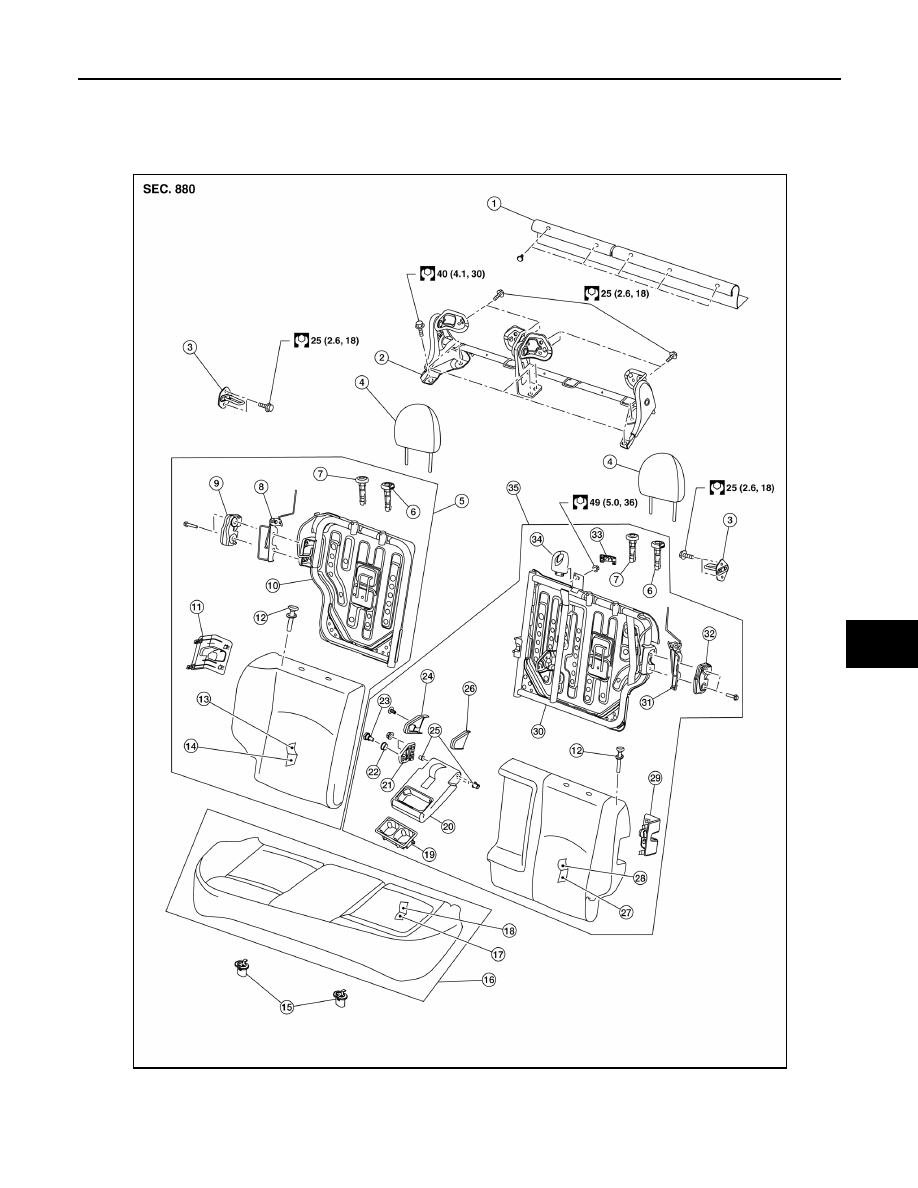

Exploded View

INFOID:0000000009645127

1.

Seatback hinge trim

2.

Seatback hinge

3.

Seatback striker

4.

Headrest

5.

Seatback (RH)

6.

Headrest holder (locked)

7.

Headrest holder (free)

8.

Seatback latch bracket (RH)

9.

Seatback latch (RH)

ALJIA1240ZZ

SE-32

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

Seat Cushion

INFOID:0000000009643084

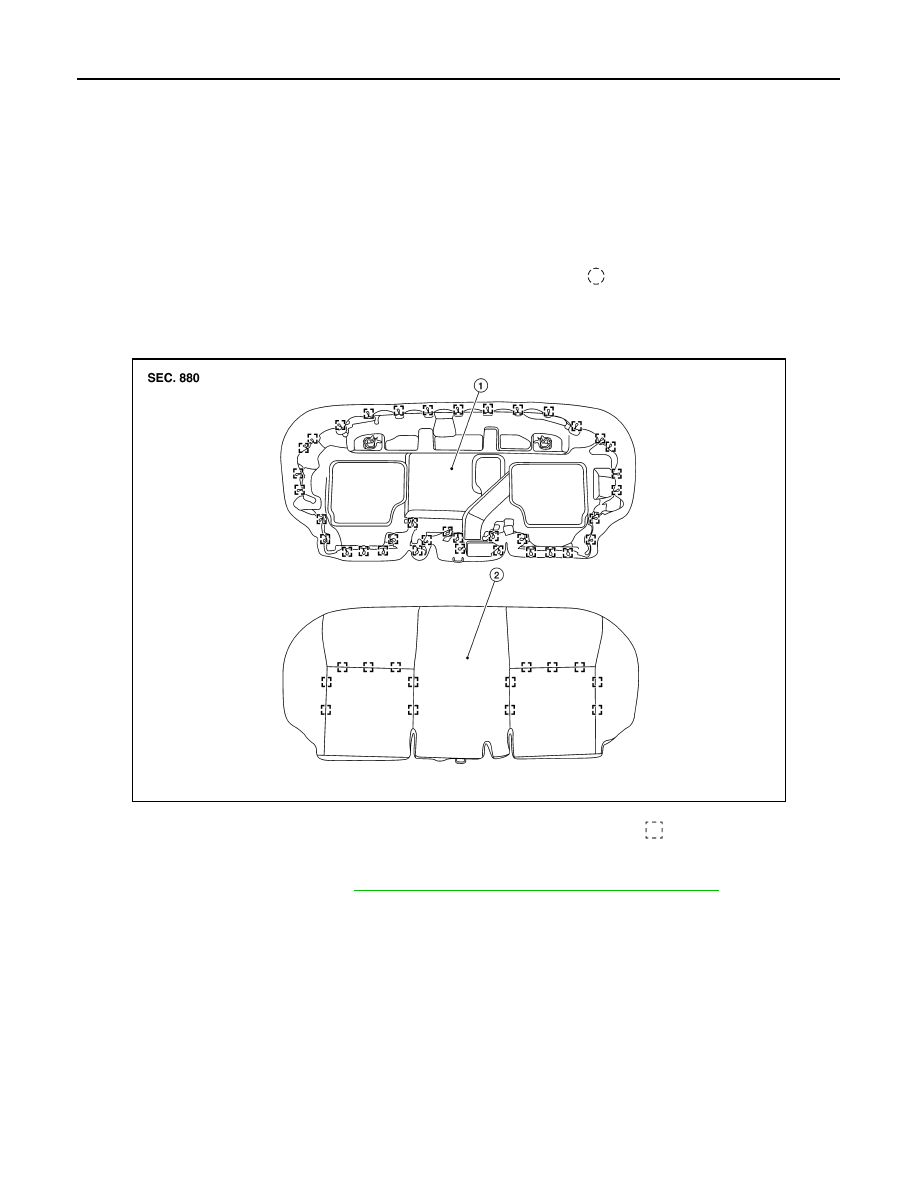

SEAT CUSHION

DISASSEMBLY

1. Remove the seat cushion. Refer to

SE-19, "SEAT CUSHION : Removal and Installation"

.

2. Remove the hog rings on the bottom side of seat cushion.
3. Remove the hog rings on the top side of seat cushion and separate the seat cushion trim from the seat

cushion pad.

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

10. Seatback frame (RH)

11. Seatback latch finisher (RH)

12. Seatback latch release knob

13. Seatback trim (RH)

14. Seatback pad (RH)

15. Seat cushion hook

16. Seat cushion

17. Seat cushion pad

18. Seat cushion trim

19. Cup holder

20. Armrest

21. Armrest hinge bracket

22. Armrest pivot bolt bushing

23. Armrest pivot bolt

24. Armrest hinge bracket finisher

(RH)

25. Bushing

26. Armrest hinge bracket finisher (LH) 27. Seatback pad (LH)

28. Seatback trim (LH)

29. Seatback latch finisher (LH)

30. Seatback frame (LH)

31. Seatback latch bracket (LH)

32. Seatback latch (LH)

33. Seatbelt guide finisher

34. Seat belt guide

35. Seatback (LH)

Pawl

ALJIA1251ZZ

1.

Seat cushion pad

2.

Seat cushion trim

Hog ring

REAR SEAT

SE-33

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Smooth out all wrinkles during assembly.

• Use NISSAN standard hog rings and tools to assemble.

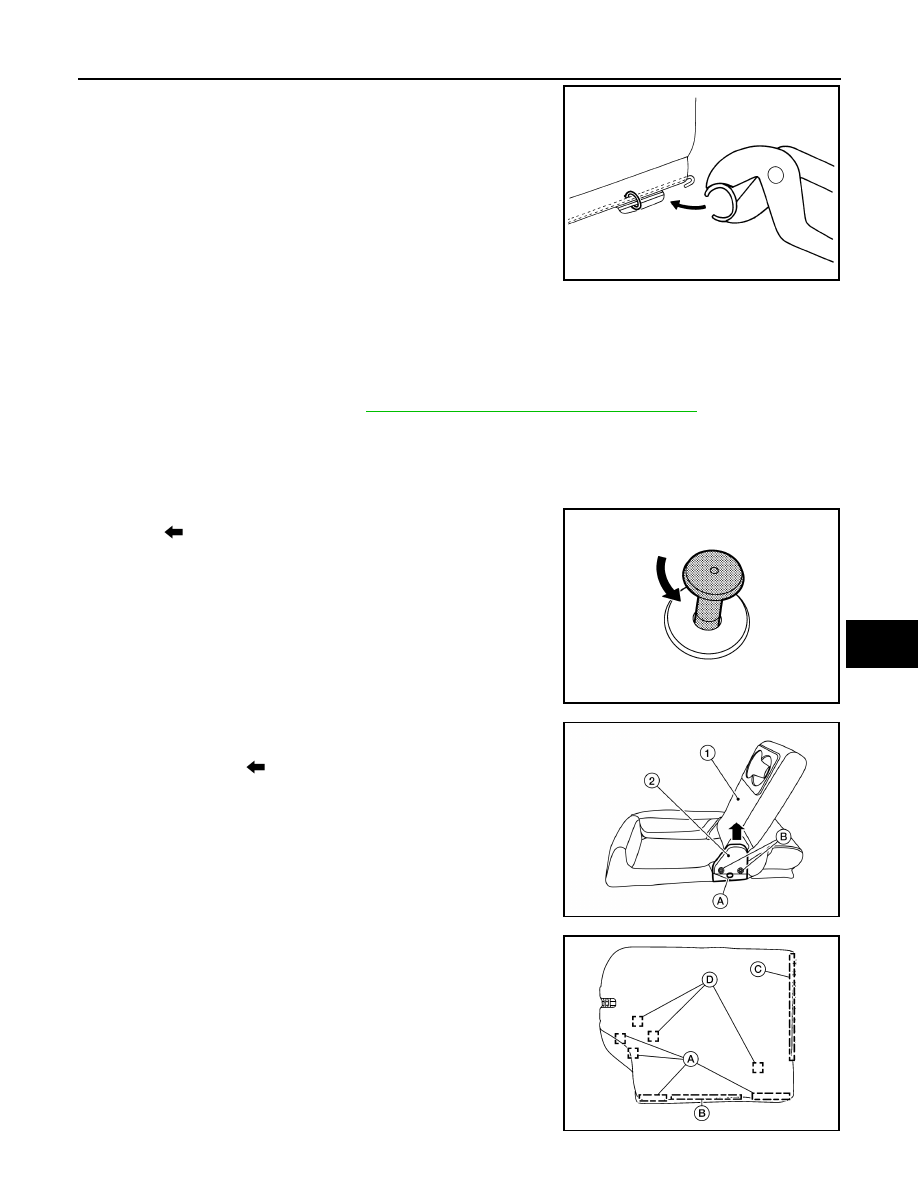

Seatback

INFOID:0000000009643085

DISASSEMBLY

Seatback (LH)

1. Remove the seatback (LH). Refer to

SE-19, "SEATBACK : Removal and Installation"

.

2. Remove the headrest.
3. Release clips and remove latch finisher.
4. Release pawls and remove the seat belt guide finisher.
5. Remove nut and the seat belt guide.
6. Rotate the seatback latch release knob counterclockwise as

shown (

) and remove.

7. Remove the armrest (1).
a. Remove clip (A) using a suitable tool, then the armrest finisher

(RH) (2) as shown (

).

b. Remove nuts (B), then the armrest.

8. Release hook fasteners (A), then J-hook retainer (B).
9. Unzip the seatback trim zipper (C), then release J-clip retainers

(D).

PIIB3356J

JMJIA4374ZZ

ALJIA1247ZZ

ALJIA1246ZZ

SE-34

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

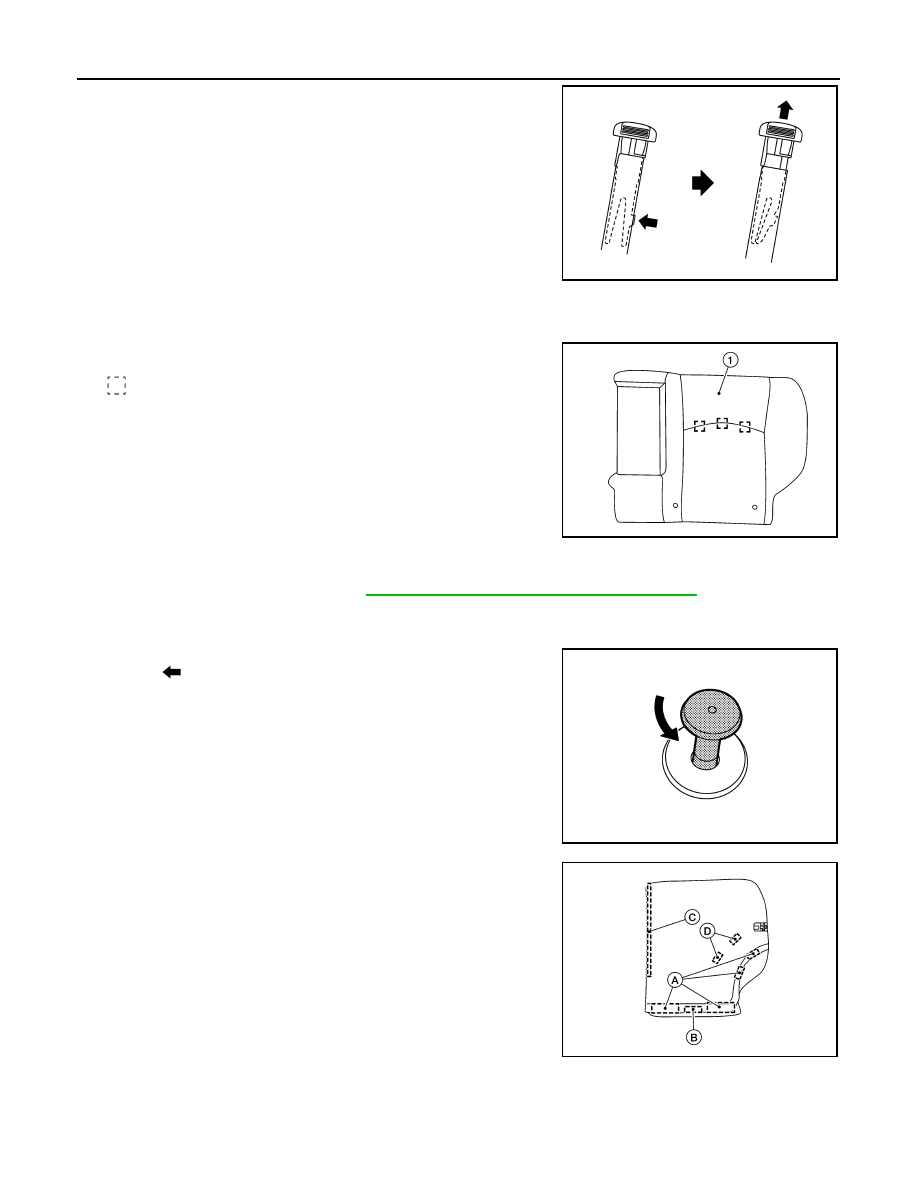

10. Release the headrest holder locks as shown and remove.

CAUTION:

Before removing the headrest holder, check its orientation

(front/rear and right/left).

11. Remove the seatback trim and seatback pad as an assembly from the seatback frame.
12. Remove bolts and the seatback latch assembly.
13. Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

Seatback (RH)

1. Remove the seatback (RH). Refer to

SE-19, "SEATBACK : Removal and Installation"

.

2. Remove the headrest.
3. Release clips and remove latch finisher.
4. Rotate the seatback latch release knob counterclockwise as

shown (

) and remove.

5. Release hook fasteners (A), then J-hook retainer (B).
6. Unzip the seatback trim zipper (C), then release J-clip retainers

(D).

JMJIA4073ZZ

ALJIA1248ZZ

JMJIA4374ZZ

ALJIA1250ZZ
