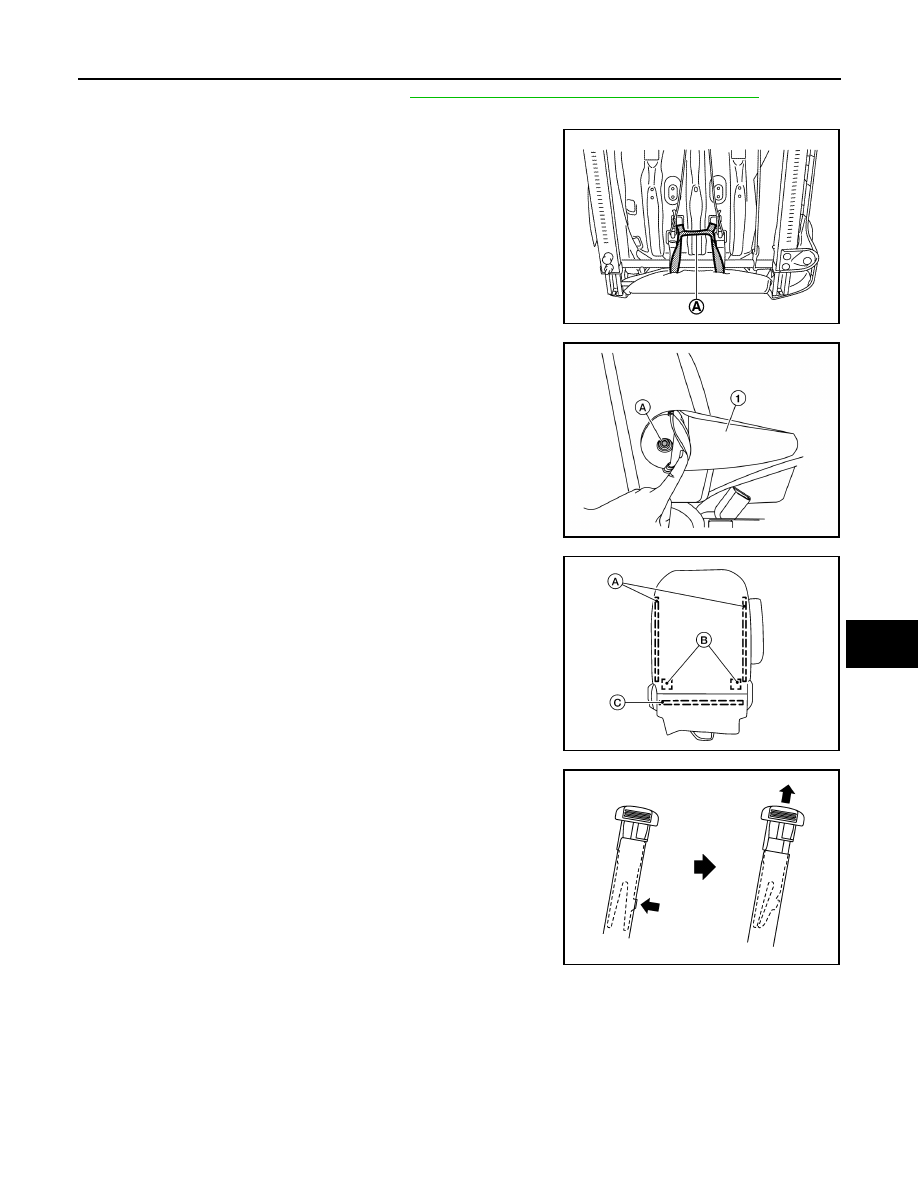

FRONT SEAT

SE-23

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1. Remove the driver side front seat. Refer to

SE-14, "DRIVER SIDE : Removal and Installation"

.

2. Remove the headrest.
3. Release trim strap (A) from the seat cushion frame.

4. Remove the armrest (1).
a. Unzip the armrest to access armrest bolt (A).
b. Remove armrest bolt (A) and armrest (1).

5. Release the J-hook retainer (C), unzip seatback zippers (A) and

release J-clips (B).

6. Release the headrest holder locks as shown and remove.

CAUTION:

Before removing the headrest holder, check its orientation

(front/rear and right/left).

7. Lift the seatback trim and seatback pad from the seat frame.

JMJIA6015ZZ

ALJIA0994ZZ

AWJIA1114ZZ

JMJIA4073ZZ

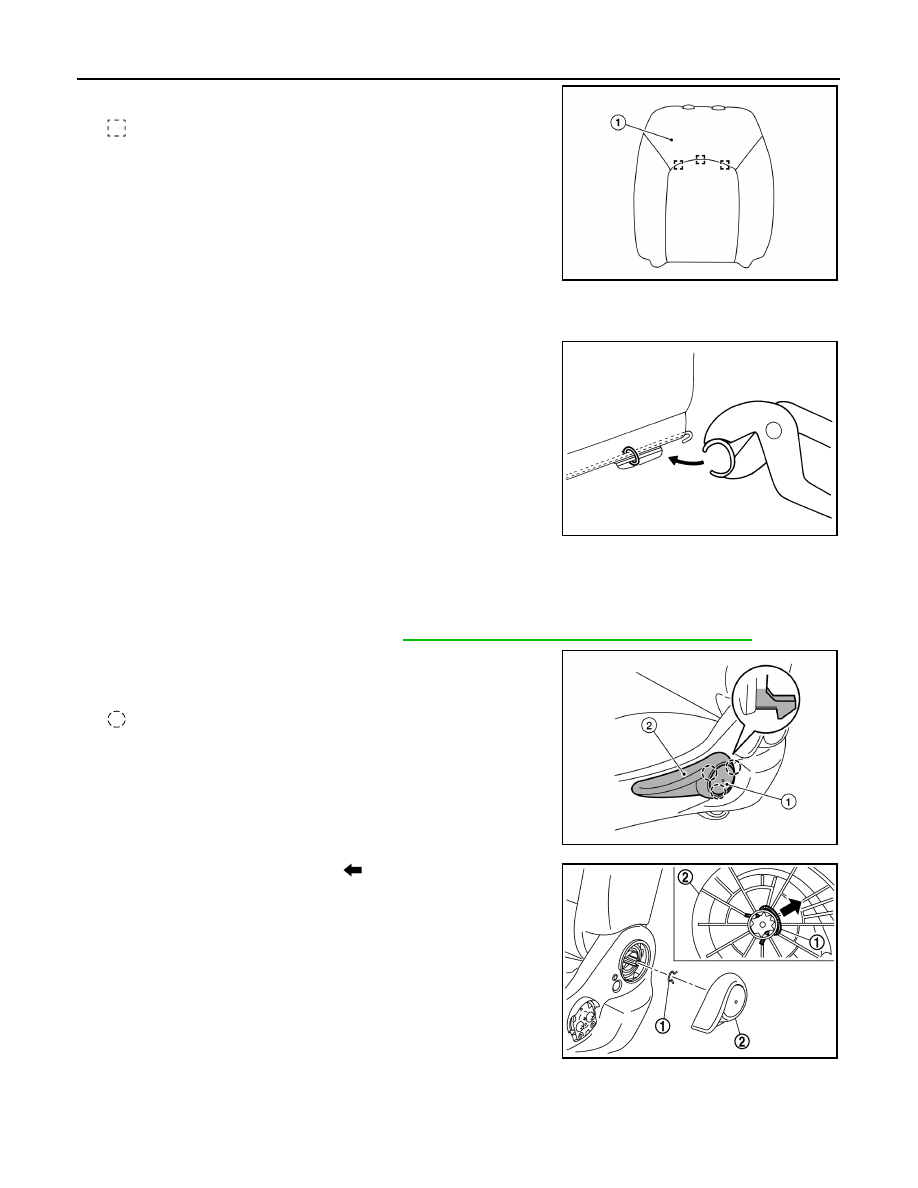

SE-24

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

8. Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seatback trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Smooth out all wrinkles during assembly.

• Use NISSAN standard hog rings and tools to assemble.

DRIVER SIDE : Seat Cushion

INFOID:0000000009643079

DISASSEMBLY

1. Remove the drive side front seat. Refer to

SE-14, "DRIVER SIDE : Removal and Installation"

.

2. Remove the lift lever (2).
a. Release pawls and remove the lift lever finisher (1).
b. Remove screws and the lift lever.

: Pawl

3. Remove snap ring (1) as shown (

) using a suitable tool, then

the recline lever (2).

ALJIA0988ZZ

PIIB3356J

AWJIA0932ZZ

JMJIA6005ZZ

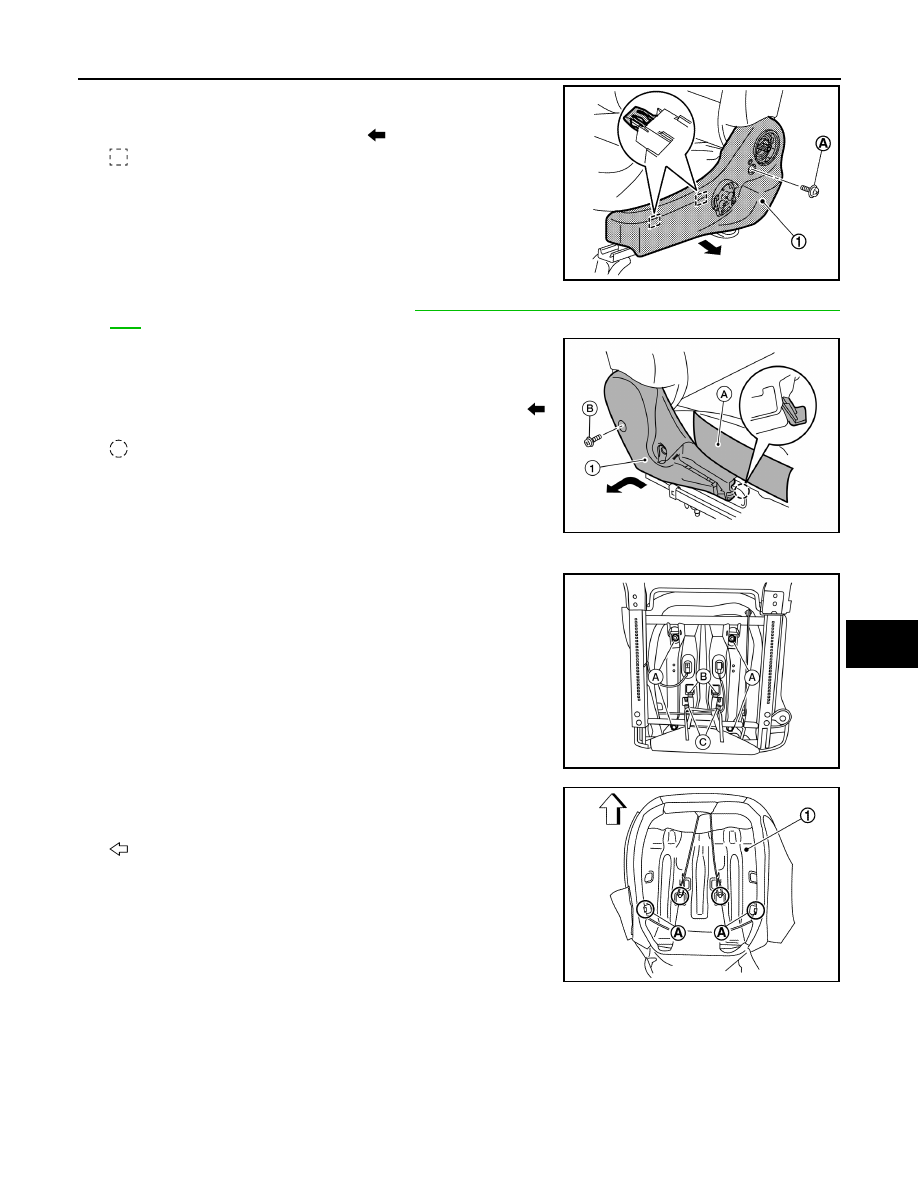

FRONT SEAT

SE-25

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

4. Remove the seat cushion outer finisher (LH) (1).
a. Remove screw (A).
b. Pull to release metal clips as shown (

) and remove.

: Metal clip

5. Remove the seat belt buckle (LH). Refer to

SB-8, "FRONT SEAT BELT BUCKLE : Removal and Installa-

tion"

.

6. Remove the seat cushion outer finisher (RH) (1).
a. Remove screw (B).
b. Position seat cushion trim (A) aside.
c. Slide seat cushion outer finisher (RH) rearward, as shown (

),

to release pawl and remove.

: Pawl

7. Remove the seat cushion from the seat frame.
a. Release the seatback trim J-clips (C) and seat cushion J-clips

(B) from the seat cushion frame.

b. Remove bolts (A) and the seat cushion.

8. Remove seat cushion trim and seat cushion pad from the seat

cushion frame.

a. Release string at locations (A) from seat cushion frame (1).

: Front

b. Loosen string then remove the seat cushion trim and seat cush-

ion pad.

JMJIA6006ZZ

AWJIA0933ZZ

ALJIA0997ZZ

JMJIA6008ZZ

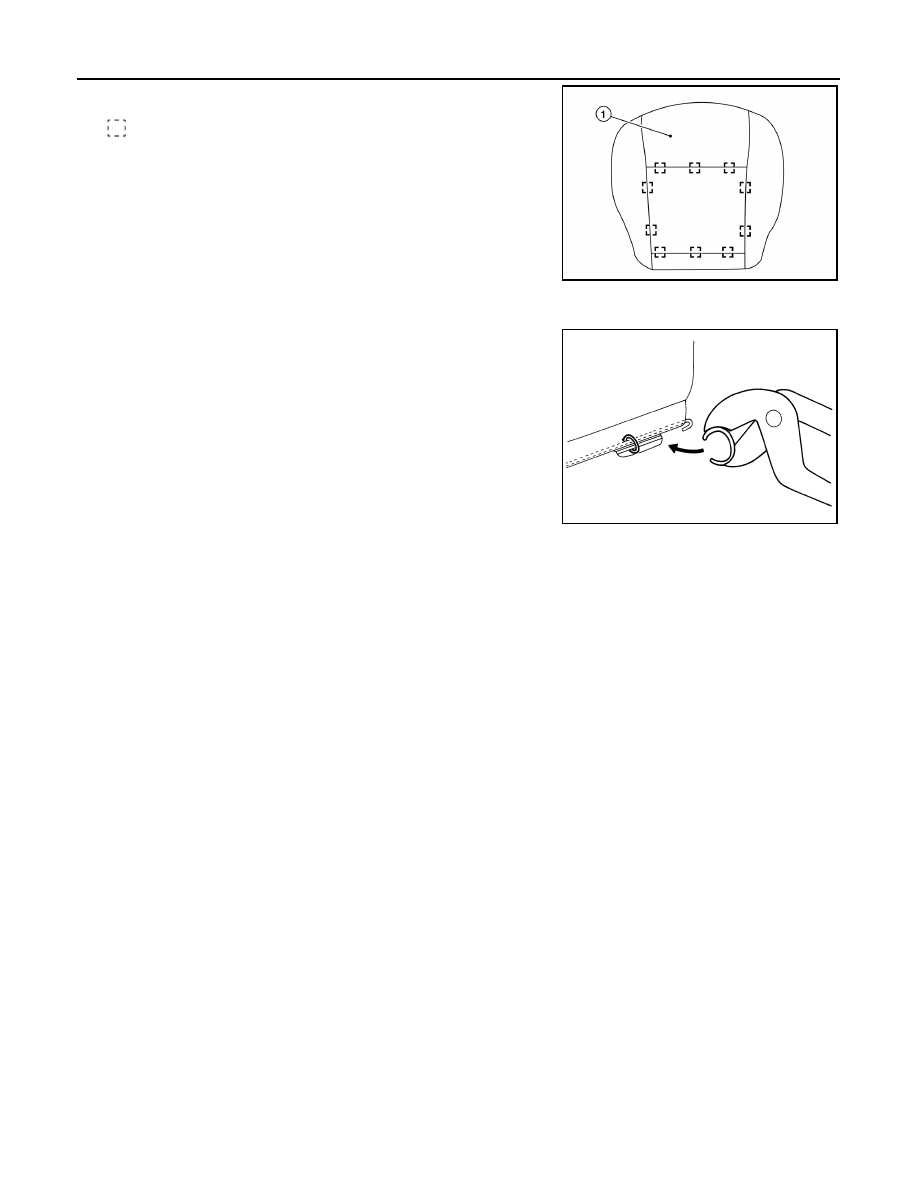

SE-26

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

9. Remove the hog rings and separate the seat cushion trim (1)

from the seat cushion pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Smooth out all wrinkles during assembly.

• Use NISSAN standard hog rings and tools to assemble.

PASSENGER SIDE
