Nissan Note E12. Manual - part 533

REAR SEAT

SE-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

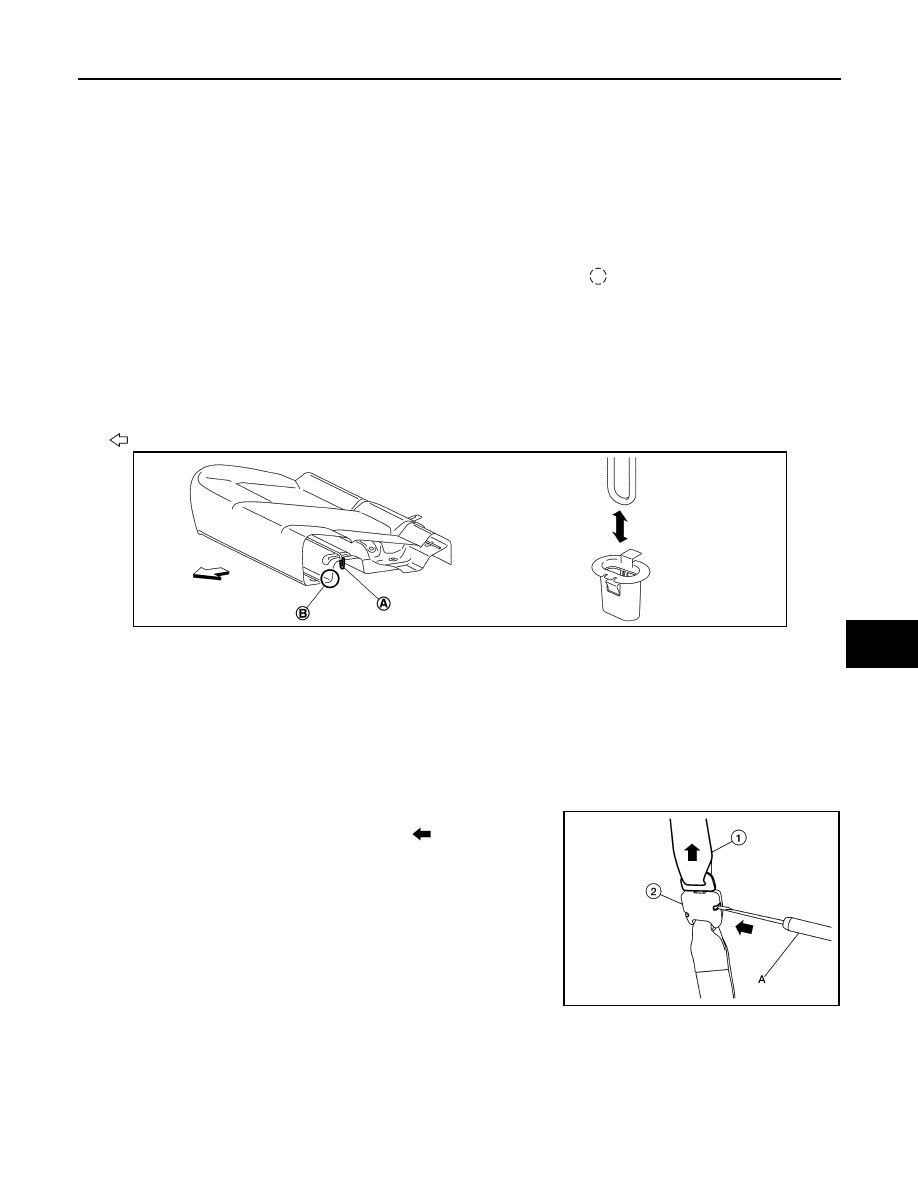

SEAT CUSHION
SEAT CUSHION : Removal and Installation

INFOID:0000000009643062

REMOVAL

1. Lift up the seat cushion assembly front edge (B) to release it from the seat cushion hooks (A) (LH/RH) and

remove.

: Front

INSTALLATION

Installation is in the reverse order of removal.

SEATBACK
SEATBACK : Removal and Installation

INFOID:0000000009643063

REMOVAL

Seatback (LH)

1. Release seat belt retractor (center) (1) from seat belt buckle

(LH) (2) using a suitable tool (A) as shown (

).

2. Place the seatback (LH) in the folded down position.

10. Seatback frame (RH)

11. Seatback latch finisher (RH)

12. Seatback latch release knob

13. Seatback trim (RH)

14. Seatback pad (RH)

15. Seat cushion hook

16. Seat cushion

17. Seat cushion pad

18. Seat cushion trim

19. Cup holder

20. Armrest

21. Armrest hinge bracket

22. Armrest pivot bolt bushing

23. Armrest pivot bolt

24. Armrest hinge bracket finisher

(RH)

25. Bushing

26. Armrest hinge bracket finisher (LH) 27. Seatback pad (LH)

28. Seatback trim (LH)

29. Seatback latch finisher (LH)

30. Seatback frame (LH)

31. Seatback latch bracket (LH)

32. Seatback latch (LH)

33. Seatbelt guide finisher

34. Seat belt guide

35. Seatback (LH)

Pawl

JMJIA4835ZZ

ALHIA0315ZZ

SE-20

< REMOVAL AND INSTALLATION >

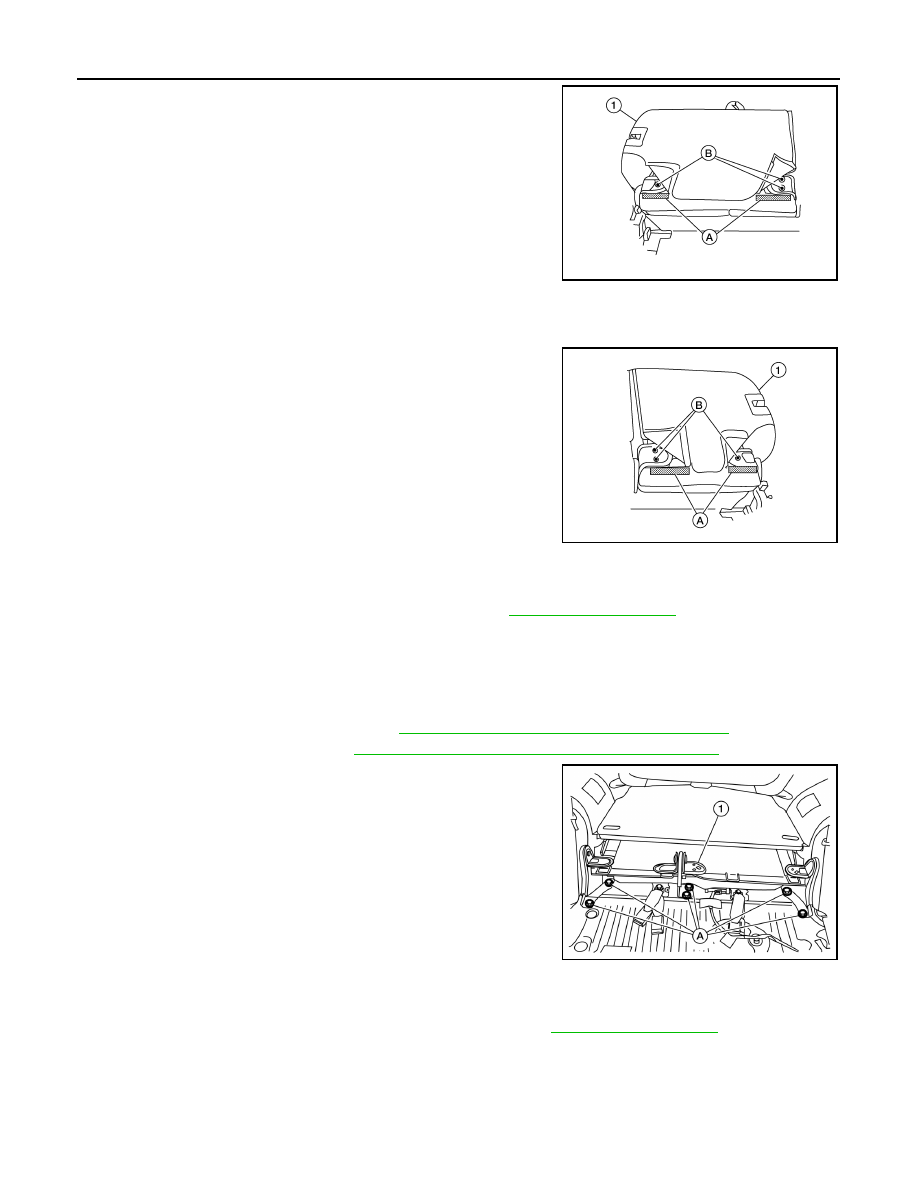

REAR SEAT

3. Release hook fasteners (A).
4. Remove bolts (B) and the seatback (LH) (1).

Seatback (RH)

1. Place the seatback (RH) in the folded down position.
2. Release hook fasteners (A).
3. Remove bolts (B) and the seatback (RH) (1).

INSTALLATION

Installation is in the reverse order of removal.

Tighten the seatback assembly bolts to specification. Refer to

SE-18, "Exploded View"

.

SEATBACK HINGE
SEATBACK HINGE : Removal and Installation

INFOID:0000000009643064

REMOVAL

1. Remove the seatbacks (LH/RH). Refer to

SE-19, "SEATBACK : Removal and Installation"

.

2. Remove the seat cushion. Refer to

SE-19, "SEAT CUSHION : Removal and Installation"

3. Remove bolts (A) and the seatback hinge (1).

INSTALLATION

Installation is in the reverse order of removal.

Tighten the seatback hinge assembly bolts to specification. Refer to

SE-18, "Exploded View"

.

SEATBACK STRIKER
SEATBACK STRIKER : Removal and Installation

INFOID:0000000009643065

REMOVAL

ALJIA1242ZZ

ALJIA1243ZZ

ALJIA1244ZZ

REAR SEAT

SE-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1. Remove the luggage side upper finisher. Refer to

INT-33, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

2. Remove bolts and the seatback strikers.

INSTALLATION

Installation is in the reverse order of removal.

Tighten the seatback striker bolts to specification. Refer to

SE-18, "Exploded View"

.

SEAT CUSHION HOOK
SEAT CUSHION HOOK : Removal and Installation

INFOID:0000000009643066

REMOVAL

1. Remove the seat cushion. Refer to

SE-19, "SEAT CUSHION : Removal and Installation"

.

2. Release the seat cushion hook pawls as shown and remove.

CAUTION:

Before removing the seat cushion hook, check its orientation (front/rear).

INSTALLATION

Installation is in the reverse order of removal.

JMJIA6035ZZ

SE-22

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

UNIT DISASSEMBLY AND ASSEMBLY

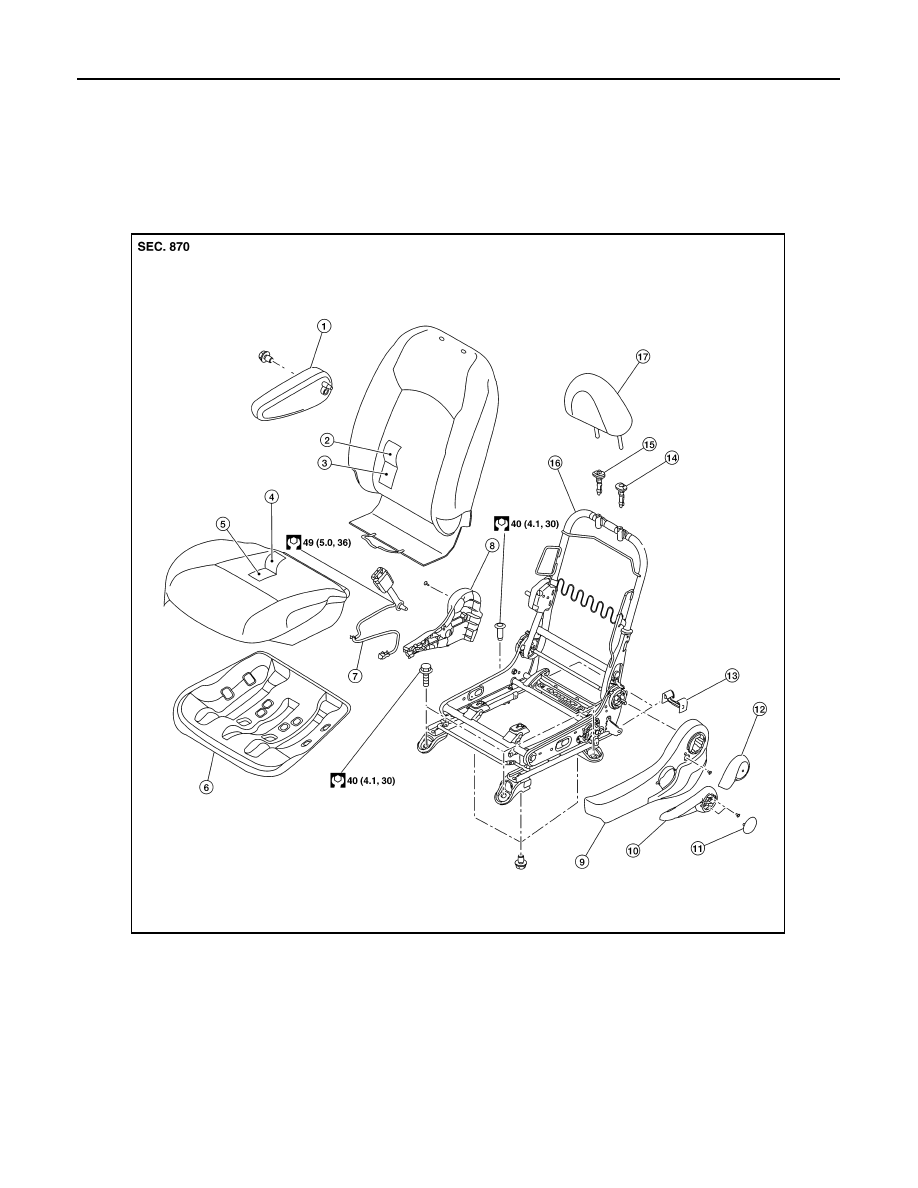

FRONT SEAT

DRIVER SIDE
DRIVER SIDE : Exploded View

INFOID:0000000009645122

DRIVER SIDE : Seatback

INFOID:0000000009643078

DISASSEMBLY

1.

Armrest

2.

Seatback trim

3.

Seatback pad

4.

Seat cushion trim

5.

Seat cushion pad

6.

Seat cushion frame

7.

Seat belt buckle

8.

Seat cushion outer finisher (RH)

9.

Seat cushion outer finisher (LH)

10. Lift lever

11. Lift lever finisher

12. Recline lever

13. Slide finisher rear (LH/RH)

14. Headrest holder (locked)

15. Headrest holder (free)

16. Seat frame

17. Headrest

AWJIA1116ZZ
