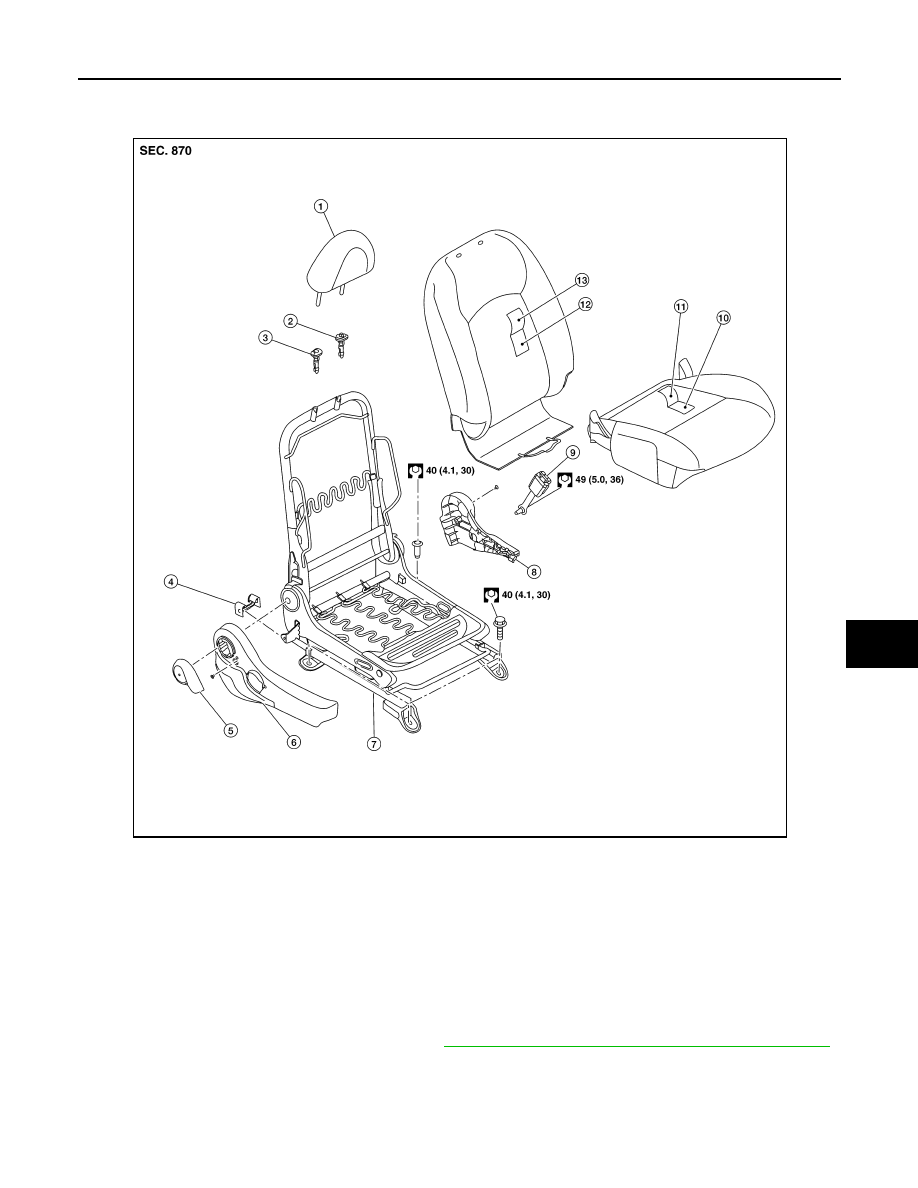

PASSENGER SIDE : Exploded View

INFOID:0000000009645123

PASSENGER SIDE : Seatback

INFOID:0000000009643081

DISASSEMBLY

1. Remove the passenger side front seat. Refer to

SE-16, "PASSENGER SIDE : Removal and Installation"

.

2. Remove the headrest.

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Slide finisher rear (LH/RH)

5.

Recline lever

6.

Seat cushion outer finisher (RH)

7.

Seat frame

8.

Seat cushion outer finisher (LH)

9.

Seat belt buckle

10. Seat cushion pad

11. Seat cushion trim

12. Seatback pad

13. Seatback trim

AWJIA1117ZZ

SE-28

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

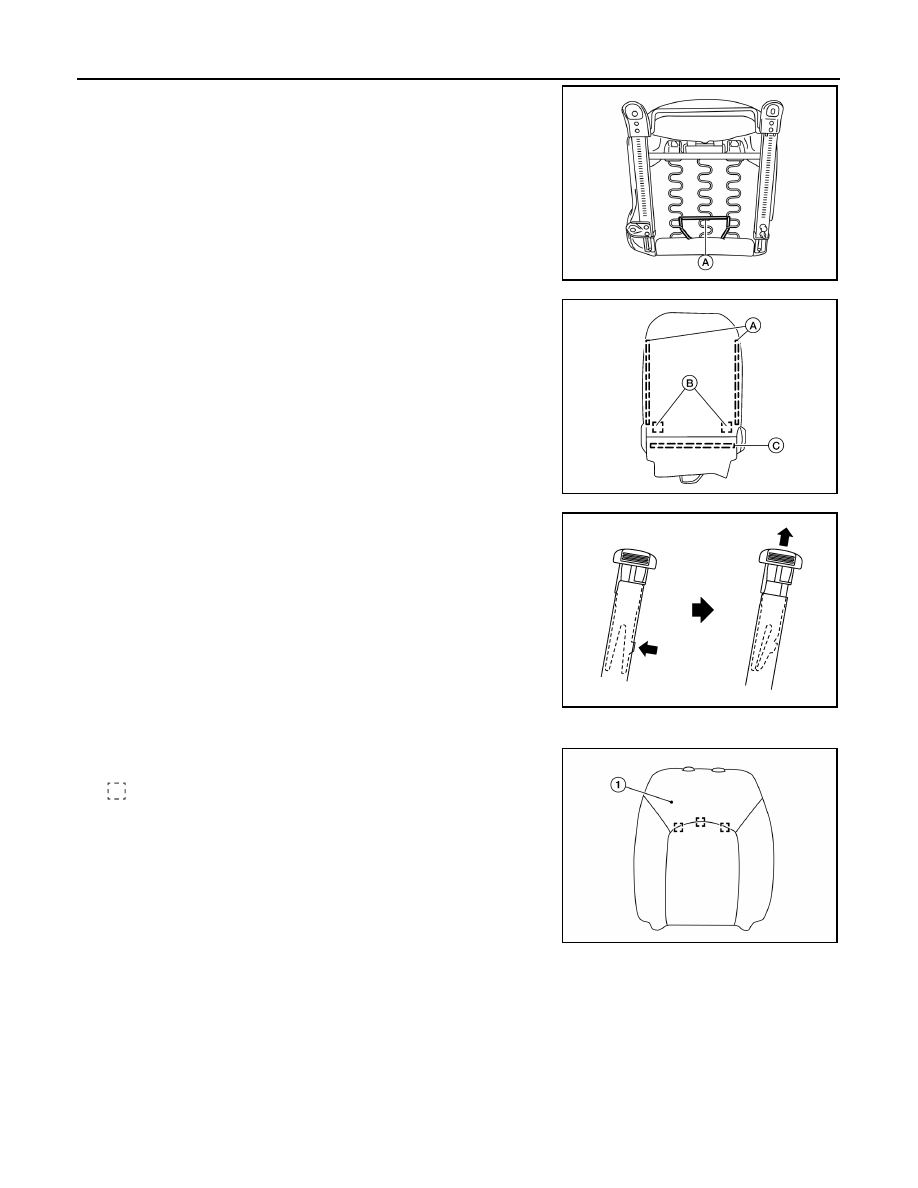

3. Release trim strap (A) from the seat frame.

4. Release the J-hook retainer (C), unzip seatback zippers (A) and

release J-clips (B).

5. Release the headrest holder locks as shown and remove.

CAUTION:

Before removing the headrest holder, check its orientation

(front/rear and right/left).

6. Lift the seatback trim and seatback pad from the seat frame.
7. Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

AWJIA0913ZZ

AWJIA1115ZZ

JMJIA4073ZZ

ALJIA0988ZZ

FRONT SEAT

SE-29

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Install new hog rings on the seatback trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Smooth out all wrinkles during assembly.

• Use NISSAN standard hog rings and tools to assemble.

PASSENGER SIDE : Seat Cushion

INFOID:0000000009643082

DISASSEMBLY

1. Remove the passenger side front seat. Refer to

SE-16, "PASSENGER SIDE : Removal and Installation"

.

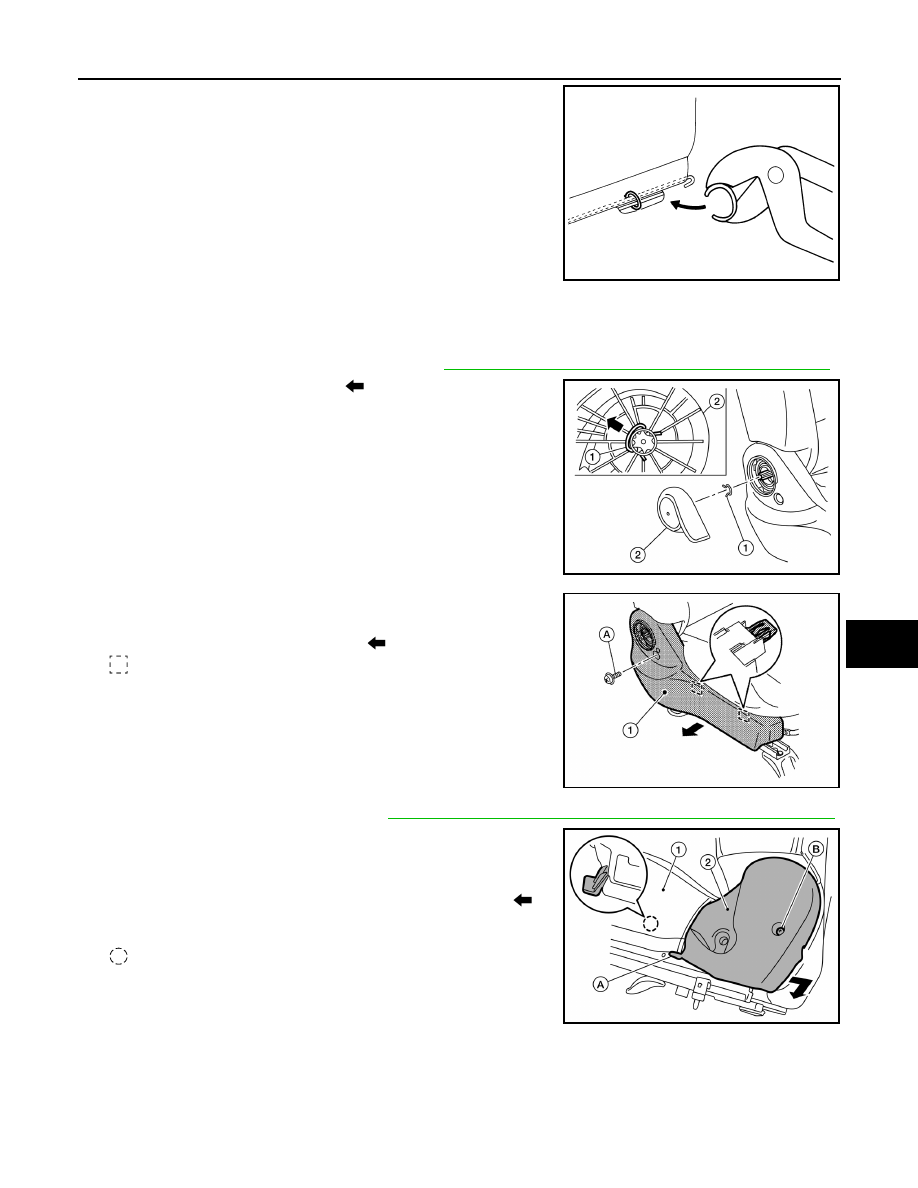

2. Remove snap ring (1) as shown (

) using a suitable tool, then

remove the recline lever (2).

3. Remove the seat cushion outer finisher (RH) (1).
a. Remove the screw (A).
b. Pull to release metal clips as shown (

) and remove.

: Metal clip

4. Remove seat belt buckle (RH). Refer to

SB-8, "FRONT SEAT BELT BUCKLE : Removal and Installation"

.

5. Remove the seat cushion outer finisher (LH) (2).
a. Remove seat cushion trim retainer (A).
b. Remove the screw (B).
c. Slide seat cushion outer finisher (LH) rearward as shown (

) to

release pawl and remove.

(1): Seat cushion trim

: Pawl

6. Remove the seat cushion trim and seat cushion pad from the seat frame.

PIIB3356J

AWJIA0907ZZ

AWJIA0917ZZ

AWJIA0918ZZ

SE-30

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

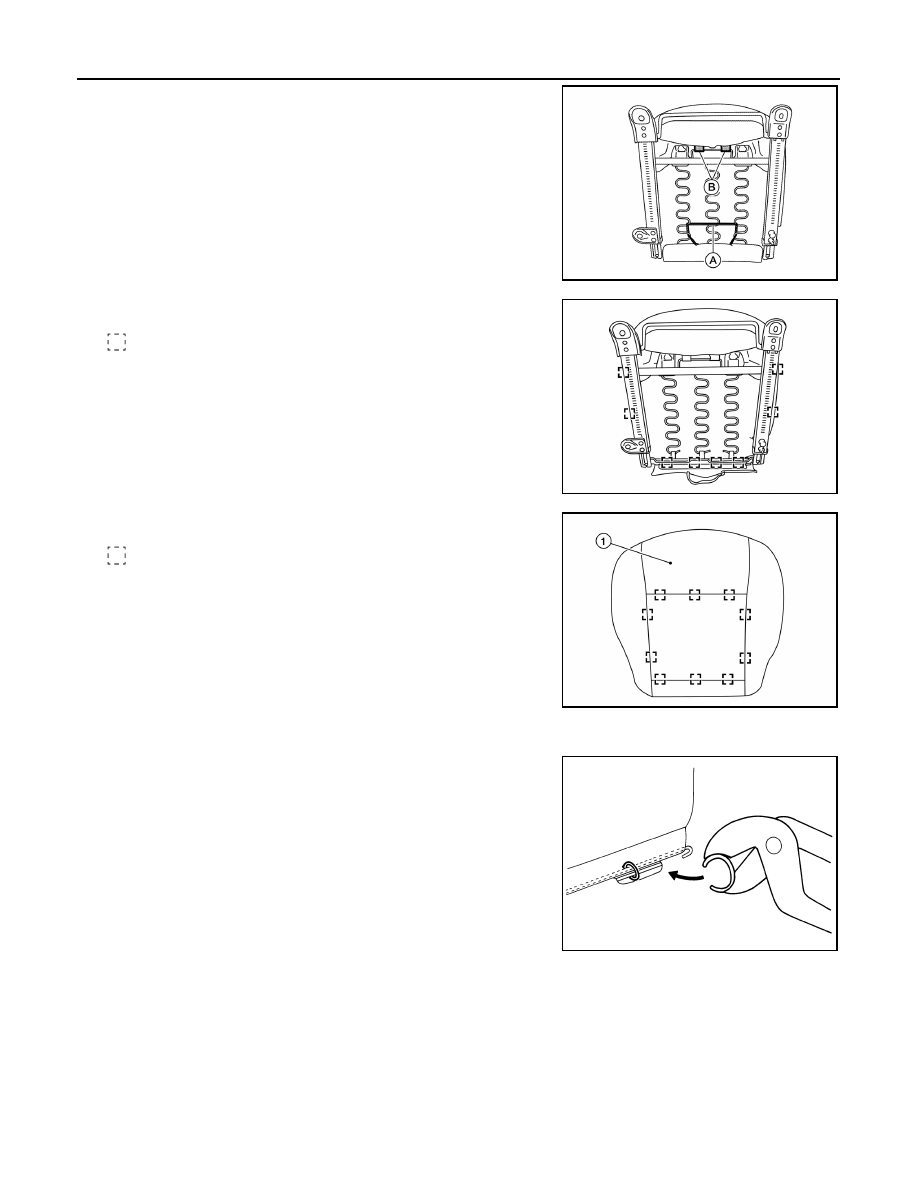

a. Remove trim strap (A) and J-hook retainers (B).

b. Remove the hog rings, then the seat cushion trim and seat

cushion pad from the seat frame.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

7. Remove the hog rings and separate the seat cushion trim (1)

from the seat cushion pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Smooth out all wrinkles during assembly.

• Use NISSAN standard hog rings and tools to assemble.
