INT-30

< REMOVAL AND INSTALLATION >

HEADLINING

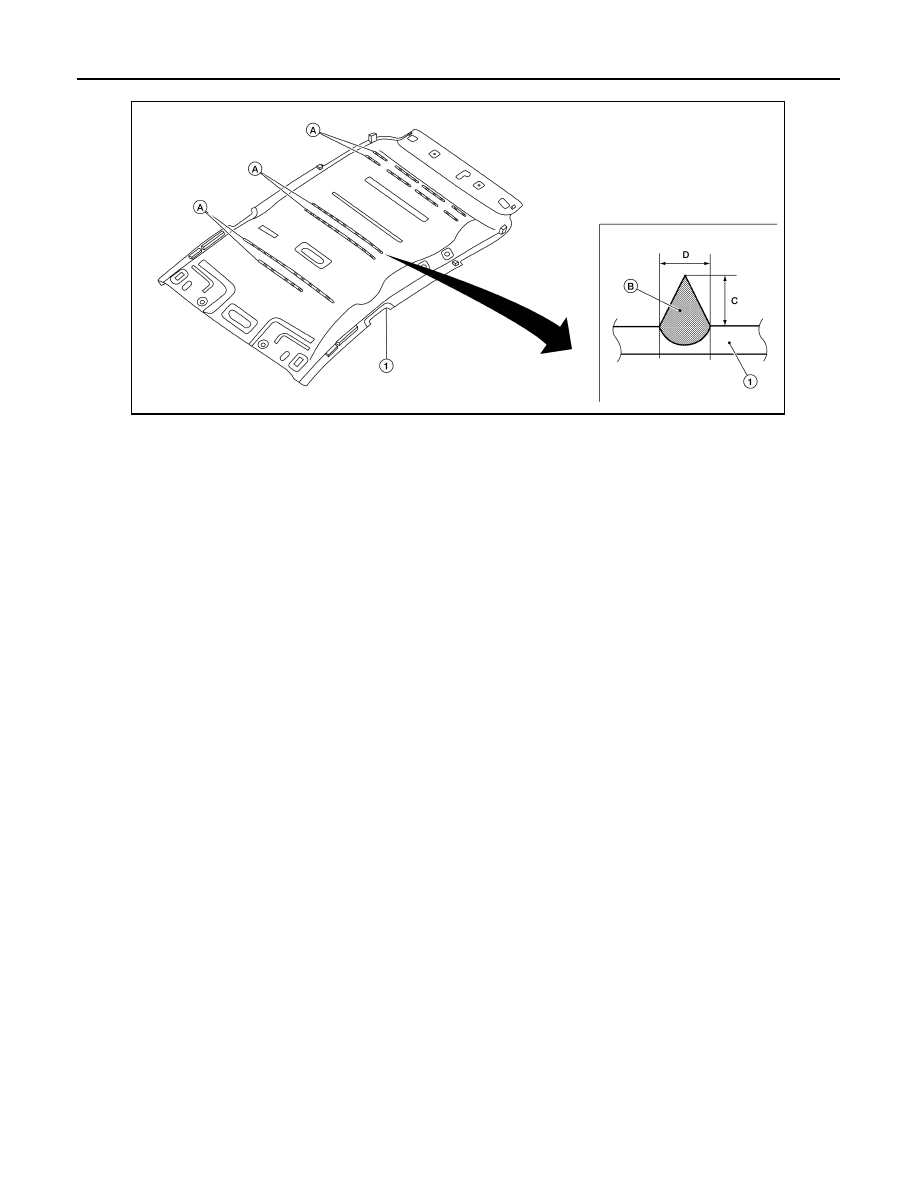

• Apply adhesive as shown before installing headlining.

• Do not bend headlining when installing.

• When installing headlining, start by installing both sun visor holders and headlining clips to hold

headlining in position.

• Be careful that the surface is not wrinkled when installing.

1. Headlining

A. Adhesive application location

B. Adhesive

C. 8 mm

D. 5 mm

AWJIA1102ZZ

LUGGAGE TRIM

INT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

LUGGAGE TRIM

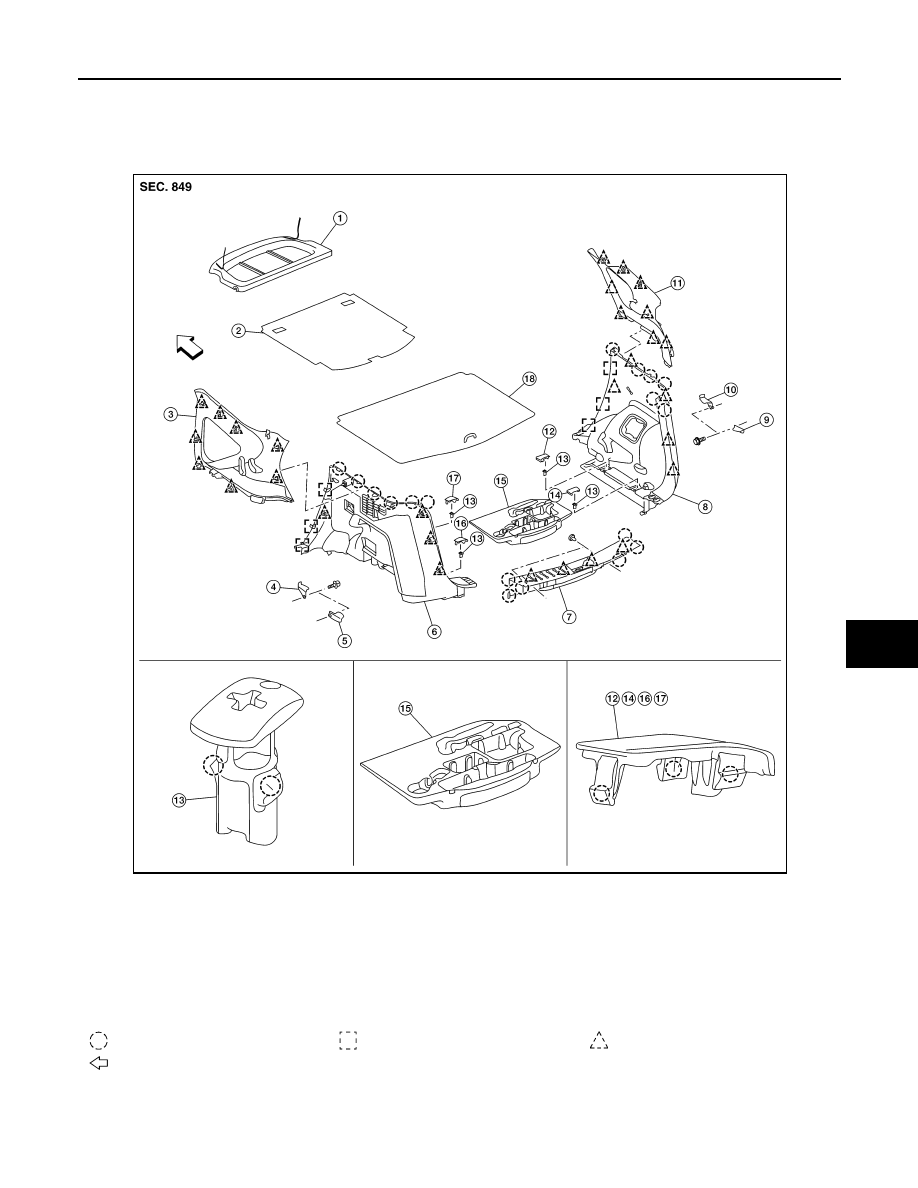

Exploded View

INFOID:0000000009016052

LUGGAGE REAR PLATE

1.

Parcel shelf finisher

2.

Luggage floor board (if equipped)

3.

Luggage side upper finisher (LH)

4.

Luggage side front reinforcement (LH) 5.

Luggage side rear reinforcement (LH) 6.

Luggage side lower finisher (LH)

7.

Luggage rear plate

8.

Luggage side lower finisher (RH)

9.

Luggage side rear reinforcement (RH)

10. Luggage side front reinforcement

(RH)

11. Luggage side upper finisher (RH)

12. Luggage side front cover (RH)

13. Luggage side clip

14. Luggage side rear cover (RH)

15. Luggage floor box

16. Luggage side rear cover (LH)

17. Luggage side front cover (LH)

18. Luggage floor trim

Pawl

Metal clip

Clip

Front

AWJIA1129ZZ

I N

T

- 3

2

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

LUGGAGE REAR PLATE : Removal and Installation

INFOID:0000000009016053

REMOVAL

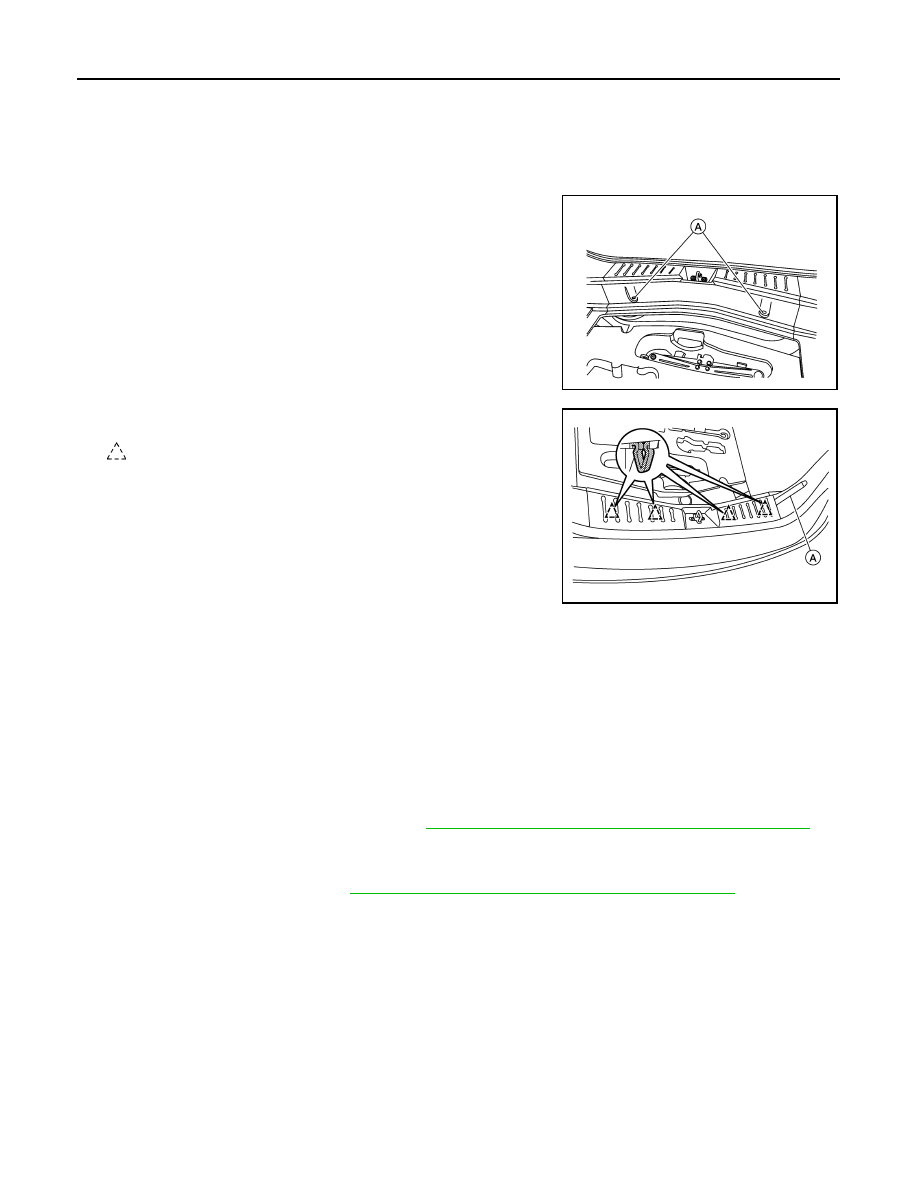

1. Remove luggage floor board (if equipped).
2. Remove luggage floor trim.
3. Remove luggage rear plate clips (A).

4. Release luggage rear plate clips using a suitable tool (A) and

remove luggage rear plate as shown.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing luggage rear plate, check that clips are securely placed into body holes.

LUGGAGE SIDE LOWER FINISHER
LUGGAGE SIDE LOWER FINISHER : Removal and Installation

INFOID:0000000009016054

REMOVAL

1. Partially remove rear body side welt. Refer to

INT-22, "BODY SIDE WELT : Removal and Installation"

.

2. Remove luggage floor board (if equipped).
3. Remove luggage floor trim.
4. Remove seat back hinge. Refer to

SE-20, "SEATBACK HINGE : Removal and Installation"

.

5. Release rear parcel shelf finisher clips using a suitable tool and remove rear parcel shelf finisher (if

equipped).

6. Remove luggage side lower finisher pawls using a suitable tool.

AWJIA1127ZZ

AWJIA1128ZZ

LUGGAGE TRIM

INT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

: Pawl

7. Release the harness connector from cargo room lamp (RH only) and remove luggage side lower finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing luggage side clip, press luggage side clip so that upper side stamp mark faces

toward passenger room, and then completely engage luggage side clip pawls.

LUGGAGE SIDE UPPER FINISHER
LUGGAGE SIDE UPPER FINISHER : Removal and Installation

INFOID:0000000009016055

REMOVAL

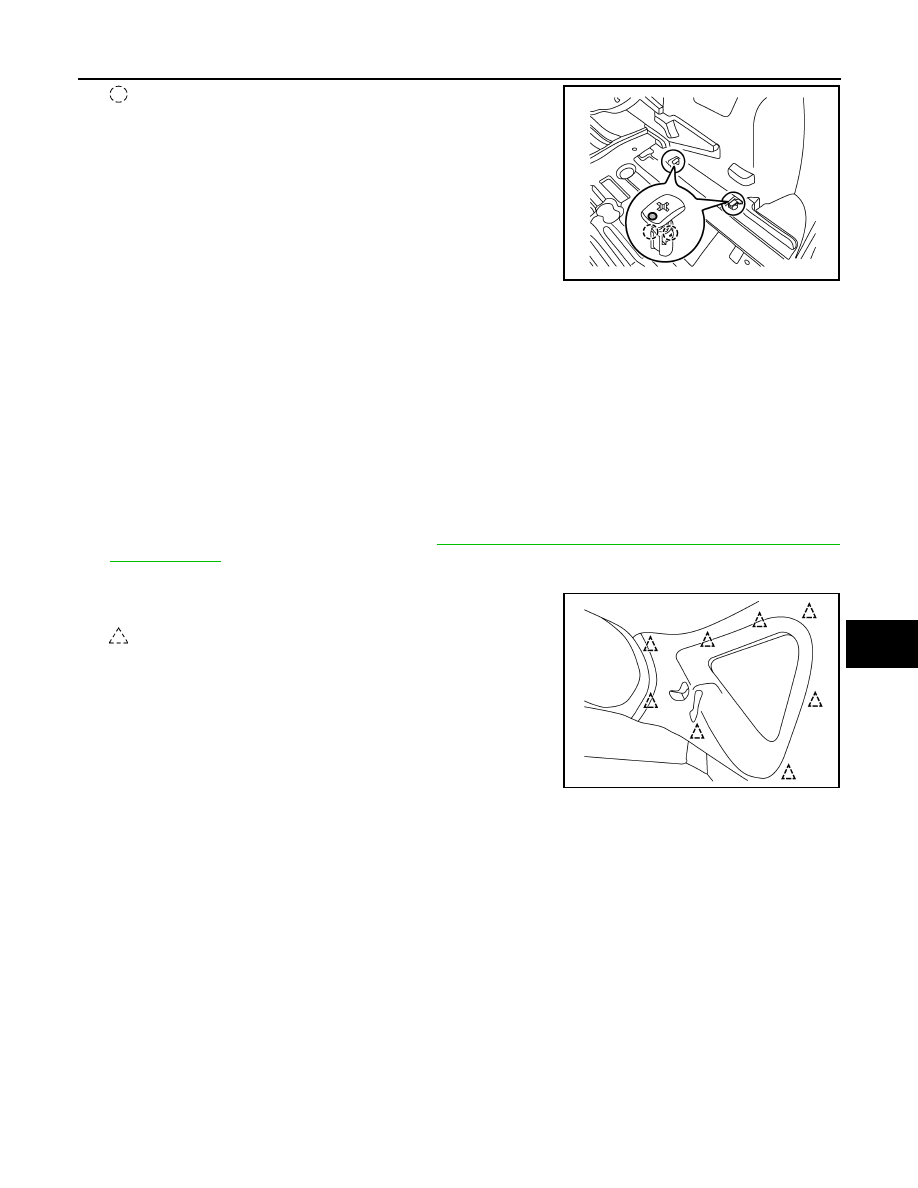

1. Remove luggage side lower finisher. Refer to

INT-32, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2. Remove seat belt lower anchor bolt.
3. Release luggage side upper finisher clips using a suitable tool

and remove luggage side upper finisher.

: Clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation.

• When installing luggage side upper finisher, check that clips are placed in body holes.

AWJIA1095ZZ

AWJIA1097ZZ
