Nissan Note E12. Manual - part 400





INT-22

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation.

• When installing rear kicking plate, check that clips and pawls are securely placed into body panel

holes.

DASH SIDE FINISHER
DASH SIDE FINISHER : Removal and Installation

INFOID:0000000009016044

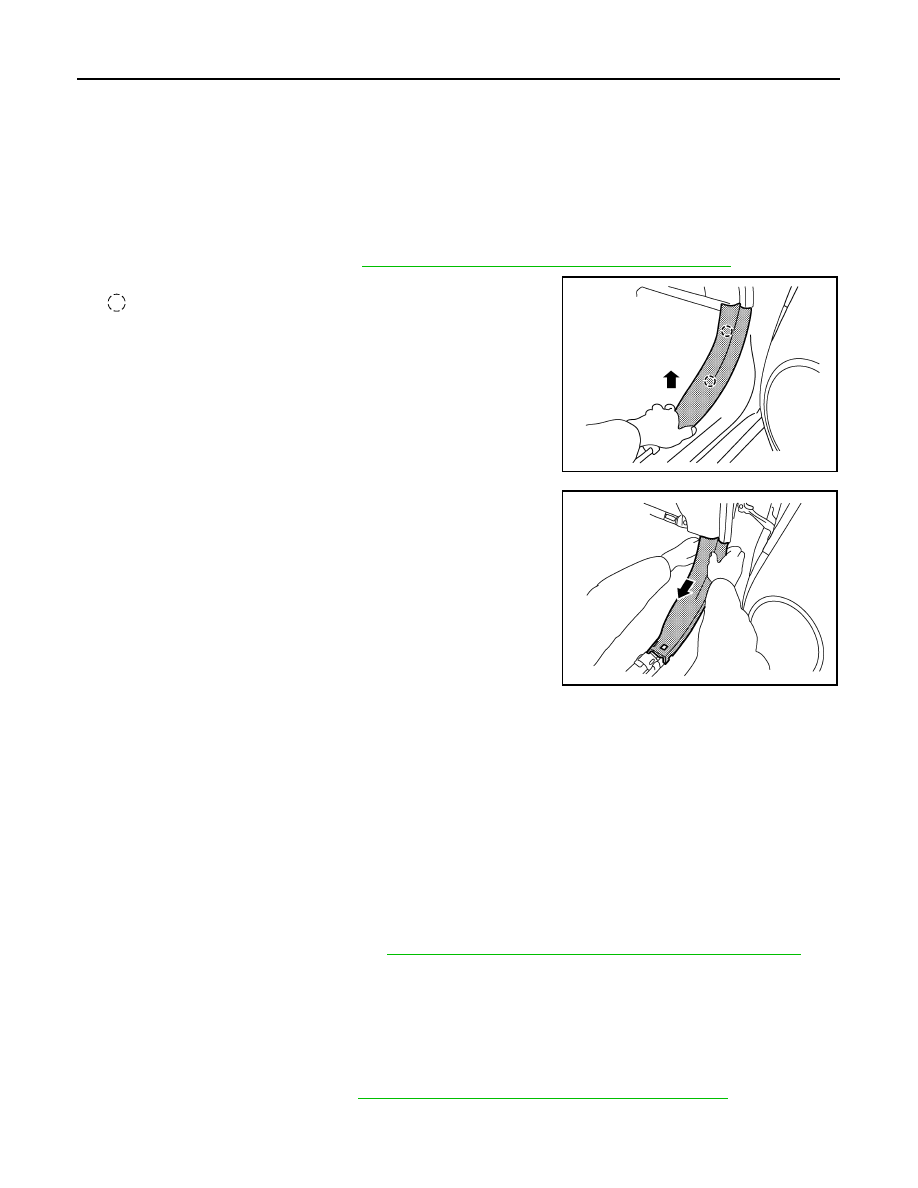

REMOVAL

1. Remove front kicking plate. Refer to

INT-20, "KICKING PLATE : Removal and Installation"

.

2. Lift up rear end of dash side finisher to release pawls.

: Pawl

3. Pull back dash side finisher to release dash side finisher from

stud and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the pawls for deformation and damage during installation.

• When installing, check that finisher is aligned with stud bolt located on floor panel.

• When installing dash side finisher, check that pawls are securely placed into body panel holes.

BODY SIDE WELT
BODY SIDE WELT : Removal and Installation

INFOID:0000000009016045

FRONT BODY SIDE WELT

Removal

1. Remove the dash side finisher. Refer to

INT-22, "DASH SIDE FINISHER : Removal and Installation"

.

2. Remove front body side welt.

Installation

Installation is in the reverse order of removal.

REAR BODY SIDE WELT

Removal

1. Remove rear kicking plate. Refer to

INT-20, "KICKING PLATE : Removal and Installation"

.

2. Remove rear body side welt.

AWJIA1092ZZ

AWJIA1093ZZ

BODY SIDE TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Installation

Installation is in the reverse order of removal.

CENTER PILLAR LOWER FINISHER
CENTER PILLAR LOWER FINISHER : Removal and Installation

INFOID:0000000009016046

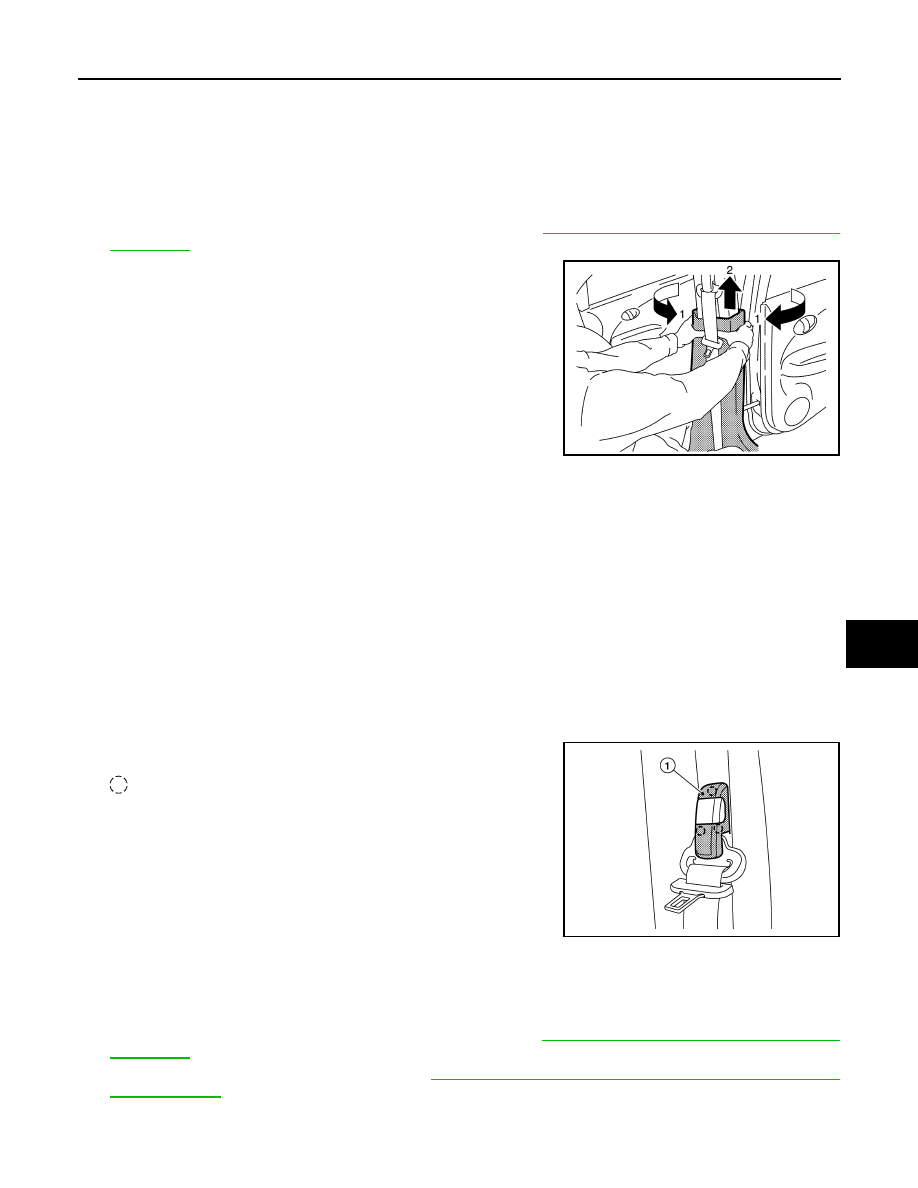

REMOVAL

1. Remove front kicking plate and rear kicking plate. Refer to

INT-20, "KICKING PLATE : Removal and

Installation"

.

2. Remove center pillar lower finisher as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the pawls and clips for deformation and damage during installation. Replace compo-

nent if necessary.

CENTER PILLAR UPPER FINISHER
CENTER PILLAR UPPER FINISHER : Removal and Installation

INFOID:0000000009016047

REMOVAL

CAUTION:

• Be careful not to apply excessive force when removing center pillar upper finisher. Otherwise, clip

may be damaged and fragments may drop in body panels.

1. Slide front seat to the full forward position.
2. Release pawls, using a suitable tool and remove the seat belt

height adjuster finisher (1).

: Pawl

3. Remove front D-ring anchor bolt.

CAUTION:

Before removing D-ring anchor bolt note the positions of washers and spacers for correct installa-

tion.

4. Remove front body side welt and rear body side welt. Refer to

INT-22, "BODY SIDE WELT : Removal and

Installation"

.

5. Remove center pillar lower finisher. Refer to

INT-23, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

6. Release center pillar upper finisher upper clip using a suitable tool as shown.

CAUTION:

JMJIA6045ZZ

AWHIA0539ZZ

INT-24

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

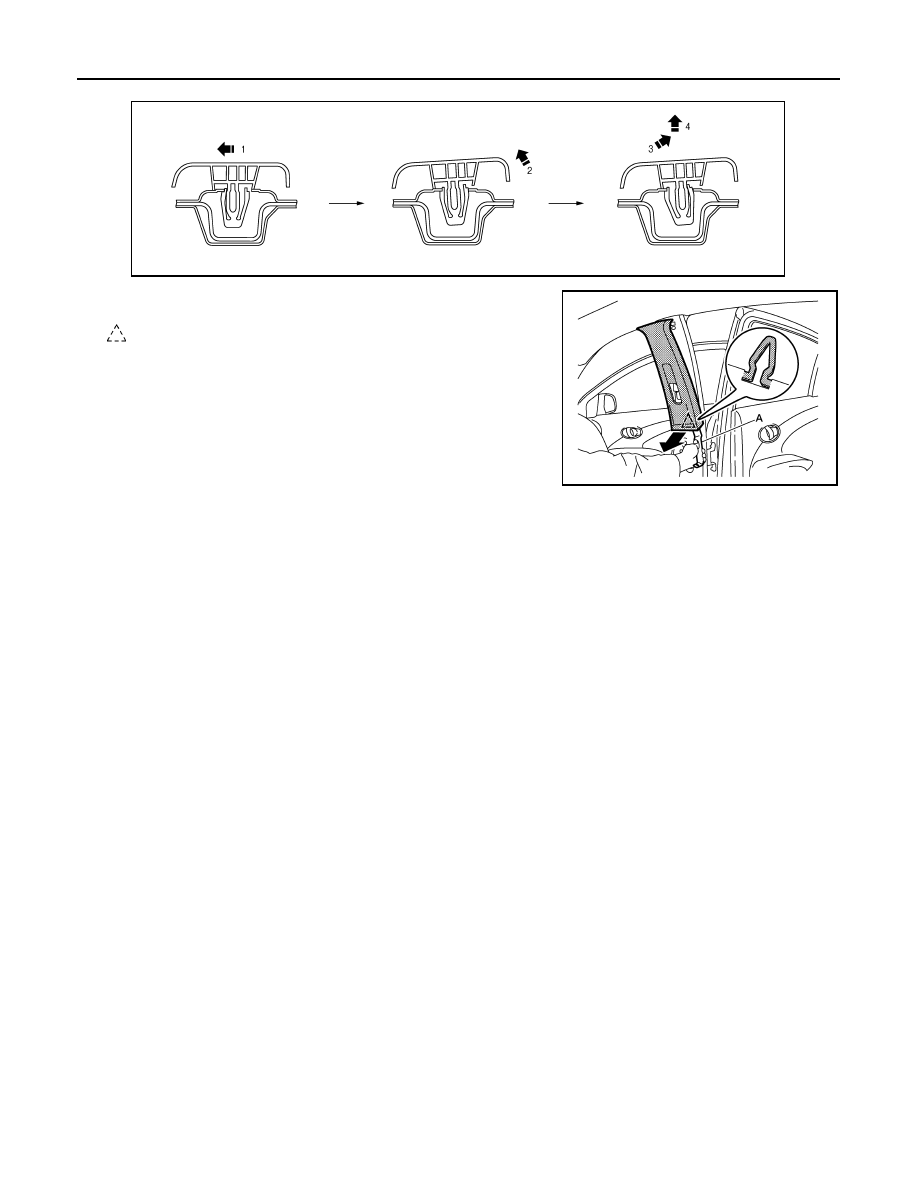

When releasing molded in clip, follow the steps as shown to prevent finisher or clip damage.

7. Release center pillar upper finisher lower clip using a suitable

tool (A) and remove.

: Clip

CAUTION:

Do not reuse center pillar upper finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse center pillar upper finisher. Replace with new part for installation.

• When installing center pillar upper finisher, check that clips are securely placed in body panel holes.

PIIB2600J

AWJIA1094ZZ

FLOOR TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

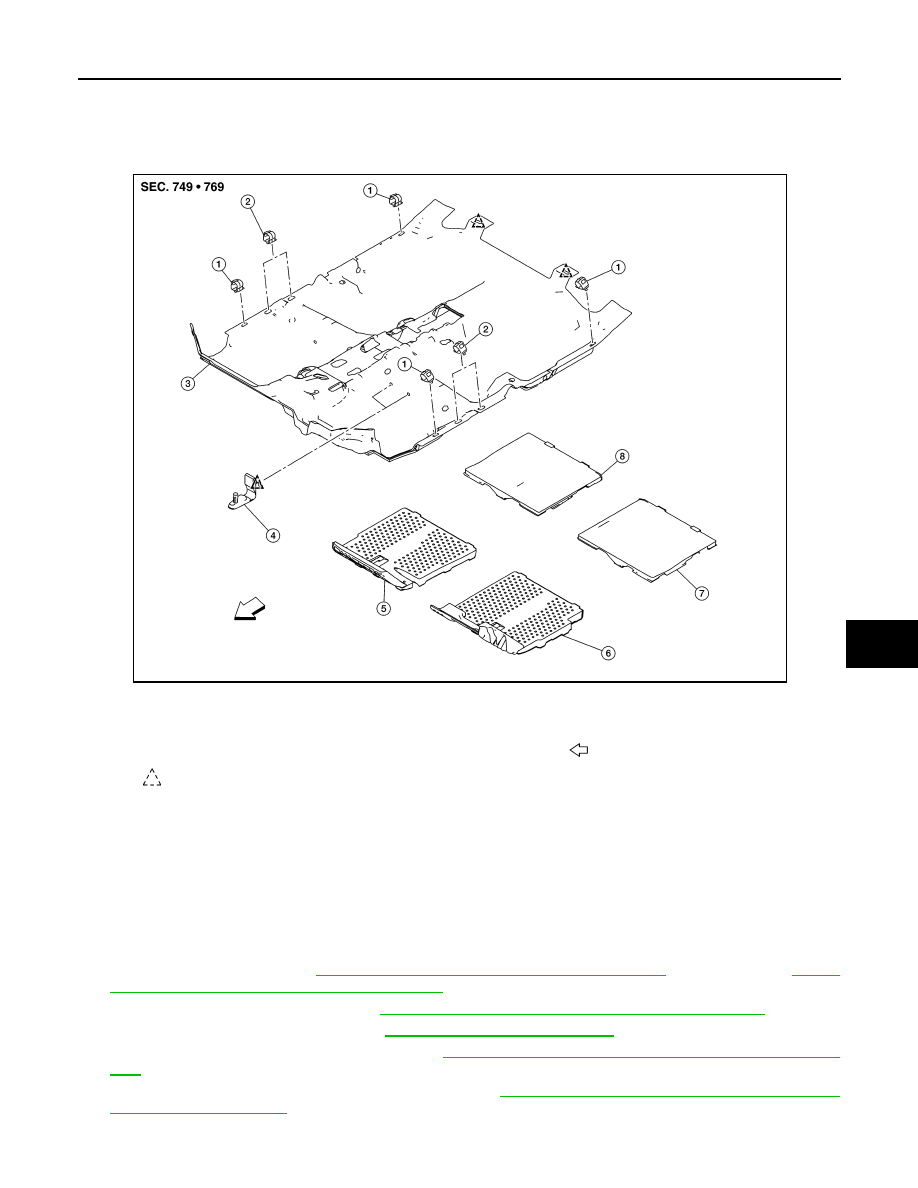

FLOOR TRIM

Exploded View

INFOID:0000000009541591

Removal and Installation

INFOID:0000000009016049

WARNING:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals then wait at

least three minutes.

• Do not drop the seat belt retractor. Always handle it with care.

• Always point pretensioner cylinder away from body when handling.

REMOVAL

1. Remove front seats. Refer to

SE-14, "DRIVER SIDE : Removal and Installation"

 (Driver side) and

SE-16,

"PASSENGER SIDE : Removal and Installation"

 (Passenger side).

2. Remove rear seatback hinge. Refer to

SE-20, "SEATBACK HINGE : Removal and Installation"

.

3. Remove center console lower. Refer to

IP-20, "Removal and Installation"

.

4. Remove dash side finishers (LH/RH). Refer to

INT-22, "DASH SIDE FINISHER : Removal and Installa-

tion"

.

5. Remove center pillar lower finishers (LH/RH). Refer to

INT-23, "CENTER PILLAR LOWER FINISHER :

Removal and Installation"

.

1.

Harness clip A

2.

Harness clip B

3.

Floor trim

4.

Carpet hook

5.

Front floor spacer (RH)

6.

Front floor spacer (LH)

7.

Rear floor spacer (LH)

8.

Rear floor spacer (RH)

Front

Clip

AWJIA1142ZZ
