Nissan Note E12. Manual - part 403

INT-34

< REMOVAL AND INSTALLATION >

BACK DOOR TRIM

BACK DOOR TRIM

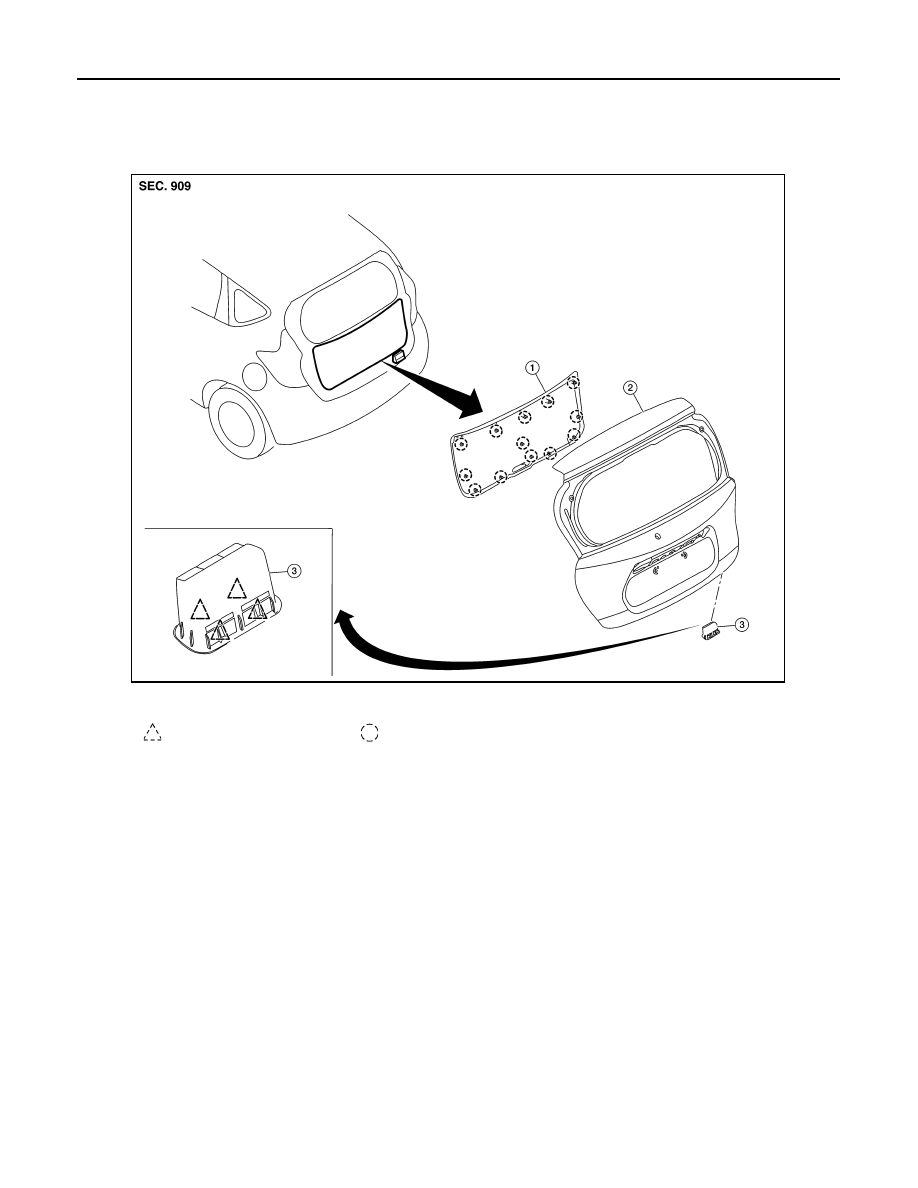

Exploded View

INFOID:0000000009016056

BACK DOOR INNER FINISHER
BACK DOOR INNER FINISHER : Removal and Installation

INFOID:0000000009016057

REMOVAL

1. Release back door inner finisher clips using a suitable tool and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation.

• When installing back door inner finisher, check that locate pin and clips are placed in body panel

holes.

BACK DOOR PULL HANDLE
BACK DOOR PULL HANDLE : Removal and Installation

INFOID:0000000009016058

REMOVAL

1. Release pawls using a suitable tool and remove.

INSTALLATION

1. Back door inner finisher

2. Back door panel

3. Back door pull handle

Clip

Pawl

AWJIA1103ZZ

BACK DOOR TRIM

INT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Installation is in the reverse order of removal.

CAUTION:

• Visually check the pawls for deformation and damage during installation.

• When installing, confirm upper and lower orientation of back door pull handle, then install it.

• When installing back door pull handle, check that pawls are placed in body panel holes.
