Trouble Diagnoses.....................................................16
Construction...............................................................17
Removal and Installation ...........................................19

REMOVAL

...............................................................19

INSTALLATION

........................................................20

Inspection...................................................................20

MAGNETIC SWITCH CHECK

...................................20

PINION/CLUTCH CHECK

.........................................20

BRUSH CHECK

.......................................................20

YOKE CHECK

.........................................................21

ARMATURE CHECK

................................................22

Assembly ...................................................................23

PINION PROTRUSION LENGTH ADJUSTMENT

........23

CHARGING SYSTEM

....................................................24

System Description....................................................24
Wiring Diagram - CHARGE -.....................................25

MODELS WITH FUSE AND FUSIBLE LINK BOX
E43

.........................................................................25

MODELS WITH FUSE AND FUSIBLE LINK BOX
E90

.........................................................................26

Trouble Diagnoses.....................................................27

WITH IC REGULATOR

.............................................27

MALFUNCTION INDICATOR

....................................27

Construction...............................................................28
Removal and Installation ...........................................30

REMOVAL (SR ENGINE)

..........................................30

REMOVAL (QG ENGINE)

.........................................30

REMOVAL (YD ENGINE)

..........................................30

INSTALLATION

........................................................30

Disassembly...............................................................31

REAR COVER

.........................................................31

REAR BEARING

......................................................31

Inspection...................................................................31

ROTOR CHECK

......................................................31

BRUSH CHECK

.......................................................32

STATOR CHECK

.....................................................32

Assembly ...................................................................32

RING FITTING IN REAR BEARING

...........................32

REAR COVER INSTALLATION

.................................33

SERVICE DATA AND SPECIFICATIONS (SDS)

.........34

Battery........................................................................34
Starter ........................................................................34
Alternator ...................................................................34

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

NLSC0001

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL V10 is as follows (The compo-
sition varies according to the destination and optional equipment.):

For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.

For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by intentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the RS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.

Wiring Diagrams and Trouble Diagnoses

NLSC0002

When you read wiring diagrams, refer to the following:

GI-11, “HOW TO READ WIRING DIAGRAMS”

EL-10, “POWER SUPPLY ROUTING” for power distribution circuit

When you perform trouble diagnoses, refer to the following:

GI-32, “HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSES”

GI-21, “HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT”

PRECAUTIONS

Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”

SC-2

How to Handle Battery

NLSC0003

CAUTION:

If it becomes necessary to start the engine with a booster
battery and jumper cables,
1)

Use a 12-volt booster battery.

After connecting battery cables, ensure that they are
tightly clamped to battery terminals for good contact.

Never add distilled water through the hole used to check
specific gravity.

MEL040F

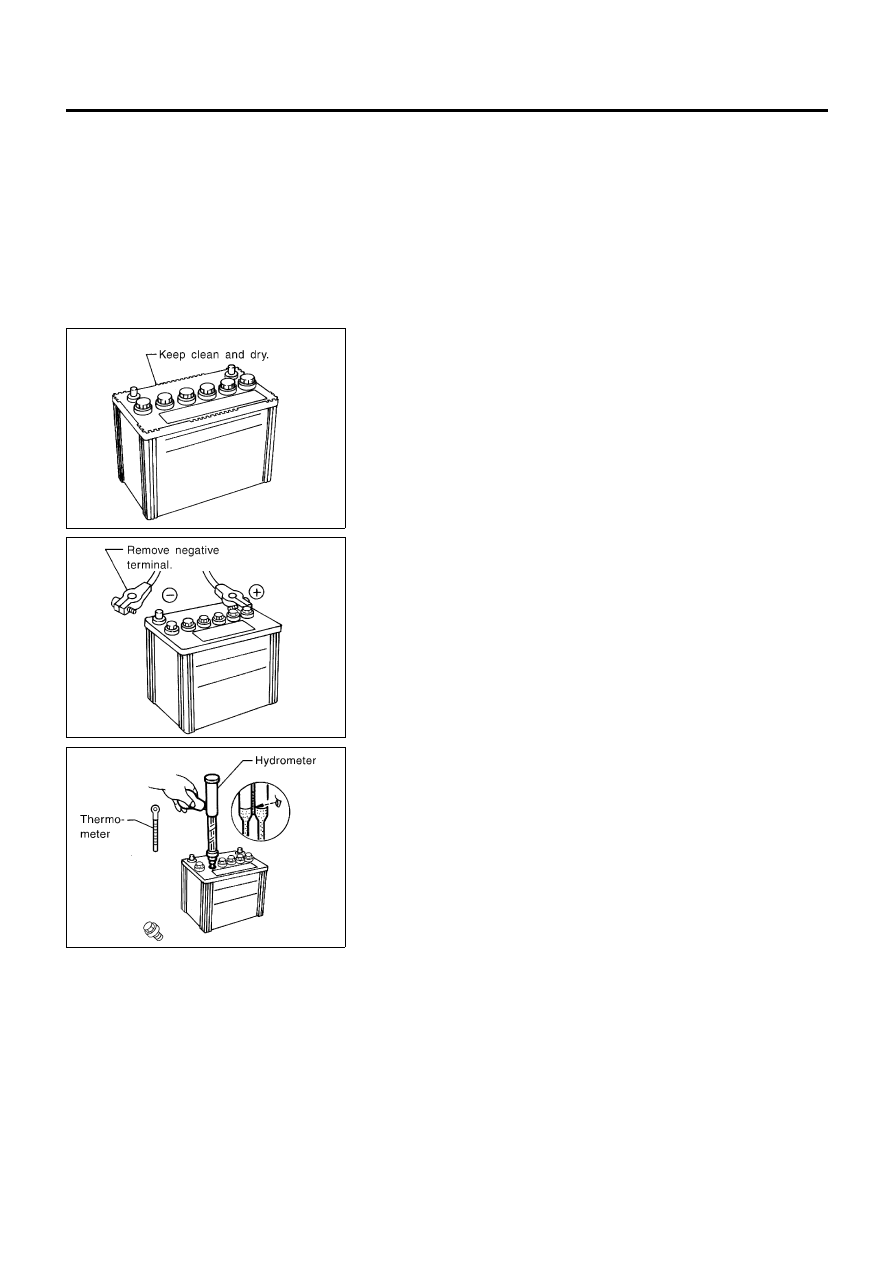

METHODS OF PREVENTING OVER-DISCHARGE

NLSC0003S01

The following precautions must be taken to prevent over-discharg-
ing a battery.

The battery surface (particularly its top) should always be kept
clean and dry.

The terminal connections should be clean and tight.

At every routine maintenance, check the electrolyte level.
This also applies to batteries designated as “low maintenance”
and “maintenance-free”.

MEL041F

When the vehicle is not going to be used over a long period of
time, disconnect the negative battery terminal.

MEL042F

Check the charge condition of the battery.
Periodically check the specific gravity of the electrolyte. Keep
a close check on charge condition to prevent over-discharge.

CHECKING ELECTROLYTE LEVEL

NLSC0003S02

WARNING:

Do not allow battery fluid to come in contact with skin, eyes,
fabrics, or painted surfaces. After touching a battery, do not
touch or rub your eyes until you have thoroughly washed your
hands. If acid contacts eyes, skin or clothing, immediately
flush with water for 15 minutes and seek medical attention.

BATTERY

How to Handle Battery

SC-3

MEL043F

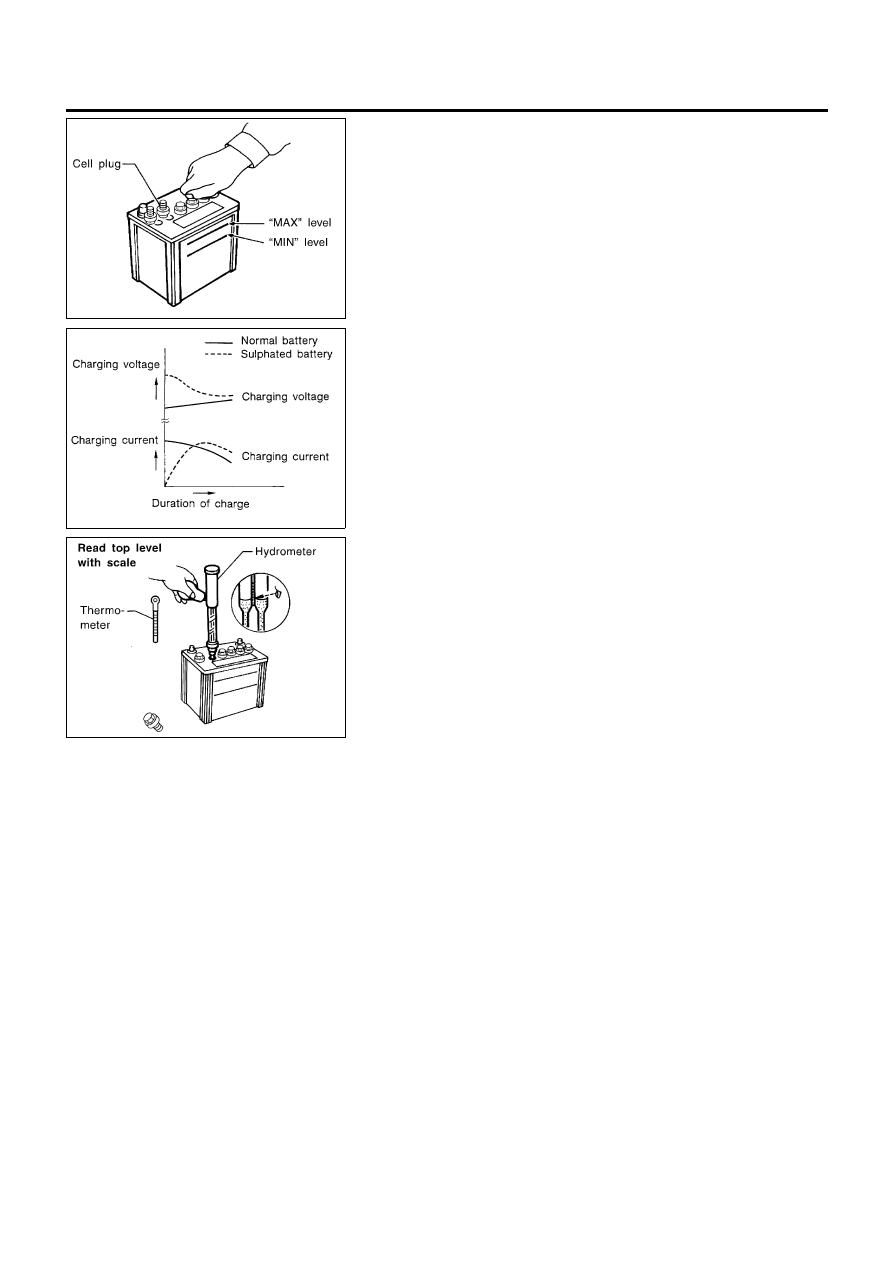

Remove the cell plug using a suitable tool.

Add distilled water up to the MAX level.

SEL709E

Sulphation

NLSC0003S0201

A battery will be completely discharged if it is left unattended
for a long time and the specific gravity will become less than
1.100. This may result in sulphation on the cell plates.
To determine if a battery has been “sulphated”, note its volt-
age and current when charging it. As shown in the figure, less
current and higher voltage are observed in the initial stage of
charging sulphated batteries.
A sulphated battery may sometimes be brought back into ser-
vice by means of a long, slow charge, 12 hours or more, fol-
lowed by a battery capacity test.

MEL042FA

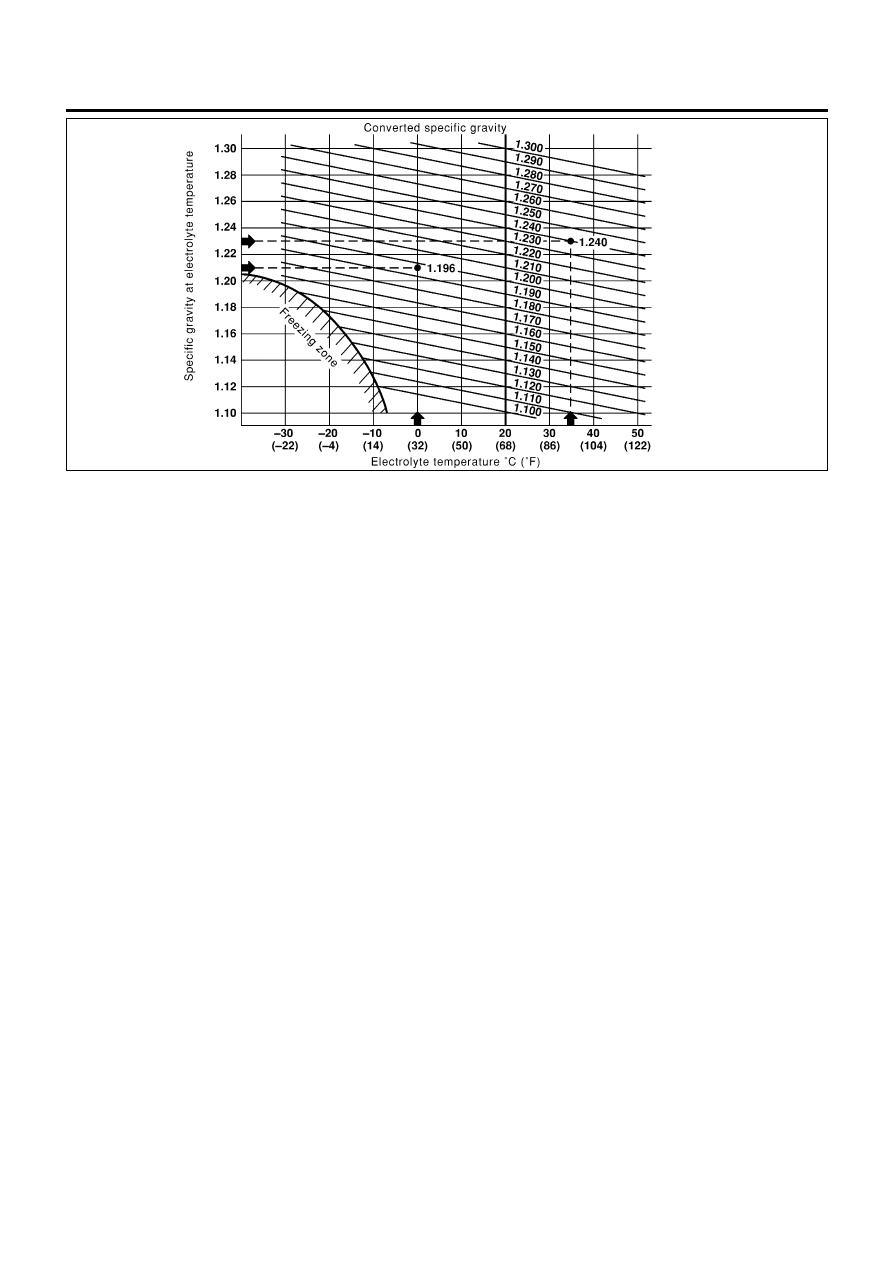

SPECIFIC GRAVITY CHECK

NLSC0003S03

Read hydrometer and thermometer indications at eye level.

Convert into specific gravity at 20°C (68°F).

Example:

When electrolyte temperature is 35°C (95°F) and specific grav-
ity of electrolyte is 1.230, converted specific gravity at 20°C
(68°F) is 1.240.

When electrolyte temperature is 0°C (32°F) and specific grav-
ity of electrolyte is 1.210, converted specific gravity at 20°C
(68°F) is 1.196.

BATTERY

How to Handle Battery (Cont’d)

SC-4

SEL007Z

BATTERY

How to Handle Battery (Cont’d)

SC-5

Battery Test and Charging Chart

NLSC0017

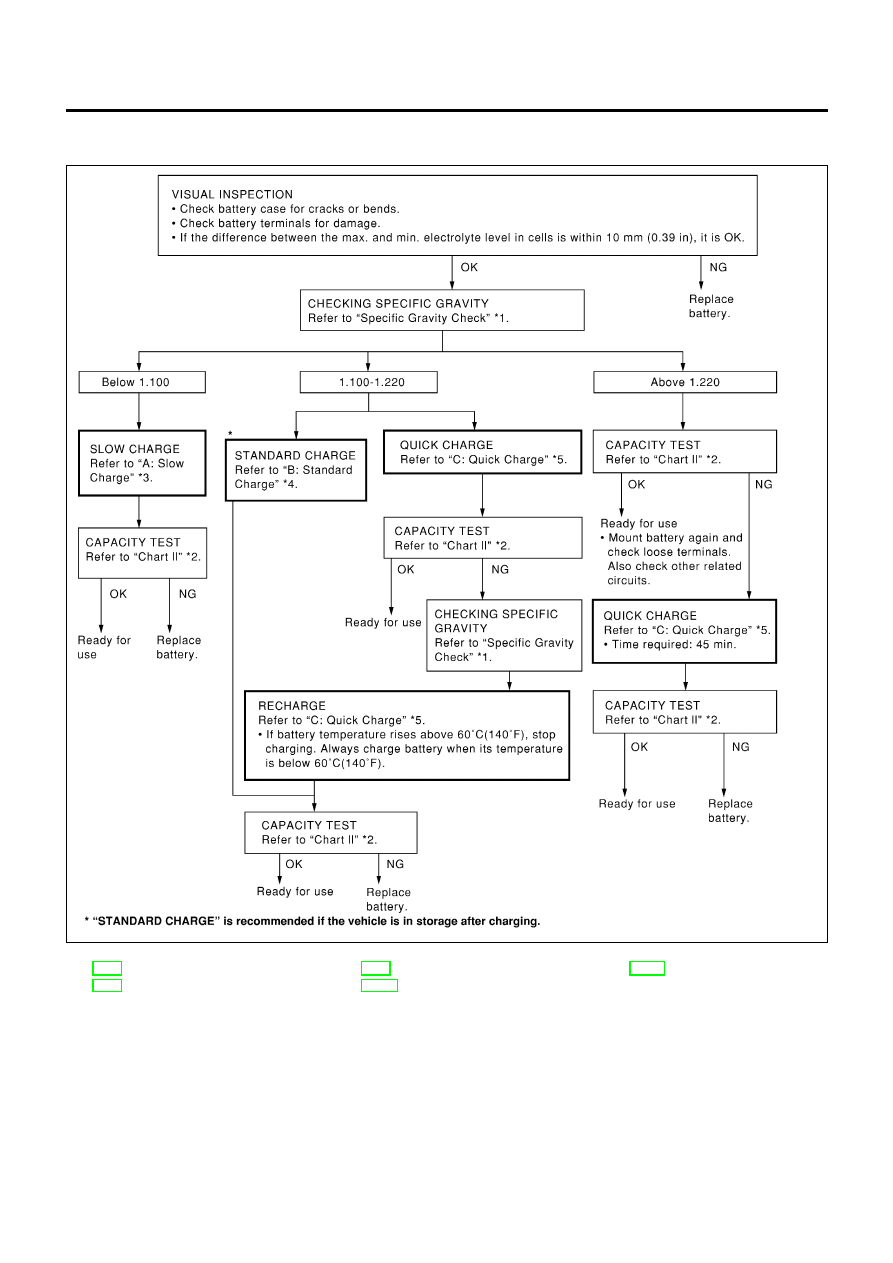

CHART I

NLSC0017S01

SEL754W

*1: SC-4
*2: SC-7

*3: SC-8
*4: SC-10

*5: SC-11

BATTERY

Battery Test and Charging Chart

SC-6

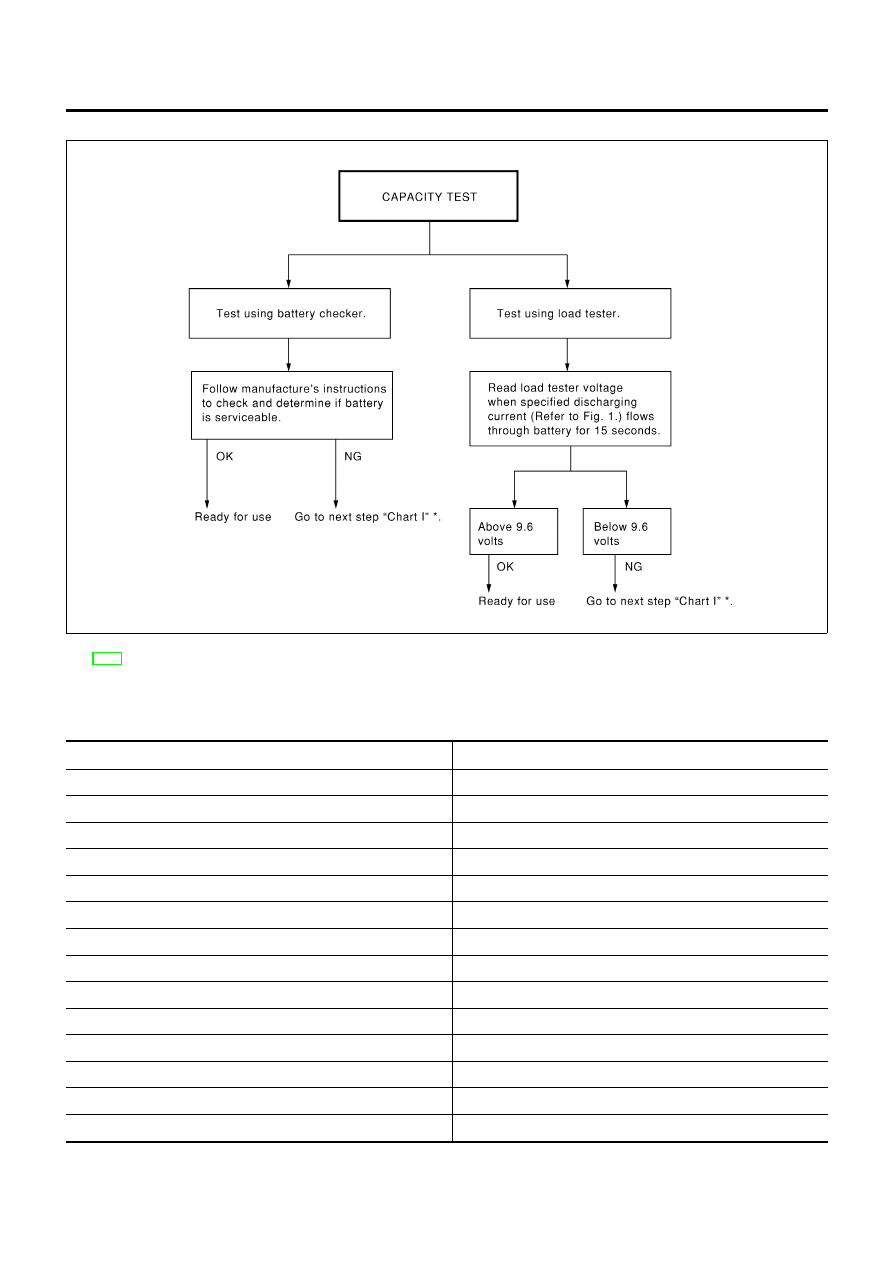

CHART II

NLSC0017S02

SEL755W

SC-6

Check battery type and determine the specified current using the following table.

Fig. 1 DISCHARGING CURRENT (Load Tester)

Type

Current (A)

28B19R(L)

34B19R(L)

46B24R(L)

135

55B24R(L)

135

079 [YUASA type code]

135

50D23R(L)

150

55D23R(L)

180

65D26R(L)

195

80D26R(L)

195

75D31R(L)

210

95D31R(L)

240

115D31R(L)

240

025 [YUASA type code]

240

065 [YUASA type code]

255

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-7

Type

Current (A)

027 [YUASA type code]

285

075 [YUASA type code]

300

110D26R(L)

300

95E41R(L)

300

067 [YUASA type code]

325

130E41R(L)

330

096 [YUASA type code]

375

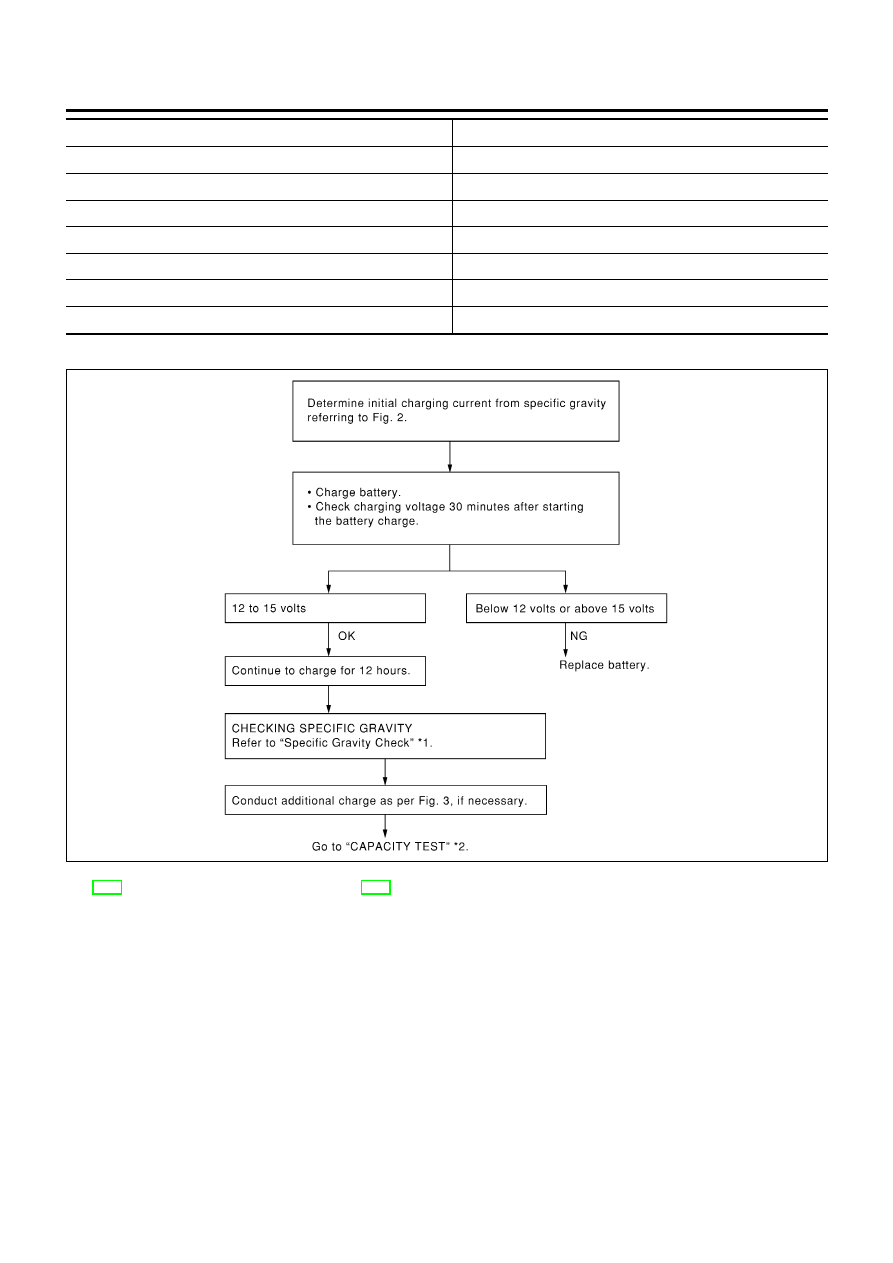

A: SLOW CHARGE

NLSC0017S03

SEL756W

*1: SC-4

*2: SC-7

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-8

Fig. 2 INITIAL CHARGING CURRENT SETTING (Slow charge)

CON-
VERTED
SPECIFIC
GRAVITY

BATTERY TYPE

28B19R(L)

34B19R(L)

46B24R(L)

55B24R(L)

079

[YUASA

type

code]

50D23R(L)

55D23R(L)

025

[YUASA

type

code]

027

[YUASA

type

code]

65D26R(L)

80D26R(L)

067

[YUASA

type

code]

096

[YUASA

type

code]

75D31R(L)

065

[YUASA

type

code]

075

[YUASA

type

code]

95D31R(L)

15D31R(L)

10D26R(L)

95E41R(L)

130E41R(L)

Below 1.100

4.0 (A)

5.0 (A)

7.0 (A)

8.0 (A)

8.5
(A)

9.0
(A)

10.0 (A)

14.0

(A)

Check battery type and determine the specified current using the table shown above.

After starting charging, adjustment of charging current is not necessary.

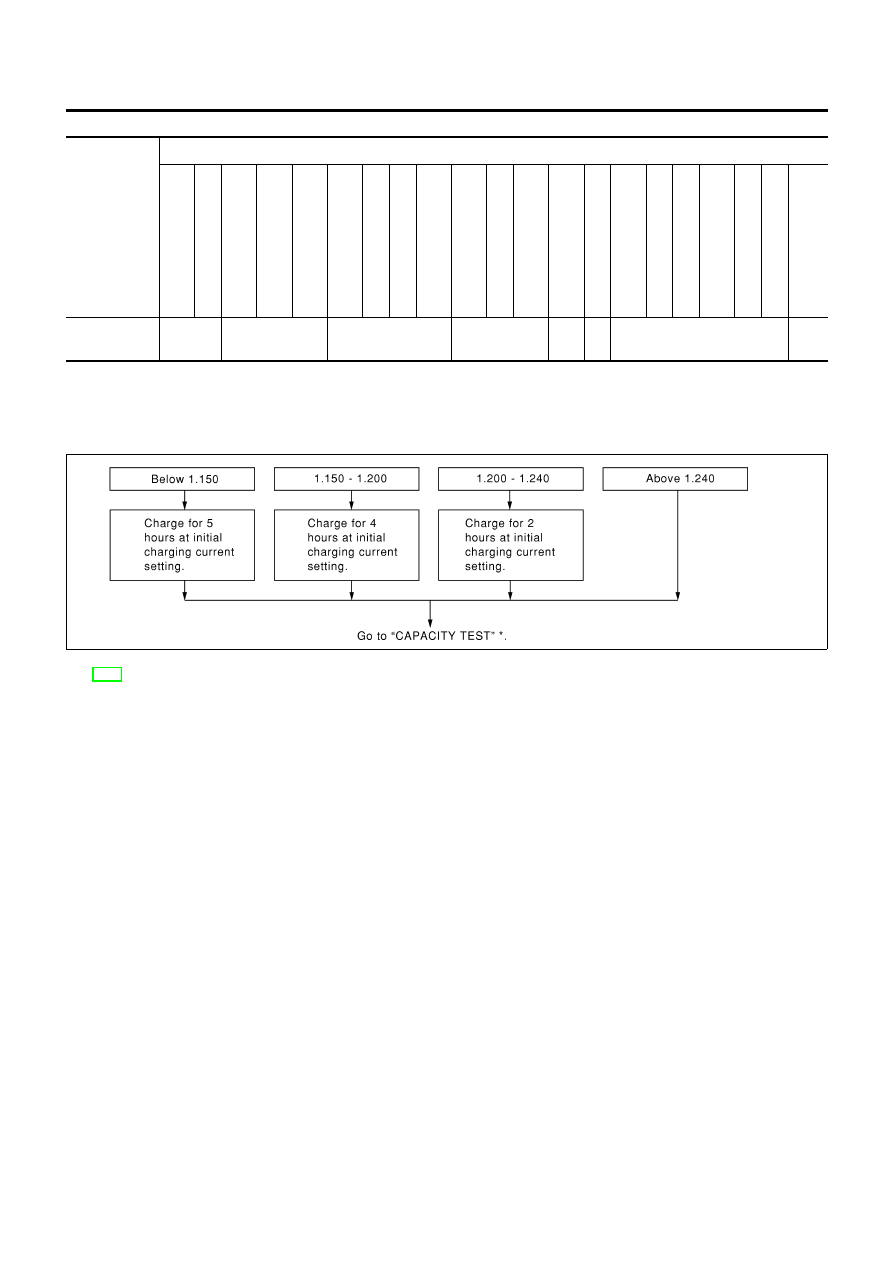

Fig. 3 ADDITIONAL CHARGE (Slow charge)

SEL757W

SC-7

CAUTION:

Set charging current to value specified in Fig. 2. If charger is not capable of producing specified
current value, set its charging current as close to that value as possible.

Keep battery away from open flame while it is being charged.

When connecting charger, connect leads first, then turn on charger. Do not turn on charger first,
as this may cause a spark.

If battery temperature rises above 60°C (140°F), stop charging. Always charge battery when its
temperature is below 60°C (140°F).

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-9

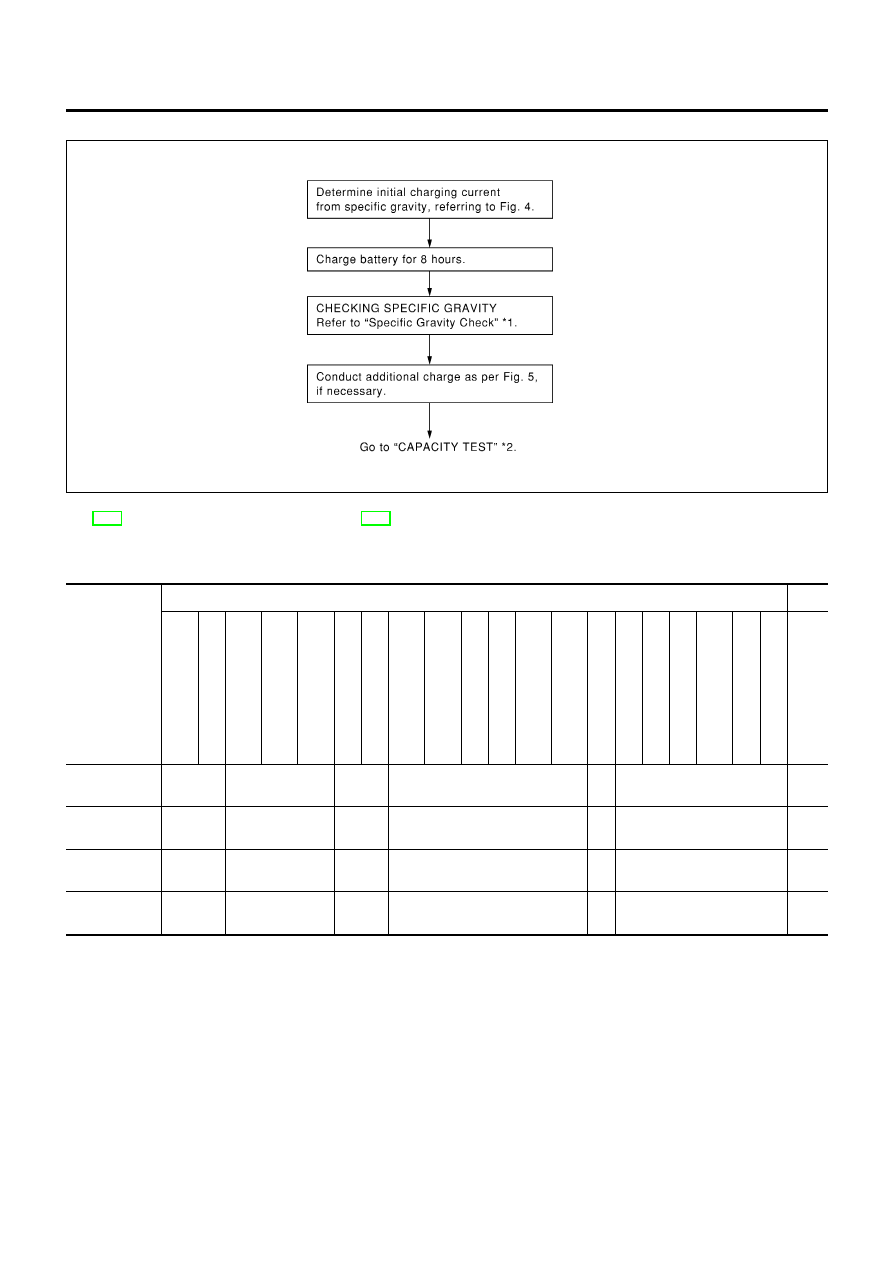

B: STANDARD CHARGE

NLSC0017S04

SEL758W

*1: SC-4

*2: SC-7

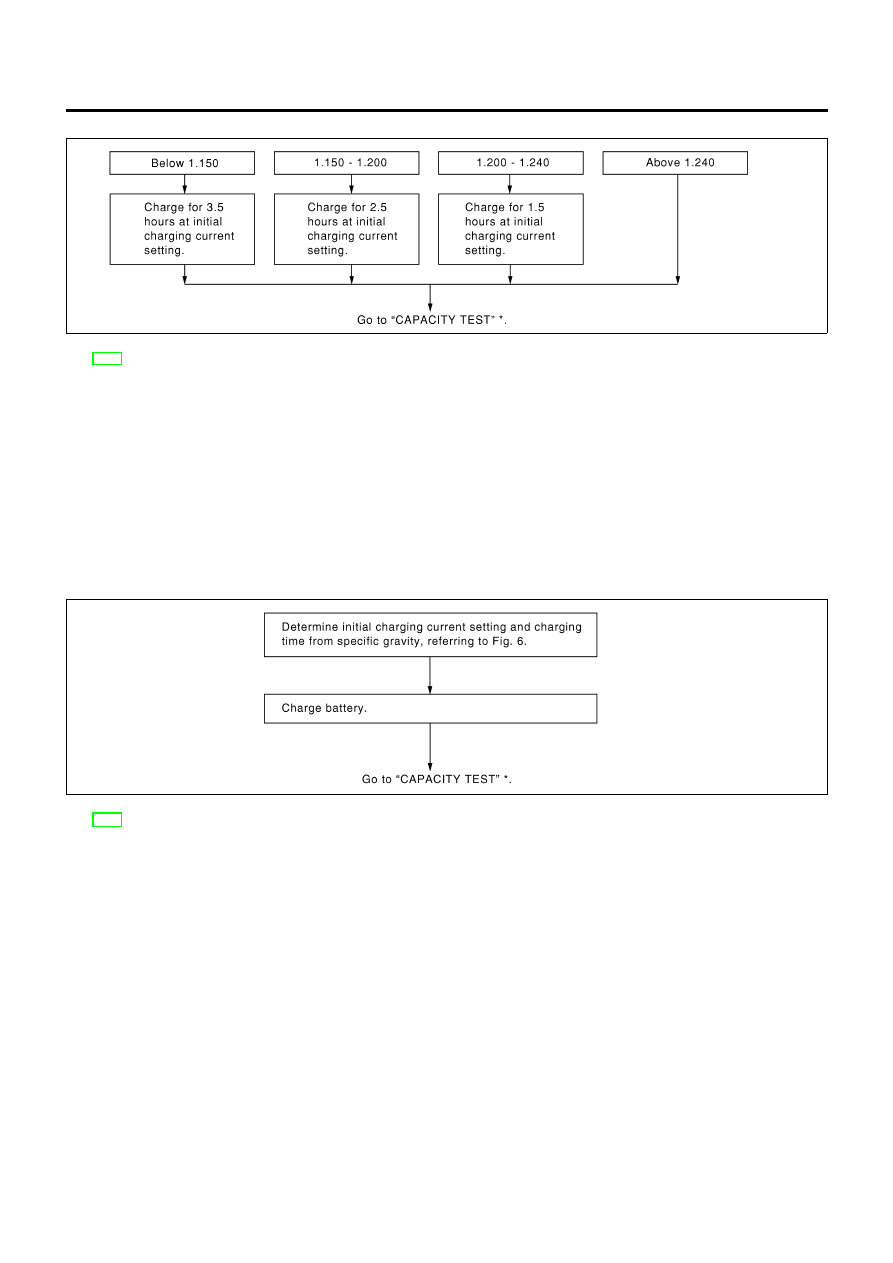

Fig. 4 INITIAL CHARGING CURRENT SETTING (Standard charge)

CON-
VERTED
SPECIFIC
GRAVITY

BATTERY TYPE

28B19R(L)

34B19R(L)

46B24R(L)

55B24R(L)

079

[YUASA

type

code]

50D23R(L)

55D23R(L)

65D26R(L)

80D26R(L)

025

YUASA

type

code

027

YUASA

type

code

067

YUASA

type

code

096

YUASA

type

code

75D31R(L)

065

YUASA

type

code

075

YUASA

type

code

95D31R(L)

15D31R(L)

10D26R(L)

95E41R(L)

130E41R(L)

1.100 - 1.130

4.0 (A)

5.0 (A)

6.0 (A)

7.0 (A)

8.0
(A)

9.0 (A)

13.0

(A)

1.130 - 1.160

3.0 (A)

4.0 (A)

5.0 (A)

6.0 (A)

7.0
(A)

8.0 (A)

11.0

(A)

1.160 - 1.190

2.0 (A)

3.0 (A)

4.0 (A)

5.0 (A)

6.0
(A)

7.0 (A)

9.0
(A)

1.190 - 1.220

2.0 (A)

3.0 (A)

4.0 (A)

5.0
(A)

5.0 (A)

7.0
(A)

Check battery type and determine the specified current using the table shown above.

After starting charging, adjustment of charging current is not necessary.

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-10

Fig. 5 ADDITIONAL CHARGE (Standard charge)

SEL759W

SC-7

CAUTION:

Do not use standard charge method on a battery whose specific gravity is less than 1.100.

Set charging current to value specified in Fig. 4. If charger is not capable of producing specified
current value, set its charging current as close to that value as possible.

Keep battery away from open flame while it is being charged.

When connecting charger, connect leads first, then turn on charger. Do not turn on charger first,
as this may cause a spark.

If battery temperature rises above 60°C (140°F), stop charging. Always charge battery when its
temperature is below 60°C (140°F).

C: QUICK CHARGE

NLSC0017S05

SEL760W

SC-7

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-11

Fig. 6 INITIAL CHARGING CURRENT SETTING AND CHARGING TIME (Quick charge)

BATTERY

TYPE

28B19R(L)

34B19R(L)

46B24R(L)

55B24R(L)

50D23R(L)

079

[YUASA

type

code]

55D23R(L)

65D26R(L)

80D26R(L)

025

[YUASA

type

code]

027

[YUASA

type

code]

065

[YUASA

type

code]

075

[YUASA

type

code]

067

[YUASA

type

code]

096

[YUASA

type

code]

75D31R(L)

95D31R(L)

15D31R(L)

10D26R(L)

95E41R(L)

130E41R(L)

CURRENT
[A]

10 (A)

15 (A)

20 (A)

25 (A)

30 (A)

(A)

CONVER

TED

SPECIFIC

GRA

VITY

1.100 -

1.130

2.5 hours

1.130 -

1.160

2.0 hours

1.160 -

1.190

1.5 hours

1.190 -

1.220

1.0 hours

Above

1.220

0.75 hours (45 min.)

Check battery type and determine the specified current using the table shown above.

After starting charging, adjustment of charging current is not necessary.

CAUTION:

Do not use quick charge method on a battery whose specific gravity is less than 1.100.

Set initial charging current to value specified in Fig. 6. If charger is not capable of producing
specified current value, set its charging current as close to that value as possible.

Keep battery away from open flame while it is being charged.

When connecting charger, connect leads first, then turn on charger. Do not turn on charger first,
as this may cause a spark.

Be careful of a rise in battery temperature because a large current flow is required during quick-
charge operation.
If battery temperature rises above 60°C (140°F), stop charging. Always charge battery when its
temperature is below 60°C (140°F).

Do not exceed the charging time specified in Fig. 6, because charging battery over the charging
time can cause deterioration of the battery.

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-12

System Description

NLSC0004

M/T MODELS

NLSC0004S01

Power is supplied at all times

through 40A fusible link (letter B, located in the fuse and fusible link box)

to ignition switch terminal 1.

With the ignition switch in START position, power is supplied

from ignition switch terminal 5

to starter motor harness connector terminal 1.

The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the engine
starts.

A/T MODELS

NLSC0004S02

Power is supplied at all times

through 40A fusible link (letter B, located in the fuse and fusible link box)

to ignition switch terminal 1.

With the ignition switch in the START position, power is supplied

from ignition switch terminal 5

to park/neutral position relay terminal 5.

With the ignition switch ON or START position, power is supplied

through 10A fuse [No. 20, located in the fuse block (J/B)]

to park/neutral position (PNP) relay terminal 1.

With the selector lever in the P or N position, ground is supplied

to park/neutral position relay terminal 2 through the park/neutral position switch

from body grounds, F9 and F10.

Then park/neutral position relay is energized and power is supplied

from park/neutral position relay terminal 3

to starter motor harness connector terminal 1.

STARTING SYSTEM

System Description

SC-13

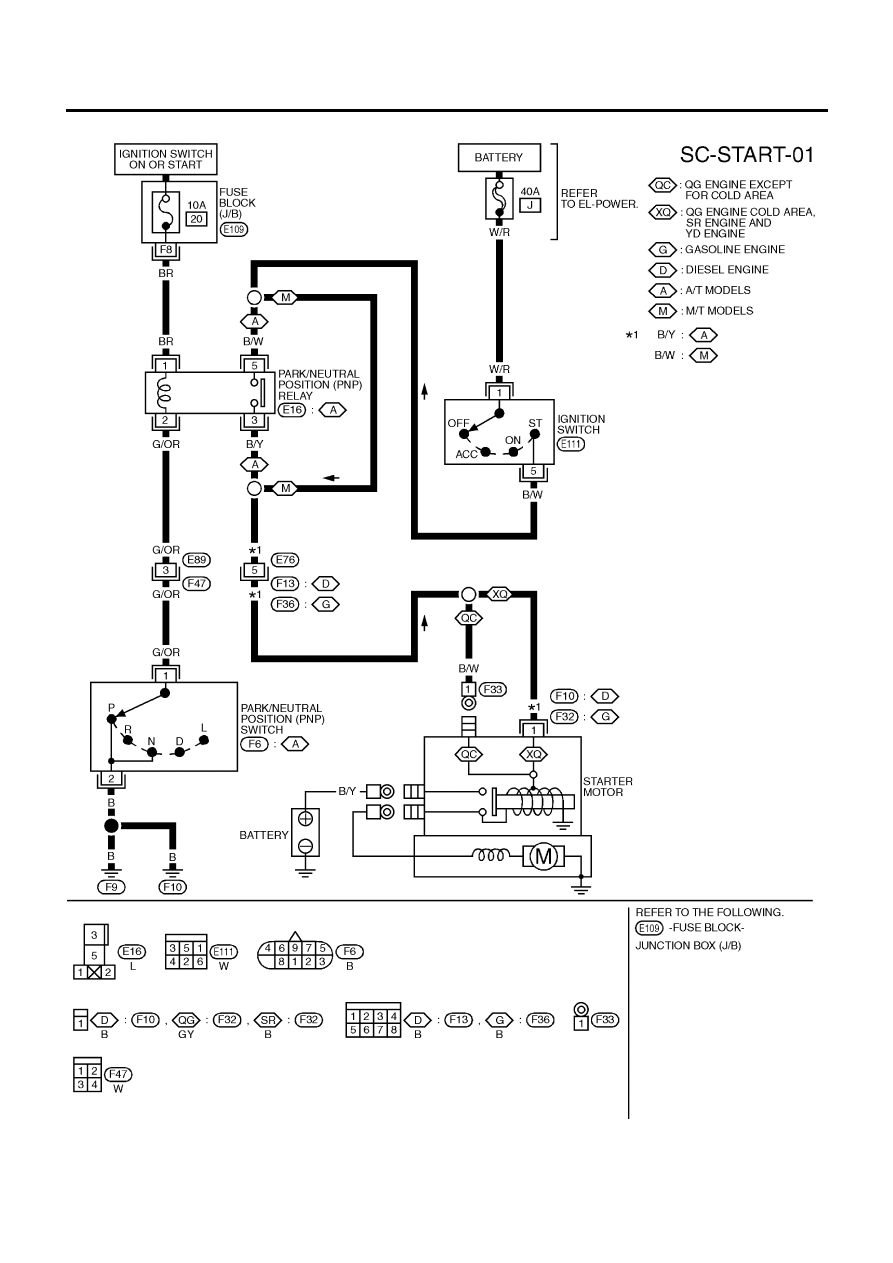

Wiring Diagram — START —

NLSC0005

MODELS WITH FUSE AND FUSIBLE LINK BOX E43

NLSC0005S06

YEL857B

STARTING SYSTEM

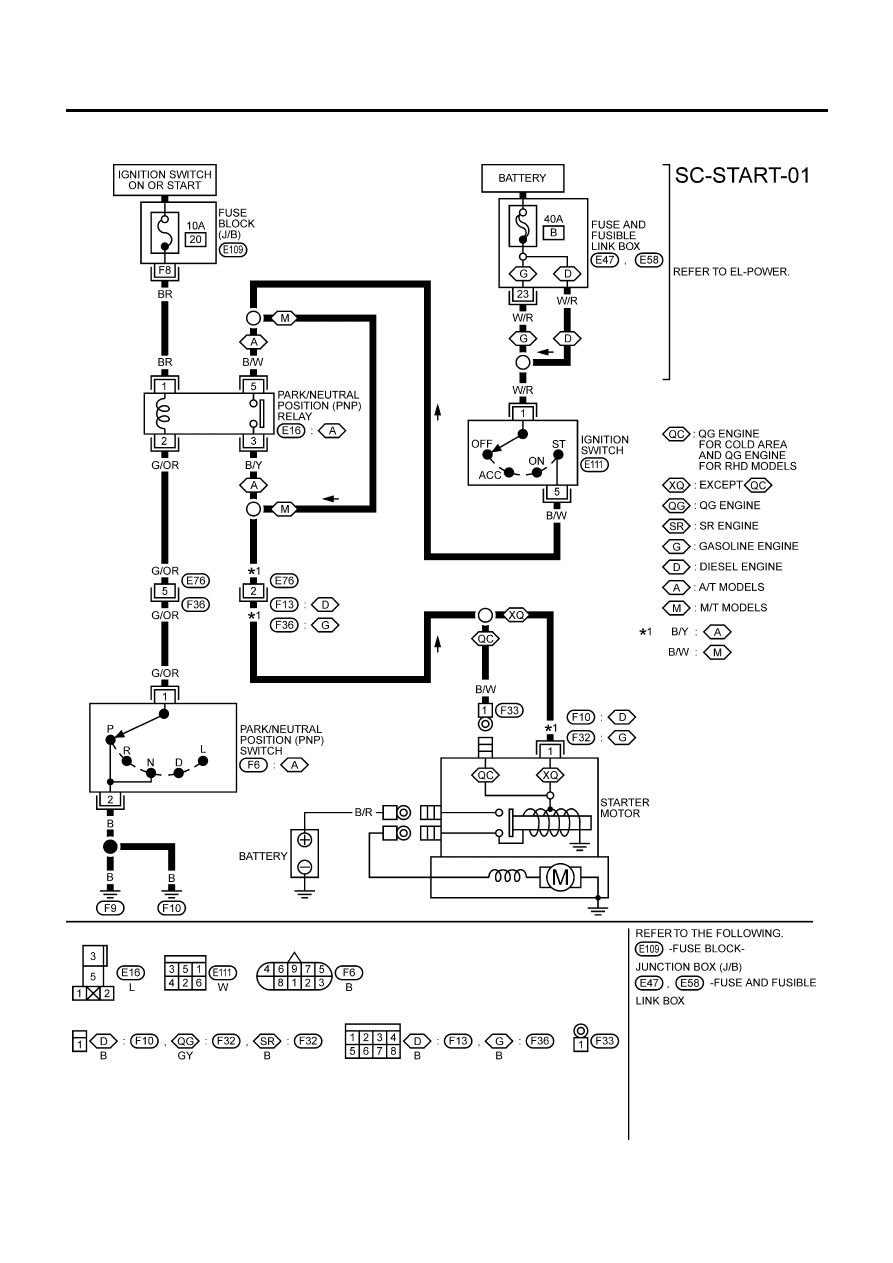

Wiring Diagram — START —

SC-14

MODELS WITH FUSE AND FUSIBLE LINK BOX E90

NLSC0005S07

YEL387C

STARTING SYSTEM

Wiring Diagram — START — (Cont’d)

SC-15

Content .. 184 185 186 187 ..
