Nissan Almera Tino V10 (2001 year). Manual - part 187

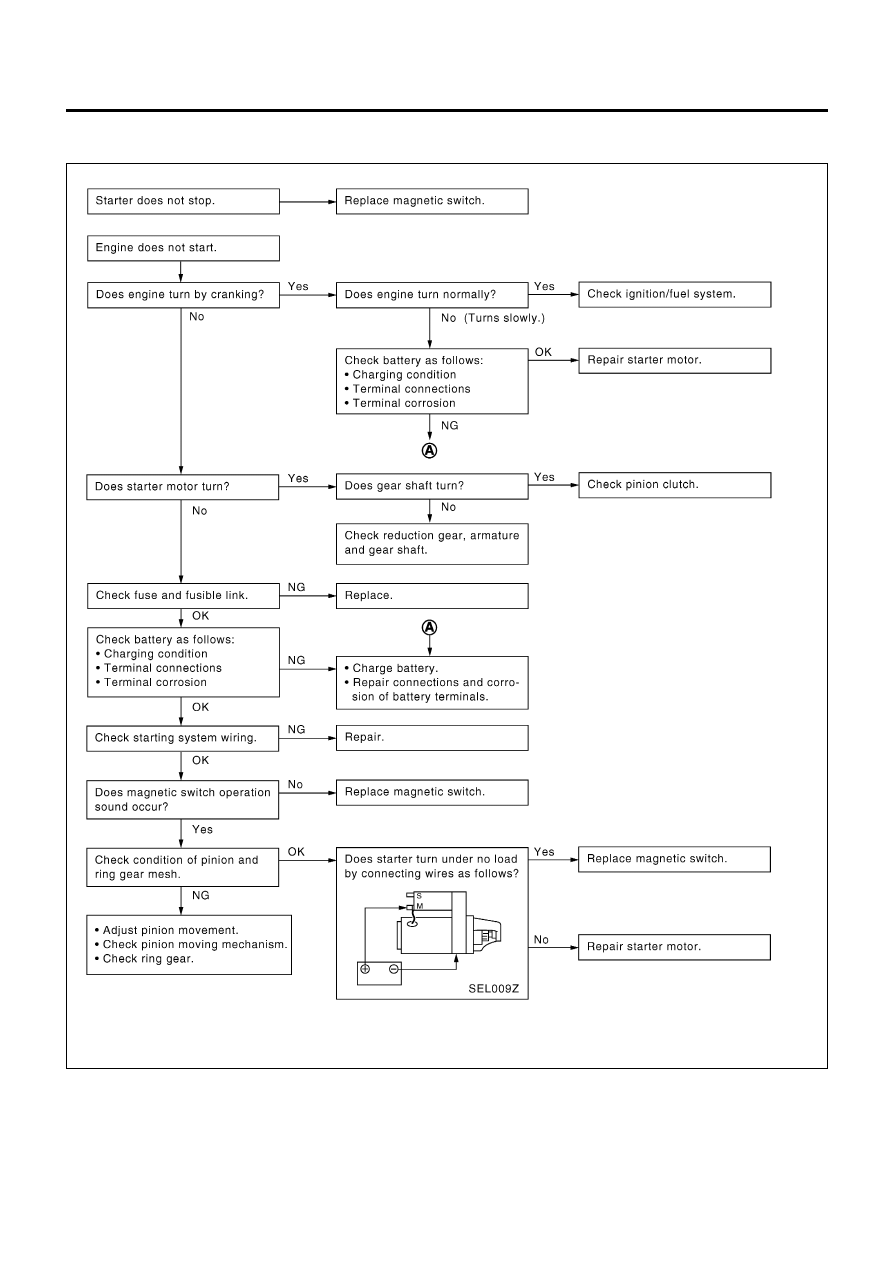

Trouble Diagnoses

NLSC0018

If any abnormality is found, immediately disconnect battery negative terminal.

SEL761W

STARTING SYSTEM

Trouble Diagnoses

SC-16

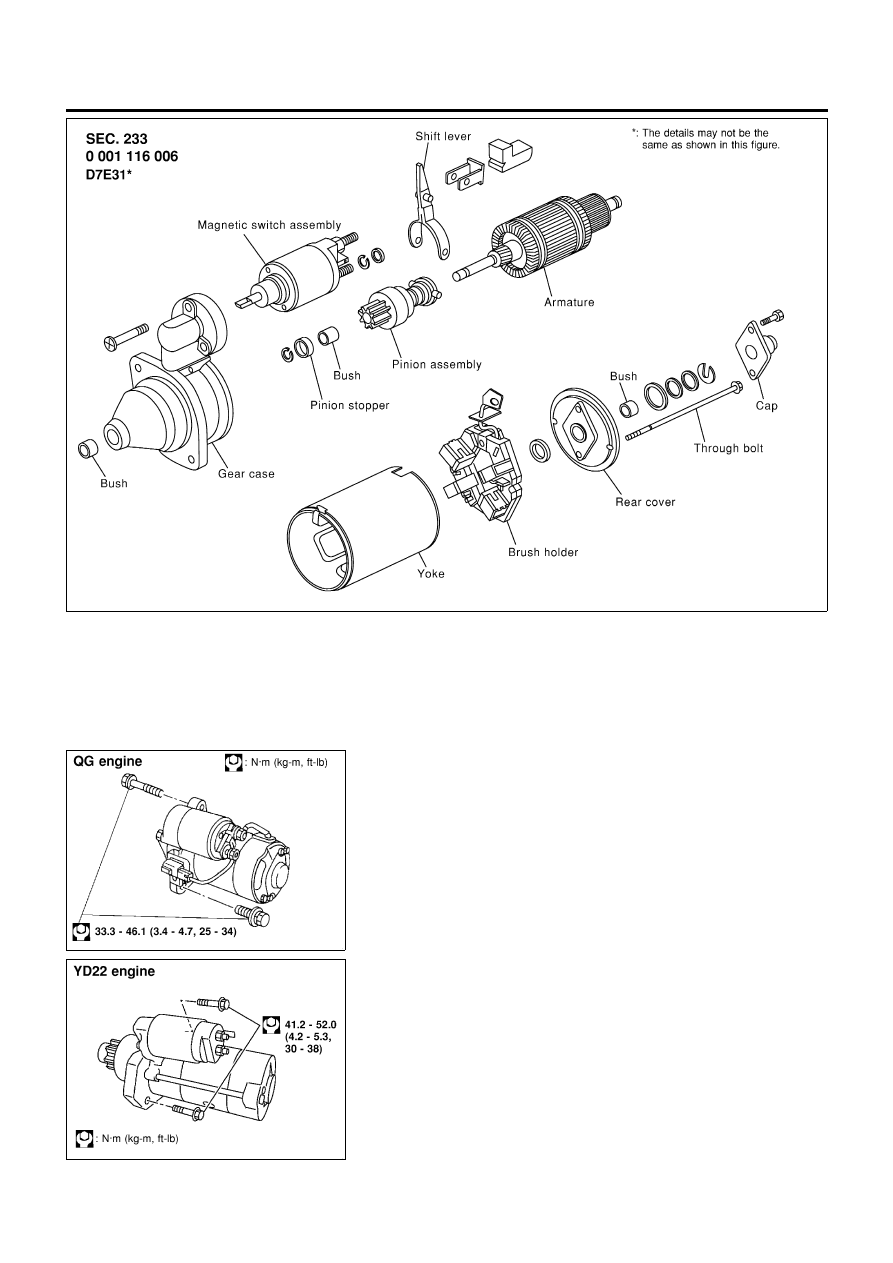

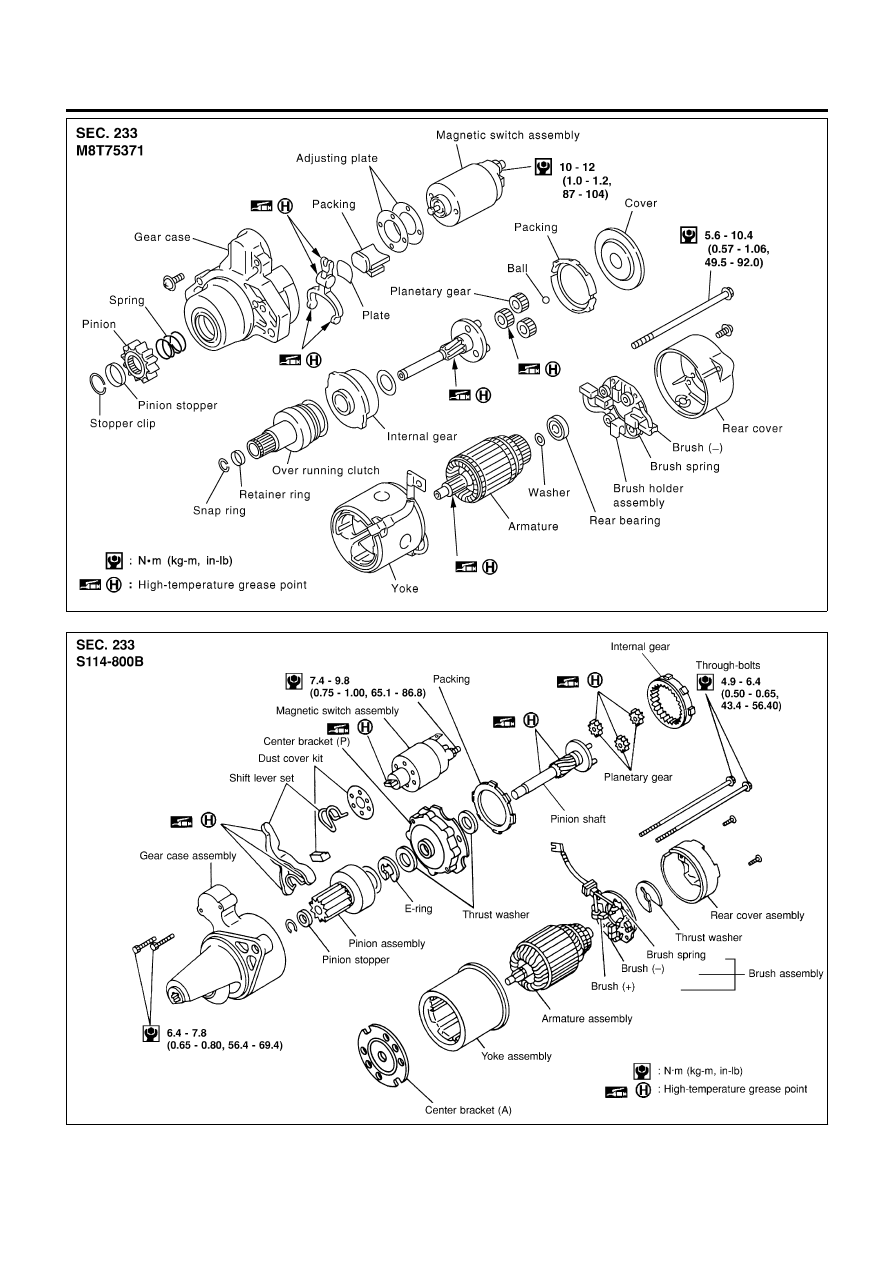

Construction

NLSC0006

SEL027UC

NEL772

STARTING SYSTEM

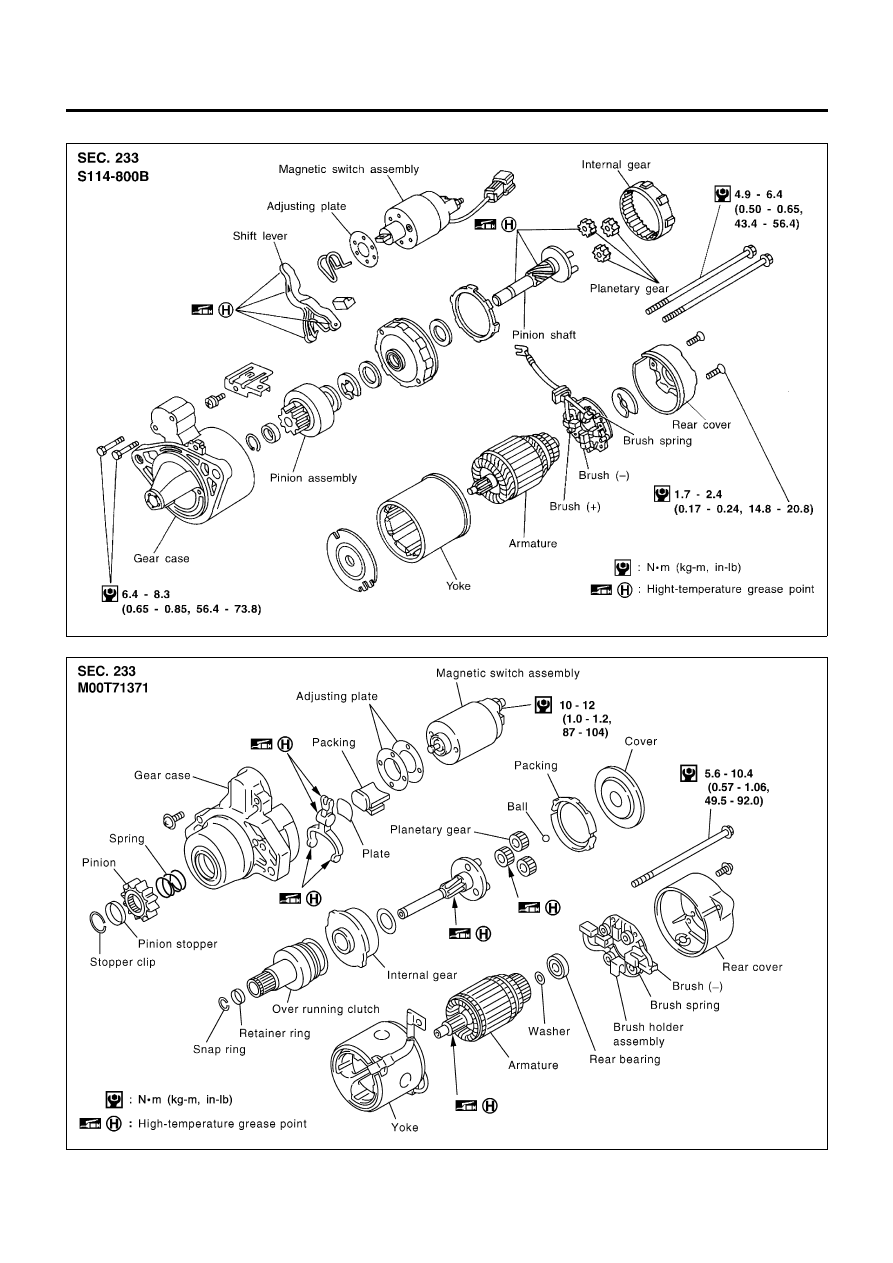

Construction

SC-17

MEL136L

YEL420B

STARTING SYSTEM

Construction (Cont’d)

SC-18

NEL791

NEL642

NEL643

Removal and Installation

NLSC0007

REMOVAL

NLSC0007S01

Remove intake air duct and air cleaner assembly.

Disconnect starter harness.

Remove starter bolts (two).

Remove starter.

STARTING SYSTEM

Construction (Cont’d)

SC-19

NEL644

INSTALLATION

NLSC0007S02

To install, reverse the removal procedure.

MEL138L

Inspection

NLSC0019

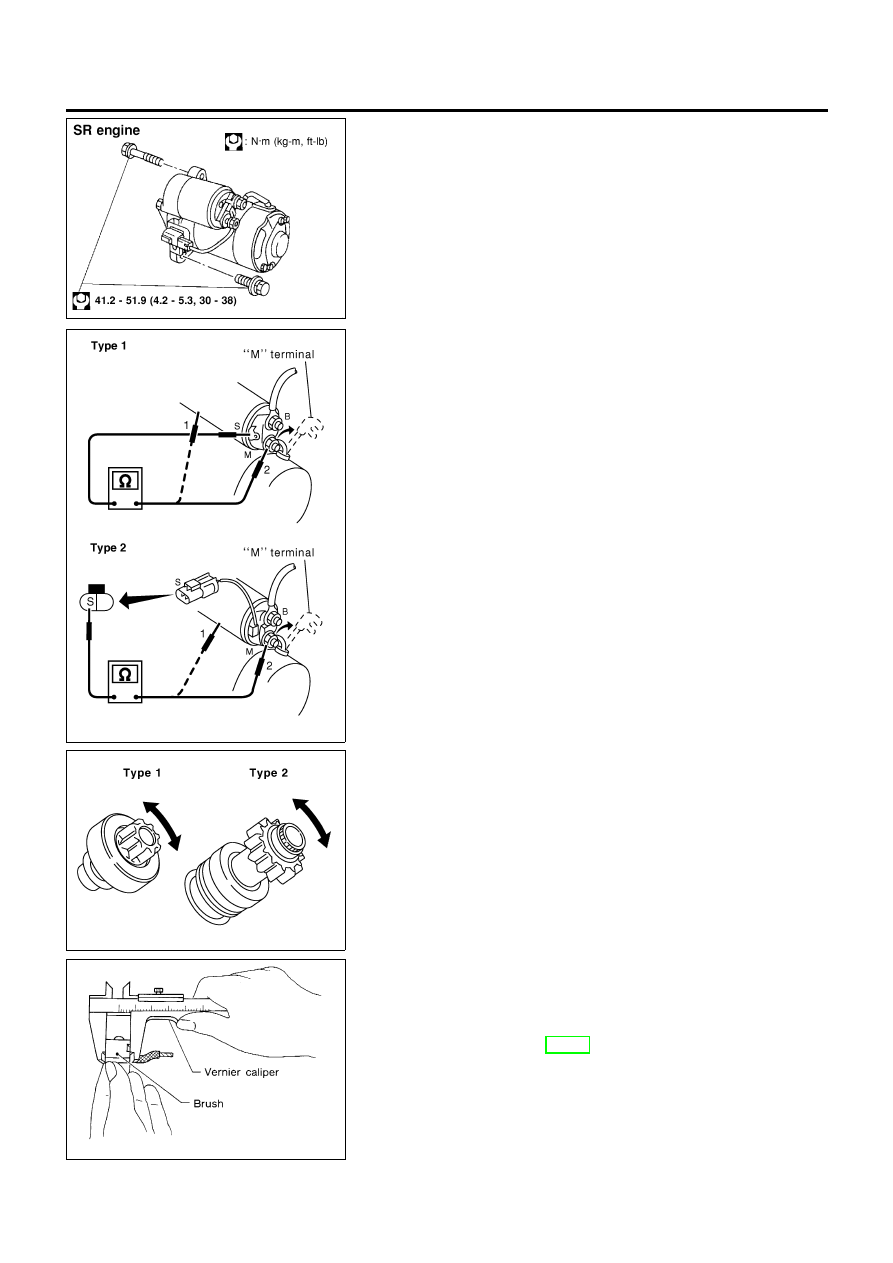

MAGNETIC SWITCH CHECK

NLSC0019S01

Before starting to check, disconnect battery ground cable.

Disconnect “M” terminal of starter motor.

Continuity test (between “S” terminal and switch body).

No continuity ... Replace.

Continuity test (between “S” terminal and “M” terminal).

No continuity ... Replace.

MEL139L

PINION/CLUTCH CHECK

NLSC0019S02

Inspect pinion teeth.

Replace pinion if teeth are worn or damaged. (Also check
condition of ring gear teeth.)

Inspect reduction gear teeth (If equipped).

Replace reduction gear if teeth are worn or damaged. (Also
check condition of armature shaft gear teeth.)

Check to see if pinion locks in one direction and rotates
smoothly in the opposite direction.

If it locks or rotates in both directions, or unusual resistance is
evident. ... Replace.

SEL014Z

BRUSH CHECK

NLSC0019S03

Brush

NLSC0019S0301

Check wear of brush.

Wear limit length:

Refer to SDS (SC-34).

Excessive wear ... Replace.

STARTING SYSTEM

Removal and Installation (Cont’d)

SC-20

SEL015Z

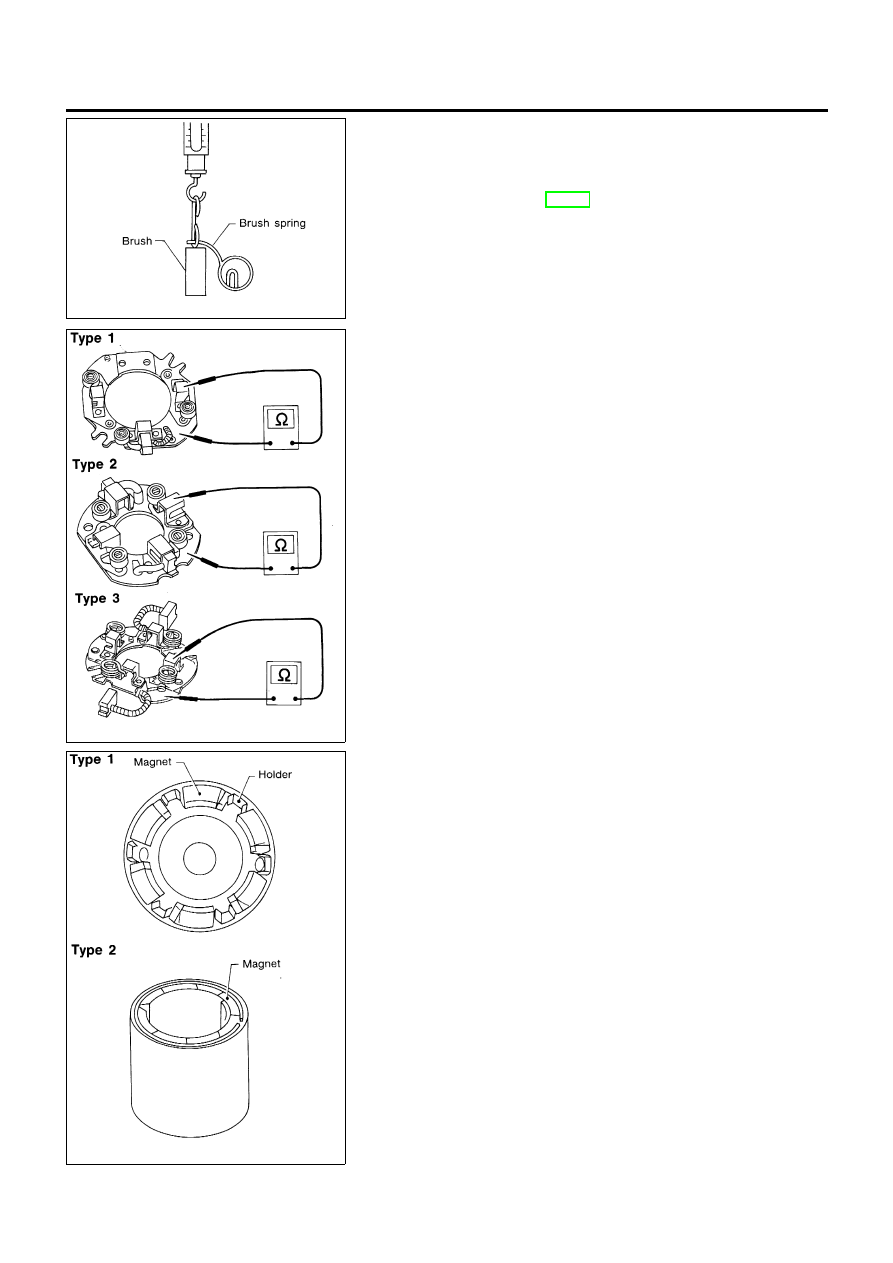

Brush Spring Check

NLSC0019S0302

Check brush spring pressure with brush spring detached from
brush.

Spring pressure (with new brush):

Refer to SDS (SC-34).

Not within the specified values ... Replace.

SEL016Z

Brush Holder

NLSC0019S0303

Perform insulation test between brush holder (positive side)
and its base (negative side).

Continuity exists. ... Replace.

Check brush to see if it moves smoothly.

If brush holder is bent, replace it; if sliding surface is dirty,
clean.

SEL018Z

YOKE CHECK

NLSC0019S04

Magnet is secured to yoke by bonding agent. Check magnet to see
that it is secured to yoke and for any cracks. Replace malfunction-
ing parts as an assembly.

CAUTION:

Do not clamp yoke in a vice or strike it with a hammer.

STARTING SYSTEM

Inspection (Cont’d)

SC-21

SEL019Z

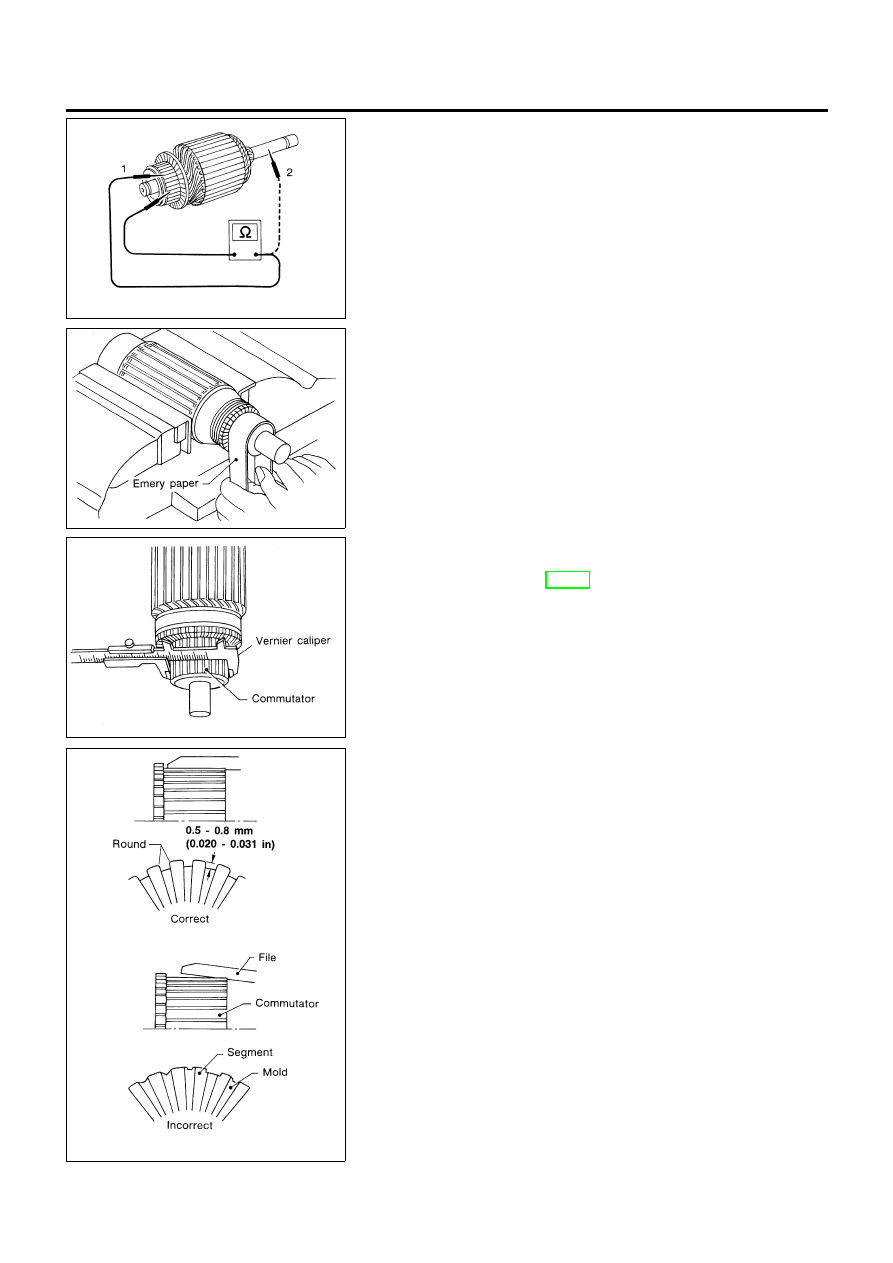

ARMATURE CHECK

NLSC0019S05

Continuity test (between two segments side by side).

No continuity ... Replace.

Insulation test (between each commutator bar and shaft).

Continuity exists. ... Replace.

SEL020Z

Check commutator surface.

Rough ... Sand lightly with No. 500 - 600 emery paper.

SEL021Z

Check diameter of commutator.

Commutator minimum diameter:

Refer to SDS (SC-34).

Less than specified value ... Replace.

SEL022Z

Check depth of insulating mold from commutator surface.

Less than 0.2 mm (0.008 in) ... Undercut to 0.5 to 0.8 mm
(0.020 to 0.031 in)

STARTING SYSTEM

Inspection (Cont’d)

SC-22

Assembly

NLSC0020

Apply high-temperature grease to lubricate the bearing, gears and
frictional surface when assembling the starter.
Carefully observe the following instructions.

SEL026Z

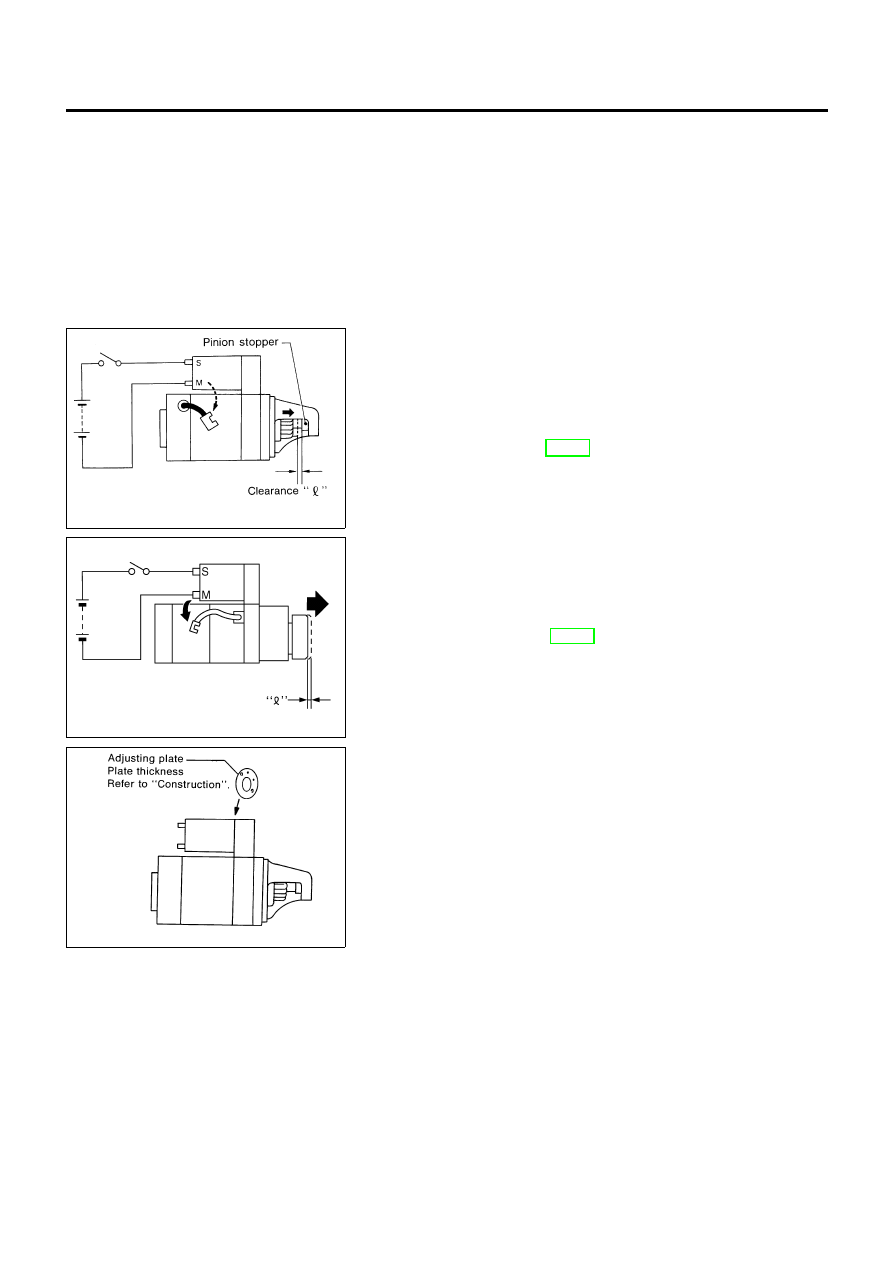

PINION PROTRUSION LENGTH ADJUSTMENT

NLSC0020S01

Clearance (QG & SR engine models)

NLSC0020S0101

With pinion driven out by magnetic switch, push pinion back to
remove slack and measure clearance “

” between the front edge

of the pinion and the pinion stopper.

Clearance “

”:

Refer to SDS (SC-34).

MEL140L

Movement (YD engine models)

NLSC0020S0102

Compare movement “

” in height of pinion when it is pushed out

with magnetic switch energized and when it is pulled out by hand
until it touches stopper.

Movement “

”:

Refer to SDS, (SC-34).

SEL633BA

Not in the specified value ... Adjust by adjusting plate.

STARTING SYSTEM

Assembly

SC-23

System Description

NLSC0009

The alternator provides DC voltage to operate the vehicle’s electrical system and to keep the battery charged.
The voltage output is controlled by the IC regulator.
Power is supplied at all times to alternator terminal 4 (S) through:

10A fuse (No. 33, located in the fuse and fusible link box).

Terminal B supplies power to charge the battery and operate the vehicle’s electrical system. Output voltage
is controlled by the IC regulator at terminal 4 (S) detecting the input voltage. The charging circuit is protected
by the 80A (QG engine models except for Northen Europe and cold spec.) or 100A (SR, YD engine models
and QG engine models for Northen Europe and cold spec.) fusible link.
The alternator is grounded to the engine block.
With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 30, located in the fuse block (J/B)]

to combination meter terminal 9

Ground is supplied to terminal 22 of the combination meter through terminal 3 (L) of the alternator. With power
and ground supplied, the charge warning lamp will illuminate. When the alternator is providing sufficient volt-
age with the engine running, the ground is opened and the charge warning lamp will go off.
If the charge warning lamp illuminates with the engine running, a fault is indicated.

CHARGING SYSTEM

System Description

SC-24

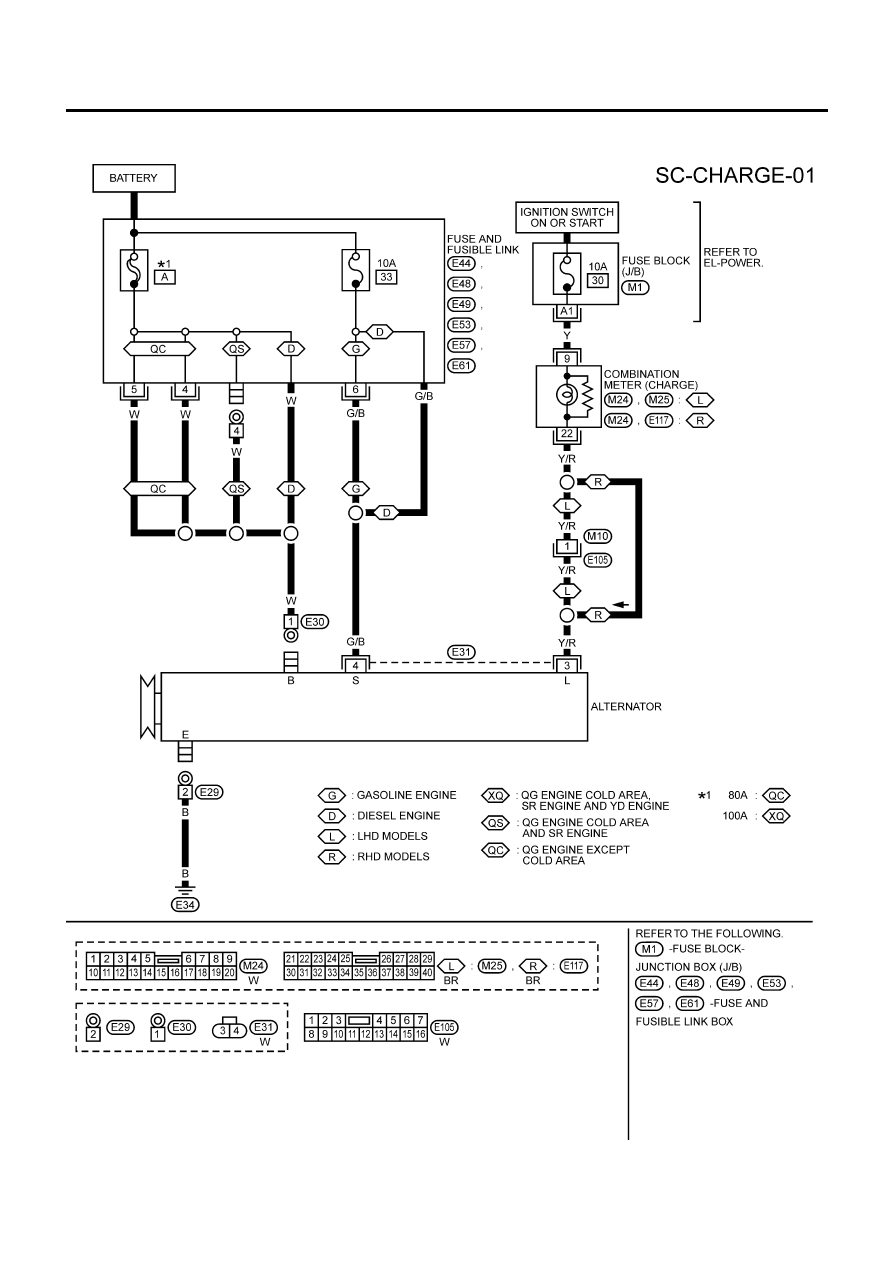

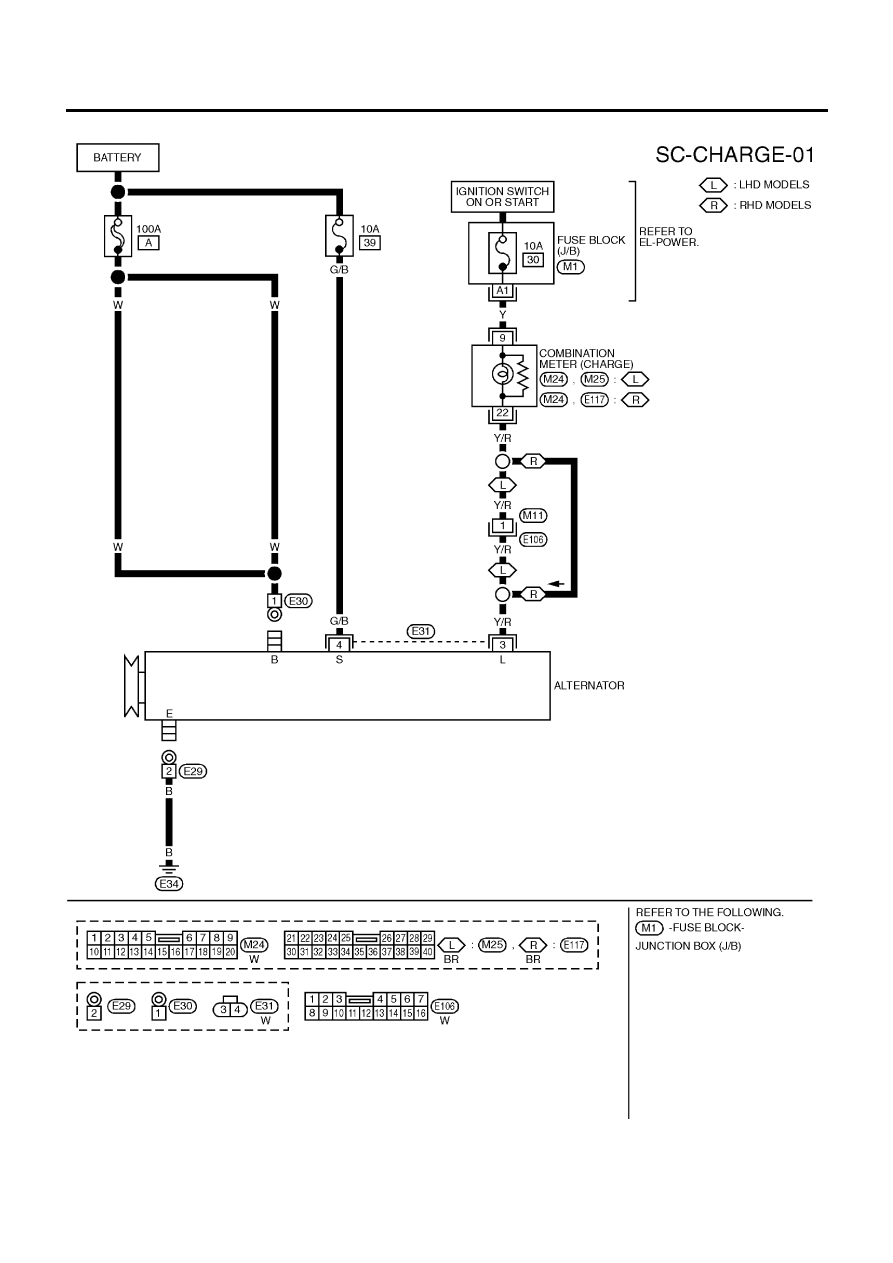

Wiring Diagram — CHARGE —

NLSC0010

MODELS WITH FUSE AND FUSIBLE LINK BOX E43

NLSC0010S04

YEL858B

CHARGING SYSTEM

Wiring Diagram — CHARGE —

SC-25

MODELS WITH FUSE AND FUSIBLE LINK BOX E90

NLSC0010S05

YEL388C

CHARGING SYSTEM

Wiring Diagram — CHARGE — (Cont’d)

SC-26

Trouble Diagnoses

NLSC0011

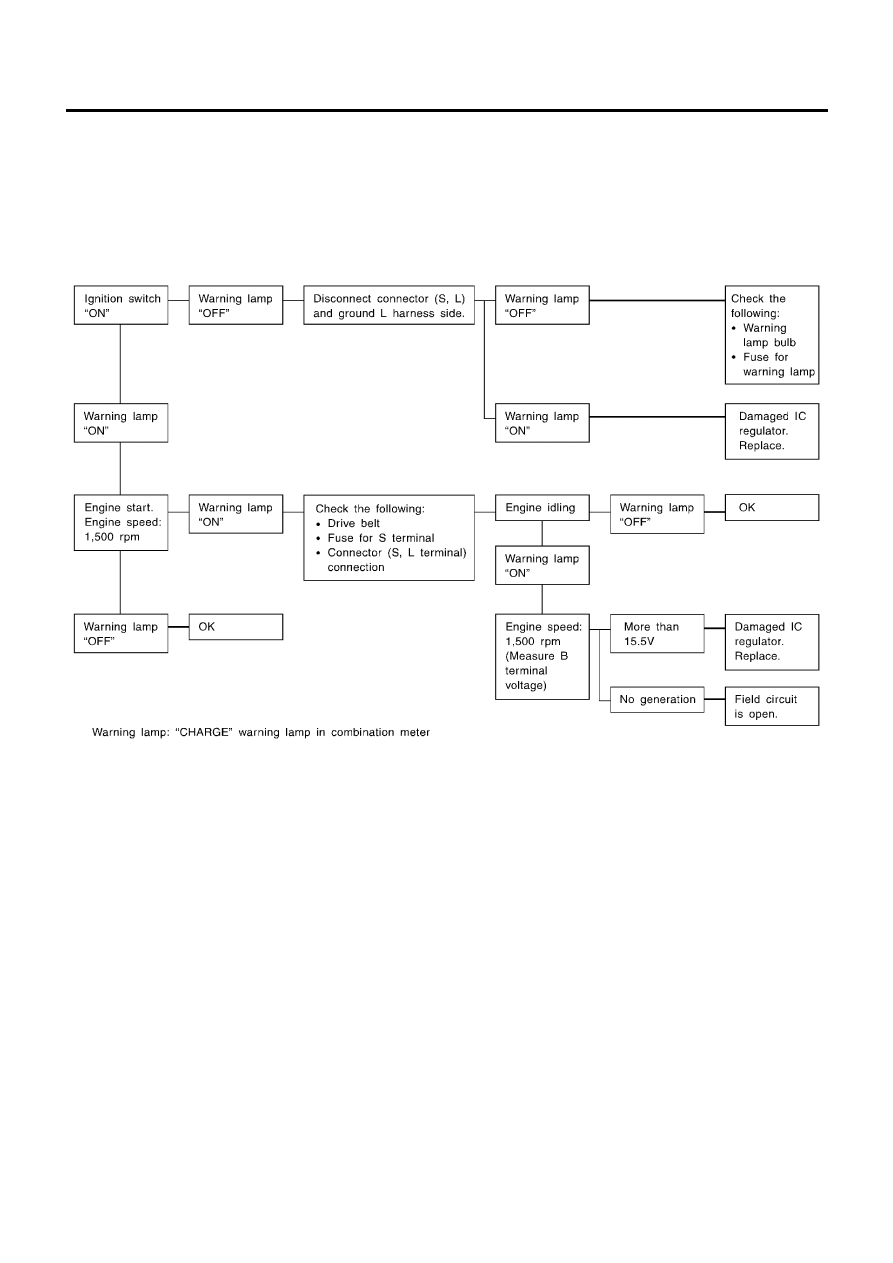

Before conducting an alternator test, make sure that the battery is fully charged. A 30-volt voltmeter and suit-
able test probes are necessary for the test. The alternator can be checked easily by referring to the Inspec-
tion Table.

Before starting, inspect the fusible link.

Use fully charged battery.

WITH IC REGULATOR

NLSC0011S01

SEL338V

NOTE:

If the inspection result is OK even though the charging system is malfunctioning, check the B terminal
connection. (Check the tightening torque.)

When field circuit is open, check condition of rotor coil, rotor slip ring and brush. If necessary, replace faulty
parts with new ones.

MALFUNCTION INDICATOR

NLSC0011S02

The IC regulator warning function activates to illuminate “CHARGE” warning lamp, if any of the following
symptoms occur while alternator is operating:

Excessive voltage is produced.

No voltage is produced.

CHARGING SYSTEM

Trouble Diagnoses

SC-27

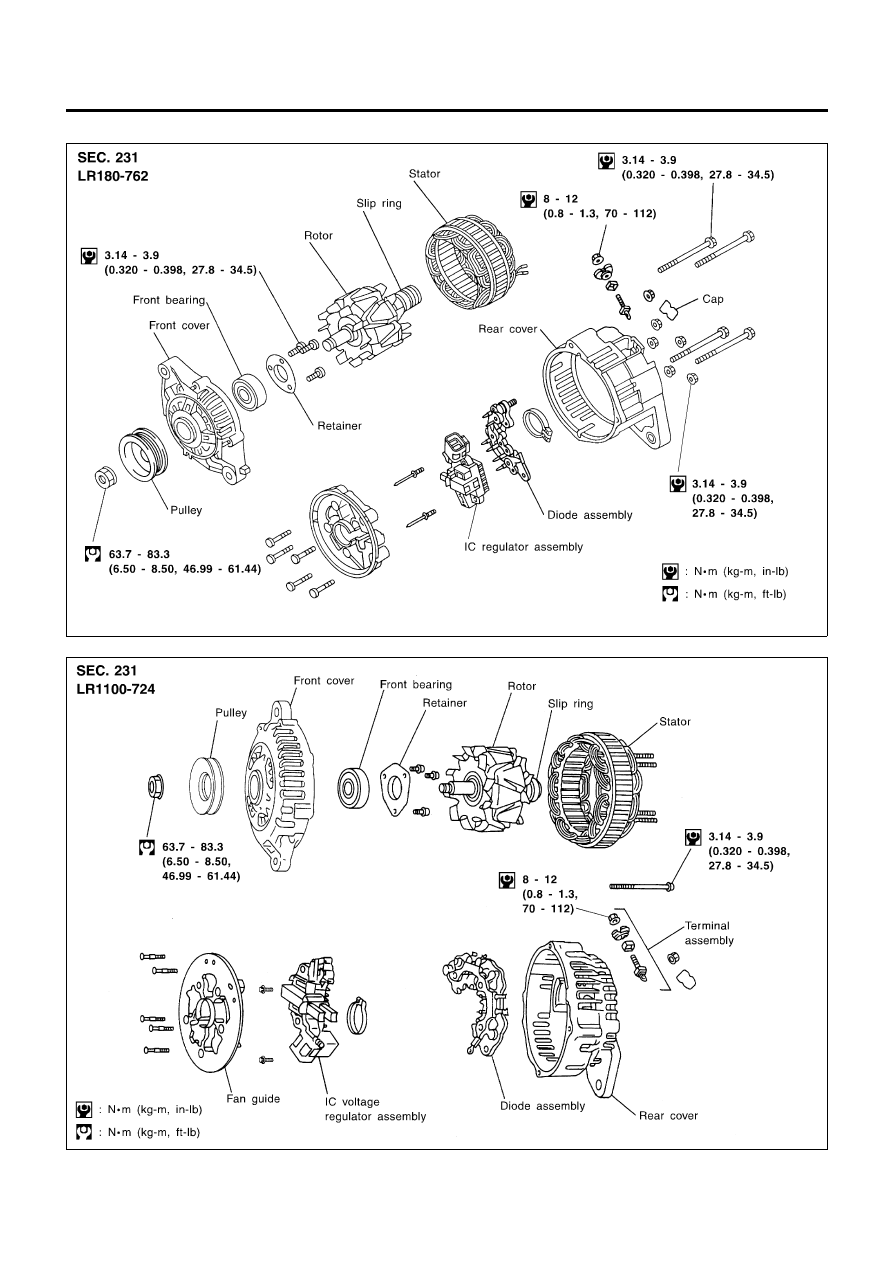

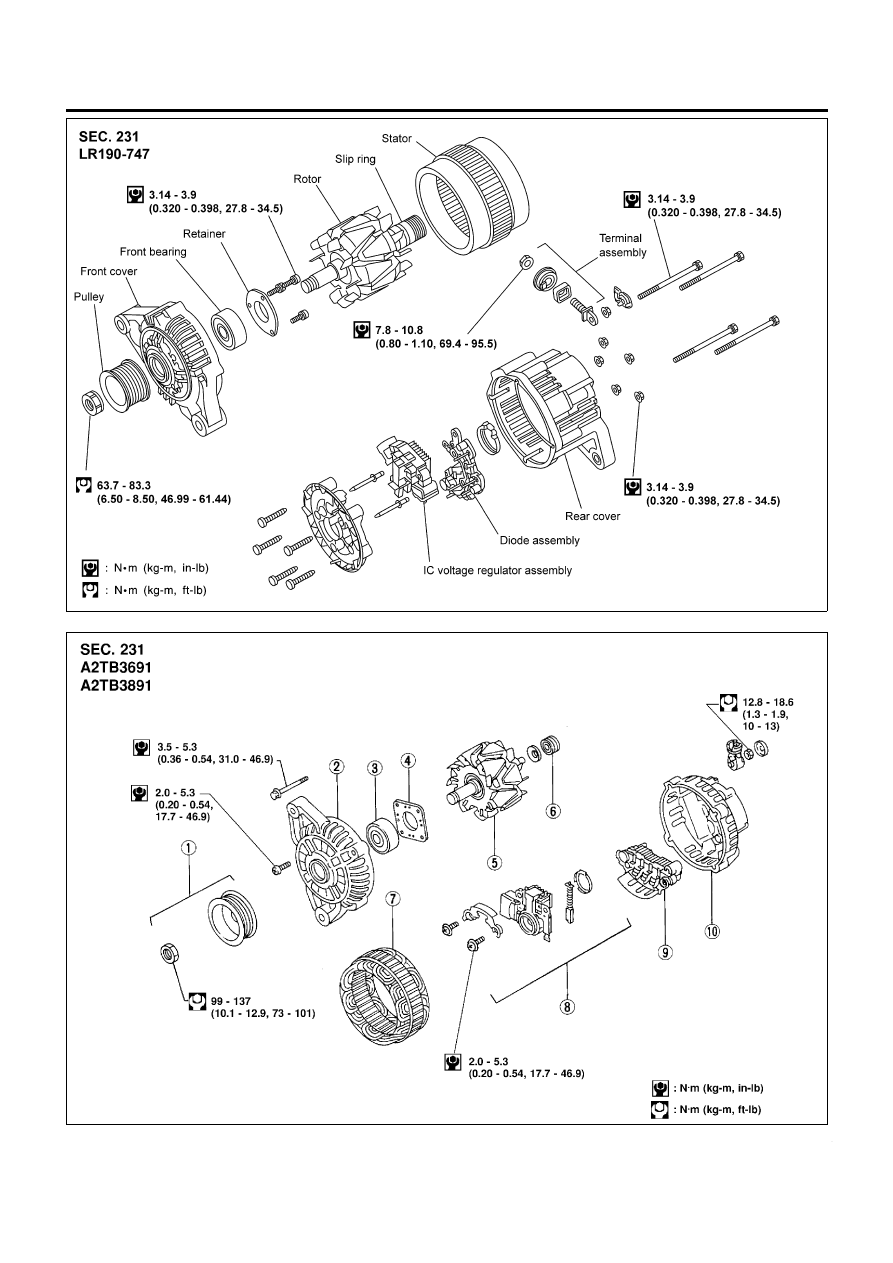

Construction

NLSC0012

MEL141LA

MEL497L

CHARGING SYSTEM

Construction

SC-28

NEL733

YEL427B

CHARGING SYSTEM

Construction (Cont’d)

SC-29

NEL732

Removal and Installation

NLSC0013

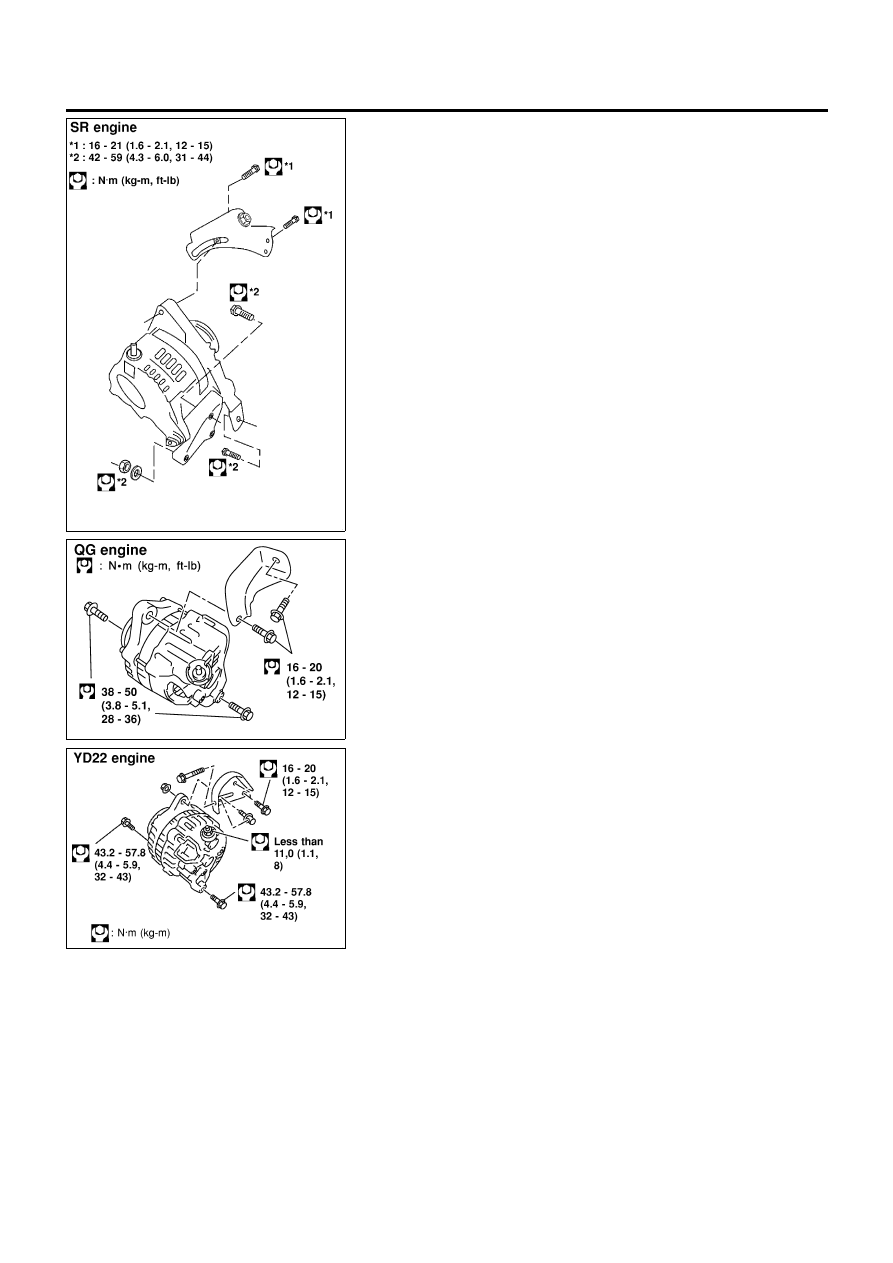

REMOVAL (SR ENGINE)

NLSC0013S04

Disconnect alternator connector, the terminal and A/C com-
pressor.

Loosen alternator upper (lock) bolt and the adjusting bolt.

Remove engine under cover RH.

Remove A/C compressor bolts

Remove alternator mounting bracket bolt

1 and the nuts

Loosen alternator lower bolt (long bolt).

Remove alternator upper bolt.

Move alternator towerd vehicle front.

Remove alternator mounting bracket bolt

10. Remove alternator with mounting bracket.

MEL145L

REMOVAL (QG ENGINE)

NLSC0013S01

Loosen drive belt idler pulley.

Remove drive belt idler pulley (include tightening screw).

Remove alternator harness.

Remove alternator upper bolt and lower bolt.

Remove alternator.

NEL645

REMOVAL (YD ENGINE)

NLSC0013S03

Remove alternator harness.

Loosen alternator upper nut and lower bolt.

Loosen drive belt.

Remove alternator bracket bolts (two).

Remove alternator upper nut and lower bolt.

Remove alternator.

INSTALLATION

NLSC0013S02

To install, reverse the removal procedure.

CHARGING SYSTEM

Removal and Installation

SC-30

SEL032Z

Disassembly

NLSC0021

REAR COVER

NLSC0021S01

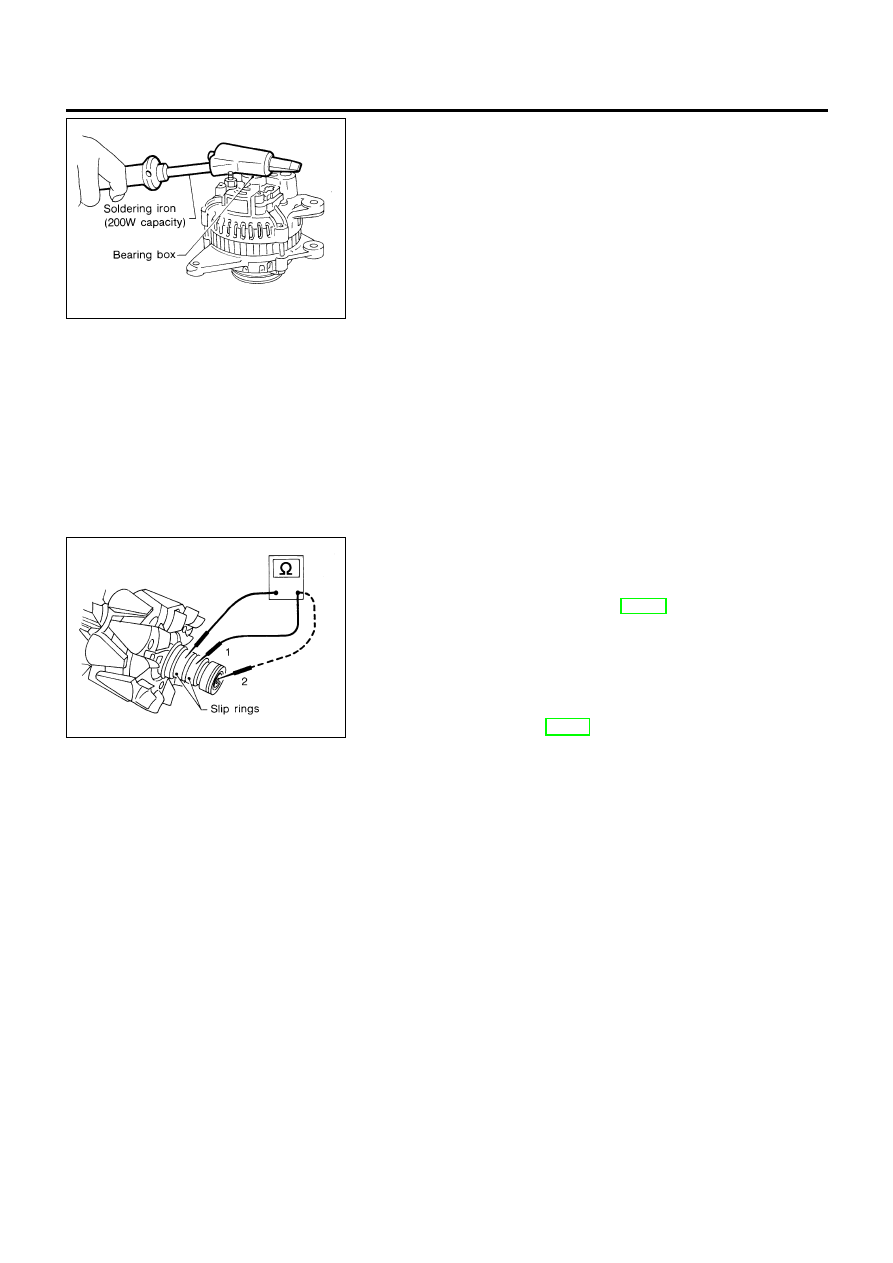

CAUTION:

Rear cover may be hard to remove because a ring is used to
lock outer race of rear bearing. To facilitate removal of rear
cover, heat just bearing box section with a 200W soldering
iron.
Do not use a heat gun, as it can damage diode assembly.

REAR BEARING

NLSC0021S02

CAUTION:

Do not reuse rear bearing after removal. Replace with a
new one.

Do not lubricate rear bearing outer race.

SEL033Z

Inspection

NLSC0022

ROTOR CHECK

NLSC0022S01

Resistance test

Resistance: Refer to SDS (SC-34).

Not within the specified values ... Replace rotor.

Insulator test

Continuity exists ... Replace rotor.

Check slip ring for wear.

Slip ring minimum outer diameter:

Refer to SDS (SC-34).

Not within the specified values ... Replace rotor.

CHARGING SYSTEM

Disassembly

SC-31
