Nissan Almera Tino V10 (2001 year). Manual - part 185

Diagnostic item

Explanation

Repair order

SIDE MODULE RH
[OPEN]

Front RH side air bag module circuit is
open.

1. Visually check the wiring harness con-

nection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and front RH
side air bag module. (Before disposing
the front RH side air bag module, it
must be deployed.)

SIDE MODULE RH
[VB-SHORT]

Front RH side air bag module circuit is
shorted to some power supply circuits.

SIDE MODULE RH
[GND-SHORT]

Front RH side air bag module circuit is
shorted to ground.

SIDE MODULE RH
[SHORT]

Front RH side air bag module circuits
are shorted to each other.

SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]

LH side air bag (satellite) sensor

1. Visually check the wiring harness con-

nection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and LH side air
bag (satellite) sensor.

SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]

RH side air bag (satellite) sensor

1. Visually check the wiring harness con-

nection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and RH side air
bag (satellite) sensor.

PRE-TEN FRONT LH
[OPEN/VB-SHORT]

The circuit for front LH seat belt pre-
tensioner is open or shorted to some
power supply circuit.

1. Visually check the wiring harness con-

nections.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and front LH
seat belt. (Before disposing the front
LH seat belt pre-tensioner, if must be
deployed.)

PRE-TEN FRONT LH
[GND-SHORT]

The circuit for front LH seat belt pre-
tensioner is shorted to ground.

PRE-TEN FRONT RH
[OPEN/VB-SHORT]

The circuit for front RH seat belt pre-
tensioner is open or shorted to some
power supply circuit.

1. Visually check the wiring harness con-

nections.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit and front RH
seat belt. (Before disposing the front
RH seat belt pre-tensioner, if must be
deployed.)

PRE-TEN FRONT RH
[GND-SHORT]

The circuit for front RH seat belt pre-
tensioner is shorted to ground.

CONTROL UNIT

Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness con-

nection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace the

diagnosis sensor unit.

* Follow the procedures in numerical order when repairing malfunctioning parts, then make the final system check.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-54

SRS800

Trouble Diagnoses without CONSULT-II

=NLRS0049

DIAGNOSTIC PROCEDURE 6

NLRS0049S01

Inspecting SRS malfunctioning parts by using “AIR BAG”
warning lamp — Diagnosis mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is
detected in User mode.
1.

Turn ignition switch “ON”.

After “AIR BAG” warning lamp lights for 7 seconds, turn igni-
tion switch “OFF” within 1 second.

Wait more than 3 seconds.

Repeat steps 1 to 3 three times.

Turn ignition switch “ON”.
SRS is now in Diagnosis mode.

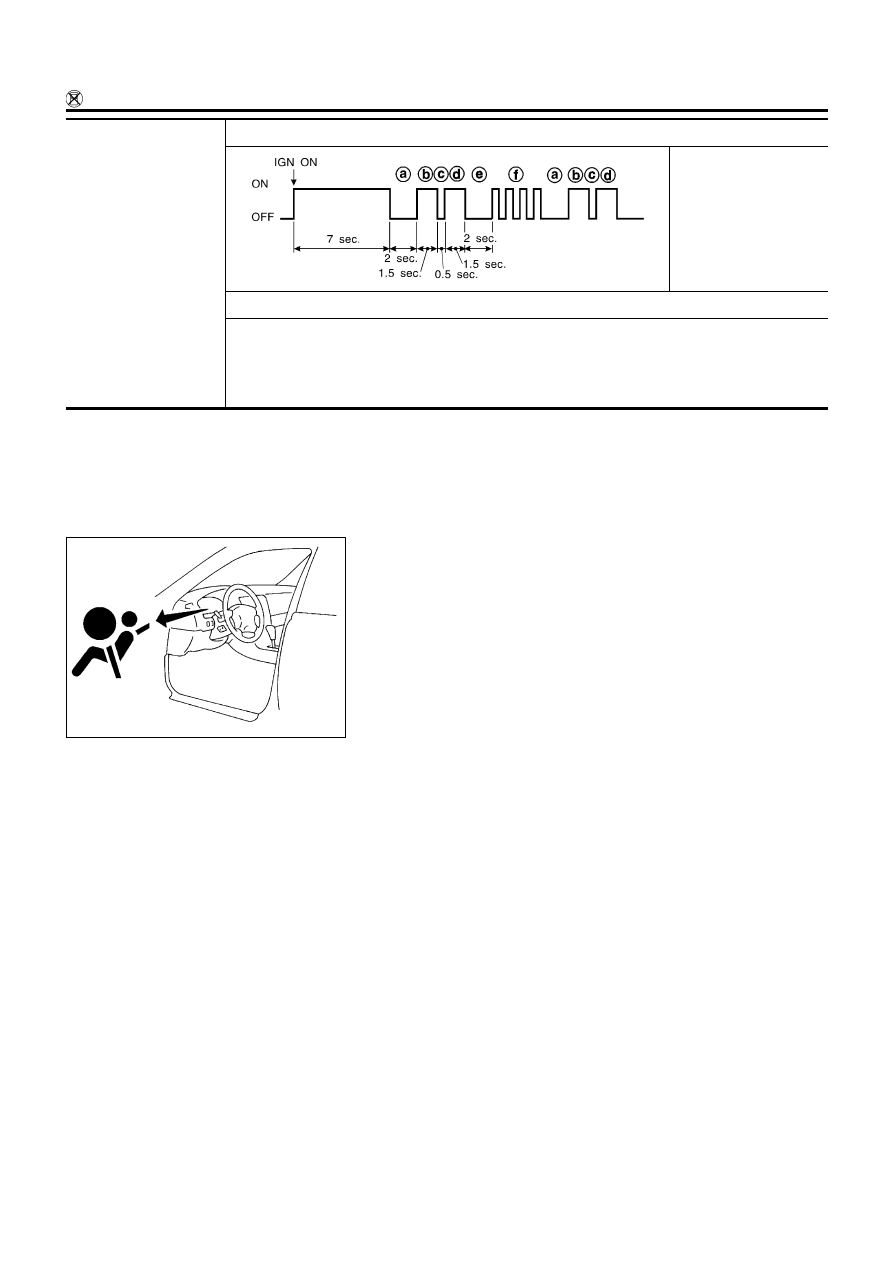

“AIR BAG” warning lamp operates in Diagnosis mode as fol-
lows:

NOTE:
If SRS does not enter Diagnosis mode even though malfunction is
detected in User mode, check the battery voltage.
If the battery voltage is less than 9V, charge the battery. Then go
to DIAGNOSTIC PROCEDURE 7, page RS-60.
If the battery voltage is OK, replace the diagnosis sensor unit.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II

RS-55

No.

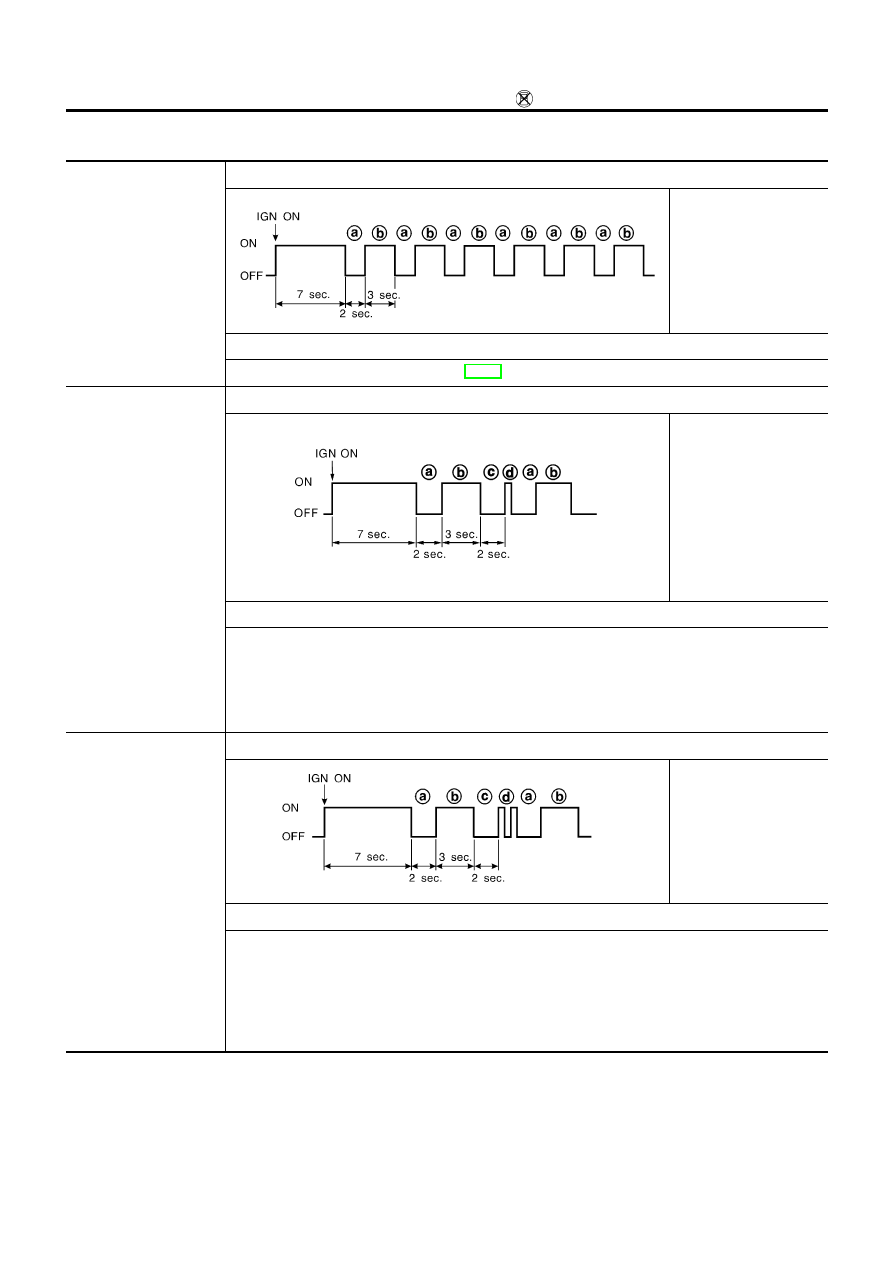

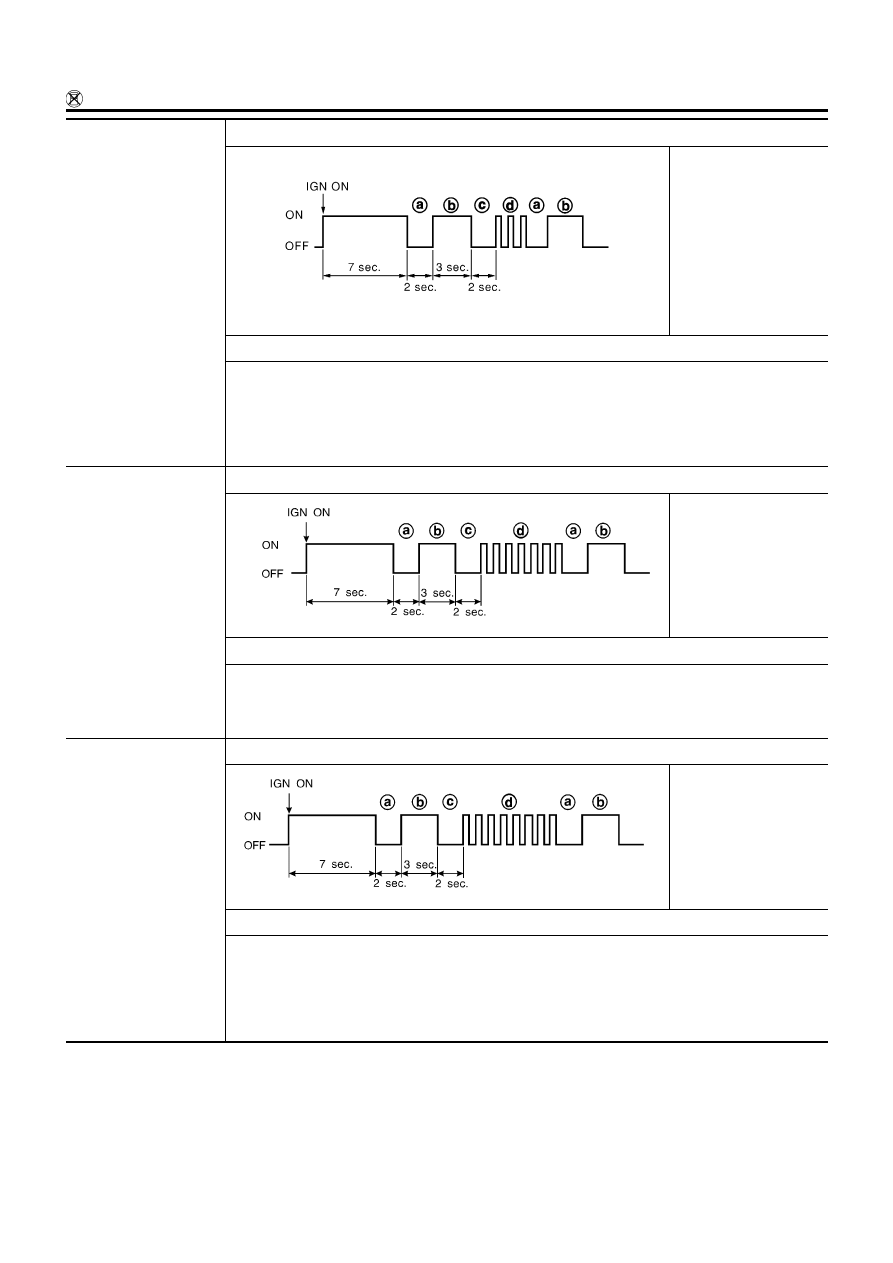

“AIR BAG” warning lamp flash pattern — Diagnosis mode —

SRS condition

SRS333

a through b are repeated.

Diagnosis
results (pre-
viously
stored in
the
memory)
might not
be erased
after repair.

Intermittent
malfunction
has been
detected in
the past.

Go to DIAG-
NOSTIC PRO-
CEDURE 8
(RS-62).

SRS341

a through d are repeated.
b — Driver and front passen-
ger air bag and front seat belt
pre-tensioner marker (For iden-
tifying driver air bag, front pas-
senger air bag and/or front seat
belt pre-tensioners malfunction-
ing)
d — Indicates malfunctioning
part. The number of flash var-
ies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)

The system is
malfunctioning
and needs to
be repaired.

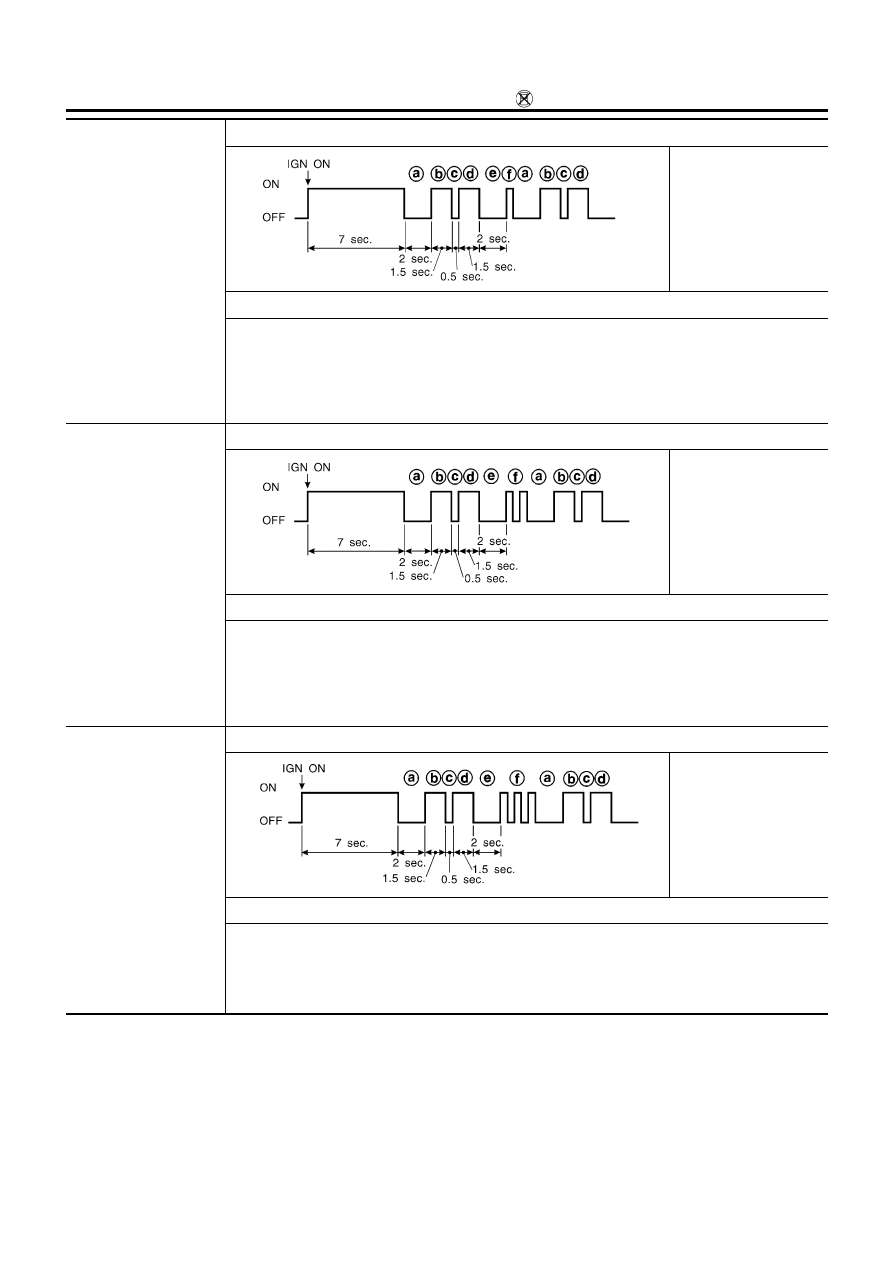

SRS342-A

a through f are repeated.
b, c, d — Front side air bag
marker (For identifying front
side air bag malfunctioning)
f — Indicates malfunctioning
part. The number of flash var-
ies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)

Malfunctioning part is indicated by the number of flashes (part
d or f). Compare the number of flashes to “Air Bag Warning
Lamp Flash Code Chart”, page RS-57, and locate malfunction-
ing part.

Turn ignition switch “OFF”, and disconnect both battery cables.

Repair the system as outlined by the “Repair order” in “Warn-
ing Lamp Flash Code Chart” that corresponds to the flash
code. For replacement procedure of component parts, refer to
RS-21.

10. After repairing the system, go to DIAGNOSTIC PROCEDURE

7, page RS-60.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-56

Air Bag Warning Lamp Flash Code Chart (Diagnosis
mode)

NLRS0049S0101

Diagnosis results (pre-
viously stored in the
memory) might not be
erased after repair.

Intermittent malfunc-
tion has been
detected in the past.

Flash pattern

SRS333

a through b are
repeated.

Repair order

Go to DIAGNOSTIC PROCEDURE 8 (RS-62).

The front RH seat belt
pre-tensioner circuit is
malfunctioning.
(d: 1 flash)

Flash pattern

SRS801

a through d are
repeated.
d — One flash indicates
malfunctioning front RH
seat belt pre-tensioner
circuit.

Repair order (“Recheck SRS at each replacement”).

1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace front RH seat belt pre-tensioner.

(Before disposing, it must be deactivated.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

The driver air bag mod-
ule circuit is malfunction-
ing.
(d: 2 flashes)

Flash pattern

SRS334

a through d are
repeated.
d — Two flashes indi-
cate malfunctioning
driver air bag module
circuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the spiral cable.
4. Replace driver air bag module.

(Before disposal, it must be deployed.)

5. Replace the diagnosis sensor unit.
6. Replace the related harness.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-57

The front LH seat belt
pre-tensioner circuit is
malfunctioning.
(d: 3 flashes)

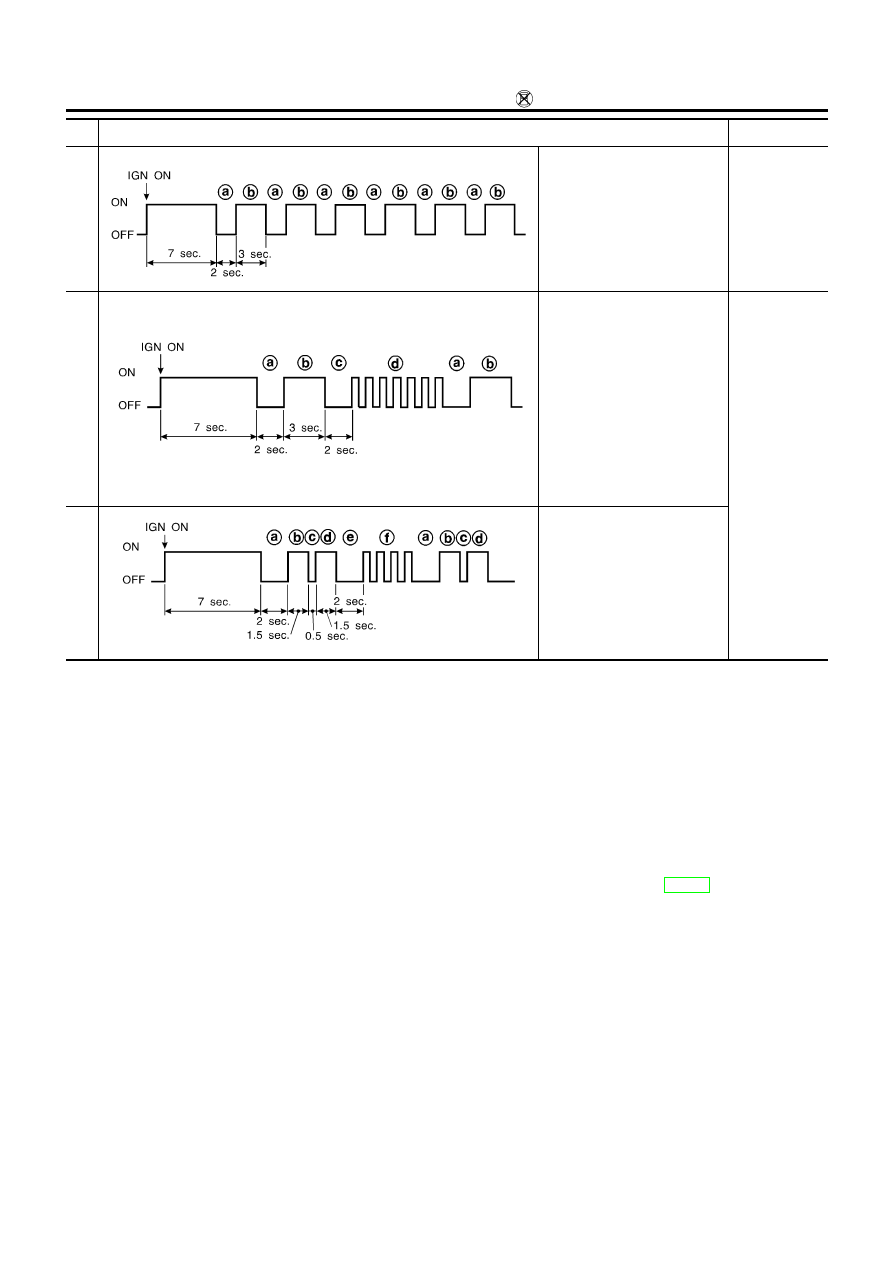

Flash pattern

SRS802

a through d are
repeated.
d — Three flashes indi-
cate malfunctioning front
LH seat belt pre-ten-
sioner circuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace front LH seat belt pre-tensioner.

(Before disposing, it must be deactivated.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

The diagnosis sensor
unit is malfunctioning.
(d: 7 flashes)

Flash pattern

SRS335

a through d are
repeated.
d — Seven flashes indi-
cate malfunctioning diag-
nosis sensor unit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace the diagnosis sensor unit.
4. Replace the related harness.

The front passenger air
bag module circuit is
malfunctioning.
(d: 8 flashes)

Flash pattern

SRS336

a through d are
repeated.
d — Eight flashes indi-
cate malfunctioning front
passenger air bag mod-
ule circuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace front passenger air bag module.

(Before disposal, it must be deployed.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-58

The front RH side air
bag module circuit is
malfunctioning.
(f: 1 flash)

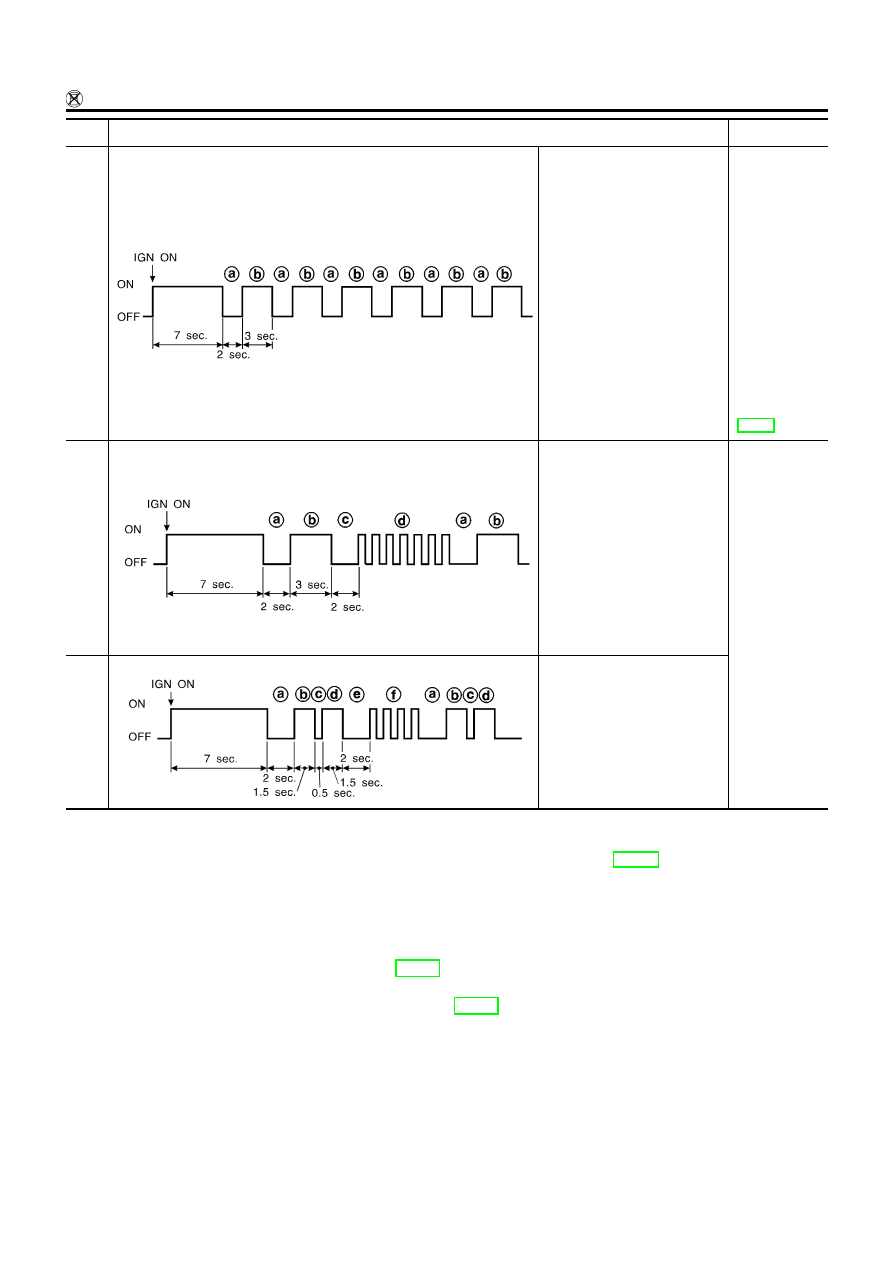

Flash pattern

SRS338

a through f are repeated.
f — One flash indicates
malfunctioning front RH
side air bag module cir-
cuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace front RH side air bag module.

(Before disposal, it must be deployed.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

The front LH side air bag
module circuit is mal-
functioning.
(f: 2 flashes)

Flash pattern

SRS337

a through f are repeated.
f — Two flashes indicate
malfunctioning front LH
side air bag module cir-
cuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace front LH side air bag module.

(Before disposal, it must be deployed.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

The RH side air bag
(satellite) sensor is mal-
functioning.
(f: 3 flashes)

Flash pattern

SRS340

a through f are repeated.
f — Three flashes indi-
cate malfunctioning RH
side air bag (satellite)
sensor circuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the RH side air bag (satellite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-59

The LH side air bag (sat-
ellite) sensor is malfunc-
tioning.
(f: 4 flashes)

Flash pattern

SRS339-A

a through f are repeated.
f — Four flashes indi-
cate malfunctioning LH
side air bag (satellite)
sensor circuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the LH side air bag (satellite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.

* Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated
using the air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still observed, proceed to the next
step. When malfunction is eliminated, further repair work is not required.

SRS800

DIAGNOSTIC PROCEDURE 7

NLRS0049S02

Final checking after repairing SRS by using “AIR BAG” warn-
ing lamp — Diagnosis mode and User mode
1.

After repairing SRS connect both battery cables.

Open driver’s door.

Turn ignition switch from “OFF” to “ON”.

“AIR BAG” warning lamp operates in Diagnosis mode as fol-
lows:

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-60

No.

“AIR BAG” warning lamp flash pattern — Diagnosis mode —

SRS condition

SRS333

a through b are repeated.

No malfunction
is detected or
repair is com-
pleted.
No further
action is nec-
essary.

SRS341

a through d are repeated.
b — Driver and front passen-
ger air bag and front seat belt
pre-tensioner marker (For iden-
tifying driver air bag, front pas-
senger air bag and/or front seat
belt pre-tensioners malfunction-
ing)
d — Indicates malfunctioning
part. The number of flashes
varies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)

The system is
malfunctioning
and needs to
be repaired.

SRS342-A

a through f are repeated.
b, c, d — Front side air bag
marker (For identifying front
side air bag malfunctioning)
f — Indicates malfunctioning
part. The number of flashes
varies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)

NOTE:
When diagnosis sensor unit is replaced with new one, “AIR BAG”
warning lamp will operate in User mode. Checking “AIR BAG”
warning lamp operation in Diagnosis mode is not required. Go to
step 6.
5.

If “AIR BAG” warning lamp operates as shown in No. 1 in chart
above, turn ignition switch “OFF” to reset from Diagnosis mode
to User mode and to erase the memory of the malfunction.
Then go to step 6.
If “AIR BAG” warning lamp operates as shown in No. 2 or No.
3 in chart above, the malfunctioning part is not repaired
completely, or another malfunctioning part is detected. Go to
DIAGNOSTIC PROCEDURE 6, page RS-55, and repair mal-
functioning part completely.

Turn ignition switch “ON”. “AIR BAG” warning lamp operates in
User mode. Compare “AIR BAG” warning lamp operation to
the chart on the next page

NOTE:
When a malfunction is detected, switch from Diagnosis mode to
user mode by turning the ignition switch as follows:
1)

Turn ignition switch “ON”.

After “AIR BAG” warning lamp lights for 7 seconds, turn igni-
tion switch “OFF” within 1 second.

Wait more than 3 seconds.

Repeat steps 1 to 3 three times.

Turn ignition switch “ON”.

SRS is now in User mode.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-61

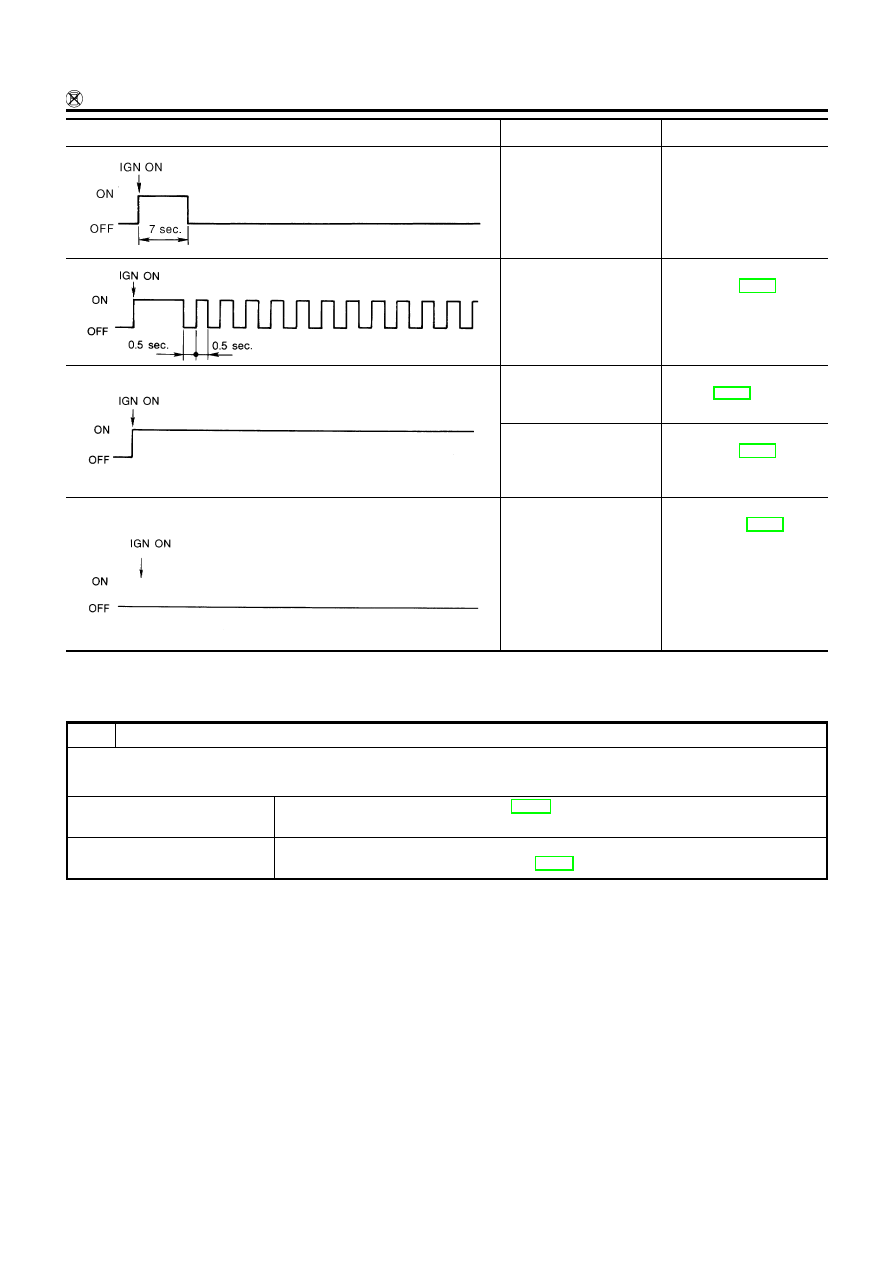

“AIR BAG” warning lamp operation — User mode —

SRS condition

Reference item

MRS095A

No malfunction is
detected.
No further action is neces-
sary.

—

MRS096A

The system is malfunc-
tioning and needs to be
repaired as indicated.

Go to DIAGNOSTIC PRO-
CEDURE 6 (RS-55).

MRS097A

Air bag is deployed.
Seat belt pre-tensioner is
deployed.

Go to COLLISION DIAG-
NOSIS (RS-66).

Air bag fuse, diagnosis
sensor unit or harness is
malfunctioning and needs
to be repaired.

Go to DIAGNOSTIC PRO-
CEDURE 9 (RS-63).

MRS098A

One of the following has
occurred and needs to be
repaired.

Meter fuse is blown.

“AIR BAG” warning
lamp circuit has open
or short.

Diagnosis sensor unit is
malfunctioning.

Go to DIAGNOSTIC PRO-
CEDURE 10 (RS-65).

DIAGNOSTIC PROCEDURE 8 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 6)

NLRS0049S03

Inspecting SRS malfunctioning record

CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULT AFTER REPAIRING

Is it the first time for maintenance of SRS?

Yes or No

Yes

Go to DIAGNOSTIC PROCEDURE 5 (RS-51). (Further inspection cannot be performed
without CONSULT-II.)

Diagnosis results (previously stored in the memory) might not be erased after repair. Go
to DIAGNOSTIC PROCEDURE 7, step 5 (RS-60).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-62

Trouble Diagnoses: “AIR BAG” Warning Lamp
Does Not Turn Off

=NLRS0050

DIAGNOSTIC PROCEDURE 9

NLRS0050S01

SEE THE DEPLOYMENT OF AIR BAG MODULE

Is air bag module deployed?

Yes or No

Yes

Refer to COLLISION DIAGNOSIS (RS-66).

GO TO 2.

CHECK AIR BAG FUSE

Is SRS “Air Bag” fuse OK?

SRS835

OK or NG

GO TO 4.

GO TO 3.

CHECK AIR BAG FUSE AGAIN

Replace “AIR BAG” fuse and turn ignition switch ON.

Is “AIR BAG” fuse blown again?

Yes

Repair main harness.

INSPECTION END

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses: “AIR BAG” Warning Lamp Does Not Turn Off

RS-63

CHECK DIAGNOSIS SENSOR UNIT

Connect CONSULT-II and touch “START”.

Is “AIR BAG” displayed on CONSULT-II?

C2SSE01

Yes or No

Yes

GO TO 5.

Visually check the wiring harness connection of diagnosis sensor unit. If the harness
connection check result is OK, replace diagnosis sensor unit.

CHECK HARNESS CONNECTION

Is harness connection between warning lamp and diagnosis sensor unit OK?

OK or NG

Replace diagnosis sensor unit.

Connect “AIR BAG” warning lamp and diagnosis sensor unit connector properly. If “AIR
BAG” warning lamp still does not go off, replace harness.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses: “AIR BAG” Warning Lamp Does Not Turn Off (Cont’d)

RS-64

Trouble Diagnoses: “AIR BAG” Warning Lamp
Does Not Turn On

=NLRS0051

DIAGNOSTIC PROCEDURE 10

NLRS0051S01

CHECK “METER” FUSE

Is meter fuse OK?

SRS836

OK or NG

GO TO 3.

GO TO 2.

CHECK “METER” FUSE AGAIN

Replace meter fuse and turn ignition switch ON.

Is meter fuse blown again?

Yes

Repair main harness.

INSPECTION END

CHECK “AIR BAG” WARNING LAMP LED

Is “AIR BAG” warning lamp LED OK?

OK or NG

GO TO 4.

Replace “AIR BAG” warning lamp LED.

CHECK HARNESS CONNECTION BETWEEN DIAGNOSIS SENSOR UNIT AND “AIR BAG” WARNING
LAMP

Disconnect diagnosis sensor unit connector and turn ignition switch “ON”.

Does “AIR BAG” warning lamp turn on?

Yes or No

Yes

Replace diagnosis sensor unit.

Check the ground circuit of “AIR BAG” warning lamp.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses: “AIR BAG” Warning Lamp Does Not Turn On

RS-65

Collision Diagnosis

=NLRS0033

FOR FRONTAL COLLISION

NLRS0033S07

To repair the SRS, perform the following steps.
When SRS (except the side air bag modules) is activated in a collision:
1) Replace the diagnosis sensor unit.
2) Remove the air bag modules (except the side air bag modules) and front seat belt pre-tensioner assem-

blies.

3) Check the SRS components using the table shown below:

Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

4) Install new air bag modules (except the side air bag module) and front seat belt pre-tensioner assemblies.
5) Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to “SRS Operation Check”

for details (RS-45). Ensure entire SRS operation properly.

When SRS is not activated in a collision:
1) Check the SRS components using the table shown below:

Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

2) Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to “SRS Operation Check”

for details (RS-45). Ensure entire SRS operation properly.

SRS Inspection (For frontal collision)

NLRS0033S0701

Part

SRS is activated

SRS is NOT activated

Air bag module (driver
and front passenger
side)

REPLACE
Install with new spe-
cial bolts coated with
bonding agent.

1. Remove air bag module. Check harness cover and connectors for damage,

terminals for deformities, and harness for binding.

2.
a. Install driver air bag module into the steering wheel to check fit and alignment

with the wheel.

b. Install front passenger air bag module into the instrument panel to check fit

with the instrument panel.

3. No damage found, reinstall with new bolts coated with bonding agent.
4. If damaged—REPLACE. Install air bag modules with new special bolts coated

with bonding agent. Air bag must be deployed before discarding.

Front seat belt pre-
tensioner assembly

REPLACE
Install seat belt pre-
tensioner with new
bolts.

1. Remove front seat belt pre-tensioners.

Check harness cover and connectors for damage, terminals for deformities,
and harness for binding.

2. Check belts for damage and anchors for loose mounting.
3. Check retractor for smooth operation.
4. If no damage is found, reinstall front seat belt pre-tensioner assembly.
5. If damaged—REPLACE. Install the front seat belt pre-tensioners with new bolts

coated with bonding agent. Front seat belt pre-tensioners must be deployed
before discarding.

Diagnosis sensor unit

REPLACE
Install with new bolts
coated with bonding
agent.

1. Check case for dents, cracks or deformities.
2. Check connectors for damage, and terminals for deformities.
3. If no damage is found, reinstall with new special bolts and ground bolt coated

with bonding agent.

4. If damaged—REPLACE. Install diagnosis sensor unit with new special bolts

and ground bolt coated with bonding agent.

Steering wheel

1. Visually check steering wheel for deformities.
2. Check harness (built into steering wheel) and connectors for damage, and terminals for deformities.
3. Install driver air bag module to check fit or alignment with steering wheel.
4. Check steering wheel for excessive free play.
5. If no damage is found, reinstall with bolts.
6. If damaged—REPLACE.

Spiral cable

1. Visually check spiral cable and combination switch for damage.
2. Check connectors and protective tape for damage.
3. Check steering wheel for noise, binding or heavy operation.
4. If no damage is found, reinstall with bolts.
5. If damaged—REPLACE.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Collision Diagnosis

RS-66

Part

SRS is activated

SRS is NOT activated

Harness and Connec-
tors

1. Check connectors for poor connection, damage, and terminals for deformities.
2. Check harness for binding, chafing, cuts, or deformities.
3. If no damage is found, reinstall the harness and connectors.
4. Damaged—REPLACE damaged section of harness. Do not attempt to repair, splice or modify any SRS

harness.

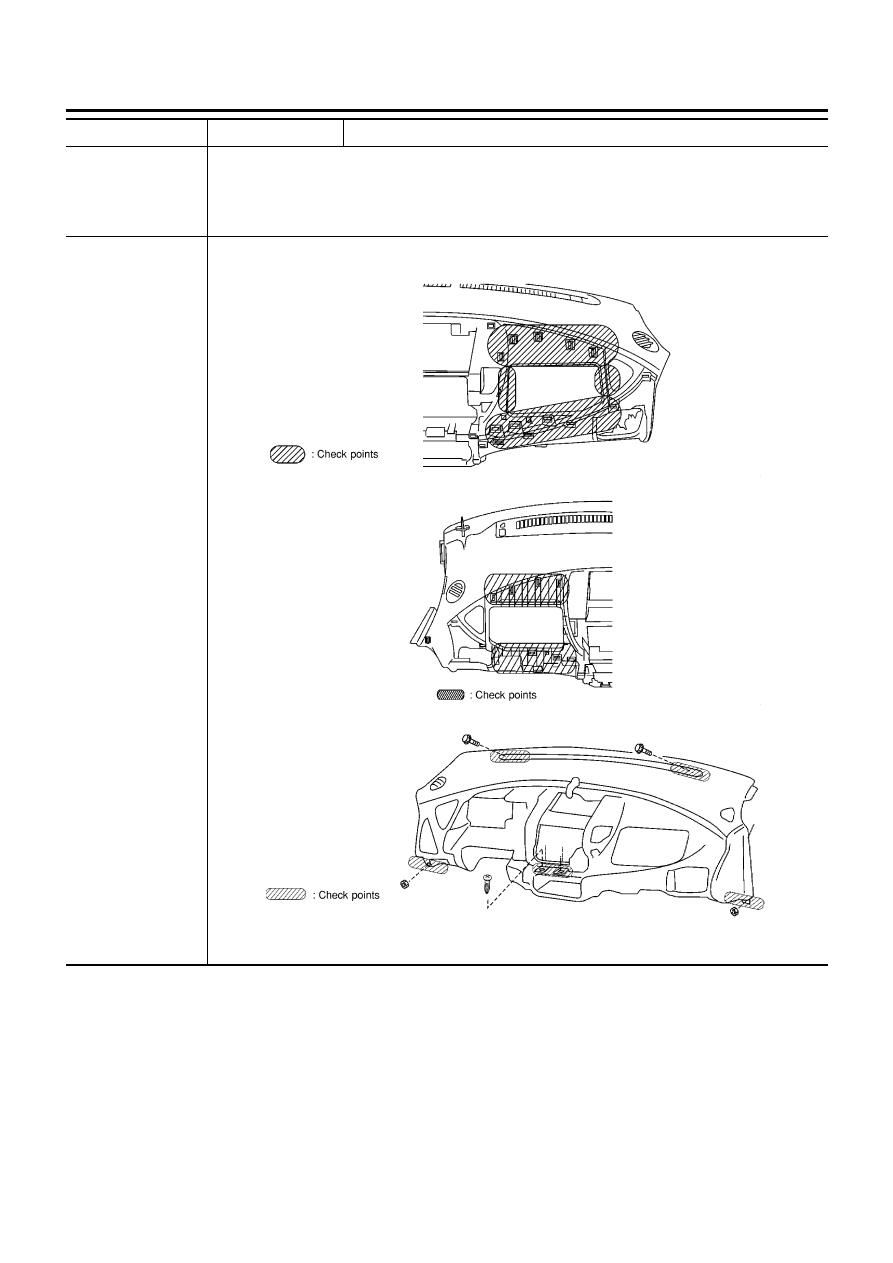

Instrument panel

1. When passenger air bag inflates, check the following points for bending, deformities or cracks.

Opening portion for front passenger air bag

NRS118

Front passenger air bag module brackets

NRS119

The portions securing the instrument panel

NRS120

2. If no damage is found, reinstall the instrument panel.
3. If damaged—REPLACE the instrument panel with bolts.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Collision Diagnosis (Cont’d)

RS-67

FOR SIDE COLLISION

=NLRS0033S08

To repair the SRS for a side collision, perform the following steps.
When the side air bag is activated in the side collision:
1) Replace the following component:
−

All parts of front seatback (including front seatback frame) with side air bag module (on the side on which
side air bag is activated)

−

Diagnosis sensor unit

−

Side air bag (satellite) sensor (on the side on which side air bag is activated)

2) Check the SRS components and the related parts using the table shown below.

Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).

3) Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to “SRS Operation Check”

for details (RS-45). Ensure entire SRS operation properly.

When SRS is not activated in the side collision:
1) Check the SRS components and the related parts using the table shown below.

Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).

2) Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to “SRS Operation Check”

for details (RS-45). Ensure entire SRS operation properly.

SRS Inspection (For side collision)

NLRS0033S0801

Part

Side air bag is acti-

vated

SRS is NOT activated

Front (LH or RH) side
air bag modules

REPLACE all parts of
front seatback with
deployed front side
air bag module.

1. Check for visible signs of damage (dents, tears, deformation) of the seat back

on the collision side.

2. If damaged—REPLACE the damaged seat parts with new bolts and remove the

front side air bag module.

3. Check for visible signs of damage (tears etc.) of the side air bag module.
4. Check harness and connectors for damage, and terminals for deformities.
5. If no damaged is found, reinstall the front side air bag module with new nuts.
6. If damaged—REPLACE the front side air bag module with new nuts. Air bag

must be deployed before disposing of it.

(LH or RH) side air
bag (satellite) sensor

REPLACE the side
air bag (satellite) sen-
sor on the collision
side with new nuts
coated with bonding
agent.
(Repair the center
pillar inner, etc.
before installing new
one if damaged.)

1. Remove the satellite sensor on the collision side. Check harness connectors for

damage, terminals for deformities, and harness for binding.

2. Check for visible signs of damage (dents, cracks, deformation) of the satellite

sensor.

3. Install the side air bag (satellite) sensor to check fit.
4. If no damage is found, reinstall the side air bag (satellite) sensor with new nuts.
5. If damaged—REPLACE the side air bag sensor with new nuts coated with

bonding agent.

Diagnosis sensor unit REPLACE the diag-

nosis sensor unit with
the new bolts.

1. Check case and bracket for dents, cracks or deformities.
2. Check connectors for damage, and terminals for deformities.
3. If no damage is found, reinstall the diagnosis sensor unit with new special bolts

and ground bolt.

4. If damaged—REPLACE. Install the diagnosis sensor unit with new special bolts

and ground bolt.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Collision Diagnosis (Cont’d)

RS-68

Part

Side air bag is acti-

vated

SRS is NOT activated

Front seat belt pre-
tensioner assembly

1. Check if the seat belt can be extended smoothly.

If the seat belt cannot be extended smoothly.

–

Check for deformities of the center pillar inner.

–

If the center pillar inner has no damage, REPLACE the front seat belt pre-tensioner assembly.

2. Remove the front seat belt pre-tensioner assembly on the collision side. Check harness cover and con-

nectors for damage, terminals for deformities, and harness for binding.

3. Check for visible signs of damage (dents, cracks, deformation) of the front seat belt pre-tensioner

assembly.

4. If no damage is found, reinstall the front seat belt pre-tensioner assembly.
5. If damaged—REPLACE the front seat belt pre-tensioner assembly with new bolts coated with bonding

agent. The front seat belt pre-tensioner assembly must be deployed before disposing of it.

Seat with built-in side
air bag

REPLACE all parts of
front seatback
(including front seat-
back frame)

1. Visually check the seat on the collision side.
2. Remove the seat on the collision side and check the following for damage and

deformities.

Harness, connectors and terminals

Frame and recliner (for front and rear seat), and also adjuster and slides (for
front seat)

3. If no damage is found, reinstall the seat.
4. If damaged—REPLACE the damaged seat parts with new bolts.

Center pillar inner

1. Check the center pillar inner on the collision side for damage (dents, cracks, deformation).
2. If damaged—REPAIR the center pillar inner.

Trim

1. Check for visible signs of damage (dents, cracks, deformation) of the interior trim on the collision side.
2. If damaged—REPLACE the damaged trim parts.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Collision Diagnosis (Cont’d)

RS-69

Content .. 183 184 185 186 ..
