Nissan Almera Tino V10 (2001 year). Manual - part 172

SLC556AB

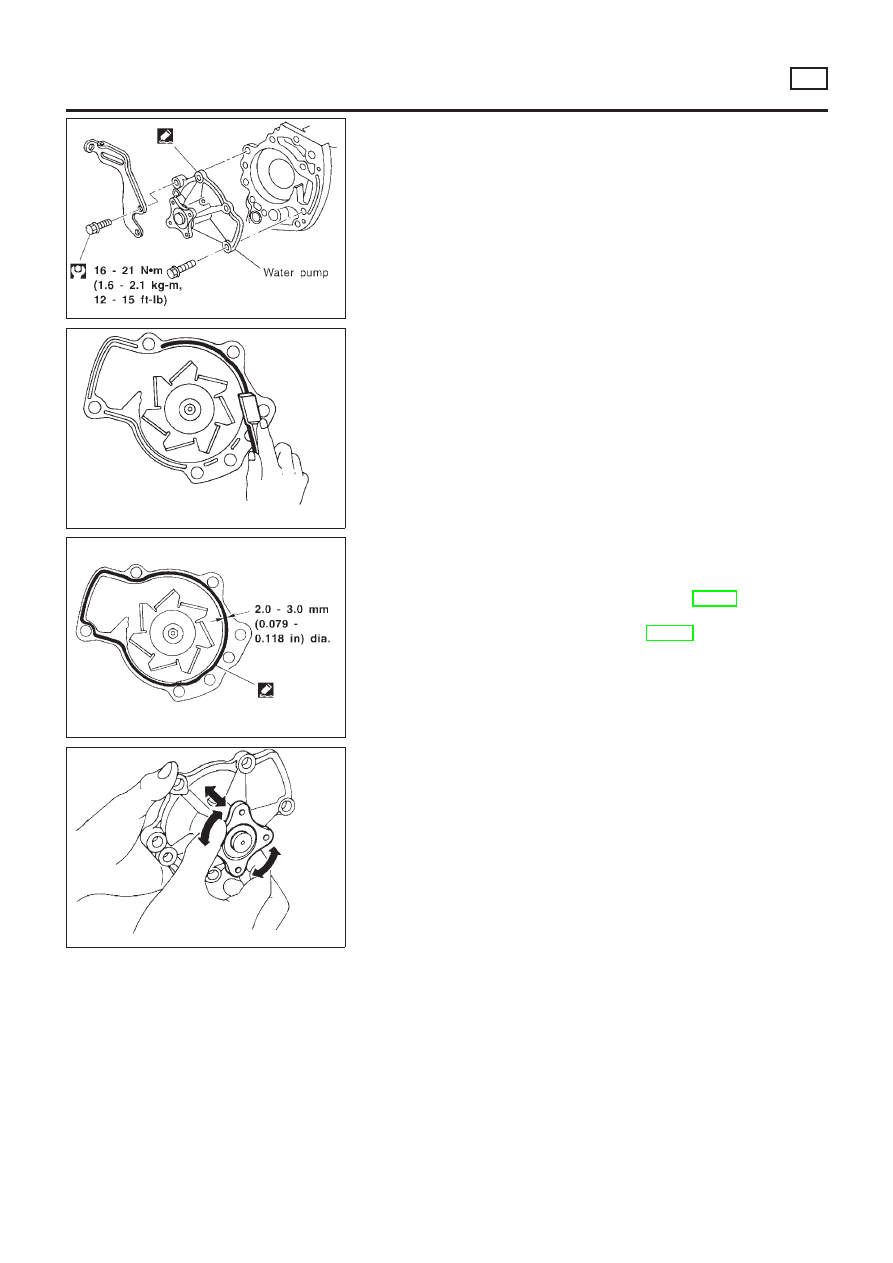

Remove water pump.

CAUTION:

When removing water pump assembly, be careful not to
get coolant on drive belt.

Water pump cannot be disassembled and should be
replaced as a unit.

After installing water pump, connect hose and clamp
securely, then check for leaks using radiator cap tester.

SLC433A

Use a scraper to remove liquid gasket from water pump.

Also remove traces of liquid gasket from mating surface
of cylinder block.

SLC434AA

Apply a continuous bead of liquid gasket to mating surface of
water pump.

Use Genuine Liquid Gasket or equivalent.

When filling radiator with coolant, refer to LC-38, “Changing
Engine Coolant”.
When installing drive belts, refer to EM-86, “Checking Drive
Belts”.
9.

Install any parts removed in reverse order of removal.

SLC408C

INSPECTION

NLLC0128

Check body assembly for rust or corrosion.

Check for rough operation due to excessive end play.

ENGINE COOLING SYSTEM

Water Pump (Cont’d)

LC-34

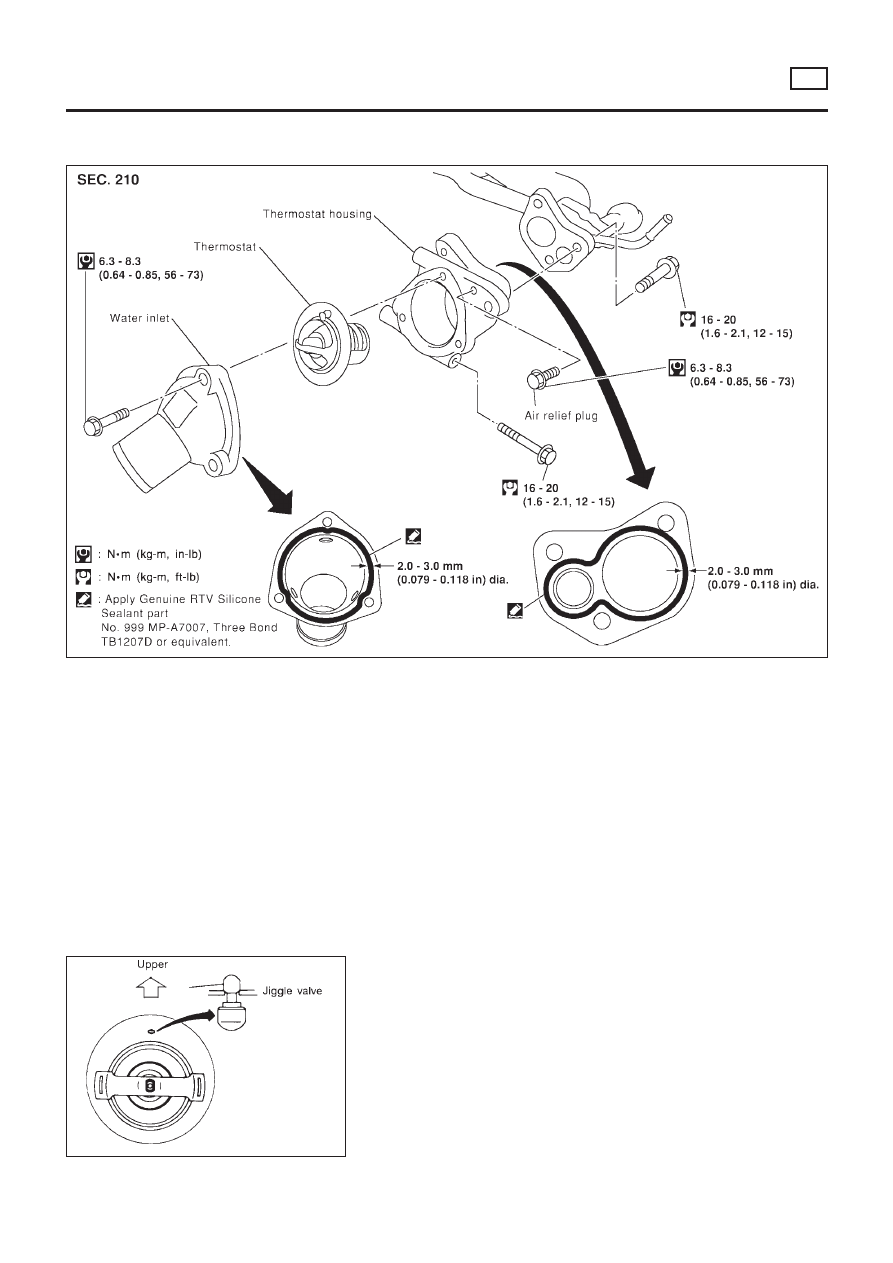

Thermostat

REMOVAL AND INSTALLATION

NLLC0134

SLC267B

Be careful not to spill coolant over engine compartment. Use
a rag to absorb coolant.
1.

Drain engine coolant.

Remove lower radiator hose.

Remove water inlet, then take out thermostat.

SLC767

Install thermostat with jiggle valve or air bleeder at upper side.

Apply a continuous bead of liquid gasket to mating sur-
face of water inlet.

After installation, run engine for a few minutes, and check
for leaks.

ENGINE COOLING SYSTEM

Thermostat

LC-35

SLC343

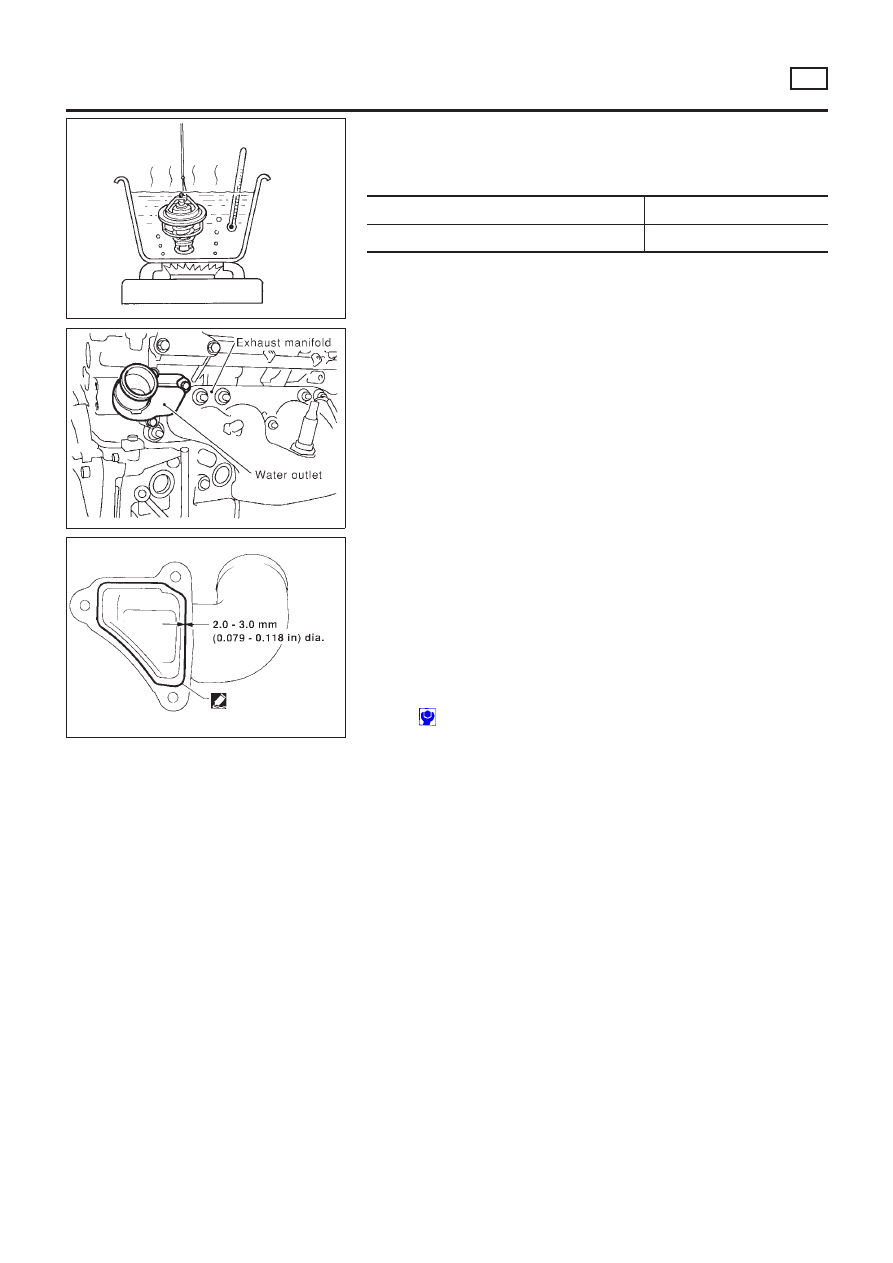

INSPECTION

NLLC0135

Check for valve seating condition at normal room temperature.
It should seat tightly.

Check valve opening temperature and valve lift.

Valve opening temperature

°C (°F)

82 (180)

Valve lift

mm/°C (in/°F)

More than 8/95 (0.31/203)

Then check if valve closes at 5°C (9°F) below valve opening
temperature.

SLC268B

Water Outlet

INSPECTION

NLLC0136

Visually inspect for water leaks. If there is leakage, apply liquid
gasket.

BLC004

INSTALLATION

NLLC0137

Use a scraper to remove old liquid gasket from water outlet.

Also remove traces of liquid gasket from mating surface
of cylinder head.

Apply a continuous bead of liquid gasket to mating surface of
water outlet.

Use Genuine Liquid Gasket or equivalent.

When installing, tighten water outlet bolts to the specified
torque.

: 6.3 - 8.3 N·m (0.64 - 0.85 kg-m, 55.6 - 73.8 in-lb)

ENGINE COOLING SYSTEM

Thermostat (Cont’d)

LC-36

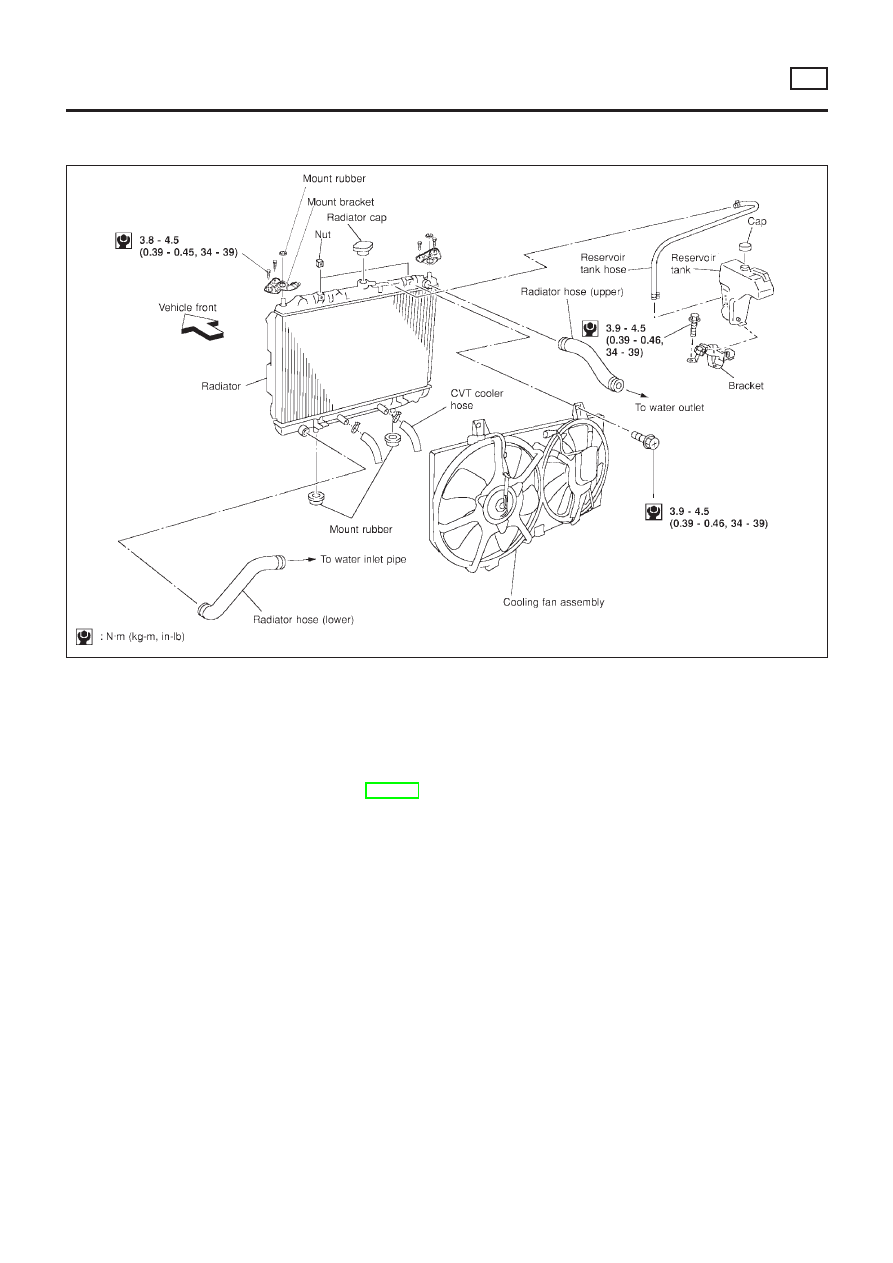

Radiator

COMPONENTS

NLLC0138

NLC093

Cooling Fan Control System

NLLC0139

Cooling fans are controlled by the ECM. For details, refer to
EC-887, “Cooling Fan”.

ENGINE COOLING SYSTEM

Radiator

LC-37

Changing Engine Coolant

=NLLC0108

WARNING:

To avoid the danger of being scalded, never change the cool-
ant when the engine is hot.

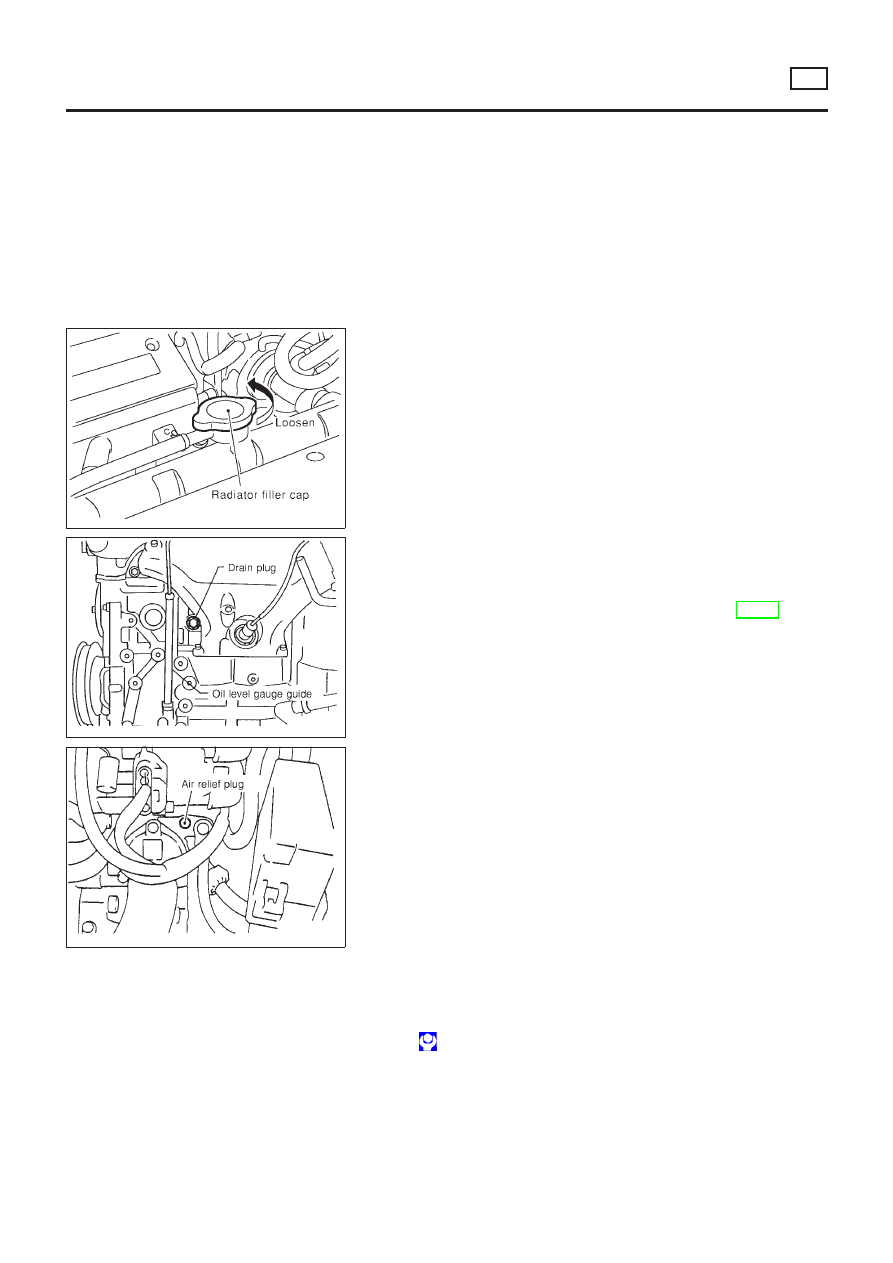

— DRAINING ENGINE COOLANT —

NLLC0108S01

Set air conditioning system as follows to prevent coolant from
remaining in the system.

Turn ignition switch “ON” and set temperature controller to
maximum hot position.

Wait 10 seconds before turning ignition switch OFF.

SMA033D

Remove lower radiator hose and remove radiator cap to drain
coolant.

Remove reservoir tank, drain coolant, then clean reservoir
tank.
Install it temporarily.

Be careful not to allow coolant to contact drive belts.

SMA379C

SMA073D

Remove cylinder block drain plug and air relief plug.

Check drained coolant for contaminants such as rust, corro-
sion or discoloration.
If contaminated, flush engine cooling system.
Refer to “—FLUSHING COOLING SYSTEM—”, LC-39.

— REFILLING ENGINE COOLANT —

NLLC0108S02

Install reservoir tank, radiator drain plug, and cylinder block
drain plug.

Apply sealant to the thread of cylinder block drain plug.

: 34.3 - 44.1 N·m (3.5 - 4.5 kg-m, 25 - 33 ft-lb)

ENGINE COOLING SYSTEM

Changing Engine Coolant

LC-38

SMA182B

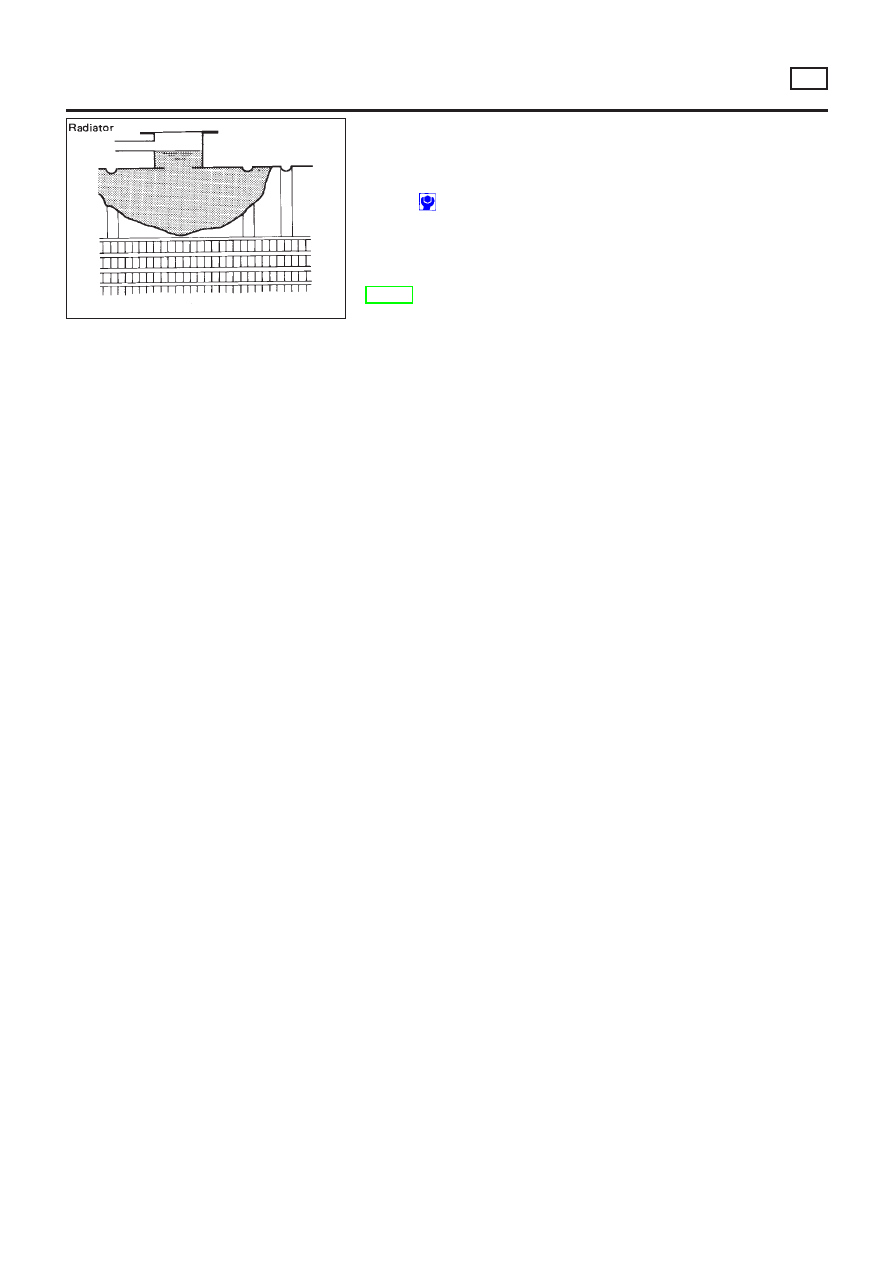

Fill radiator slowly with coolant until coolant spills from the air
relief plug, then install air relief plug.

Fill radiator and reservoir tank to specified level.

Air relief plug:

: 7.2 - 9.8 N·m (0.73 - 1.0 kg-m, 63.4 - 86.8 in-lb)

Use genuine Nissan anti-freeze coolant or equivalent.

Pour coolant through coolant filler neck slowly to allow air
in system to escape.

Refer to “RECOMMENDED FLUIDS AND LUBRICANTS”,
MA-20.

Coolant capacity (With reservoir tank):

6.75

(6 Imp qt)

Reservoir tank capacity (for MAX level):

0.7

(5/8 Imp qt)

Warm up engine to normal operating temperature without
radiator cap installed.

If coolant overflows radiator filler hole, install filler cap.

Run engine at 2,500 rpm for 10 seconds and return to idle
speed with radiator cap installed.

Repeat two or three times.

Watch coolant temperature gauge so as not to overheat the
engine.
6.

Stop engine and cool it down.

Cool down using a fan to reduce the time.

If necessary, refill radiator up to filler neck with coolant.

Refill reservoir tank to Max line with coolant.

Repeat step 5 through step 7 two or more times with radiator
cap installed until coolant level no longer drops.

Check cooling system for leaks with engine running.

10. Warm up engine, and check for sound of coolant flow while

running engine from idle up to 3,000 rpm with heater tempera-
ture controller set at several positions between COOL and
HOT.

Sound may be noticeable at heater water cock.

11. If sound is heard, bleed air from cooling system by repeating

steps 5 through 7 until coolant level no longer drops

Clean excess coolant from engine.

— FLUSHING COOLING SYSTEM —

NLLC0108S03

Open air relief plug.

Fill radiator with water until water spills from the air relief hole,
then close air relief plug. Fill radiator and reservoir tank with
water and reinstall radiator cap.

Run engine and warm it up to normal operating temperature.

Rev engine two or three times under no-load.

Stop engine and wait until it cools down.

Drain water.

Repeat steps 1 through 6 until clear water begins to drain from
radiator.

ENGINE COOLING SYSTEM

Changing Engine Coolant (Cont’d)

LC-39

Overheating Cause Analysis

NLLC0109

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn or loose drive belt

—

Thermostat stuck closed

—

Damaged fins

Dust contamination or
paper clogging

Mechanical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Reduced air flow

Cooling fan does not oper-
ate

—

High resistance to fan
rotation

Damaged fan blades

Damaged radiator shroud

—

Improper coolant mixture
ratio

—

Poor coolant quality

—

Insufficient coolant

Coolant leaks

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Radiator cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leaks into
cooling system

Cylinder head deterioration

Cylinder head gasket dete-
rioration

ENGINE COOLING SYSTEM

Overheating Cause Analysis

LC-40

Symptom

Check items

Except cool-
ing system
parts mal-
function

—

Overload on engine

Abusive driving

High engine rpm under no
load

Driving in low gear for
extended time

Driving at extremely high
speed

Powertrain system mal-
function

—

Installed improper size
wheels and tires

Dragging brakes

Improper ignition timing

Blocked or restricted air
flow

Blocked bumper

—

Blocked radiator grille

Installed car brassiere

Mud contamination or
paper clogging

Blocked radiator

—

Blocked condenser

—

Installed large fog lamp

Service Data and Specifications (SDS)

THERMOSTAT

NLLC0110

Valve opening temperature

°C (°F)

82 (180)

Valve lift

mm/°C (in/°F)

More than 8/95 (0.31/203)

RADIATOR

NLLC0111

Unit: kPa (bar, kg/cm

, psi)

Cap reliefpressure

Standard

78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11 - 14)

Limit

59 - 98 (0.59 - 0.98, 0.6 - 1.0, 9 - 14)

Leakage test pressure

157 (1.57, 1.6, 23)

COOLANT CAPACITY

NLLC0112

Unit:

(Imp qt)

With reservoir tank

6.75 (6)

Reservoir tank

0.7 (5/8)

ENGINE COOLING SYSTEM

Overheating Cause Analysis (Cont’d)

LC-41

SEM164F

AEM080

Precautions

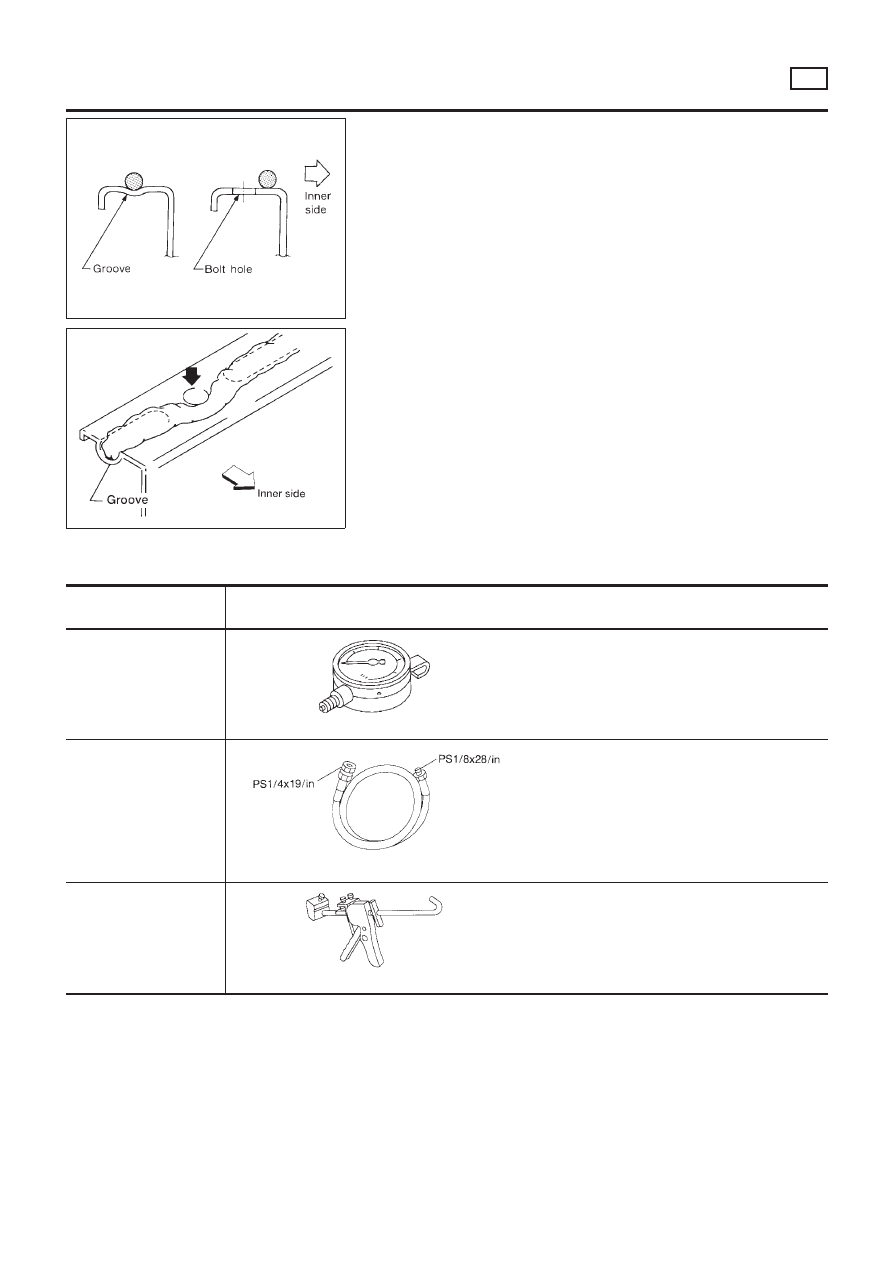

LIQUID GASKET APPLICATION PROCEDURE

NLLC0039

Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from these areas.

Apply a continuous bead of liquid gasket to mating surfaces.
(Use Genuine Liquid Gasket or equivalent.)

For oil pan, be sure liquid gasket diameter is 4.0 to 5.0 mm
(0.157 to 0.197 in).

For areas except oil pan, be sure liquid gasket diameter is 2.0
to 3.0 mm (0.079 to 0.118 in).

Apply liquid gasket around the inner side of bolt holes (unless
otherwise specified).

Assembly should be done within 5 minutes after coating.

Wait at least 30 minutes before refilling engine oil and engine
coolant.

Preparation

SPECIAL SERVICE TOOLS

NLLC0040

Tool number
Tool name

Description

ST25051001
Oil pressure gauge

NT050

ST25052000
Hose

NT559

Adapting oil pressure gauge to upper oil pan

WS39930000
Tube presser

NT052

Pressing the tube of liquid gasket

ENGINE LUBRICATION SYSTEM

Precautions

LC-42

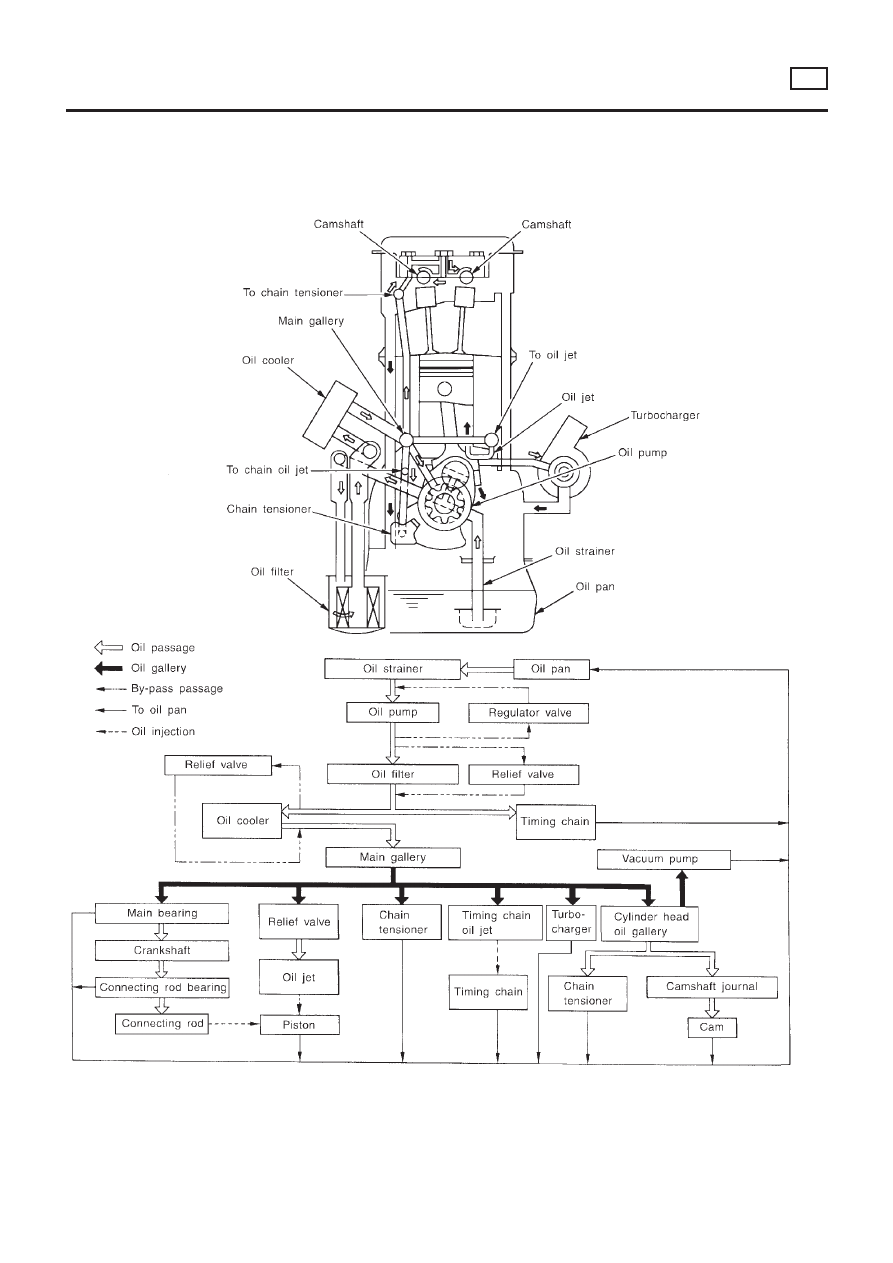

Lubrication Circuit

NLLC0041

JLC315B

ENGINE LUBRICATION SYSTEM

Lubrication Circuit

LC-43

SLC283B

JLC284B

SLC926-A

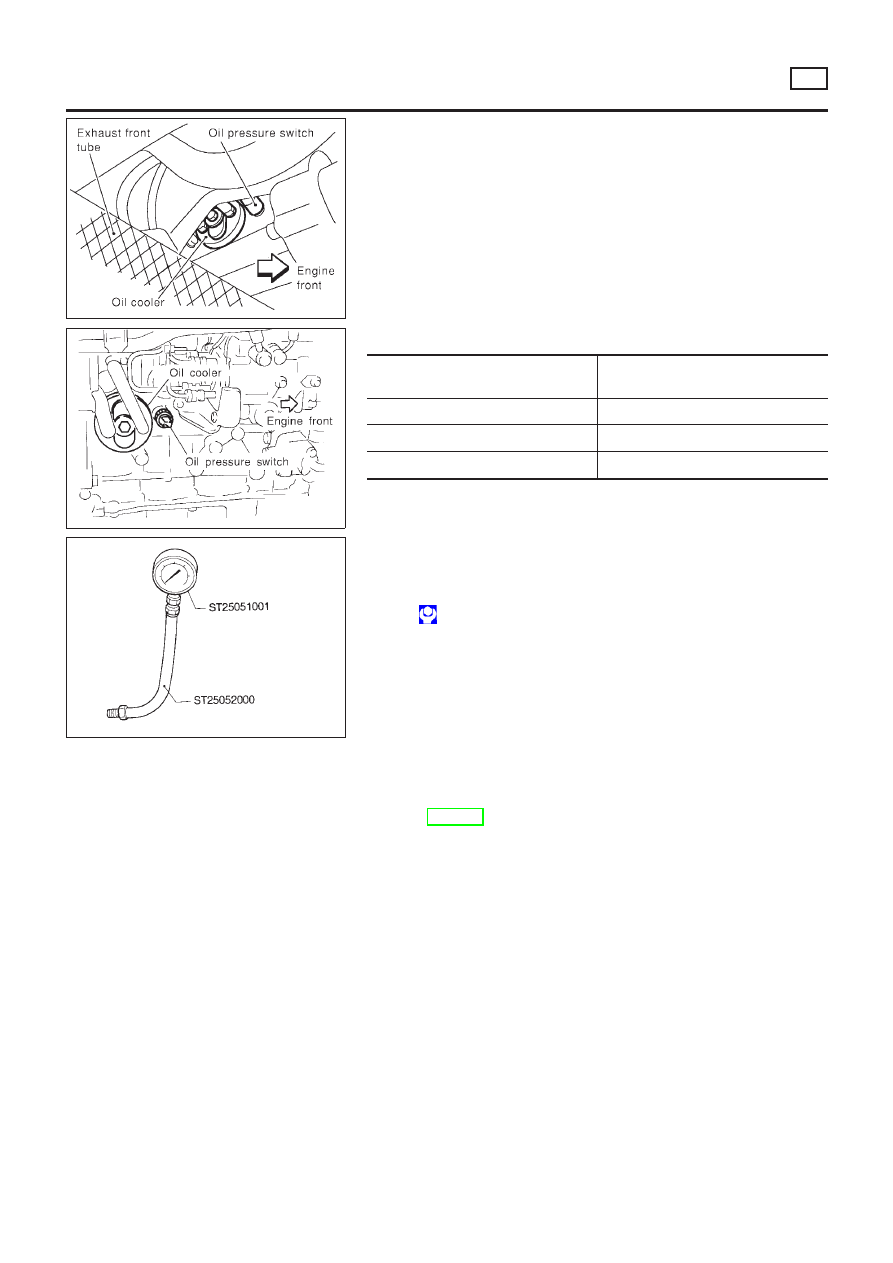

Oil Pressure Check

NLLC0042

WARNING:

Be careful not to burn yourself, as the engine and oil may
be hot.

Oil pressure check should be done in “Neutral position”.

Check oil level.

Remove exhaust front tube.

Remove oil pressure switch.

Install pressure gauge.

Install exhaust front tube.

Start engine and warm it up to normal operating temperature.

Check oil pressure with engine running under no-load.

Engine speed

rpm

Approximate discharge pressure

kPa (bar, kg/cm

, psi)

Idle speed

More than 140 (1.40, 1.43, 20.3)

2,000

More than 270 (2.69, 2.75, 39.1)

4,000

More than 430 (4.29, 4.38, 62.3)

If difference is extreme, check oil passage and oil pump
for oil leaks.

After the inspections, install the oil pressure switch as follows.

Remove the old sealant adhering to the switch and engine.

Apply Genuine Liquid Gasket or equivalent to the thread and
tighten.

: 13 - 17 N·m (1.25 - 1.75 kg-m, 9 - 12 ft-lb)

Oil Pump

REMOVAL AND INSTALLATION

NLLC0043

When installing oil pump, apply engine oil to rotors.

Refer to EM-181, “Primary Timing Chain” for removal.
Reinstall all parts in the reverse order of removal.

ENGINE LUBRICATION SYSTEM

Lubrication Circuit (Cont’d)

LC-44

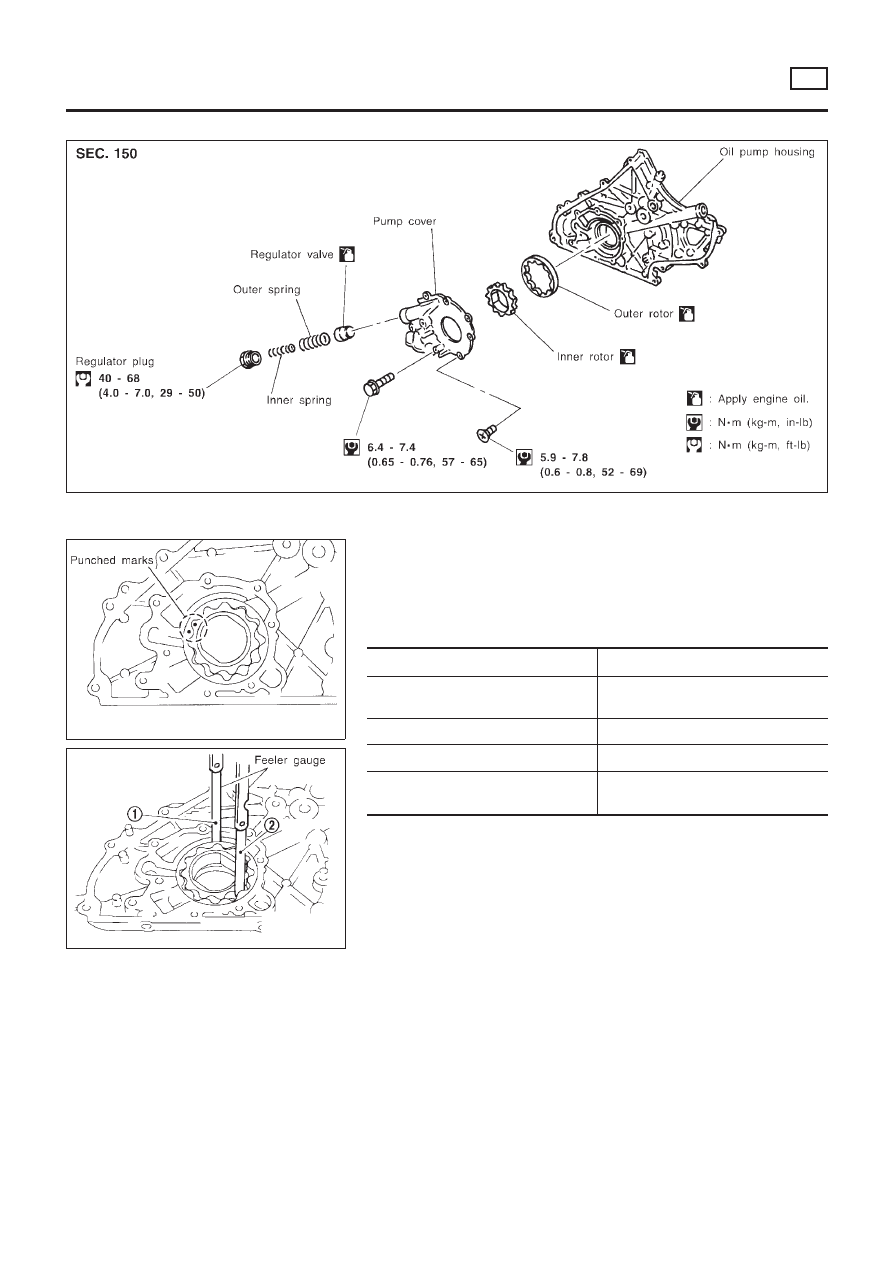

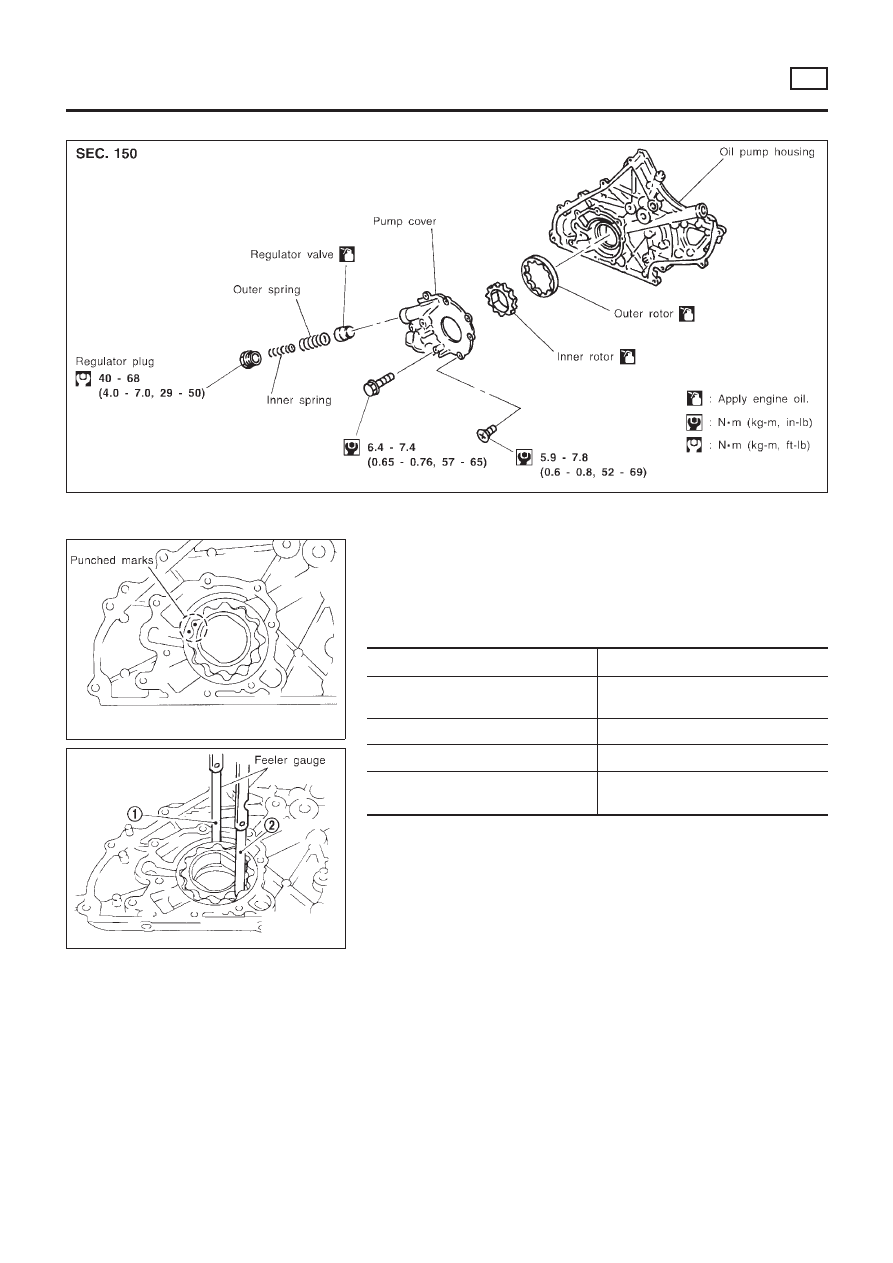

DISASSEMBLY AND ASSEMBLY

NLLC0044

JLC285B

JLC286B

JLC355B

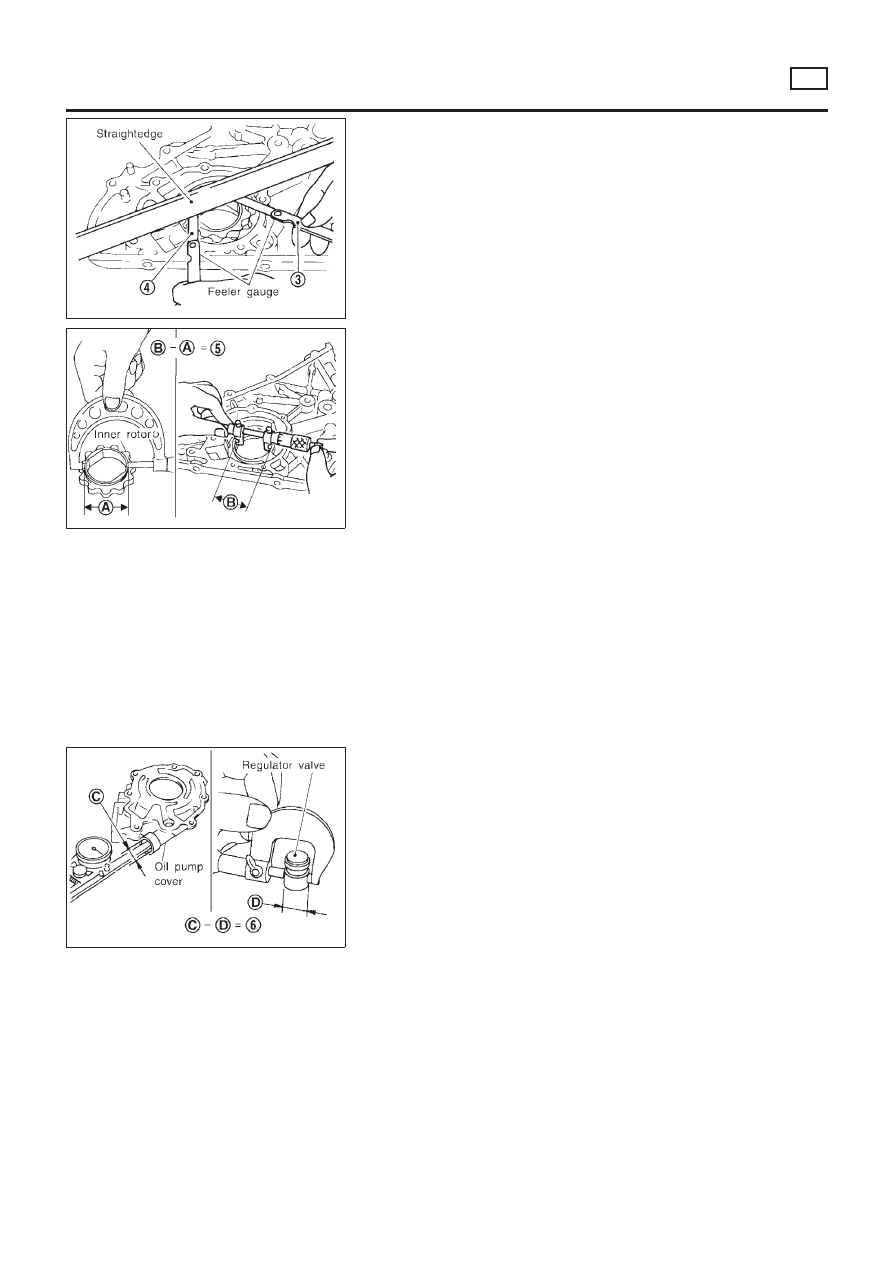

OIL PUMP INSPECTION

NLLC0045

Install the inner rotor and outer rotor with the punched
marks on the pump cover side.

Using a feeler gauge, straightedge and micrometers, check the
following clearances:

Unit: mm (in)

Body to outer rotor radial clearance 1

0.114 - 0.260 (0.0045 - 0.0102)

Inner rotor to outer rotor tip clearance
2

Below 0.18 (0.0071)

Body to inner rotor axial clearance 3

0.050 - 0.090 (0.0020 - 0.0035)

Body to outer rotor axial clearance 4

0.030 - 0.190 (0.0012 - 0.0075)

Inner rotor to brazed portion of hous-
ing clearance 5

0.045 - 0.091 (0.0018 - 0.0036)

If the tip clearance (2) exceeds the limit, replace rotor set.

If body to rotor clearances (1, 3, 4, 5) exceed the limit,
replace oil pump body assembly.

ENGINE LUBRICATION SYSTEM

Oil Pump (Cont’d)

LC-45

JLC356B

JLC338B

REGULATOR VALVE INSPECTION

NLLC0046

Visually inspect components for wear and damage.

Check oil pressure regulator valve sliding surface and valve
spring.

Coat regulator valve with engine oil. Check that it falls
smoothly into the valve hole by its own weight.

If damaged, replace regulator valve set or oil pump body.

JLC358B

Check regulator valve to oil pump body clearance.

Clearance 6:

6 : 0.040 - 0.097 mm (0.0016 - 0.0038 in)

If it exceeds the limit, replace oil pump body.

ENGINE LUBRICATION SYSTEM

Oil Pump (Cont’d)

LC-46

SLC287B

JLC288B

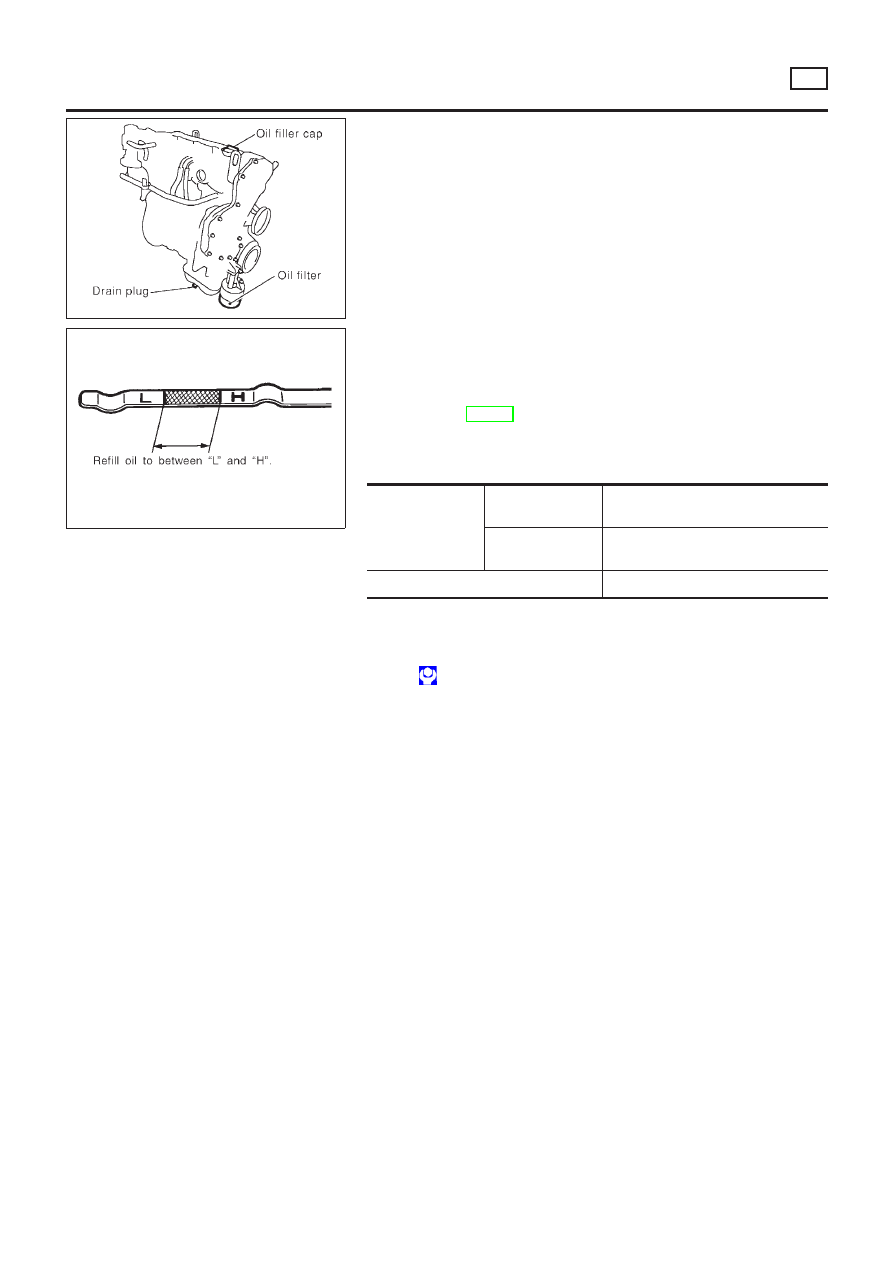

Changing Engine Oil

NLLC0074

WARNING:

Be careful not to burn yourself, as the engine oil is hot.

Prolonged and repeated contact with used engine oil may
cause skin cancer; try to avoid direct skin contact with
used oil. If skin contact is made, wash thoroughly with
soap or hand cleaner as soon as possible.

Warm up engine, and check for oil leakage from engine com-
ponents.

Stop engine and wait more than 10 minutes.

Remove drain plug and oil filler cap.

Drain oil and refill with new engine oil.

Oil Specification and Viscosity:

API grade CF-4

ACEA grade B1-98, B3-98
Refer to MA-20, “RECOMMENDED FLUIDS AND LUBRI-
CANTS”.

Refill oil capacity (Approximately):

Unit:

(Imp qt)

Drain and refill

Without oil filter
change

4.9 (4-3/8)

With oil filter
change

5.2 (4-5/8)

Dry engine (engine overhaul)

6.3 (5-1/2)

CAUTION:

Be sure to clean drain plug and install with new washer.

Drain plug:

: 29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)

The refill capacity depends on the oil temperature and
drain time. Use these specifications for reference only.
Always use the dipstick to determine when the proper
amount of oil is in the engine.

Check oil level.

Start engine and check area around drain plug and oil filter for
oil leakage.

Run engine for a few minutes, then turn it off. After several
minutes, check oil level.

ENGINE LUBRICATION SYSTEM

Changing Engine Oil

LC-47

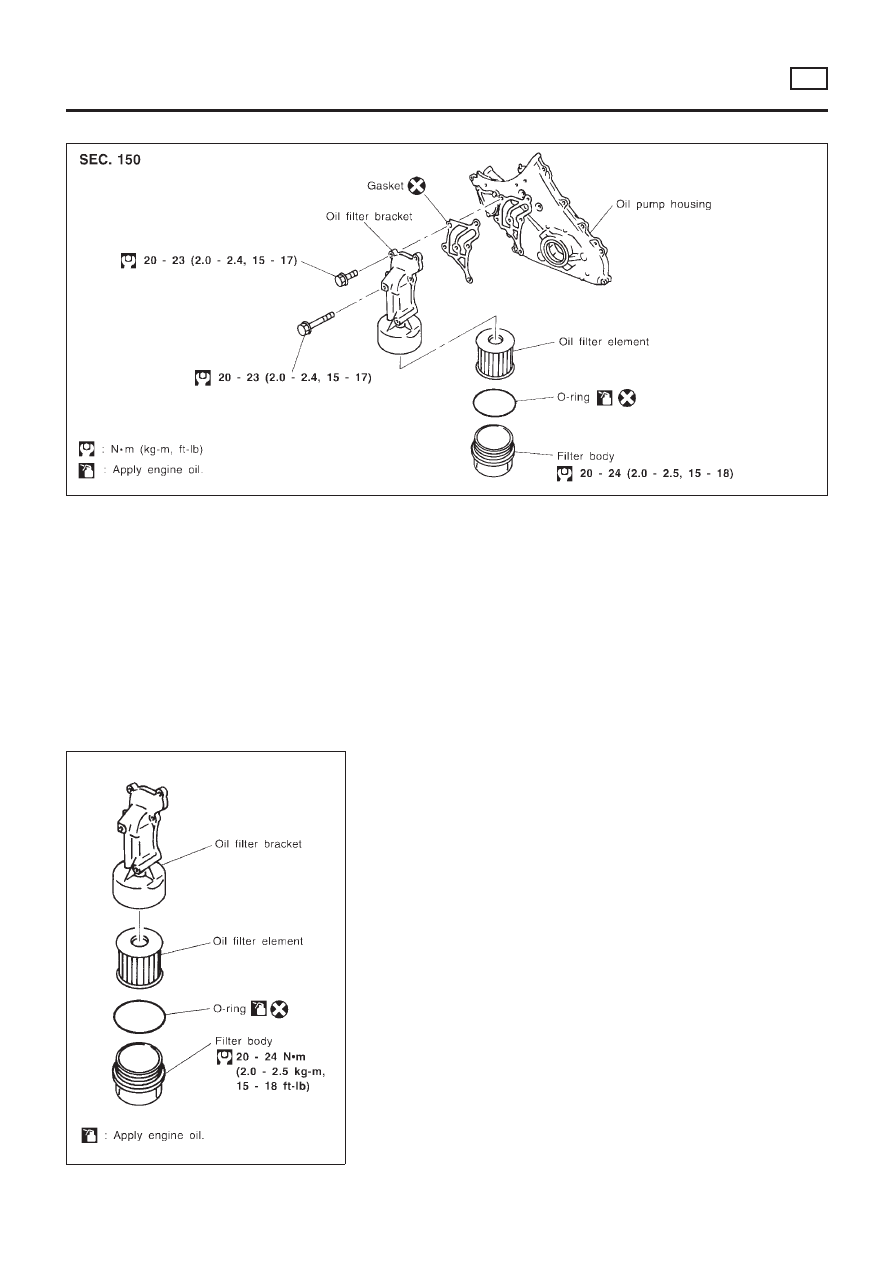

Oil Filter Bracket

NLLC0075

JLC301B

REMOVAL AND INSTALLATION

NLLC0075S01

Remove the undercover.

Steer the front wheel to the right.

Remove the right splash cover.

Remove the oil filter bracket bolt.

Reinstall all removed parts in the reverse order of removal.

Insert the top mounting bolt to the oil filter bracket beforehand,
and set the oil filter bracket to the installation location.

JLC289B

Changing Oil Filter

NLLC0076

ENGINE LUBRICATION SYSTEM

Oil Filter Bracket

LC-48

JLC290B

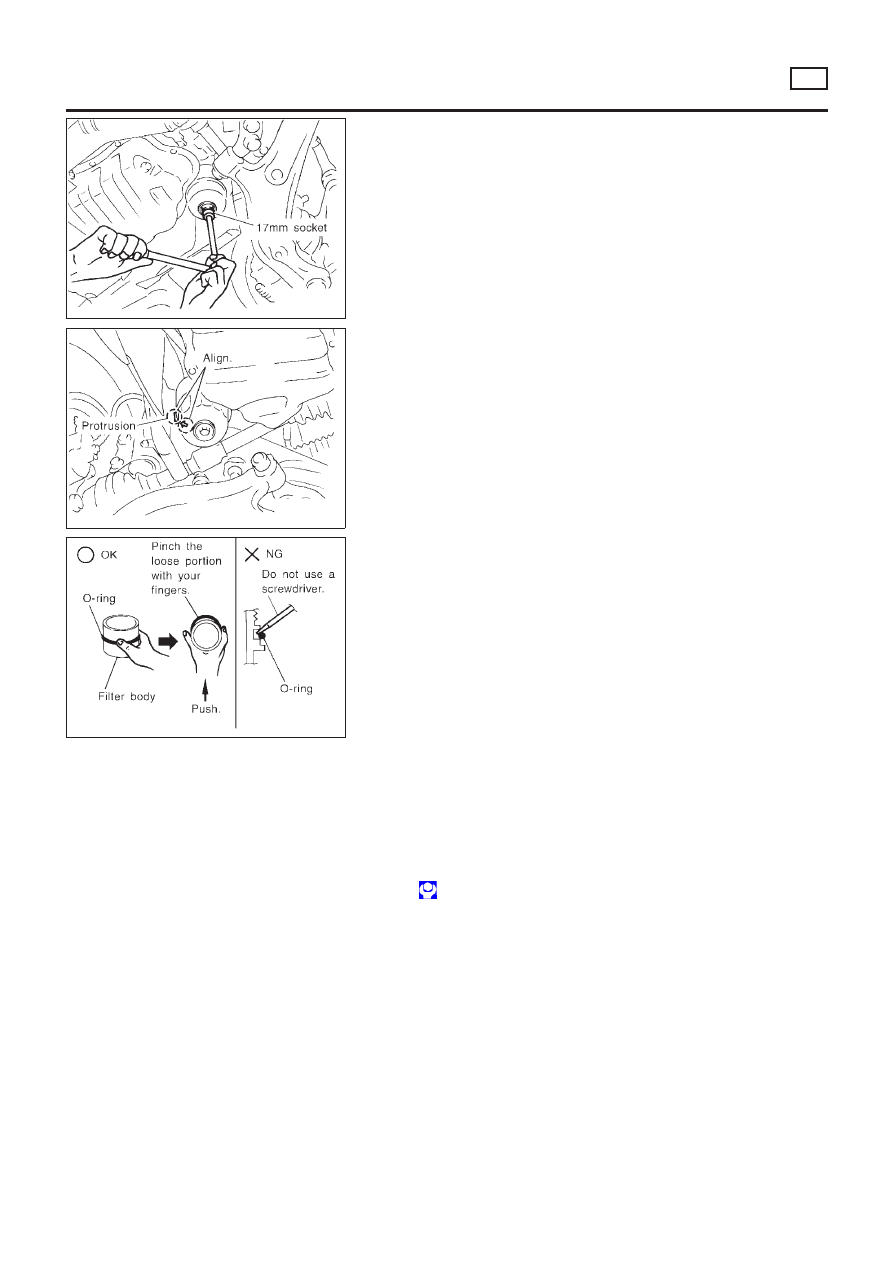

REMOVAL

NLLC0076S01

Using a socket wrench [plane-to-plane width: 17 mm (0.67 in)],
loosen the filter body approximately four turns.

JLC291B

Drain the oil after matching the “DRAIN” arrow mark at the
bottom of the filter body to the protrusion on the oil filter
bracket.

Catch the oil with a pan or cloth.

CAUTION:

The drained oil flows over the right surface of the filter
body.

Completely wipe clean any engine oil remaining on the
filter body or vehicle.

Remove the filter body, then remove the oil filter element.

JLC292B

Remove the O-ring from the filter body.

Push the O-ring in one direction, lift the slack part using
fingers, and remove the O-ring from the filter body.

CAUTION:

Do not use wires or flat-bladed screwdrivers etc. as they may
cause damage to the filter body.

INSTALLATION

NLLC0076S02

Completely remove all foreign objects adhering to the inside of
the filter body or O-ring mounting area (body side and bracket
side).

Install the oil filter element and O-ring to the filter body.

Push the oil filter element into the filter body completely.

Install the filter body to the oil filter bracket.

: 20 - 24 N·m (2.0 - 2.5 kg-m, 15 - 18 ft-lb)

After warming up the engine, check for engine oil leakage.

ENGINE LUBRICATION SYSTEM

Changing Oil Filter (Cont’d)

LC-49

Content .. 170 171 172 173 ..
