Nissan Almera Tino V10 (2001 year). Manual - part 171

Cooling Fan

NLLC0026

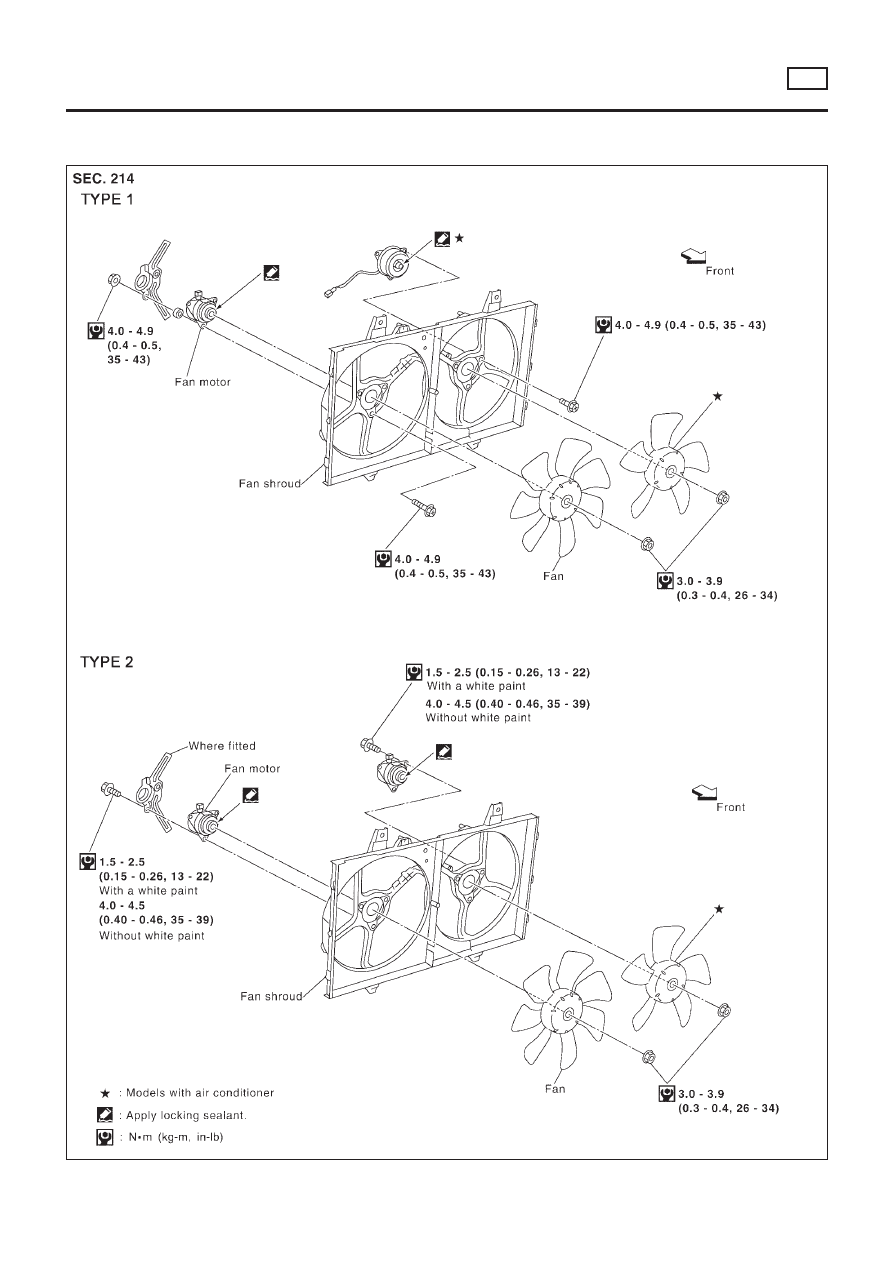

COMPONENTS

NLLC0026S01

YLC011

ENGINE COOLING SYSTEM

Cooling Fan

LC-18

CONTROL SYSTEM

NLLC0026S02

Cooling fans are controlled by the ECM. For details, refer to
EC-373, TROUBLE DIAGNOSIS FOR OVERHEAT (COOLING
SYSTEM).

Changing Engine Coolant

NLLC0037

WARNING:

To avoid the danger of being scalded, never change the cool-
ant when the engine is hot.

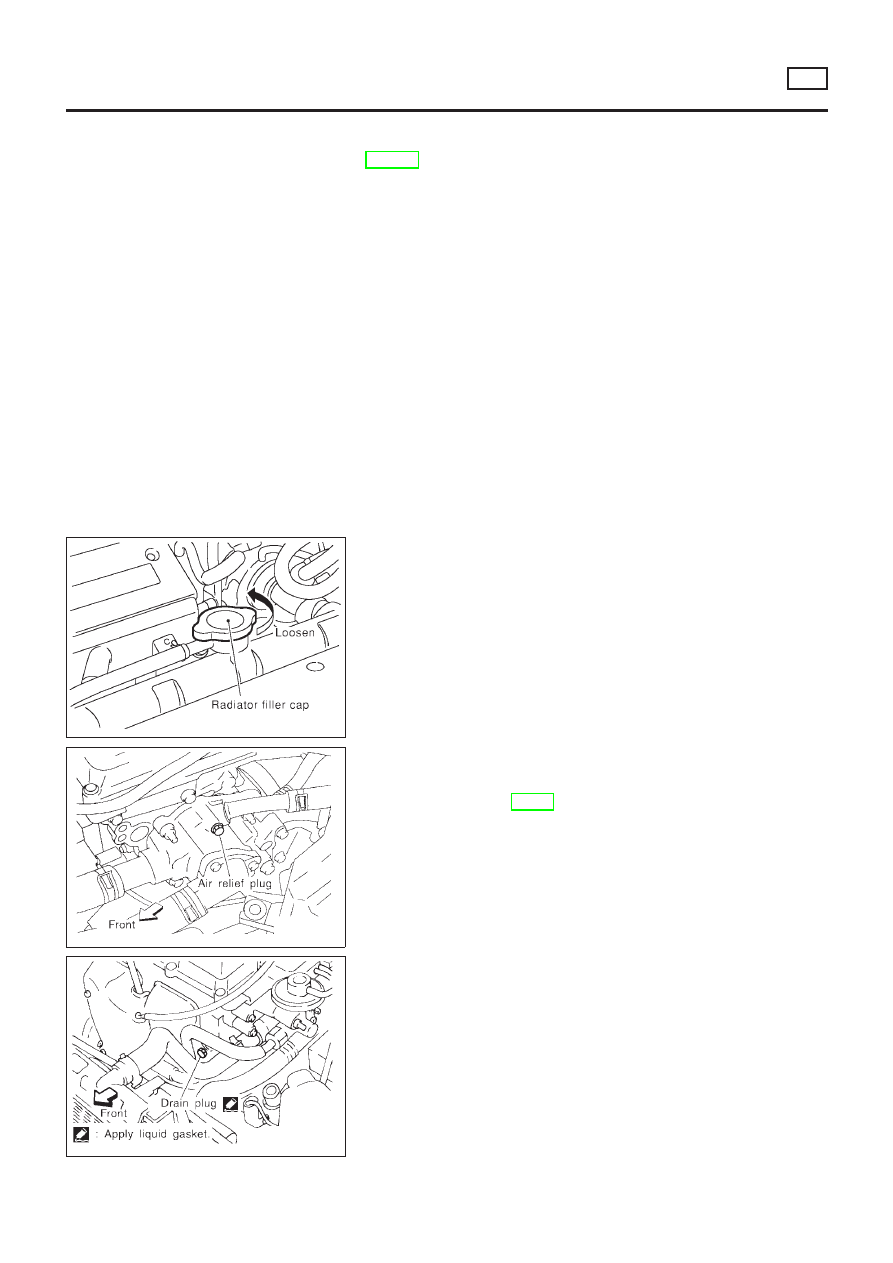

— DRAINING ENGINE COOLANT —

NLLC0037S01

1. Set air conditioning system as follows to prevent coolant from

remaining in the system.

a. Turn ignition switch ON and set temperature controller to maxi-

mum hot position.

b. Wait 10 seconds before turning ignition switch OFF.

SMA033D

2. Remove lower radiator hose, and remove radiator filler cap to

drain coolant.

3. Remove reservoir tank, drain coolant, then clean reservoir

tank.

Be careful not to allow coolant to contact drive belts.

4. Cover the exhaust tube heat shield to prevent from splashing

coolant.

SLC277B

SLC278B

5. Remove drain plug on cylinder block and air relief plug.
6. Check drained coolant for contaminants such as rust, corro-

sion or discoloration. If contaminated flush engine cooling
system, refer to LC-20, “FLUSHING COOLING SYSTEM”.

7. Blow the coolant around the exhaust tube heat shield.

ENGINE COOLING SYSTEM

Cooling Fan (Cont’d)

LC-19

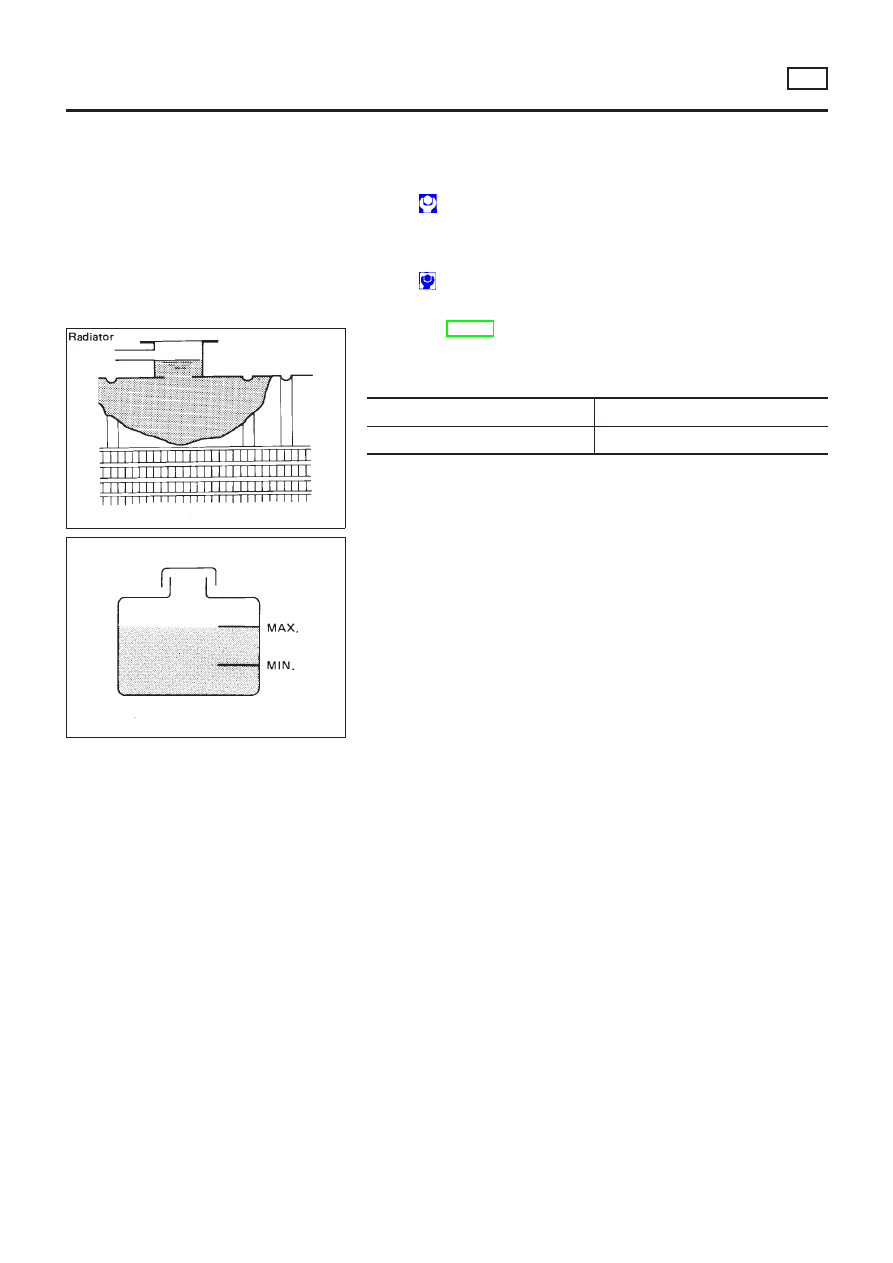

— REFILLING ENGINE COOLANT —

NLLC0037S02

Install reservoir tank, lower radiator hose and cylinder block
drain plug.

Apply sealant to the thread of cylinder block drain plug.

: 35 - 44 N·m (3.50 - 4.50 kg-m, 26 - 32 ft-lb)

Fill radiator slowly with coolant until coolant spills from the air
relief plug, then install air relief plug.

Air relief plug:

: 6.7 - 7.8 N·m (0.68 - 0.80 kg-m, 59 - 69 in-lb)

Use genuine Nissan anti-freeze coolant or equivalent.

SMA182B

SMA412B

Refer to MA-20, “RECOMMENDED FLUIDS AND LUBRI-
CANTS”.
Coolant capacity:

Unit:

(Imp qt)

With reservoir tank

6.75 (6)

Reservoir tank

0.7 (5/8)

Pour coolant through coolant filler neck slowly to allow air
in system to escape.

Fill radiator and reservoir tank to specified level.

Warm up engine to normal operating temperature without
radiator cap installed.

If coolant overflows radiator filler hole, install filler cap.

Run engine at 2,500 rpm for 10 seconds and return to idle
speed with radiator cap installed.

Repeat two or three times.

Watch coolant temperature gauge so as not to overheat the
engine.
6.

Stop engine and cool it down.

Cool down using a fan to reduce the time.

If necessary, refill radiator up to filler neck with coolant.

Refill reservoir tank to MAX level line with coolant.

Repeat steps 4 through 7 two or more times with radiator cap
installed until coolant level no longer drops.

Check cooling system for leaks with engine running.

10. Warm up engine, and check for sound of coolant flow while

running engine from idle up to 3,000 rpm with heater tempera-
ture controller set at several positions between COOL and
HOT.

Sound may be noticeable at heater water cock.

11. If sound is heard, bleed air from cooling system by repeating

steps 4 through 7 until coolant level no longer drops

Clean excess coolant from engine.

— FLUSHING COOLING SYSTEM —

NLLC0037S03

Open air relief plug.

Fill radiator with water until water spills from the air relief hole,
then close air relief plug. Fill radiator and reservoir tank with
water and reinstall radiator cap.

Run engine and warm it up to normal operating temperature.

Rev engine two or three times under no-load.

Stop engine and wait until it cools down.

Drain water.

ENGINE COOLING SYSTEM

Changing Engine Coolant (Cont’d)

LC-20

Repeat steps 1 through 6 until clear water begins to drain from
radiator.

Overheating Cause Analysis

NLLC0028

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn or loose drive belt

—

Thermostat stuck closed

—

Damaged fins

Dust contamination or
paper clogging

Mechanical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Reduced air flow

Cooling fan does not oper-
ate

—

High resistance to fan rota-
tion

Damaged fan blades

Damaged radiator shroud

—

Improper coolant mixture
ratio

—

Poor coolant quality

—

Insufficient coolant

Coolant leaks

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Radiator cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leaks into
cooling system

Cylinder head deterioration

Cylinder head gasket dete-
rioration

ENGINE COOLING SYSTEM

Overheating Cause Analysis

LC-21

Symptom

Check items

Except cool-
ing system
parts mal-
function

—

Overload on engine

Abusive driving

High engine rpm under no
load

Driving in low gear for
extended time

Driving at extremely high
speed

Powertrain system malfunc-
tion

—

Installed improper size
wheels and tires

Dragging brakes

Improper ignition timing

Blocked or restricted air
flow

Blocked bumper

—

Blocked radiator grille

Installed car brassiere

Mud contamination or
paper clogging

Blocked radiator

—

Blocked condenser

—

Installed large fog lamp

Service Data and Specifications (SDS)

THERMOSTAT

NLLC0029

Valve opening temperature

°C (°F)

82 (180)

Valve lift

mm/°C (in/°F)

More than 8/95 (0.31/203)

RADIATOR

NLLC0030

Unit: kPa (bar, kg/cm

, psi)

Cap reliefpressure

Standard

78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11 - 14)

Limit

59 - 98 (0.59 - 0.98, 0.6 - 1.0, 9 - 14)

Leakage test pressure

157 (1.57, 1.6, 23)

COOLANT CAPACITY

NLLC0038

Unit:

(Imp qt)

With reservoir tank

6.75 (6)

Reservoir tank

0.7 (5/8)

ENGINE COOLING SYSTEM

Overheating Cause Analysis (Cont’d)

LC-22

SEM164F

AEM080

Precautions

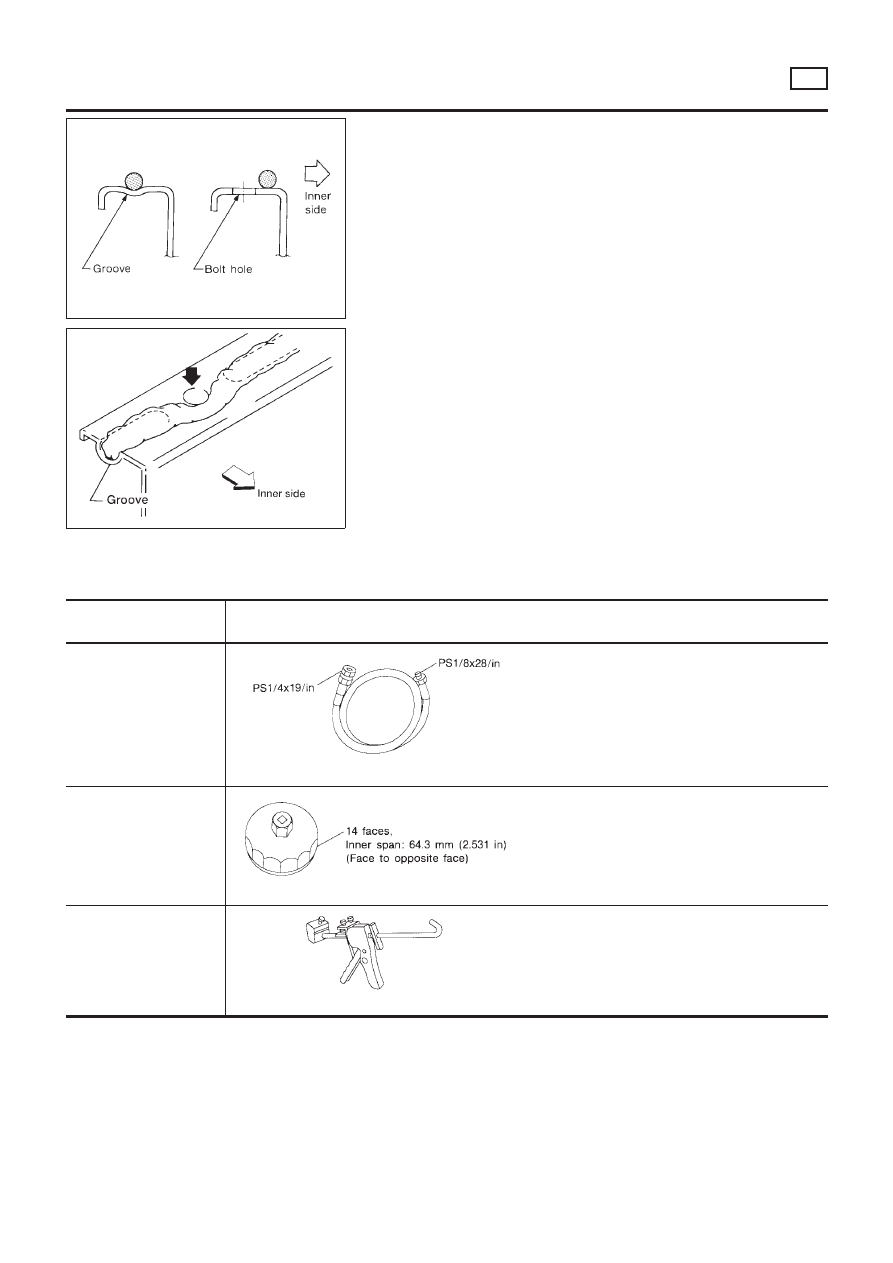

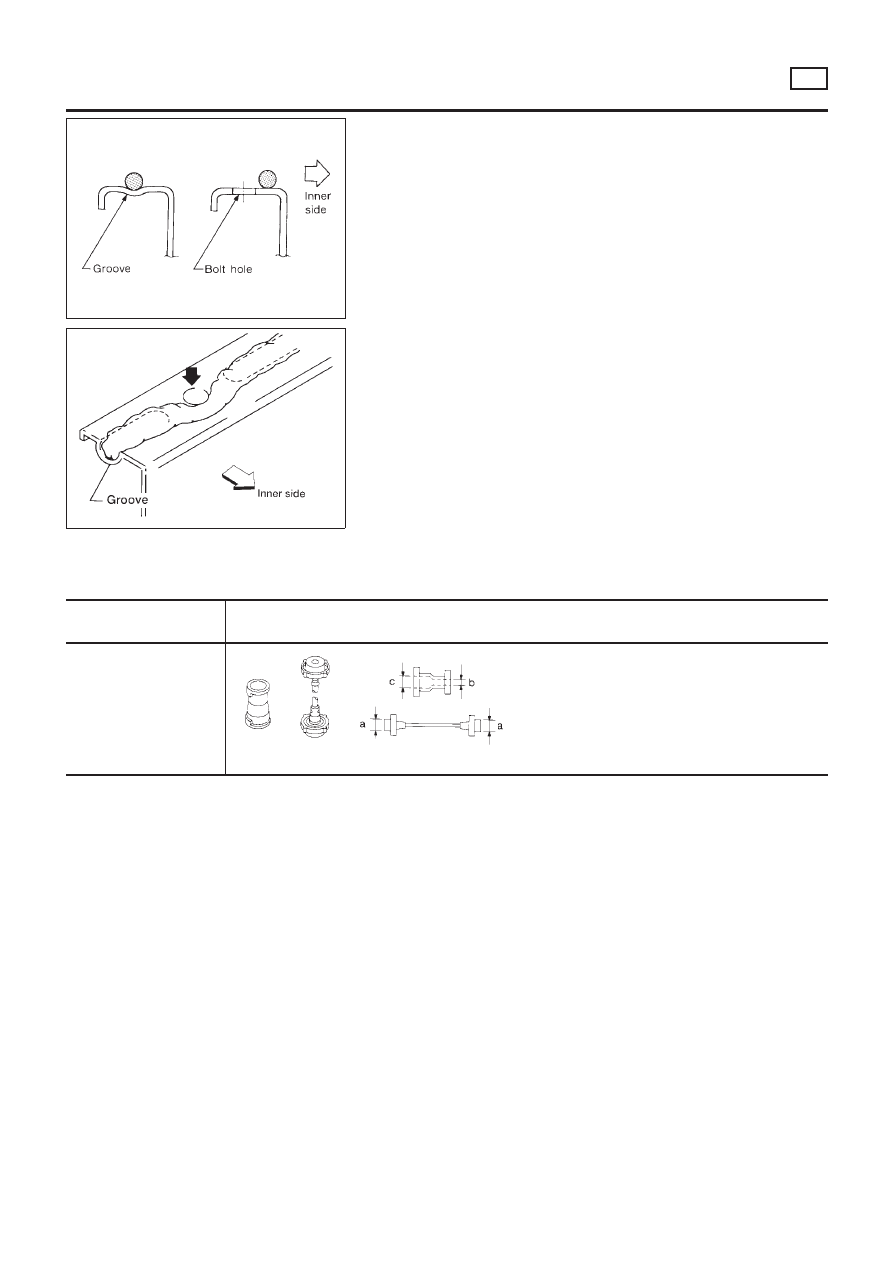

LIQUID GASKET APPLICATION PROCEDURE

NLLC0113

Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from these areas.

Apply a continuous bead of liquid gasket to mating surfaces.
(Use Genuine Liquid Gasket or equivalent.)

For oil pan, be sure liquid gasket diameter is 4.0 to 5.0 mm
(0.157 to 0.197 in).

For areas except oil pan, be sure liquid gasket diameter is 2.0
to 3.0 mm (0.079 to 0.118 in).

Apply liquid gasket around the inner side of bolt holes (unless
otherwise specified).

Assembly should be done within 5 minutes after coating.

Wait at least 30 minutes before refilling engine oil and engine
coolant.

Preparation

SPECIAL SERVICE TOOLS

NLLC0114

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
Tool name

Description

ST25052000
Hose

NT559

Adapting oil pressure gauge to cylinder block

KV10115801
Oil filter wrench

NT362

Removing oil filter

WS39930000
Tube presser

NT052

Pressing the tube of liquid gasket

ENGINE LUBRICATION SYSTEM

Precautions

LC-23

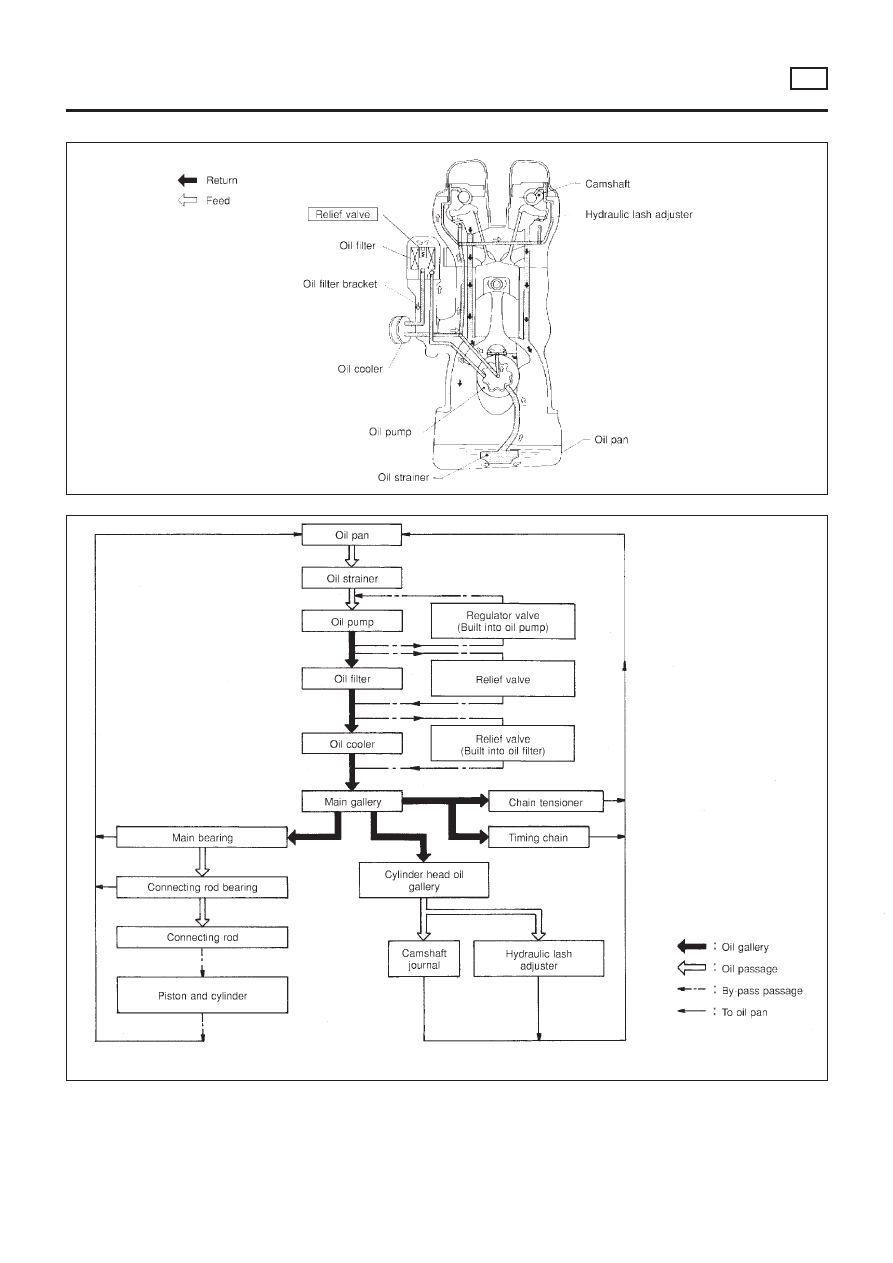

Lubrication Circuit

NLLC0115

SLC093B

NLC097

ENGINE LUBRICATION SYSTEM

Lubrication Circuit

LC-24

NLC045

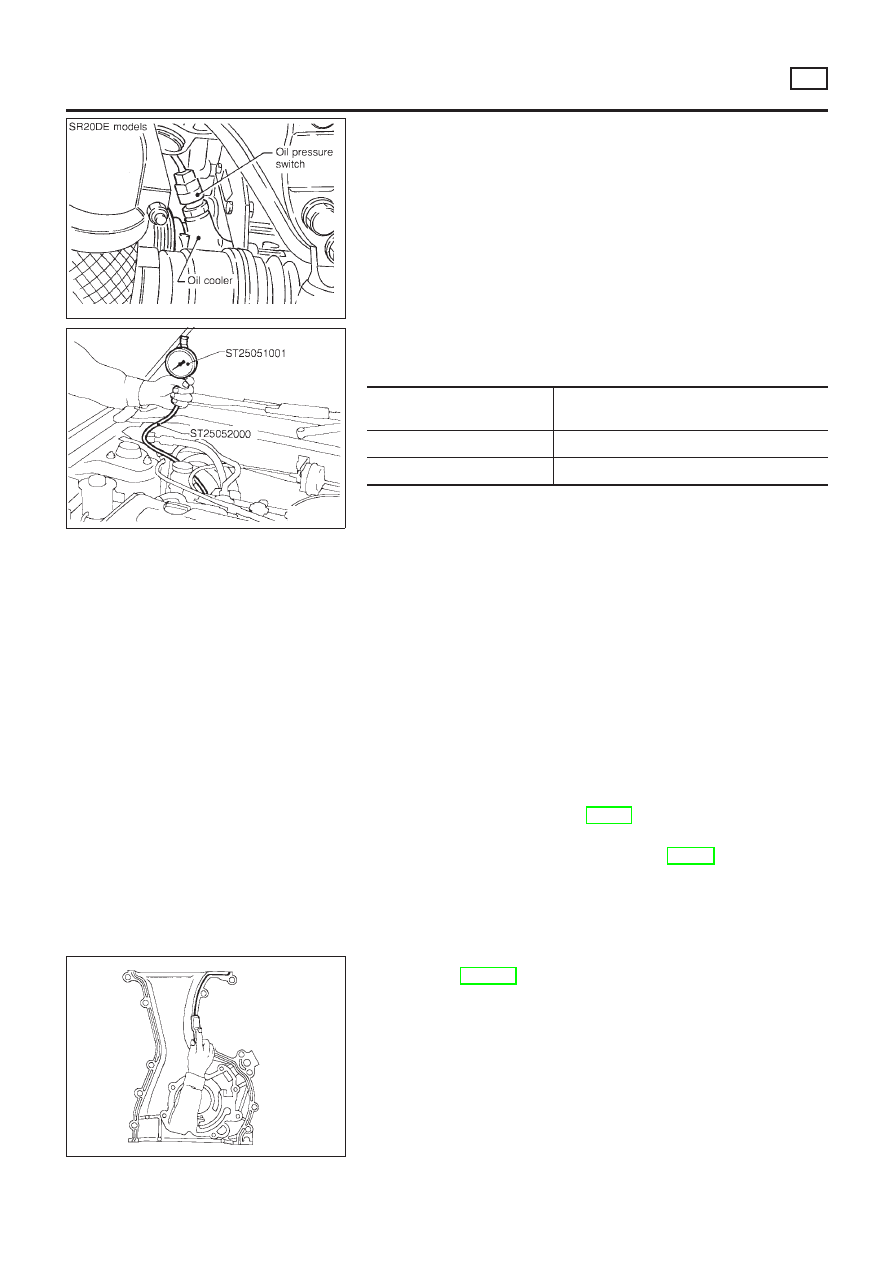

Oil Pressure Check

NLLC0116

WARNING:

Be careful not to burn yourself, as the engine and oil may
be hot.

For A/T models, put selector lever in Park “P” position.

Check oil level.

Remove oil pressure switch.

SLC717A

Install pressure gauge.

Start engine and warm it up to normal operating temperature.

Check oil pressure with engine running under no-load.

Engine speed

rpm

Approximate discharge pressure

kPa (kg/cm

, psi)

Idle speed

More than 78 (0.8, 11)

3,200

314 - 392 (3.2 - 4.0, 46 - 57)

If difference is extreme, check oil passage and oil pump
for oil leaks.

Install oil pressure switch with sealant.

Oil Pump

REMOVAL AND INSTALLATION

NLLC0117

Remove drive belts.

Remove oil pans. Refer to EM-91, “Oil pan”.

Remove oil strainer and baffle plate.

Remove front cover assembly. Refer to EM-96, “Timing Chain”.

SLC491A

Always replace oil seal and O-ring with new ones.
Refer to EM-105, “OIL SEAL REPLACEMENT”.

When installing oil pump, apply engine oil to gears.

Be sure that O-rings are properly fitted.

Use a scraper to remove old liquid gasket from mating
surface of front cover.

Also remove traces of liquid gasket from mating surface
of cylinder block.

ENGINE LUBRICATION SYSTEM

Oil Pressure Check

LC-25

SLC492AA

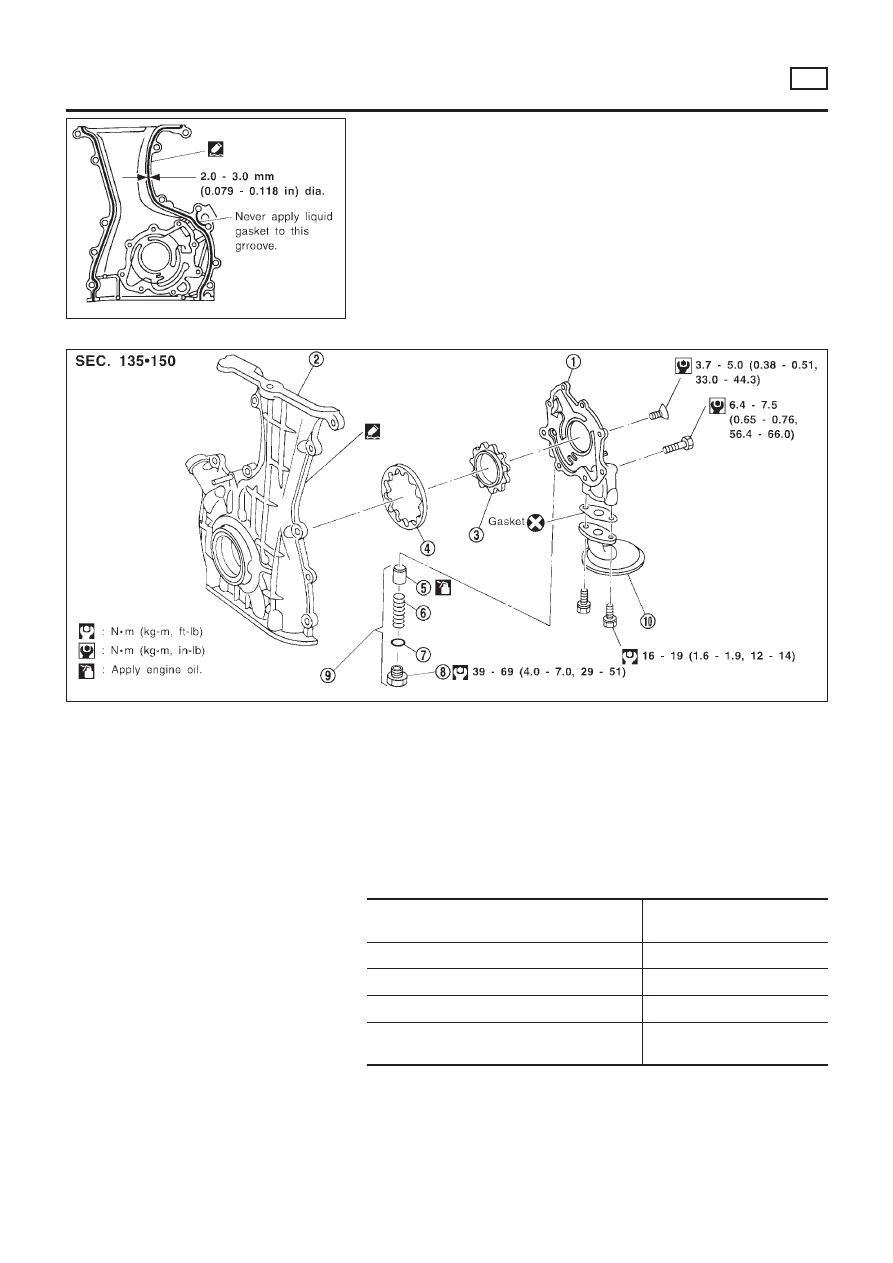

Apply a continuous bead of liquid gasket to mating surface of
front cover assembly.

Use Genuine Liquid Gasket or equivalent.

Installation is in the reverse order of removal.

DISASSEMBLY AND ASSEMBLY

NLLC0118

SLC265B

Oil pump cover

Front cover

Inner gear

Outer gear

Regulator valve

Spring

Shim

Plug

Regulator valve assembly

10. Oil strainer

INSPECTION

NLLC0119

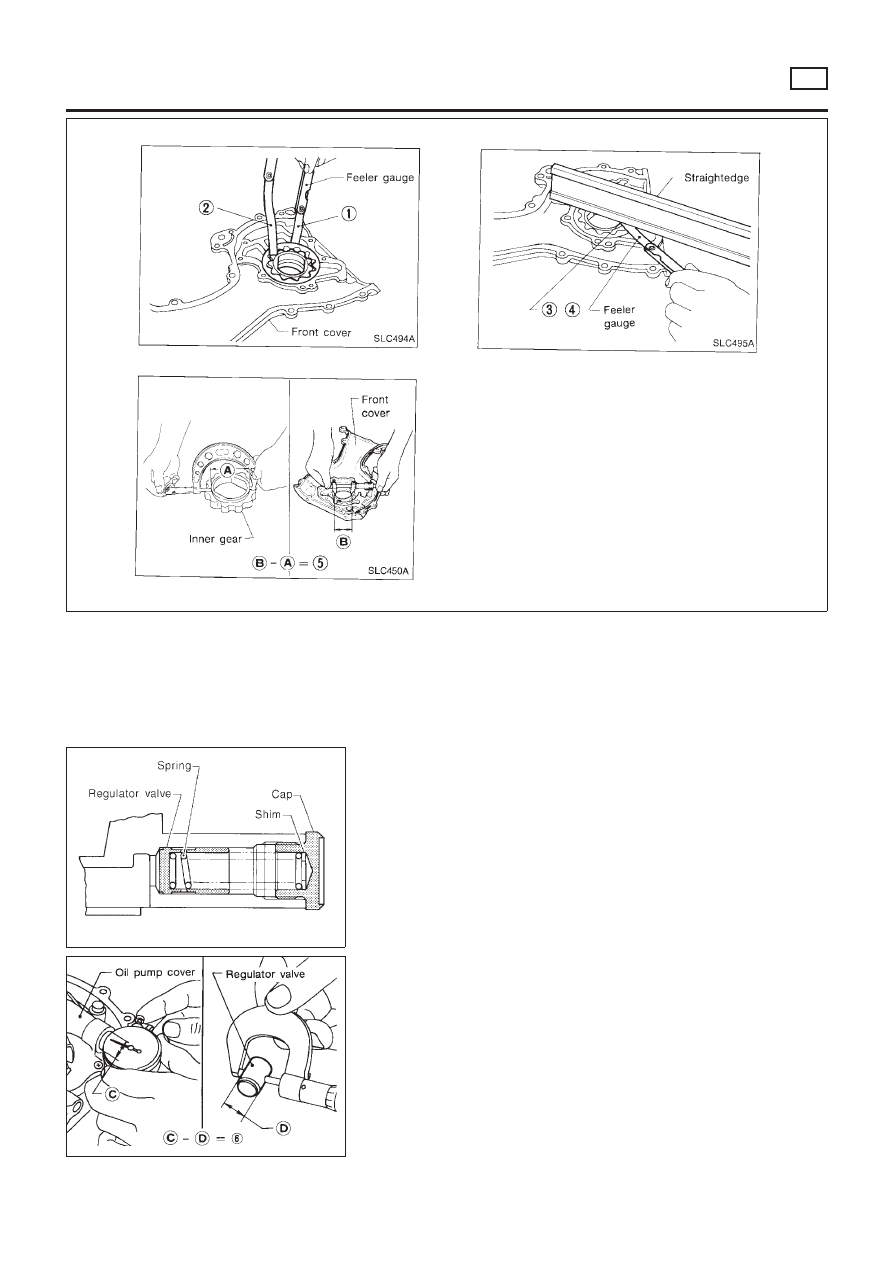

Using a feeler gauge, check the following clearances:
Standard clearance:

Unit: mm (in)

Body to outer gear radial clearance 1

0.114 - 0.200

(0.0045 - 0.0079)

Inner gear to outer gear tip clearance 2

Below 0.18 (0.0071)

Body to inner gear clearance 3

0.05 - 0.09 (0.0020 - 0.0035)

Body to outer gear axial clearance 4

0.05 - 0.11 (0.0020 - 0.0043)

Inner gear to brazed portion of housing clear-
ance 5

0.045 - 0.091

(0.0018 - 0.0036)

If the tip clearance (2) exceeds the limit, replace gear set.

If body to gear clearances (1, 3, 4, 5) exceed the limit,
replace front cover assembly.

ENGINE LUBRICATION SYSTEM

Oil Pump (Cont’d)

LC-26

SLC854A

SLC049B

REGULATOR VALVE INSPECTION

NLLC0120

Visually inspect components for wear and damage.

Check oil pressure regulator valve sliding surface and valve
spring.

Coat regulator valve with engine oil. Check that it falls
smoothly into the valve hole by its own weight.

If damaged, replace regulator valve set or oil pump assem-
bly.

SLC451A

Check regulator valve to oil pump cover clearance.

Clearance:

6: 0.040 - 0.097 mm (0.0016 - 0.0038 in)

If it exceeds the limit, replace oil pump cover.

ENGINE LUBRICATION SYSTEM

Oil Pump (Cont’d)

LC-27

NMA039

Changing Engine Oil

NLLC0125

WARNING:

Be careful not to burn yourself, as the engine oil is hot.

Prolonged and repeated contact with used engine oil may
cause skin cancer; try to avoid direct skin contact with
used oil. If skin contact is made, wash thoroughly with
soap or hand cleaner as soon as possible.

Warm up engine, and check for oil leakage from engine com-
ponents.

Stop engine.

Remove drain plug and oil filler cap.

Drain oil and refill with new engine oil.

Oil grade: API SH or ACEA grade A1-98, A3-98
Viscosity:

See

“RECOMMENDED

FLUIDS

AND

LUBRICANTS”, MA-20.

Refill oil capacity (Approximate):

Unit:

(Imp pts)

Drain and refill

With oil filter change

3.7 (6-1/2)

Without oil filter change

3.5 (6-1/8)

Dry engine (engine overhaul)

3.9 (6-7/8)

CAUTION:

Be sure to clean drain plug and install with new washer.

Drain plug:

: 29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)

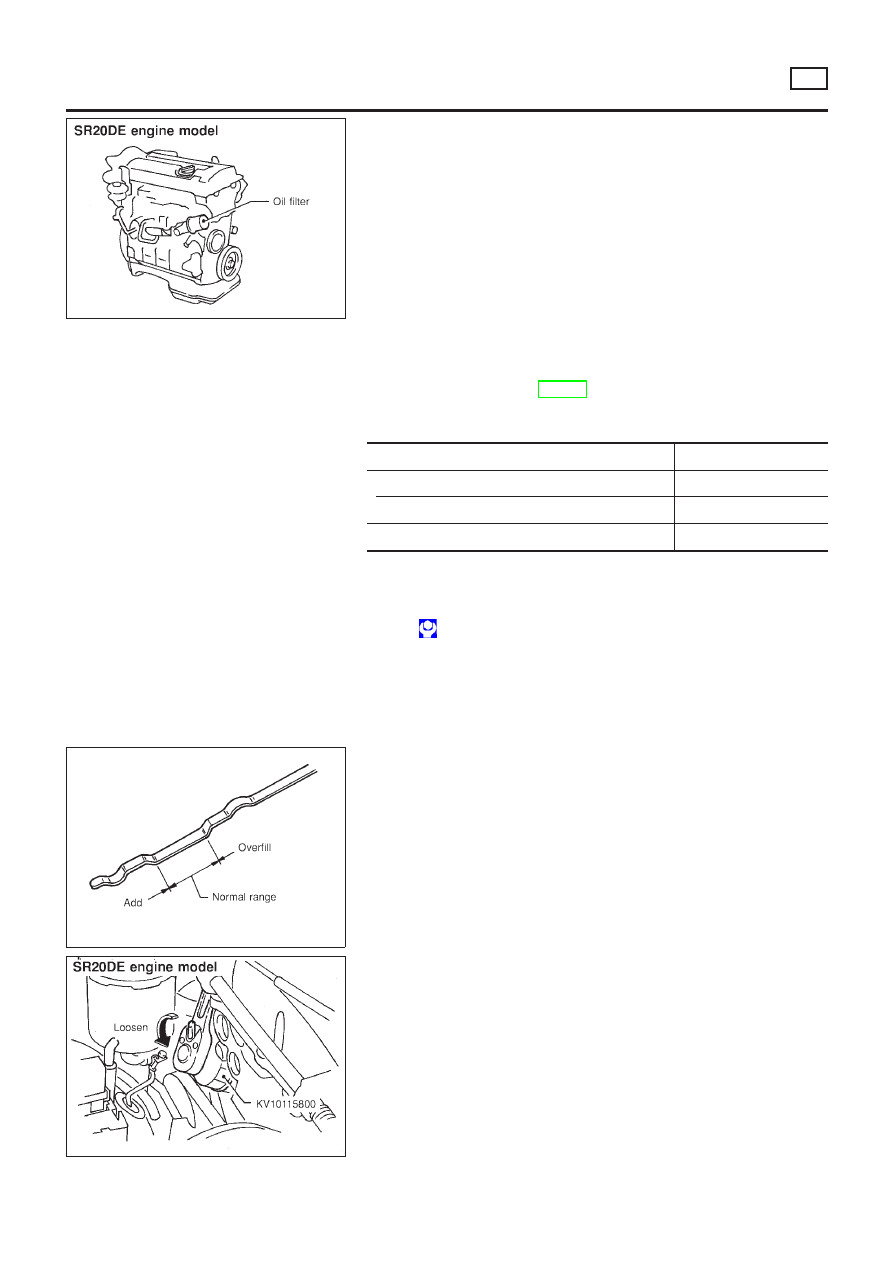

The refill oil capacity depends on oil temperature and
drain time. Use these specifications as a reference only.
Always use the dipstick to determine when the proper
amount of oil is in the engine.

NDI021

Start engine and check area around drain plug and oil filter oil
leakage.

Run engine for a few minutes, then turn it off. After several
minutes, check oil level.

NMA041

Changing Engine Oil Filter

NLLC0126

Remove oil filter with Tool.

WARNING:

Be careful not to burn yourself, as the engine and the engine
oil are hot.

ENGINE LUBRICATION SYSTEM

Changing Engine Oil

LC-28

SMA010

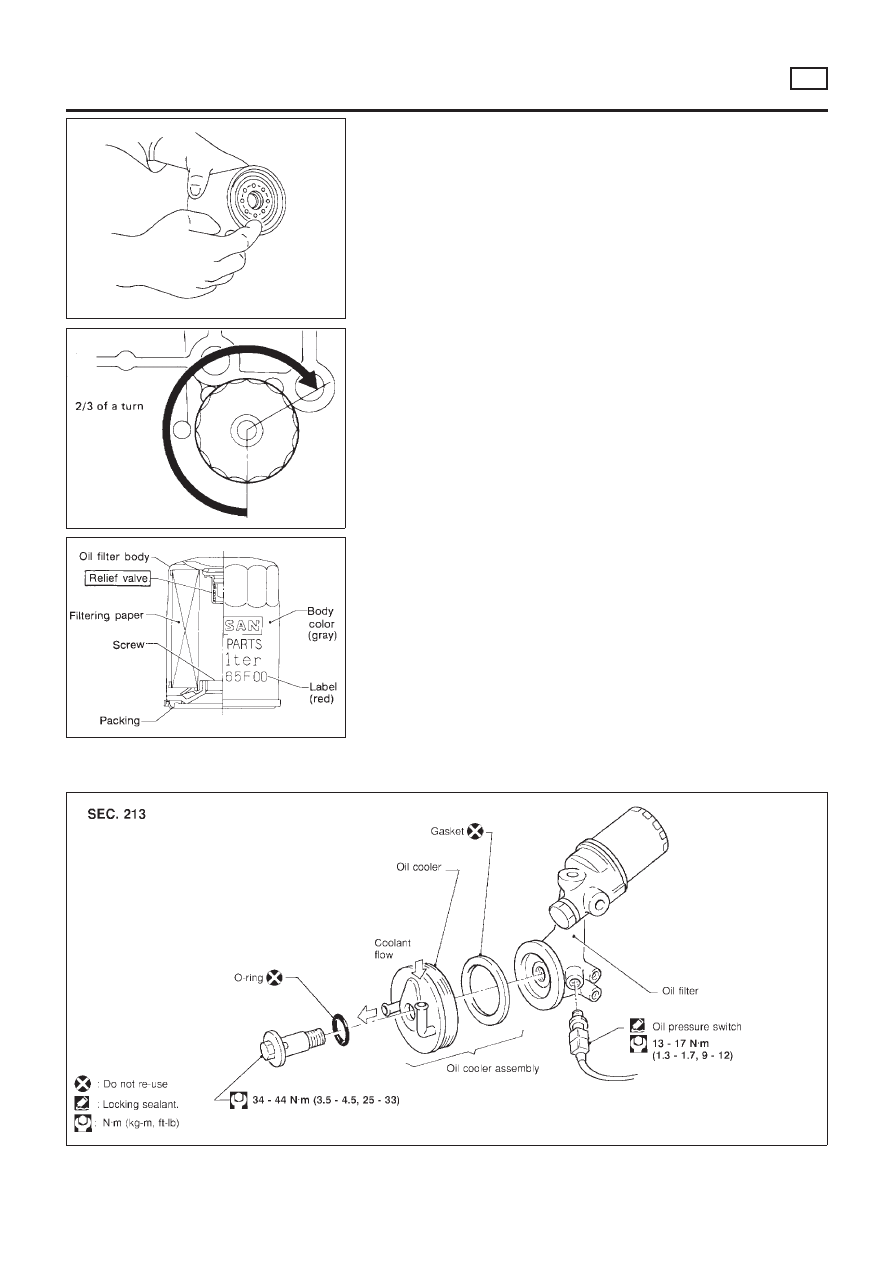

Clean the oil filter mounting surface on cylinder block. Coat the
rubber seal of the new oil filter with engine oil.

SMA229B

Screw in the oil filter until a slight resistance is felt, then tighten
an additional 2/3 turn.

Add engine oil.

Clean excess oil from engine.

SLC972A

Oil Filter

NLLC0121

The oil filter is a small, full-flow cartridge type and is provided with
a relief valve.

Use Tool KV10115801 for removing oil filter.

Oil Cooler

REMOVAL AND INSTALLATION

NLLC0123

NLC047

ENGINE LUBRICATION SYSTEM

Changing Engine Oil Filter (Cont’d)

LC-29

Drain engine oil and coolant.

Remove oil cooler.

Installation is in reverse order of removal.

Be careful not to burn yourself as engine oil is hot.

After installation, run engine for a few minutes and check
for oil leaks.

Do not spill coolant on drive belts.

INSPECTION

NLLC0124

Check oil cooler for cracks.

Check oil cooler for clogging by blowing through coolant inlet.
If necessary, replace oil cooler assembly.

Service Data and Specifications (SDS)

OIL PRESSURE CHECK

NLLC0094

Engine speed

rpm

Approximate discharge pressure

kPa (bar, kg/cm

, psi)

Idle speed

More than 78 (0.78, 0.80, 11)

3,200

314 - 392 (3.2 - 4.0, 46 - 57)

REGULATOR VALVE INSPECTION

NLLC0096

Unit: mm (in)

Regulator valve to oil pump cover clearance

0.040 - 0.097 (0.0016 - 0.0038)

OIL PUMP INSPECTION

NLLC0095

Unit: mm (in)

Body to outer rotor radial clearance

0.114 - 0.200 (0.0045 - 0.0079)

Inner gear to outer gear tip clearance

Below 0.18 (0.0071)

Body to inner gear clearance

0.05 - 0.09 (0.0020 - 0.0035)

Body to outer gear axial clearance

0.05 - 0.11 (0.0020 - 0.0043)

Inner gear to brazed portion of housing clearance

0.045 - 0.091 (0.0018 - 0.0036)

OIL CAPACITY

NLLC0097

Unit:

(Imp qt)

With oil filter change

3.7 (3-1/4)

Without oil filter change

3.5 (3-1/8)

Dry engine (engine overhaul)

3.9 (3-3/8)

ENGINE LUBRICATION SYSTEM

Oil Cooler (Cont’d)

LC-30

SEM164F

AEM080

Precautions

LIQUID GASKET APPLICATION PROCEDURE

NLLC0130

Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from these areas.

Apply a continuous bead of liquid gasket to mating surfaces.
(Use Genuine Liquid Gasket or equivalent.)

For oil pan, be sure liquid gasket diameter is 4.0 to 5.0 mm
(0.157 to 0.197 in).

For areas except oil pan, be sure liquid gasket diameter is 2.0
to 3.0 mm (0.079 to 0.118 in).

Apply liquid gasket around the inner side of bolt holes (unless
otherwise specified).

Assembly should be done within 5 minutes after coating.

Wait at least 30 minutes before refilling engine oil and engine
coolant.

Preparation

SPECIAL SERVICE TOOL

NLLC0131

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
Tool name

Description

EG17650301
Radiator cap tester
adapter

NT564

Adapting radiator cap tester to radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

ENGINE COOLING SYSTEM

Precautions

LC-31

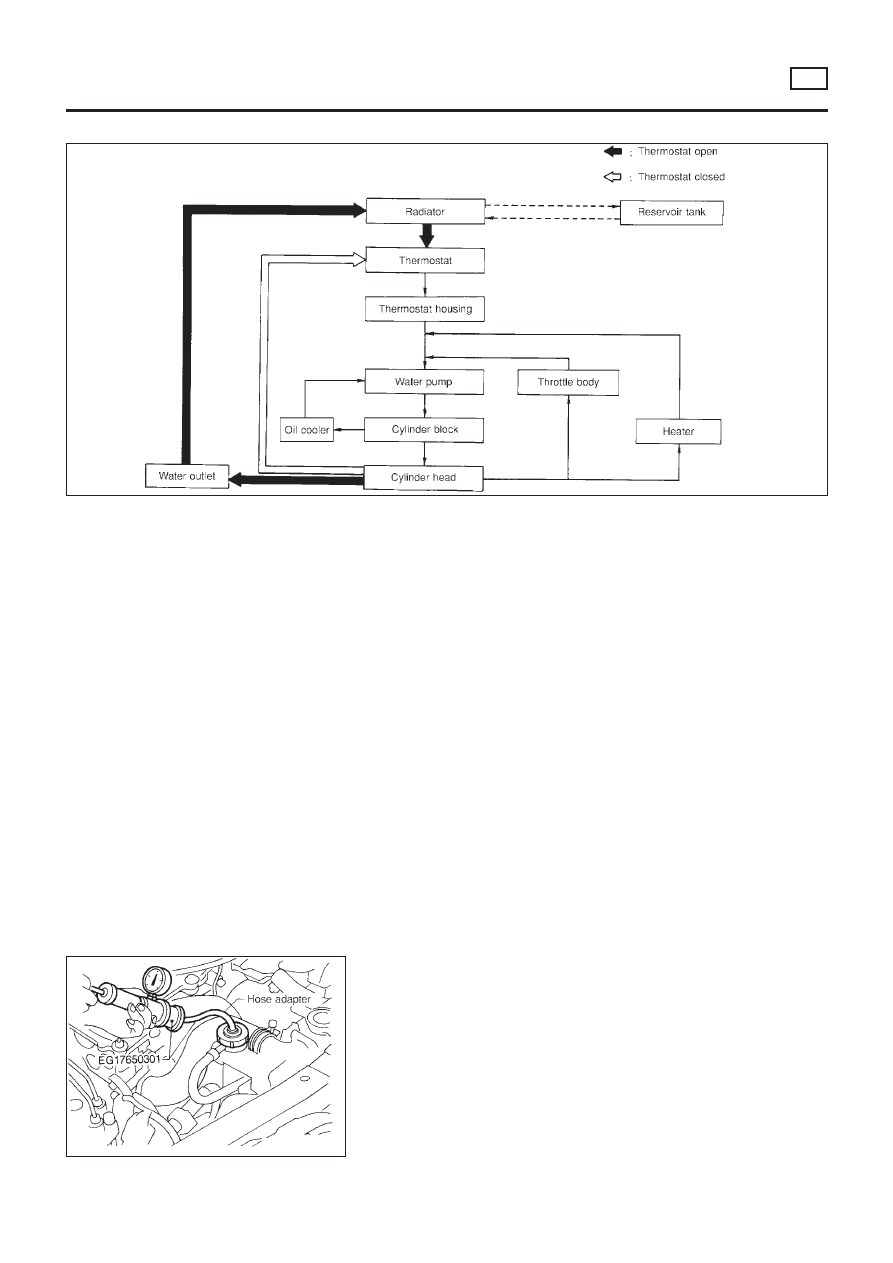

Cooling Circuit

NLLC0132

NLC087

System Check

NLLC0133

WARNING:

Never remove the radiator cap when the engine is hot. Serious
burns could occur from high pressure coolant escaping from
the radiator.
Wrap a thick cloth around the cap. Slowly turn it a quarter turn
to allow built-up pressure to escape. Carefully remove the cap
by turning it all the way.

CHECKING COOLING SYSTEM HOSES

NLLC0133S01

Check hoses for the following:

Improper attachment

Leaks

Cracks

Damage

Chafing

Deterioration

SLC546AA

CHECKING COOLING SYSTEM FOR LEAKS

NLLC0133S02

To check for leakage, apply pressure to the cooling system with a
tester.

Testing pressure:

157 kPa (1.6 kg/cm

, 23 psi)

CAUTION:

Higher pressure than specified may cause radiator damage.

ENGINE COOLING SYSTEM

Cooling Circuit

LC-32

CHECKING RADIATOR

NLLC0133S03

Check radiator for mud or clogging. If necessary, clean radiator as
follows.

Be careful not to bend or damage the radiator fins.

When radiator is cleaned without removal, remove all sur-
rounding parts such as cooling fan, rediator shroud and horns.
Then tape the harness and connectors to prevent water from
entering.

Apply water by hose to the back side of the radiator core ver-
tically download.

Apply water again to all radiator core surfaces once per
minute.

Stop washing if any stains no longer flow out from the radia-
tor.

Blow air into the back side of radiator core vertically download.

Use compressesd air lower than 490 kPa (5 kg/cm

, 71 psi)

and keep distance more than 30 cm (11.8 in).

Blow air again into all the radiator core surfaces once per
minute until no water sprays out.

SLC613-A

CHECKING RADIATOR CAP

NLLC0133S04

To check radiator cap, apply pressure to cap with a tester.

Radiator cap relief pressure:

Standard

78 - 98 kPa (0.8 - 1.0 kg/cm

, 11 - 14 psi)

Limit

59 - 98 kPa (0.6 - 1.0 kg/cm

, 9 - 14 psi)

SMA967B

Pull the negative pressure valve to open it.
Check that it closes completely when released.

SLC266B

Water Pump

REMOVAL AND INSTALLATION

NLLC0127

Drain coolant from radiator.

Remove cylinder block drain plug located at left front of cylin-
der block and drain coolant.

Remove front RH wheel and engine side cover.

Remove drive belts. Refer to EM-86, “Checking Drive Belts”.

Remove RH engine mounting. Refer to EM-131, “ENGINE
REMOVAL”.

ENGINE COOLING SYSTEM

System Check (Cont’d)

LC-33

Content .. 169 170 171 172 ..
