Nissan Almera Tino V10 (2001 year). Manual - part 169

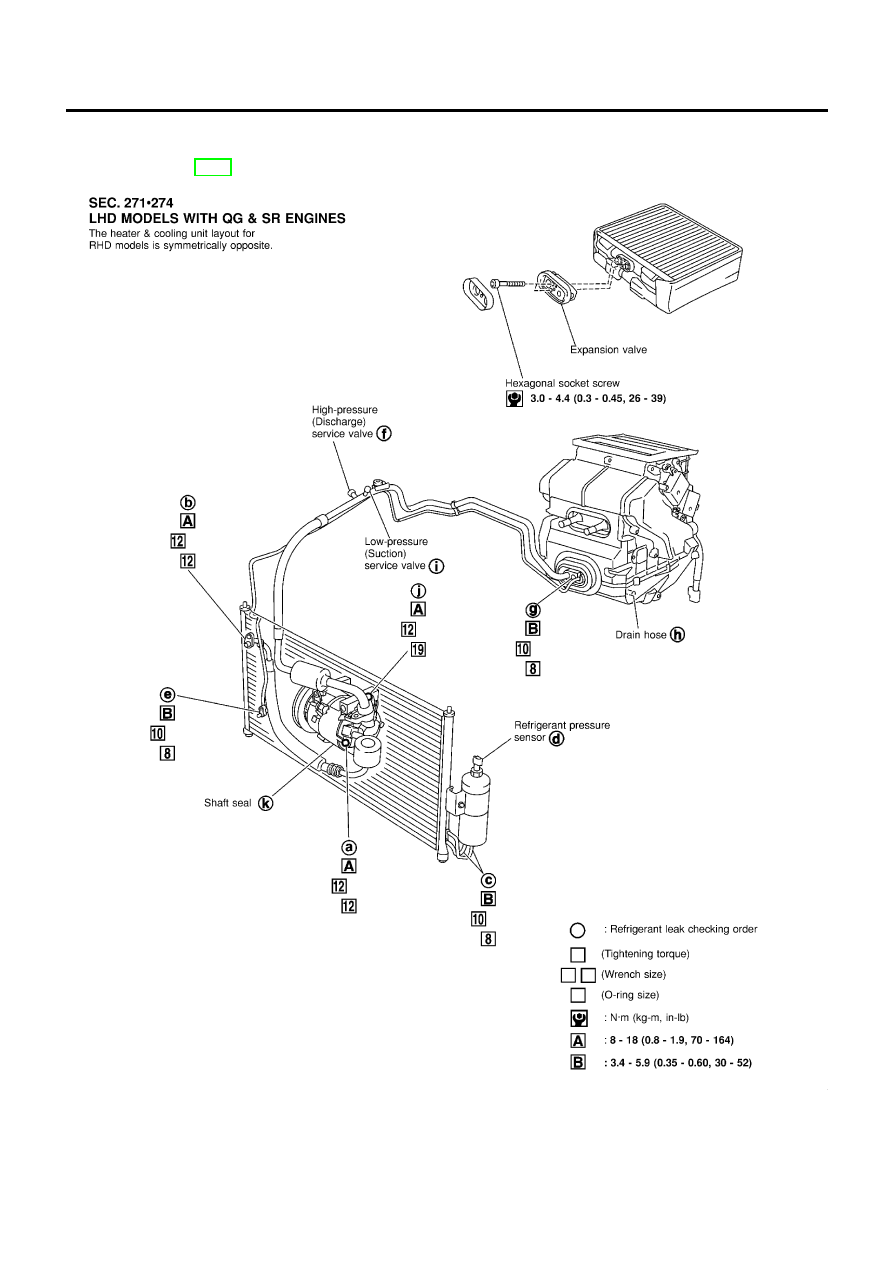

Refrigerant Lines

REMOVAL AND INSTALLATION

=NLHA0167

Refer to page HA-3 reading “Precautions for Refrigerant Connection”.

NHA397

SERVICE PROCEDURE

Refrigerant Lines

HA-98

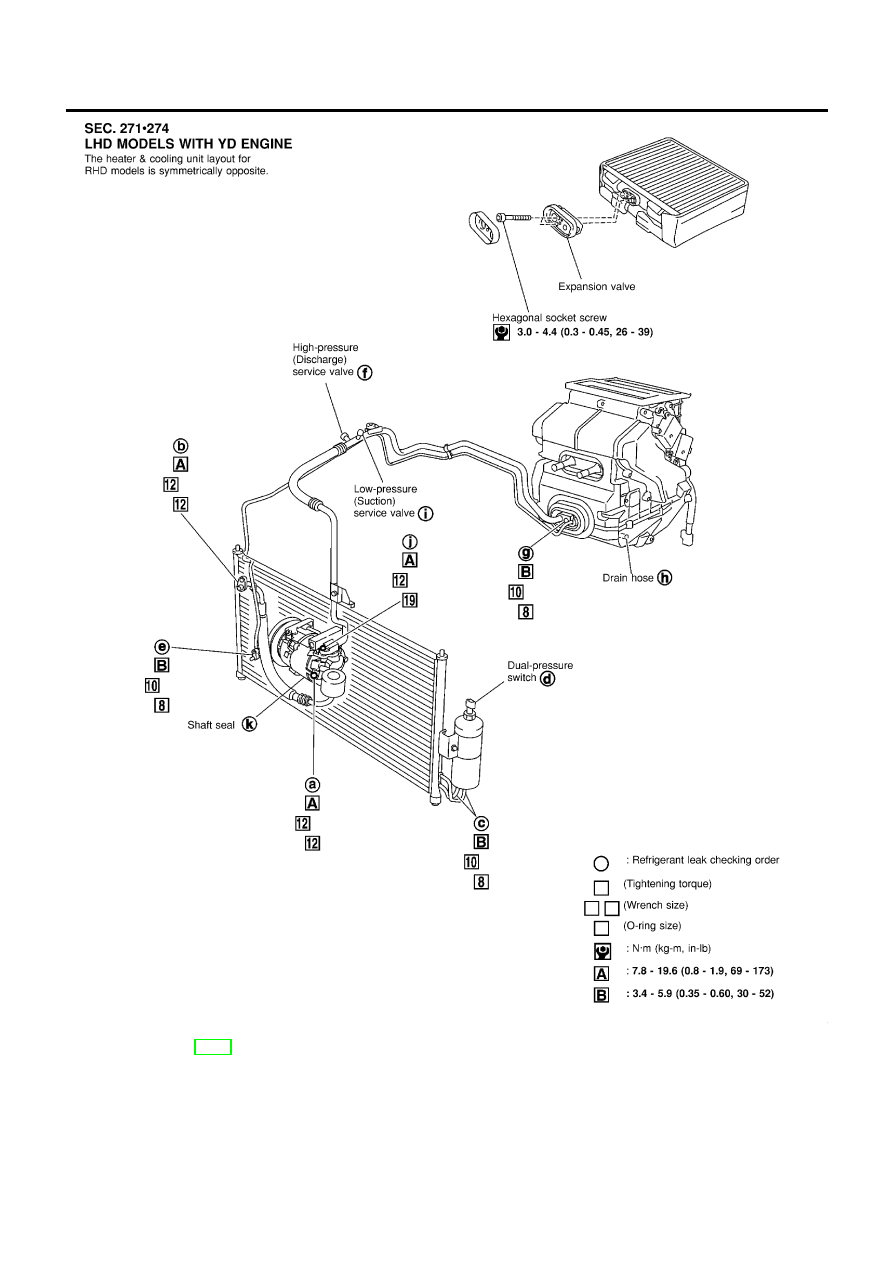

NHA396

Refer to page HA-3 regarding “Precautions for Refrigerant Connection”.

SERVICE PROCEDURE

Refrigerant Lines (Cont’d)

HA-99

CHECKING REFRIGERANT LEAKS

=NLHA0168

Preliminary Check

NLHA0168S01

Perform a visual inspection of all refrigeration parts, fittings, hoses,
and components for signs of A/C lubricant leakage, damage and
corrosion. Take note of the areas with A/C lubricant leakage to
allow extra time in these areas with electronic leak detector.

SHA705EB

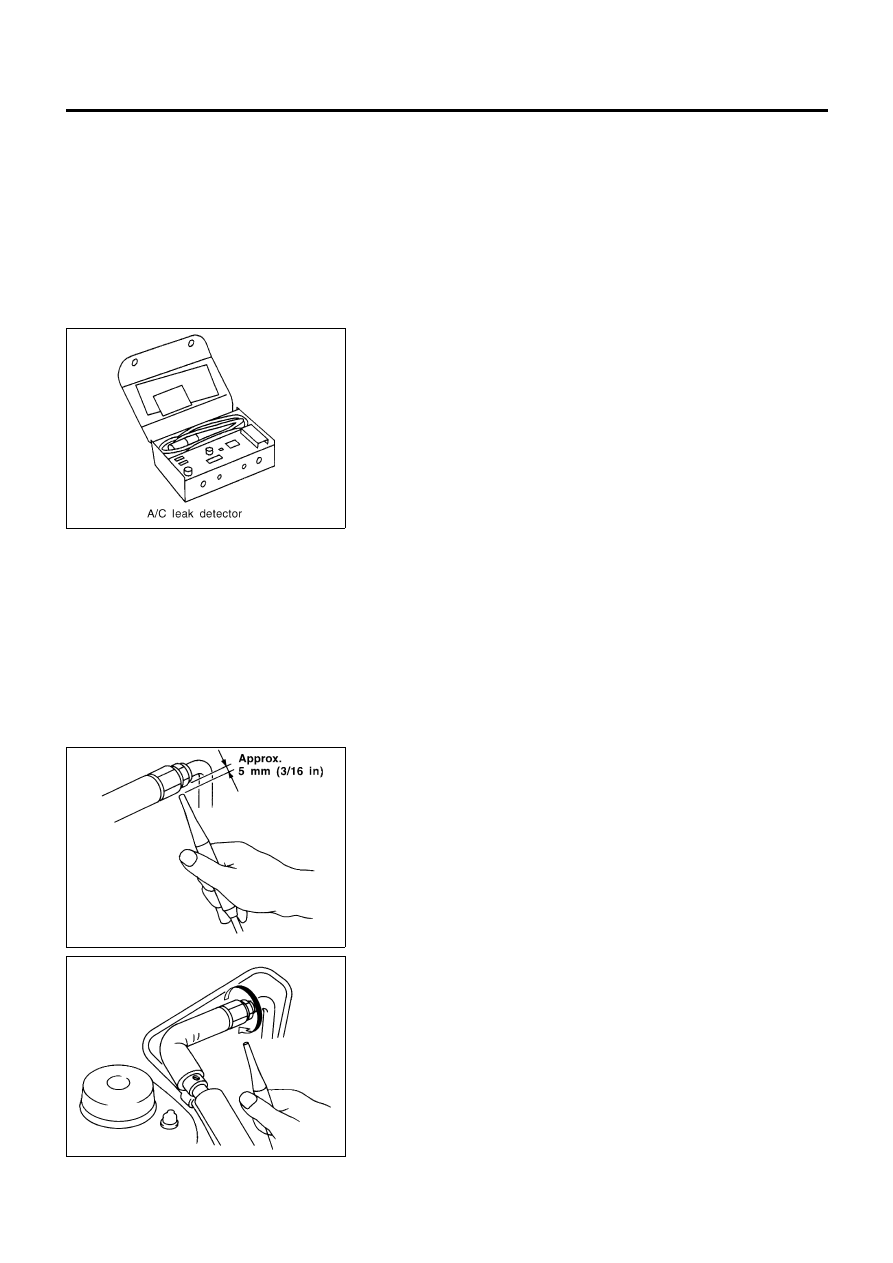

Precautions for Handling Leak Detector

NLHA0168S02

When performing a refrigerant leak check, use an A/C leak detec-
tor or equivalent. Ensure that the instrument is calibrated and set
properly per the operating instructions.
The leak detector is a delicate device. In order to use the leak
detector properly, read the operating instructions and perform any
specified maintenance.
Other gases in the work area or substances on the A/C
components, for example, anti-freeze, windshield washer
fluid, solvents and lubricants, may falsely trigger the leak
detector. Make sure the surfaces to be checked are clean.
Clean with a dry cloth or blow off with shop air. Do not allow
the sensor tip of the detector to contact with any substance.
This can also cause false readings and may damage the detec-
tor.

SHA707EA

Position probe approximately 5 mm (3/16 in) away from point
to be checked.

SHA706E

When testing, circle each fitting completely with probe.

SERVICE PROCEDURE

Refrigerant Lines (Cont’d)

HA-100

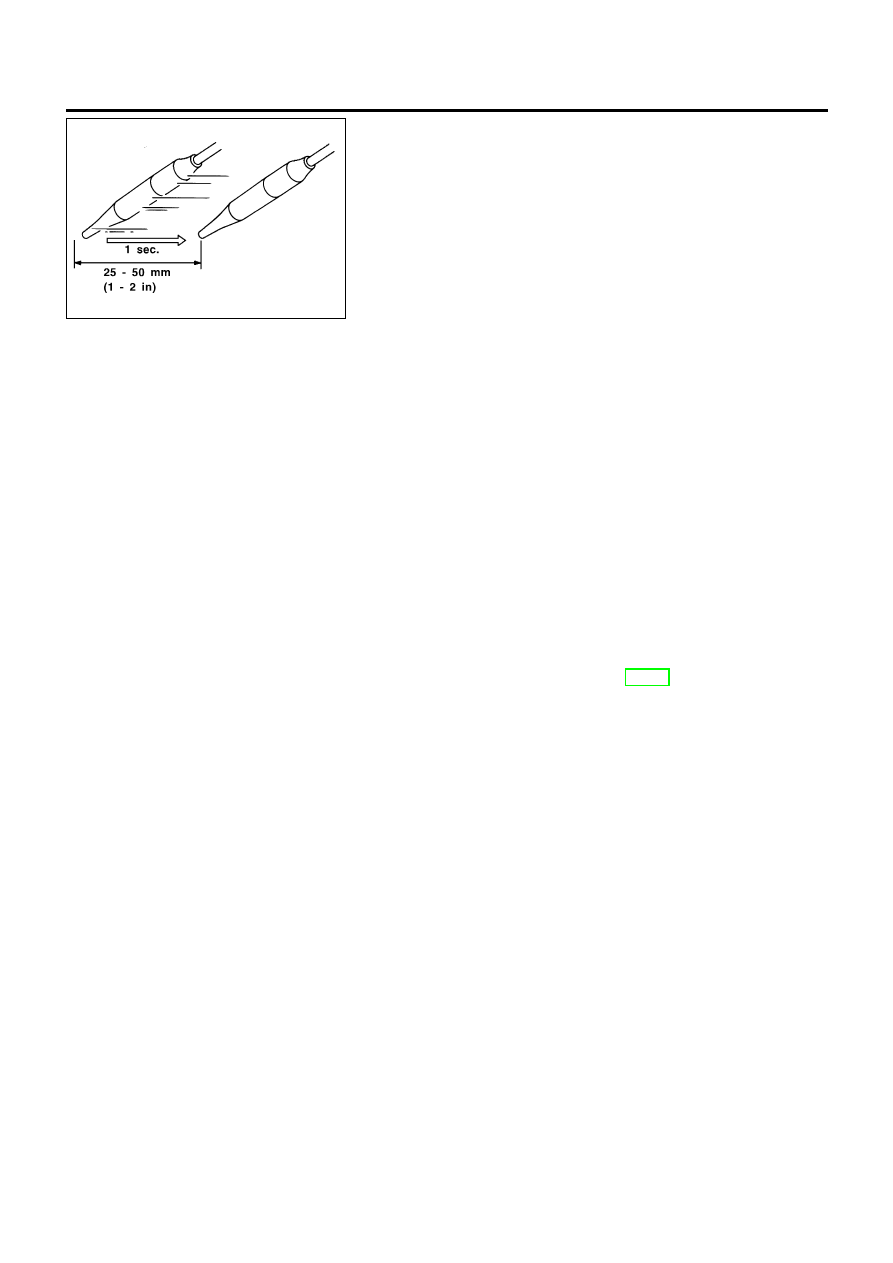

SHA708EA

Move probe along component approximately 25 to 50 mm (1
to 2 in)/sec.

Checking Procedure

NLHA0168S03

To prevent inaccurate or false readings, make sure there is no
refrigerant vapor, shop chemicals, or cigarette smoke in the
vicinity of the vehicle. Perform the leak test in calm area (low
air/wind movement) so that the leaking refrigerant is not dis-
persed.
1.

Turn engine off.

Connect a suitable A/C manifold gauge set to the A/C service
ports.

Check if the A/C refrigerant pressure is at least 345.2 kPa (3.45
bar, 3.52 kg/cm

, 50.1 psi) above 16°C (61°F). If less than

specification, recover/evacuate and recharge the system with
the specified amount of refrigerant.

NOTE:
At temperatures below 16°C (61°F), leaks may not be detected
since the system may not reach 345.2 kPa (3.45 bar, 3.52 kg/cm

50.1 psi).
4.

Conduct the leak test from the high side (compressor dis-
charge a to evaporator inlet g) to the low side (evaporator drain
hose h to shaft seal k). Refer to HA-98. Perform a leak check
for the following areas carefully. Clean the component to be
checked and move the leak detector probe completely around
the connection/component.

Compressor
Check the fitting of high and low pressure hoses, relief valve
and shaft seal.

Liquid tank
Check the pressure switch, refrigerant pressure sensor, tube
fitting, weld seams and the fusible plug mount.

Service valves
Check all around the service valves. Ensure service valve caps
are secured on the service valves (to prevent leaks).

NOTE:
After removing A/C manifold gauge set from service valves, wipe
any residue from valves to prevent any false readings by leak
detector.

Cooling unit (Evaporator)
With engine OFF, turn blower fan on “High” for at least 15
seconds to dissipate any refrigerant trace in the cooling unit.
Wait a minimum of 10 minutes accumulation time (refer to the
manufacturer’s recommended procedure for actual wait time)
before inserting the leak detector probe into the drain hose.
Keep the probe inserted for at least ten seconds. Use caution
not to contaminate the ptobe tip with water or dirt that may be
in the drain hose.

SERVICE PROCEDURE

Refrigerant Lines (Cont’d)

HA-101

If a leak detector detects a leak, verify at least once by blow-
ing compressed air into area of suspected leak, then repeat
check as outlined above.

Do not stop when one leak is found. Continue to check for
additional leaks at all system components.
If no leaks are found, perform steps 7 - 10.

Start engine.

Set the heater A/C control as follows:

A/C switch ON.

Face mode

Recirculation position

Max cold temperature

Fan speed high

Run engine at 1,500 rpm for at least 2 minutes.

10. Turn engine off and perform leak check again following steps

4 through 6 above.

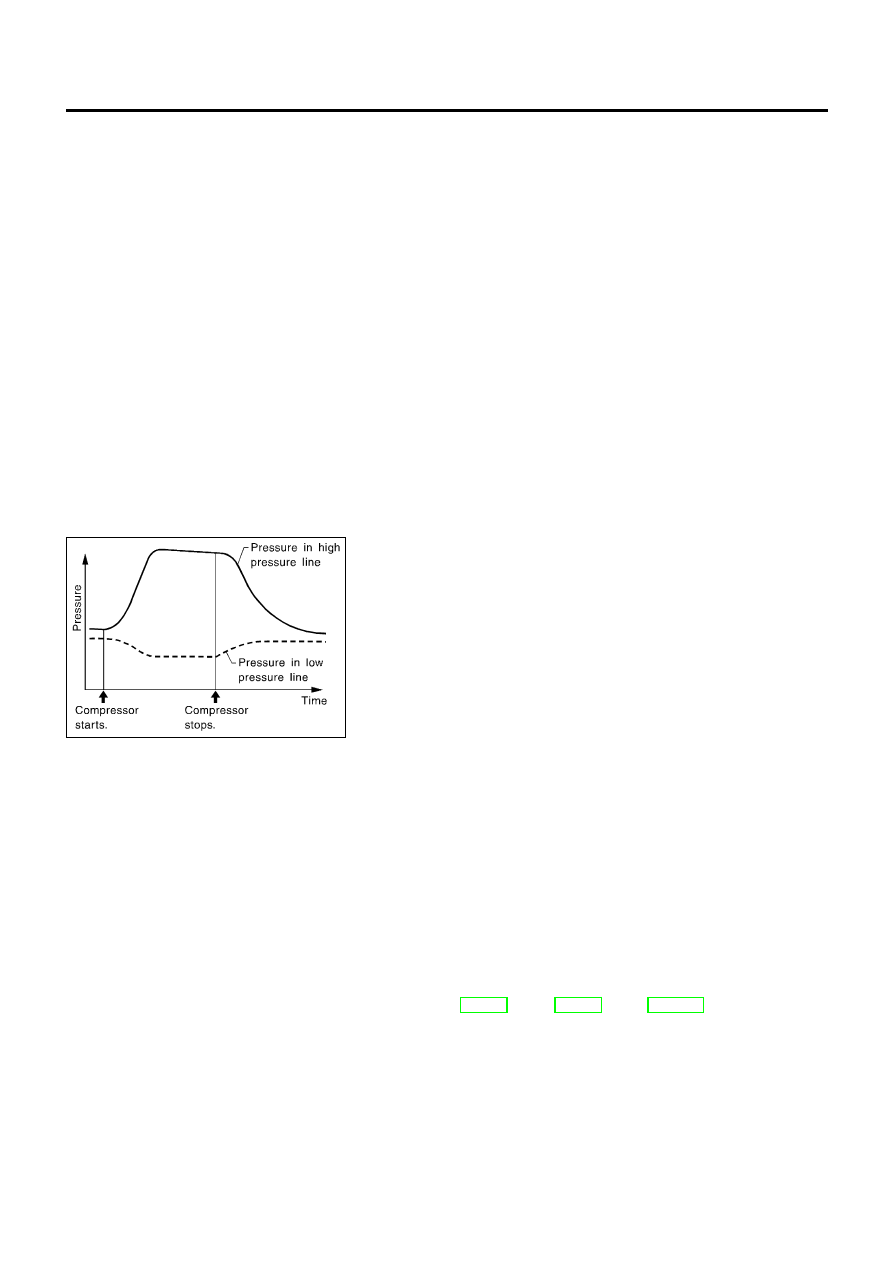

SHA839E

Refrigerant leaks should be checked immediately after
stopping the engine. Begin with the leak detector at the
compressor. The pressure on the high pressure side will
gradually drop after refrigerant circulation stops and pres-
sure on the low pressure side will gradually rise, as shown
in the graph. Some leaks are more easily detected when
pressure is high.

11. Discharge A/C system using approved refrigerant recovery

equipment. Repair the leaking fitting or component as neces-
sary.

12. Evacuate and recharge A/C system and perform the leak test

to confirm no refrigerant leaks.

13. Conduct A/C performance test to ensure system works

properly.

Belt

TENSION ADJUSTMENT

NLHA0169

Refer to EM-17 (QG), EM-86 (SR), EM-166 (YD), “Checking
Drive Belt”.

SERVICE PROCEDURE

Refrigerant Lines (Cont’d)

HA-102

Idle Air Control Valve (IACV) — Auxiliary Air
Control (AAC) Valve

INSPECTION

NLHA0199

Refer to EC-466 (QG), EC-996 (SR) “System Description”.

RHA680H

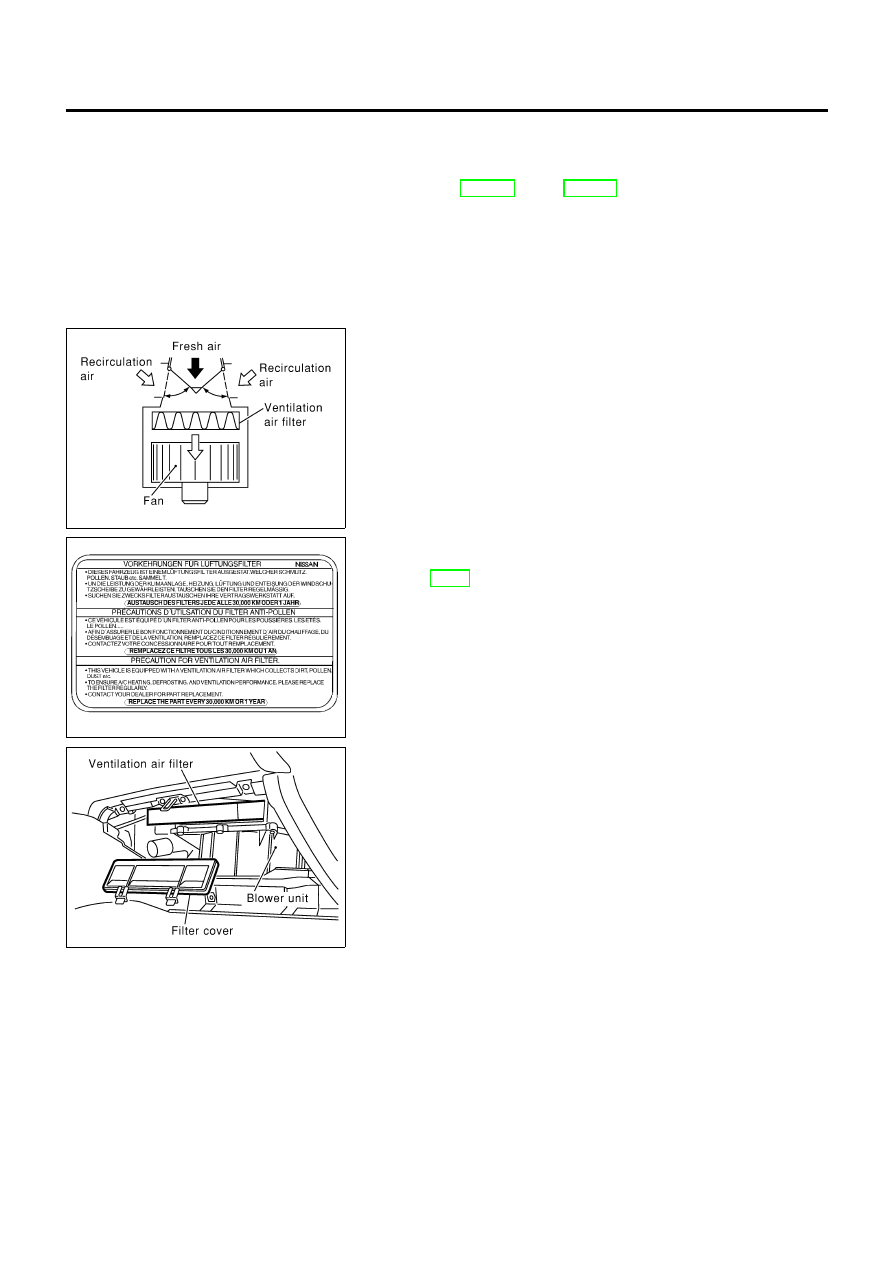

Ventilation Air Filter

FUNCTION

NLHA0171

Air inside passenger compartment is kept clean at either recircula-
tion or fresh mode by installing ventilation air filter into cooling unit.

SHA868E

REPLACEMENT TIMING

NLHA0172

Replace ventilation air filter.
Refer to MA-9, “PERIODIC MAINTENANCE”.
Caution label is fixed inside the glove box.

RHA681H

REPLACEMENT PROCEDURE

NLHA0173

Remove glove box.

Remove filter cover.

Take out the ventilation air filter from blower unit.

Replace with new one and reinstall on blower unit.

Reinstall glove box.

SERVICE PROCEDURE

Idle Air Control Valve (IACV) — Auxiliary Air Control (AAC) Valve

HA-103

Manual

COMPRESSOR

NLHA0174

Model CALSONIC make CSV613

Type Swash plate (Variable displacement)

Displacement cm

(cu in)/rev. 6.0 - 125 (0.37 - 7.63)

Direction of rotation Clockwise (viewed from drive end)

Drive belt

SR·QG engine model: Poly V

YD engine model: Type A

LUBRICANT

NLHA0175

Model CALSONIC make CSV613

Name Nissan A/C System Oil Type S

Part number KLH00-PAGS0

Capacity
m

(Imp fl oz)

Total in system 200 (7.0)

Compressor (Service part) charging
amount

200 (7.0)

REFRIGERANT

NLHA0176

Type HFC-134a (R-134a)

Capacity kg (lb) 0.45 - 0.55 (0.99 - 1.21)

ENGINE IDLING SPEED (WHEN A/C IS ON)

NLHA0177

Refer to EC-547 (QG), EC-1062 (SR) EC-1305 (YD), “Idle Speed and Ignition Timing”.

BELT TENSION

NLHA0178

Refer to EM-17 (QG), EM-86 (SR) EM-166 (YD), “Checking Drive Belts”.

SERVICE DATA AND SPECIFICATIONS (SDS)

Manual

HA-104
