Nissan Almera Tino V10 (2001 year). Manual - part 170

Cooling Circuit ...........................................................53
System Check............................................................54

CHECKING COOLING SYSTEM HOSES

...................54

CHECKING RADIATOR

............................................54

CHECKING RADIATOR CAP

....................................54

CHECKING COOLING SYSTEM FOR LEAKS

............55

Water Pump ...............................................................55

REMOVAL AND INSTALLATION

...............................55

REMOVAL

...............................................................56

INSPECTION

...........................................................56

INSTALLATION

........................................................56

Thermostat.................................................................57

REMOVAL AND INSTALLATION

...............................57

INSPECTION

...........................................................58

Radiator .....................................................................58

COMPONENTS

.......................................................58

REMOVAL AND INSTALLATION

...............................59

Cooling Fan ...............................................................59

COMPONENTS

.......................................................59

CONTROL SYSTEM

................................................59

Changing Engine Coolant..........................................59

- DRAINING ENGINE COOLANT -

............................59

- REFILLING ENGINE COOLANT -

...........................60

- FLUSHING COOLING SYSTEM -

............................61

Overheating Cause Analysis .....................................62
Service Data and Specifications (SDS).....................63

THERMOSTAT

........................................................63

RADIATOR

..............................................................63

ENGINE COOLANT CAPACITY

................................63

CONTENTS

(Cont’d)

LC-2

SEM164F

AEM080

Precautions

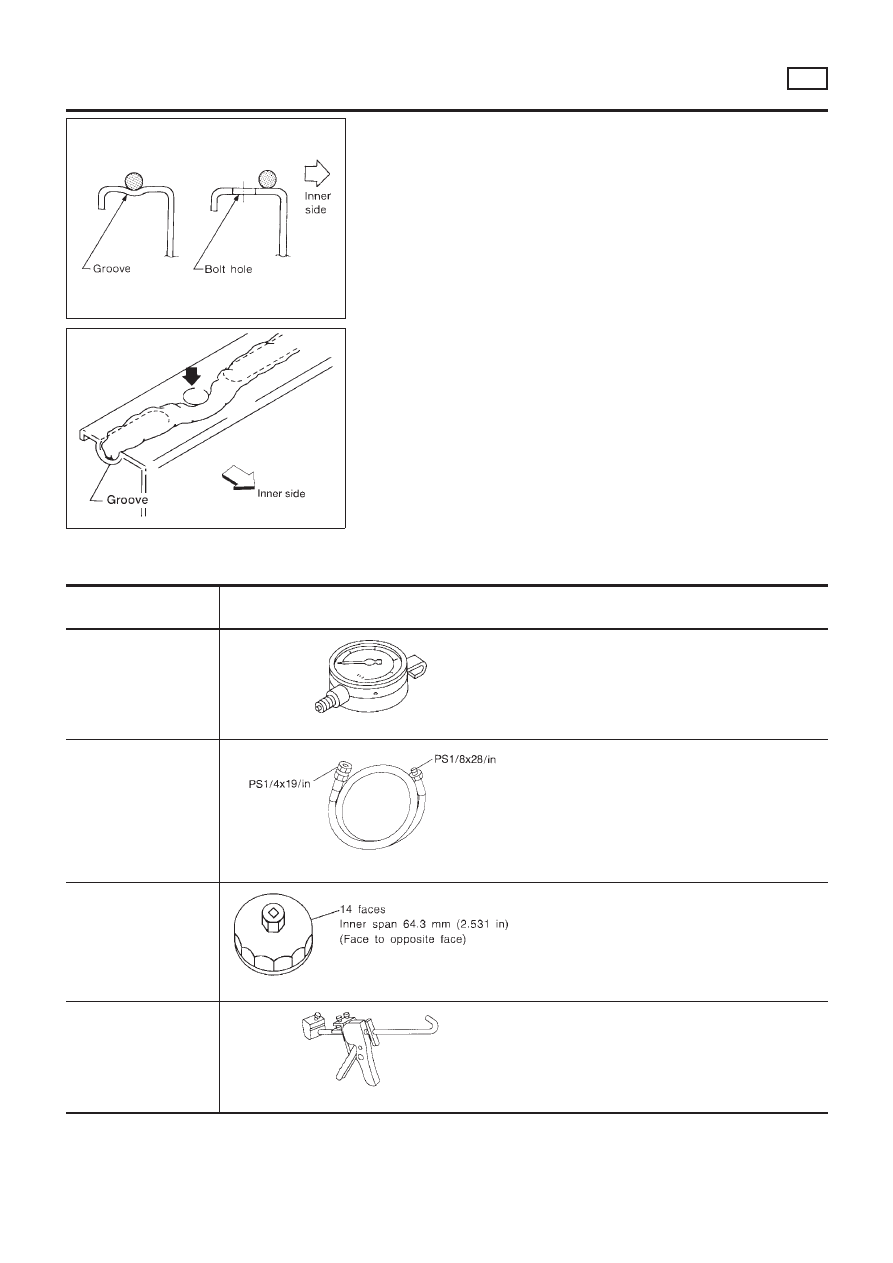

LIQUID GASKET APPLICATION PROCEDURE

NLLC0001

Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from these areas.

Apply a continuous bead of liquid gasket to mating surfaces.
(Use Genuine Liquid Gasket or equivalent.)

For oil pan, be sure liquid gasket diameter is 3.5 to 4.5 mm
(0.138 to 0.177 in).

For areas except oil pan, be sure liquid gasket diameter is 2.0
to 3.0 mm (0.079 to 0.118 in).

Apply liquid gasket around the inner side of bolt holes (unless
otherwise specified).

Assembly should be done within 5 minutes after coating.

Wait at least 30 minutes before refilling engine oil and engine
coolant.

Preparation

SPECIAL SERVICE TOOLS

NLLC0002

Tool number
Tool name

Description

ST25051001
Oil pressure gauge

NT050

Measuring oil pressure

ST25052000
Hose

NT559

Adapting oil pressure gauge to cylinder block

KV10115801
Oil filter wrench

NT772

Removing oil filter

WS39930000
Tube presser

NT052

Pressing the tube of liquid gasket

ENGINE LUBRICATION SYSTEM

Precautions

LC-3

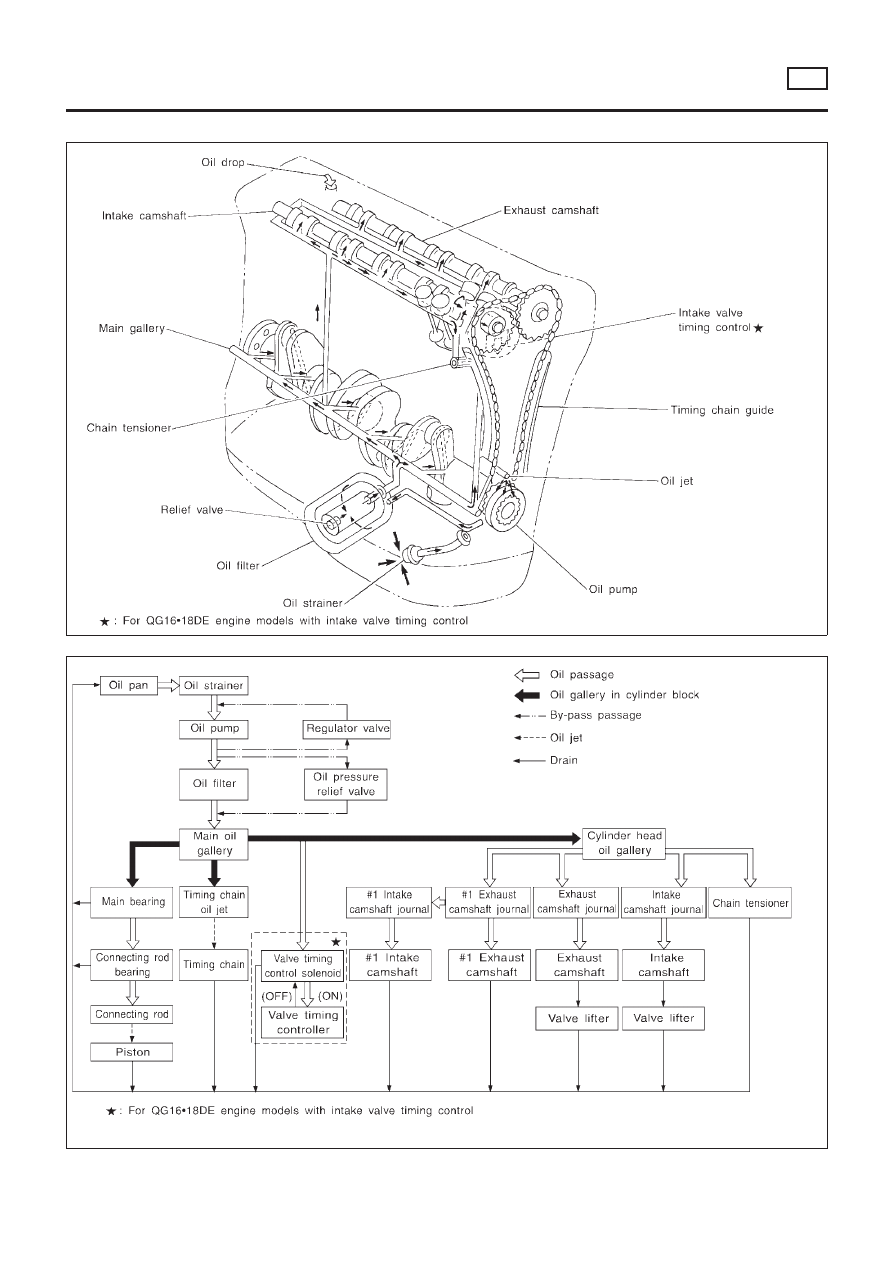

Lubrication Circuit

NLLC0003

SEM852FB

SLC339B

ENGINE LUBRICATION SYSTEM

Lubrication Circuit

LC-4

SEM853F

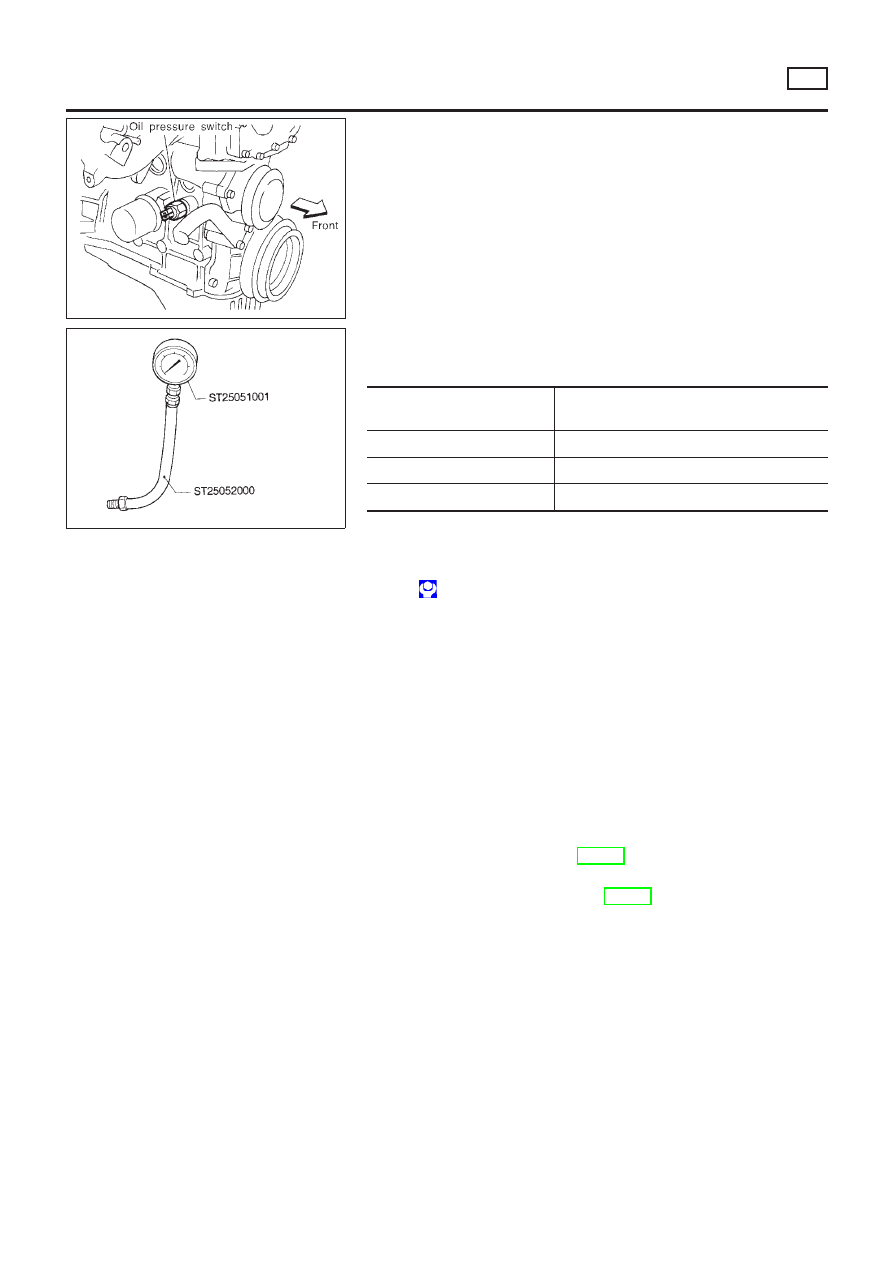

Oil Pressure Check

NLLC0004

WARNING:

Be careful not to burn yourself, as the engine and oil may
be hot.

For M/T models, put gearshift lever in Neutral “N” posi-
tion.

Check oil level.

Remove oil pressure switch.

SLC926-A

Install pressure gauge.

Start engine and warm it up to normal operating temperature.

Check oil pressure with engine running under no-load.

Engine speed

rpm

Approximate discharge pressure

kPa (bar, kg/cm

, psi)

600

More than 98 (0.98, 1.0, 14)

2,000

More than 294 (2.94, 3.0, 43)

6,000

More than 392 (3.92, 4.0, 57)

If difference is extreme, check oil passage and oil pump
for oil leaks.

Install oil pressure switch with sealant.

: 13 - 17 N·m (1.25 - 1.75 kg-m, 9 - 12 ft-lb)

Oil Pump

REMOVAL AND INSTALLATION

NLLC0005

Make sure that O-ring is fitted properly.

Drain engine oil.

Remove drive belts.

Remove oil pan. Refer to EM-20, “OIL PAN”.

Remove oil strainer.

Remove front cover. Refer to EM-22, “TIMING CHAIN”.

Install front cover.

Reinstall parts in reverse order of removal.

ENGINE LUBRICATION SYSTEM

Oil Pressure Check

LC-5

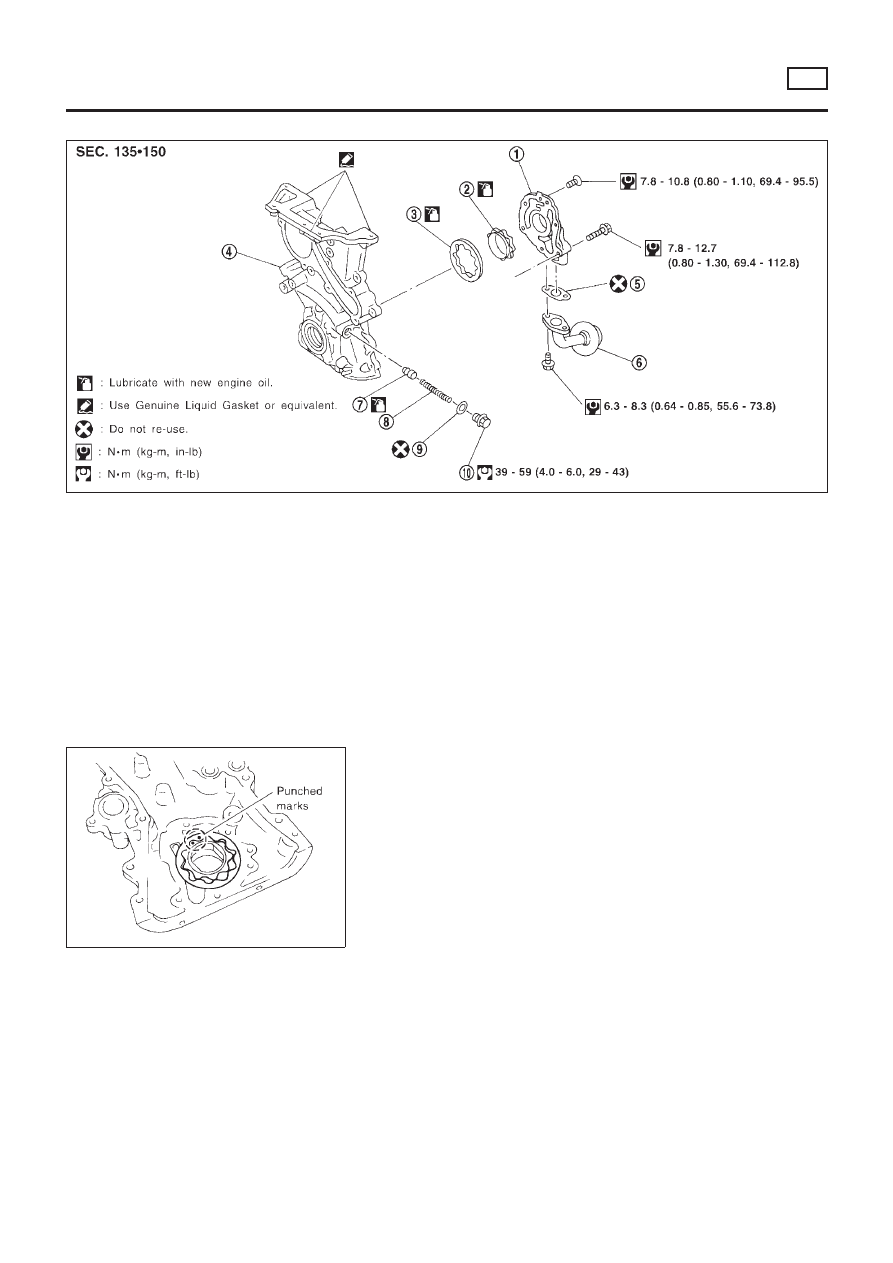

DISASSEMBLY AND ASSEMBLY

NLLC0006

SEM854FA

Oil pump cover

Inner rotor

Outer rotor

Front cover

Gasket

Oil strainer

Regulator valve

Spring

Washer

10. Plug

When installing oil pump, apply engine oil to rotors.

JLC307B

Install the inner rotor and outer rotor with the punched
marks on the oil pump cover side.

ENGINE LUBRICATION SYSTEM

Oil Pump (Cont’d)

LC-6

SEM855F

SEM856F

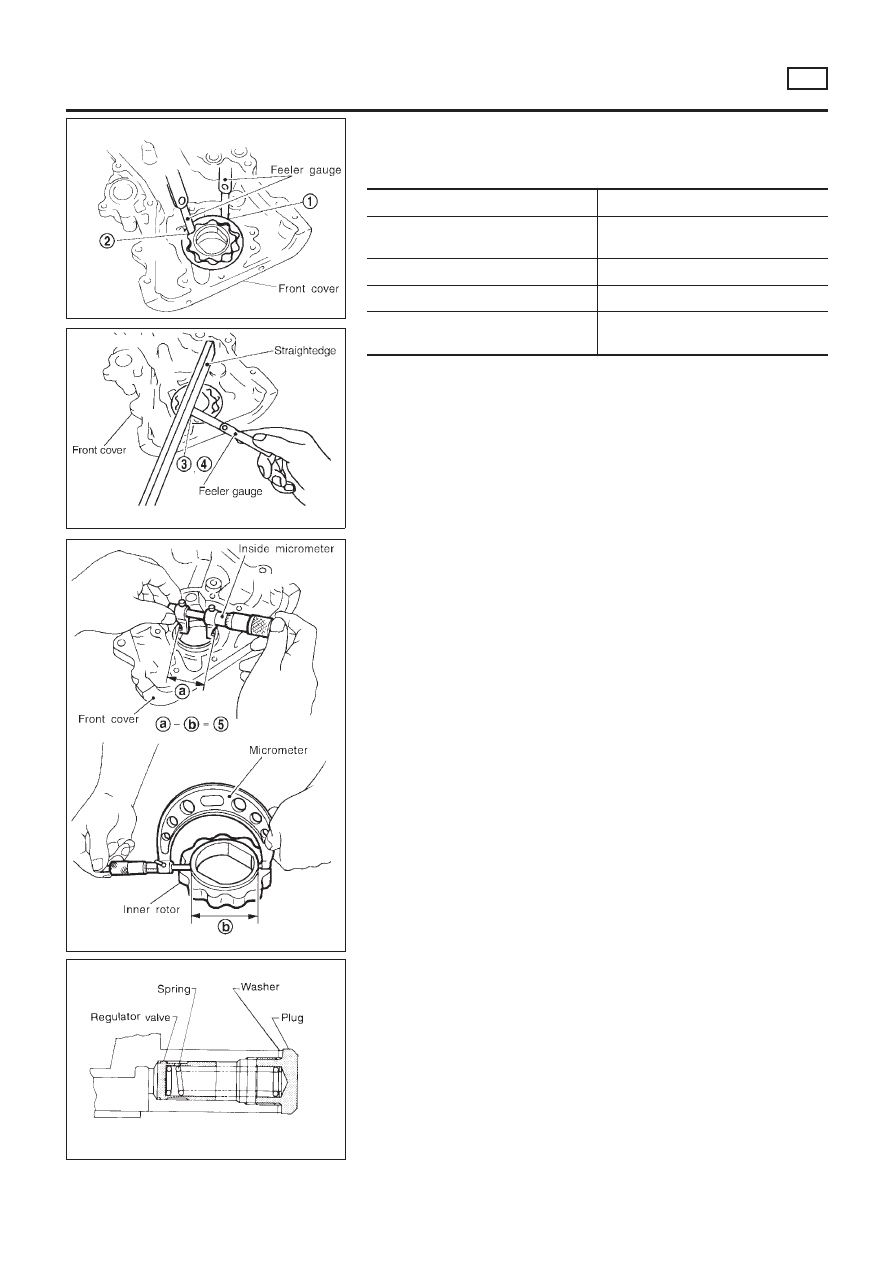

INSPECTION

NLLC0007

Using a feeler gauge, check the following clearances.
Standard clearance:

Unit: mm (in)

Body to outer rotor radial clearance 1

0.250 - 0.325 (0.0098 - 0.0128)

Inner rotor to outer rotor tip clearance
2

Below 0.18 (0.0071)

Body to inner rotor clearance 3

0.030 - 0.085 (0.0012 - 0.0033)

Body to outer rotor axial clearance 4

0.030 - 0.090 (0.0012 - 0.0035)

Inner rotor to brazed portion of hous-
ing clearance 5

0.045 - 0.091 (0.0018 - 0.0036)

SEM857FA

If the tip clearance (2) exceeds the limit, replace rotor set.

If body to rotor clearances (1, 3, 4, 5) exceed the limit,
replace front cover assembly.

SLC986AA

REGULATOR VALVE INSPECTION

NLLC0008

Visually inspect components for wear and damage.

Check oil pressure regulator valve sliding surface and valve
spring.

Coat regulator valve with engine oil.
Check that it falls smoothly into the valve hole by its own
weight.

If damaged, replace regulator valve set or front cover assem-
bly.

ENGINE LUBRICATION SYSTEM

Oil Pump (Cont’d)

LC-7

SLC101B

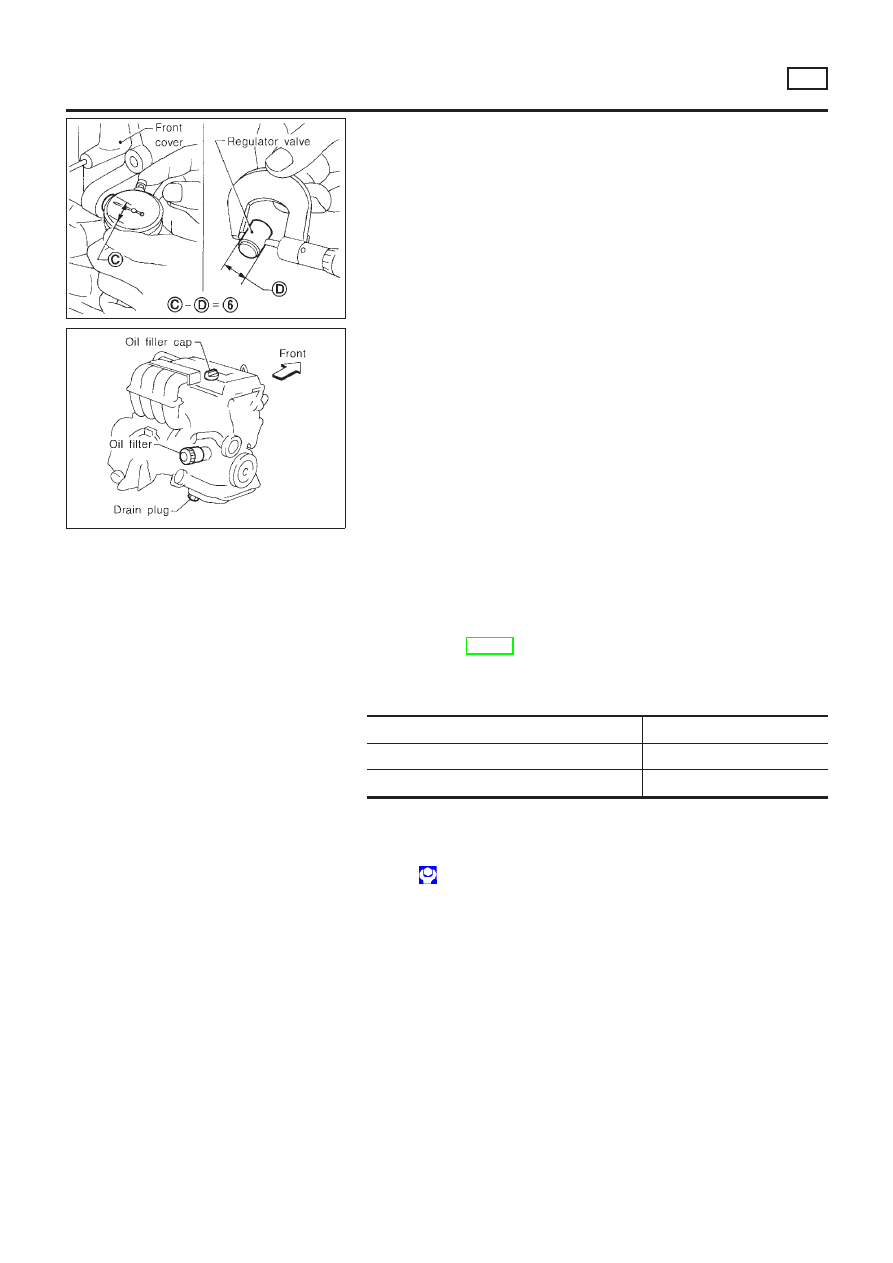

Check regulator valve to front cover clearance.

Clearance 6:

0.052 - 0.088 mm (0.0020 - 0.0035 in)

If it exceeds the limit, replace front cover assembly.

SMA915C

Changing Engine Oil

NLLC0035

WARNING:

Be careful not to burn yourself, as the engine oil is hot.

Prolonged and repeated contact with used engine oil may
cause skin cancer; try to avoid direct skin contact with
used oil. If skin contact is made, wash thoroughly with
soap or hand cleaner as soon as possible.

Warm up engine, and check for oil leakage from engine com-
ponents.

Stop engine and wait more than 10 minutes.

Remove drain plug and oil filler cap.

Drain oil and refill with new engine oil.

Oil specification and viscosity (For Europe):

API grade SG, SH or SJ

ACEA grade A1-98, A3-98

ILSAC grade GF-I, GF-II
Refer to MA-20, “RECOMMENDED FLUIDS AND LUBRI-
CANTS”.

Refill oil capacity (Approximate):

Unit:

(Imp qt)

With oil filter change

2.7 (2-3/8)

Without oil filter change

2.5 (2-1/4)

Dry engine (engine overhaul)

3.1 (2-3/4)

CAUTION:

Be sure to clean drain plug and install with new washer.

Drain plug:

: 29 - 39 N·m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)

The refill capacity changes depending on the oil tempera-
ture and drain time, use these values as a reference and
be certain to check with the dipstick when changing the
oil.

ENGINE LUBRICATION SYSTEM

Oil Pump (Cont’d)

LC-8

SMA390C

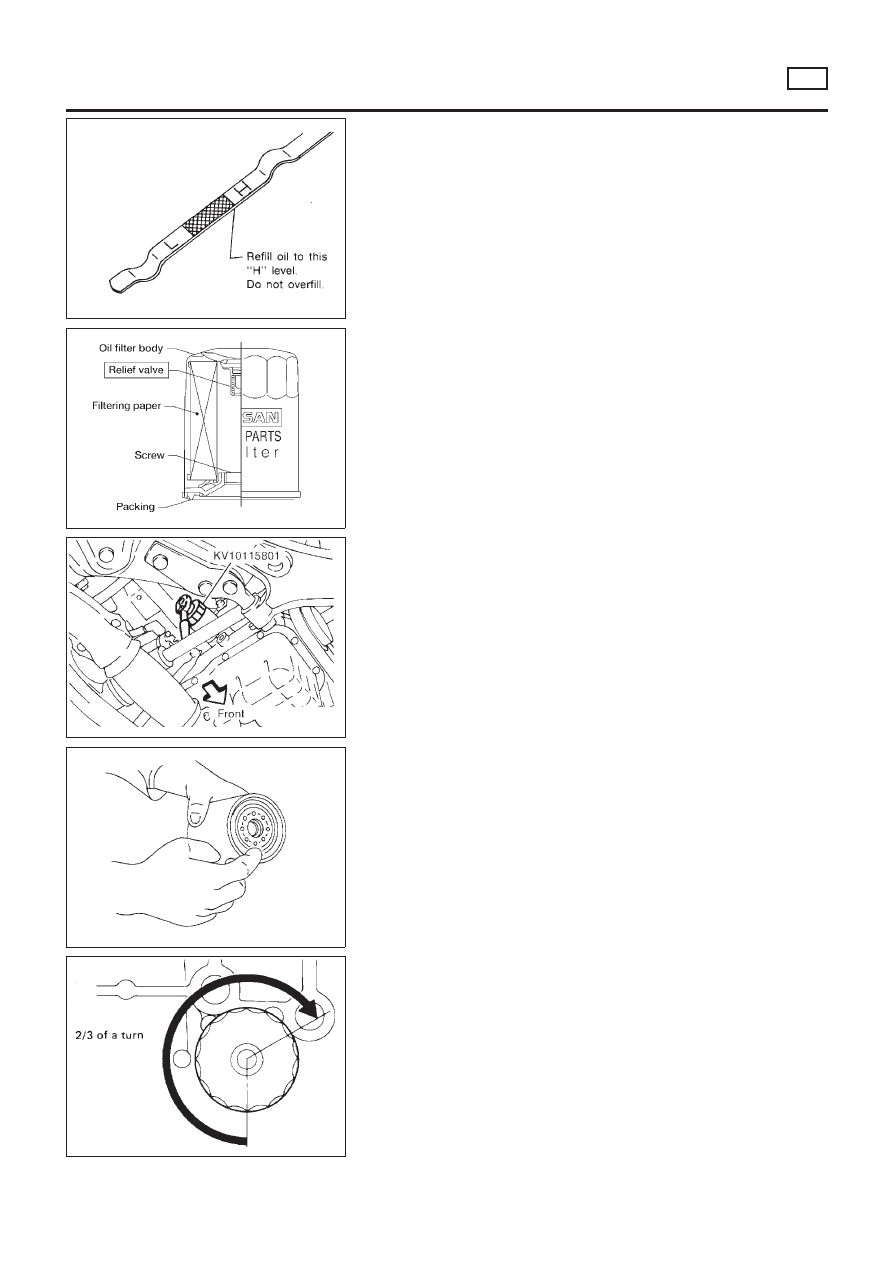

Check oil level.

Start engine and check area around drain plug and oil filter for
oil leakage.

Run engine for a few minutes, then turn it off. After several
minutes, check oil level.

ALC094

Changing Oil Filter

NLLC0010

The oil filter is a small, full-flow cartridge type and is provided with
a relief valve.

Use Tool KV10115801 for removing oil filter.

SLC275B

Remove oil filter with Tool.

WARNING:

Be careful not to burn yourself, as the engine and the engine
oil are hot.

SMA010

Clean oil filter mounting surface on cylinder block. Coat rubber
seal of new oil filter with engine oil.

SMA229B

Screw in the oil filter until a slight resistance is felt, then tighten
an additional 2/3 turn.

Add engine oil.
Refer to Changing Engine Oil.

Clean excess oil from engine.

ENGINE LUBRICATION SYSTEM

Changing Engine Oil (Cont’d)

LC-9

Service Data and Specifications (SDS)

OIL PRESSURE CHECK

NLLC0011

Engine speed

rpm

Approximate discharge pressure

kPa (bar, kg/cm

, psi)

600

More than 98 (0.98, 1.0, 14)

2,000

More than 294 (2.94, 3.0, 43)

6,000

More than 392 (3.92, 4.0, 57)

OIL PUMP INSPECTION

NLLC0013

Unit: mm (in)

Body to outer rotor radial clearance

0.250 - 0.325 (0.0098 - 0.0128)

Inner rotor to outer rotor tip clearance

Below 0.18 (0.0071)

Body to inner rotor clearance

0.030 - 0.085 (0.0012 - 0.0033)

Body to outer rotor axial clearance

0.030 - 0.090 (0.0012 - 0.0035)

Inner rotor to brazed portion of housing clearance

0.045 - 0.091 (0.0018 - 0.0036)

REGULATOR VALVE INSPECTION

NLLC0012

Unit: mm (in)

Regulator valve to oil pump cover clearance

0.052 - 0.088 (0.0020 - 0.0035)

OIL CAPACITY

NLLC0036

Unit:

(Imp qt)

With oil filter change

2.7 (2-3/8)

Without oil filter change

2.5 (2-1/4)

Dry engine (engine overhaul)

3.1 (2-3/4)

ENGINE LUBRICATION SYSTEM

Service Data and Specifications (SDS)

LC-10

SEM164F

AEM080

Precautions

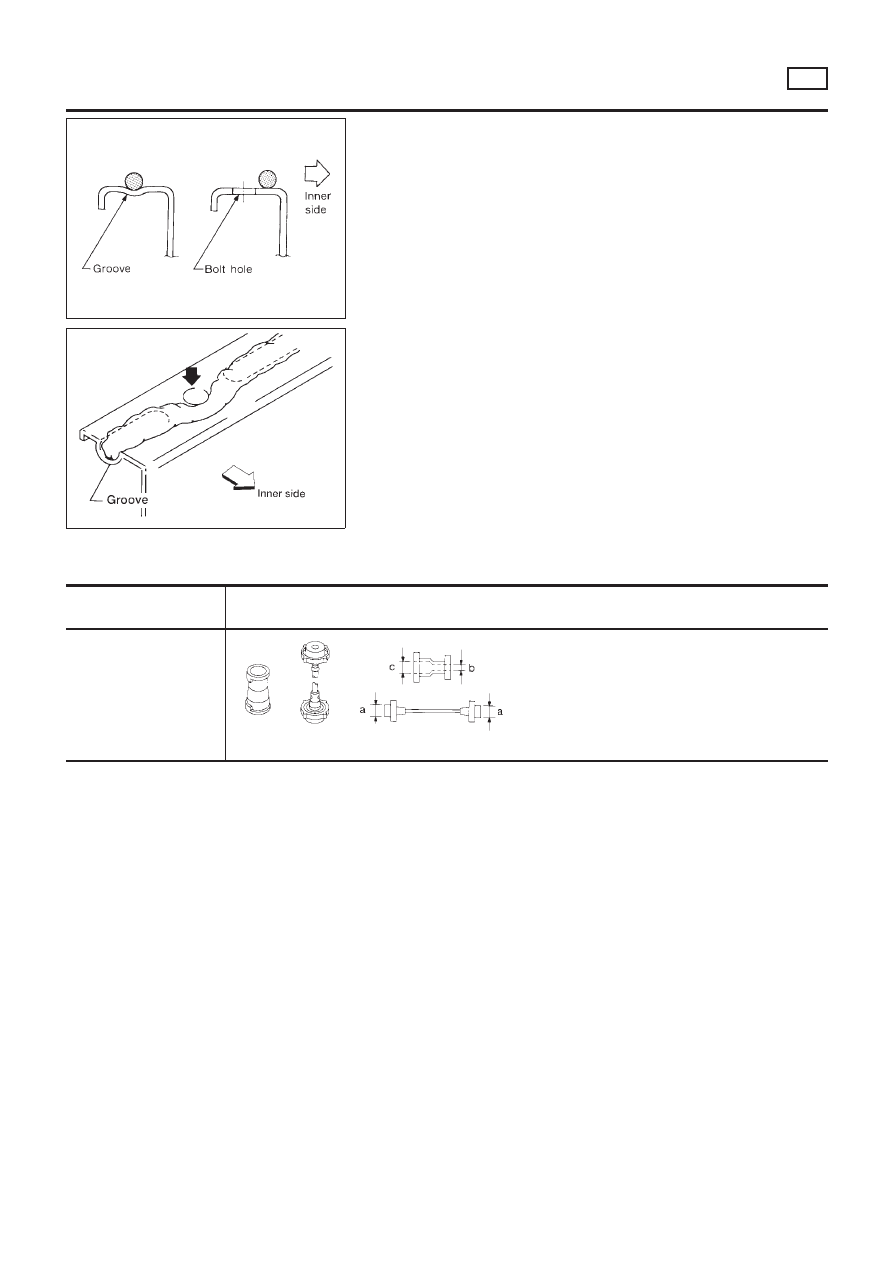

LIQUID GASKET APPLICATION PROCEDURE

NLLC0014

Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from these areas.

Apply a continuous bead of liquid gasket to mating surfaces.
(Use Genuine Liquid Gasket or equivalent).

For oil pan, be sure liquid gasket diameter is 3.5 to 4.5 mm
(0.138 to 0.177 in).

For areas except oil pan, be sure liquid gasket diameter is 2.0
to 3.0 mm (0.079 to 0.118 in).

Apply liquid gasket around the inner side of bolt holes (unless
otherwise specified).

Assembly should be done within 5 minutes after coating.

Wait at least 30 minutes before refilling engine oil and engine
coolant.

Preparation

SPECIAL SERVICE TOOLS

NLLC0015

Tool number
Tool name

Description

EG17650301
Radiator cap tester
adapter

NT564

Adapting radiator cap tester to radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

ENGINE COOLING SYSTEM

Precautions

LC-11

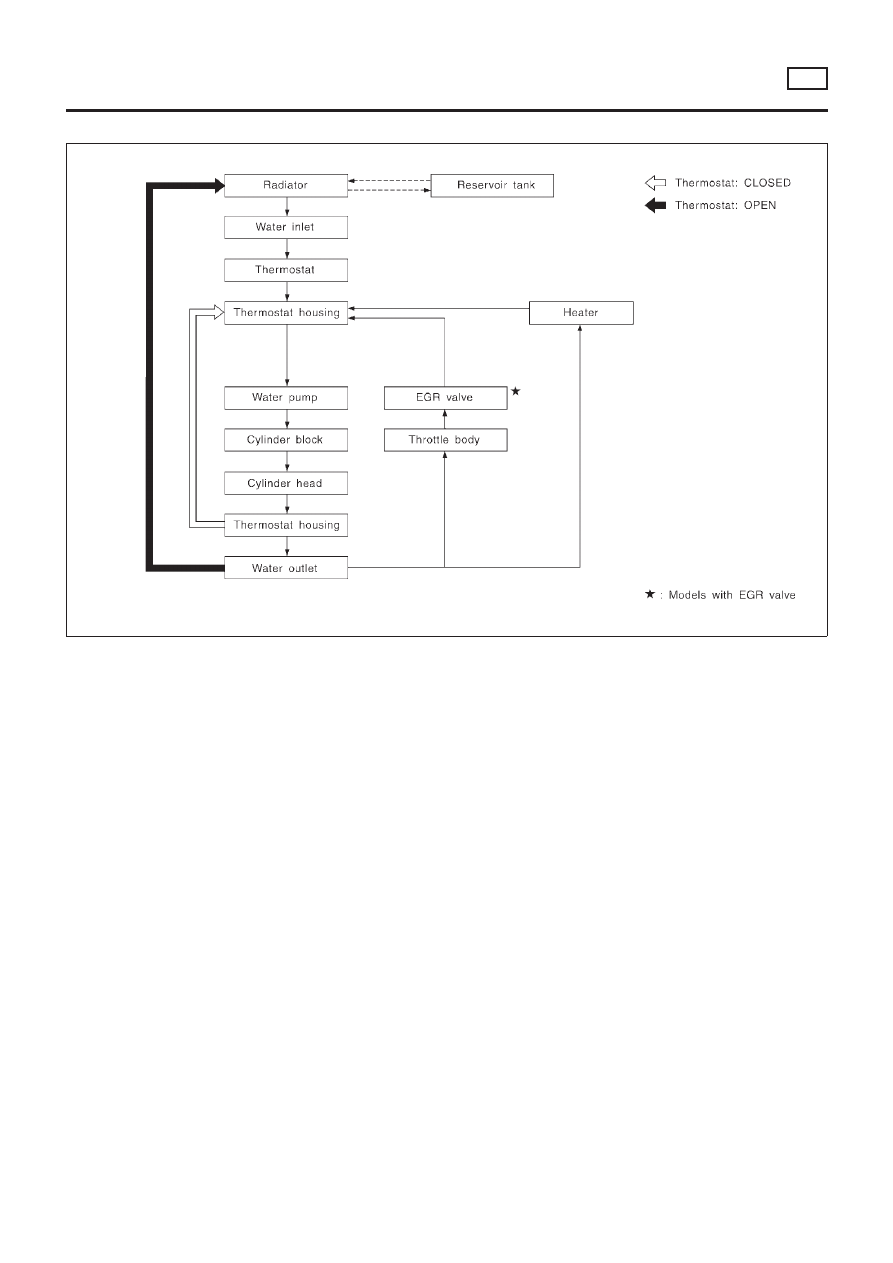

Cooling Circuit

NLLC0016

SLC317B

System Check

NLLC0017

WARNING:

Never remove the radiator cap when the engine is hot. Serious
burns could occur from high pressure fluid escaping from the
radiator.
Wrap a thick cloth around the cap. Slowly turn it a quarter turn
to allow built-up pressure to escape. Carefully remove the cap
by turning it all the way.

CHECKING COOLING SYSTEM HOSES

NLLC0017S01

Check hoses for the following:

Improper attachment

Leaks

Cracks

Damage

Loose connections

Chafing

Deterioration

ENGINE COOLING SYSTEM

Cooling Circuit

LC-12

CHECKING RADIATOR

NLLC0017S04

Check radiator for mud or clogging. If necessary, clean radiator as
follows.

Be careful not to bend or damage the radiator fins.

When radiator is cleaned without removal, remove all sur-
rounding parts such as cooling fan, radiator shroud and horns.
Then tape the harness and connectors to prevent water from
entering.

Apply water by hose to the back side of the radiator core ver-
tically download.

Apply water again to all radiator core surfaces once per
minute.

Stop washing if any stains no longer flow out from the radia-
tor.

Blow air into the back side of radiator core vertically download.

Use compressed air lower than 490 kPa (4.9 bar, 5 kg/cm

, 71

psi) and keep distance more than 30 cm (11.8 in).

Blow air again into all the radiator core surfaces once per
minute until no water sprays out.

SLC613-A

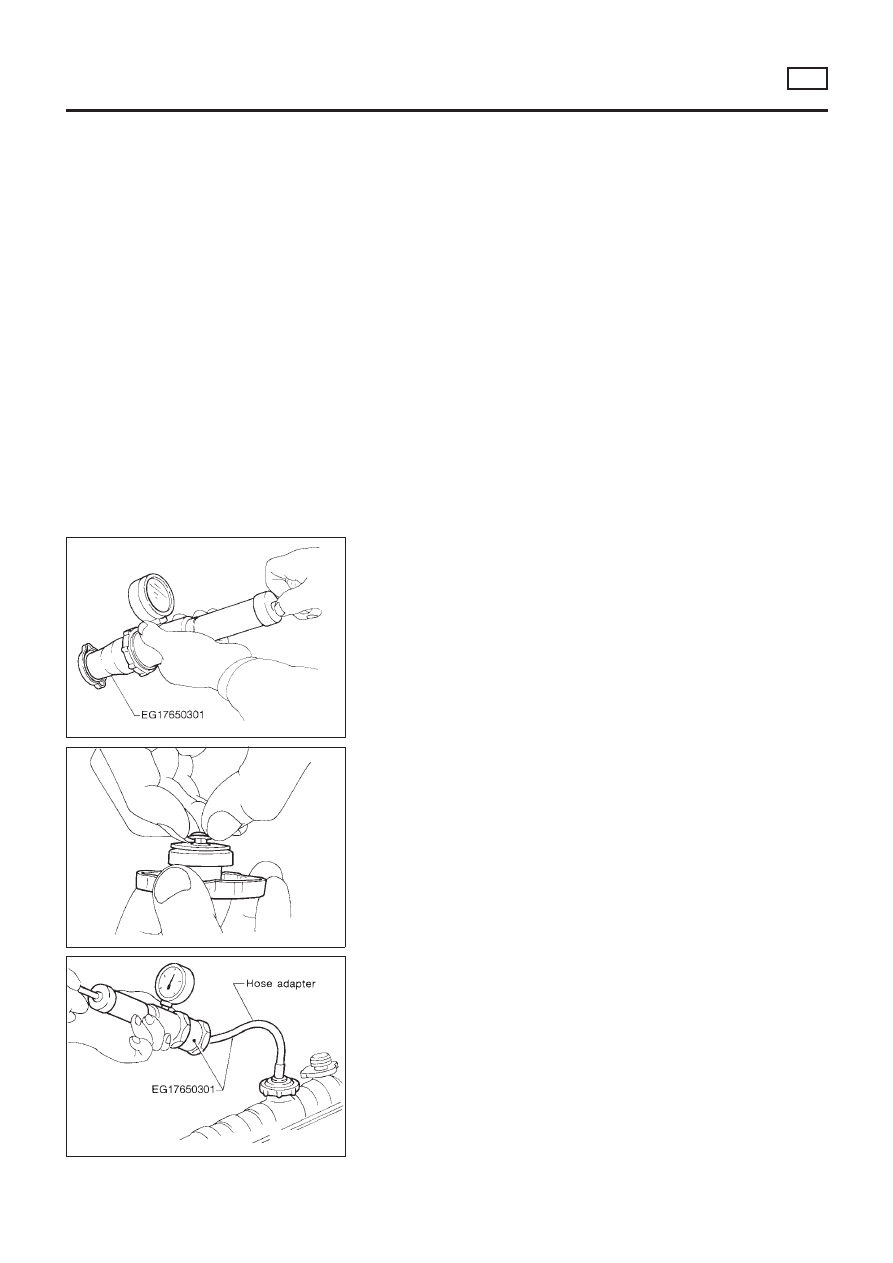

CHECKING RADIATOR CAP

NLLC0017S03

To check radiator cap, apply pressure to cap with a tester.

Radiator cap relief pressure:

Standard

78 - 98 kPa
(0.78 - 0.98 bar, 0.8 - 1.0 kg/cm

, 11 - 14 psi)

Limit

59 - 98 kPa
(0.59 - 0.98 bar, 0.6 - 1.0 kg/cm

, 9 - 14 psi)

SMA967B

Pull the negative pressure valve to open it.
Check that it closes completely when released.

SLC756AA

CHECKING COOLING SYSTEM FOR LEAKS

NLLC0017S02

To check for leakage, apply pressure to the cooling system with a
tester.

Testing pressure:

157 kPa (1.57 bar, 1.6 kg/cm

, 23 psi)

CAUTION:

Higher pressure than specified may cause radiator damage.

ENGINE COOLING SYSTEM

System Check (Cont’d)

LC-13

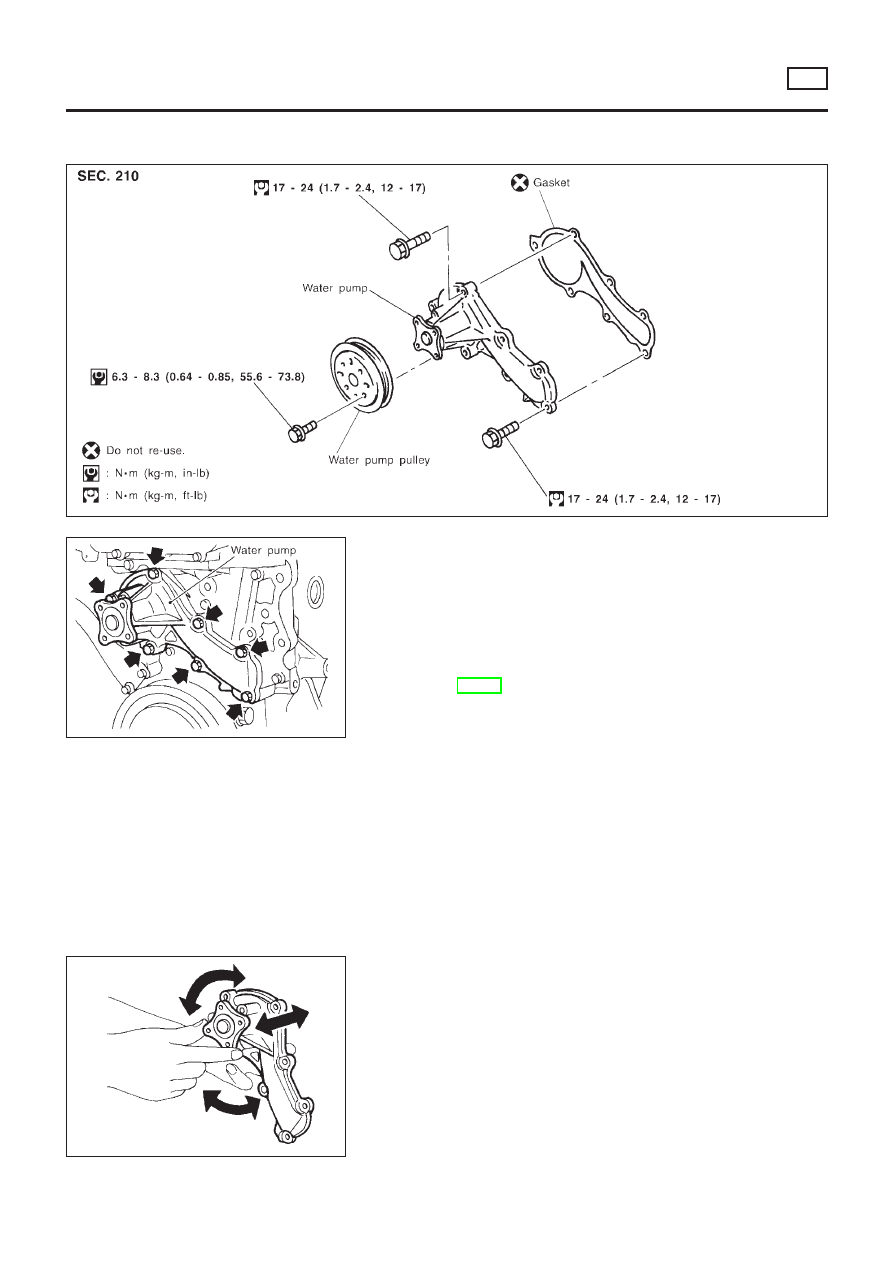

Water Pump

REMOVAL AND INSTALLATION

NLLC0018

SEM858F

SEM859F

CAUTION:

When removing water pump assembly, be careful not to
get coolant on drive belt.

Water pump cannot be disassembled and should be
replaced as a unit.

After installing water pump, and check for leaks using
radiator cap tester.

Drain engine coolant.
Refer to LC-19, “Changing Engine Coolant”.

Remove drive belts and idler pulley.

Loosen water pump pulley bolts.

Remove water pump pulley.

Remove front right wheel.

Remove front right undercover and front right fender protector.

Remove water pump bolts.

Remove water pump.

Reinstall parts in reverse order of removal.

SEM860F

INSPECTION

NLLC0019

Check body assembly and vane for rust or corrosion.

Check for rough operation due to excessive end play.

ENGINE COOLING SYSTEM

Water Pump

LC-14

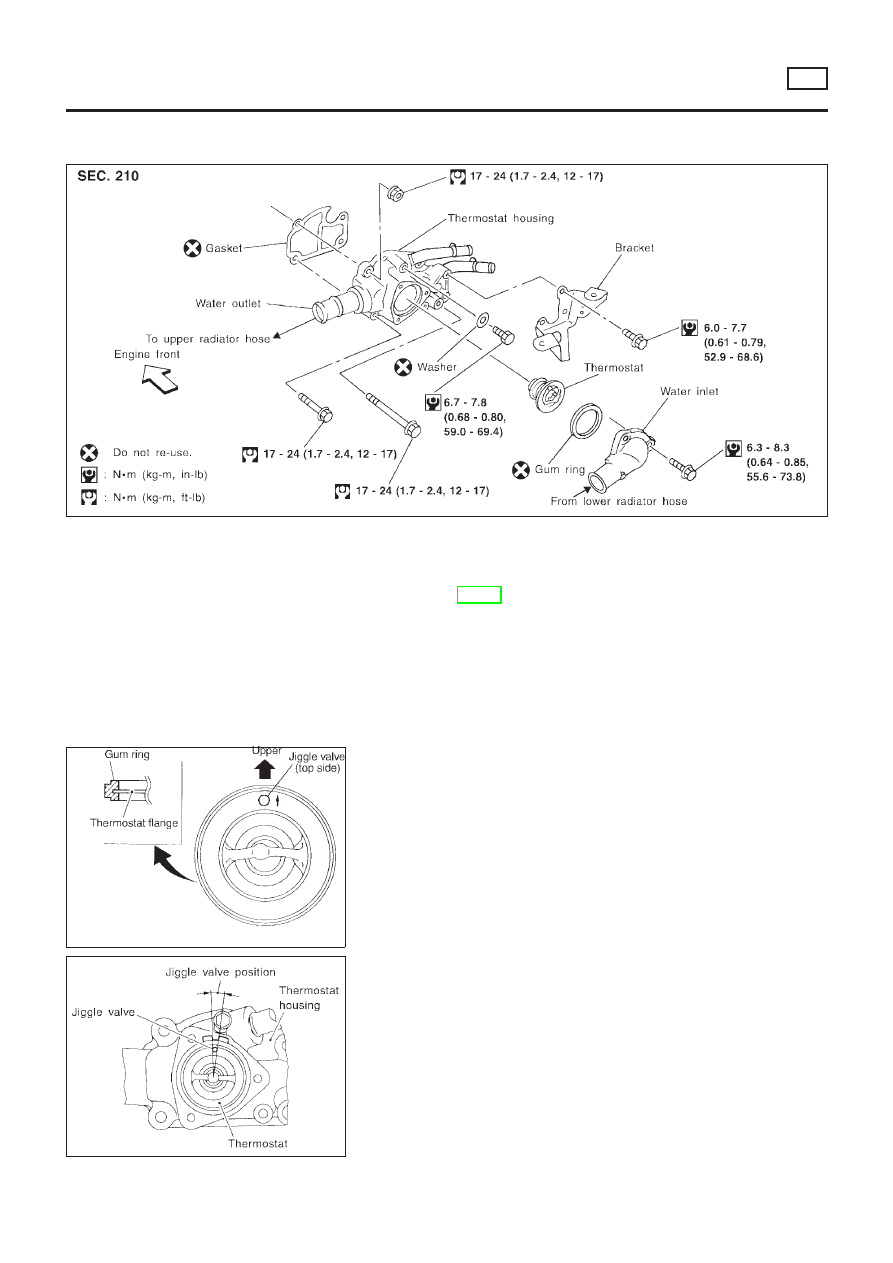

Thermostat

REMOVAL AND INSTALLATION

NLLC0021

SEM861F

Be careful not to spill coolant over engine compartment. Use
a rag to absorb coolant.
1.

Drain engine coolant.
Refer to LC-19, “Changing Engine Coolant”.

Remove water inlet, then take out thermostat.

SEM862F

Install gum ring to thermostat.

SEM863F

Install thermostat with jiggle valve or air bleeder at upper side.
After installation, run engine for a few minutes, and check
for leaks.

ENGINE COOLING SYSTEM

Thermostat

LC-15

SLC343

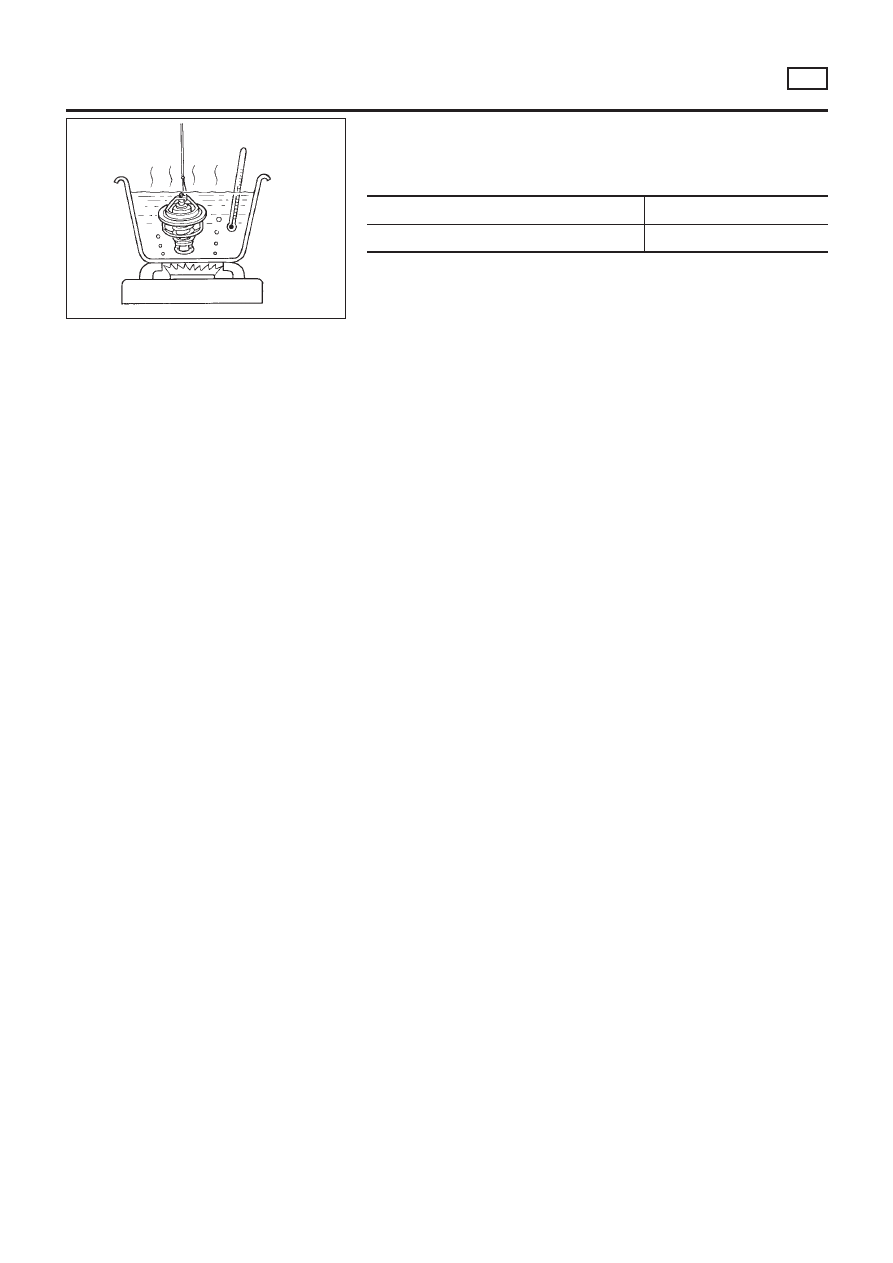

INSPECTION

NLLC0022

Check for valve seating condition at normal room temperature.
It should seat tightly.

Check valve opening temperature and valve lift.

Valve opening temperature

°C (°F)

82 (180)

Valve lift

mm/°C (in/°F)

More than 8/95 (0.31/203)

Then check if valve closes at 5°C (9°F) below valve opening
temperature.

ENGINE COOLING SYSTEM

Thermostat (Cont’d)

LC-16

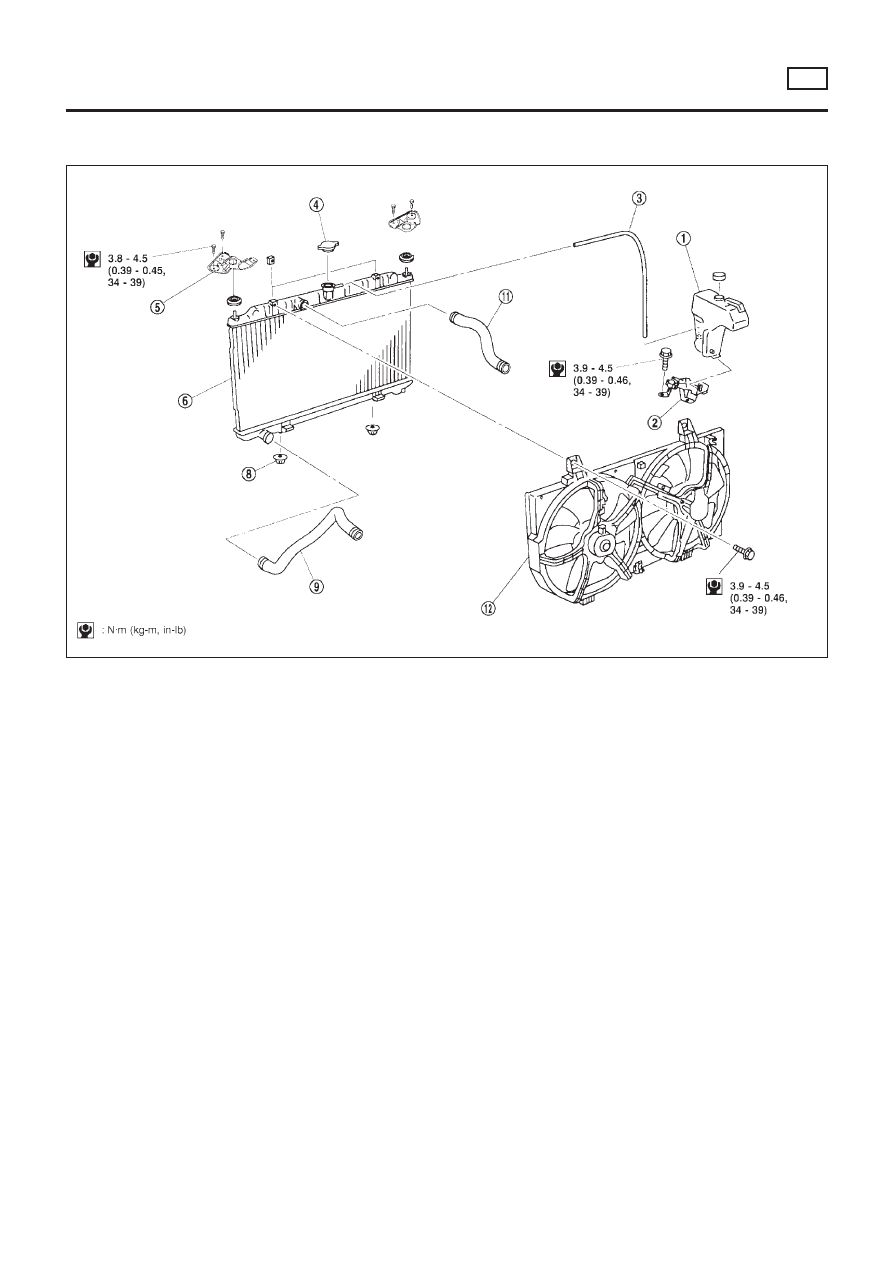

Radiator

COMPONENTS

=NLLC0025

NLC091

Reservoir tank

Reservoir tank bracket

Reservoir hose

Radiator cap

Mounting bracket

Radiator

Mounting rubber

Lower radiator hose

Upper radiator hose

10. Cooling fan assembly

ENGINE COOLING SYSTEM

Radiator

LC-17

Content .. 168 169 170 171 ..
