SPORT indicator lamp

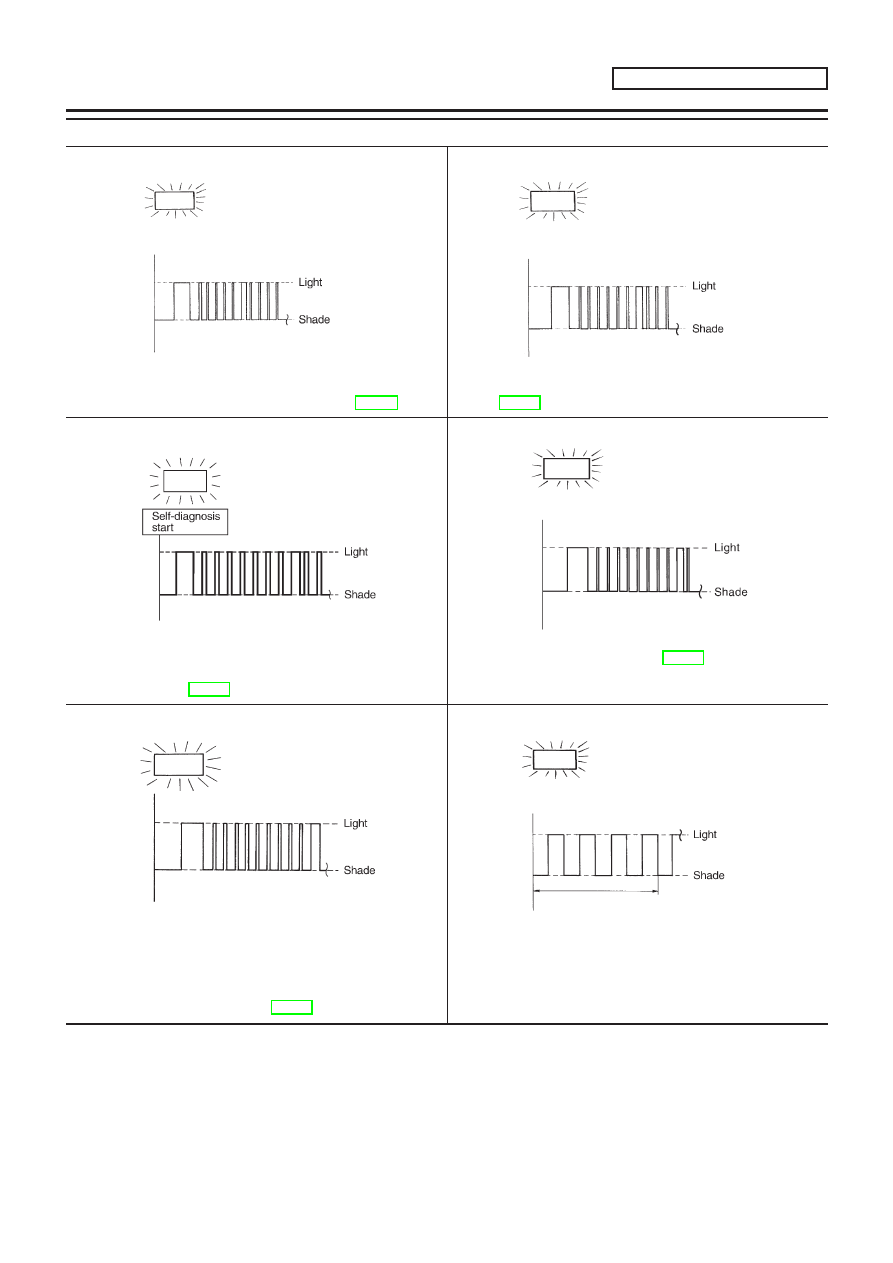

6th judgement flicker is longer than others.

SAT447FA

Line pressure solenoid valve circuit is short-circuited or discon-
nected.

⇒

Go to LINE PRESSURE SOLENOID VALVE, AT-157.

7th judgement flicker is longer than others.

SAT449FA

Lock up solenoid valve circuit is short-circuited or disconnected.

⇒

Go to TORQUE CONVERTER CLUTCH SOLENOID

VALVE, AT-164.

8th judgement flicker is longer than others.

SAT451FA

CVT fluid temperature sensor is disconnected or TCM power
source circuit is damaged.

⇒

Go to CVT FLUID TEMPERATURE SENSOR AND TCM

POWER SOURCE, AT-170.

9th judgement flicker is longer than others.

SAT285K

Engine speed signal circuit is short-circuited or disconnected.

⇒

Go to ENGINE SPEED SIGNAL, AT-176.

10th judgement flicker is longer than others.

SAT455FA

When “4th judgement flicker” and/or “6th judgement flicker” is
displayed, inspect “STEP MOTOR” and/or “LINE PRESSURE
SOLENOID VALVE”.

When neither “4th judgement flicker” nor “6th judgement
flicker” are displayed, replace TCM.

⇒

Go to CVT SAFE FUNCTION, AT-125.

Flickers as shown below.

SAT457FA

Battery voltage is low.
Battery has been disconnected for a long time.
Battery is connected conversely.
(When reconnecting TCM connectors. — This is not a problem.)

ON BOARD DIAGNOSTIC SYSTEM

DESCRIPTION

EXCEPT FOR EURO-OBD

Diagnostic Procedure Without CONSULT-II (Cont’d)

AT-39

SPORT indicator lamp

Lamp does not come on.

SAT653J

PNP switch, stop lamp switch or throttle position switch circuit is
disconnected or TCM is damaged.

⇒

Go to TROUBLE DIAGNOSIS FOR NON-DETECTABLE

ITEM, AT-184.

= 2.5 seconds

= 2.0 seconds

= 1.0 second

ON BOARD DIAGNOSTIC SYSTEM

DESCRIPTION

EXCEPT FOR EURO-OBD

Diagnostic Procedure Without CONSULT-II (Cont’d)

AT-40

SAT631IA

SAT632I

SEF234G

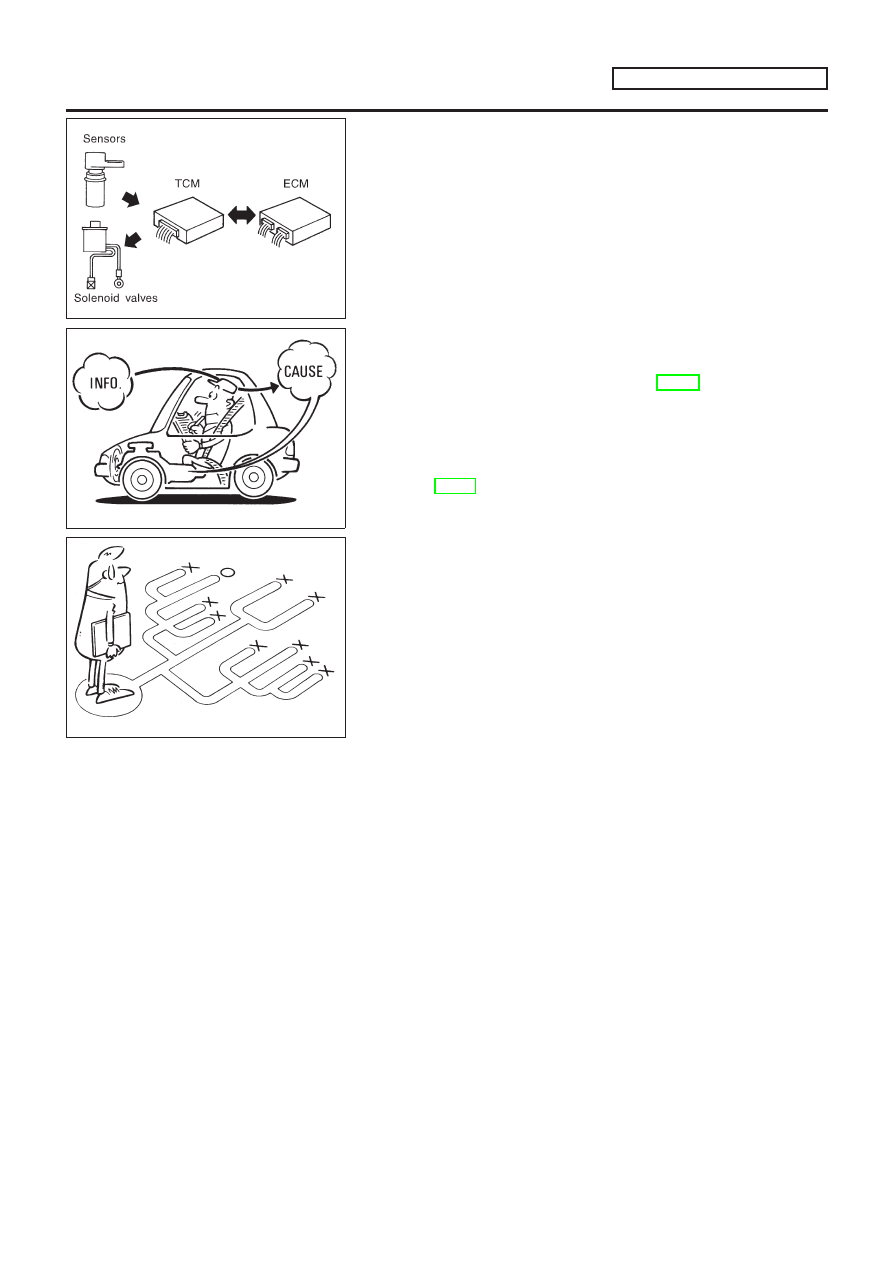

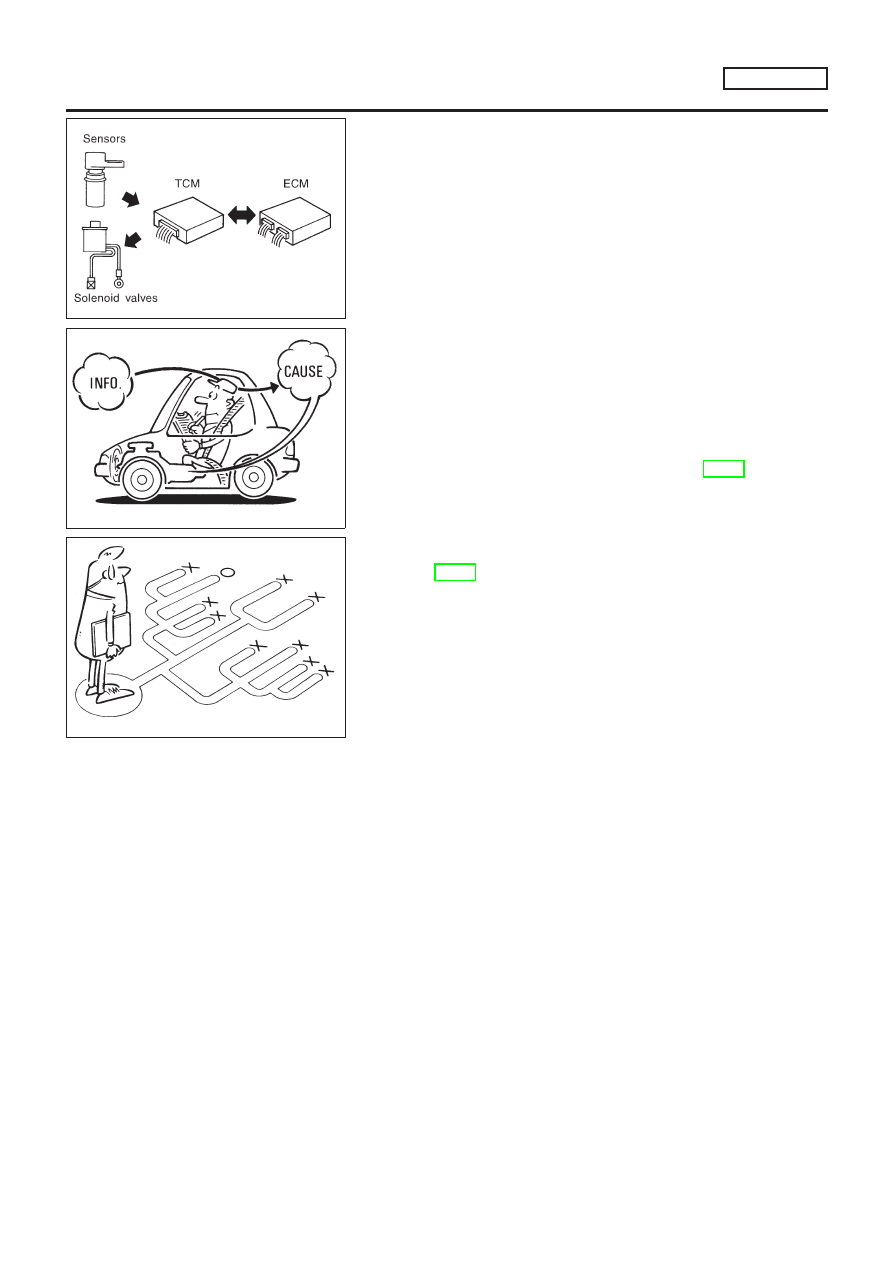

Introduction

NLAT0023

The TCM receives a signal from the vehicle speed sensor, throttle
position sensor or PNP switch and provides shift control or lock-up
control via step motor and CVT solenoid valves.
The TCM also communicates with the ECM by means of a signal
sent from sensing elements used with the EURO-OBD-related
parts of the CVT system for malfunction-diagnostic purposes. The
TCM is capable of diagnosing malfunctioning parts while the ECM
can store malfunctions in its memory.
Input and output signals must always be correct and stable in the
operation of the CVT system. The CVT system must be in good
operating condition and be free of valve seizure, solenoid valve
malfunction, etc.
It is much more difficult to diagnose a problem that occurs intermit-
tently rather than continuously. Most intermittent problems are
caused by poor electric connections or improper wiring. In this
case, careful checking of suspected circuits may help prevent the
replacement of good parts.
A visual check only, may not find the cause of the problems. A road
test with CONSULT-II (or GST) or a circuit tester connected should
be performed. Follow the “Work Flow”. Refer to AT-44.
Before undertaking actual checks, take a few minutes to talk with
a customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such problems, espe-
cially intermittent ones. Find out what symptoms are present and
under what conditions they occur. A “Diagnostic Worksheet” like the
example (AT-43) should be used.
Start your diagnosis by looking for “conventional” problems first.
This will help troubleshoot driveability problems on an electronically
controlled engine vehicle.
Also check related Service bulletins for information.

TROUBLE DIAGNOSIS — INTRODUCTION

EURO-OBD

AT-41

DIAGNOSTIC WORKSHEET

=NLAT0023S01

Information from Customer

NLAT0023S0101

KEY POINTS
WHAT ..... Vehicle & CVT model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms

Customer name

MR/MS

Model & Year

VIN

Trans. model

Engine

Mileage

Incident Date

Manuf. Date

In Service Date

Frequency

Continuous

Intermittent (

times a day)

Vehicle does not move.

(

Any position

Particular position)

Symptoms

Lockup malfunction

Shift point too high or too low.

Shift shock or slip

(

→

Lockup

Any drive position)

Noise or vibration

No pattern select

Others

(

)

SPORT indicator lamp

Blinks for about 8 seconds.

Continuously lit

Not lit

Malfunction indicator (MI)

Continuously lit

Not lit

TROUBLE DIAGNOSIS — INTRODUCTION

EURO-OBD

Introduction (Cont’d)

AT-42

Diagnostic Worksheet

=NLAT0023S0102

Read the Fail-safe and listen to customer complaints.

AT-7

CHECK CVT FLUID

AT-51

Leakage (Follow specified procedure)

Fluid condition

Fluid level

Perform STALL TEST and LINE PRESSURE TEST.

AT-51, 52

Stall test — Mark possible damaged components/others.

Forward clutch

Reverse brake

Engine

Line pressure is low.

Line Pressure test — Suspected parts:

Perform all ROAD TEST and mark required procedures.

AT-53

4-1. Check before engine is started.

AT-54

SELF-DIAGNOSTIC PROCEDURE — Mark detected items.

PNP switch, AT-66.

CVT fluid temperature sensor circuit, AT-73.

Vehicle speed sensor (Output pulley speed signal), AT-84.

Engine speed signal, AT-90.

Torque converter clutch solenoid valve, AT-94.

Line pressure solenoid valve, AT-99.

Step motor, AT-112, 117.

Line pressure sensor, AT-119.

Throttle position sensor, AT-104.

Primary speed sensor, AT-79.

CVT SAFE FUNCTION, AT-125.

CONTROL UNIT (RAM) CONTROL UNIT (ROM), AT-180.

CONTROL UNIT (EEP ROM), AT-182.

PNP switch, stop lamp switch, throttle position switch, AT-184.

Battery

Others

For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts.

AT-22

Perform all ROAD TEST and re-mark required procedures.

AT-53

Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged

parts.

AT-58
AT-70

Erase DTC from TCM and ECM memories.

AT-19

TROUBLE DIAGNOSIS — INTRODUCTION

EURO-OBD

Introduction (Cont’d)

AT-43

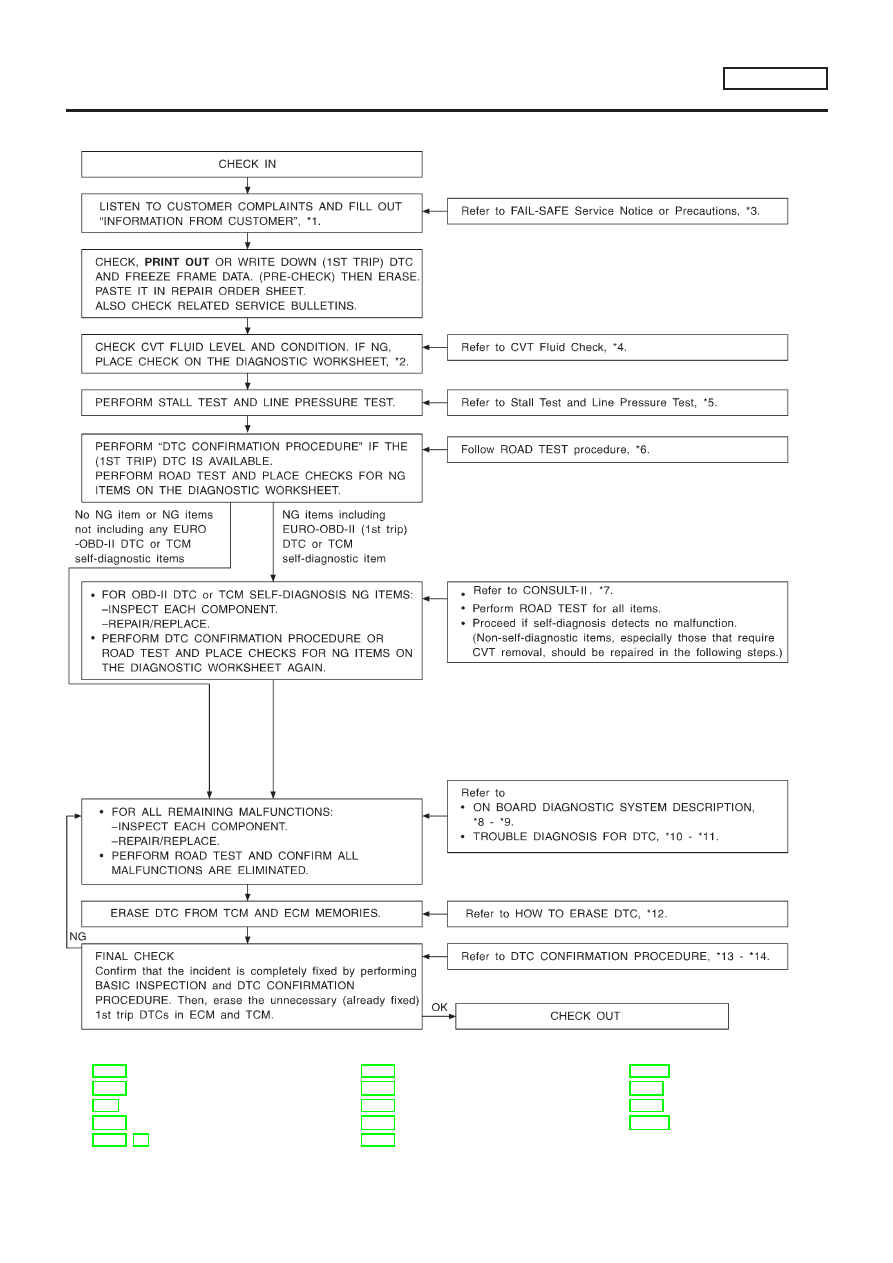

SAT631IA

SAT632I

SEF234G

Introduction

NLAT0247

The TCM receives a signal from the vehicle speed sensor, throttle
position sensor or PNP switch and provides shift control or lock-up
control via CVT solenoid valves.
Input and output signals must always be correct and stable in the
operation of the CVT system. The CVT system must be in good
operating condition and be free of valve seizure, solenoid valve
malfunction, etc.
It is much more difficult to diagnose a problem that occurs intermit-
tently rather than continuously. Most intermittent problems are
caused by poor electric connections or improper wiring. In this
case, careful checking of suspected circuits may help prevent the
replacement of good parts.
A visual check only, may not find the cause of the problems. A road
test with CONSULT-II or a circuit tester connected should be per-
formed. Follow the “Work Flow”. Refer to AT-49.
Before undertaking actual checks, take a few minutes to talk with
a customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such problems, espe-
cially intermittent ones. Find out what symptoms are present and
under what conditions they occur. A “Diagnostic Worksheet” like the
example (AT-48) should be used.
Start your diagnosis by looking for “conventional” problems first.
This will help troubleshoot driveability problems on an electronically
controlled engine vehicle.
Also check related Service bulletins for information.

TROUBLE DIAGNOSIS —

INTRODUCTION

EXCEPT FOR EURO-OBD

AT-46

DIAGNOSTIC WORKSHEET

=NLAT0247S01

Information from Customer

NLAT0247S0101

KEY POINTS
WHAT ..... Vehicle & CVT model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms

Customer name

MR/MS

Model & Year

VIN

Trans. model

Engine

Mileage

Incident Date

Manuf. Date

In Service Date

Frequency

Continuous

Intermittent (

times a day)

Vehicle does not move.

(

Any position

Particular position)

Symptoms

Lockup malfunction

Shift point too high or too low.

Shift shock or slip

(

→

Lockup

Any drive position)

Noise or vibration

No pattern select

Others

(

)

SPORT indicator lamp

Blinks for about 8 seconds.

Continuously lit

Not lit

TROUBLE DIAGNOSIS —

INTRODUCTION

EXCEPT FOR EURO-OBD

Introduction (Cont’d)

AT-47

Diagnostic Worksheet

=NLAT0247S0102

Read the Fail-safe and listen to customer complaints.

AT-7

CHECK CVT FLUID

AT-51

Leakage (Follow specified procedure)

Fluid condition

Fluid level

Perform STALL TEST and LINE PRESSURE TEST.

AT-51, 52

Stall test — Mark possible damaged components/others.

Forward clutch

Reverse brake

Engine

Line pressure is low.

Line Pressure test — Suspected parts:

Perform all ROAD TEST and mark required procedures.

AT-53

4-1. Check before engine is started.

AT-54

SELF-DIAGNOSTIC PROCEDURE — Mark detected items.

CVT fluid temperature sensor, AT-170.

Vehicle speed sensor (Output pulley speed signal), AT-126.

Engine speed signal, AT-176.

Torque converter clutch solenoid valve, AT-164.

Line pressure solenoid valve, AT-157.

Step motor, AT-146, 150.

Line pressure sensor, AT-151.

Throttle position sensor, AT-137.

Primary speed sensor, AT-132.

CVT save function, AT-125

Control unit (RAM), control unit (ROM), AT-180

Control unit (EEP ROM), AT-182

Battery

Others

For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts.

AT-31

Perform all ROAD TEST and re-mark required procedures.

AT-53

Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged

parts.

AT-58
AT-130

Erase self-diagnosis code from TCM memories.

AT-34

TROUBLE DIAGNOSIS —

INTRODUCTION

EXCEPT FOR EURO-OBD

Introduction (Cont’d)

AT-48

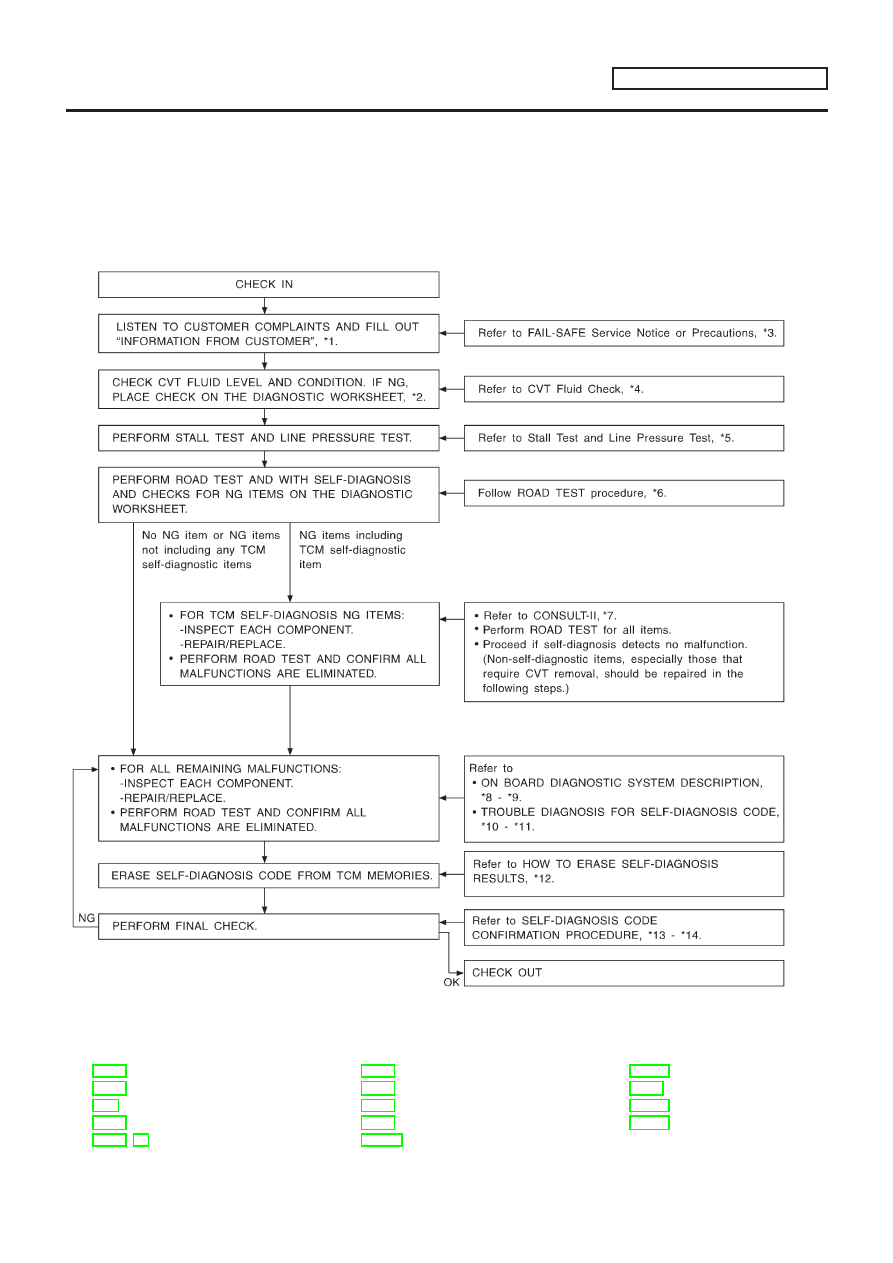

SAT767B

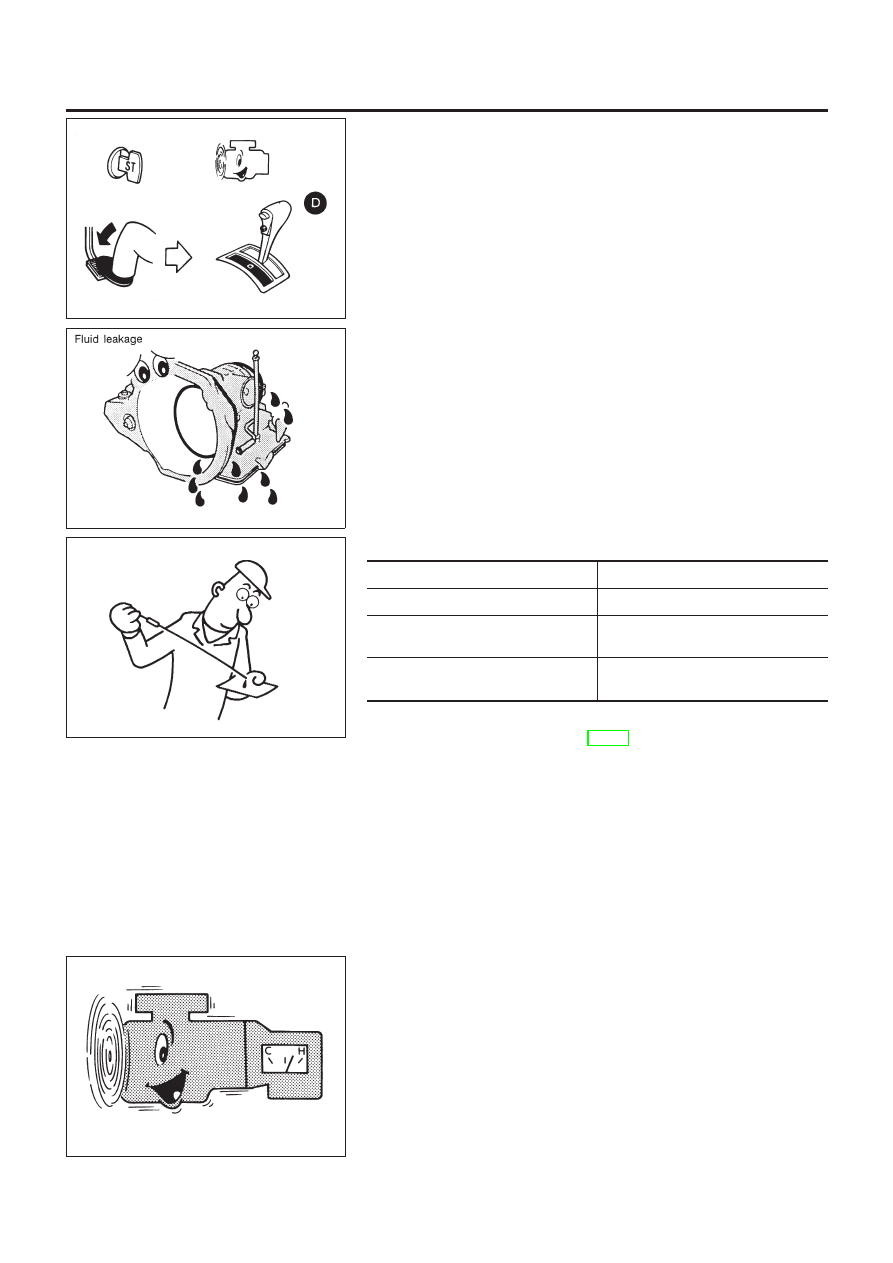

CVT Fluid Check

NLAT0025

FLUID LEAKAGE CHECK

NLAT0025S01

Clean area suspected of leaking. — for example, mating sur-
face of converter housing and transmission case.

Start engine, apply foot brake, place selector lever in “D” posi-
tion and wait a few minutes.

Stop engine.

SAT288G

Check for fluid leakage.

SAT638A

FLUID CONDITION CHECK

NLAT0025S02

Fluid color

Suspected problem

Dark or black with burned odor

Wear of frictional material

Milky pink

Water contamination — Road water
entering through filler tube or breather

Varnished fluid, light to dark brown
and tacky

Oxidation — Over or under filling, —
Overheating

FLUID LEVEL CHECK

NLAT0025S03

Refer to “Checking CVT Fluid”, AT-10.

SAT647B

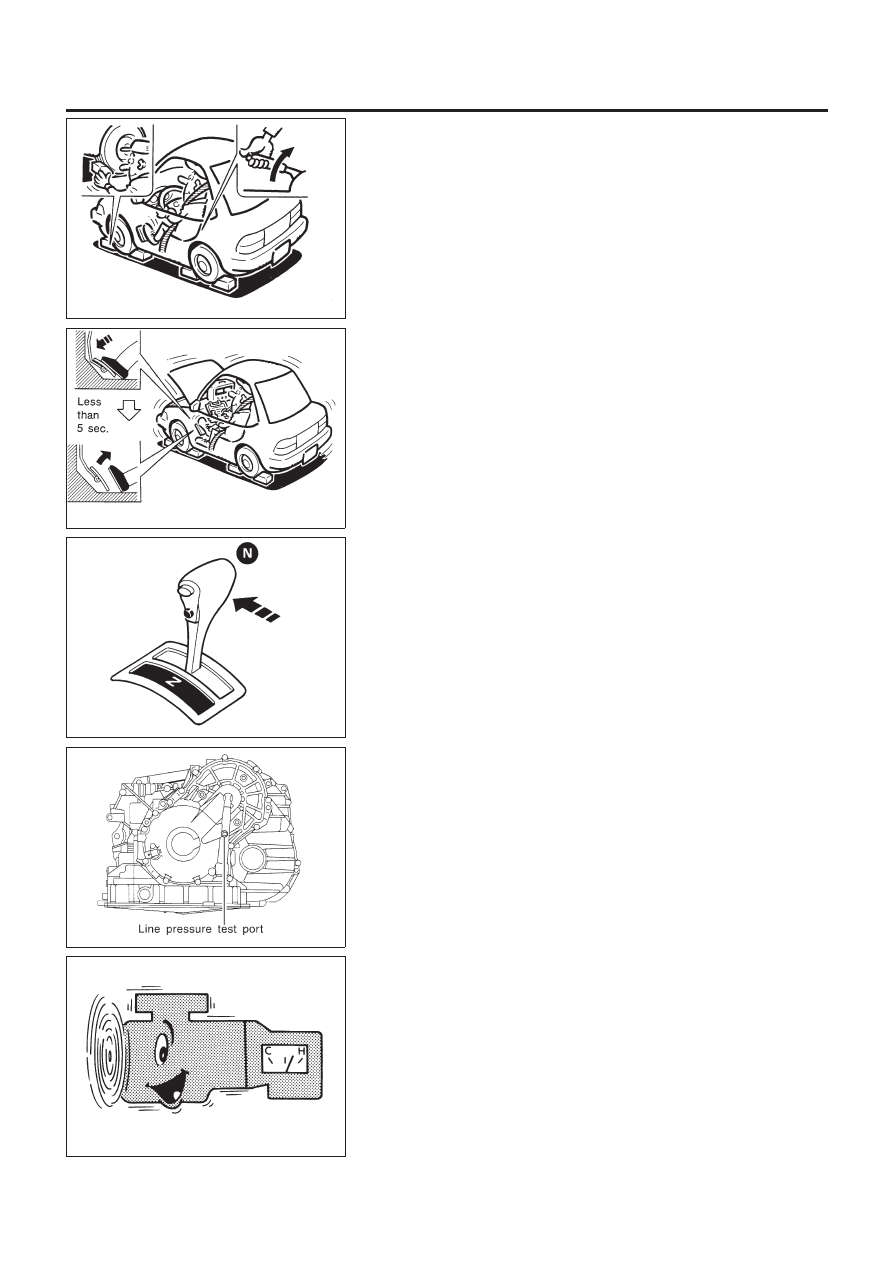

Stall Test

NLAT0026

STALL TEST PROCEDURE

NLAT0026S01

Check CVT fluid and engine oil levels. If necessary, add.

Drive vehicle for approx. 10 minutes or until engine oil and CVT
fluid reach operating temperature.

CVT fluid operating temperature:

50 - 80°C (122 - 176°F)

TROUBLE DIAGNOSIS — BASIC INSPECTION

CVT Fluid Check

AT-51

SAT513G

Set parking brake and block wheels.

Install a tachometer where it can be seen by driver during test.

It is good practice to mark the point of specified engine
rpm on indicator.

SAT514G

Start engine, apply foot brake, and place selector lever in D
position.

Accelerate to wide open throttle gradually while applying foot
brake.

Quickly note the engine stall revolution and immediately
release throttle.

During test, never hold throttle wide open for more than 5
seconds.

Stall revolution:

2,350 - 2,850 rpm

SAT771B

Move selector lever to “N” position.

Cool off CVT fluid.

Run engine at idle for at least one minute.

SAT670J

Line Pressure Test

NLAT0027

LINE PRESSURE TEST PORTS

NLAT0027S01

Location of line pressure test ports are shown in the illustration.

Always replace pressure plugs as they are self-sealing
bolts.

SAT647B

LINE PRESSURE TEST PROCEDURE

NLAT0027S02

Check CVT fluid and engine oil levels. If necessary, add fluid
or oil.

Drive vehicle for approx. 10 minutes or until engine oil and CVT
fluid reach operating temperature.

CVT fluid operating temperature:

50 - 80°C (122 - 176°F)

TROUBLE DIAGNOSIS — BASIC INSPECTION

Stall Test (Cont’d)

AT-52

Install pressure gauge to corresponding line pressure port.

SAT513G

Set parking brake and block wheels.

Continue to depress brake pedal fully while line pressure
test is being performed at stall speed.

SAT493G

Start engine and measure line pressure at idle and stall speed.

When measuring line pressure at stall speed, follow the
stall test procedure.

Line pressure: Refer to SDS, AT-210.

SAT692J

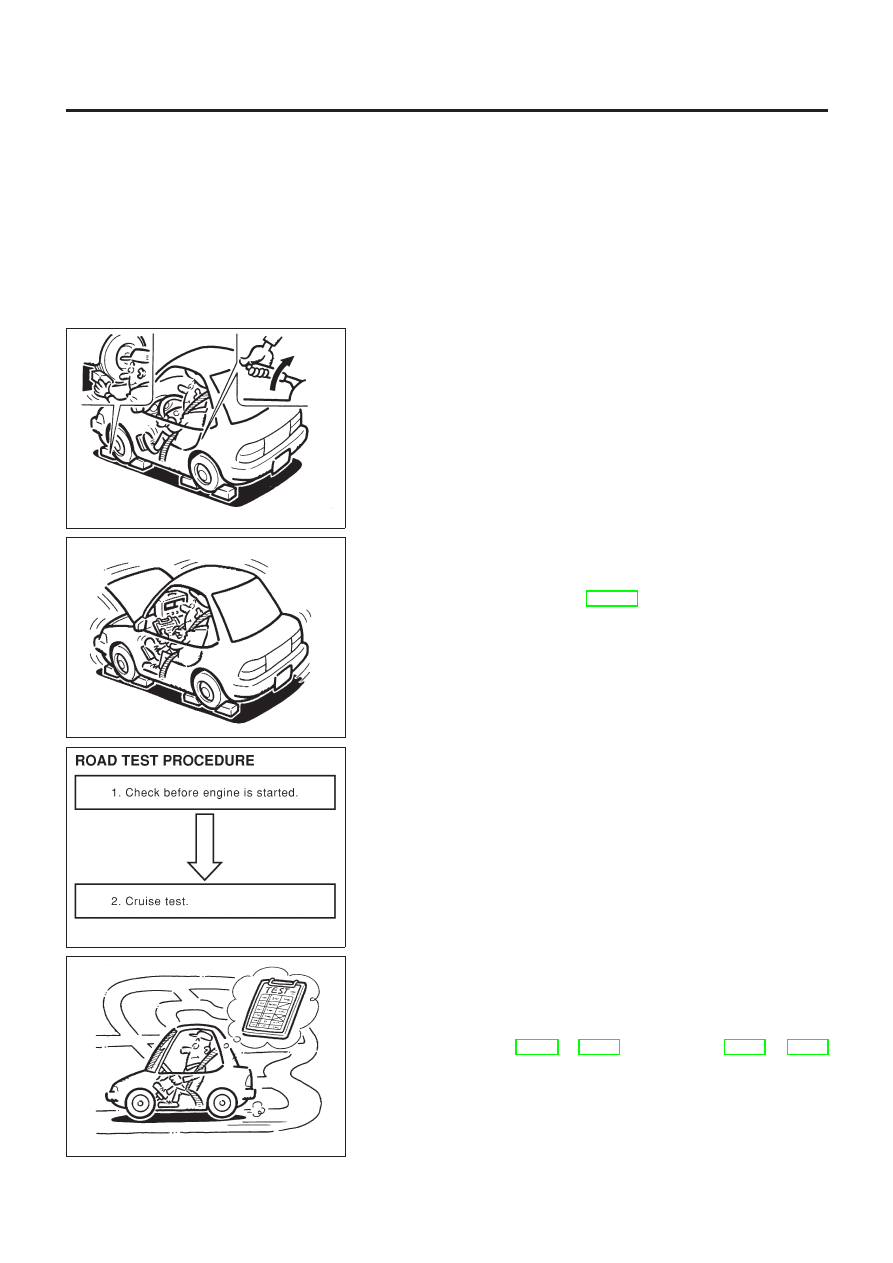

Road Test

NLAT0028

DESCRIPTION

NLAT0028S01

The purpose of the test is to determine overall performance of
CVT and analyze causes of problems.

The road test consists of the following three parts:

Check before engine is started

Cruise test

SAT496G

Before road test, familiarize yourself with all test procedures
and items to check.

Conduct tests on all items until specified symptom is found.
Troubleshoot items which check out No Good after road test.
Refer

“ON

BOARD

DIAGNOSTIC

SYSTEM

DESCRIPTION”, AT-18 to AT-28 (EURO-OBD)/AT-31 to AT-38
(Except for EURO-OBD).

TROUBLE DIAGNOSIS — BASIC INSPECTION

Line Pressure Test (Cont’d)

AT-53

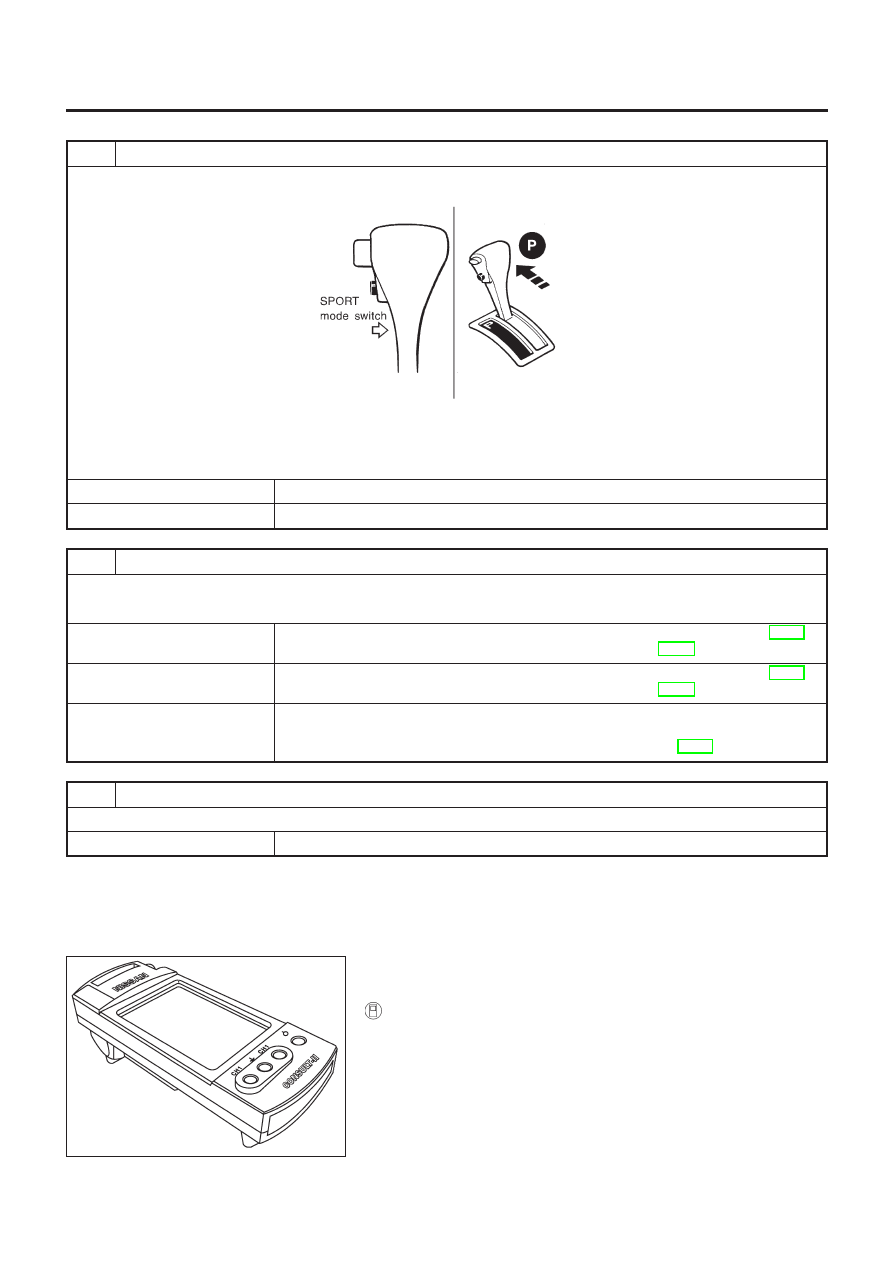

1. CHECK BEFORE ENGINE IS STARTED

=NLAT0028S02

CHECK SPORT INDICATOR LAMP

1. Park vehicle on flat surface.
2. Move selector lever to “P” position.

SAT967IC

3. Turn ignition switch to “OFF” position. Wait at least 5 seconds.
4. Turn ignition switch to “ON” position. (Do not start engine.)
5. Does SPORT indicator lamp come on for about 2 seconds?

Yes or No

Yes

GO TO 2.

Stop ROAD TEST.

CHECK SPORT INDICATOR LAMP

Does SPORT indicator lamp flicker for about 8 seconds?

Yes or No

Yes (EURO-OBD)

Perform self-diagnosis and check NG items on the DIAGNOSTIC WORKSHEET, AT-43.
Refer to TCM SELF-DIAGNOSIS PROCEDURE (NO TOOLS), AT-28.

Yes (Except for EURO-
OBD)

Perform self-diagnosis and check NG items on the DIAGNOSTIC WORKSHEET, AT-48.
Refer to TCM SELF-DIAGNOSIS PROCEDURE (NO TOOLS), AT-35.

1. Turn ignition switch to “OFF” position.
2. Perform self-diagnosis and note NG items.

Refer to TCM SELF-DIAGNOSIS PROCEDURE (NO TOOLS), AT-28.

TEST DRIVE

Drive the vehicle and verify that there are no abnormalities.

TEST END

SAT601J

2. CRUISE TEST

NLAT0028S04

Check all items listed in Parts 1 through 3.

With CONSULT-II

NLAT0028S0401

Using CONSULT-II, conduct a cruise test and record the result.

Print the result and ensure that shifts and lock-ups take place
as per Shift Schedule.

TROUBLE DIAGNOSIS — BASIC INSPECTION

Road Test (Cont’d)

AT-54

Nissan Almera Tino V10 (2001 year). Manual - part 5
