BODY ALIGNMENT

BRM-45

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

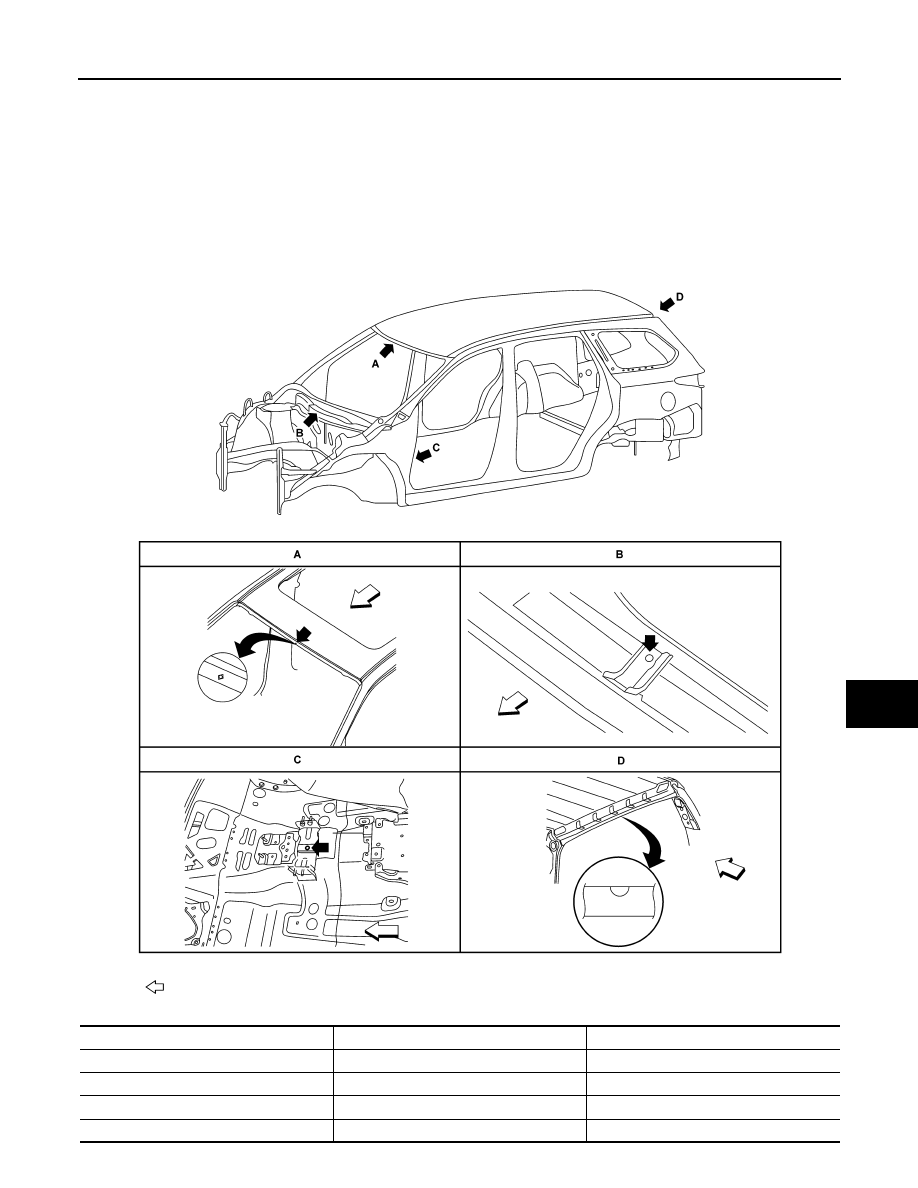

Body Center Marks

INFOID:0000000009176389

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame

(members, pillars, etc.) damaged in an accident the most accurate and effective repair will be achieved by

using these marks together with body alignment specifications.

 Front

Points

Portion

Marks

A

Front roof

Embossment

B

Center cowl top

Hole

C

Front floor

Hole

D

Rear roof

Notch

ALKIA2848ZZ

BRM-46

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

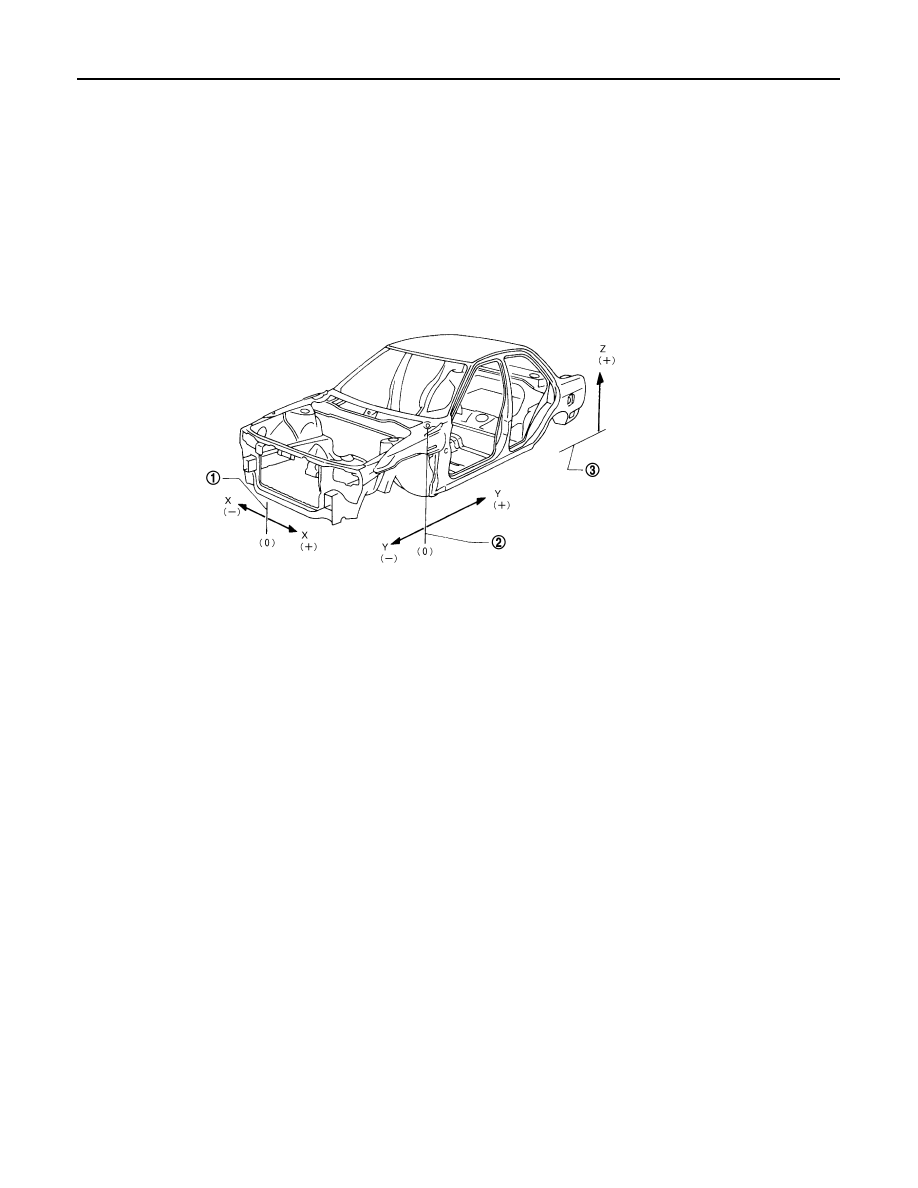

Description

INFOID:0000000009176390

• All dimensions indicated in the figures are actual.

• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

• Measurements should be taken at the center of the mounting holes.

• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

• The coordinates of the measurement points are the distances measured from the standard line of

″X″, ″Y″

and

″Z″.

•

″Z″: Imaginary base line [200 mm (7.87 in) below datum line (″0Z″ at design plan)]

Engine Compartment

INFOID:0000000009176391

MEASUREMENT

Dimensions are symmetrically identical on both the RH and LH sides of the vehicle.

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB

BODY ALIGNMENT

BRM-47

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

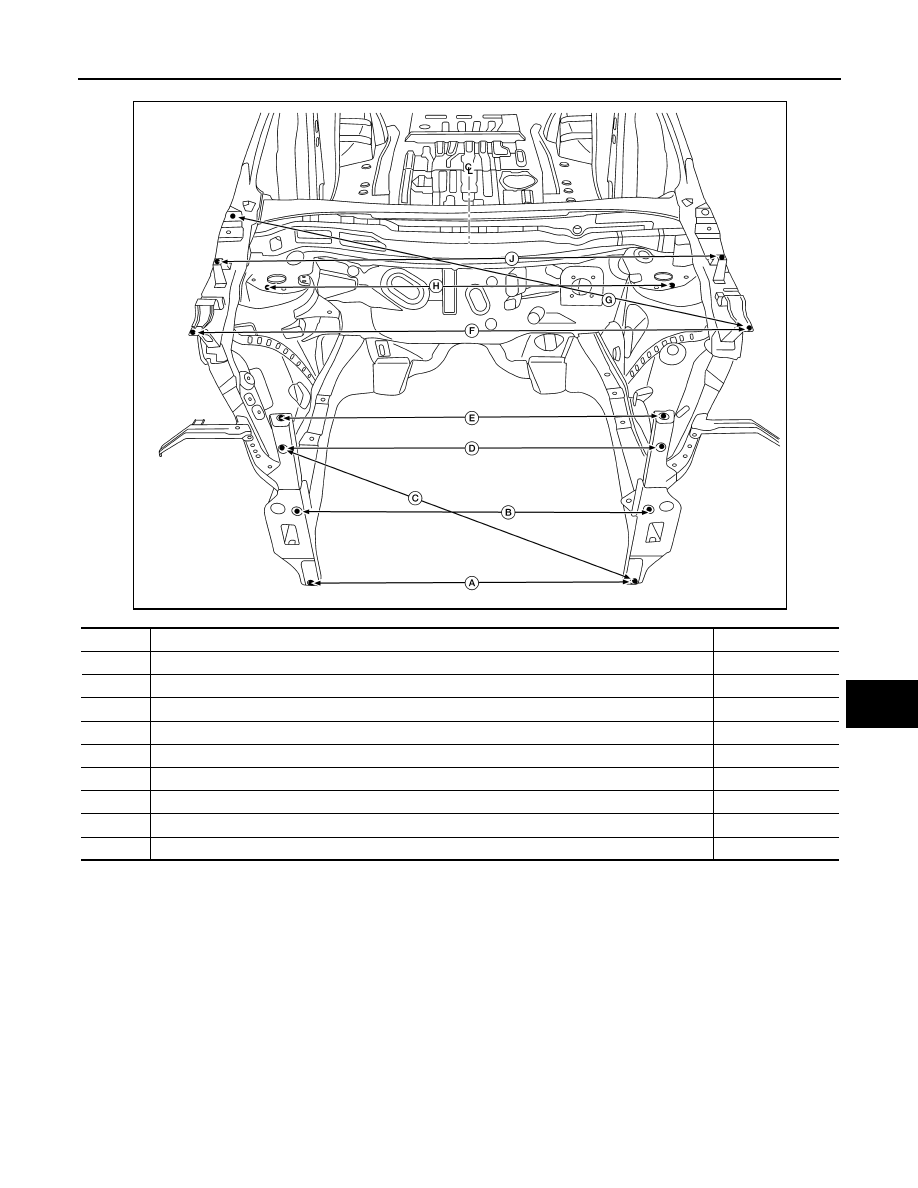

Unit: mm (in)

Underbody

INFOID:0000000009176392

MEASUREMENT

The following shows a bottom view and a side view of the vehicle.

Position

Description

Measurement

A

Lower radiator support retaining hole 10 (0.4)

980 (38.6)

B

Upper inner bumper reinforcement retaining hole 10 (0.4)

973 (38.3)

C

Upper front radiator support retaining hole to lower radiator support retaining hole 10 (0.4)

1110 (43.7)

D

Upper front radiator support retaining hole 10 (0.4)

970 (38.2)

E

Top radiator support retaining hole 10 (0.4)

970 (38.2)

F

Front fender mounting bracket hole 8 (0.3)

1610 (63.4)

G

Rear hinge retaining hole 10 (0.4) to front fender bracket retaining hole 8 (0.3)

1590 (62.6)

H

Strut tower locator hole 12 (0.5)

1293 (50.9)

J

Center fender bracket retaining hole 8 (0.3)

1645 (64.8)

ALKIA2849ZZ

BRM-48

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

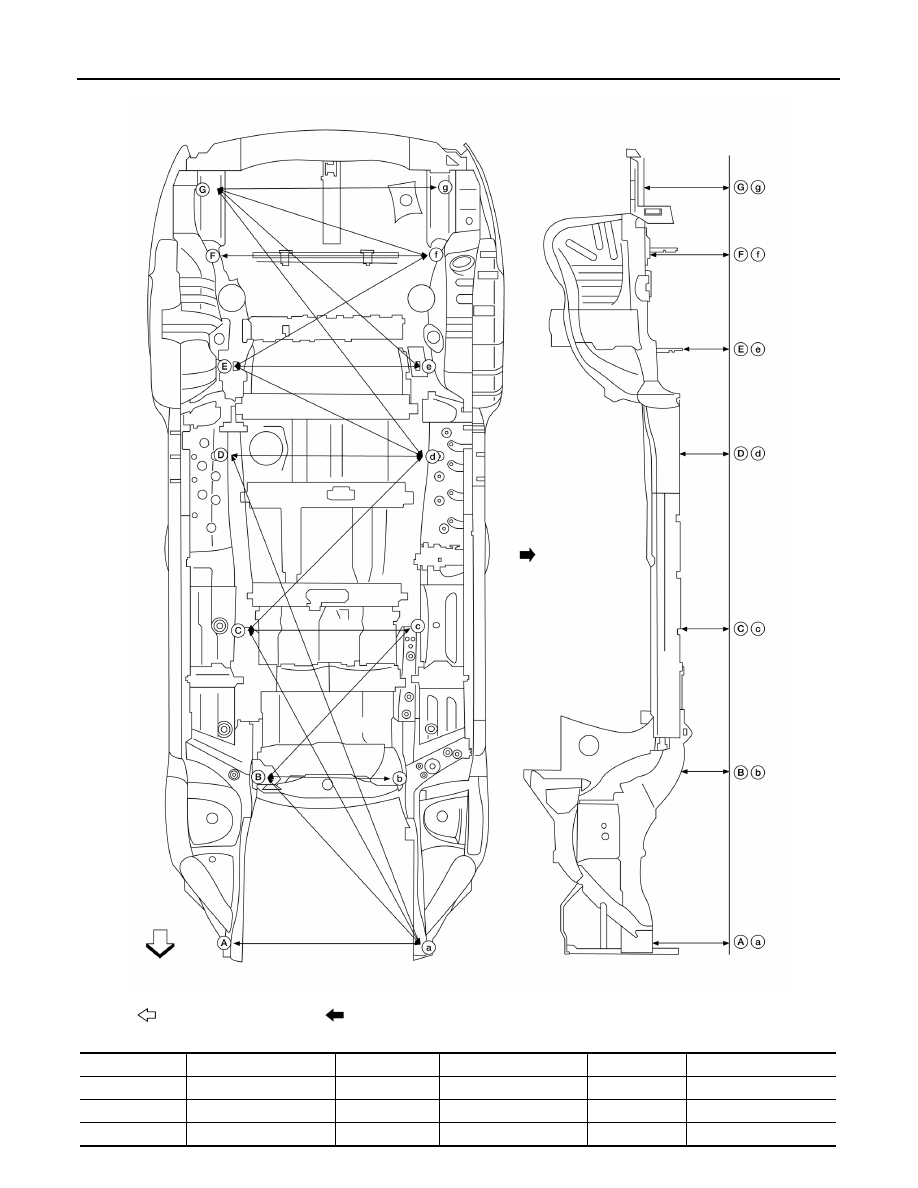

Unit: mm (in)

 Front

Vehicle left side

Coordinates

Measurement

Coordinates

Measurement

Coordinates

Measurement

A-a

994.10 (39.14)

a-B*

1271.61 (50.00)

a-C*

2005.56 (78.96)

A-d*

2908.27 (114.50)

B-b

654.04 (25.75

B-c*

1119.19 (44.06)

C-c

847.12 (33.35)

C-d*

1351.85 (53.22)

D-d

1027.90 (40.47)

ALKIA2435ZZ
