Nissan Pathfinder. Manual - part 277

REPLACEMENT OPERATIONS

BRM-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Replacement parts
z

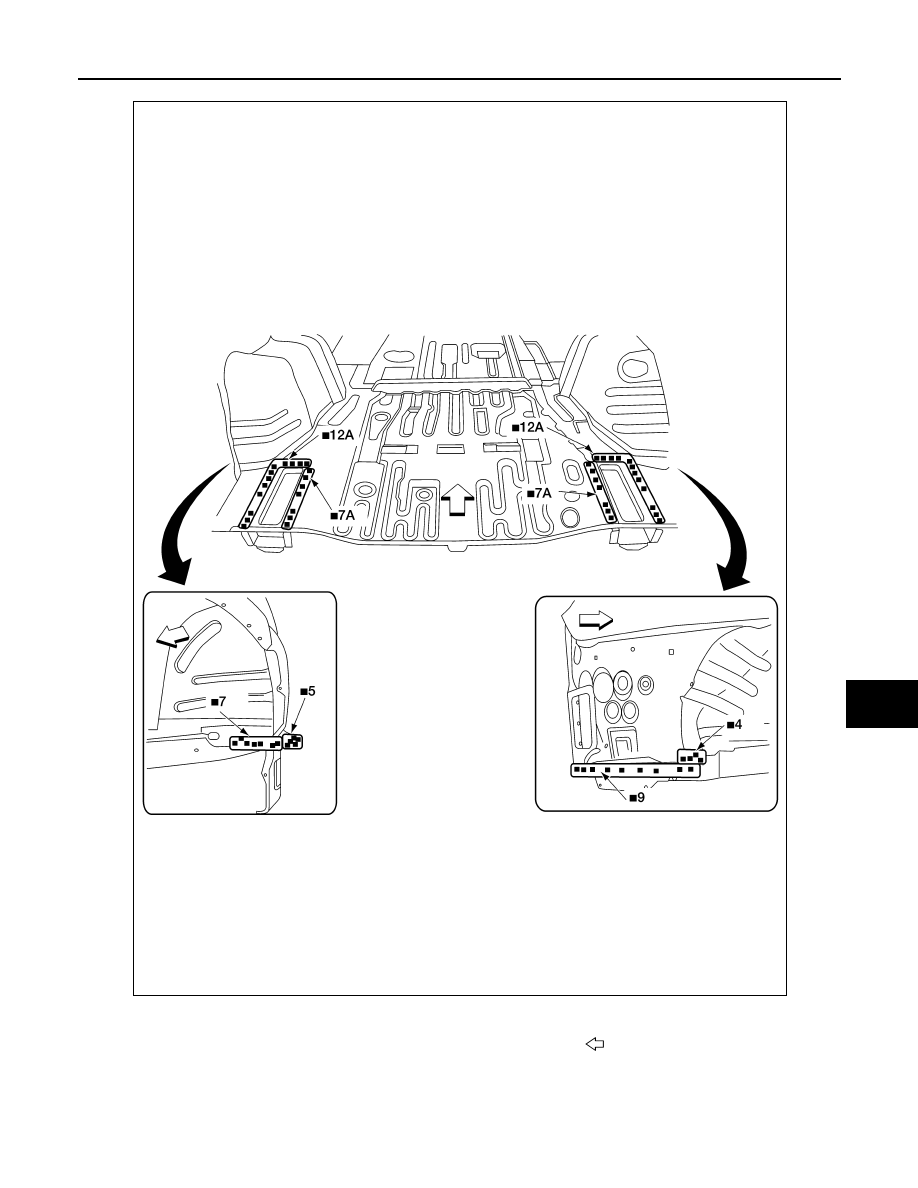

Rear side floor (RH, LH)

z

Rear floor side assembly (RH, LH)

Front

ALKIA2842ZZ

BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Panel Assembly

INFOID:0000000009176386

Replacement parts

z

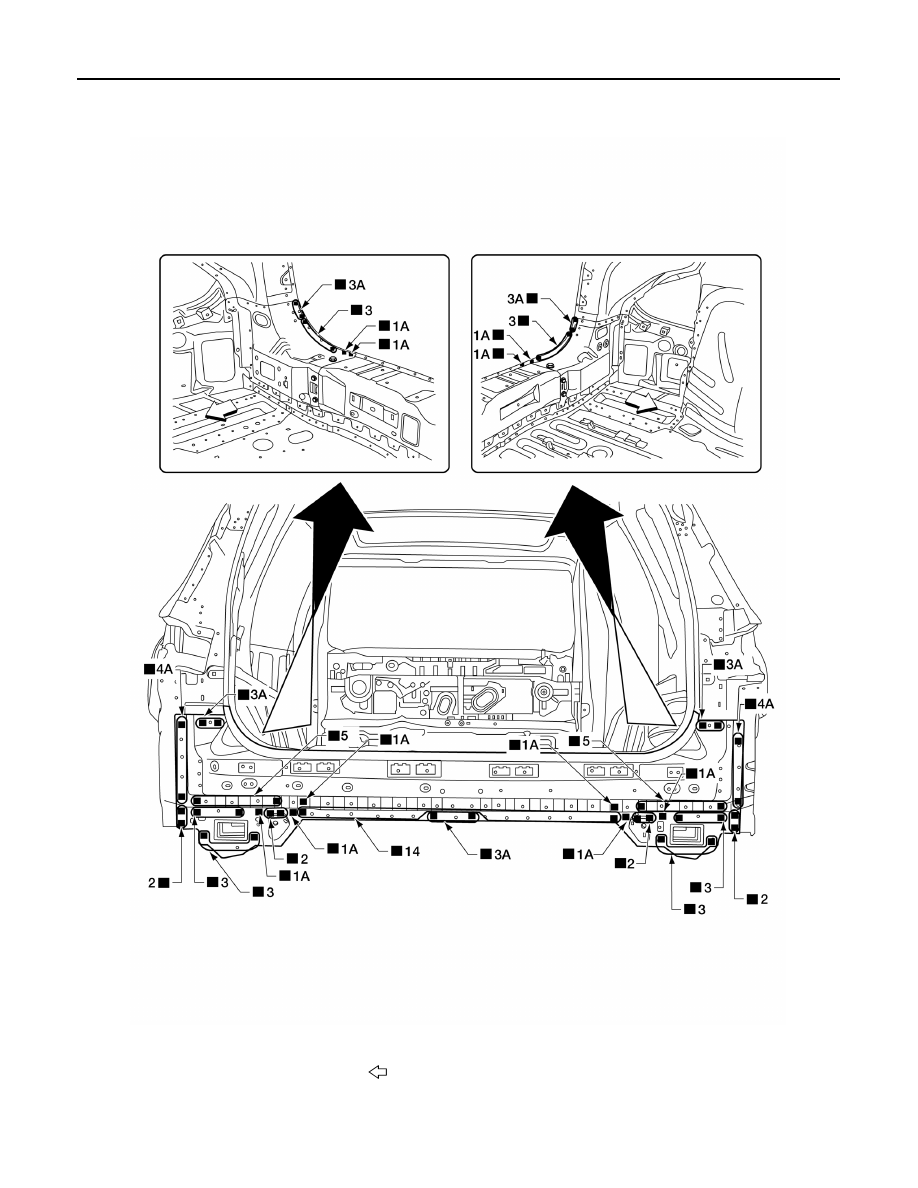

Rear panel assembly

Front

ALKIA2388ZZ

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Roof

INFOID:0000000009176387

Replacement parts

z

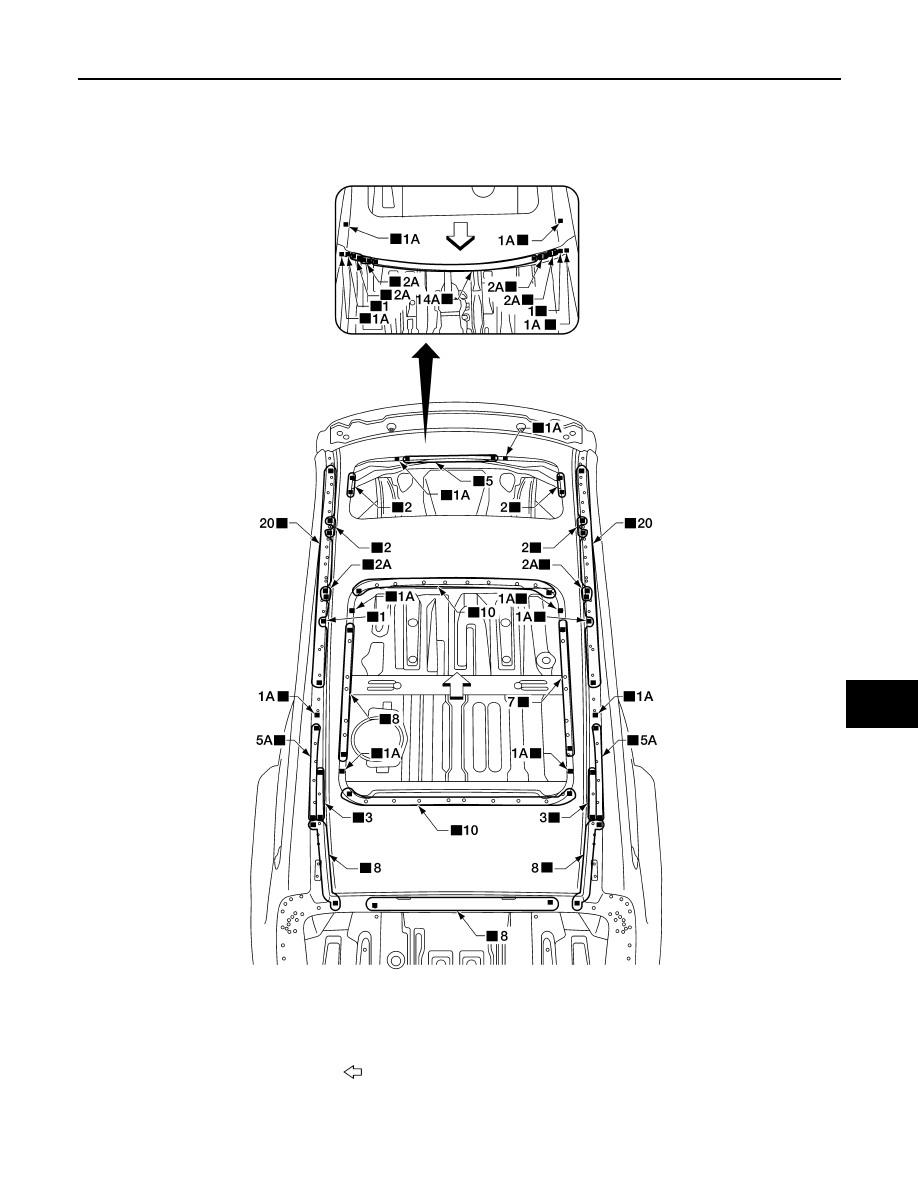

Roof panel, panoramic roof shown

Front

ALKIA2847ZZ

BRM-44

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Side Member Extension

INFOID:0000000009176388

• Work after rear panel assembly has been removed.

Replacement parts

z

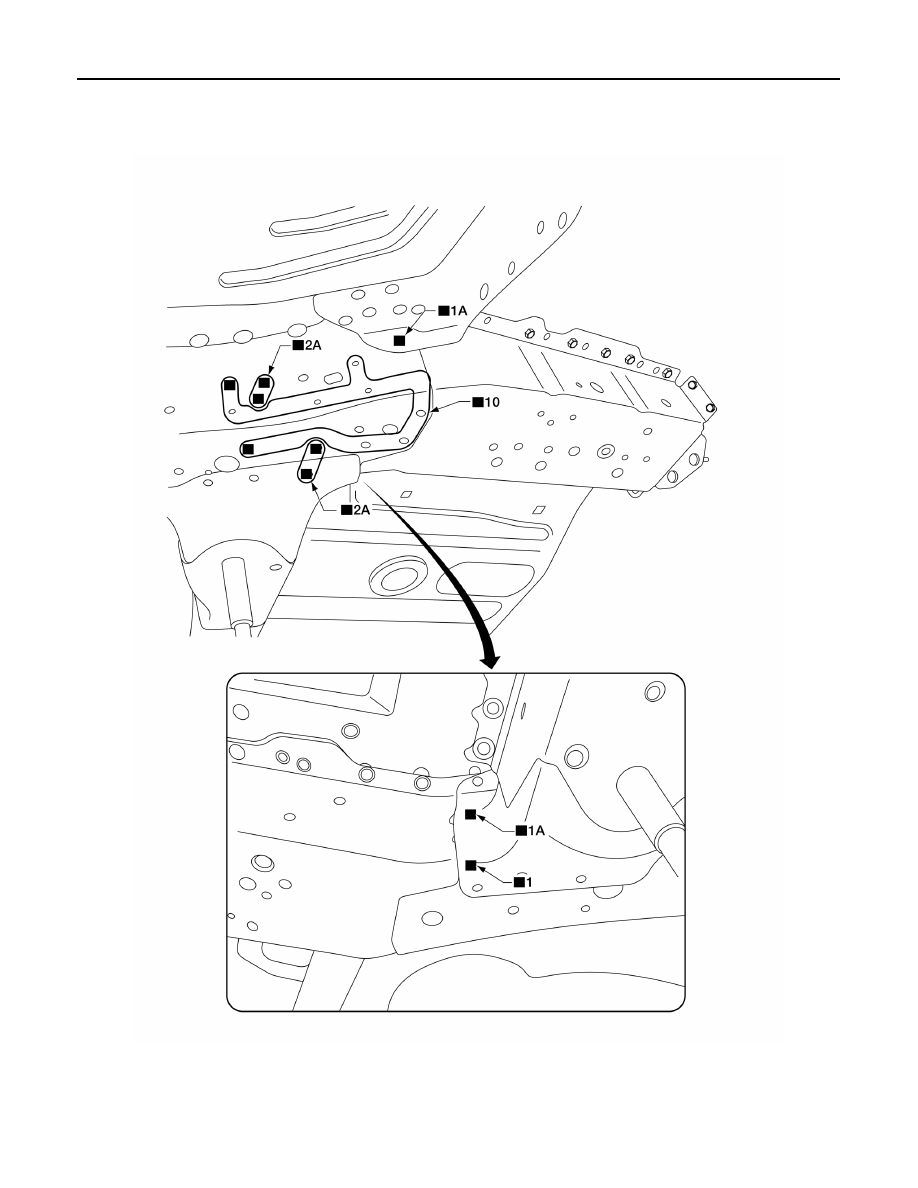

Rear side member extension

ALKIA2459ZZ
