REPLACEMENT OPERATIONS

BRM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Replacement parts

z

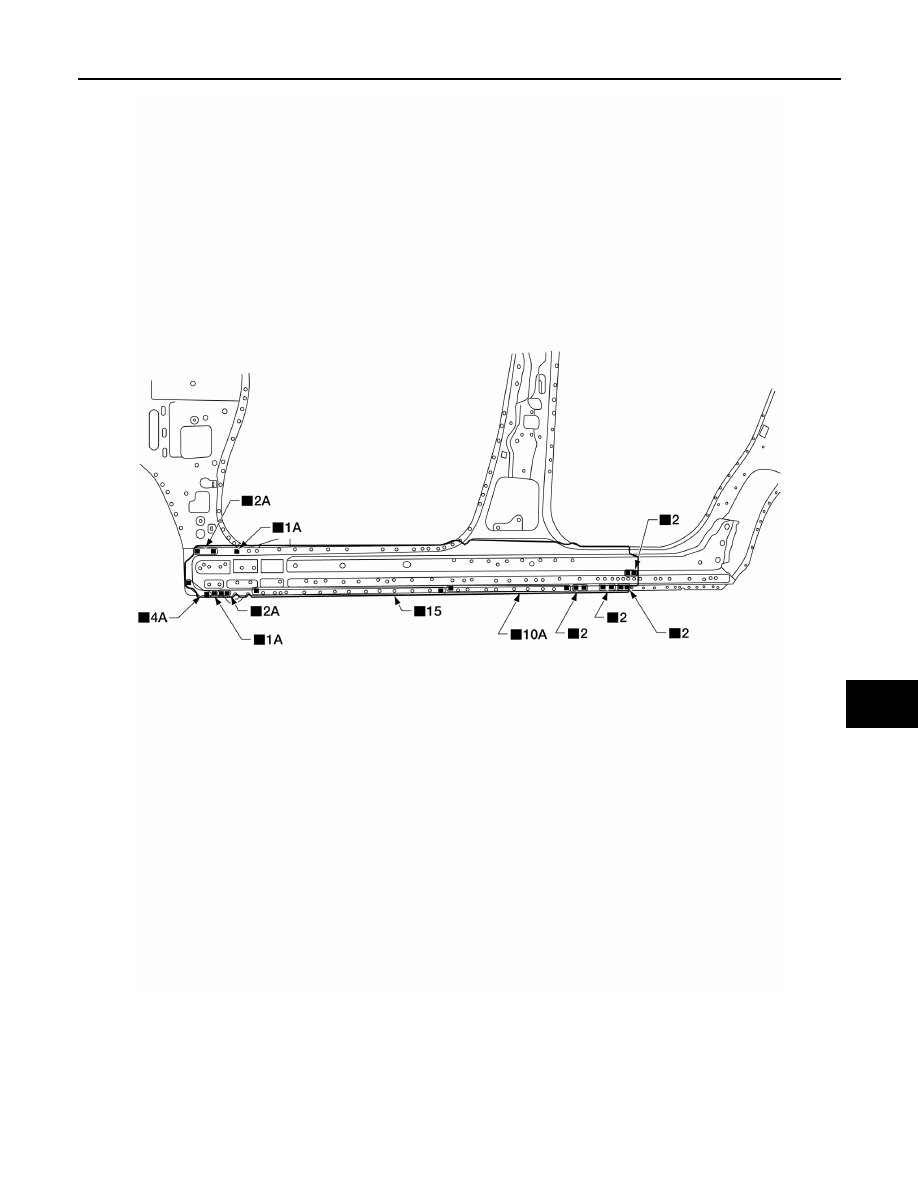

Outer sill reinforcement

ALKIA2453ZZ

BRM-38

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Fender

INFOID:0000000009176383

Replacement parts

z

Rear fender

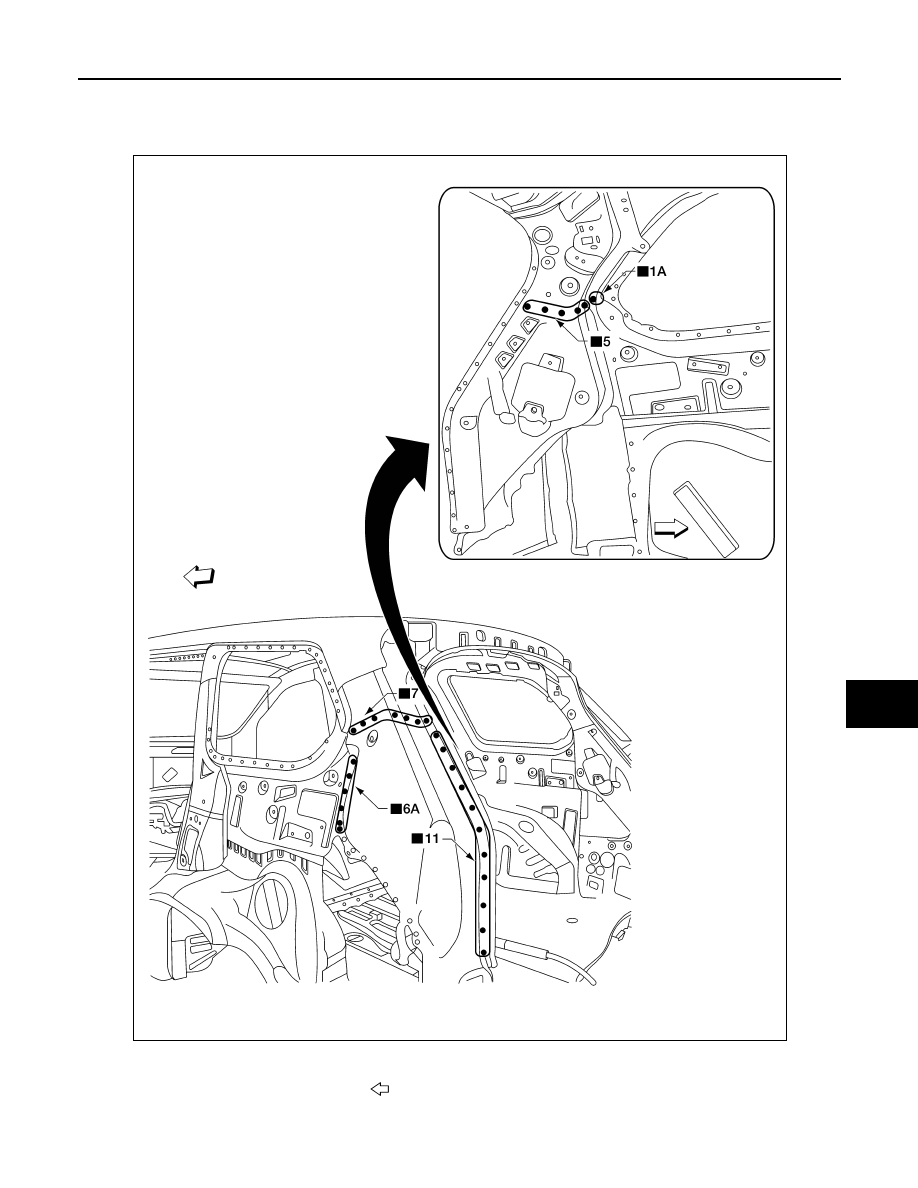

A. Recommended sectioning location

Front

ALKIA2831ZZ

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Body Side Inner Assembly

INFOID:0000000009176384

• Work after rear body side outer has been removed.

Replacement parts

z

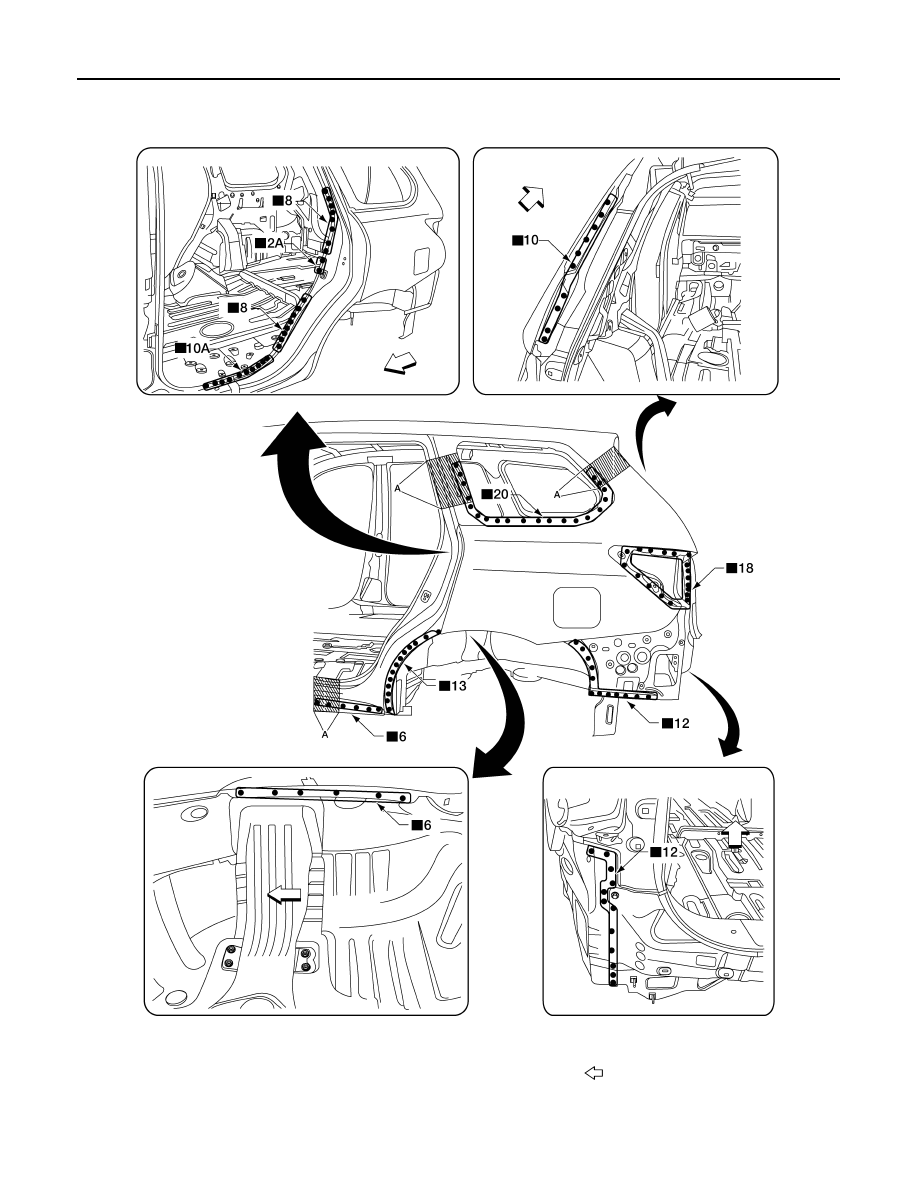

Rear pillar assembly

Front

ALKIA2838ZZ

BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Floor Rear

INFOID:0000000009176385

• Work after rear panel assembly has been removed.

Replacement parts

z

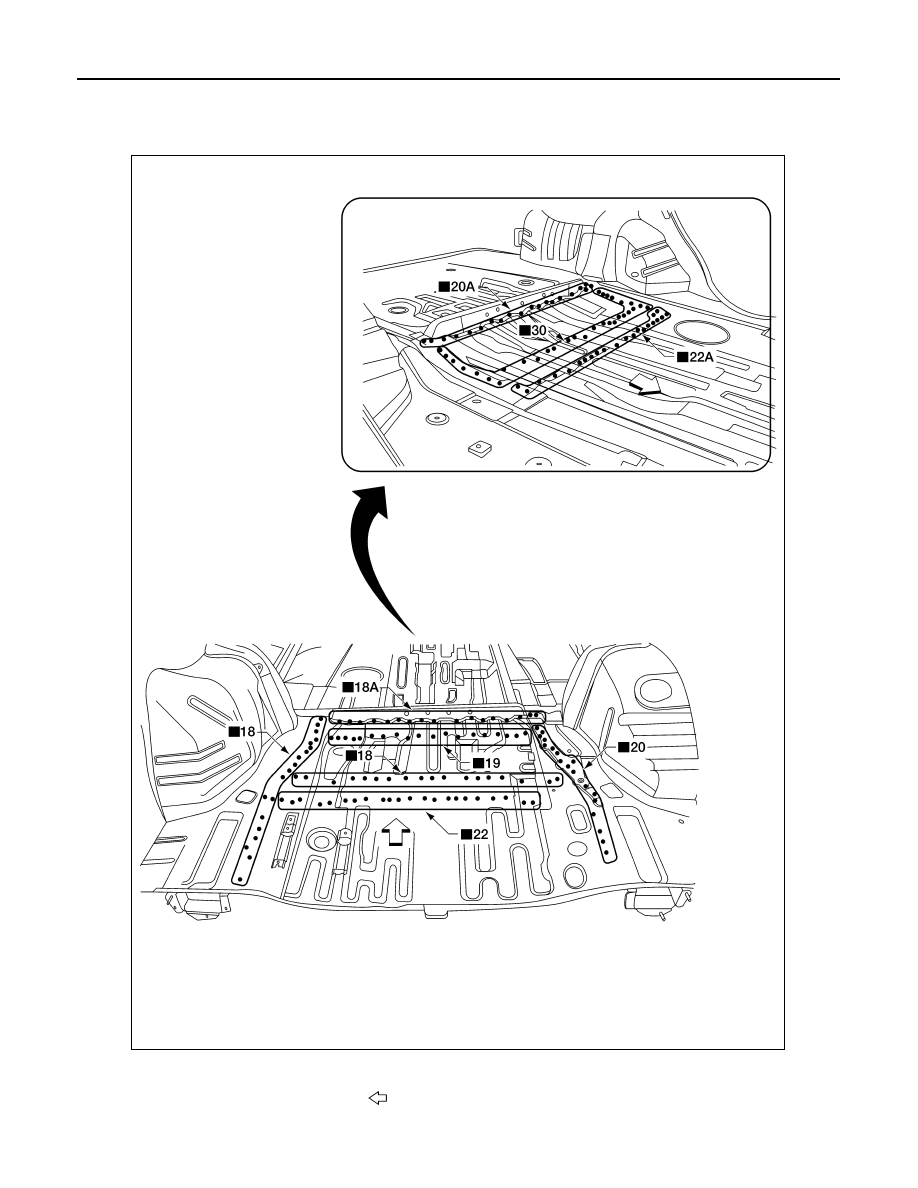

Rear floor rear

Front

ALKIA2843ZZ
