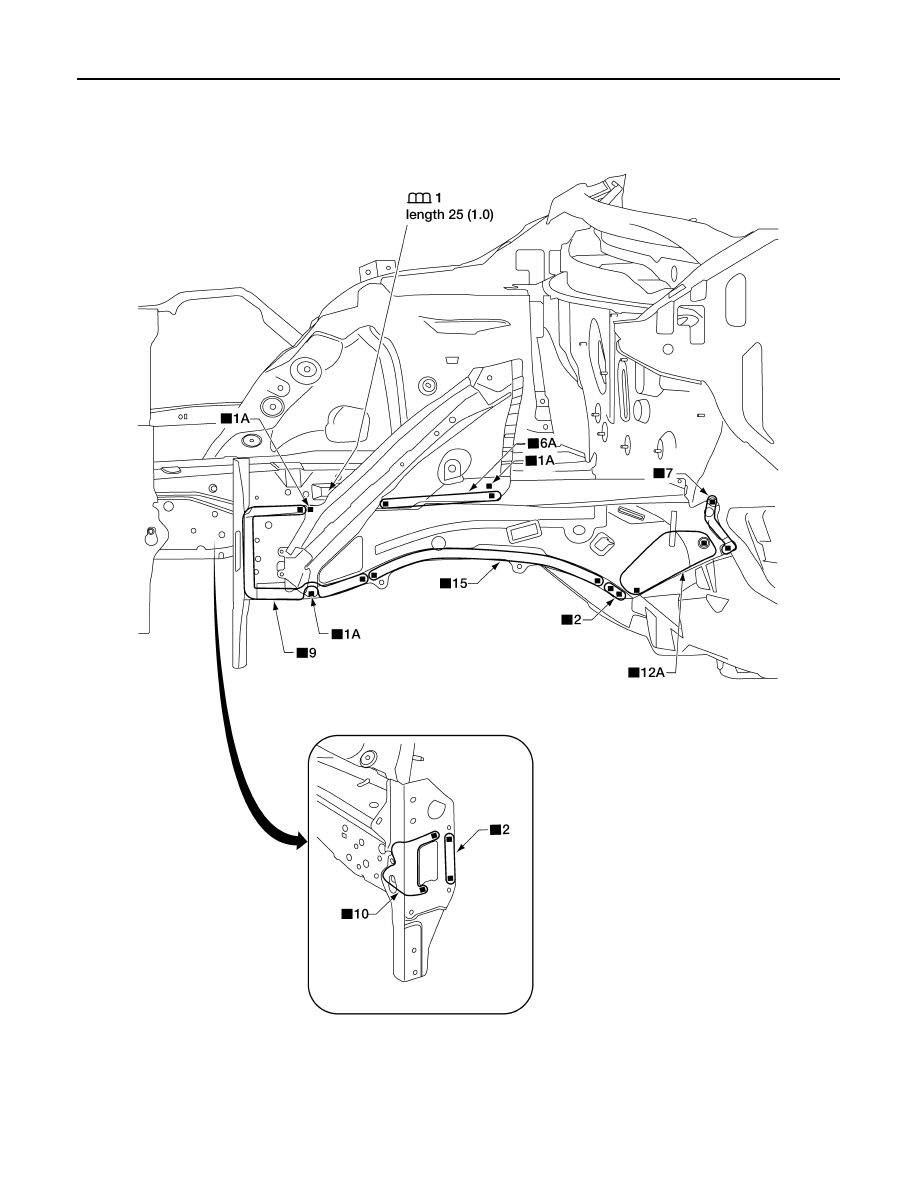

Hoodledge

INFOID:0000000009176377

Replacement parts

z

Front suspension spring support

z

Hoodledge reinforcement

z

Upper radiator core support

Front

ALKIA2750ZZ

BRM-30

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

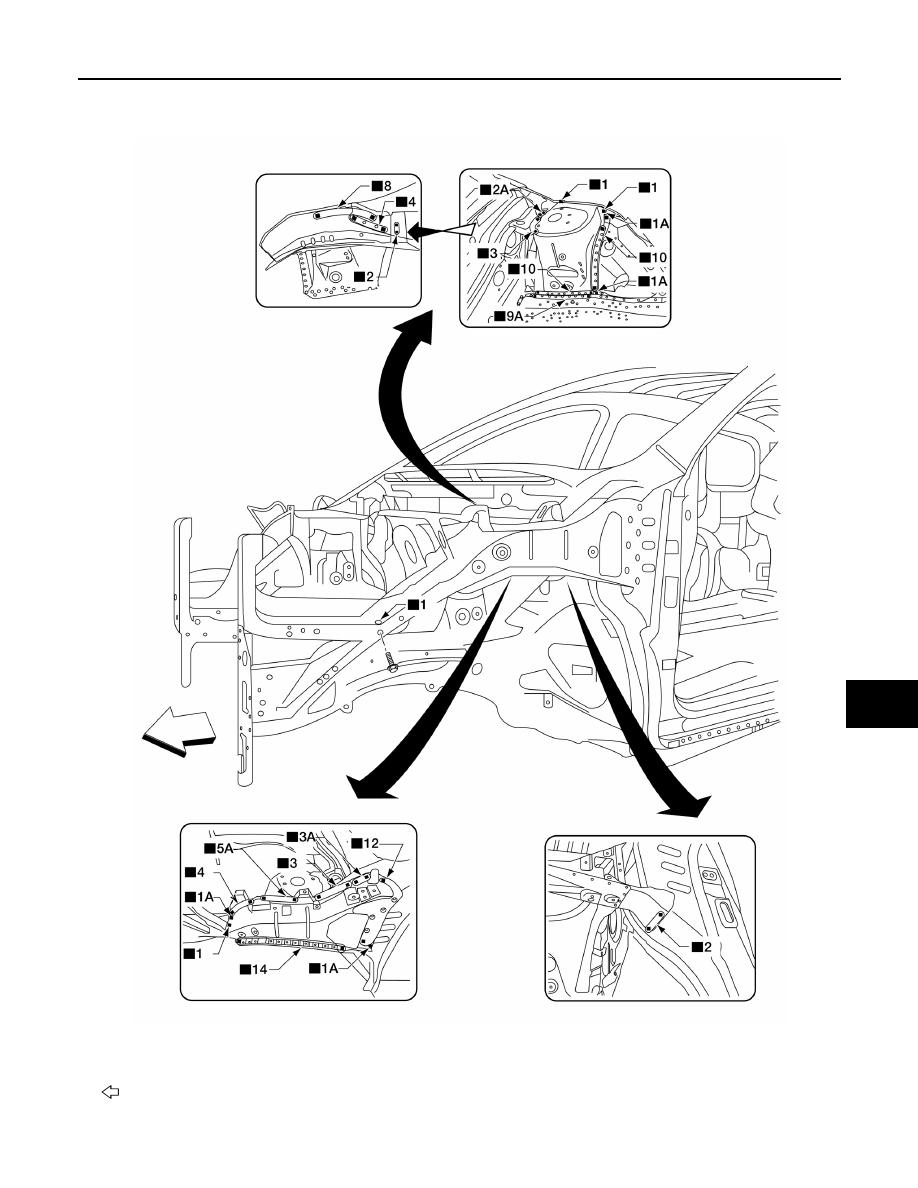

Front Side Member (Partial Replacement)

INFOID:0000000009176378

Work after the hoodledge has been removed.

Unit: mm (in)

Replacement parts

z

Front side member

z

Closing plate assembly

z

Radiator core side support

AWKIA2143ZZ

REPLACEMENT OPERATIONS

BRM-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

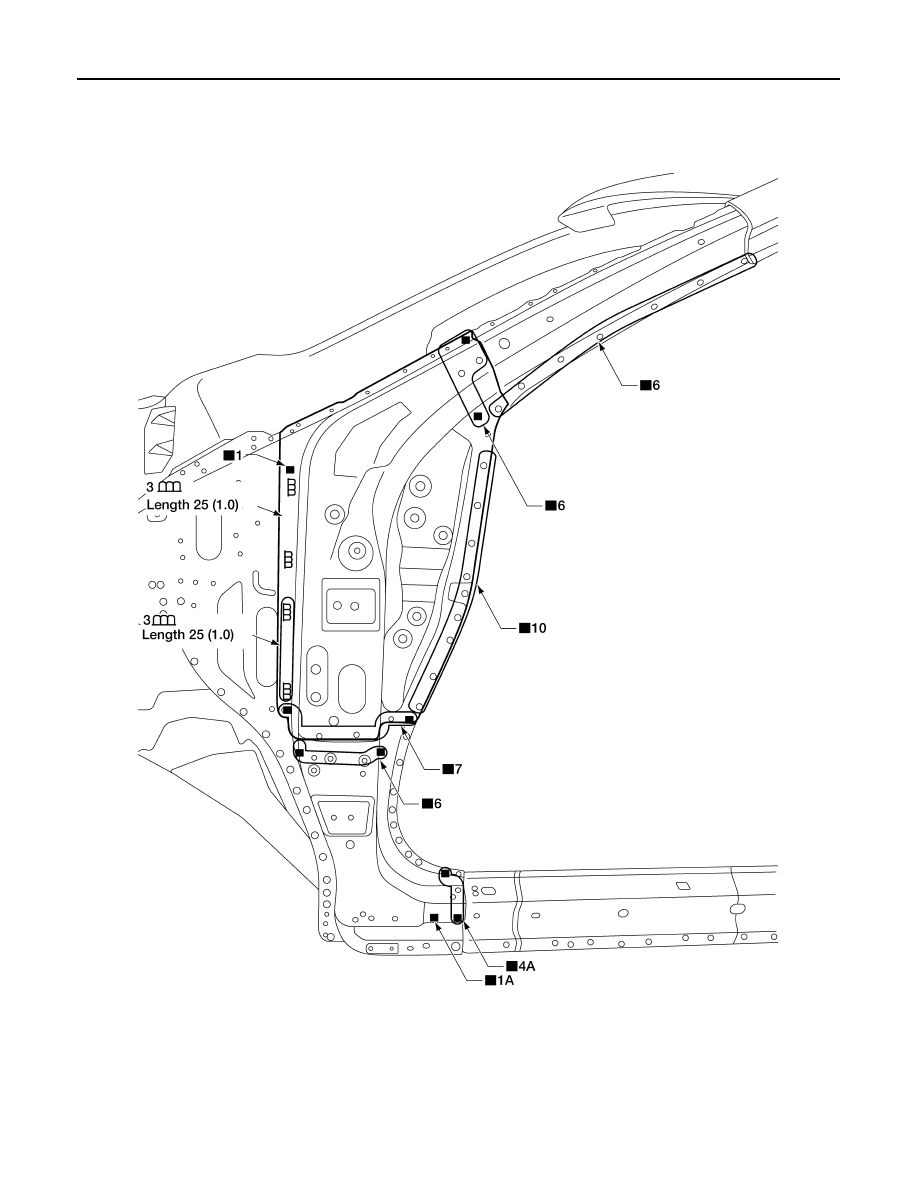

Front Pillar

INFOID:0000000009176379

OUTER

• Work after the upper hoodledge has been removed.

Replacement parts

z

Front pillar section of front body side outer

A. Recommended sectioning location

ALKIA2752ZZ

BRM-32

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

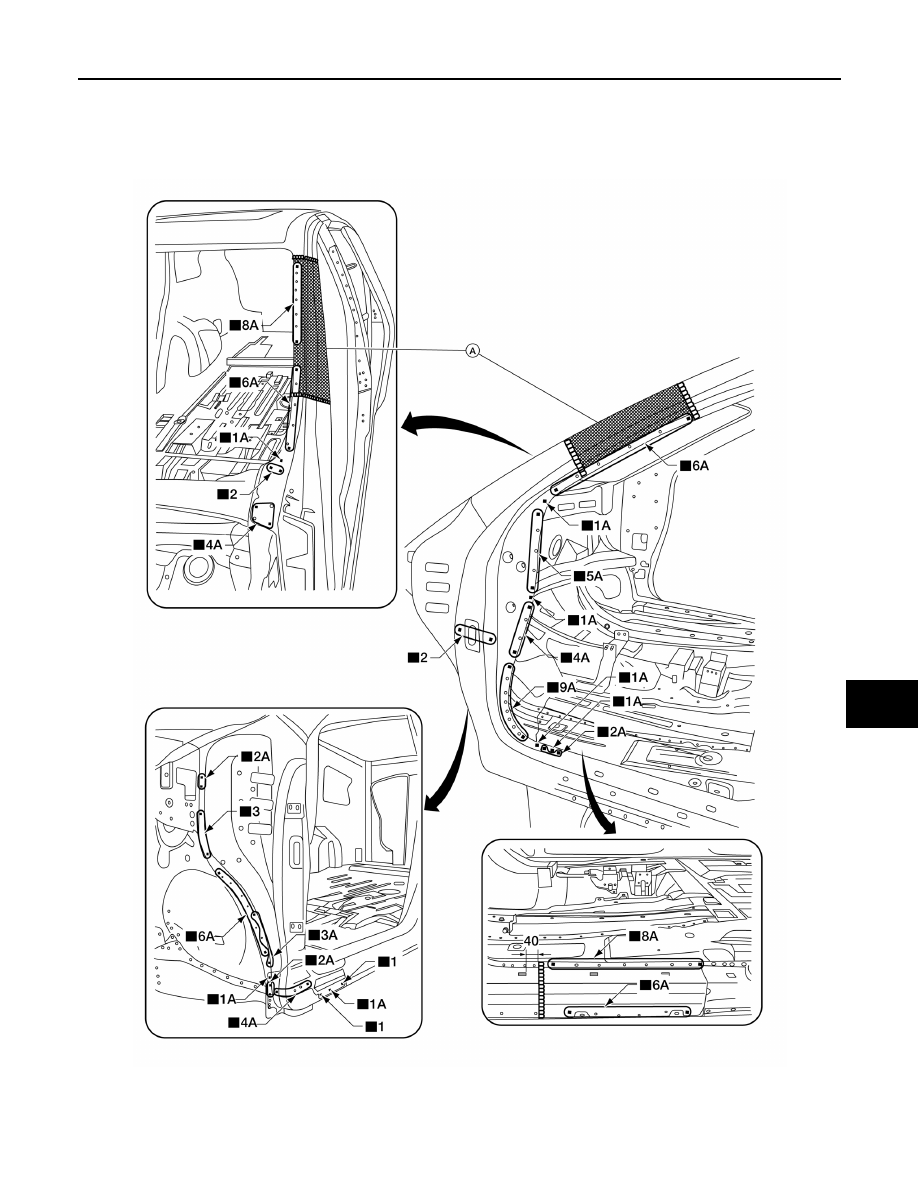

HINGE PILLAR BRACE

Upper

• Work after front pillar outer has been removed.

Unit: mm (in)

Lower

Replacement parts

z

Front pillar upper hinge brace

AWKIA2144ZZ
